www.GEAppliances.com

Safety Instructions .... 2-9

Operaffng Instructions

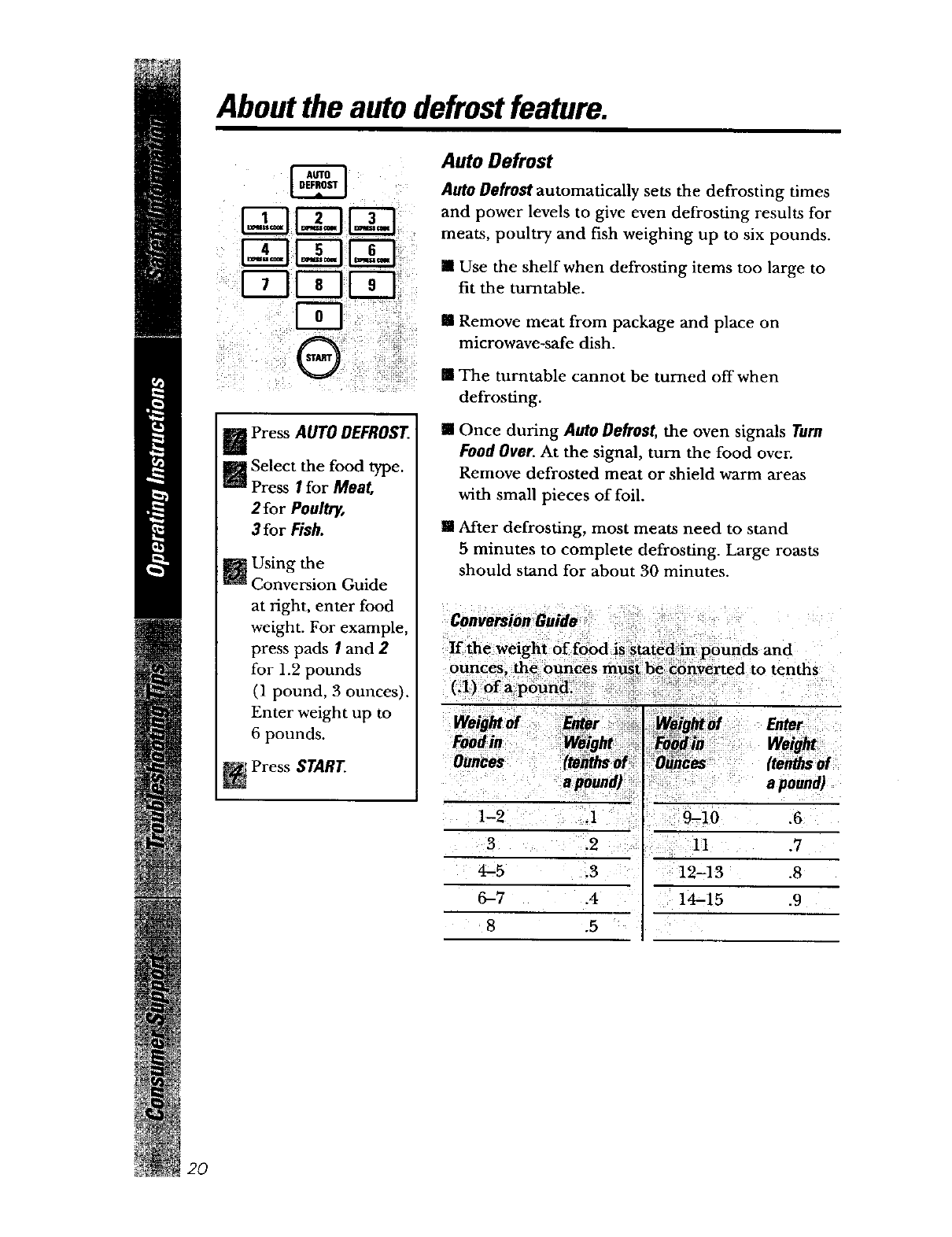

Auto Defrost Feature . .20

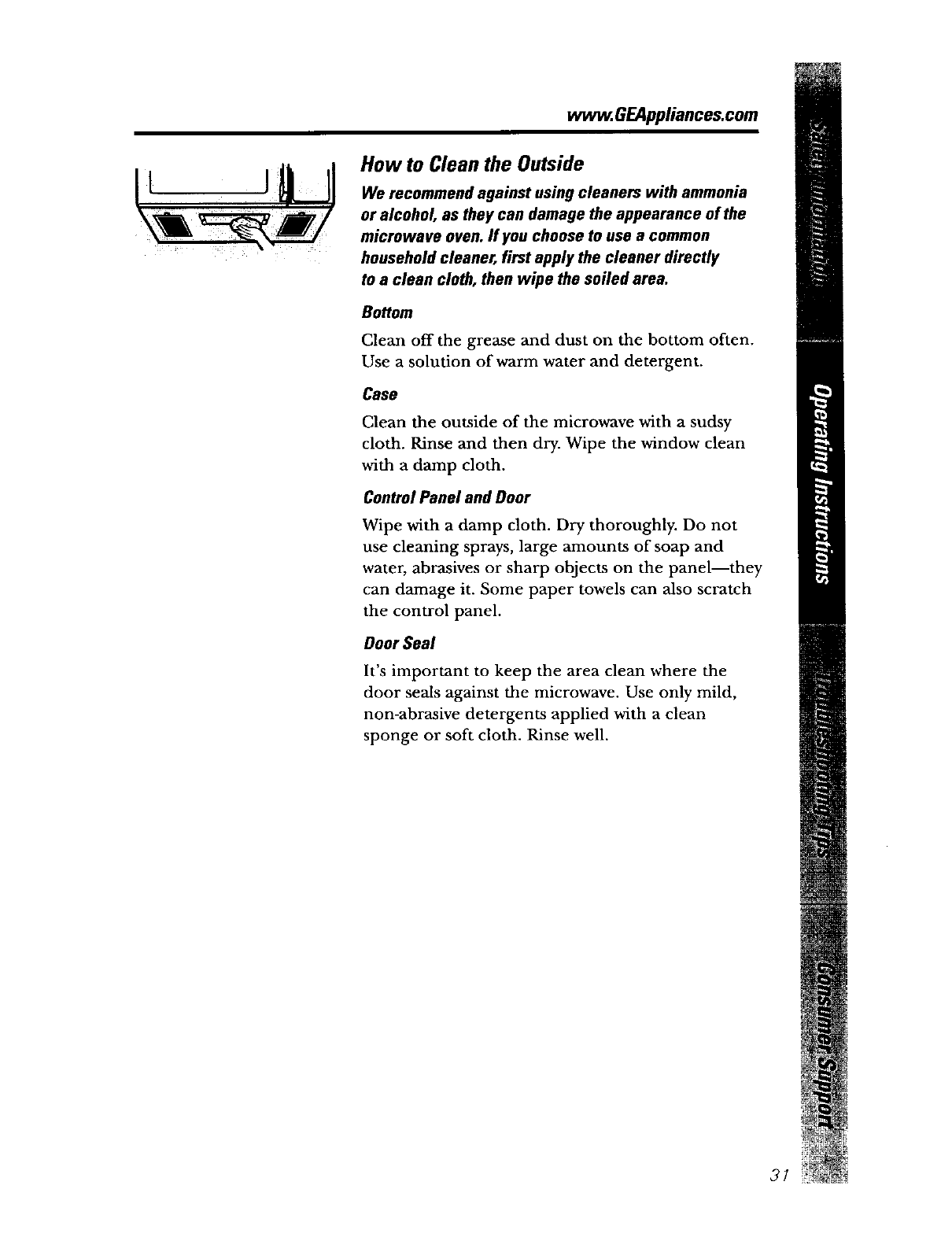

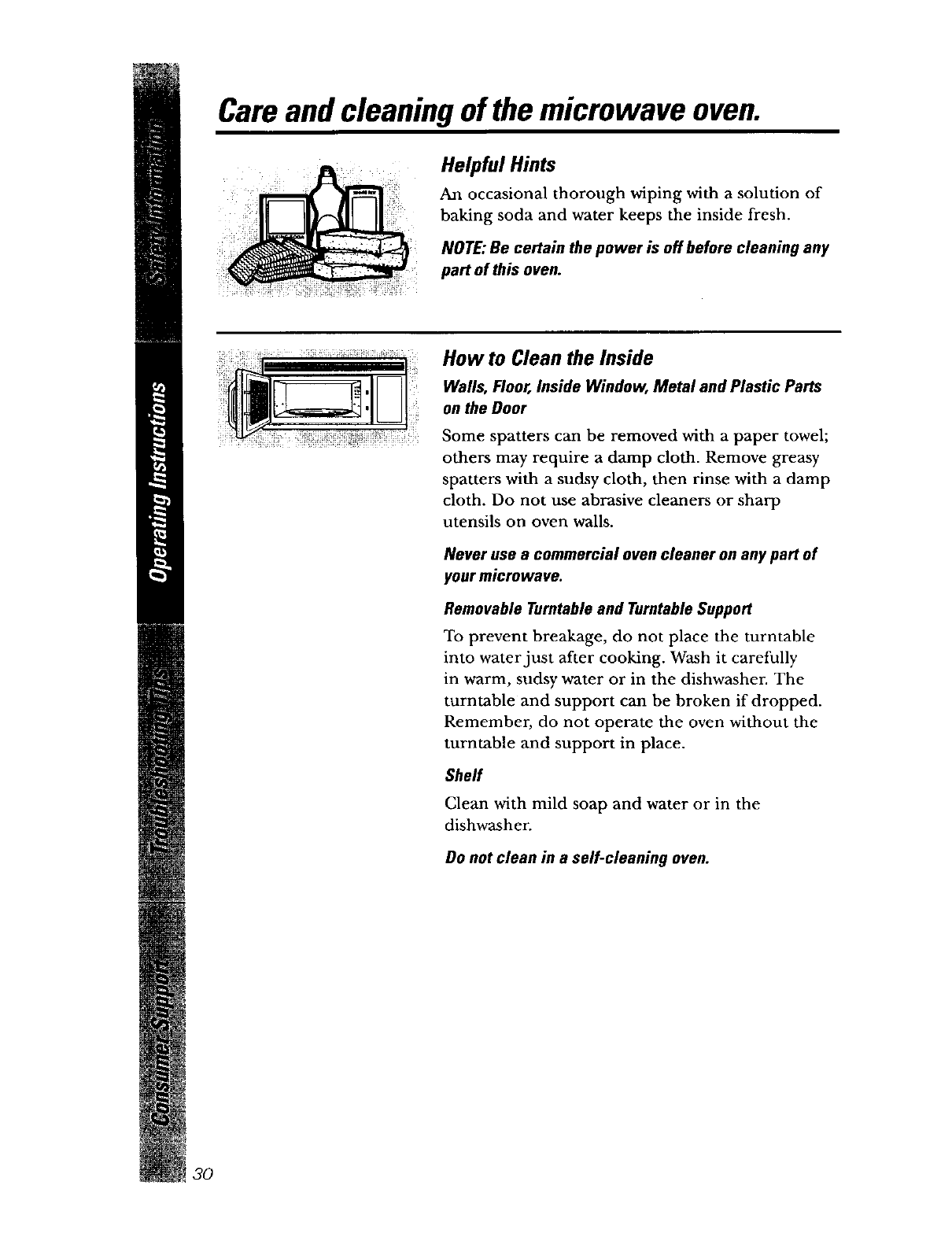

Care and

Cleaning ......... 30, 31

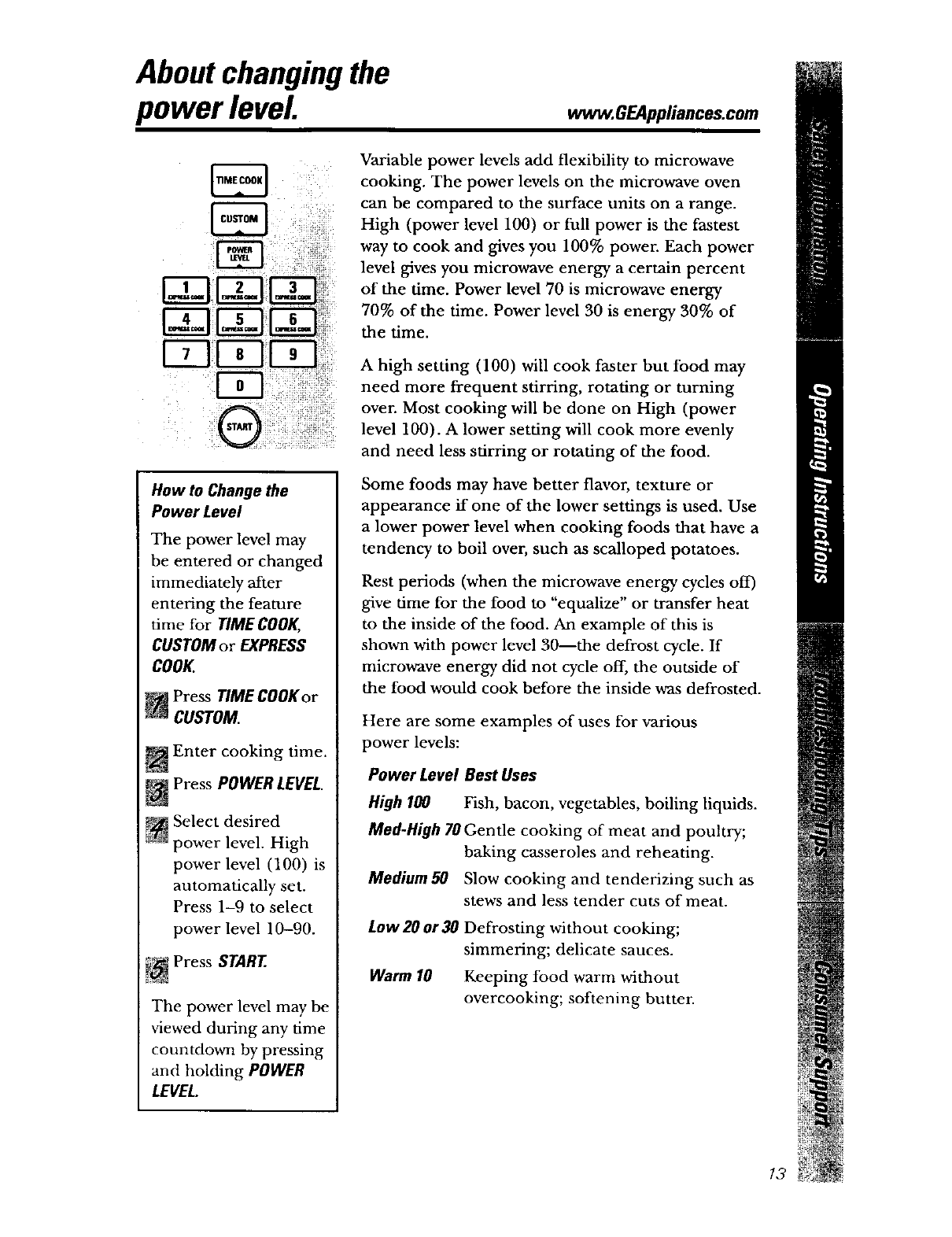

Changing the

Power Level .......... 13

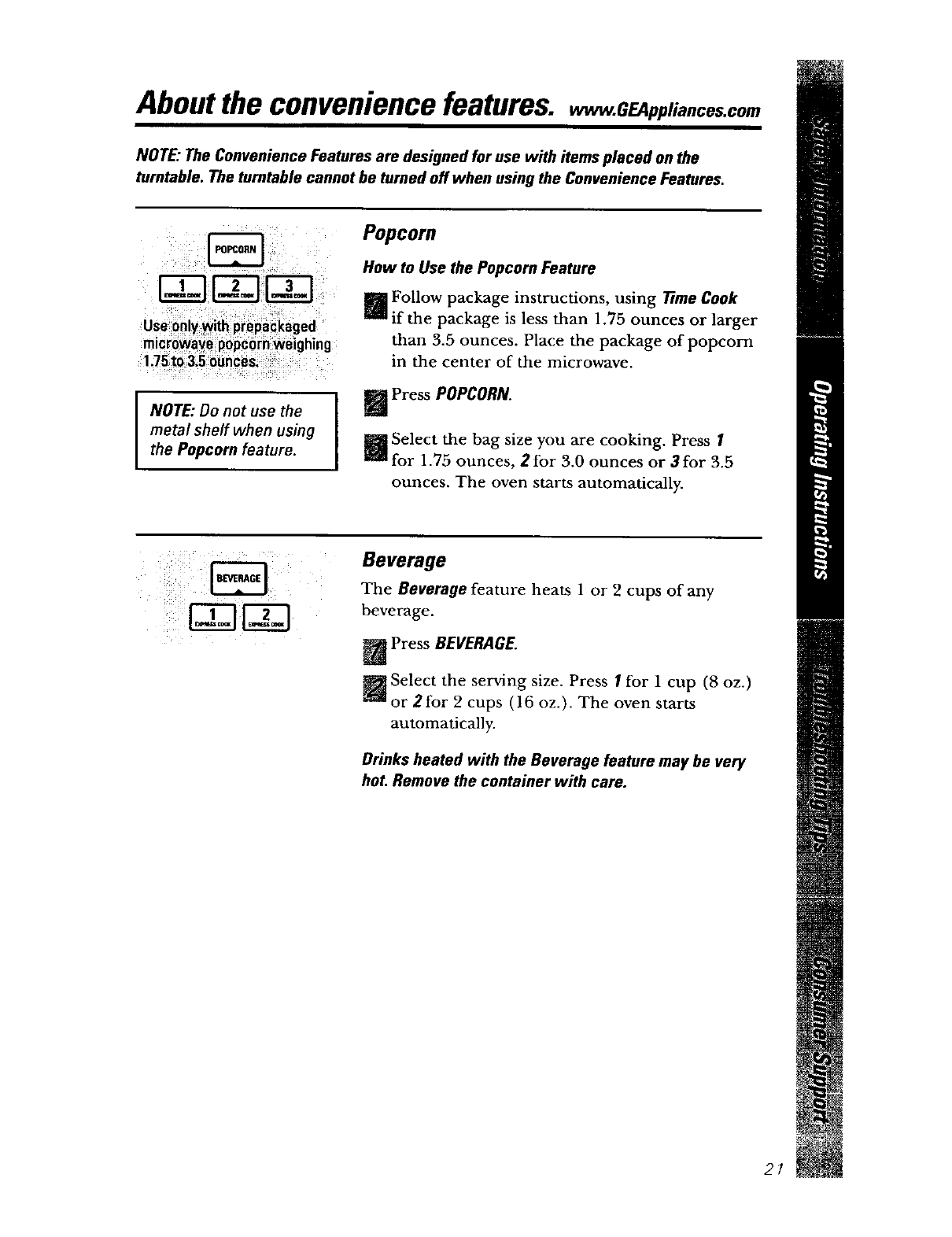

Convenience

Features .......... 21-23

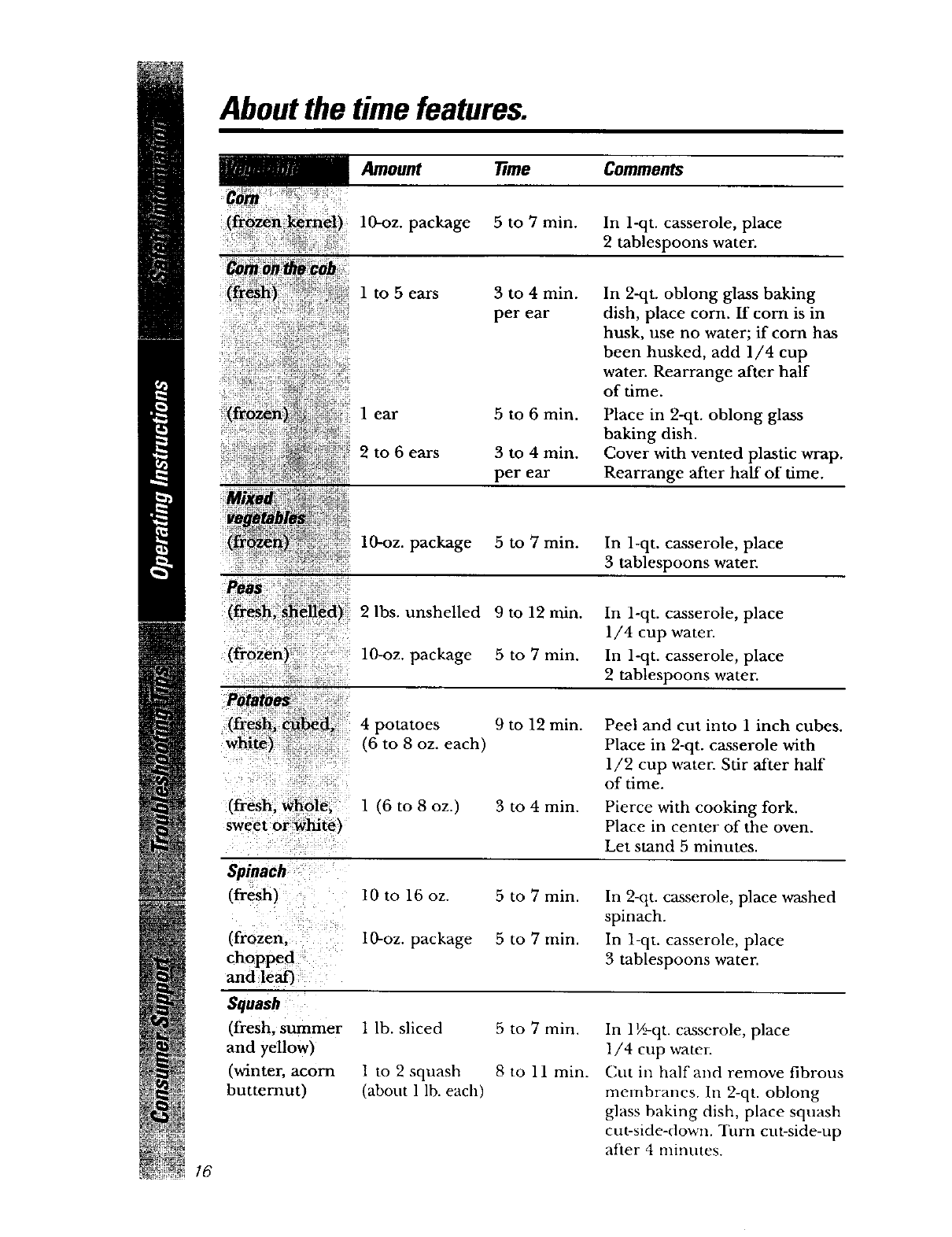

Cooking Guide .... 15, 16

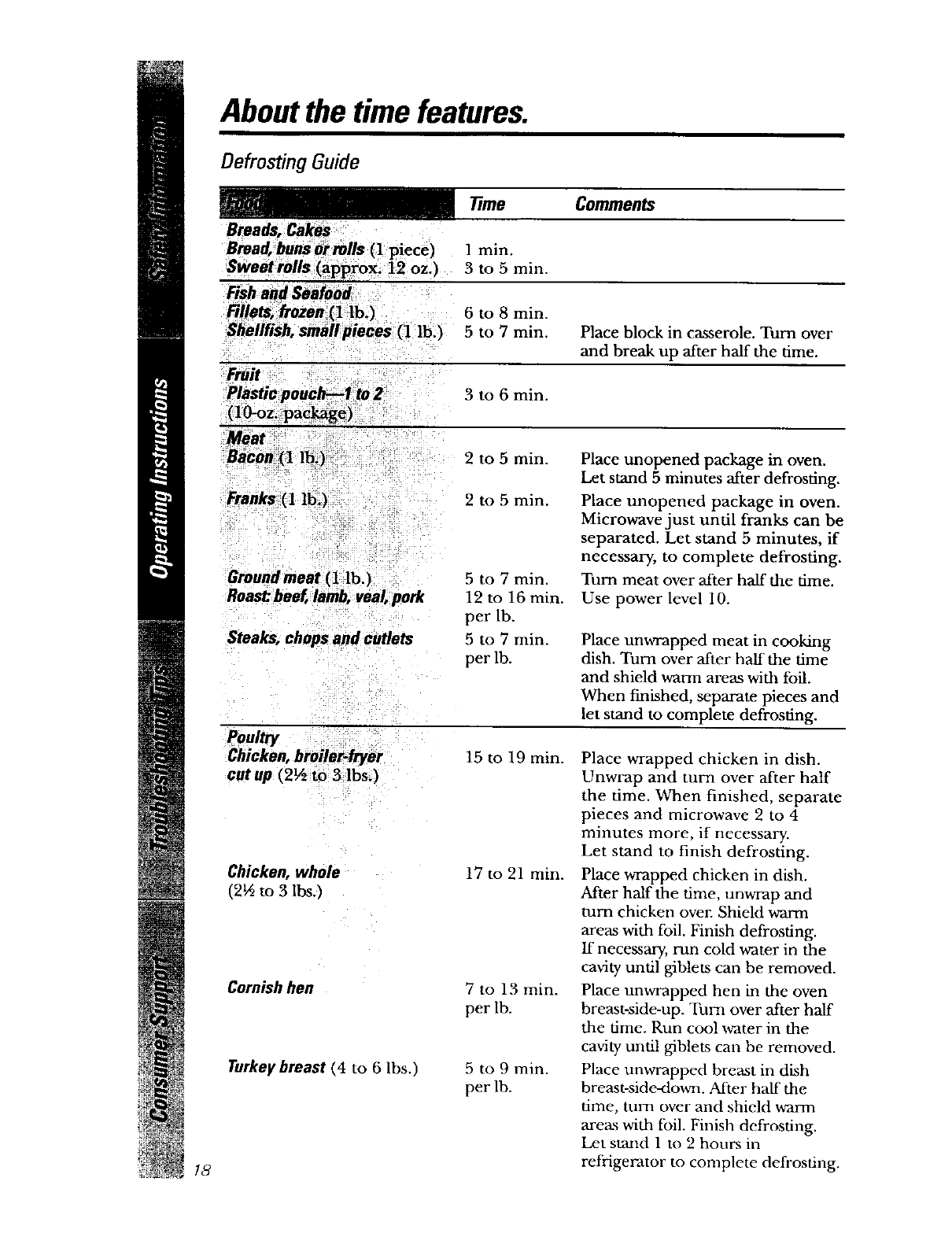

Defrosting Guide ..... 18

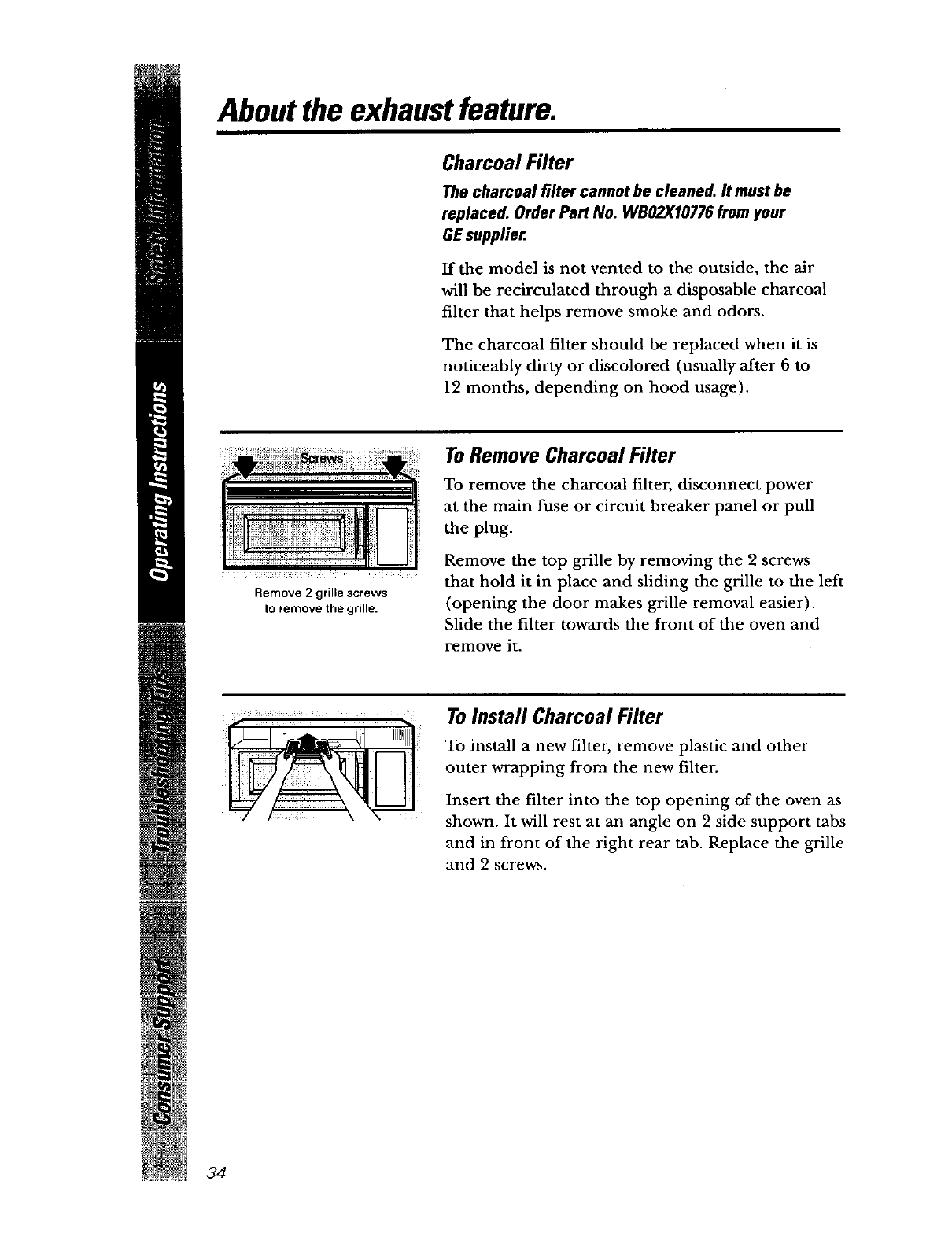

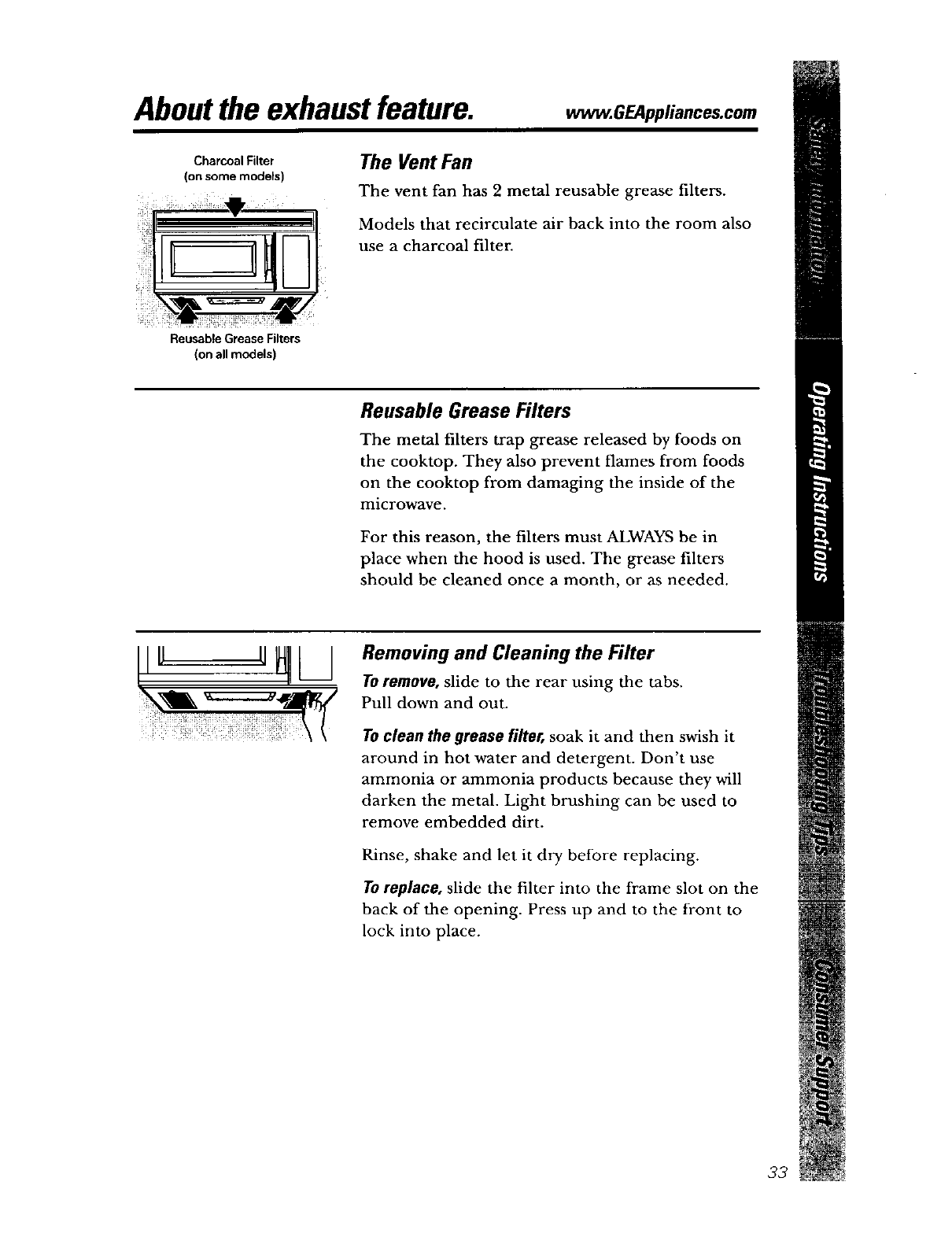

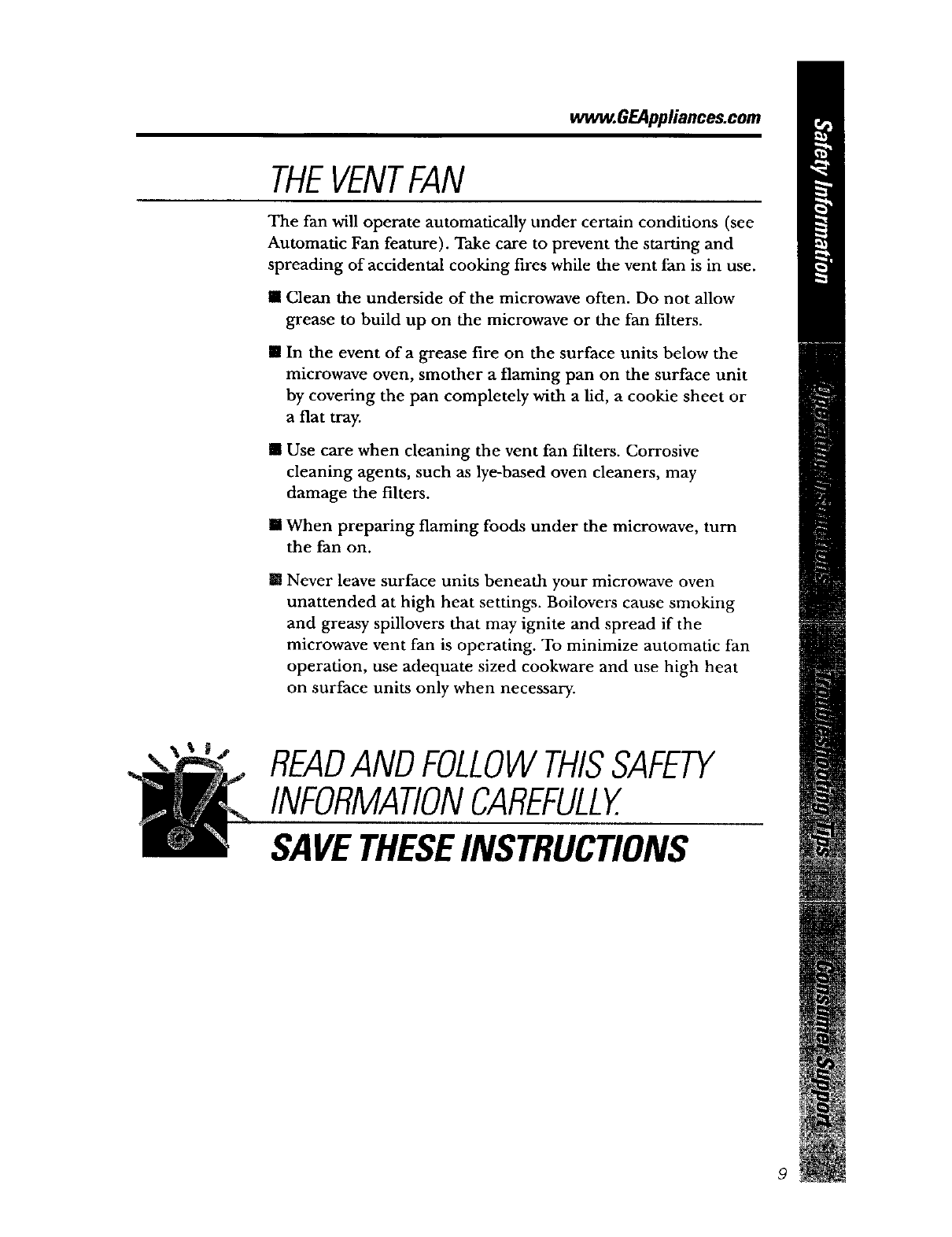

Exhaust Feature ...33, 34

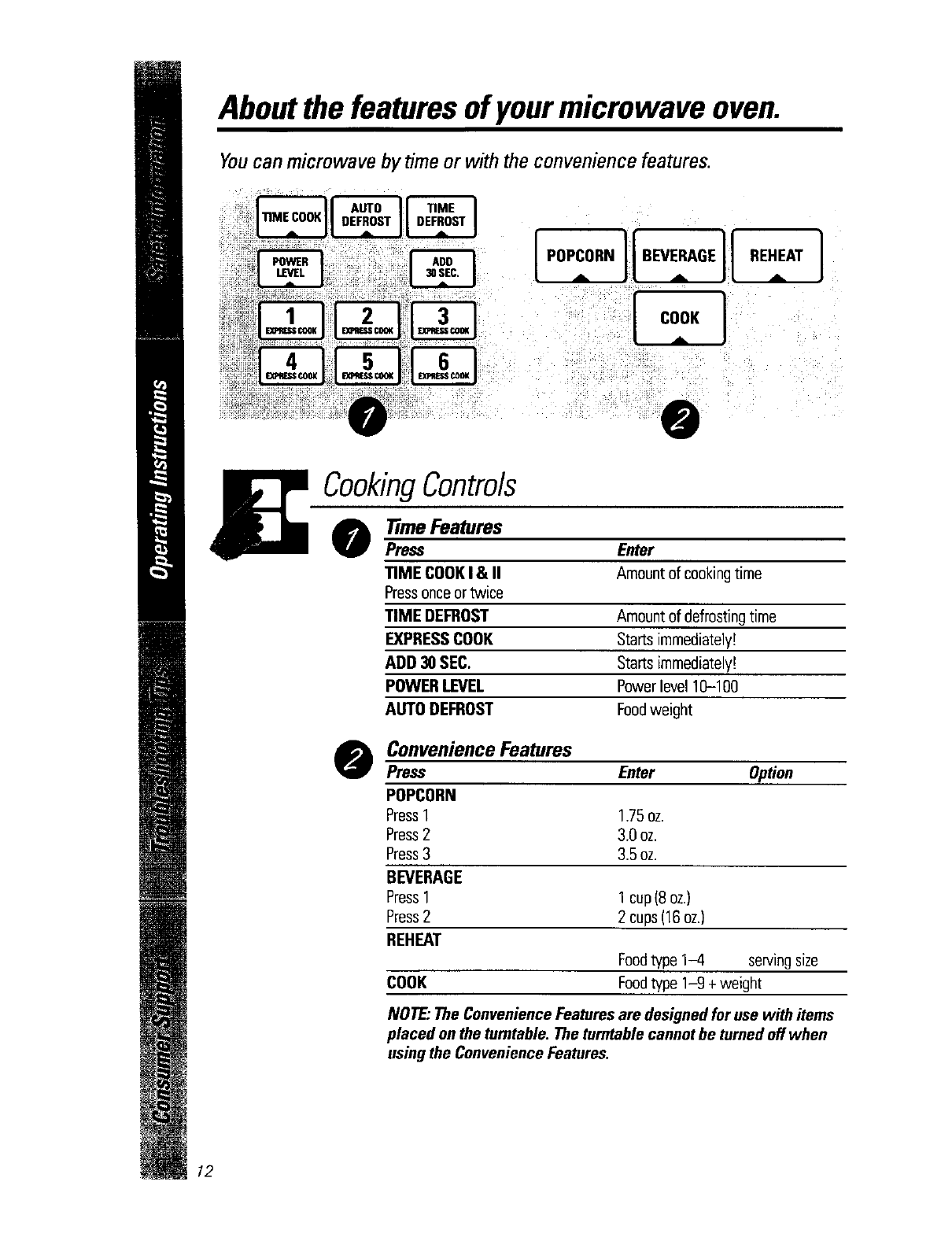

Features of Your

Microwave Oven ...11, 12

Microwave Terms ..... 29

Optional Kits ........ 10

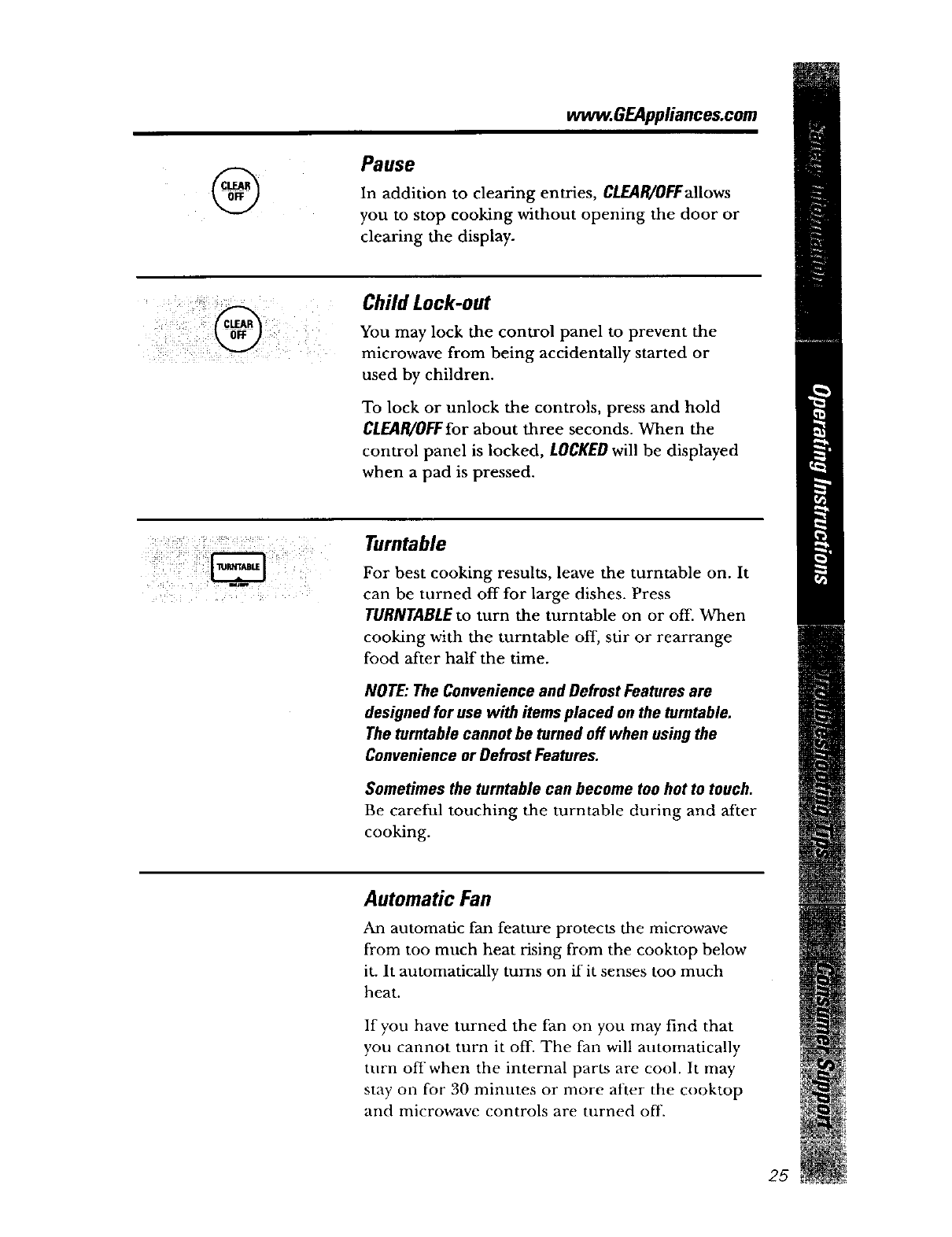

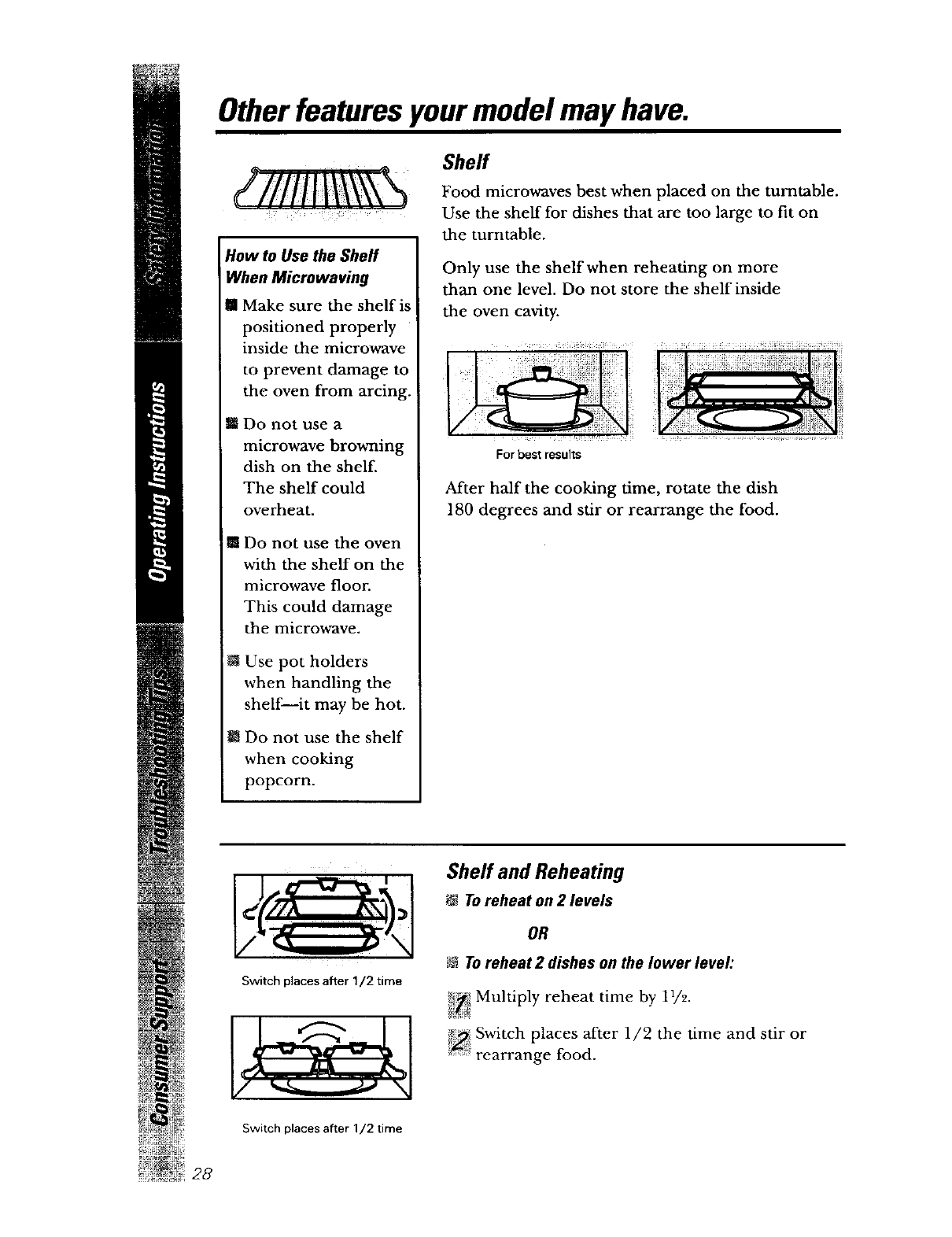

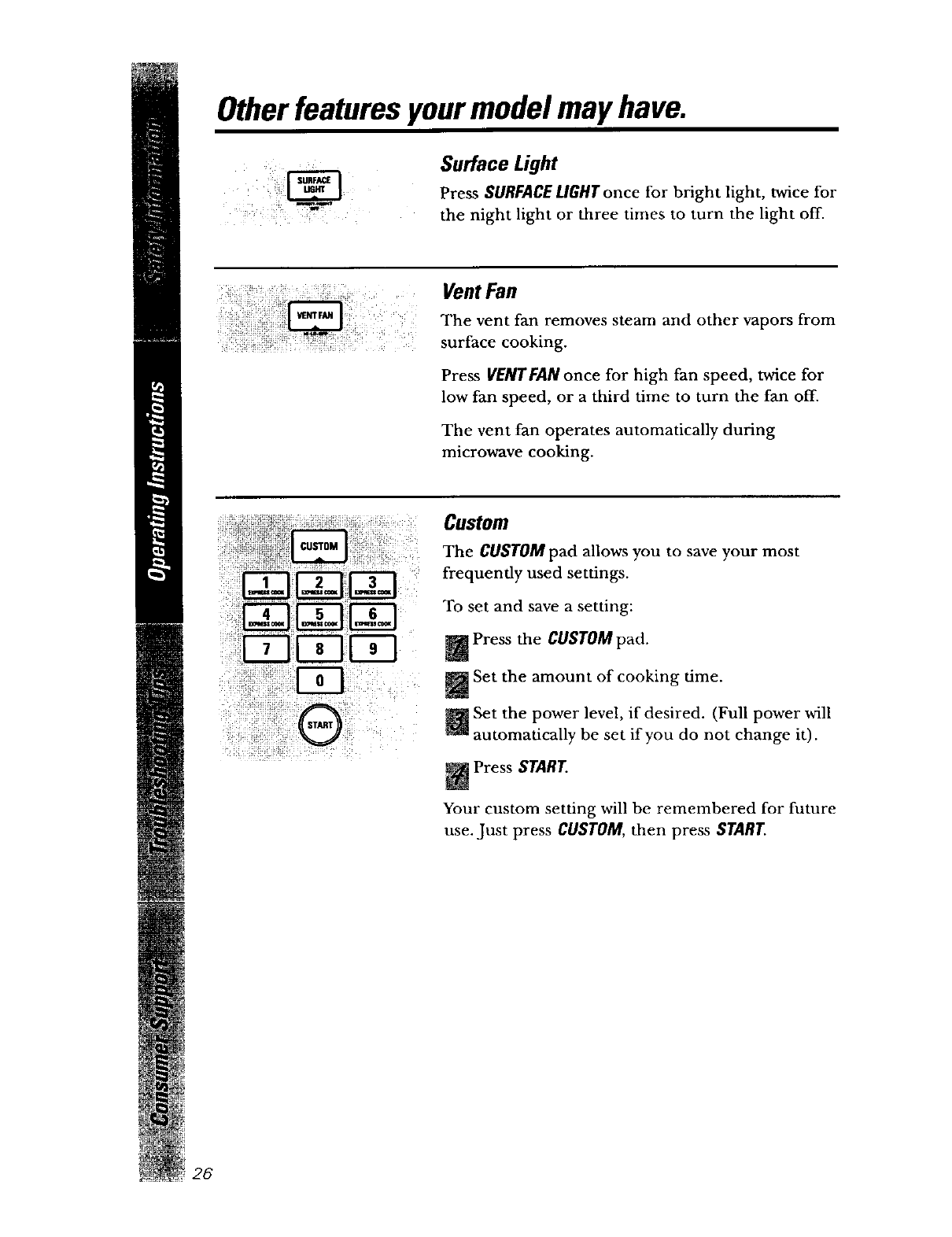

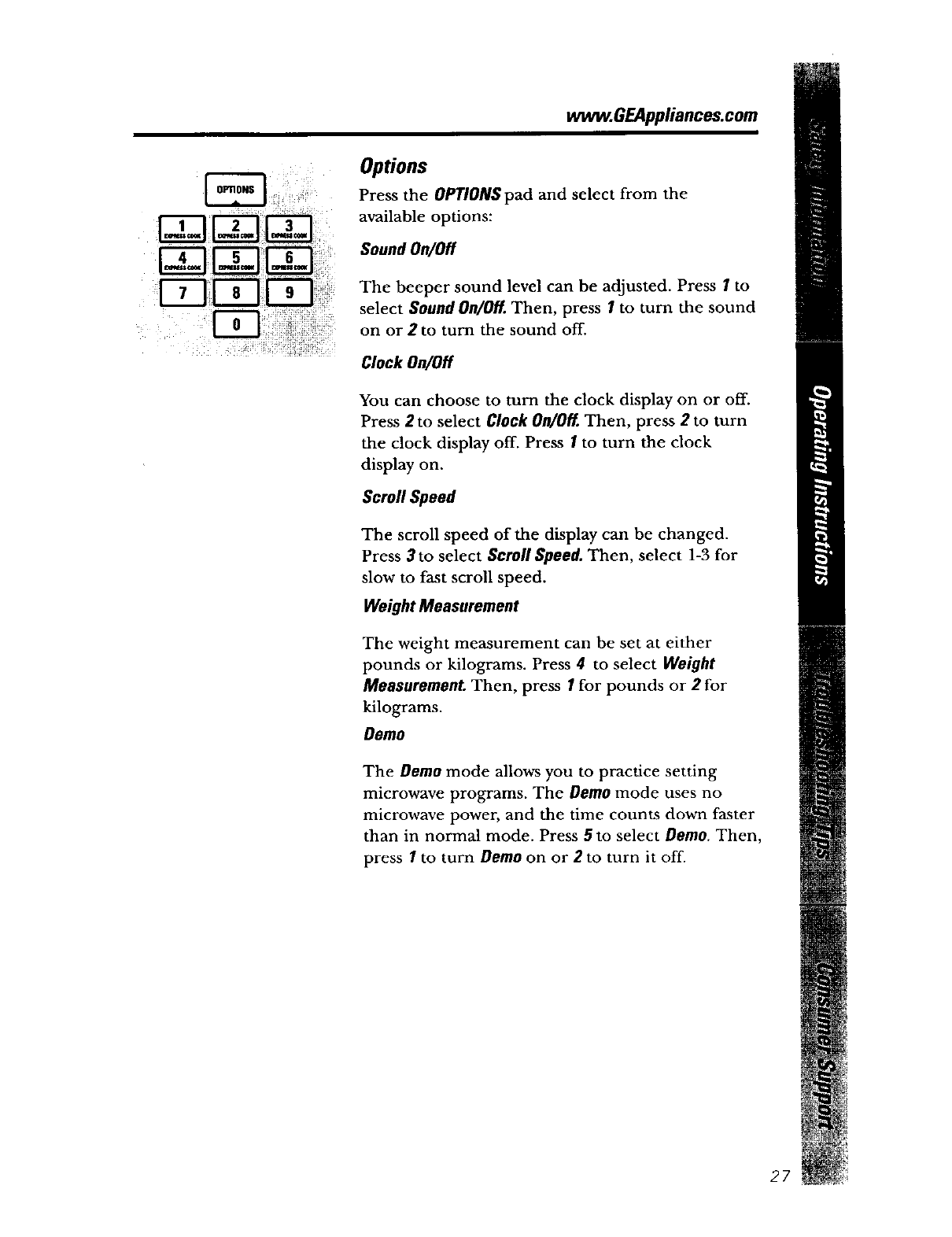

Other Features .... 24-28

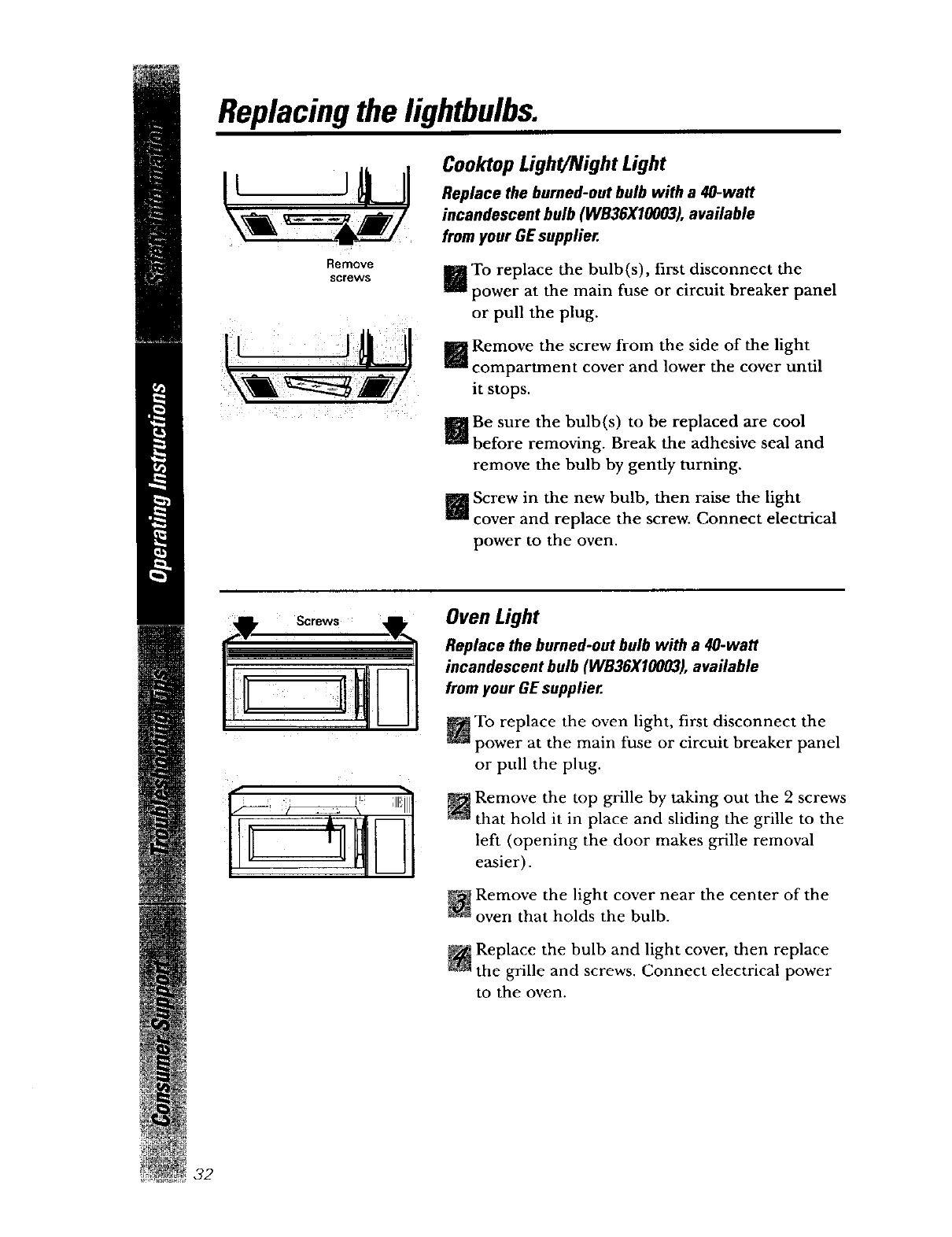

Replacing Bulbs ...... 32

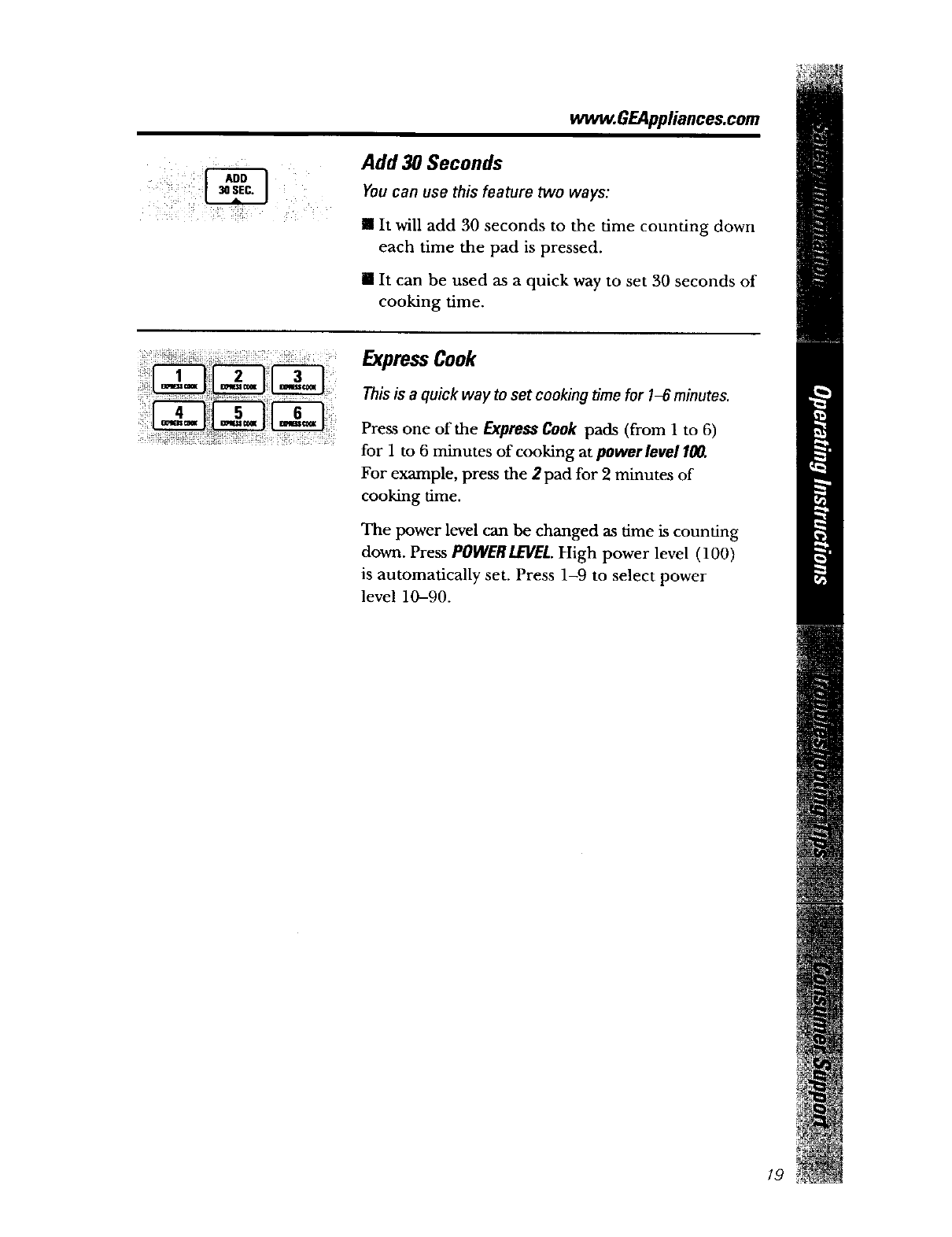

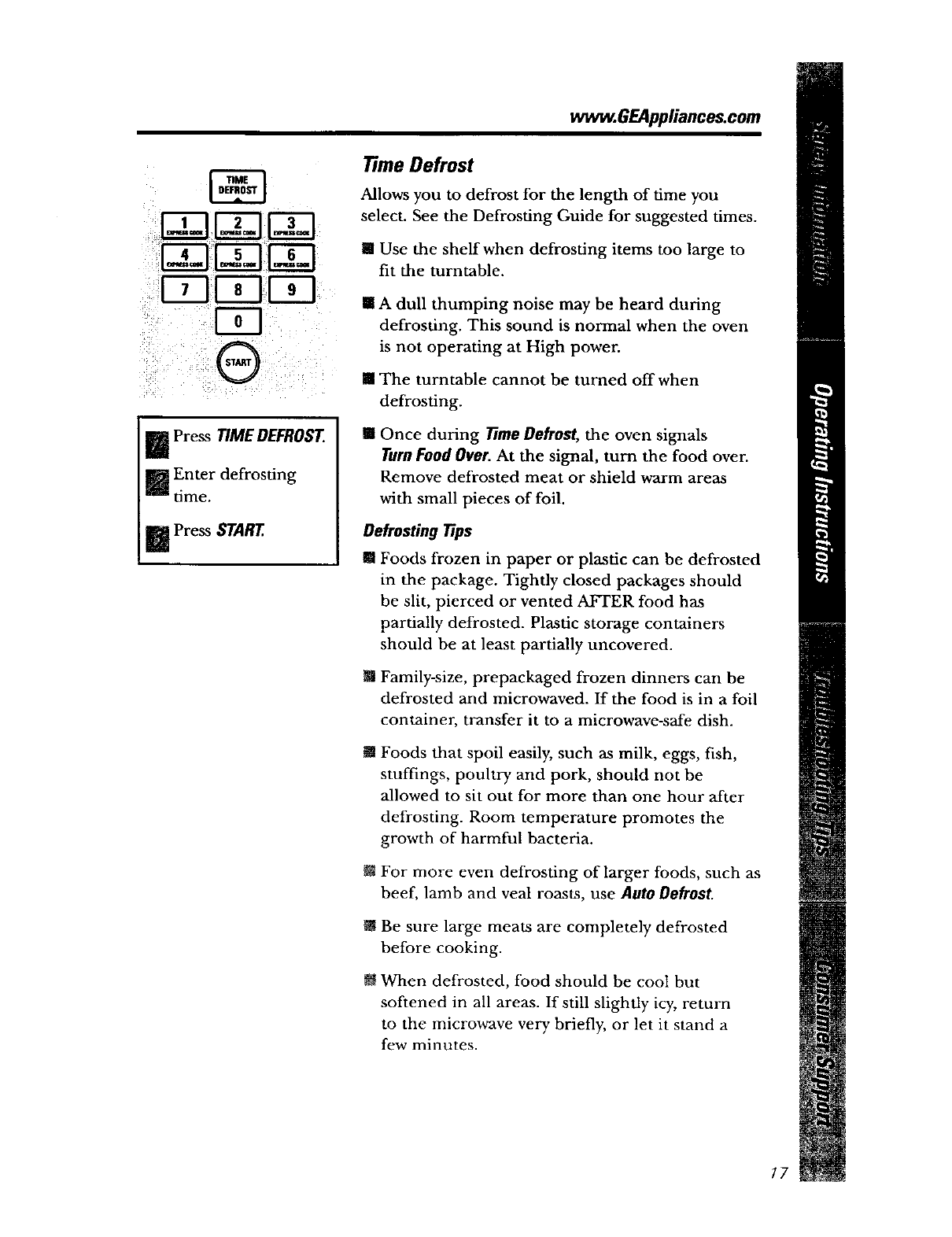

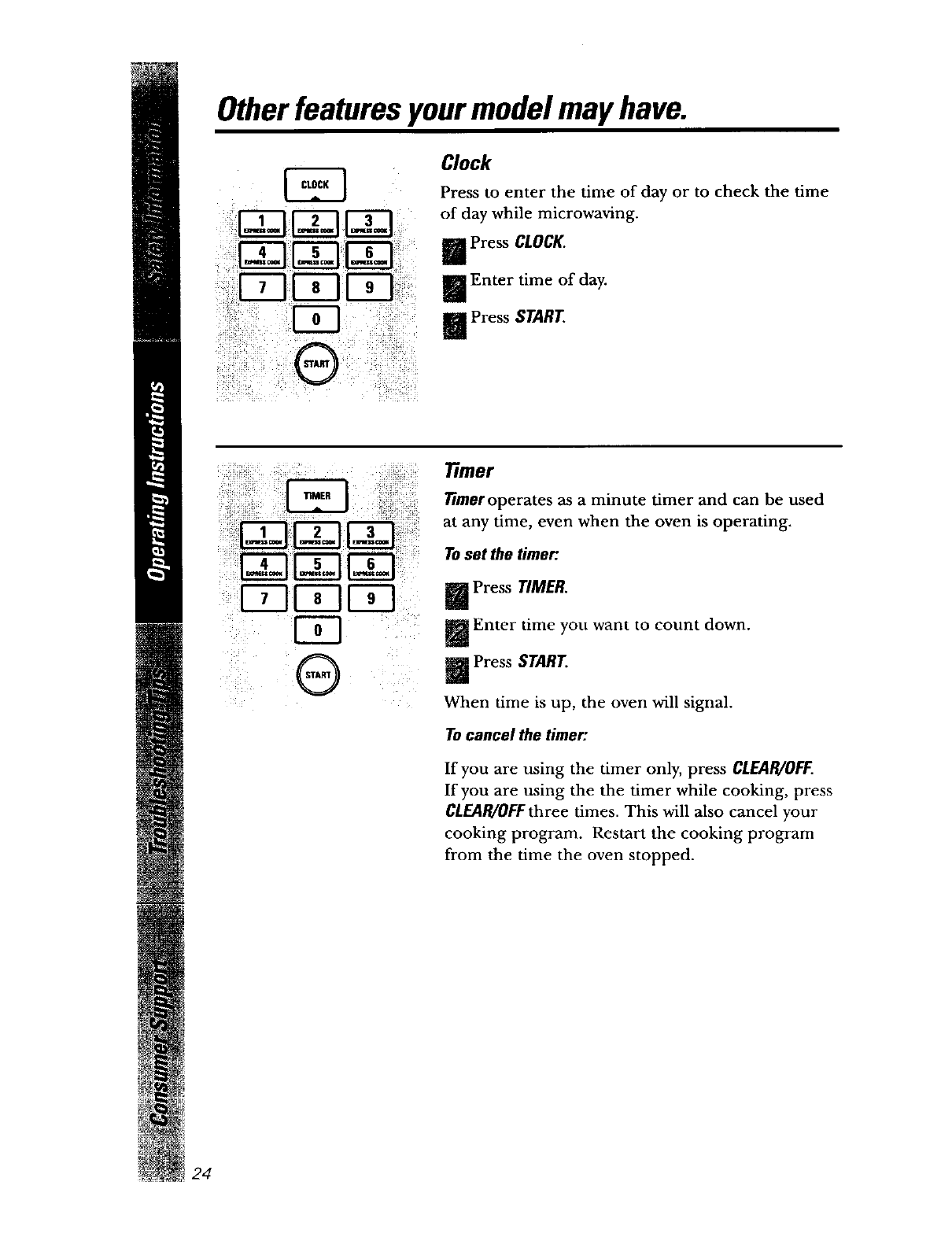

Time Features .... 14-19

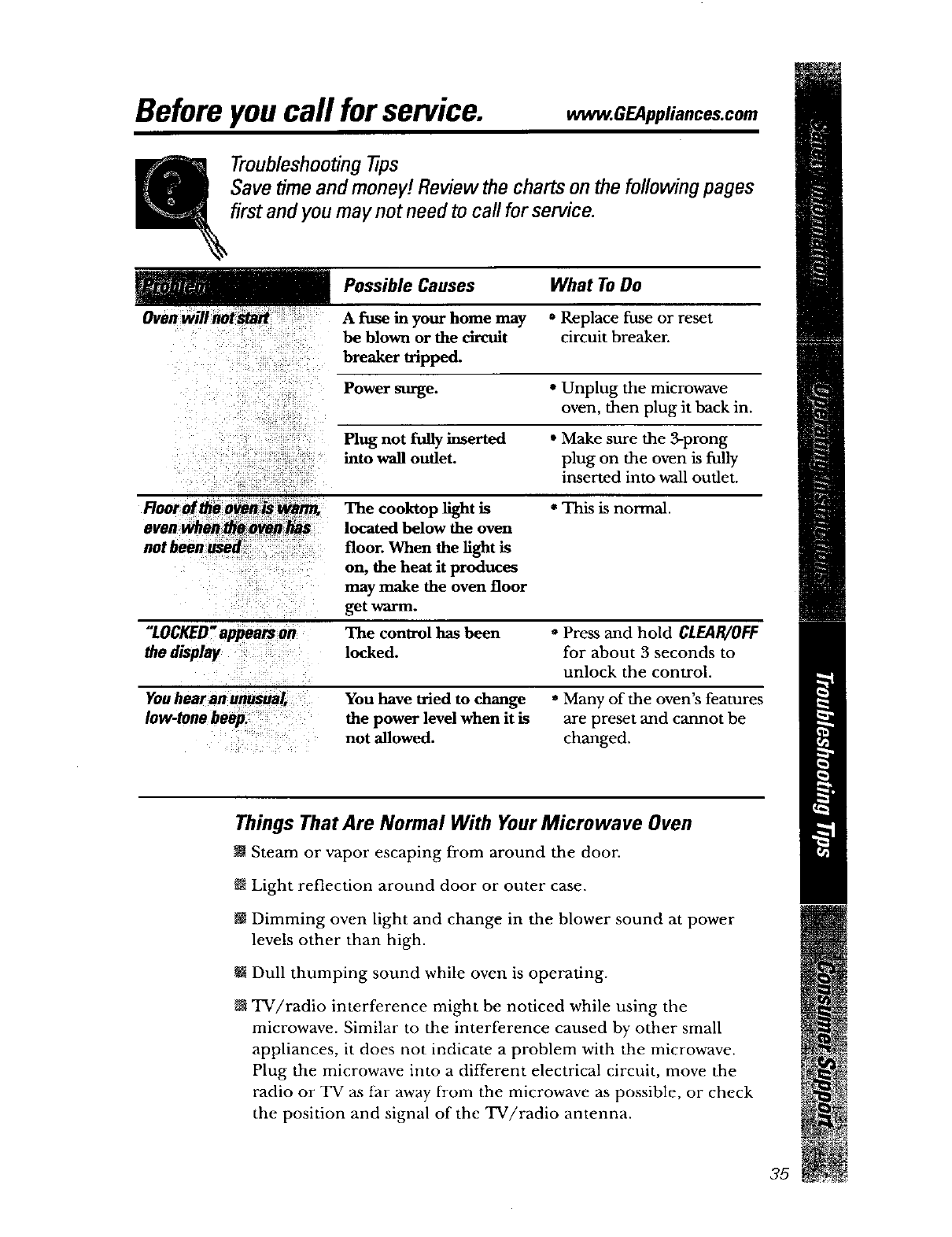

Troubleshooting Tips . .35

Things That Are

Normal With Your

Microwave Oven ...... 35

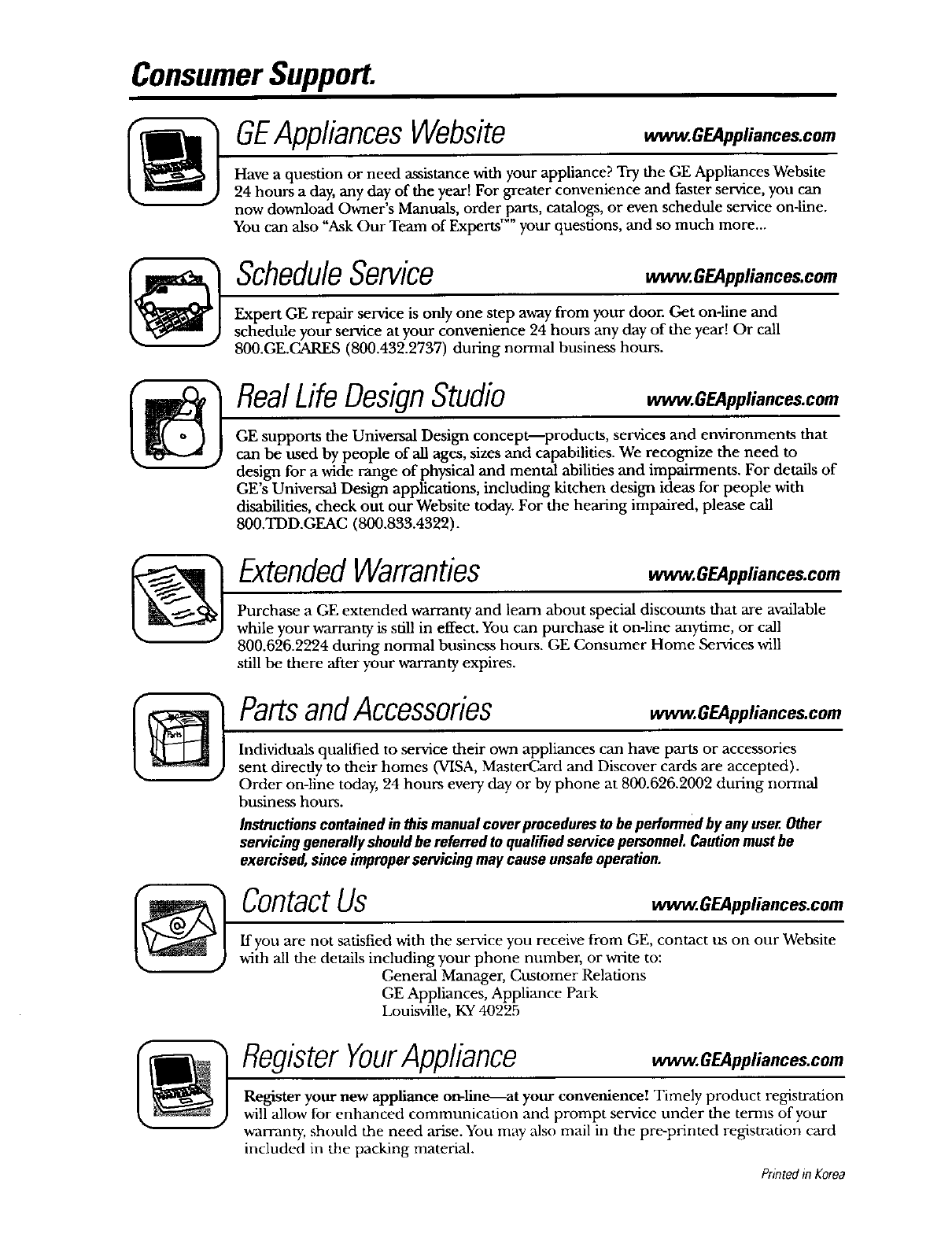

Consumer Support

Consumer

Support ...... Back Cover

Optional Kits ......... 10

Product

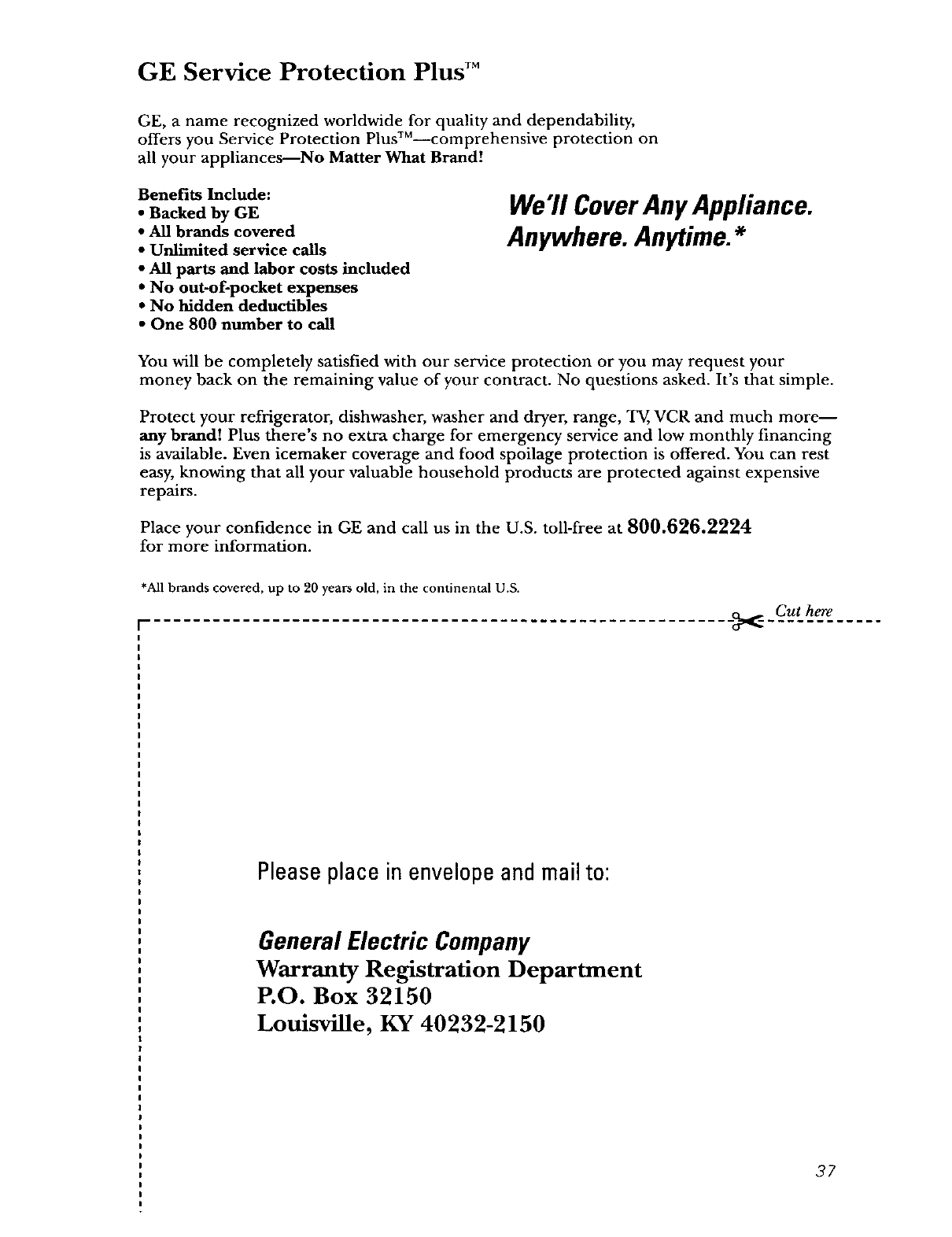

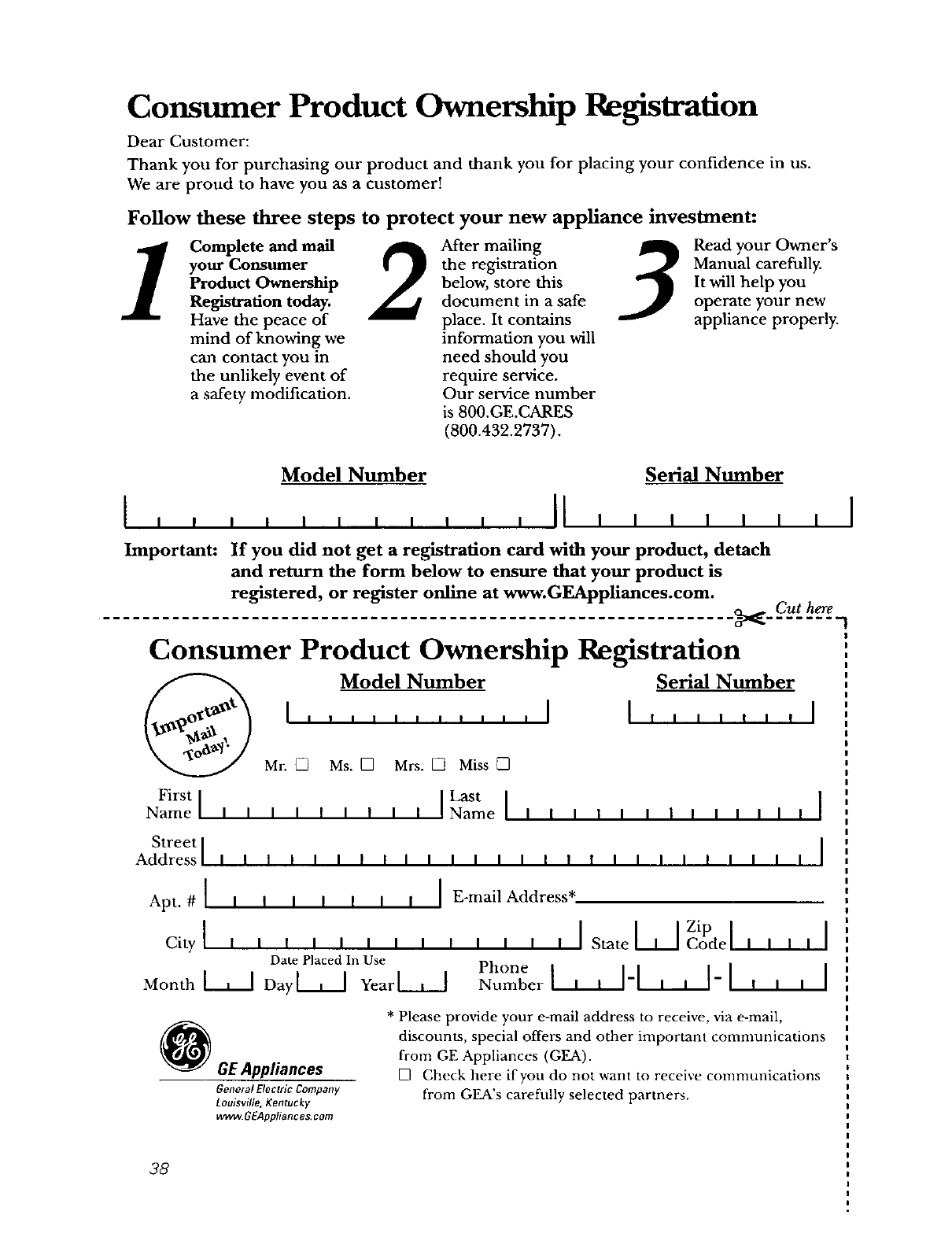

Registration ....... 37, 38

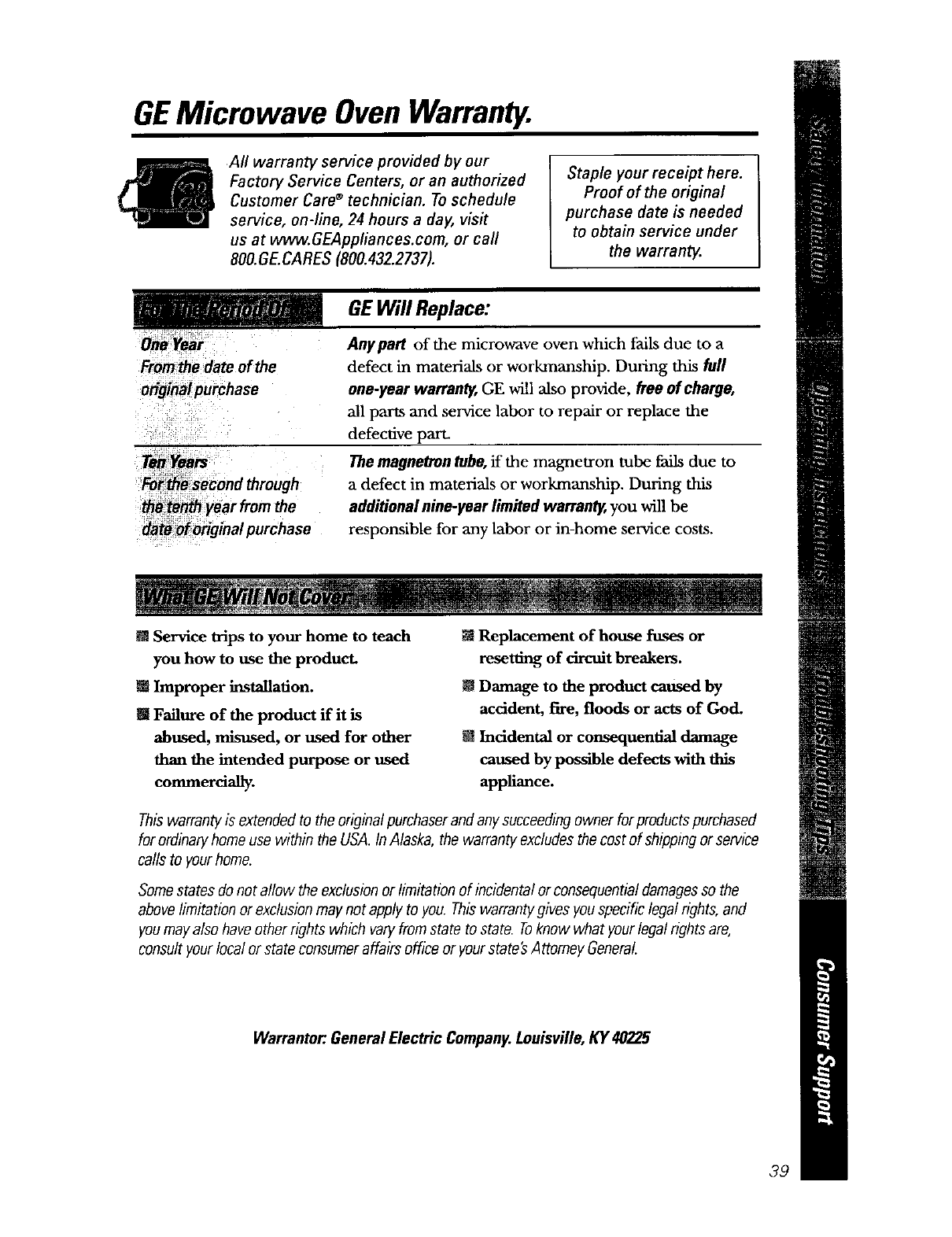

Warranty ............ 39

Write the model and serial numbers here:

Model #

Serial #

Find these numbers on a label inside

the oven.

3828WSA2657 164D3370P220

JVM1542

49-40264 05-02JR

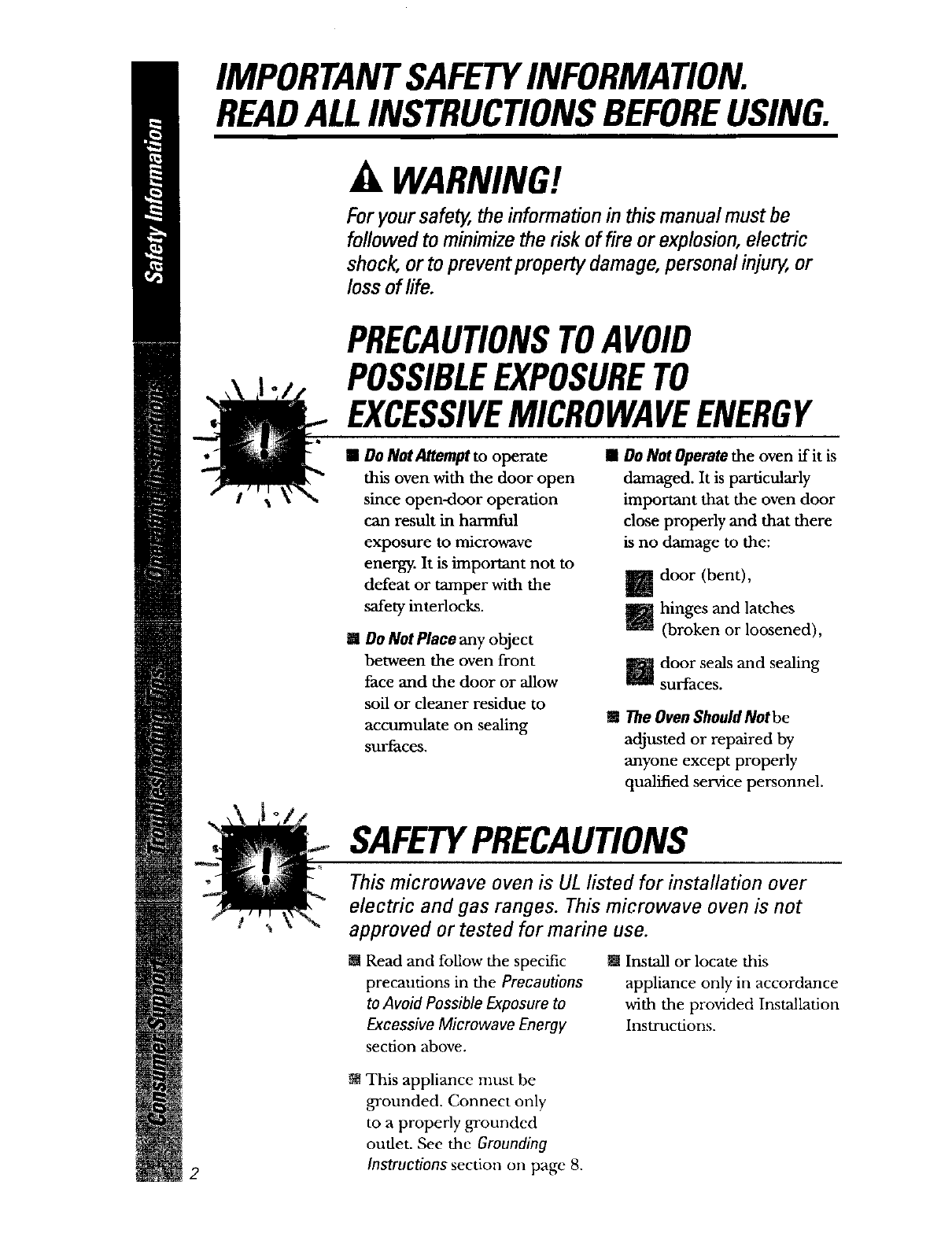

IMPORTANTSAFETYINFORMAtiON.

READALLINSTRUCtiONS BEFOREUSING.

WARNING!

For your safe_, the informadon in this manualmust be

followed to minimizethe risk offire or explosion, electric

shock, or to prevent property damage,personal injury, or

loss of life.

PRECAUTIONSTOAVOID

POSSIBLEEXPOSURETO

EXCESSIVEMICROWAVEENERGY

[] Do Not Attempt to operate

this oven with the door open

since open-door operation

can result in harmful

exposure to microwave

energy. It is important not to

defeat or tamper with the

safety interlocks.

IDo Not Place any object

between the oven front

face and the door or allow

soil or cleaner residue to

accumulate on sealing

surfaces,

[] Do Not Operate the oven if it is

damaged. It is particularly

important that the oven door

close properly and that there

is no damage to the:

[] door (bent),

hinges and latches

(broken or loosened),

door seals and sealing

surfaces.

[] The Oven Should Not be

adjusted or repaired by

anyone except properly

qualified service personnel.

SAFETYPRECAUTIONS

This microwave oven is UL listed for installation over

electric and gas ranges. This microwave oven is not

approved or tested for marine use.

! Read and follow the specific

precautions in the Precautions

to Avoid Possible Exposure to

Excessive Microwave Energy

section above.

II Install or locate this

appliance only in accordance

with the provided Installation

Instructions.

N This appliance nmst be

grounded. Connect only

to a properly grounded

oudet. See the Grounding

Instructions section on page 8.

www.GEAppliances.com

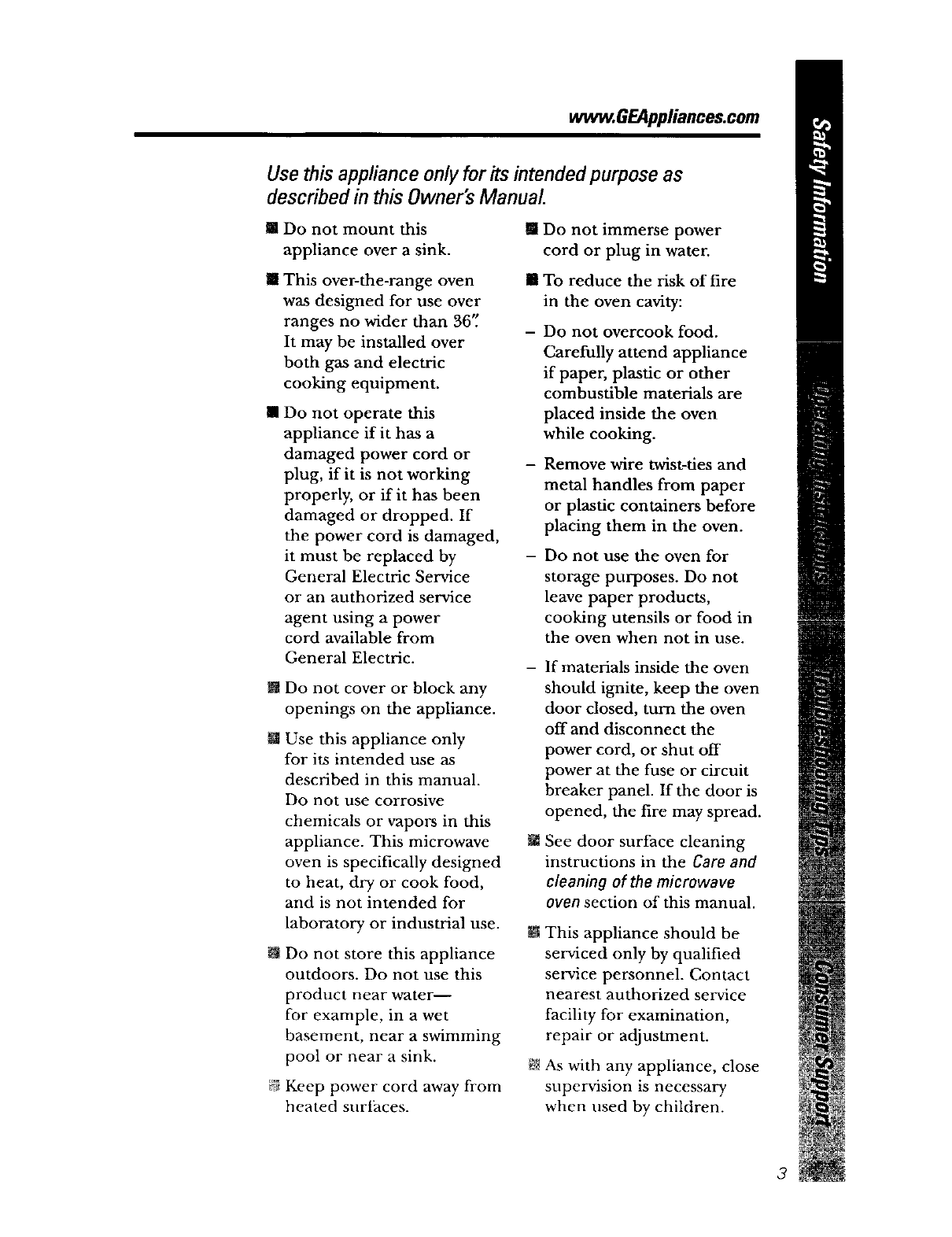

Usethis appfiance only for its intended purpose as

described in this Owner'sManual.

[] Do not mount this

appliance over a sink.

[] This over-the-range oven

was designed for use over

ranges no wider than 36'.'

It may be installed over

both gas and electric

cooking equipment.

[] Do not operate this

appliance if it has a

damaged power cord or

plug, if it is not working

properly, or if it has been

damaged or dropped. If

the power cord is damaged,

it must be replaced by

General Electric Service

or an authorized service

agent using a power

cord available from

General Electric.

S Do not cover or block any

openings on the appliance.

g Use this appliance only

for its intended use as

described in this manual.

Do not use corrosive

chemicals or vapors in this

appliance. This microwave

oven is specifically designed

to heat, dry or cook food,

and is not intended for

laboratory or industrial use.

m Do not store this appliance

outdoors. Do not use this

product near water--

for example, in a wet

basement, near a swimming

pool or near a sink.

_ Keep power cord away from

heated surtaces.

[] Do not immerse power

cord or plug in water.

m To reduce the risk of fire

in the oven cavity:

Do not overcook food.

Carefully attend appliance

if paper, plastic or other

combustible materials are

placed inside the oven

while cooking.

Remove wire twist-ties and

metal handles from paper

or plastic containers before

placing them in the oven.

Do not use the oven for

storage purposes. Do not

leave paper products,

cooking utensils or food in

the oven when not in use.

- If materials inside the oven

should ignite, keep the oven

door closed, turn the oven

off and disconnect the

power cord, or shut off

power at the fuse or circuit

breaker panel. If the door is

opened, the fire may spread.

i See door surface cleaning

instructions in the Care and

cleaning of the microwave

oven section of this manual.

EThis appliance should be

serviced only by qualified

selvice personnel. Contact

nearest authorized service

facility for examination,

repair or adjustment.

_ As with any appliance, close

supervision is necessary

when used by children.

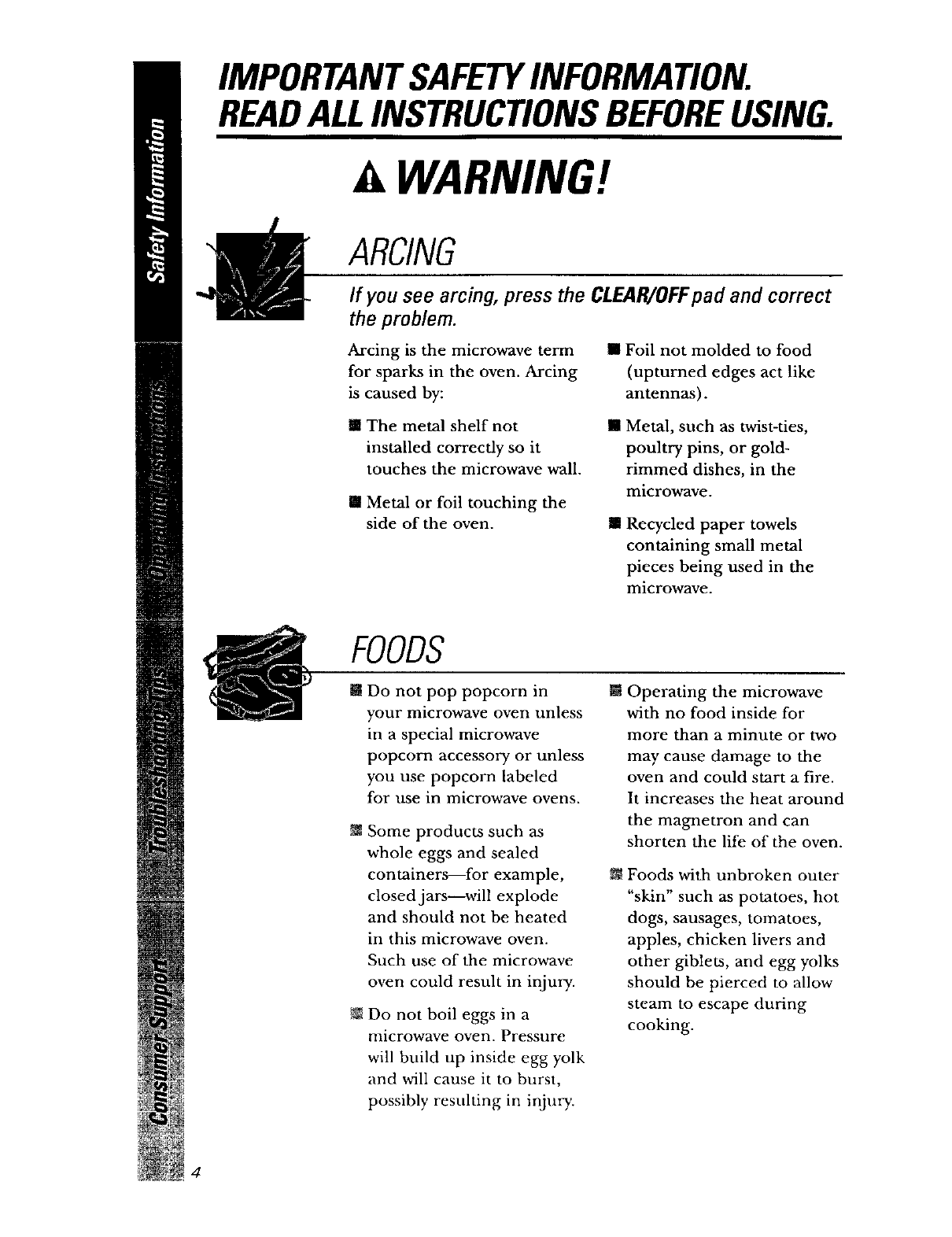

IMPORTANTSAFETYINFORMATION.

READALLINSTRUCTIONSBEFOREUSING.

WARNING!

ARCING

If you see arcing, press the CLEAR/OFFpad and correct

the problem.

Arcing is the microwave term

for sparks in the oven. Arcing

is caused by:

! The metal shelf not

installed correctly so it

touches the microwave wall.

m Metal or foil touching the

side of the oven.

N Foil not molded to food

(upturned edges act like

antennas).

li Metal, such as twist-ties,

poultry pins, or gold-

rimmed dishes, in the

microwave.

m Recycled paper towels

containing small metal

pieces being used in the

microwave.

FOODS

il Do not pop popcorn in

your microwave oven unless

in a special microwave

popcorn accessory or unless

you use popcorn labeled

for use in microwave ovens.

Some products such as

whole eggs and sealed

containers--for example,

closed jars will explode

and should not be heated

in this microwave oven.

Such use of the microwave

oven could result in injury.

Do not boil eggs in a

microwave oven. Pressure

will build up inside egg yolk

and will cause it to burst,

possibly resuhing in injury.

MOperating the microwave

with no food inside for

more than a minute or two

may cause damage to the

oven and could start a fire.

It increases the heat around

the magnetron and can

shorten the life of the oven.

Foods with unbroken outer

"skin" such as potatoes, hot

dogs, sausages, tomatoes,

apples, chicken livers and

other giblets, and egg yolks

should be pierced to allow

steam to escape during

cooking.

vvwv_.GEAppliances.com

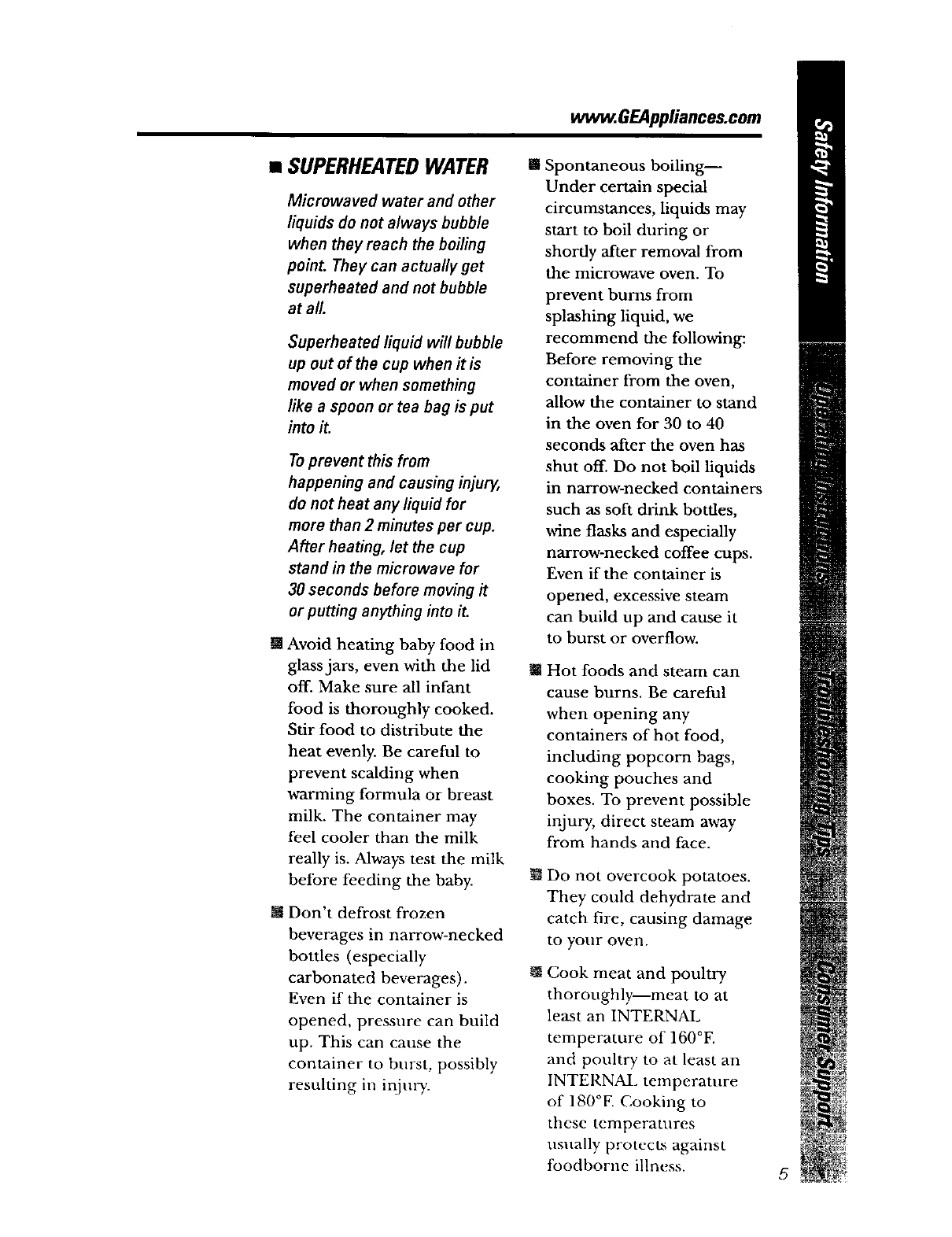

•SUPERHEATED WATER

Microwaved water and other

liquids do not always bubble

when they reach the boiling

point. They can actually get

superheated and not bubble

at all.

Superheated liquid will bubble

up out of the cup when it is

moved or when something

like a spoon or tea bag is put

into it.

Toprevent this from

happening and causing injury,

do not heat any liquid for

more than 2minutes per cup.

After heating, let the cup

stand in the microwave for

30 seconds before moving ff

or putting anything into it.

[] Avoid heating baby food in

glass jars, even with the lid

off. Make sure all infant

food is thoroughly cooked.

Stir food to distribute the

heat evenly. Be careful to

prevent scalding when

warming formula or breast

milk. The container may

feel cooler than the milk

really is. Always test the milk

before feeding the baby.

Don't defrost frozen

beverages in narrow-necked

bottles (especially

carbonated beverages).

Even if the container is

opened, pressure can build

up. This can cause the

container to burst, possibly

resuhing in inju W.

[] Spontaneous boiling--

Under certain special

circumstances, liquids may

start to boil during or

shortly after removal from

the microwave oven. To

prevent burns from

splashing liquid, we

recommend the following:

Before removing the

container from the oven,

allow the container to stand

in the oven for 30 to 40

seconds after the oven has

shut off. Do not boil liquids

in narrow-necked containers

such as soft drink bottles,

wine flasks and especially

narrow-necked coffee cups.

Even if the container is

opened, excessive steam

can build up and cause it

to burst or overflow.

[] Hot foods and steam can

cause burns. Be careful

when opening any

containers of hot food,

including popcorn bags,

cooking pouches and

boxes. To prevent possible

injury, direct steam away

from hands and face.

Do not overcook potatoes.

They could dehydrate and

catch fire, causing damage

to your oven.

@ Cook meat and poultry

thoroughly--meat to at

least an INTERNAL

temperature of 160°F.

and poultry to at least an

INTERNAl, temperature

of 180°E Cooking to

these temperatures

usually protects against

foodborne illness. 5

IMPORTANTSAFETYINFORMAtiON.

READALLINSTRUCTIONSBEFOREUSING.

WARNING!

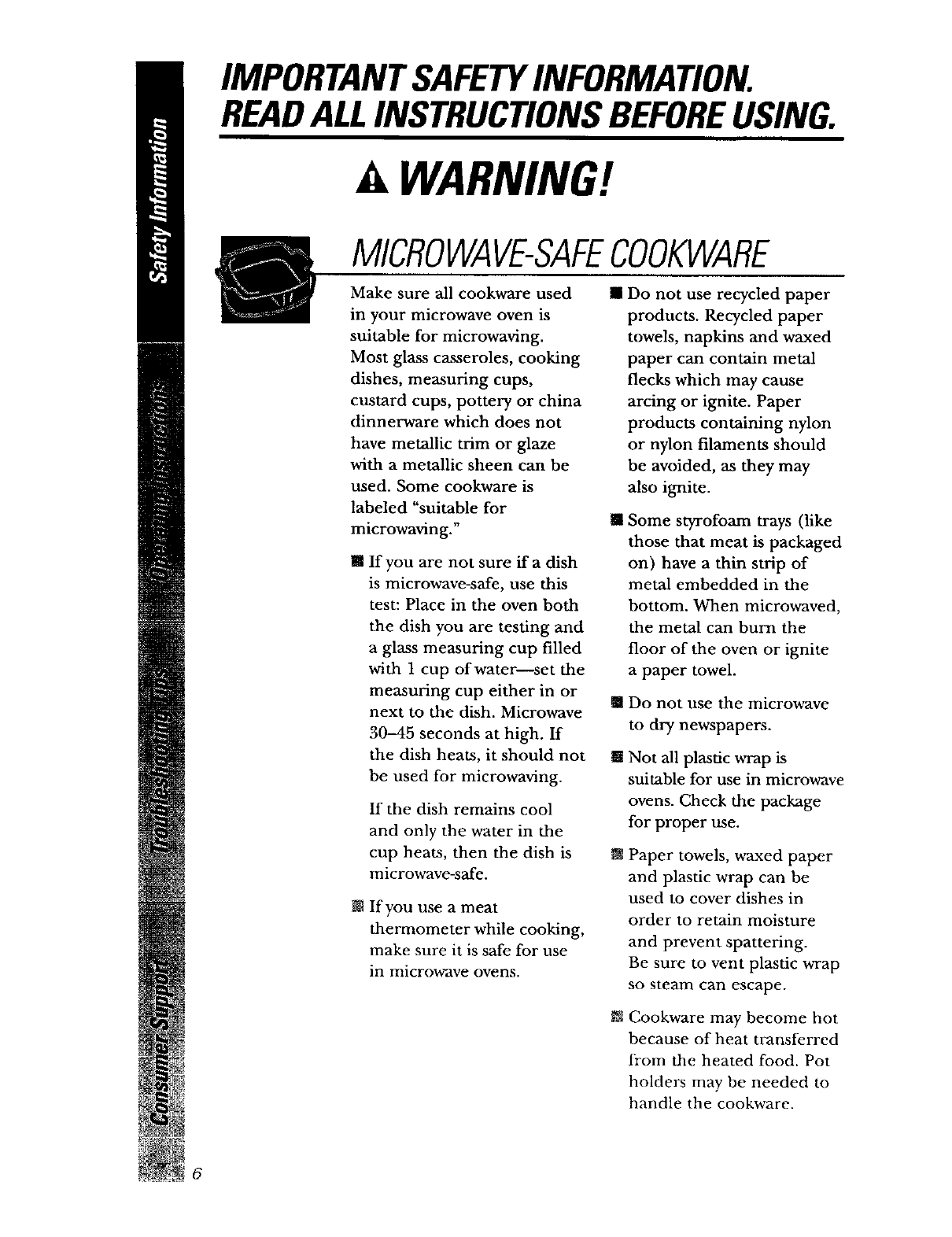

MICROWAVE-SAFECOOKWARE

Make sure all cookware used

in your microwave oven is

suitable for microwaving.

Most glass casseroles, cooking

dishes, measuring cups,

custard cups, pottery or china

dinnerware which does not

have metallic trim or glaze

with a metallic sheen can be

used. Some cookware is

labeled "suitable for

microwaving."

If you are not sure if a dish

is microwave-safe, use this

test: Place in the oven both

the dish you are testing and

a glass measuring cup filled

with 1 cup of water--set the

measuring cup either in or

next to the dish. Microwave

30-45 seconds at high. If

the dish heats, it should not

be used for microwaving.

If the dish remains cool

and only the water in the

cup heats, then the dish is

microwave-safe.

If you use a meat

thermometer while cooking,

make sure it is safe for use

in microwave ovens.

mDo not use recycled paper

products. Recycled paper

towels, napkins and waxed

paper can contain metal

flecks which may cause

arcing or ignite. Paper

products containing nylon

or nylon filaments should

be avoided, as they may

also ignite.

R Some styrofoam trays (like

those that meat is packaged

on) have a thin strip of

metal embedded in the

bottom. When microwaved,

the metal can burn the

floor of the oven or ignite

a paper towel.

B Do not use the microwave

to dry newspapers.

i Not all plastic wrap is

suitable for use in microwave

ovens. Check the package

for proper use.

W Paper towels, waxed paper

and plastic wrap can be

used to cover dishes in

order to retain moisture

and prevent spattering.

Be sure to vent plastic wrap

so steam can escape.

Cookware may become hot

because of heat transferred

fiom the heated food. Pot

holders may be needed to

handle the cookware.

www.GEAppliances.com

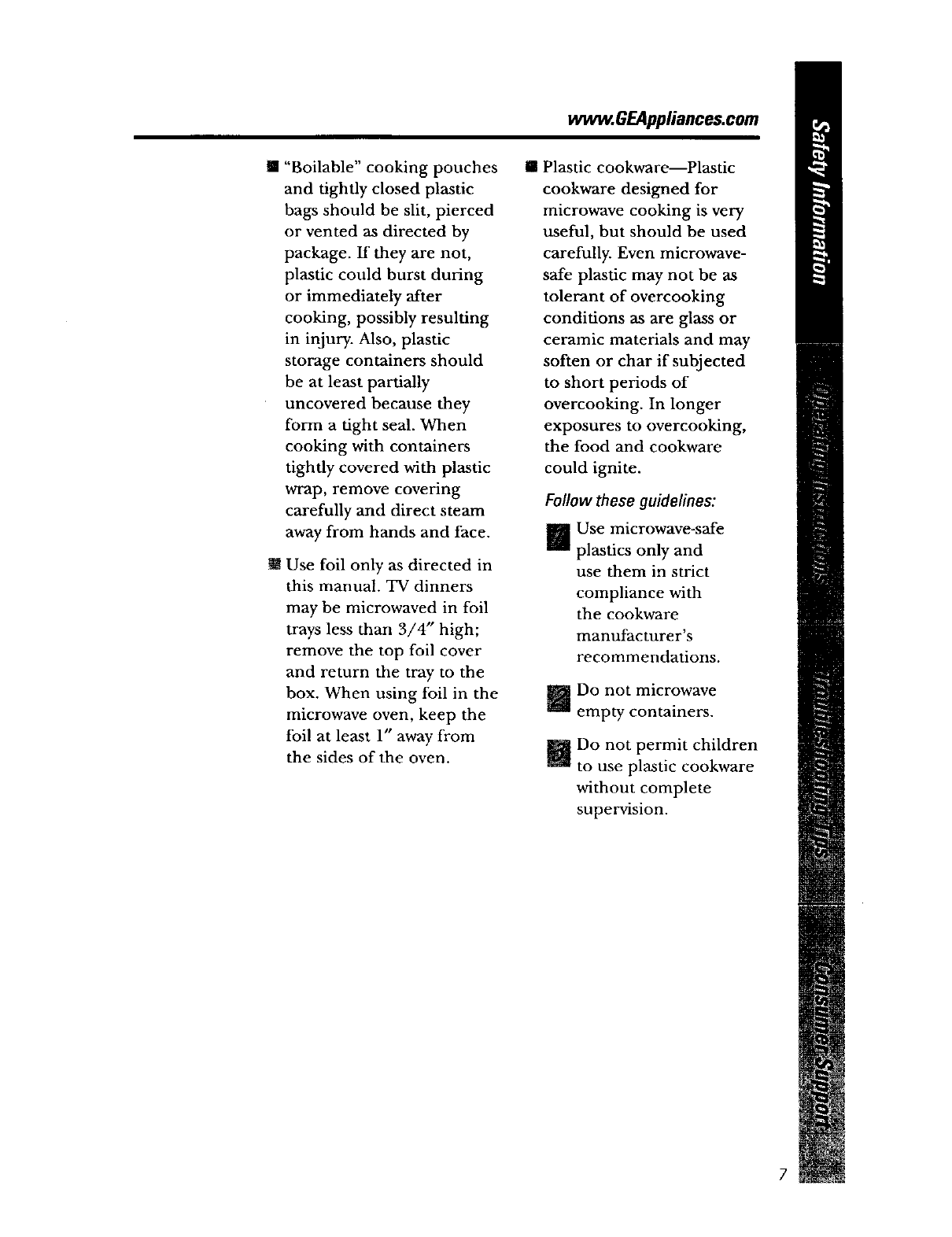

I "Boilable" cooking pouches

and tightly closed plastic

bags should be slit, pierced

or vented as directed by

package. If they are not,

plastic could burst during

or immediately after

cooking, possibly resulting

in injury. Also, plastic

storage containers should

be at least partially

uncovered because they

form a tight seal. When

cooking with containers

tightly covered with plastic

wrap, remove covering

carefully and direct steam

away from hands and face.

U Use foil only as directed in

this manual. TV dinners

may be microwaved in foil

trays less than 3/4" high;

remove the top foil cover

and return the tray to the

box. When using foil in the

microwave oven, keep the

foil at least 1" away from

the sides of the oven.

I Plastic cookware--Plastic

cookware designed for

microwave cooking is very

useful, but should be used

carefully. Even microwave-

safe plastic may not be as

tolerant of overcooking

conditions as are glass or

ceramic materials and may

soften or char if subjected

to short periods of

overcooking. In longer

exposures to overcooking,

the food and cookware

could ignite.

Follow these guidelines:

_Use microwave-safe

plastics only and

use them in strict

compliance with

the cookware

manufacturer's

recommendations.

Do not microwave

empty containers.

Do not permit children

to use plastic cookware

without complete

supervision.

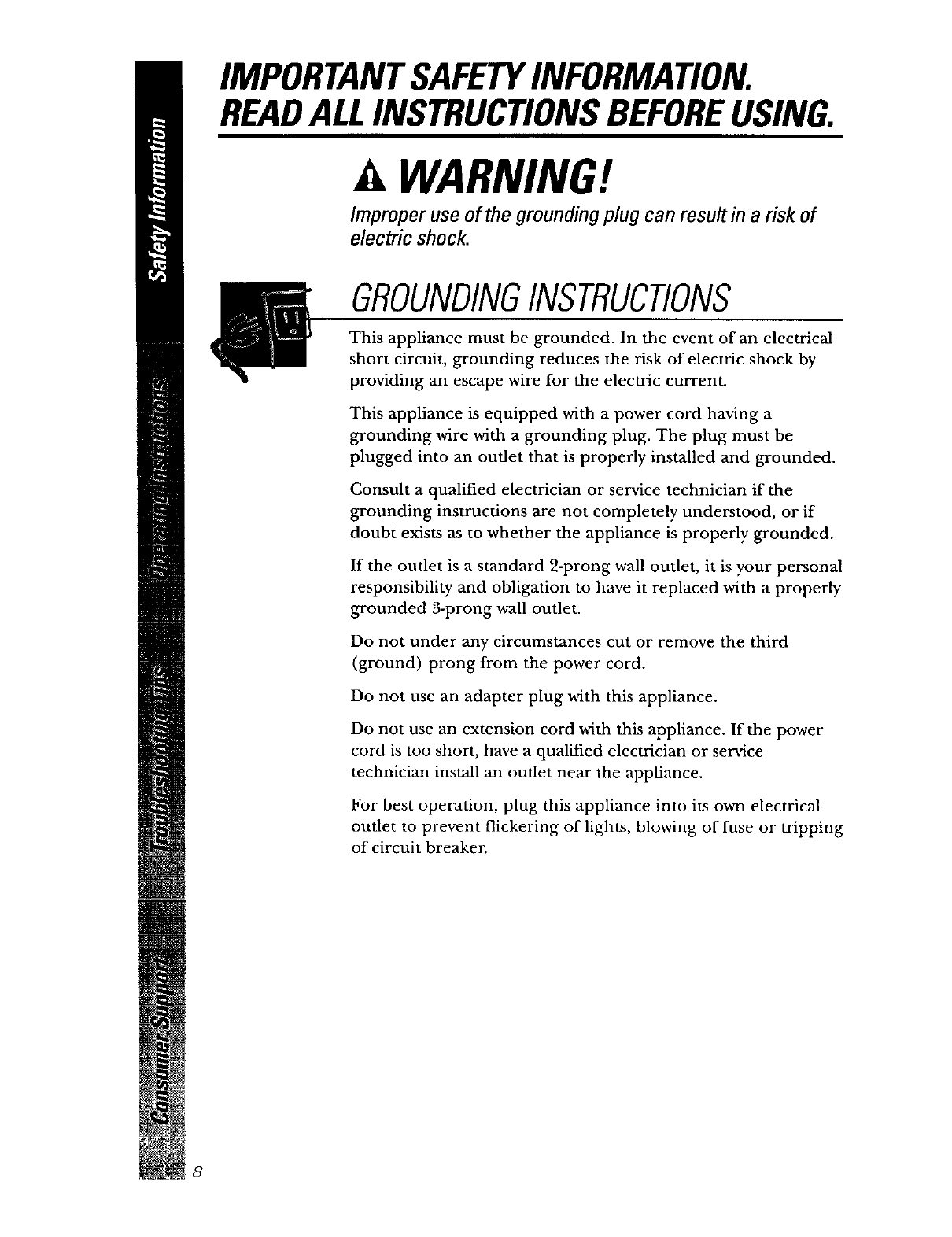

IMPORTANTSAFETYINFORMATION.

READALLINSTRUCTIONSBEFOREUSING.

AWARNING!

Improper use of the grounding plug can result in a risk of

electric shock.

GROUNDINGINSTRUCTIONS

This appliance must be grounded. In the event of an electrical

short circuit, grounding reduces the risk of electric shock by

providing an escape wire for the electric current.

This appliance is equipped with a power cord having a

grounding wire with a grounding plug. The plug must be

plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or service technician if the

grounding instructions are not completely understood, or if

doubt exists as to whether the appliance is properly grounded.

If the outlet is a standard 2-prong wall outlet, it is your personal

responsibility and obligation to have it replaced with a properly

grounded 3-prong wall outlet.

Do not under any circumstances cut or remove the third

(ground) prong from the power cord.

Do not use an adapter plug with this appliance.

Do not use an extension cord with this appliance. If the power

cord is too short, have a qualified electrician or service

technician install an outlet near the appliance.

For best operation, plug this appliance into its own electrical

outlet to prevent flickering of lights, blowing of fuse or tripping

of circuit breaker.

vvvvw.GEAppliances.com

THEVENTFAN

The fan will operate automatically under certain conditions (see

Automatic Fan feature). Take care to prevent the starting and

spreading of accidental cooking fires while the vent fan is in use.

[] Clean the underside of the microwave often. Do not allow

grease to build up on the microwave or the fan filters.

[]

In the event of a grease fire on the surface units below the

microwave oven, smother a flaming pan on the surface unit

by covering the pan completely with a lid, a cookie sheet or

a flat tray.

Use care when cleaning the vent fan filters. Corrosive

cleaning agents, such as lye-based oven cleaners, may

damage the filters.

When preparing flaming foods under the microwave, turn

the fan on.

INever leave surface units beneath your microwave oven

unattended at high heat settings. Boilovers cause smoking

and greasy spillovers that may ignite and spread if the

microwave vent fan is operating. To minimize automatic fan

operation, use adequate sized cookware and use high heat

on surface units only when necessary.

READANDFOLLOWTHISSAFETY

INFORMATIONCAREFULLY.

SAVETHESEINSTRUCTIONS

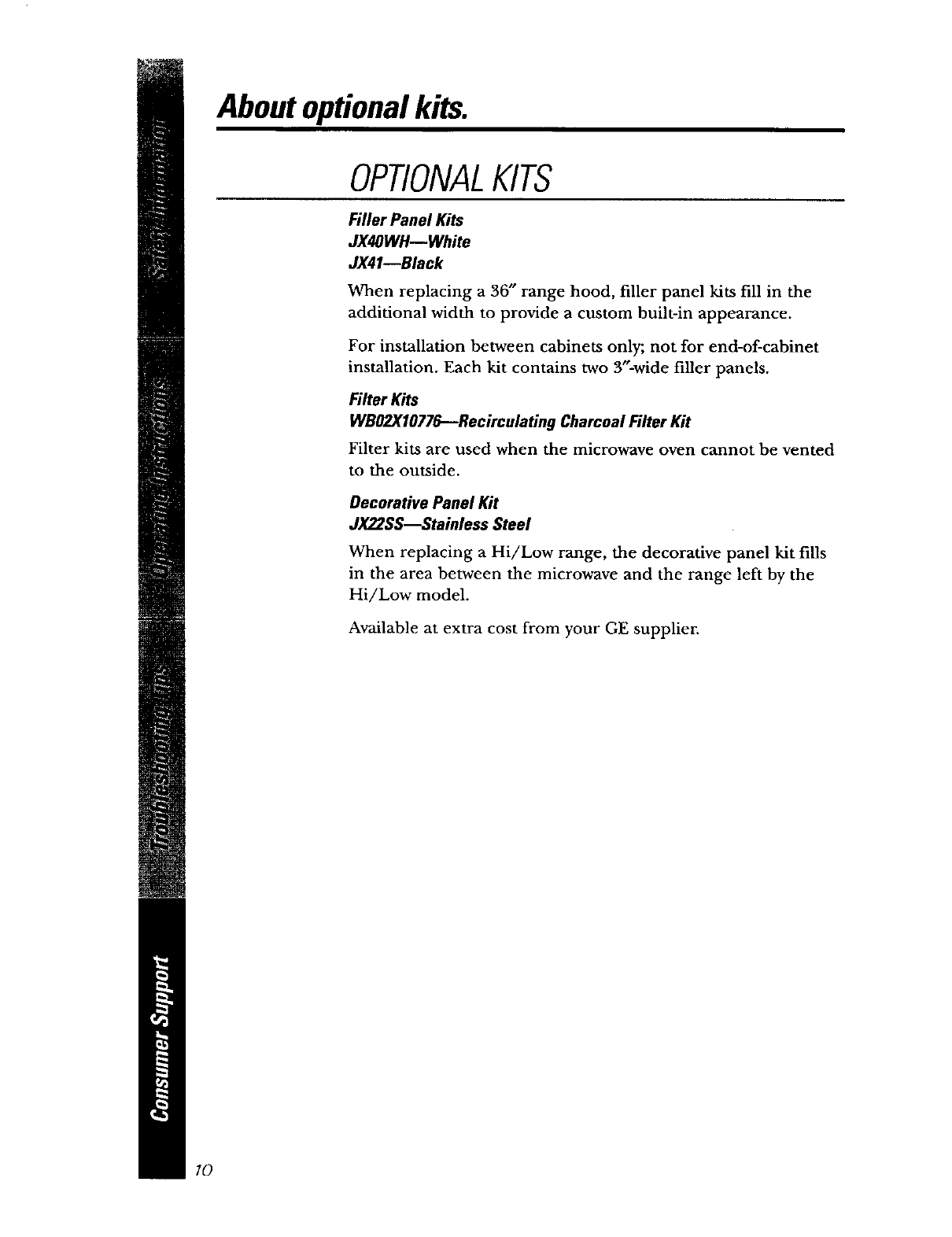

About optionalkits.

OPTIONALKITS

Filler Panel Kits

JX4OWH--White

JX41--Black

When replacing a 36" range hood, filler panel kits fill in the

additional width to provide a custom built-in appearance.

For installation between cabinets only; not for end-of-cabinet

installation. Each kit contains two 3"-wide filler panels.

Filter Kits

WBO2X10776--Recirculating Charcoal Filter Kit

Filter kits are used when the microwave oven cannot be vented

to the outside.

Decorative Panel Kit

JX22SS---Stainless Steel

When replacing a Hi/Low range, the decorative panel kit fills

in the area between the microwave and the range left by the

Hi/Low model.

Available at extra cost from your GE supplier.

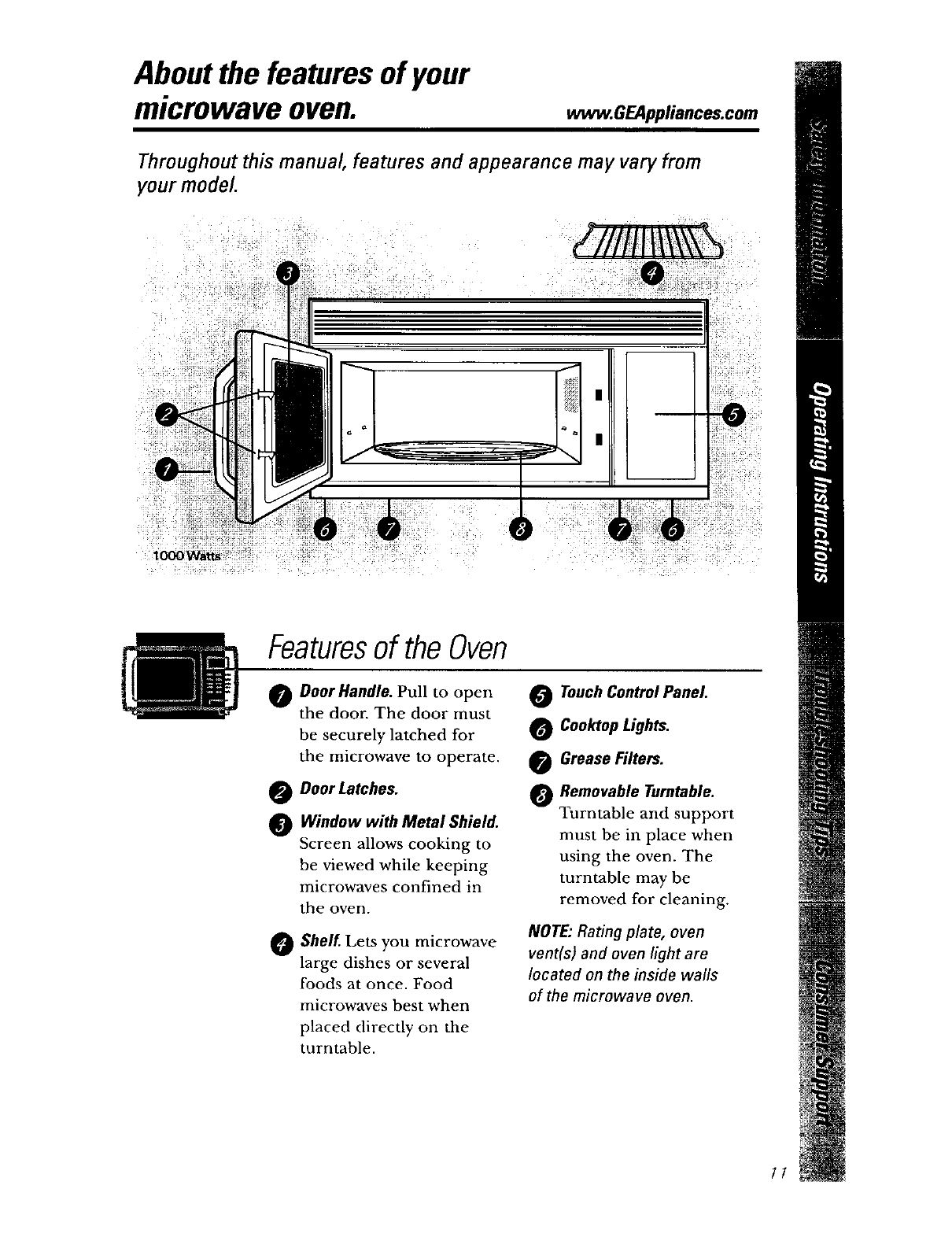

Aboutthe featuresof your

microwave oven. www.GEAppliances.com

Throughout this manual, features and appearance may vary from

your model

-0

Featuresof the Oven

0Door Handle. Pull to open

the door. The door must

be securely latched for

the microwave to operate,

0Door Latches.

Window with Metal Shield.

Screen allows cooking to

be viewed while keeping

microwaves confined in

the oven.

0Shelf. Lets you microwave

large dishes or several

foods at once. Food

microwaves best when

placed directly on the

turntable.

Touch Control Panel

Cooktop Lights.

Grease Filters.

Removable Turntable.

Turntable and support

must be in place when

using the oven. The

turntable may be

removed for cleaning.

NOTE: Rating plate, oven

vent(s) and oven light are

located on the inside walls

of the microwave oven•

Aboutthe features ofyourmicrowave oven.

Youcan microwave by time or with the convenience features.

REHEAT

CookingControls

Time Features EMer

TIME COOKI & II Amount of cookingtime

Pressonce or twice

TIME DEFROST Amount of defrosting time

EXPRESSCOOK Starts immediately!

ADD 30 SEC. Starts immediately!

POWER LEVEL Powerlevel10-100

AUTO DEFROST Foodweight

Convenience Features

Press Enter Option

POPCORN

Press1 1.75oz.

Press2 3.0 oz.

Press3 3.5 oz.

BEVERAGE

Press1 1cup (8 oz.)

Press2 2 cups (16oz.)

REHEAT

Foodtype 1-4 servingsize

COOK Foodtype 1-9 + weight

NOTE: _e Convenience Features are designed for use with items

placed on the turntable. _e turntable cannot be turned off when

using the Convenience Features.

About changingthe

power leveL www.GEAppliances.com

Variable power levels add flexibility to microwave

cooking. The power levels on the microwave oven

can be compared to the surface units on a range.

High (power level 100) or full power is the fastest

way to cook and gives you 100% power. Each power

level gives you microwave energy a certain percent

of the time. Power level 70 is microwave energy

70% of the time. Power level 30 is energy 30% of

the time.

A high setting (100) will cook faster but food may

need more frequent stirring, rotating or turning

.... over. Most cooking will be done on High (power

level 100). A lower setting will cook more evenly

and need less stirring or rotating of the food.

How to Change the

Power Level

The power level may

be entered or changed

immediately after

entering the feature

time for TIME COOK,

CUSTOM or EXPRESS

COOK.

N Press TIMECOOKor

CUSTOM

N Enter cooking tzme.

Press POWER LEVEL.

N Select desired

power level. High

power level (100) is

automatically set.

Press 1-9 to select

power level 10-90.

_ Press START

The power level may be

viewed during any time

countdown by pressing

and holding POWER

LEVEL.

Some foods may have better flavor, texture or

appearance if one of the lower settings is used. Use

a lower power level when cooking foods that have a

tendency to boil over, such as scalloped potatoes.

Rest periods (when the microwave energy cycles off)

give time for the food to "equalize" or transfer heat

to the inside of the food. An example of this is

shown with power level 30---the defrost cycle. If

microwave energy did not cycle off, the outside of

the food would cook before the inside was defrosted.

Here are some examples of uses for various

power levels:

Power Level Best Uses

High 100 Fish, bacon, vegetables, boiling liquids.

Med-High 70 Gentle cooking of meat and poultry;

baking casseroles and reheating.

Medium 50 Slow cooking and tenderizing such as

stews and less tender cuts of meat.

Low20 or30 Defrosting without cooking;

simmering; delicate sauces.

Warm 10 Keeping food warm without

overcooking; softening butter.

Aboutthe time features.

I-,J,'-,!

I, II" II-r-I

Press TIME COOK

and enter a cook

time, or simply

enter a cook time.

M Change power level

if you don t want

full power. (Press

POWER LEVEL High

power level [100]

is automatically set.

Press 1-9 to select

power level 10-90.)

_ Press START

time Cook I

Allows you to microwave for any time up to 99

minutes and 99 seconds.

Power level 100 (High) is automatically set, but you

may change it for more flexibility.

You may open the door during TIMECOOKto check

the food. Close the door and press START to

resume cooking.

time Cook II

Lets you change power levels automatically during

cooking. Here's how to do it:

I Press TIME COOKand enter a cook time, or

simply enter a cook time.

Change the power level if you don't want full

power. (Press POWER LEVEL. High power level

[100] is automatically set. Press 1-9 to select

power level 10-90.)

_Press TIME COOK.

Enter the second cook time.

i Change the power level if you don't want full

power. (Press POWER LEVEL. High power level

[100] is automatically set. Press 1-9 to select

power level 10-90.)

Press START

At the end of Ttme Cook I, Ttme Cook II counts down.

www.GEAppliances.com

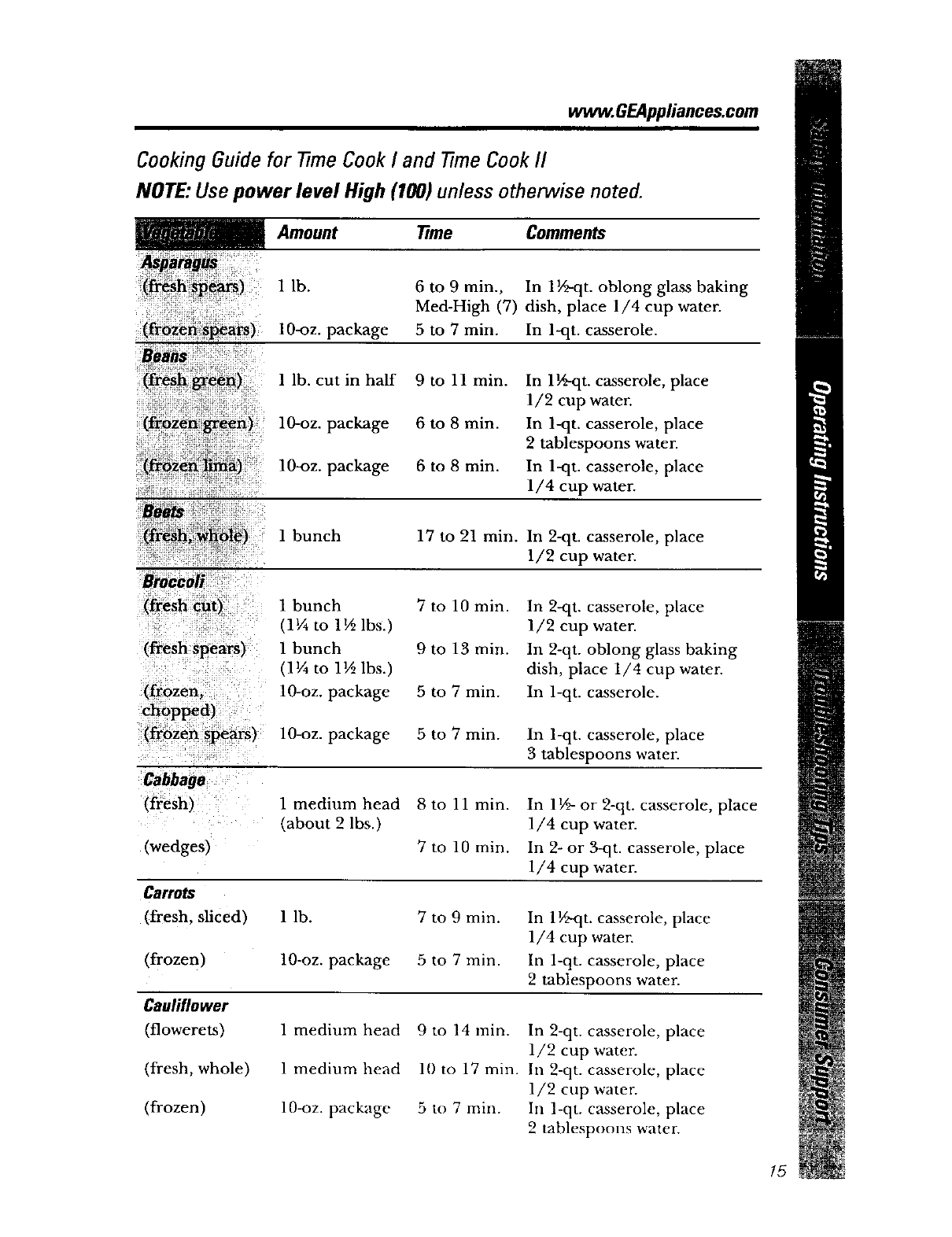

Cooking Guide for time Cook I and T/me Cook II

NOTE: Use power level High (199) unless otherwise noted.

Amount 7-tme Comments

1 lb. 6 to 9 min., In 1V_qt. oblong glass baking

Med-High (7) dish, place 1/4 cup water.

10-oz. package 5 to 7 min. In 1-qt. casserole.

9 to 11 min.

6 to 8 rain.

6 to 8 min.

In lVz-qt, casserole, place

1/2 cup water.

In 1-qt. casserole, place

2 tablespoons water.

In 1-qt. casserole, place

1/4 cup water.

1 bunch 17 to 21 rain. In 2-qt. casserole, place

1/2 cup water.

; i

i1 bunch

(1¼ to 1½ lbs.)

1 bunch

(1¼ to 1½ lbs.)

10-oz. package

7 to 10 min.

9 to 13 min.

5 to 7 min.

In 2-qt. casserole, place

1/2 cup water.

In 2-qt. oblong glass baking

dish, place 1/4 cup water.

In 1-qt. casserole.

Cabbage

(fresh)

(wedges)

Carrots

(fresh, sliced)

(frozen)

Cauliflower

(flowerets)

(fresh, whole)

(frozen)

10-oz. package 5 to 7min. In 1-qt. casserole, place

3 tablespoons water.

1 medium head

(about 2 lbs.)

1 lb.

10-oz. package

1 medium head

10-oz. package

8 to 11 min.

7 to 10 min.

7 to 9 min.

5 to 7 min.

9 to 14 rain.

10 to 17 min.

5 to 7 min.

In 1½- or 2-qt. casserole, place

1/4 cup water.

In 2- or 3-qt. casserole, place

1/4 cup water.

In 1Vz-qt. casserole, place

1/4 cup water.

In 1-qt. casserole, place

2 tablespoons water.

In 2-qt. casserole, place

1/2 cup water.

Ill 2-qt. casserole, place

1/2 clip water-.

In l-qt. casserole, place

2 tablespoons water.

Aboutthe time features.

Amount Time Comments

(f_i':i6:zi_k¢_el) lO-oz, package

CommOn_u !cOb

(_h_ 1 to 5ears

5 to 7 min. In 1-qt. casserole, place

2 tablespoons water.

3 to 4 min.

per ear

In 2-qt. oblong glass baking

dish, place corn. If corn is in

husk, use no water; if corn has

been husked, add 1/4 cup

water. Rearrange after half

of time.

1ear

2 to 6 ears

5 to 6 min.

3 to 4 min.

per ear

Place in 2-qt. oblong glass

baking dish.

Cover with vented plastic wrap.

Rearrange after half of time.

5 to 7 min.

9 to 12 rain.

5 to 7 min.

In 1-qt. casserole, place

3 tablespoons water.

In 1-qt. casserole, place

1/4 cup water.

In 1-qt. casserole, place

2 tablespoons water.

4 potatoes

white) (6 to 8 oz. each)

9 to 12 min. Peel and cut into 1 inch cubes.

Place in 2-qt. casserole with

1/2 cup water. Stir after half

of time.

(flesh, whole, 1 (6 to 8 oz.)

sweet orwhite) 3 to 4 min. Pierce with cooking fork.

Place in center of the oven.

Let stand 5 minutes.

Spinach

(flesh)

(frozen,

chopped

and leaf)

10 to 16 oz.

10-oz. package

5 to 7 min.

In 2<it. casserole, place washed

spinach.

In 1-qt. casserole, place

3 tablespoons water.

Squash

(fresh, summer

and yellow)

(winter, acorn

butternut)

1 lb. sliced

1 to 2 squash

(about 1 lb. each)

5 to 7 min.

8 to 11 min.

In l _A,-qt.casserole, place

1/4 cup water.

Cnt in half and remove fibrous

membranes. In 2-qt. oblong

glass baking dish, place squash

cut-side-down. Turn cut-side-up

alter 4 minutes.

.,,,w. tinncos.c0m

v;-]l gI

7vn

I Press TIME DEFROST,

i Ennter defrosting

Press START

7 me Defrost

Allows you to defrost for the length of time you

select. See the Defrosting Guide for suggested times.

[] Use the shelf when defrosting items too large to

fit the turntable.

[] A dull thumping noise may be heard during

defrosting. This sound is normal when the oven

is not operating at High power.

[] The turntable cannot be turned off when

defrosting.

[] Once during Time Defrost, the oven signals

Turn Food Over. At the signal, turn the food over.

Remove defrosted meat or shield warm areas

with small pieces of foil.

Defrosting Tips

[] Foods frozen in paper or plastic can be defrosted

in the package. Tightly closed packages should

be slit, pierced or vented AFTER food has

partially defrosted. Plastic storage containers

should be at least partially uncovered.

I Family-size, prepackaged frozen dinners can be

defrosted and microwaved. If the food is in a foil

container, transfer it to a microwave-safe dish.

t Foods that spoil easily, such as milk, eggs, fish,

stuffings, poultry and pork, should not be

allowed to sit out for more than one hour after

defrosting. Room temperature promotes the

growth of harmful bacteria.

For more even defrosting of larger foods, such as

beef, lamb and veal roasts, use Auto Defrost.

M Be sure large meats are completely defrosted

before cooking.

When defrosted, food should be cool but

softened in all areas. If still slightly icy, return

to the microwave very briefly, or let it stand a

few minutes.

About the time features.

Defrosting Guide

Breads, Cakes

Broad, buns or mils(1 piece)

time Comments

1 min.

3 to 5 min.

Fish and Seafood

Fillets, frozen(!Ib,) 6 to 8 min.

Shellfish, smallpieces (1 lb.) 5 to 7 min. Place block in casserole. Turn over

and break up after half the tme.

Fruit

Plasticpouc_l tO2 3 to 6 min.

(! 0-oz. package )

2 to 5 min. Place unopened package in oven.

Let stand 5 minutes after defrosting.

Place unopened package in oven.

Microwave just until franks can be

separated. Let stand 5 minutes, if

necessary, to complete defrosting.

Turn meat over after half the time.

Use power level 10.

Ground meat (1 lb.)

RoaM: beef, lamb, veal, pork

Steaks, chops and cutlets

Poultry

Chicken, broiler-fryer

cut up (2V2 to 3 lbs.)

Chicken, whole

(21,4to 3 lbs.)

2 to 5 min.

5 to 7 min.

12 to 16 min.

per lb.

5 to 7 min.

per lb.

15 to 19 min.

17 to 21 rain.

Cornish hen 7 to ]3 rain.

per lb.

Turkey breast (4 to 6 lbs.) 5 to 9 min.

per lb.

Place unwrapped meat in cooking

dish. Turn over after half the time

and shield warm areas with foil.

When finished, separate pieces and

let stand to complete defrosting.

Place wrapped chicken in dish.

Unwrap and turn over after half

the time. When finished, separate

pieces and microwave 2 to 4

minutes more, if necessary.

Let stand to finish defrosting.

Place wrapped chicken in dish.

After half the time, unwrap and

turn chicken over. Shield warm

areas with foil. Finish defrosting.

If necessary, rnn cold water in the

cavity until giblets can be removed.

Place unwrapped hen in the oven

breast-side-up. Turn over after half

the time. Run cool water in the

cavity until giblets can be removed.

Place unwrapped breast in dish

breast-side<lown. After haft the

time, turn over and shield warm

areas with foil. Finish defrosting.

Let stand 1 to 2hours in

refrigerator to complete defrosting.

www.GEAppliances.com

Add 30 Seconds

You can use this feature two ways:

I It will add 30 seconds to the time counting down

each time the pad is pressed.

[] It can be used as a quick way to set 30 seconds of

cooking time.

Express Cook

This is aquick way to set cooking time for I-6 minutes.

Press one of the Express Cook pads (from 1 to 6)

for 1 to 6 minutes of cooking at power level 100,

For example, press the 2pad for 2 minutes of

cooking time.

The power level can be changed as time is counting

down. Press POWERLEVEL High power level (100)

is automatically set. Press 1-9 to select power

level 10-90.

Aboutthe autodefrostfeature.

i ¸¸

Press AUTO DEFROST

[]Select the food type.

Press Ifor Meat,

2for Poultry,

3for Fish.

[]Using the

Conversion Guide

at right, enter food

weight. For example,

press pads Iand 2

for 1.2 pounds

(1 pound, 3 ounces).

Enter weight up to

6 pounds.

IPress START.

Auto Defrost

Auto Defrost automatically sets the defrosting times

and power levels to give even defrosting results for

meats, poultry and fish weighing up to six pounds.

[] Use the shelf when defrosting items too large to

fit the turntable.

[] Remove meat from package and place on

microwave-safe dish.

[]

The turntable cannot be turned off when

defrosting.

Once during Auto Defrost, the oven signals Turn

Food Over. At the signal, turn the food over.

Remove defrosted meat or shield warm areas

with small pieces of foil.

After defrosting, most meats need to stand

5 minutes to complete defrosting. Large roasts

should stand for about 30 minutes.

Conversion Guido

If the weight of food is stated in pounds and

ounces, the ounces must be_converted to tenths

(.1) of a p0und

Enter

WeigM

Ounces (tenthsof

a pound)

9-10 .6

11 .7

12-13 .8

14-15 .9

1-2 .1

3 .2

4-5 .3

6-7 .4

8.5

Aboutthe conveniencefeatures. ,, .6EApplia,oe,.oom

NOTE."The Convenience Features are designed for use with items placed on the

turntable. The turntable cannot be turned off when using the Convenience Features.

Use only_prepackaged

microwavepopeornwe ghng

135 to3.5 ounces.

IOTE: Do not use the I

metal shelf when using

the Popcorn feature.

Popcorn

How to Use the Popcorn Feature

I Follow package instructions, using 77meCook

if the package is less than 1.75 ounces or larger

than 3.5 ounces. Place the package of popcorn

in the center of the microwave.

Press POPCORN.

I Select the bag size you are cooking. Press 1

for 1.75 ounces, 2for 3.0 ounces or 3for 3.5

ounces. The oven starts automatically.

! ii¸Iiil! Beverage

The Beverage feature heats 1 or 2 cups of any

beverage.

_ Press BEVERAGE.

Select the serving size. Press Ifor 1 cup (8 oz.)

or 2for 2 cups (16 oz.). The oven starts

automatically.

Drinks heated with the Beverage feature may be very

hot. Remove the container with care.

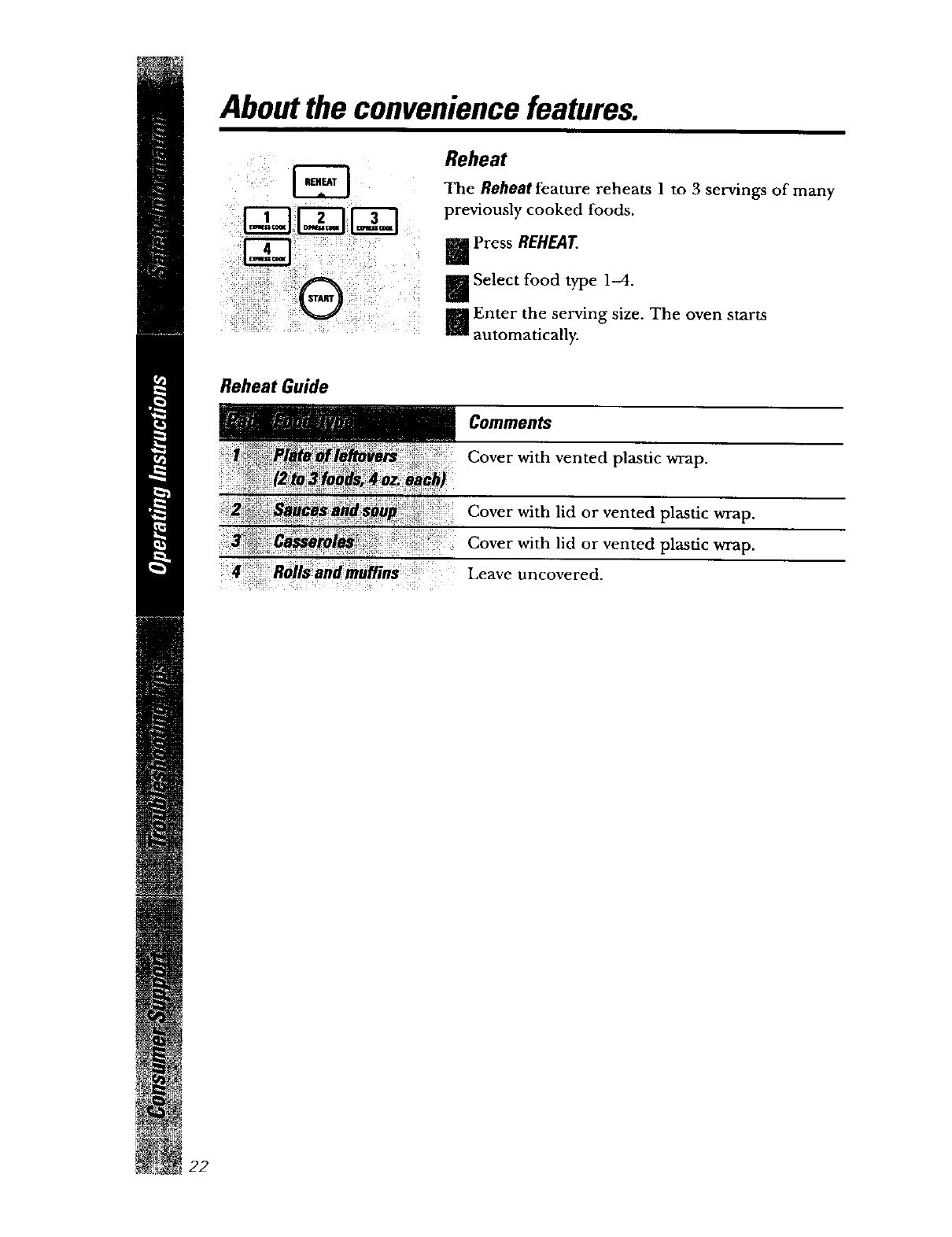

About the conveniencefeatures.

Reheat

The Reheat feature reheats 1 to 3 servings of many

previously cooked foods.

I Press REHEAT

Select food type 1-4.

I Enter the serving size. The oven starts

automatically.

Reheat Guide

Comments

Cover with vented plastic wrap.

Cover with lid or vented plastic wrap.

4RotlsanamaffinS Leave uncovered.

!iii!_i!!i!i_ii_i iii

www.GEAppliances.com

Cook

The Cook feature automatically sets the cooking times

and power levels for a variety of foods.

IPre_ COOK

Select food type 1-9 (see the Cook Guide below).

l_ Enter weight in ounces.

i Press START.

Cook Guide

WeigM Comments

4 Potatoes 8to 40 oz.

5 Fish 4 to 16 oz.

6 ChiCkenPieces 4 to 40 oz.

7 GroundMeat 8 to 48 oz.

fbeef, pork, turkey)

8 Bacon 2to 10 oz.

9 Pizza 4 to 16 oz.

(frozen, microwaveable)

Use microwave-safe casserole or bowl.

Cover with lid or vented plastic wrap.

Use microwave-safe casserole or bowl.

Follow package instructions for adding

water. Cover with lid or vented

plastic wrap.

Use microwave-safe casserole or bowl.

Add 2 tablespoons water for each

serving. Cover with lid or vented

plastic wrap.

Pierce skin with fork. Place potatoes

on the mzTttable.

Use oblong, square or round dish.

Cover with vented plastic wrap.

Use oblong, square or round dish.

Cover with vented plastic wrap or

wax paper.

Use round casserole dish. Crumble

meat into dish. Cover with lid or

vented plastic wrap.

Layer su-ips on a plate, 4 to a layer.

Cover each layer with a paper towel.

Follow package instructions to

prepare pizza for microwaving.

Otherfeaturesyourmodelmay have.

Clock

Press to enter the time of day or to check the time

of day while microwaving.

I Press CLOCK.

i Enter time of day.

Press START

!!iiii!r2cl!i 21

Timer

Tlmeroperates as a minute timer and can be used

at any time, even when the oven is operating.

Toset the timer.

I Press TIMER.

Enter time you want to count down.

[]Press START

When time is up, the oven will signal.

To cancel the timer:

If you are using the timer only, press CLEAR/OFF.

If you are using the the timer while cooking, press

CLEAR/OFFthree times. This will also cancel your

cooking program. Restart the cooking program

from the time the oven stopped.

vvwvv.GEAppliances.com

®Pause

In addition to clearing entries, CLEAR/OFFalIows

you to stop cooking without opening the door or

clearing the display.

Child Lock-out

You may lock the control panel to prevent the

microwave from being accidentally started or

used by children.

To lock or unlock the controls, press and hold

CLEAR/OFFfor about three seconds. When the

control panel is locked, LOCKED will be displayed

when a pad is pressed.

Turntable

For best cooking results, leave the turntable on. It

can be turned off for large dishes. Press

TURNTABLE to turn the turntable on or off. When

cooking with the turntable off, stir or rearrange

food after half the time.

NOTE: The Convenience and Defrost Features are

designed for use with items placed on the turntable.

The turntable cannot be turned off when using the

Convenience or Defrost Features.

Sometimes the turntable can become too hot to touch.

Be careful touching the turntable during and after

cooking.

Automatic Fan

An automatic fan feature protects the microwave

from too much heat rising from the cooktop below

it. It automatically turns on if it senses too much

heat,

If you have turned the fan on you may find that

you cannot turn it off. The fan will automatically

turn off when the internal parts are cool. It may

stay on for 30 minutes or more after the cooktop

and microwave controls are turned off.

Otherfeaturesyourmodelmay have.

Surface Light

Press SURFACE LIGHTonce for bright light, twice for

the night light or three times to turn the light off.

VentFan

The vent fan removes steam and other vapors from

surface cooking.

Press VENT FAN once for high fan speed, twice for

low fan speed, or a third time to turn the fan off.

The vent fan operates automatically during

microwave cooking.

Custom

The CUSTOM pad allows you to save your most

frequenfly used settings.

To set and save a setting:

Press the CUSTOM pad.

Set the amount of cooking time.

Set the power level, if desired. (Full power will

automatically be set if you do not change it).

Press START.

Your custom setting will be remembered for future

use. Just press CUSTOM, then press START.

www.GEAppliances.com

Op6ons

Press the OPTIONSpad and select from the

available options:

Soond0ni0.

The beeper sound level can be adjusted. Press Ito

select Sound On/Off. Then, press Ito turn the sound

on or 2to turn the sound off.

Clock On/Off

You can choose to turn the clock display on or off.

Press 2to select Clock On/Off. Then, press 2to turn

the clock display off. Press Ito turn the clock

display on.

Scroll Speed

The scroll speed of the display can be changed.

Press 3to select Scroll Speed. Then, select 1-3 for

slow to fast scroll speed.

Weight Measurement

The weight measurement can be set at either

pounds or kilograms. Press 4to select Weight

Measurement. Then, press Ifor pounds or 2for

kilograms.

Demo

The Demo mode allows you to practice setting

microwave programs. The Demo mode uses no

microwave power, and the time counts down faster

than in normal mode. Press 5to select Demo. Then,

press Ito turn Demo on or 2to turn it off.

Otherfeaturesyourmodelmay have.

How to Use the Sheff

When Microwaving

mMake sure the shelf is

positioned properly

inside the microwave

to prevent damage to

the oven from arcing.

m Do not use a

microwave browning

dish on the shelf.

The shelf could

overheat.

M Do not use the oven

with the shelf on the

microwave floor.

This could damage

the microwave.

Use pot holders

when handling the

shelf--it may be hot.

E Do not use the shelf

when cooking

popcorn.

Shelf

Food microwaves best when placed on the turntable.

Use the shelf for dishes that are too large to fit on

the turntable.

Only use the shelf when reheating on more

than one level. Do not store the shelf inside

the oven cavity.

For best results

After half the cooking time, rotate the dish

180 degrees and stir or rearrange the food.

Switch places after 1/2 time

Shelf and Reheating

Toreheat on 2 levels

To reheat2 dishes on the lower level:

Mtfltiply reheat time by 11/2.

Switch places after 1/2 the time and stir or

rearrange food.

Microwave terms, vvvvw.GEAppliances.com

Arcing

Definition

Arcing is the microwave term for sparks in the oven. Arcing is

caused by:

m the metal shelf not installed correctly so that it touches

the microwave wall.

! metal or foil touching the side of the oven.

IR foil that is not molded to food (upturned edges act like

antennas).

metal such as twist-ties, poultry pins, gold-rimmed dishes.

recycled paper towels containing small metal pieces.

_i_,_g Covers hold in moisture, allow for more even heating and reduce

.... cooking time. Venting plastic wrap or covering with wax paper

allows excess steam to escape.

^ .....

:Shielding In a regular oven, you shield chicken breasts or baked foods to

prevent over-browning. When microwaving, you use small strips

of foil to shield thin parts, such as the tips of wings and legs on

poultry, which would cook before larger parts.

Standing Ttme When you cook with regular ovens, foods such as roasts or cakes

are allowed to stand to finish cooking or to set. Standing time is

especially important in microwave cooking. Note that a

microwaved cake is not placed on a cooling rack.

After covering a dish with plastic wrap, you vent the plastic wrap

by turning back one corner so excess steam can escape.

Care and cleaning of the microwave oven.

Helpful Hints

An occasional thorough wiping with a solution of

baking soda and water keeps the inside fresh.

NOTE: Be certain the power is off before cleaning any

part of this oven.

How to Clean the Inside

Walls, Floor, Inside Window, Metal and Plastic Parts

on the Door

Some spatters can be removed with a paper towel;

others may require a damp cloth. Remove greasy

spatters with a sudsy cloth, then rinse with a damp

cloth. Do not use abrasive cleaners or sharp

utensils on oven walls.

Never use a commercial oven cleaner on any part of

your microwave.

Removable Turntable and Turntable Support

To prevent breakage, do not place the turntable

into water just after cooking. Wash it carefully

in warm, sudsy water or in the dishwasher. The

turntable and support can be broken if dropped.

Remember, do not operate the oven without the

turntable and support in place.

Shelf

Clean with mild soap and water or in the

dishwasher.

Do not clean in a self-cleaning oven.

vvw_.GEAppliances.com

........

_! ii '_iii¸i¸¸ _ !¸! !

How to Clean the Outside

We recommend against using cleaners with ammonia

or alcohol, as they can damage the appearance of the

microwave oven. ff you choose to use a common

household cleaner, first apply the cleaner directly

to a clean cloth, then wipe the soiled area.

Bonom

Clean off the grease and dust on the bottom often.

Use a solution of warm water and detergent.

Case

Clean the outside of the microwave with a sudsy

cloth. Rinse and then dry. Wipe the window clean

with a damp cloth.

Control Panel and Door

Wipe with a damp cloth. Dry thoroughly. Do not

use cleaning sprays, large amounts of soap and

water, abrasives or sharp objects on the panel--they

can damage it. Some paper towels can also scratch

the control panel.

Door Seal

It's important to keep the area clean where the

door seals against the microwave. Use only mild,

non-abrasive detergents applied with a clean

sponge or soft cloth. Rinse well.

Replacingthe lightbulbs.

Remove

screws

Cooktop Light/Night Light

Replace the burned-out bulb with a 40-watt

incandescent bulb (WB36X10003), available

from your GEsupplier.

I To replace the bulb(s), first disconnect the

power at the main fuse or circuit breaker panel

or pull the plug.

Remove the screw from the side of the light

compartment cover and lower the cover until

it stops.

I Be sure the bulb(s) to be replaced are cool

before removing. Break the adhesive seal and

remove the bulb by gently turning.

I Screw in the new bulb, then raise the light

cover and replace the screw. Connect electrical

power to the oven.

Screws Oven Light

Replace the burned-out bulb with a 40-watt

incandescent bulb (WB36X10003), available

from your GE supplier.

inTo replace the oven light, first disconnect the

power at the main fuse or circuit breaker panel

or pull the plug.

_ Remove the top grille by taking out the 2 screws

that hold it in place and sliding the grille to the

left (opening the door makes grille removal

easier).

Remove the light cover near the center of the

oven that holds the bulb.

Replace the bulb and light cover, then replace

the grille and screws. Connect electrical power

to the oven.

Aboutthe exhaustfeature, vvww.GEAppliances.com

Charcoal Filter

(on some models)

Reusable Grease Filters

(on all models)

The Vent Fan

The vent fan has 2 metal reusable grease filters.

Models that recirculate air back into the room also

use a charcoal filter.

Reusable Grease Filters

The metal filters trap grease released by foods on

the cooktop. They also prevent flames from foods

on the cooktop from damaging the inside of the

microwave.

For this reason, the filters must ALWAYS be in

place when the hood is used. The grease filters

should be cleaned once a month, or as needed.

Removing and Cleaning the Filter

Toremove,slide to the rear using the tabs.

Pull down and out.

To clean the grease filter, soak it and then swish it

around in hot water and detergent. Don't use

ammonia or ammonia products because they will

darken the metal. Light brushing can be used to

remove embedded dirt.

Rinse, shake and let it dry before replacing.

To replace, slide the filter into the flame slot on the

back of the opening. Press up and to the front to

lock into place.

About the exhaustfeature.

Charcoal Filter

The charcoal filter cannot be cleaned. It must be

replaced. Order Part No. WBO2X10776 from your

GEsupplier.

If the model is not vented to the outside, the air

will be recirculated through a disposable charcoal

filter that helps remove smoke and odors.

The charcoal filter should be replaced when it is

noticeably dirty or discolored (usually after 6 to

12 months, depending on hood usage).

Remove 2 grille screws

to remove the grille.

To Remove Charcoal Filter

To remove the charcoal filter, disconnect power

at the main fuse or circuit breaker panel or pull

the plug.

Remove the top grille by removing the 2 screws

that hold it in place and sliding the grille to the left

(opening the door makes grille removal easier).

Slide the filter towards the front of the oven and

remove it.

ToInstall Charcoal Filter

To install a new filter, remove plastic and other

outer wrapping from the new filter.

Insert the filter into the top opening of the oven as

shown. It will rest at an angle on 2 side support tabs

and in front of the right rear tab. Replace the grille

and 2 screws.

Beforeyou call for service, wwvz.GEAppliances.com

Troubleshootingtips

Savetime and money! Reviewthe charts on the following pages

first and you may not needto call for service.

Oven will not start ....

not been used_

Possible Causes What To Do

Afuse in your home may . Replace fuse or reset

be blown or the circuit circuit breaker.

breaker tripped.

Power surge. • Unplug the microwave

oven, then plug it back in.

Plug not lazilyinserted *Make sure the 3-prong

into wall outlet, plug on the oven is fully

inserted into wall outlet.

"LOCKED" appears on

the display

The cooktop light is

located below the oven

floor. When the light is

on, the heat it produces

may make the oven floor

get warm.

The control has been

locked.

* This is normal.

o Press and hold CLEAR/OFF

for about 3 seconds to

unlock the control.

Youhear an unusual,

low-tone beep.

You have tried to change • Many of the oven's features

the power level when it is are preset and cannot be

not allowed, changed.

Things That Are Normal With Your Microwave Oven

S Steam or vapor escaping from around the door.

N Light reflection around door or outer case.

m Dimming oven light and change in the blower sound at power

levels other than high.

W Dull thumping sound while oven is operating.

N TV/radio interference might be noticed while using the

microwave. Similar to the interference caused by other small

appliances, it does not indicate a problem with the microwave.

Plug the microwave into a different electrical circuit, move the

radio or TV as tiar away from the microwave as possible, or check

the position and signal of the TV/radio antenna.

Notes.

GE Service Protection Plus TM

GE, aname recognized worldwide for quality and dependability,

offers you Service Protection PlusTM---comprehensive protection on

all your appliances--No Matter What Brand!

Benefits Include:

• Backed by GE

•All brands covered

•Unlimited service calls

•All parts and labor costs included

•No out-of-pocket expenses

•No hidden deductibles

•One 800 number to call

We'll CoverAny Appliance.

Anywhere. Anytime.*

You will be completely satisfied with our service protection or you may request your

money back on the remaining value of your contract. No questions asked. It's that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV,, VCR and much more--

any brandt Plus there's no extra charge for emergency service and low monthly financing

is available. Even icemaker coverage and food spoilage protection is offered. You can rest

easy, knowing that all your valuable household products are protected against expensive

repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224

for more information.

*All brands covered, up to 20 years old, in the continental U.S.

._,_.c__t_h____.....

Please place in envelope and mail to:

General Electric Company

Warranty Registration Department

P.O. Box 32150

Louis_lle, KY 40232-2150

Consumer Product Ownership Registration

Dear Customer:

Thank you for purchasing our product and thank you for placing your confidence in us.

We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

1Complete and mall

your Consumer

Product Ownership

Registration today.

Have the peace of

mind of knowing, we

can contact you in

the unlikely event of

a safety modification.

After mailing

the registration

below, store this

document in a safe

place. It contains

information you will

need should you

require selvice.

Our service number

is 800.GE.CARES

(800.432.2737).

Read your Owner's

Manual carefully.

It will help you

operate your new

appliance properly.

Model Number Serial Number

, l , , , ,, , i[ I I I I I I I l

Important: If you did not get a registration card with your product, detach

and return the form below to ensure that your product is

registered, or register online at www.GEAppliances.com. .__r..c.,a..h._e_

Consumer Product Ownership Registration

Model Number Serial Number

I,,i,l,,,i,,I I,, ,,,, ,I

Mr. [] Ms. [] Mrs. [] Miss [3

irstl ILastI I

Name I I I I I I w I I Name I II!I I IIIIIiI

Street] ]

Address I I tItI!IIIIIIIittIIIIIIIII

Apt.#] I , i , ,i I ] E-mailAddress*

City titI I i i i tiiiiState Code IIII

Date Placed In Use Phone

Month _ DayL_a iYearL.aiJ Number L...L.._-L...L__-i ,I , ]

_GEAppliances

General Electric Company

Louisville, Kentucky

www GEAppliances, corn

* Please provide your e-mail address to receive, via e-mail,

discounts, special offers and other important communications

from GE Appliances (GEA).

[] Check here if you do not want to receive communications

from GEA's carefully selected partners.

GEMicrowave OvenWarranty.

All warranty service provided by our

Factory Service Centers, or an authorized

Customer Care ®technician. To schedule

service, on-line, 24 hours a day, visit

us at www.GEAppliances.com, or call

800.GE.CARES (800.432.2737).

Staple your receipt here.

Proof of the original

purchase date is needed

to obtain service under

the warranty.

GE Will Replace:

One Year

From the date of the

original purchase

the tenth year from the

date of Originalpurchase

Anypart of the microwave oven which falls due to a

defect in materials or workmanship. During this full

one-year warranty, GE will also provide, free of charge,

all parts and service labor to repair or replace the

defective part.

The magnetron tube, if the magnetron tube falls due to

a defect in materials or workmanship. During this

additional nine-year limited warran_ you will be

responsible for any labor or in-home service costs.

MService trips to your home to teach

you how to use the producL

SImproper installation.

gFailure of the product if it is

abused, misused, or used for other

than the intended purpose or used

commercially.

WReplacement of house fuses or

resetting of circuit breakers.

UDamage to the product caused by

accident, fire, floods or acts of God.

WIncidental or consequential damage

caused by posslble defects with this

appliance.

Thiswarranty is extended to the original purchaserandany succeeding owner forproducts purchased

for ordinary home use within the USA.In Alaska, the warranty excludesthe cost of shipping or service

calls to yourhome.

Some states do not allow the exclusionor limitation of incidental or consequentialdamagesso the

above limitation or exclusionmay not apply to you. Thiswarranty gives you specific legal rights, and

you mayalso have otherrights which varyfrom state to state. Toknow what your legalrights are,

consult your local or state consumer affairs office or your state'sAttomey General.

Warrantor. General Electric Company.Louisville, KY 40225

ConsumerSupport.

GEAppliancesWebsite wvvw.GEAppfiances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website

24 hours a day, any day of the year! For greater convenience and faster service, you can

now download Owner's Manuals, order parts, catalogs, or even schedule service on-line.

You can also "Ask Our Team of Experts T""your questions, and so much more...

ScheduleService vvw_.GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and

schedule your service at your convenience 24 hours any day of the year! Or call

800.GE.CARES (800.432.2737) during normal business hours.

RealLifeDesignStudio vvvvw.GEAppliances.com

GE supports the Universal Design concept--products, services and environments that

can be used by people of all ages, sizes and capabilities. We recognize the need to

design for a wide range of physical and mental abilities and impairments. For details of

GE's Universal Design applications, including kitchen design ideas for people with

disabilities, check out our Website today. For the hearing impaired, please call

800.TDD.GEAC (800.833.4322).

ExtendedWarranties vvvvw.GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available

while your warranty is still in effect. You can purchase it on-line anytime, or call

800.626.2224 during normal business hours. GE Consumer Home Services will

still be there after your warranty expires.

PartsandAccessories www.GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories

sent directly to their homes (VISA, MasterCard and Discover cards are accepted).

Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal

business hours.

Instructionscontainedin thismanual coverproceduresto be performedby any user.Other

servicinggenerally shouldbe referred to qualified servicepersonnel Cautionmustbe

exercised,since improperservicing maycause unsafeoperation.

ContactUs vvvvw.GEAppliances.com

ffyou are not satisfied with the service you receive from GE, contact us on our Website

with all the details including your phone number, or mite to:

General Manager, Customer Relatons

GE Appliances, Appliance Park

Louisville, KY 40225

RegisterYourAppliance vvwvv.GEAppliances.com

win allow for enhanced communication and prompt service under the terms of your

warranty, should the need arise. You may also mail in the pre-printed regisu_ltion card

included in the packing material.

Pnntedin Korea

GE JVM1542BF001 User Manual MICROWAVE Manuals And Guides L0304095

GE Microwave/Hood Combo Manual L0304095 GE Microwave/Hood Combo Owner's Manual, GE Microwave/Hood Combo installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
