Dishwasher

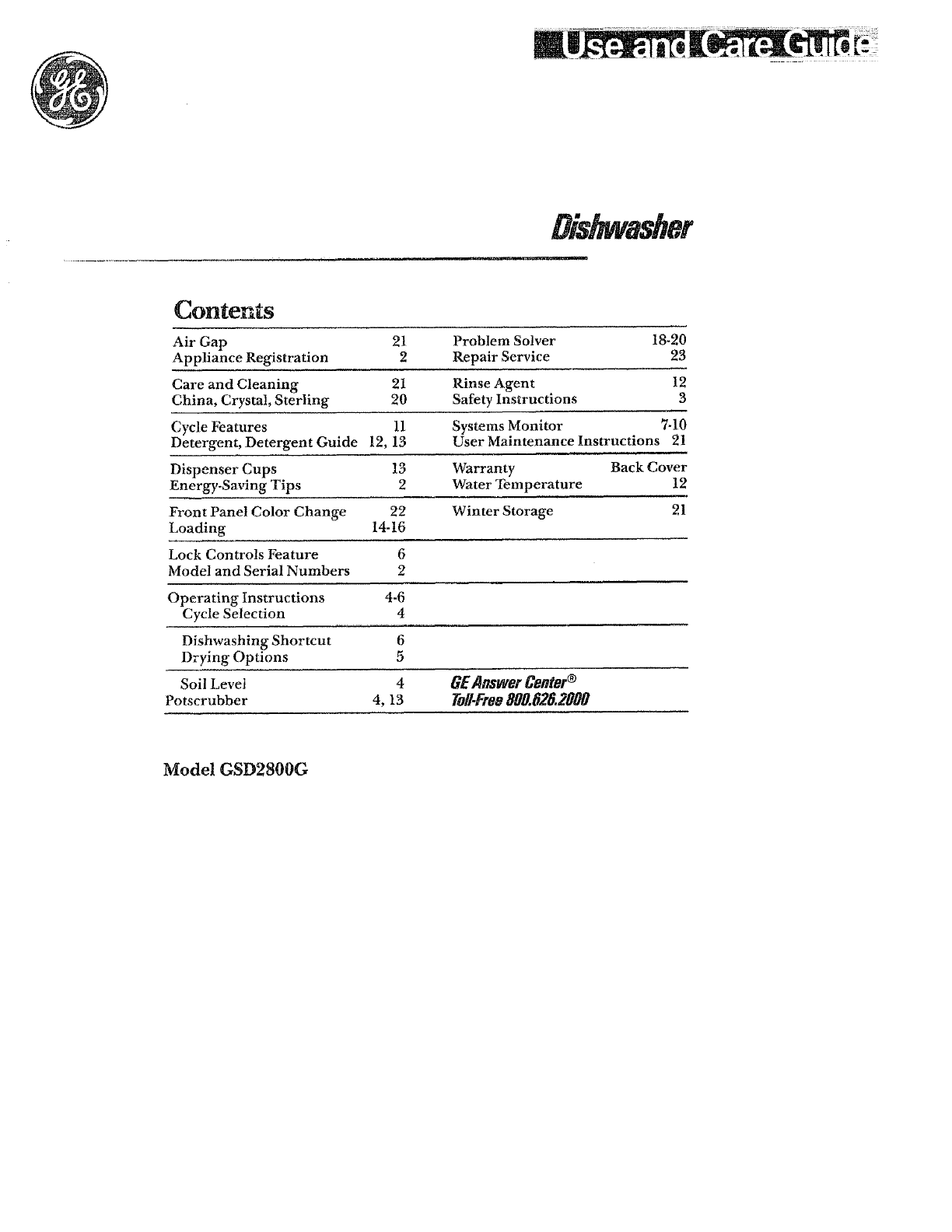

Contents

Air Gap 21 Problem Solver 18-20

Appliance Registration 2Repair Service 23

Care and Cleaning 21 Rinse Agent 12

China, Crysta!, Sterling 20 Safety Instructions 3

Cycle Features 11 Systems Monitor 7-10

Detergent, Detergent Guide 12, 13 User Maintenance Instructions 2!

Dispenser Cups 13 Warranty Back Cover

Energy-Saving Tips 2Water Temperature 12

Front Panel Color Change 22 Winter Storage 2 l

Loading 14-16

Lock Controls Feature 6

Model and Serial Numbers 2

Operating Instructions 4-6

Cycle Selection 4

Dishwashing Shortcut 6

Drying Options 5

Soil Level 4 GEAnswer Center®

Potscrubber 4, 13 Toll-Free800.626.2000

Model GSD2800G

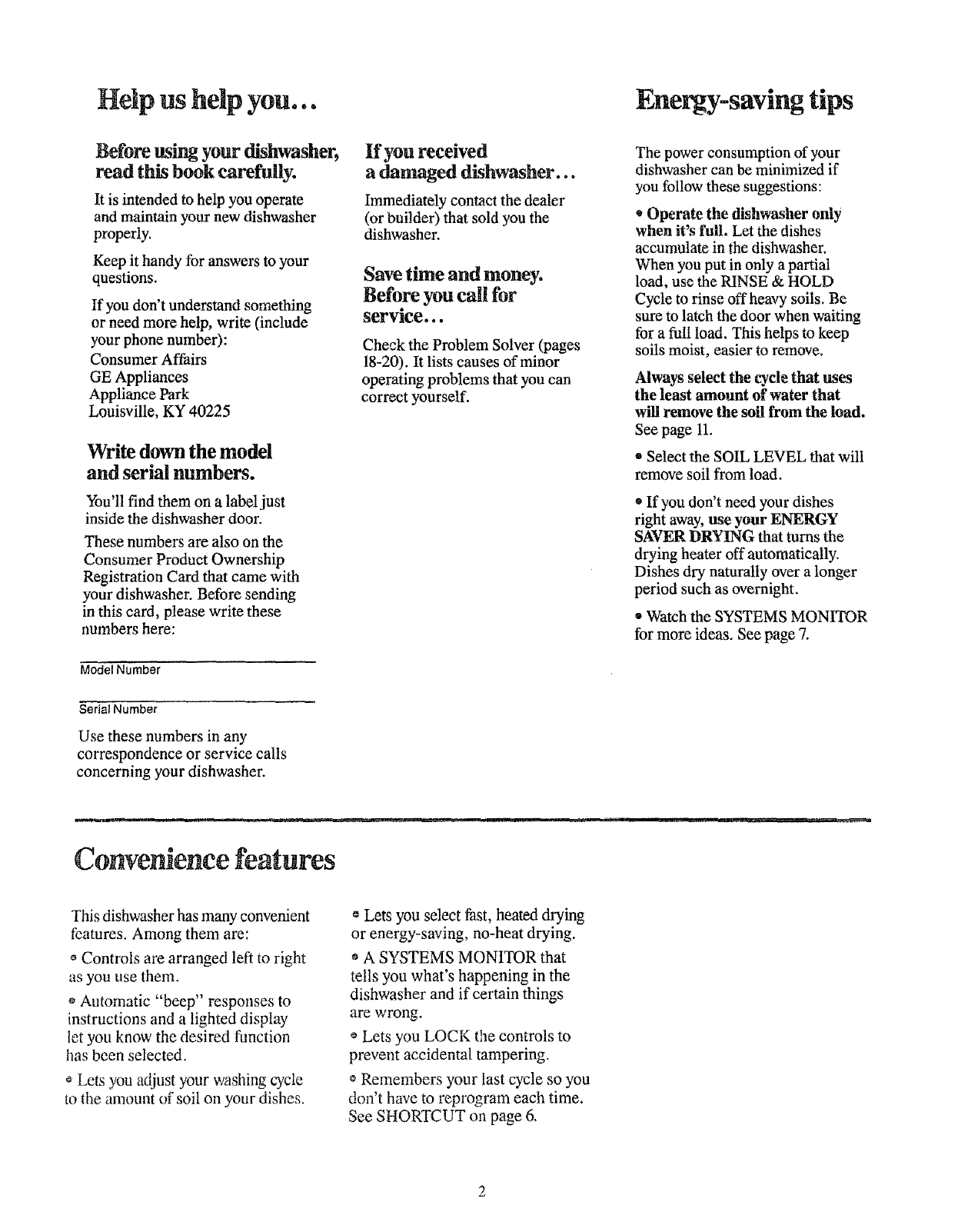

Help us help you... Energy-saving tips

Before using your dishwasher,

read this book carefully.

It is intended to help you operate

and maintain your new dishwasher

properly.

Keep it handy for answers to your

questions.

If you don't understand something

or need more help, write (include

your phone number):

Consumer Affairs

GE Appliances

Appliance Park

Louisville, KY 40225

Write down the model

and serial numbers.

You'll find them on a label just

inside the dishwasher door.

These numbers are also on the

Consumer Product Ownership

Registration Card that came with

your dishwasher. Before sending

in this card, please write these

numbers here:

Model Number

Serial Number

If you received

a damaged dishwasher...

Immediately contact the dealer

(or builder) that sold you the

dishwasher.

Save time and money.

Before you call for

service...

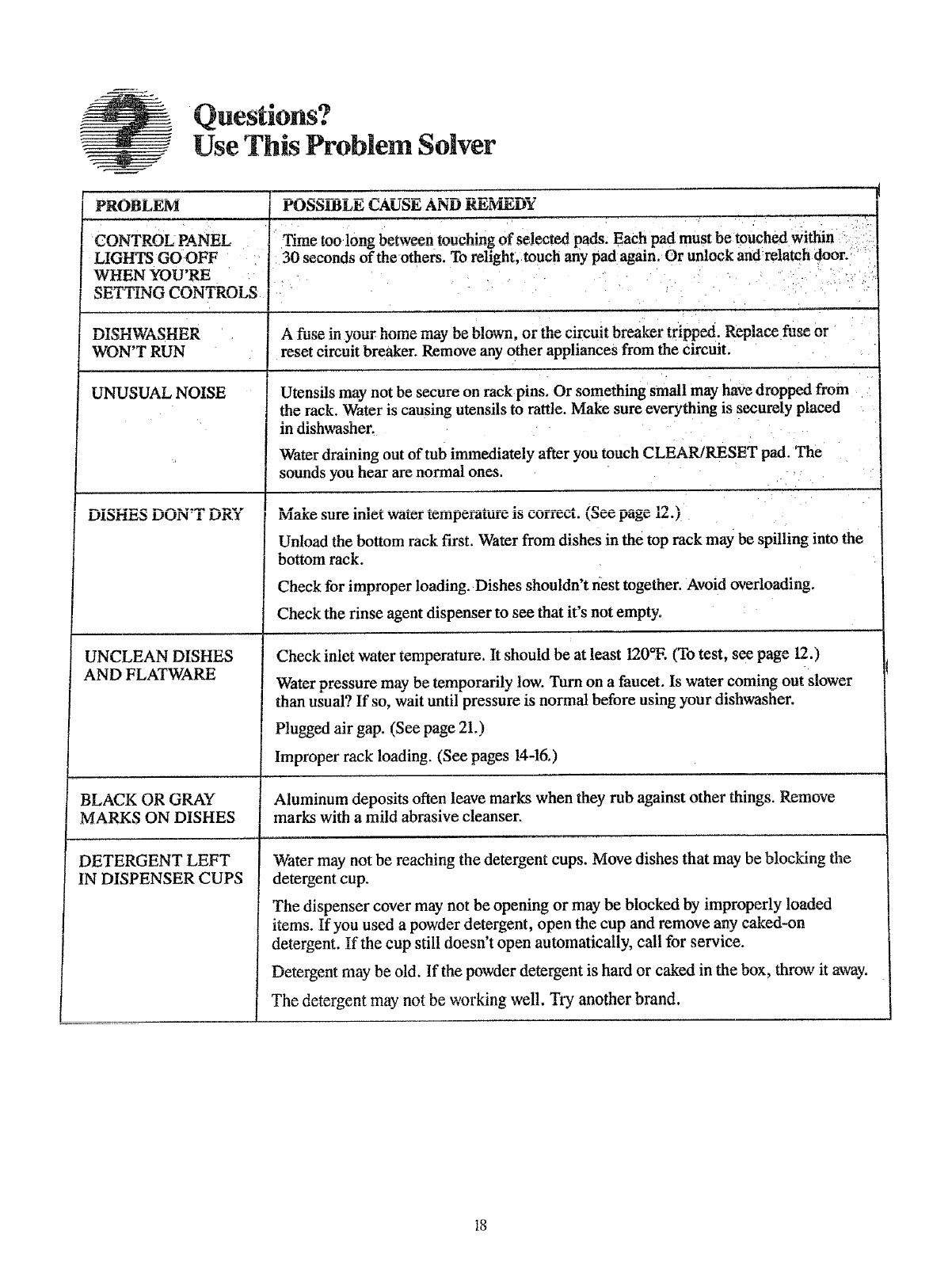

Check the Problem Solver (pages

18-20). It lists causes of minor

operating problems that you can

correct yourself.

The power consumption of your

dishwasher can be minimized if

you follow these suggestions:

* Operate the dishwasher only

when it's full. Let the dishes

accumulate in the dishwasher.

When you put in only a partial

load, use the RINSE & HOLD

Cycle to rinse off heavy soils. Be

sure to latch the door when waiting

for a full load. This helps to keep

soils moist, easier to remove.

Always select the cycle that uses

the least amount of water that

will remove the soil from the load.

See page 11.

* Select the SOIL LEVEL that will

remove soil from load.

o If you don't need your dishes

right away, use your ENERGY

SAVER DRYING that turns the

drying heater off automatically.

Dishes dry naturally over a longer

period such as overnight.

* Watch the SYSTEMS MONITOR

for more ideas. See page 7.

Use these numbers in any

correspondence or service calls

concerning your dishwasher.

Convenience features

This dishwasher has many convenient

features. Among them are:

o Controls are arranged left to right

as you use them.

Automatic "beep" responses to

instructions and a lighted display

let you know the desired function

has been selected.

Lets you adjust your washing cycle

to the amount of soil on },our dishes.

Lets you select fast, heated drying

or energy-saving, no-heat drying.

A SYSTEMS MONITOR that

tells you what's happening in the

dishwasher and if certain things

are wrong.

"Lets you LOCI( the controls to

prevent accidental tampering.

o Remembers your last cycle so you

don't have to reprogram each time.

See SHORTCUT on page 6.

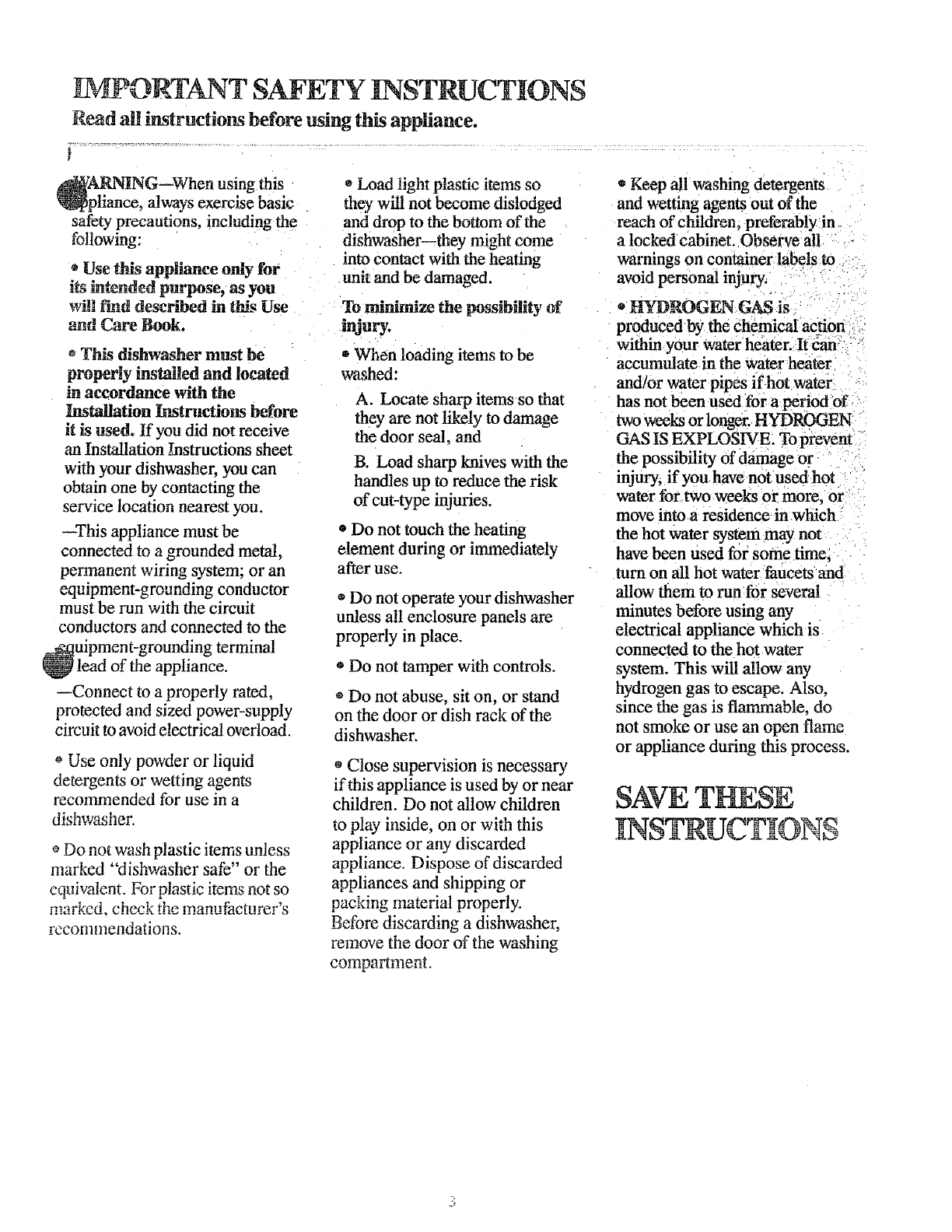

E PORTANT SAFETY INSTRUCTIONS

Read aL_instructions before using this appliance.

A_lNG--When us!ng this

ance, always exerctse basic

safety precautions , including the

folMwing:

oUse tiffs appliance only for

its intended purpose, as you

* Load light plastic items so

they will not become dislodged

and drop to the bottom of the

dishwasher--they might come

into contact with the heating

unit and be damaged.

will find described in tNs Use To minimize the possibilRy of

and Care Book. injury,

*This dishwasher must be :

properly installed and located

hi accordance with the

Installation Instructions before

it is used. If you did not receive

an Installation Instructions sheet

with your dishwasher, you can

obtain one by contacting the

service location nearest yon.

--This appliance must be

connected to a grounded metal,

permanent wiring system; or an

equipment-grounding conductor

must be run with the circuit

conductors and connected to the

uipment-grounding terminal

lead of the appliance.

--Connect to a properly rated,

protected and sized power-supply

ch'cuit to avoid electrical overload.

• When loading items to be

washed:

A. Locate sharp items so that

they are not likely to damage

the door seal, and

B. Load sharp knives with the

handles up to reduce the risk

of cut-type injuries.

•Do not touch the heating

element during or immediately

after use.

* Do not operate your dishwasher

unless all enclosure panels are

properly in place.

* Do not tamper with controls.

* Do not abuse, sit on, or stand

on the door or dish rack of the

dishwasher.

Use only powder or liquid

detergents or wetting agents

recommended for use in a

dishwasher.

¢ Do not wash plastic items unless

marked "dishwasher safe" or the

equivalent. For plastic items not so

marked, check the manufhcmrer's

recommendations.

oClose supervision is necessary

if this appliance is used by or near

children. Do not allow children

to play inside, on or with this

appliance or any discarded

appliance. Dispose of discarded

appliances and shipping or

pacldng material properly.

Before discarding a dishwasher,

remove the door of the washing

compartment.

*I_ep all washing detergents

and wetting agents out of the

reach of children, preferably'in

a locked cabinet. Observe all

warnings on container labels tO,)::.

avoid personal injm'y,

®'HYDROGEN GASis

produced by the chemical action =/

within your water hehter.. I_ _an i_-

accumulate in the water heater

and/or water pipes if hot water

has not been used for a period of

two weeks or longer. HYDROGEN

GAS IS EXPLOSIVE_ To prevent

the possibility Of damage or

injury, ify0u have notusedhot :

water fortwo weeks or more, or

move intoa residence in which.

the hot water system may not

have been used for some time,

turn on all hot water faucets and

allow them to runfor several

minutes before using any

electrical appliance which is

connected to the hot water

system. This will a!low any

hydrogen gas to escape. Also,

since the gas is flammable, do

not smoke or use an open flame

or appliance during this process.

SAVE THESE

INSTRUCTIONS

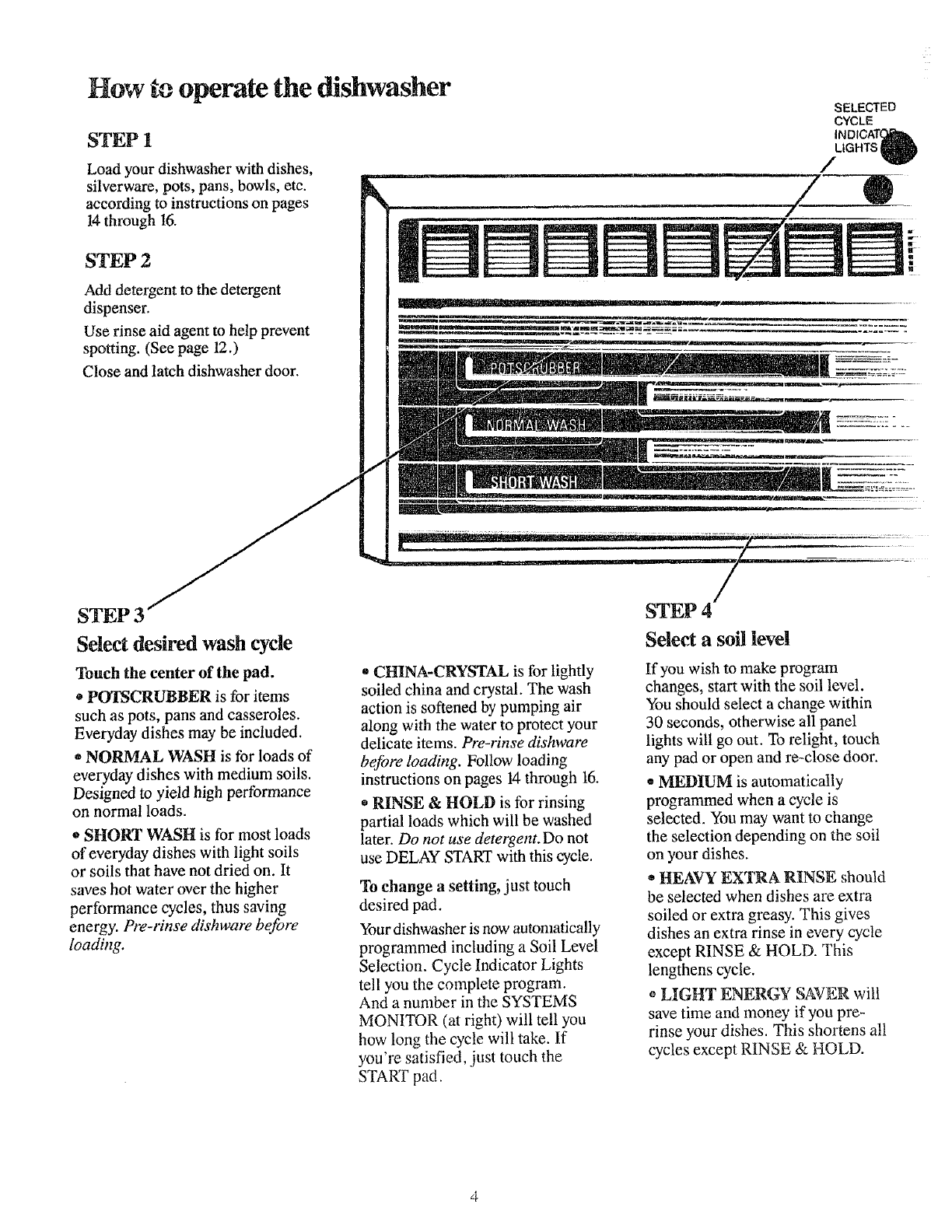

How to operate the dishwasher

STEP 1

Load your dishwasher with dishes,

silverware, pots, pans, bowls, etc.

according to instructions on pages

14through 16.

STEP 2

Add detergent to the detergent

dispenser.

Use rinse aid agent to help prevent

spotting. (See page 12.)

Close and latch dishwasher door.

SELECTED

CYCLE

INDICAT(_

/tGHTS t_l

m •• ._m ..............

mn_

imHtk_"

STEP 3

Select desired wash cycle

Touch the center of the pad.

*POTSCRUBBER is for items

such as pots, pans and casseroles.

Everyday dishes may be included.

eNORMAL WASH is for loads of

everyday dishes with medium soils.

Designed to yield high performance

on normal loads.

oSHORT WASH is for most loads

of everyday dishes with light soils

or soils that have not dried on. It

saves hot water over the higher

performance cycles, thus saving

energy. Pre-rinse dishware before

CHINA-CRYSTAL is for lightly

soiled china and crystal. The wash

action is softened by pumping air

along with the water to protect your

delicate items. Pre-rinse dishware

be_bre loading. Follow loading

instructions on pages 14 through 16.

* RINSE & HOLD is for rinsing

partial loads which will be washed

later. Do not use detergent. Do not

use DELAY START with this cycle.

To change a setting, just touch

desired pad.

Your dishwasher is now automatically

programmed including a Soil Level

Selection. Cycle Indicator Lights

tell you the complete program.

And anumber in the SYSTEMS

MONITOR (at right) will tell you

how long the cycle will take. If

you're satisfied, just touch the

START pad.

STEP 4/

Select a soil level

If you wish to make program

changes, start with the soil level.

You should select a change within

30 seconds, otherwise all panel

lights will go out. To relight, touch

any pad or open and re-close door.

•MEDIUM is automatically

programmed when a cycle is

selected. You may want to change

the selection depending on the soil

on your dishes.

®HEAVY EXTRA RINSE should

be selected when dishes are extra

soiled or extra greasy. This gives

dishes an extra rinse in every cycle

except RINSE & HOLD. This

lengthens cycle.

oLIGHT ENERGY SAVER will

save time and money if you pre-

rinse your dishes. This shortens all

cycles except RINSE & HOLD.

DOOR LATCH

vt i r",,JOl i i_1_

TIME

TO END ENERGY

OF CYCLE MONITOR CYCLE PHASE

-WASHING

IR iI_11 iTr-i*_

i;I

I- I I

s!rEps sIT 6 ]

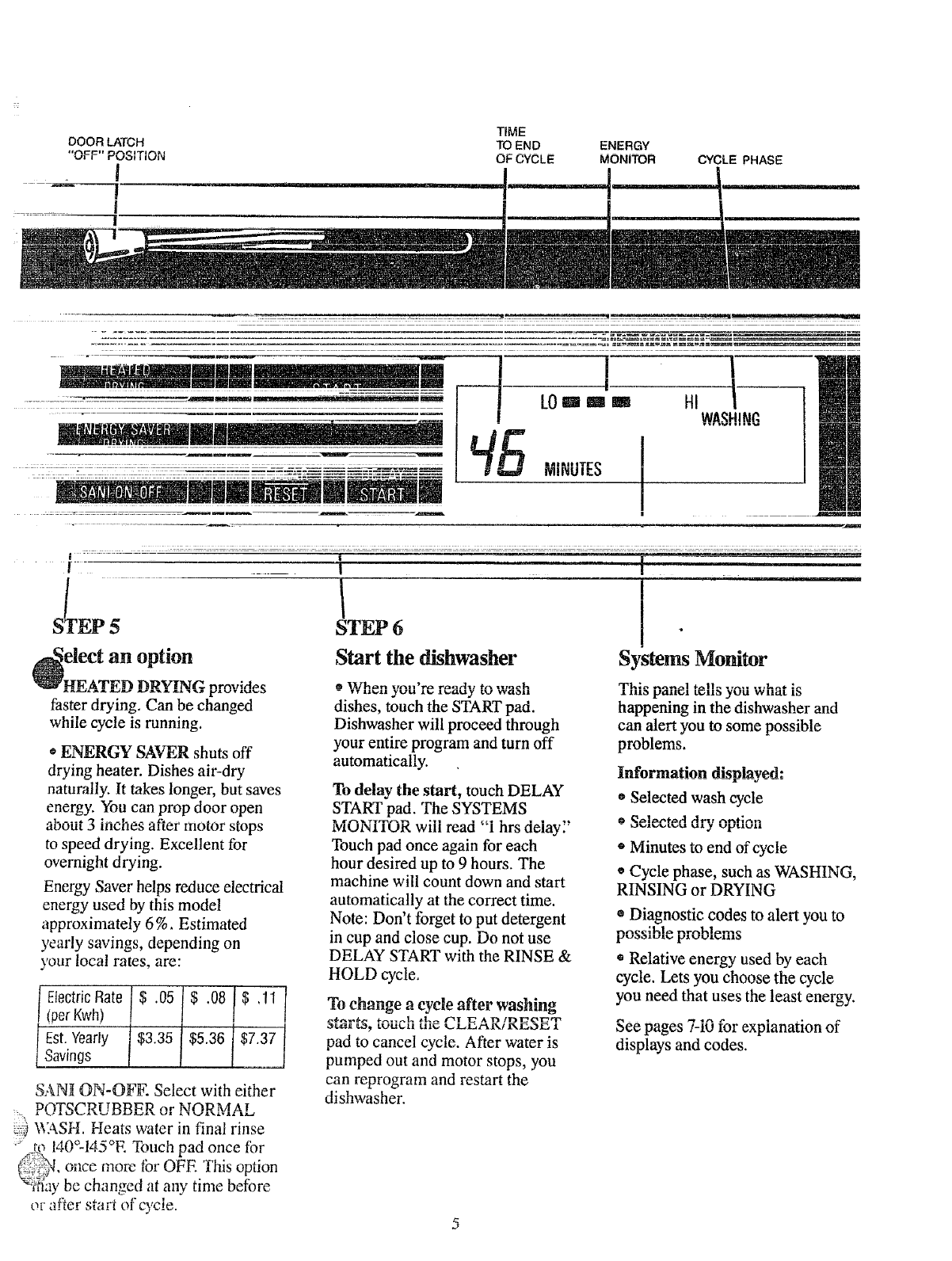

{_relect an option Start the dishwasher Systems Monitor

_.AT_N "f_RVl'/_ll"-nrn_tliA,:,o a11[h_n ,,,_,,'..... A,, *...... h Th: ..... I +^n .........k_+ :_

faster drying. Can be changed dishes, touch the START pad. happening in the dishwasher and

while cycle is running. Dishwasher will proceed through can alert you to some possible

your entire program and turn off problems.

automatically.

* ENERGY SAVER shuts off

drying heater. Dishes air-dry

naturally. It takes longer, but saves

energy. You can prop door open

about 3 inches alter motor stops

to speed drying. Excellent for

overnight drying.

Energy Saver helps reduce electrical

energy used by this model

approximately 6 %. Estimated

yearly savings, depending on

),our local rates, are:

E,oc.,o ato!,osi,osl,llt

(perKwh)

Savings

SANI{ ON-OEE Select with either

DL_T_t¢"I_IIFIRFH_ or NTOI_/WdAT

L:_)",\ASH. Heats water in final rinse

a_ 140°-145°E Touch pad once for

(::)/_, once more lbr OFE This option

_tlay bc changed at any tm]e before

or after star_ of cycle.

To delay the start, touch DELAY

START pad. The SYSTEMS

MONi I_OR will read "i hrs delay?

Touch pad once again for each

hour desired up to 9 hours. The

machine will count down and start

automatically at the correct time.

Note: Don't forget to put detergent

in cup and close cup. Do not use

DELAY START with the RINSE &

HOLD cycle,

To change acycle after washing

pad to cancel cycle. After water is

pumped out and motor stops, you

can reprogram and restart the

dishwasher.

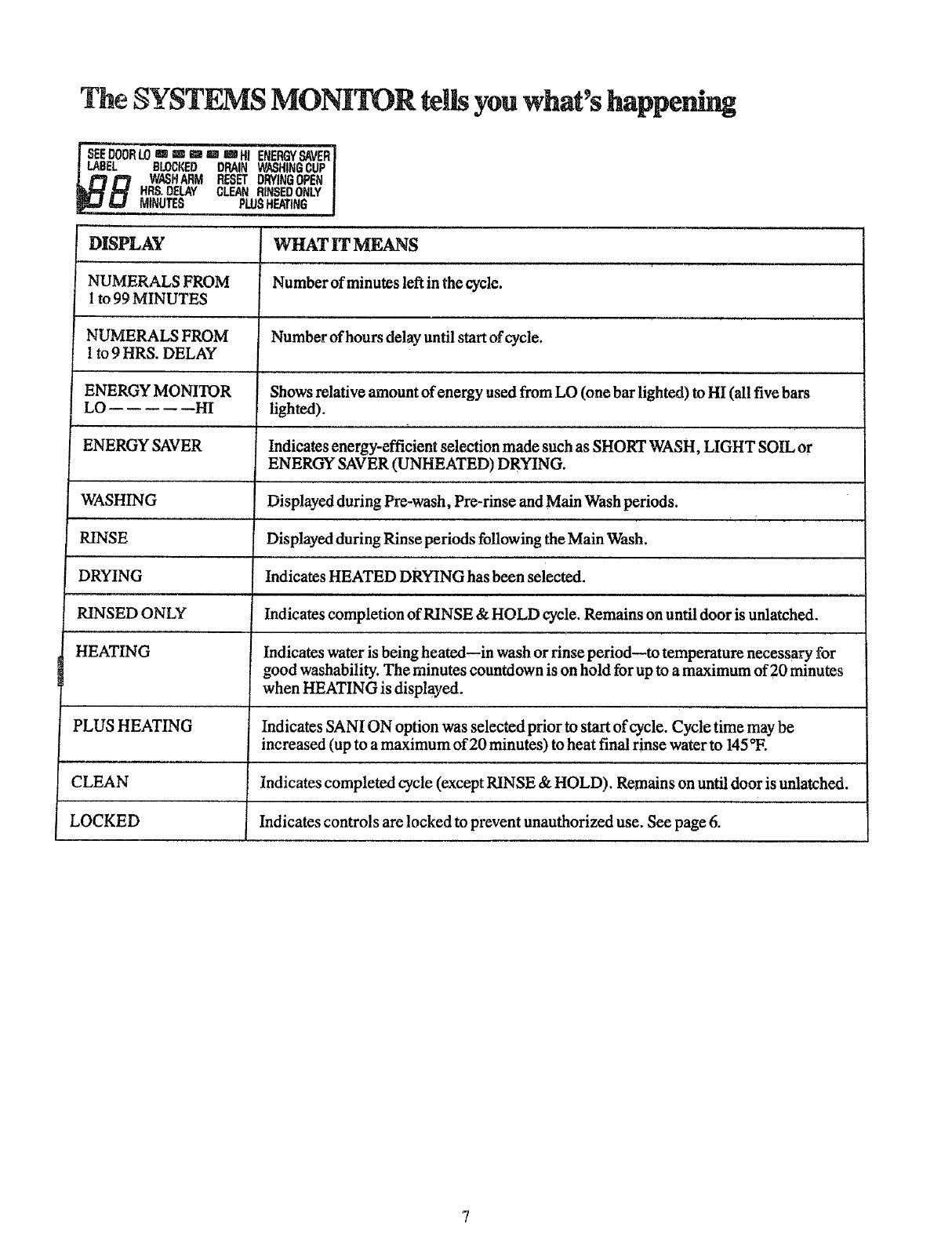

Information disp!_ayed-

Selected wash cycle

- Minutes to end of cycle

Cycle phase, such as WASHING,

RINSING or DRYING

Diagnostic codes to alert you to

"Relative energy used by each

cycle. Lets you choose the cycle

you need that uses the least energy.

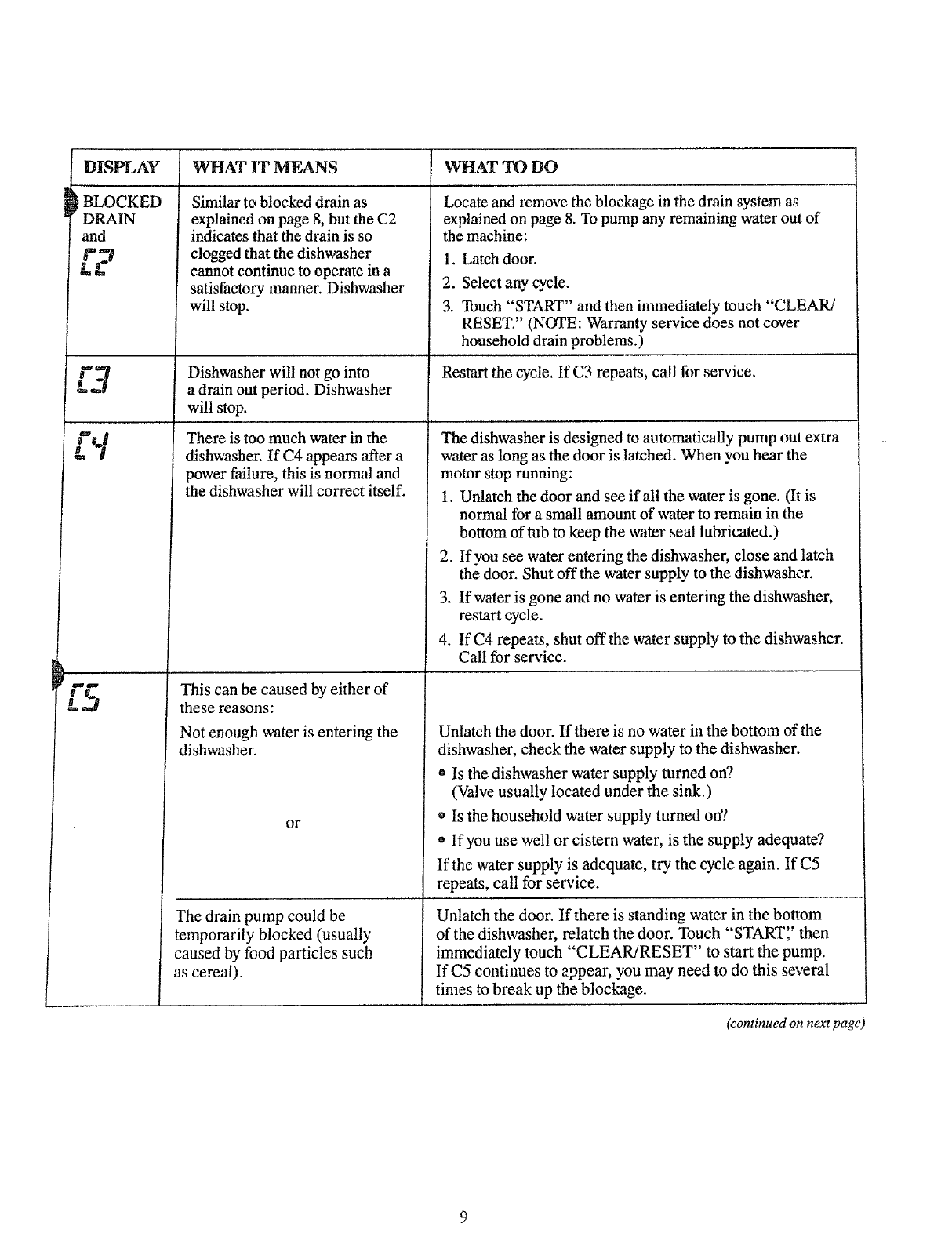

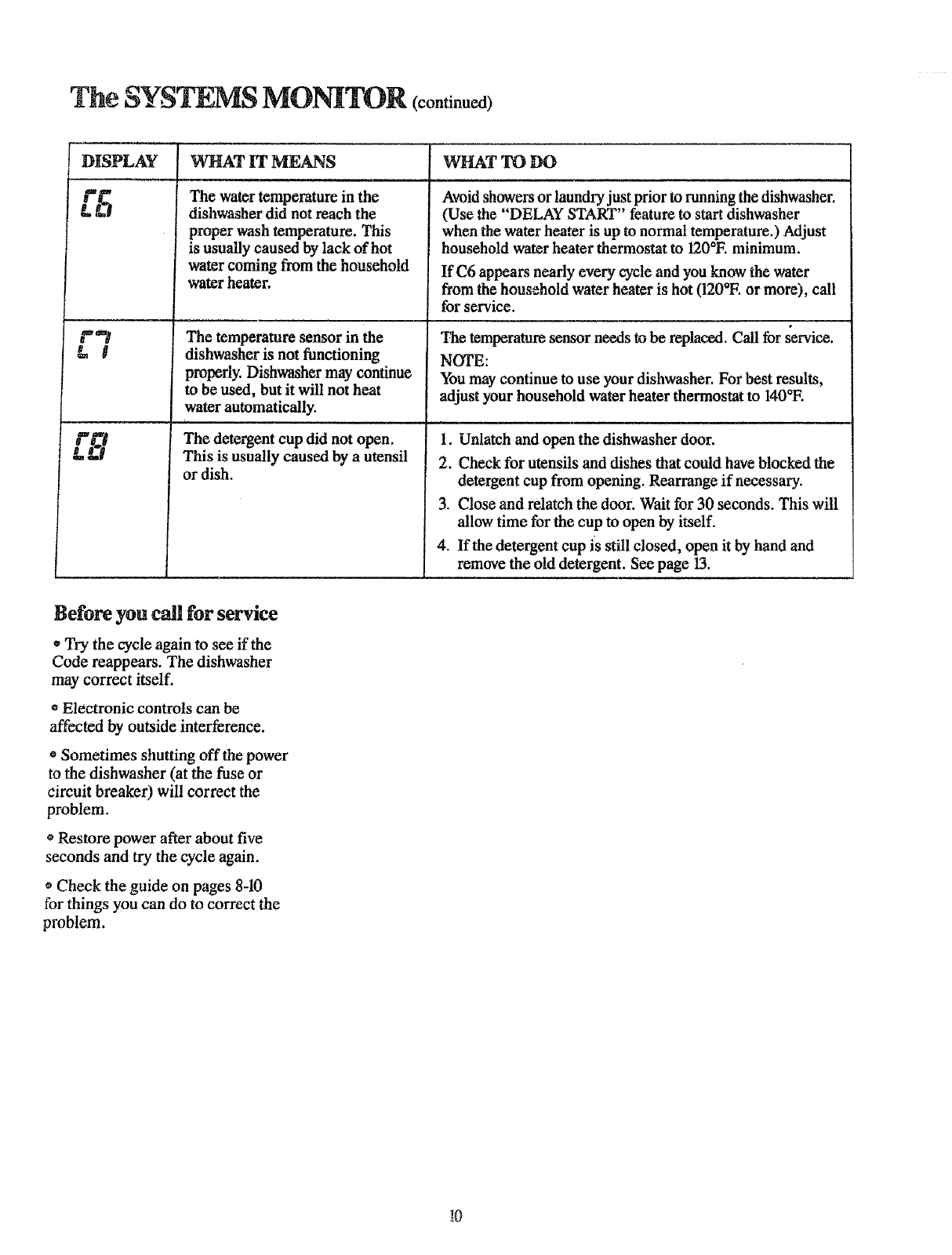

See pages 7-i0 for explanation of

displays and codes.

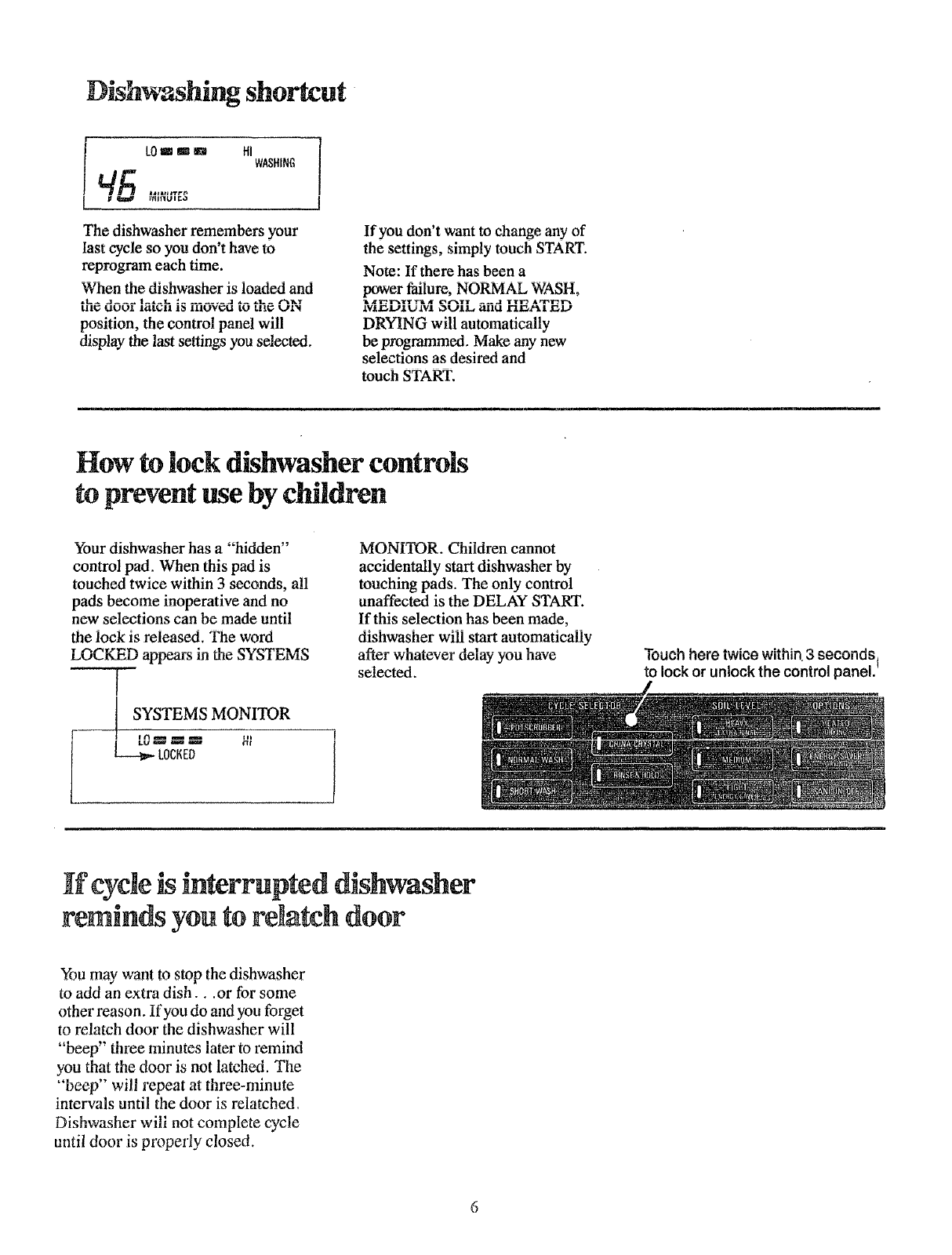

_awasnmg shortcut

LOrem=g HIWASHING

q/:; ..........

_ INIIIU I Co

The dishwasher remembers your

last cycle so you don't have to

reprogram each time.

When the dishwasher is loaded and

Hlff UUUI I_[UII 1_ IIIUV_U [U [lll_ UI'H

position, the control panel will

display the last settings you selected.

If you don't want to change any of

the settings, simply touch START.

Note: If there has been a

power failure, NORMAL WASH,

3tA'r'?_l*_TlrT1K (_t'_TT _.1 TTlr)A_I'_T'_lr_

DRYING will automatically

be programmed. Make any new

selections as desired and

touch START.

h_w to lock dishwasher controls

to prevent use by children

Ybur dishwasher has a "hidden"

control pad. When this pad is

touched twice within 3 seconds, all

pads become inoperative and no

new selections can be made until

the lock is released. The word

LOCKED appe_ in the SYSTEMS

[LOCKED '"

MONITOR. Children cannot

accidentally start dishwasher by

touching pads. The only control

unaffected is the DELAY START.

If this selection has been made,

dishwasher will start automatically

alter whatever tlemy you nave

selected.

[iii iii

I(_grdIl I'l_re LWIL;_ WILIIIII. 0_UU|ILI_

to lockor un ock the contro pane.

]Ifcycle is in_rrupted dishwasher

re_in_ you to relatch door

M_u may want to stop the dishwasher

to add an extra dish...or for some

other reason. If you do and you forget

to relatch door the dishwasher will

"beep" three nfinutes later to remind

you that the door is not latched. The

"beep" will repeat at three-minute

interwds until the door is relatched.

Dishwasher will not complete cycle

until door is properly c!osed.

The SYSTEMS MONITOR tells you what's happening

OoRLOa m= am = _fll ENERGY'SAVER--]

LBLOCKED DRAIN WASHINGCUP ]

WASHARM RESET DRYINGOPEN ]

HRS.OE VCLUNn NS DON'V/

MJNulzS PLUSHeATInGI

DISPLAY

NUMERALS FROM

1to 99 MINUTES

NUMERALS FROM

1 to 9 HRS. DELAY

ENERGY MONITOR

LO-- HI

ENERGY SAVER

WASHING

RINSE

DRYING

RINSED ONLY

HEATING

WHAT IT MEANS

Numberof minutes left in the cycle.

Number of hours delay until start of cycle.

Shows relative amount of energy used from LO (one bar lighted) to HI (all five bars

lighted).

Indicates energy-efficient selection made such as SHORT WASH, LIGHT SOIL or

ENERGY SAVER (UNHEATED) DRYING.

Displayed during Pre-wash, Pre-rinse and Main Wash periods.

Displayed during Rinse periods following the Main Wash.

Indicates HEATED DRYING has been selected.

Indicates completion of RINSE & HOLD cycle. Remains on until door is unlatched.

Indicates water is being heated--in wash or rinse period--m temperature necessary for

good washability. The minutes countdown is on hold for up to a maximum of 20 minutes

when HEATING is displayed.

PLUS HEATING Indicates SANI ON option was selected prior to start of cycle. Cycle time may be

increased (up to a maximum of 20 minutes) to heat final rinse water to 145°F.

CLEAN Indicates completed cycle (except RINSE & HOLD). Remains on until door is unlatched.

LOCKED Indicates controls are locked to prevent unauthorized use. See page 6.

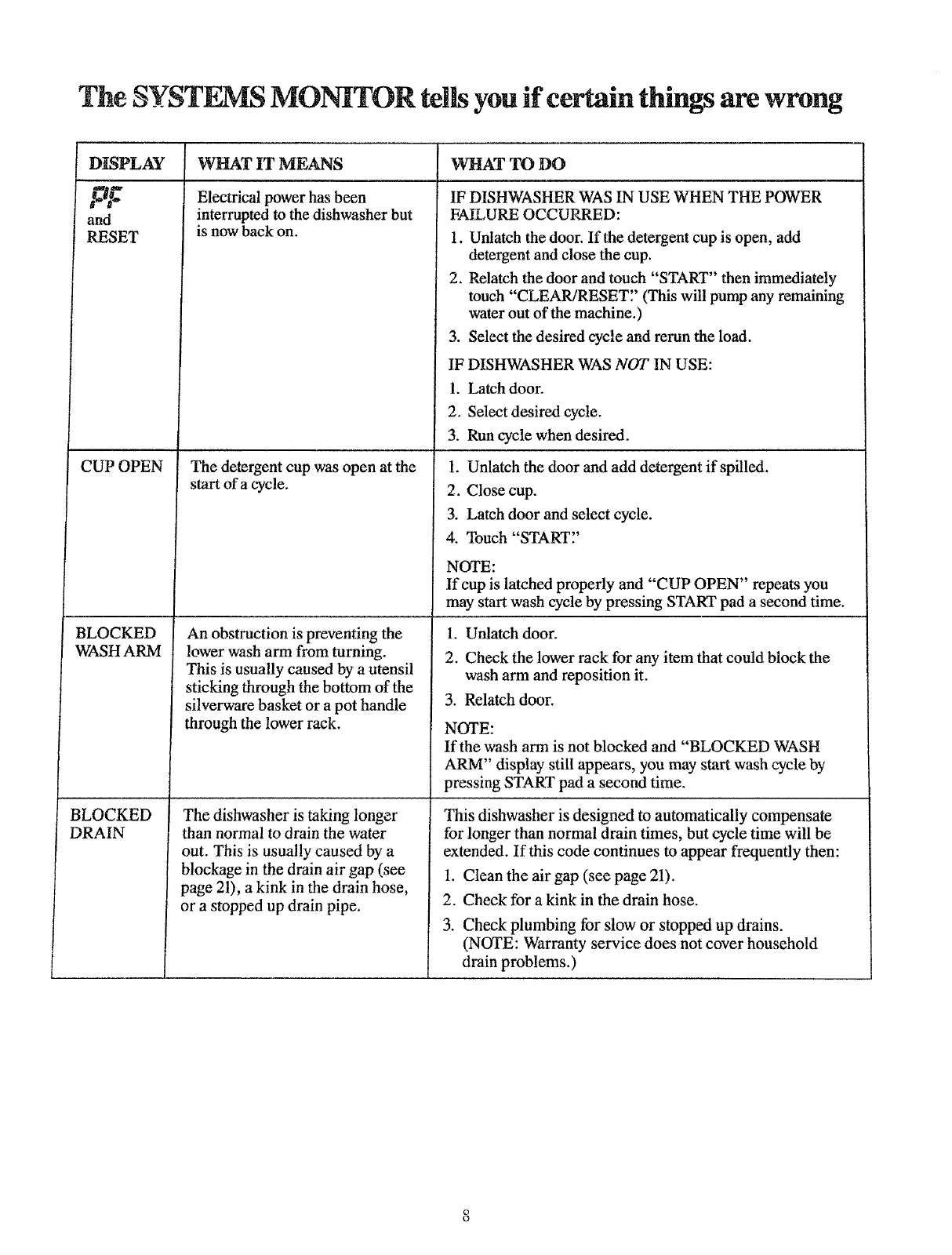

The SYSTEMS MONITOR tells you if certain things are wrong

.DISPLAY

B m

and

RESET

CUP OPEN

BLOCKED

WASH ARM

BLOCKED

DRAIN

WHAT IT MEANS

Electrical power has been

interrupted to the dishwasher but

is now back on.

The detergent cup was open at the 1.

start of acycle. 2.

An obstruction is preventing the

lower wash arm from turning.

This is usually caused by a utensil

sticking through the bottom of the

silverware basket or a pot handle

through the lower rack.

The dishwasher is taking longer

than normal to drain the water

out. This is usually caused by a

blockage in the drain air gap (see

page 21), a kink in the drain hose,

or a stopped up drain pipe.

[ WHATTODO

IF DISHWASHER WAS IN USE WHEN THE POWER

FAILURE OCCURRED:

1, Unlatch the door. If the detergent cup is open, add

detergent and close the cup.

2. Relatch the door and touch "START" then immediately

touch "CLEAR/RESET" (This will pump any remaining

water out of the machine.)

3. Select the desired cycle and rerun the load.

IF DISHWASHER WAS NOT IN USE:

1. Latch door.

2. Select desired cycle.

Run cycle when desired.

Unlatch the door and add detergent if spilled.

Close cup.

Latch door and select cycle.

Touch "START'.'

NOTE:

If cup is latched properly and "CUP OPEN" repeats you

may start wash cycle by pressing START pad a second time.

1. Unlatch door.

2. Check the lower rack for any item that could block the

wash arm and reposition it.

3. Relatch door.

NOTE:

If the wash arm is not blocked and "BLOCKED WASH

ARM" display still appears, you may start wash cycle by

pressing START pad a second time.

This dishwasher is designed to automatically compensate

for longer than normal drain times, but cycle time will be

extended. If this code continues to appear frequently then:

1. Clean the air gap (see page 21).

2. Check for a kink in the drain hose.

3. Check plumbing for slow or stopped up drains.

(NOTE: Warranty service does not cover household

drain problems.)

WHATIT MEANSDISPLAY

BLOCKED

and

F,:a

Similar to blocked drain as

explained on page 8, but the C2

indicates that the drain is so

clogged that the dishwasher

cannot continue to operate in a

satisfactory manner. Dishwasher

will stop.

Dishwasher will not go into

a drain out period. Dishwasher

will stop.

There is too much water in the

dishwasher. If C4 appears after a

power failure, this is normal and

the dishwasher will correct itself.

This can be caused by either of

these reasons:

Not enough water is entering the

dishwasher.

The drain pump could be

temporarily blocked (usually

caused by food particles such

as cereal).

WHAT TO DO

Locate and remove the blockage in the drain system as

explained on page 8. To pump any remaining water out of

the machine:

1. Latch door.

2. Select any cycle.

3. Touch "START" and then immediately touch "CLEAR/

RESET." (NOTE: Warranty service does not cover

household drain problems.)

Restart the cycle. If C3 repeats, call for service.

The dishwasher is designed to automatically pump out extra

water as long as the door is latched. When you hear the

motor stop running:

1. Unlatch the door and see if all the water is gone. (It is

normal for a small anaount of water to remain in the

bottom of tub to keep the water seal lubricated.)

2. If you see water entering the dishwasher, close and latch

the door. Shut off the water supply to the dishwasher.

3. If water is gone and no water is entering the dishwasher,

restart cycle.

4. If C4 repeats, shut off the water supply to the dishwasher.

Call for service.

Unlatch the door. If there is no water in the bottom of the

dishwasher, check the water supply to the dishwasher.

• Is the dishwasher water supply turned on?

(Valve usually located under the sink.)

®Is the household water supply turned on?

e If you use well or cistern water, is the supply adequate?

If the water supply is adequate, try the cycle again. If C5

repeats, call for service.

Unlatch the door. If there is standing water in the bottom

of the dishwasher, relatch the door. Touch "START',' then

immediately touch "CLEAR!RESET" to start the pump.

If C5 continues to appear, you may need to do this several

times to break up the blockage.

(continued on next page)

The SYSTEMS MONITOR <continued)

DISPLAY

r-n

I D

WHAT IT MEANS WHAT 'iX) DO

The water temperature in the

dishwasher did not reach the

proper wash temperature. This

is usually caused by lack of hot

water coming from the household

water heater.

The temperature sensor in the

dishwasher is not functioning

properly. Dishwasher may continue

to be used, but it will not heat

water automatically.

The detergent cup did not open.

This is usually caused by a utensil

or dish.

Avoid showers or laundry just prior to running the dishwasher.

(Use the "DELAY START" feature to start dishwasher

when the water heater is up to normal temperature.) Adjust

household water heater thermostat to 120°F. minimum,

If C6 appears nearly every cycle and you know the water

from the household water heater is hot (120°E or more), cal!

for service.

The temperature sensor needs to be replaced. Call for service.

NOTE:

You may continue to use your dishwasher. For best results,

adjust your household water heater thermostat to 140°F.

1. Unlatch and open the dishwasher door.

2. Check for utensils and dishes that could have blocked the

detergent cup from opening. Rearrange if necessary.

3. Close and relatch the door. Wait for 30 seconds. This will

allow time for the cup to open by itself.

4. If the detergent cup is still closed, open it by hand and

remove the old detergent. See page 13.

Before you call for service

o Try the cycle again to see if the

Code reappears. The dishwasher

may correct itself,

®Electronic controls can be

affected by outside interference.

* Sometimes shutting off the power

to the dishwasher (at the fuse or

circuit breaker) will correct the

problem.

o Restore power after about five

seconds and try the cycle again.

o Check the guide on pages 8-10

for things you can do to correct the

problem,

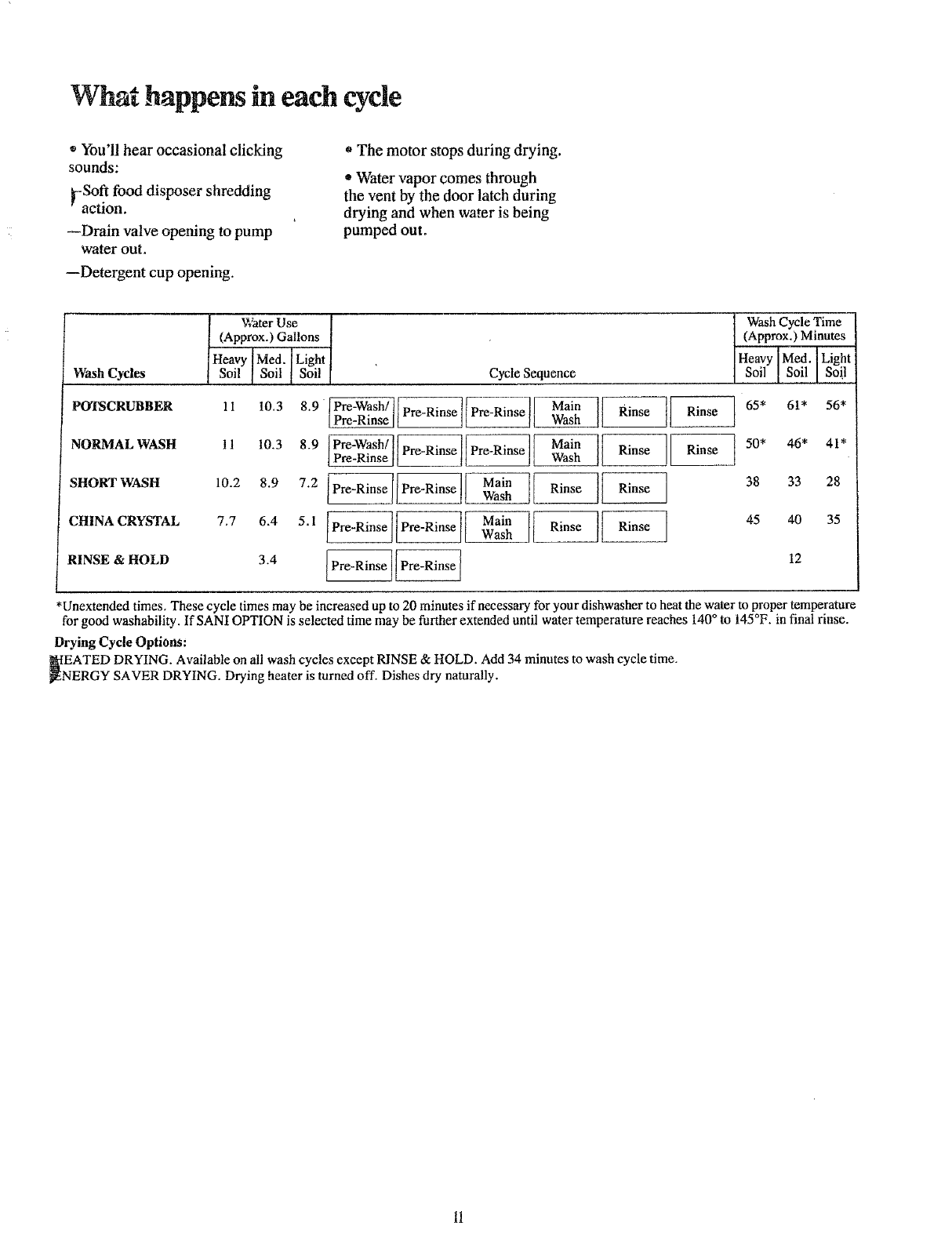

What happens in each cycle

'_You'll hear occasional clicking

sounds:

_-Soft food disposer shredding

action.

--Drain valve opening to pump

water out.

--Detergent cup opening.

oThe motor stops during drying.

• Water vapor comes through

the vent by the door latch during

drying and when water is being

pumped out.

Wash Cycles

POISCRUBBER

NORMAL WASH

SHORT WASH

CHINA CRYSTAL

RINSE & HOLD

Water Use Wash Cycle Time

(Approx.) Gallons (Approx.) Minutes

Heavy Med. Light Heavy IMed. I Light

So I [Soil Soil Cycle Sequence Soil [ Soil ISoil

_. ,, ,,,, _,, ..,.- ................ " Rinse Rinse__

11 10.3 8.9 Pre-Wash/t [Pre_Rinse I_e_Rins_] ['--Mare 65* 6!* 56*

/Pre-Rmse It I| | I wasn

11 10.3 8.9 Pre-Wash/]Pre_Rinse/ Pre-Rinse Pre-Rinse WashMain Rinse Rinse |_ 50* 46* 41"

10.2 8.9 7.2 Pre-Rinse Pre-Rinse Main Rinse I Rinse 38 33 28

Wash l

7.7 6.4 5.1 Pre-Rinse Pre-Rinse Main Rinse I Rinse I45 40 35

Wash [ I

3.4 Pre-Rinse Pre-Rinse 12

*Unextended times. These cycle times may be increased up to 20 minutes if necessary for your dishwasher to heat the water to proper temperature

for good washability. If SANI OPTION is selected time may be further extended until water temperature reaches 140° to 145°F_ in final rinse.

Drying Cycle Options:

EATED DRYING. Available on all wash cycles except RINSE & HOLD, Add 34 minutes to wash cycle time.

ERGY SAVER DRYING. Drying heater is turned off. Dishes dry naturally.

Temperature Sensor System

To get dishes clean and dry you

need hot water. To help you get

water of the proper temperature,

_rc.lr rli_h_xmcht,,r h_¢ _ ulater h_,.tina

feature that automatically senses

the temperature of the water in the

wash cycle and heats it, if necessary,

to the proper temperature. This

water heating feature may allow

you to turn down your household

water heater and save energy if

you're willing to let the dishwasher

run a little longer while it heats

water to the proper temperature.

For good washing and drying, the

entering water must be at least

i20°E To prevent dish damage,

inlet water should not exceed 150°F.

How to test water temperature:

Check your water temperature

inside vollr clishwa_her with a

....... d.......................

candy or meat thermometer.

Let the dishwasher run through

one fill and pump out cycle, then

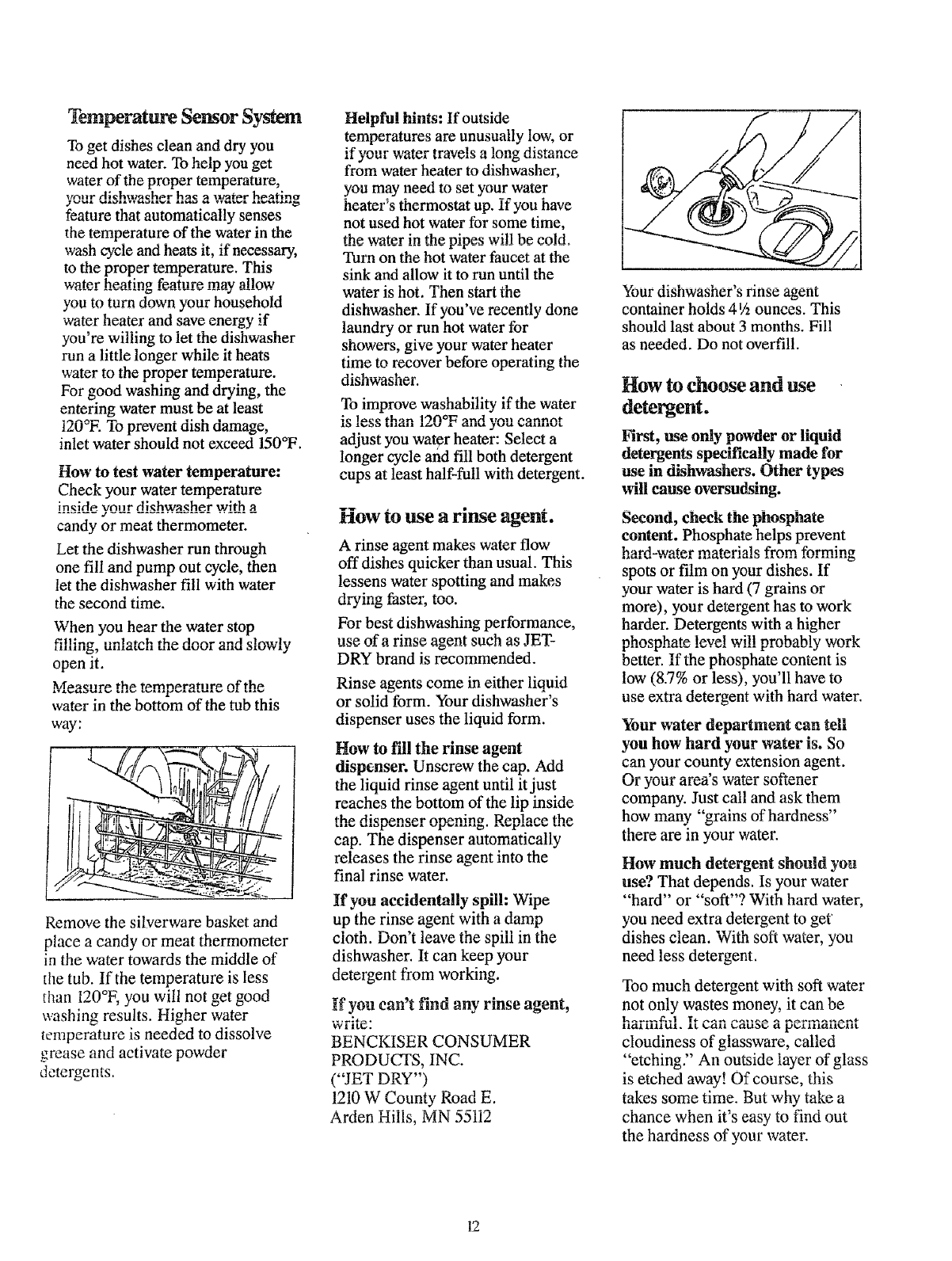

let the dishwasher fill with water

the second time.

When you hear the water stop

lllllll_ UlllaL_.41 Lilt-, LIUUL alt_t _luv¥1ff

open it.

water in the bottom of the tub this

way:

Remove the silverware basket and

place a candy or meat thermometer

in the water towards the middle of

the tub. If the temperature is less

than 120°F, you will not get good

washing results. Higher water

temperature is needed to dissolve

grease and activate powder

detergents.

Helpfu! hints: If outside

temperatures are unusually low, or

_f _t_tlr ut_t_r tr_tolc .q largo t_et,_nt_

from water heater to dishwasher,

you may need to set your water

heater's thermostat up. if you have

not used hot water for some time,

the water in the nines will be cold.

Turn on the hot water faucet at the

sink and allow it to run until the

water is hot. Then start the

dishwasher. If you've recently done

laundry or run hot water for

showers, give your water heater

time to recover before operating the

U1SIIW_t_IICI'.

To improve washability if the water

adjust you water heater: Select a

longer cycle and fill both detergent

cups at least half-full with detergent.

How to ussea rinse agent.

A rinse agent makes water flow

off dishes quicker than usual. This

lessens water spotting and makes

For best dishwashing performance,

n_e ofa rin._e a_ent such as JET-

DRY brand is recommended.

Rinse agents come in either liquid

or solid form. Your dishwasher's

dispenser uses the liquid form.

How to fill the rinse agent

dispenser. Unscrew the cap. Add

the liquid rinse agent until it just

reaches the bottom of the lip inside

fh_ Aicn_nc_r _n_nlno _onl_n_ fh#

cap. The dispenser automatically

releases the rinse agent into the

final rinse water.

Ifyou accidentally spill: Wipe

up the rinse agent with a damp

cloth. Don't leave the spill in the

dishwasher. It can keep your

detergent from working.

If you can't find any rinse agent,

'.5/11 I._,

BENCKISER CONSUMER

PRODUCTS, INC.

("JET DRY")

1210 W County Road E.

Arden Hills, MN 55112

_our olsnwasner s rinse agent

container holds 4 ½ ounces. This

should last about 3 months, Fill

as needed. Do not overfill.

How to choose and use

detergent.

First, use only powder or liquid

detergents specifically made for

use in dishwashers. Other types

will cause oversudsing.

Second, check the phosphate

content. Phosphate helps prevent

hnrd-wnte, r mntcwlal_ from formin_

spotsorfilm onyour dishes. If

your water is hard (7 grains or

more), your detergent has to work

harder. Detergents with a higher

nhoCnhnt_ level will nrohahlx_ work

better. If the phosphate content is

low (8.7% or less), you'll have to

use extra detergent with hard water.

Your water department can tell

you how hard your water is. So

can your county extension agent.

company. Just call and ask them

how many "grains of hardness"

there are in your water.

How much detergent should you

use7 That depends. Is your water

"hard" or "soft"? With hard water,

you need extra detergent to get

dishes clean. With soft water, you

need less detergent.

Too much detergent with soft water

not only wastes money, it can be

cloudiness of glassware, called

"etching." An outside layer of glass

is etched away! Of course, this

takes some time. But why take a

chance when it's easy to find out

the hardness of your water.

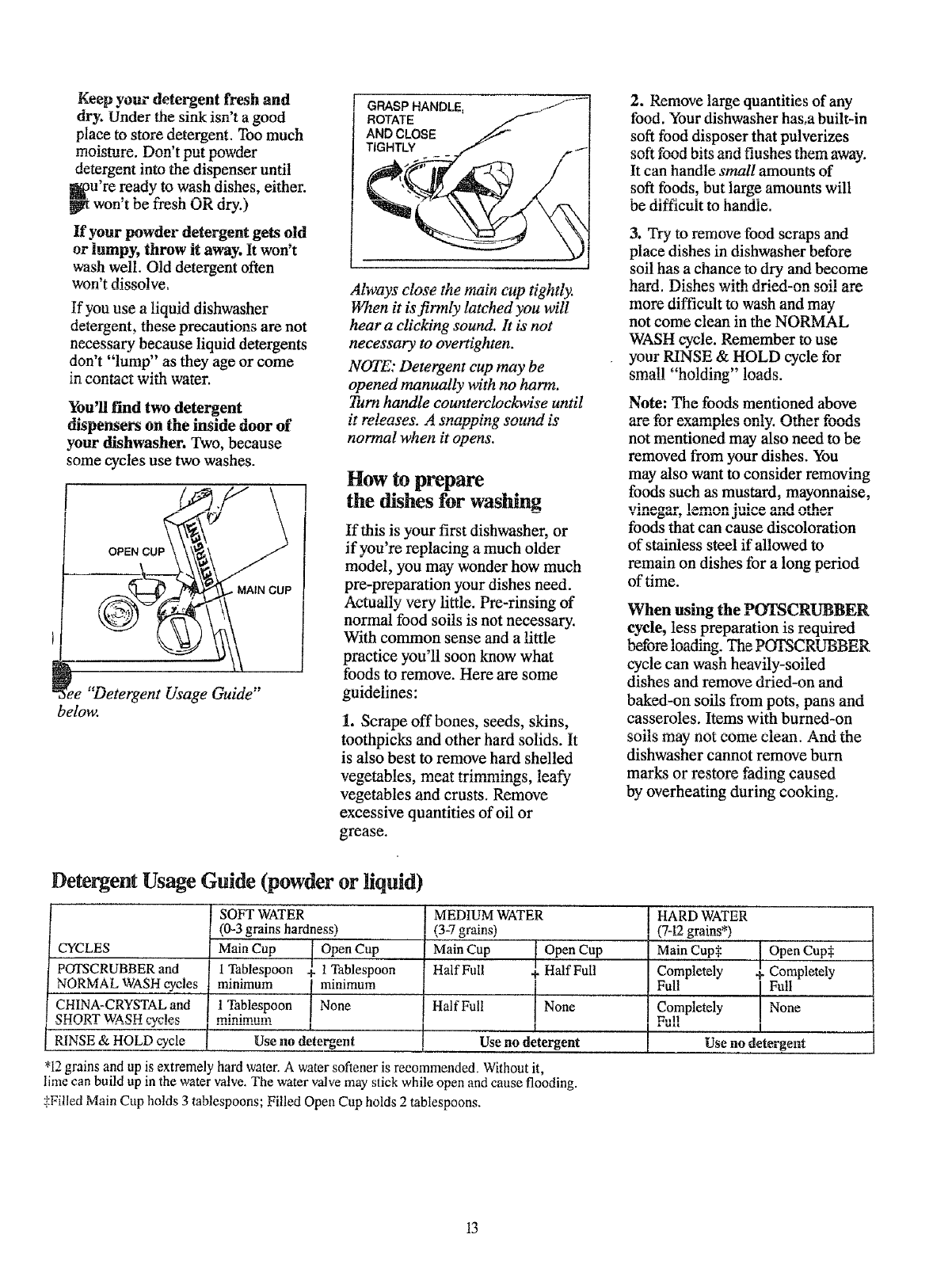

Keep you_"detergent fresh and

dry, Under the sink isn't a good

place to store detergent. Too much

moignlr_ ]Don't nnt nnwcl_r

detergent into the dispenser until

_0u're ready to w_h dishes, either.

W_twon't be tresn OR dry.)

If your powder detergent gets old

or lumpy, throw it away. It won't

wash well. Old detergent often

won't dissolve.

If you use a liquid dishwasher

dete_ent, these precautions are not

necessary because liquid detergents

don't "lump" as they age or come

111 _Oll_[ Wltll W[:t[_l.

You'll find two detergent

dispensers on the inside door of

your dishwasher. Two, because

some cycles use two washes.

MAIN CUP

"_ee "Detergent Osage Guide"

below.

zatwtt ya ctua*_ ttt_ tttutrt €:t_l) ttgrttt y.

When it isfirmly latched you will

hear a clicking sound. It is not

necessary to overtighten.

NOTE: Detergent cup may be

opened manually with no harm.

Turn handle counterclockwise until

it ra/anv_,e _ vn,_nnino c,_,,n,4iv

norma! when it opens.

How to prepare

the dishes for washing

If this is your first dishwasher, or

if you're replacing amuch older

model, you may wonder how much

pre-preparation your dishes need.

•_ctuany very ntue. rre-rmsmg oi

normal food soils is not necessary.

With common sense and a little

practice you'll soon know what

foods to remove. Here are some

guloelmes:

1. Scrape off bones, seeds, skins,

toothpicks and other hard solids. It

is also best to remove hard shelled

_t_tnhl_ m_ftr;mm_nrTe ]_.-e-tr

vegetables and crusts. Remove

excessive quantities of oil or

grease.

2. Remove large quantities of any

food. Your dishwasher has,a built-in

soft food disposer that pulverizes

cnft fnnrt hite _nfl fl,_ch_e th#m a_;_

It can handle small amounts of

soft foods, but large amounts will

be difficult to handle.

3. Try to remove food scraps and

place dishes in dishwasher before

soil has a chance to dry and become

hard. Dishes with dried-on soi! are

more difficult to wash and may

not come clean in the NORMAL

WASH cycle. Remember to use

your RINSE & HOLD cycle for

_mall "holding" Inad_

Note: The foods mentioned above

ar_ er_- _va_nl,ae t_rtl_ C'lth_,v entitle

not mentioned may also need to be

removed from your dishes. You

may also want to consider removing

foods such as mustard, mayonnaise,

xr;n_v 1,_mr_ ;n;P_ antt t_tha_

foods that can cause discoloration

of stainless steel if allowed to

remain on dishes for a long period

of time.

When using the PCClSCRUBBER

cycle, less preparation is required

mJ_3_-Ul _ IUictU_ 11_. £11_ J7 U J. Ot..._%_U DDJ_I%

cycle can wash heavily-soiled

dishes and remove dried-on and

baked-on soils from pots, pans and

casseroles. Items with burned-on

soils may not come clean. And the

dishwasher cannot remove burn

marks or restore fading caused

by overheating during cooking.

Detergent Usage Guide (powder or liquid)

SOFT WATER MEDIUM WATER HARD WATER

(0-3 grains hardness) (3-7 grains) (%!2 grains*)

CYCLES Main Cup Open Cup Main Cup Open Cup Main Cups Open Cup:_

POTSCRUBBER and 1 Tablespoon 1 Tablespoon Half Full Half Full Completely Completely

NORMAL WASH cycles minimum minimum Full Full

CHINA-CRYSTALand I1 Tablespoon [None Half Full None Completely None

SHO-RT WASH cycles _ m:n,.mum _ 1 Fu!! I

RINSE & HOLD cycle Use no detergent Use no detergent Use no detergent

'12 grains and up _sextremely hard water. A water softener is recommended, Without it,

lime can build up in the water valve, The water valve may stick while open and cause flooding.

_Fi!led Main Cup lmlds 3 tablespoons; Filled Open Cup holds 2 tablespoons,

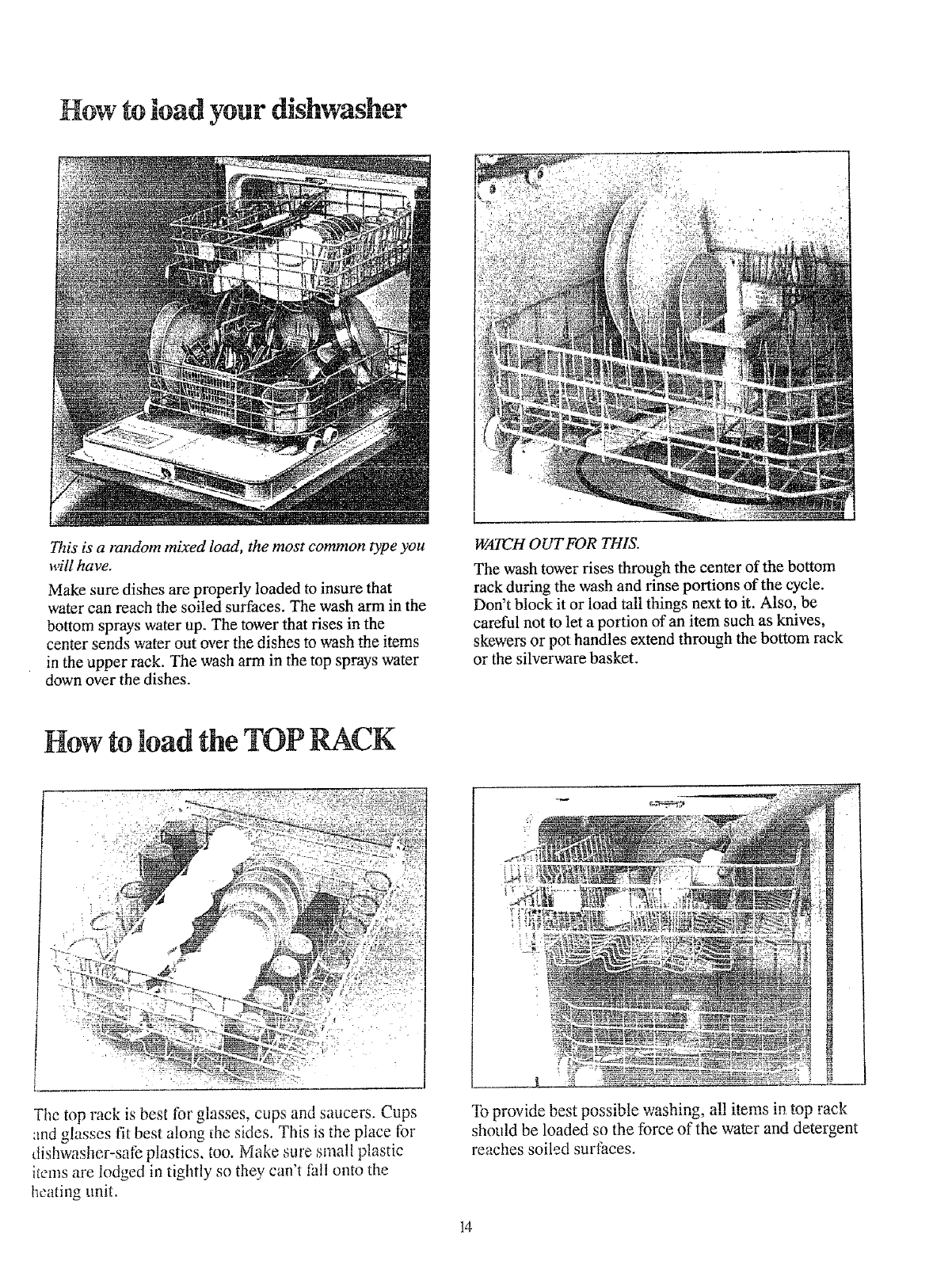

This is a random mixed load, the most common type you

_+4tlhave.

Make sure dishes are properly loaded to insure that

water can reach the soiled surfaces. The wash arm in the

bottom sprays water up. The tower that rises in the

in the upper rack. The wash arm in the top sprays water

down over the dishes.

WATCH OUT FOR THIS.

The wash tower rises through the center of the bottom

rack.dusingthew?sh.an_r!nsepomonsofthecycle.

Don+t blocl_ it or loao tall mmgs next to it. "'- + 1--

careful not to let a portion of an item such as knives,

_kewers or pot handles extend through the bottom rack

or the silverware basket.

How to load'"

[lie lop rack IS Ot_St 101 t_la++tsb, t+tl_3_ dllLl bdUt.++t_. _,_up_

and glasses fit best along the sides. This is the place for

dishwasher-safe plastics, too. Make sure small plastic

items are lodged in tightly so they can't Pall onto the

heating unit.

'r ....... ;A,_ h_._ nr_c,_+hl,_ u_.¢hlnc, nil itorna in tnn rnek

should be loaded so the force of the water and detergent

reaches soiled surfaces.

£1U_/ LU lOitU I.ll_ 1 UI" l_!-_Llk (continued)

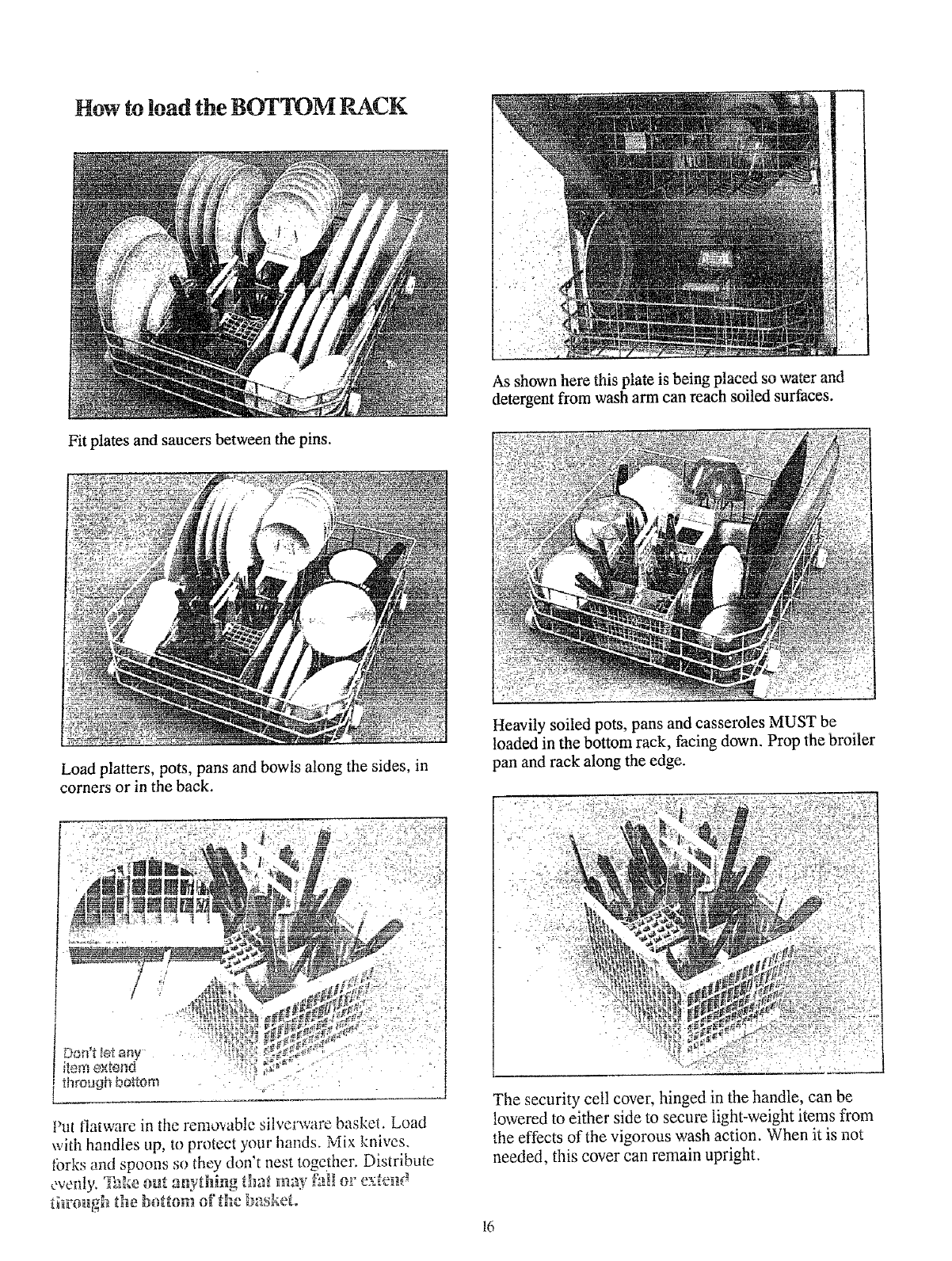

How !oad the BOTTOM RACK

Fit plates and saucers between the pins.

AS snown nere mls plate is ucmg pl,_cu a_, wat,_l m,,_

detergent from wash arm can reach soiled surfaces.

Load platters, pots, pans and bowls along the sides, in

corners or in the back.

Heavily soiled pots, pans and casseroles MUST be

loaded in the bottom rack, facing down. Prop the broiler

pan and rack along the edge.

Put flatware in the removable silverware basket. Load

with handles up, to protect your hands. Mix knives.

tbrks and spoons so they don't nest together. Distribute

evenly. ';!b_e oa_ ax_yt_t_ng _ba_ may _M_ m" e>:_end

The security cell cover, hinged in the handle, can be

lowered to either side to secure light-weight items from

the effects of the vigorous wash action. When it is not

needed, this cover can remain upright.

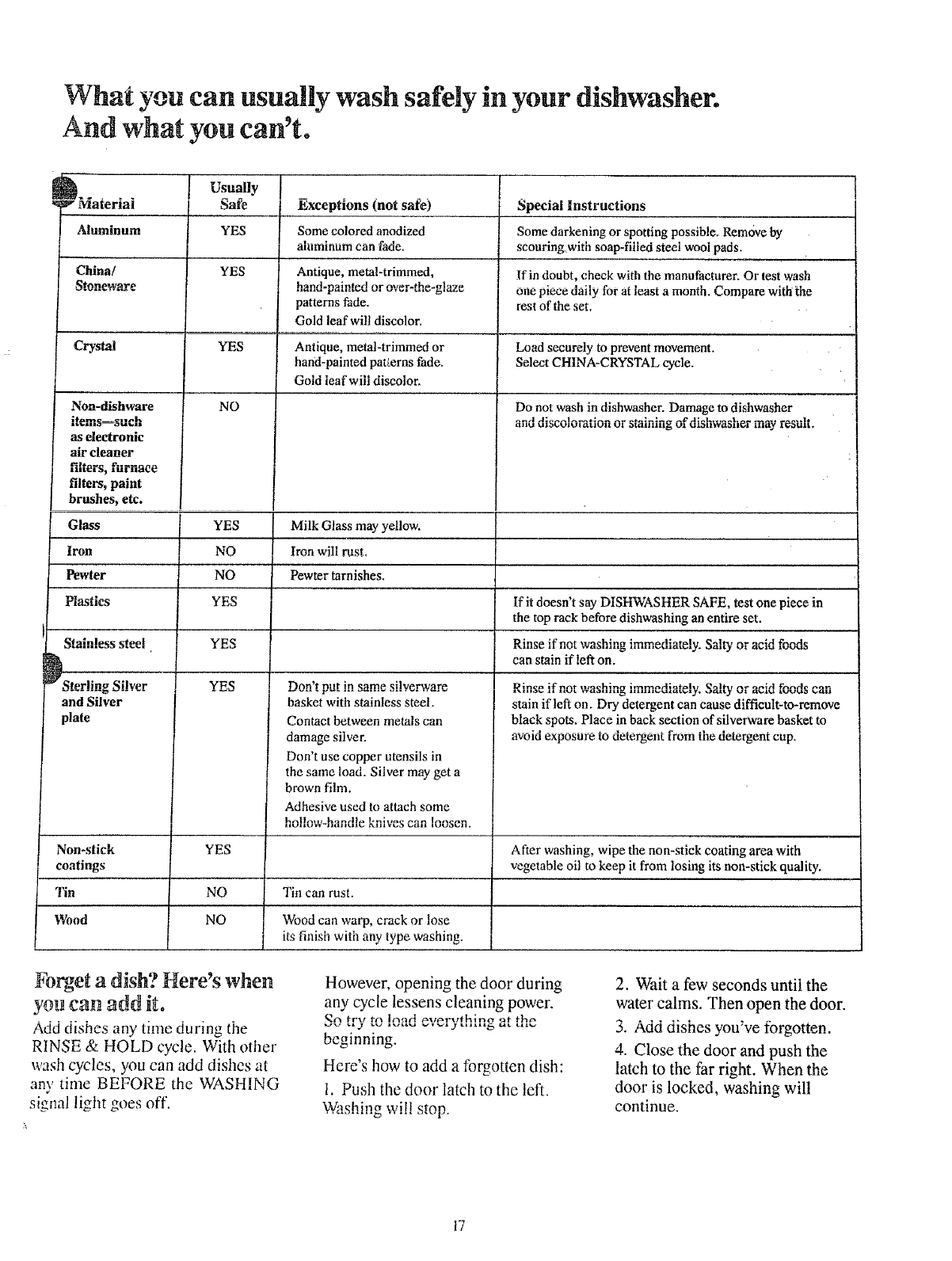

What you can usually wash safely in your dishwasher.

And what you can't.

i ..... Usually

_" Material Safe

Aluminum YES

China/ YES

Stoneware

Crystal

Non-dishware

i_'l,_alllo--o u,.li

YES

as electronic

air cleaner

filters, paint

brushes, etc.

Glass

Iron

Pewter

_,qtarlino ,qilvor

and Silver

plate

Non-stick

coatings

Tin

Wood

YES

xrro

Exceptions (not safe)

Some colored anodized

t , e

alUmluLlm can Iaoe,

Antique, metal-trimmed,

hund_nMntpd _r _t_r_th_wl _7_

patterns fade.

Gold leaf will discolor_

Antique, metal-trimmed or

hand-painted patterns fade.

tJOla lear Will fllSCOlOr,

Milk Glass may yellow.

Iron will rust.

Pewter tarnishes.

Special Instructions

Some darkening or spotting possible. Remove by

scouring with soap-fiiied steel wool pads.

tf in doubt, check with the manufacturer. Or test wash

one piece _zany lor at mast a munro, t.ompare wire tue

rest of the set.

Load securely to prevent movement.

Select CHINA-CRYSTAL cycle.

Do not wash in dishwasher. Damage to dishwasher

uit ooesn I say _l_nw&_tat_t_ _,_rt_, test one piece In

the top rack before dishwashing an entire set.

V17q

[

YES

Flt_rl't hilt in q_lmo _ilver,x, ar_

..... r- ......................

basket with stainless steel.

Contact between metals can

damage silver.

Don't use copper utensils in

the same load. Silver may get a

brown film.

Adhesive used to attach some

Tin can rust.

Wood can warp, crack or lose

its nmsn Wlntany type wasntng.

x_lxla_ Ll llU_ W_Olll_l_ lllUll_Ul_ttt,,lff* O_a_F rot _lU IUUU_

can stain if left on.

stain if left on. Dry detergent can cause difficult-to-remove

black spots. Place in back section of s!lverware basket to

_lVOlU _xposufe [O _e[ergen[ from me iletergent cup.

After washing, wipe the non-stick coating area with

vegetable oil to keep it from losing its non-stick quality.

Forget a d_sh? Here's when

you can add it.

Add dishes any time during the

RINSE & HOLD cycle. With other

wash cycles, you can add dishes at

an}, time BEFORE the WASHING

signal light goes off.

However, opening the door during

any cycle lessens cleaning power.

_t', trx! tt_ lcanri _w_r_tfh_ncr _t th_

beginning.

Here's how to add a forgotten dish:

l. Push the door latch to the left.

Wa_hino will _ton

2. Wait a few seconds until the

water calms. Then open the door.

3. Add dishes you've forgotten.

4. Close the door and push the

latch to the far right. When the

door is locked, washing will

continue.

_IIeS[IOHS ."

Use This Problem Solver

PROBLEM [ POSSlBLL,: CAUSE AND REMEDY_.. . .

CONTROL EANEL T_rne tan ]nn_ between touchin_ of selected ands. Each oad must be touched within :

LIGHTS GOOFF 30 seconds o_the others. To reii°ght,-t0uch any pad again" Or unlock and relatch door.

WHEN YOU'RE

:5_'l"l'llN U L.:UIN'll(UL_

WON'T RUN reset circuit breaker. Remove any other appliances from the circuit.

UNUSUAL NOISE Utensils may not be secure on rack pins. Or something small may have dropped from

the rack. Water is causing utensils to rattle. Make sure everything is securely placed

"in dishwasher.

Water draining out of tub immediately after you touch CLEAR/RESET pad. The

sounds you hear are normal ones. *

DISHES DON'T DRY Make ......................... ° ...... "_ _

to_ pagv 1_.)

sure lnle[ wa[er [emp_ra[urG lS t;ol-i-uct.

Unload the bottom rack first. Water from dishes in the top rack may be spilling into the

bottom rack.

Check for improper loading. Dishes shouldn't nest together. Avoid overloading.

Check the rinse agent dispenser to see that it's not empty.

Check inlet water temperature, It should be at least 120°E fin test, see page 12.)

Water pressure may be temporarily low. Turn on a faucet. Is water coming out slower

than usual? If so, wait until pressure is normal before using your dishwasher.

Plugged air gap. (See page 21.)

Improper rack loading. (See pages 14-16.)

Aluminum deposits often leave marks when they rub against other things. Remove

marks with a mild abrasive cleanser.

Water may not be reaching the detergent cups. Move dishes that may be blocking the

detergent cup.

The dispenser cover may not be opening or may be blocked by improperly loaded

items. If you used a powder detergent, open the cup and remove any caked-on

detergent. If the cup still doesn't open automatically, call for service.

Detergent may be old. If the powder detergent is hard or caked in the box, throw it away.

The detergent may not be working wel!. Try another brand.

UNCLEAN DISHES

AND FLATWARE

BLACK OR GRAY

MARKS ON DISHES

DETERGENT LEFT

IN DISPENSER CUPS

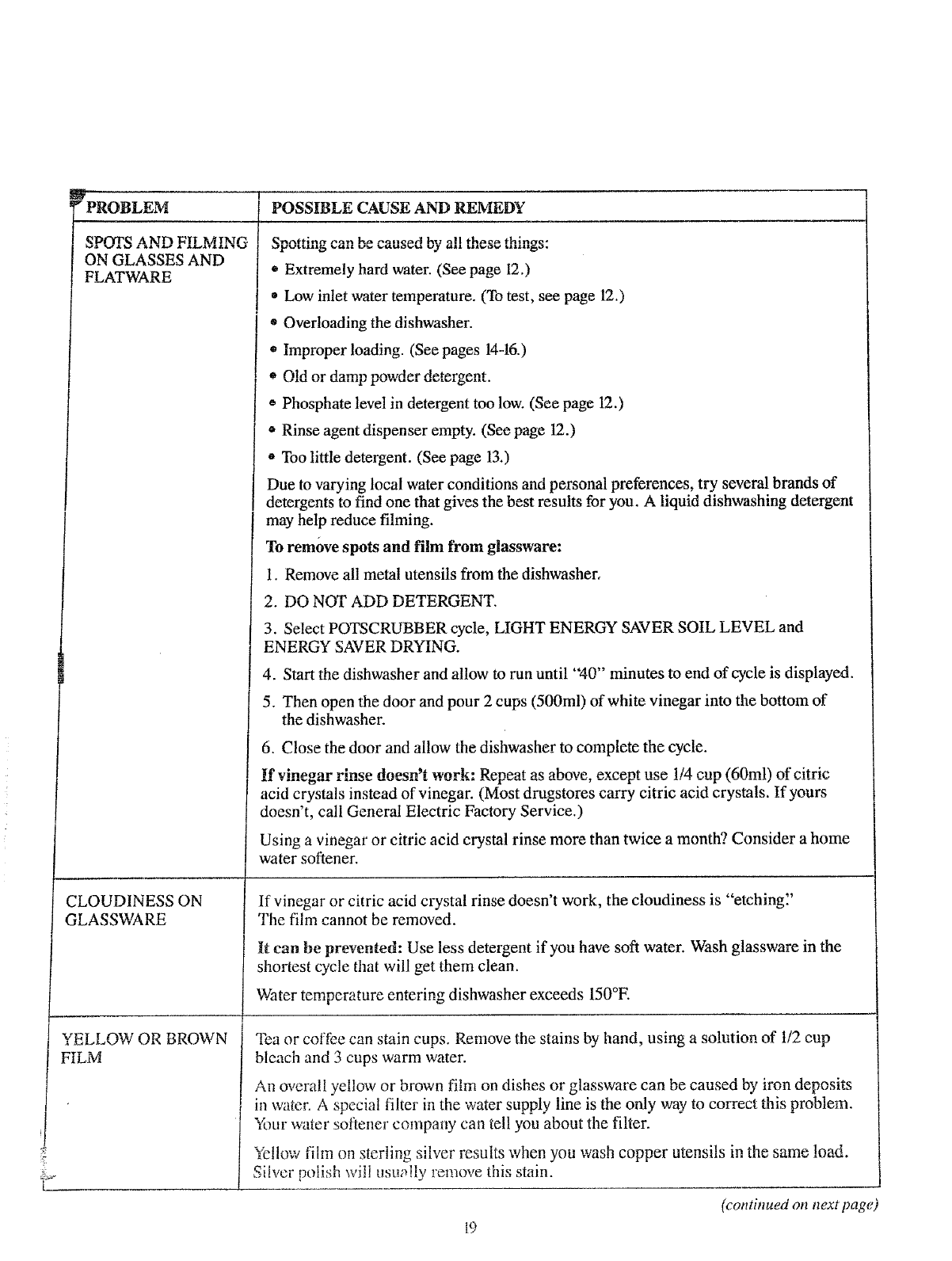

"PROBLEM POSSIBLE CAUSE AND REMEDY

ON GLASSES AND

FLATWARE • Extremely hard water. (See page 12.)

•Log, inlet water temperature. (To test, see page 12.)

• Overloading the dishwasher.

•Improper loading. (See pages 14-16.)

eN1A mr A,_mn nr_zet_,v Aataraant

• Phosphate level in detergent too low. (See page 12.)

• Rinse agent dispenser empty. (See page 12.)

" Too little detergent. (See page 13.)

CLOUDINESS ON

GLASSWARE

[

YELLOW OR BROWN

FILM

Due to varying local water conditions and personal preferences, try several brands of

detergents to find one that gives the best results for you. A liquid dishwashing detergent

may help reduce filming,

To remove spots and film from glassware:

1. Remove all metal utensils from the dishwasher,

L Jr./ INk Jl /"xJJIJ I_K:_ 1 _l_kJ_-.dN 1 •

3. Select POTSCRUBBER cycle, LIGHT ENERGY SAVER SOIL LEVEL and

II,J.NI2,1c_LJI _!-_Y 12,Jff_ LtIKI IIN*,J.

4. Start the dishwasher and allow to run until "40" minutes to end of cycle is displayed.

5. Then open the door and pour 2cups (500ml) of white vinegar into the bottom of

the dishwasher.

6. Close the door and allow the dishwasher to complete the cycle.

!f vinegar rinse a,_,._n _w.rk- Reheat a_ above axeent n_e 1/A enn (60rod of citric

................. JU .......... _ ..... I _ ......... 17" ", /

acid crystals instead of vinegar. (Most drugstores carry citric acid crystals. If yours

doesn't, call General Electric Factory Service.)

Using a vinegar or citric acid crystal rinse more than twice a month? Consider a home

water softener.

If vinegar or citric acid crystal rinse doesn't work, the cloudiness is "etching:'

The film cannot be removed.

It can be prevented: Use less detergent if you have soft water. Wash glassware in the

shortest cycle that will get them clean.

Water temperature entering dishwasher exceeds 150°E

Tea or coffee can stain cups. Remove the stains by hand, using a solution of 1/2 cup

bleach and 3 cups warm water.

An overal! yellow or brown film on dishes or glassware can be caused by iron deposits

, in water. A special filter in the water supply line is the only way to correct this problem.

Your water softener company can tell you about the filter.

"_etlow iilm on sterling silver results when you wash copper utensils in the same load.

Silver polish wili usu_qly remove this stain.

(continued on next page)

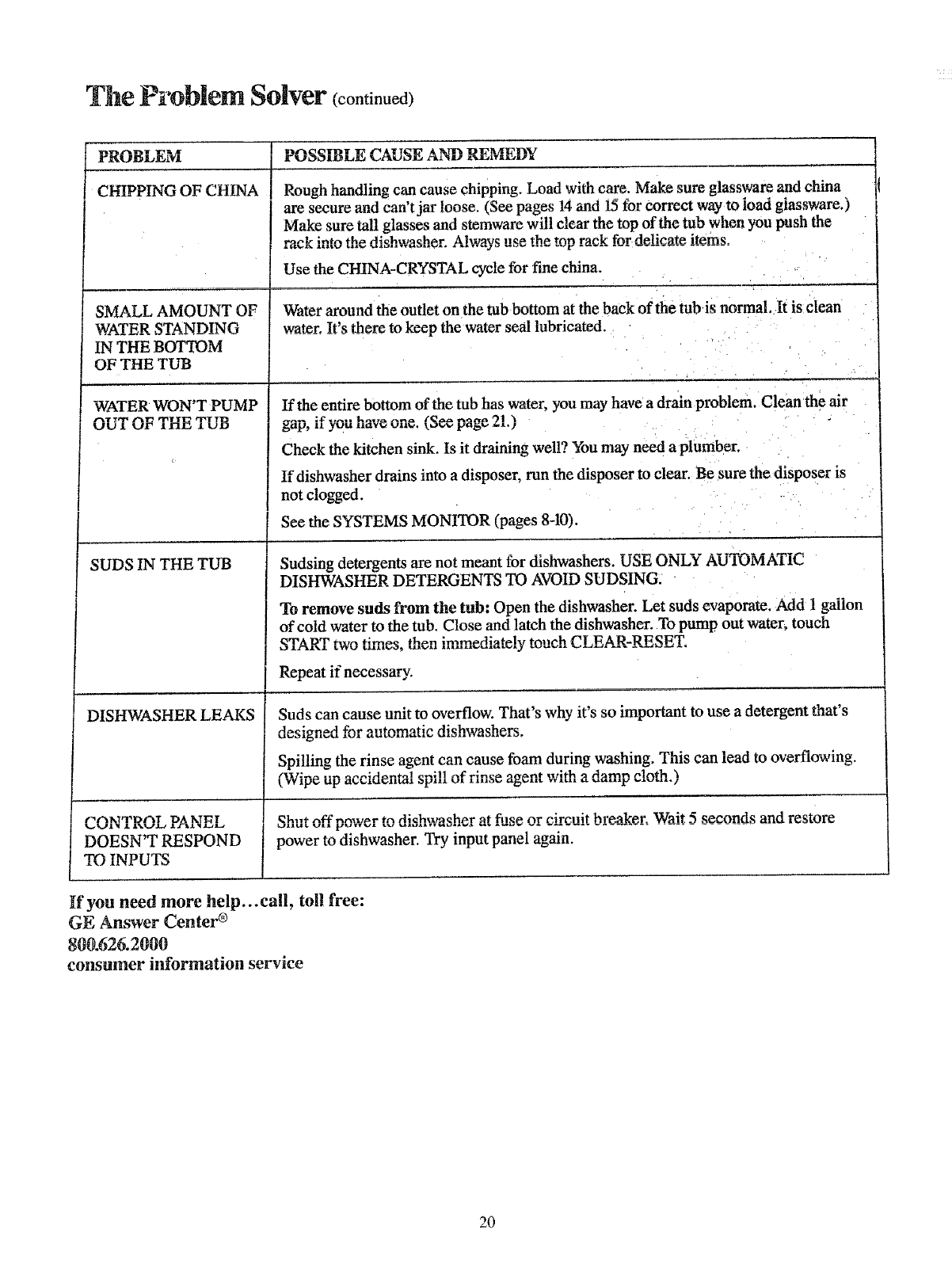

The Problem Solver (continued)

"n't'ba"tS'bT 171% ']I)g'IL_OT'OT _PITT_12 A_T_ I}!7_!I]_T_vJ [

_'-_UDJ.j_.aIT¢I fv_oIL}l.aJ_ _._Llt_J_J2a Z'_I_UJ _OL_lV.'e.x,z,*vm.

CHIPPING OF CHINA Rough handling can cause chipping. Load with care: Make sure glassware and china [!

are secure and can't jar loose. (See pages 14and 15 for correct way to load glassware.)

Make sure tall glasses and stemware will clear the top of the tub when you push the

•.oo1,- ;,-_*_ *h_ d_hx,_ehor Ahra_roe ne_ the tnn rack fnr delleate item_.

Use the CHINA-CRYSTAL cycle for fine china ....

SMALL AMOUNT OF fWater around the outlet on the tub bottom atthe back of tub is no 1.It is Clean

INWATERTHEBOTToMSTAND!NGwater.. It's there to keep the water seal lubricated. : ,. , :

OF THE TUB

• _ i "rWATER WON'T PUMP If the entire bottom of the tub has water, you may have a dram problem. Cleanthe al

I.._U ,It _J[_ IJUI It% I UD _it:l_ 11 yUU llaV_ UIIr_¢* _OVV [Ja_V *_X.]

Check the kitchen sink. Is it draining wel!? You may need a plumber.

If dishwasher drains into a disposer, run the disposer to clear. Be sure the disposer is

not clogged.

See the SYSTEMS MONITOR (pages 8-10).

SUDS IN THE TUB Sudsing detergents are not meant tor dishwashers. U_I_ t)NL_ AUII3NIAI ItS

DISHWASHER DETERGENTS TO AVOID SUDSING.

To remove suds from the tub: Open the dishwasher. Let suds evaporate. Add I gatmn

of cold water to the tub. Close and latch the dishwasher. To pump out water, touch

_'T'A DT, .... ,;_o *h_. _r_mocli_tol_r tonc-h ('_I .tTAR-RI_..qIT.T

Repeat if necessary.

DISHWASHER LEAKS Suds can cause unit to overflow. That's why it's so important to use a detergent that's

Spilling the rinse agent can cause foam during washing. This can lead to overflowing.

_h,,+ ._A¢nr._,,_r *a ttieh_x_hor _t fi_e or eirenit hre_ker. Wait .5 ,_eeonds and restore

M,_lltt,lL r_'l.l _u¥i_1 t_ UlOII_I_OIAVt _ _UV v................................

power to dishwasher. Try input panel again.

_I_KTq_D/-_T DA T_T_T

_._VI_ .It.£_A,,,_J--, JL./'_,I'_L,._La

3OESN'T RESPOND

TO INPUTS

If you need more help...call, toll free:

GE Answer Center +

8_0.626.2000

consmner information service

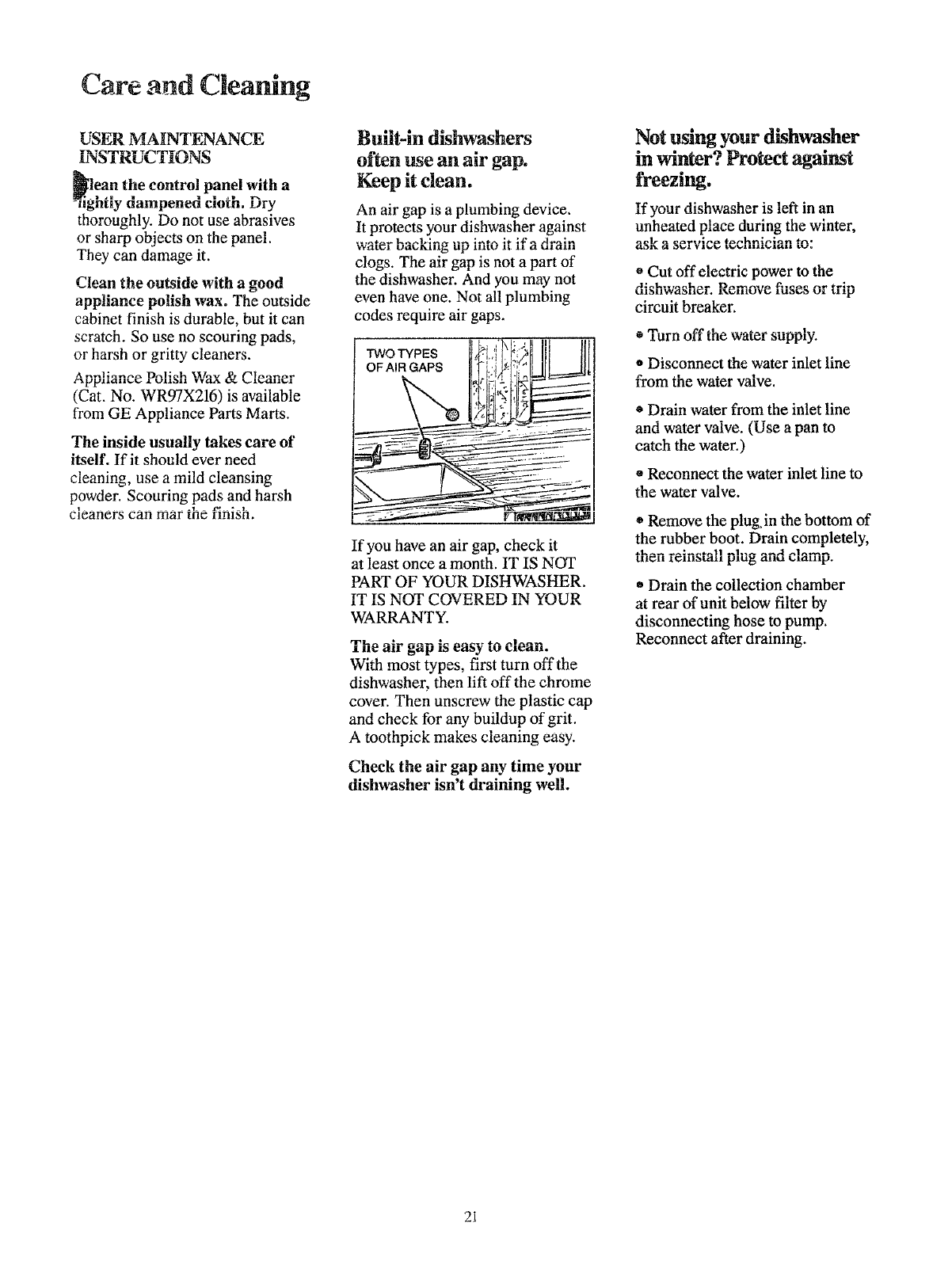

Care and Cleaning

USER MAINTENANCE

r_ T_ran_t'lT T_t'nranT_t'_ "t_

M_ J ICLU tk..1 I_.#[N _

_. lean the control panel with a

-ngm_y aampenea cram. _ry

thoroughly. Do not use abrasives

or sharp objects on the panel.

They can damage it.

Clean the outside with a good

appliance polish wax. The outside

cabinet finish is durable, but it can

scratch. So use no scouring pads,

or harsh or gritty cleaners.

(Cat. No. WR97X216) is available

from GE Appliance Parts Marts.

The inside usually takes care of

itself. If it should ever need

cleaning, use a mild cleansing

powder. Scouring pads and harsh

cleaners can mar me llnlSfl.

Built-in dishwashers

oIten use an air gap.

Keep it dean.

An air gap is a plumbing device.

It protects your dishwasher against

Wat_l Lta_rdll_ Ll_ 1111.0 it 2.1 aLII_IlII

clogs. The air gap is not a part of

the dishwasher. And you may not

even have one. Not all plumbing

codes require air gaps.

J TWO TYPES

OF AIR GAPS

I--2=-_ gr--_ I

If you have an air gap, check it

at least once a month. IT IS NOT

PART OF YOUR DISHWASHER.

r_ rc _,wvr ,_c_xr_D_r_ T_,TVC_TTP

WARRANTY.

With most types, first turnoff the

dishwasher, then lift off the chrome

cover. Then unscrew the plastic cap

and check for any buildup of grit.

A toothpick makes cleaning easy.

Check the air gap any time your

dishwasher isn't draining well.

Not using your dishwasher

in ................. _"....

wimer: _ro[ec[ agamsx

freezing.

If your dishwasher is left in an

unheated place during the winter,

eCut off electric power to the

circuit breaker.

" lurn oil me watel supply,

oDisconnect the water inlet line

from the water valve.

* Drain water from the inlet line

and water valve. (Use a pan to

catch the water.)

Reconnect the water inlet line to

the water valve.

®Remove the plug.in the bottom of

the rubber boot. Drain completely,

Drain the collection chamber

at rear of unit below filter by

disconnecting hose to pump.

Reconnect after draining.

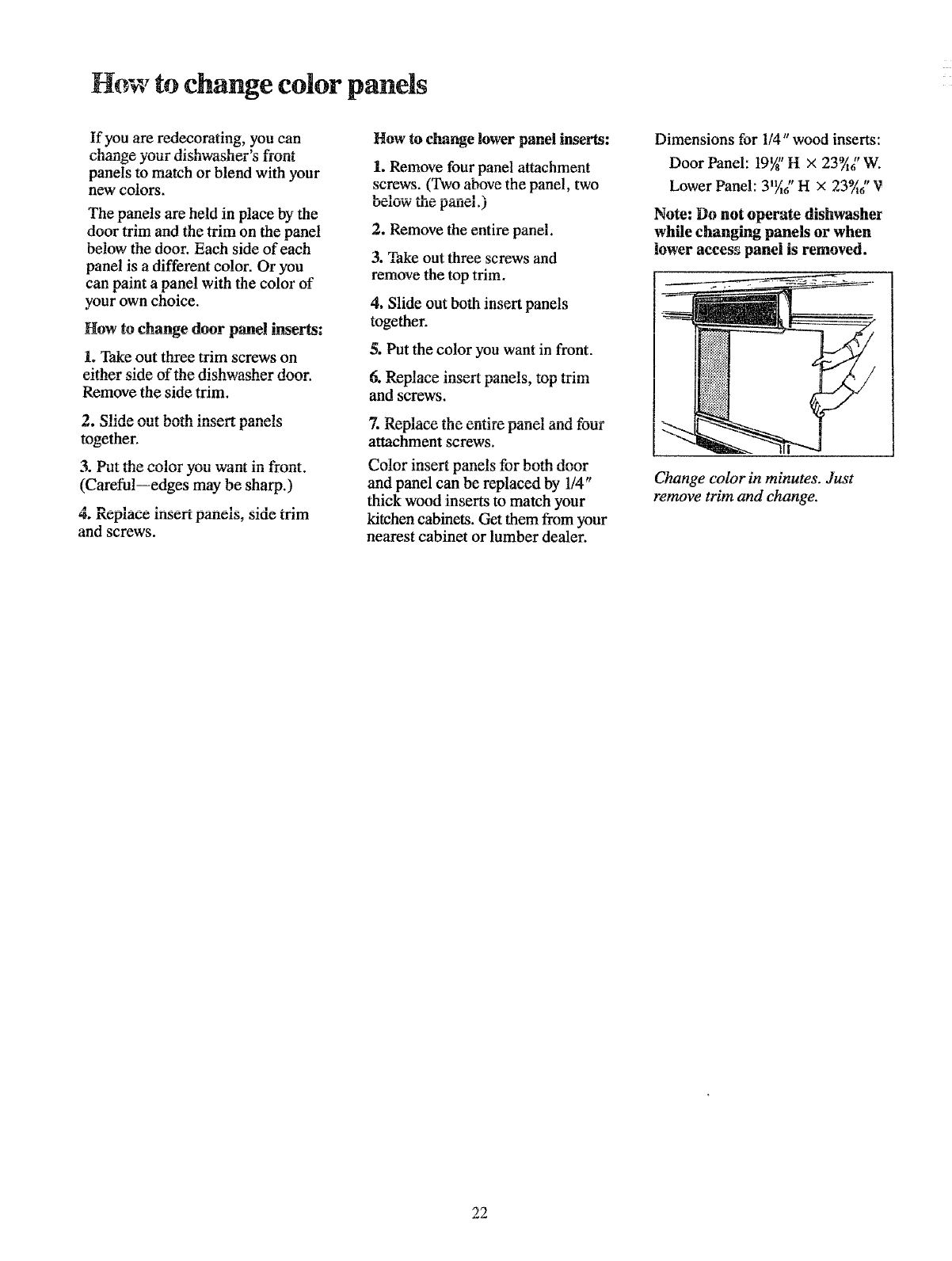

How to change color panels

If you are redecorating, you can

panels to match or blend with your

new colors.

The panels are held in place by the

door trim and the trim on the panel

below the door. Each side of each

panel is a different color. Or you

can paint a pane! with the color of

your own choice.

How to chan_e door nanel inse_L_."

1. Take out three trim screws on

either side of the dishwasher door.

Remove the side trim.

'_ _l;d,_ .",n* hath ;noa,,,t nonalo

together.

.1..1[ UI, I.lll_ _I,,UIUI )tUl.l WQ.||L 111 lltJl|L.

(Careful--edges may be sharp.)

_xeplace insert panels, side trim

and screws.

How to change lower panel inserts:

1. Remove four panel attachment

screws. (Two above the panel, two

1.. _1 .... _L ..... 1 -,

2. Remove the entire panel.

3. Take out three screws and

remove the top trim.

4. Slide out both insert panels

together.

5. Put the color you want in front.

and screws.

/KCpI_IC_. tll_ cntlr_ panel anti _our

attachment screws.

and panel can be replaced by 1/4"

thick wood inserts to match your

kitchen cabinets. Get them from your

nearest cabinet or lumber dealer.

Dimensions for 1/4" wood inserts:

Door Panel: 19_" H × 23_" W.

Lower Pane!: 3_¼6" Hx 239/16"

Note: Do not operate dishwasher

while changing panels or when

lower aeces_ panel is removed.

Change color in minutes. Just

remove trim and change.

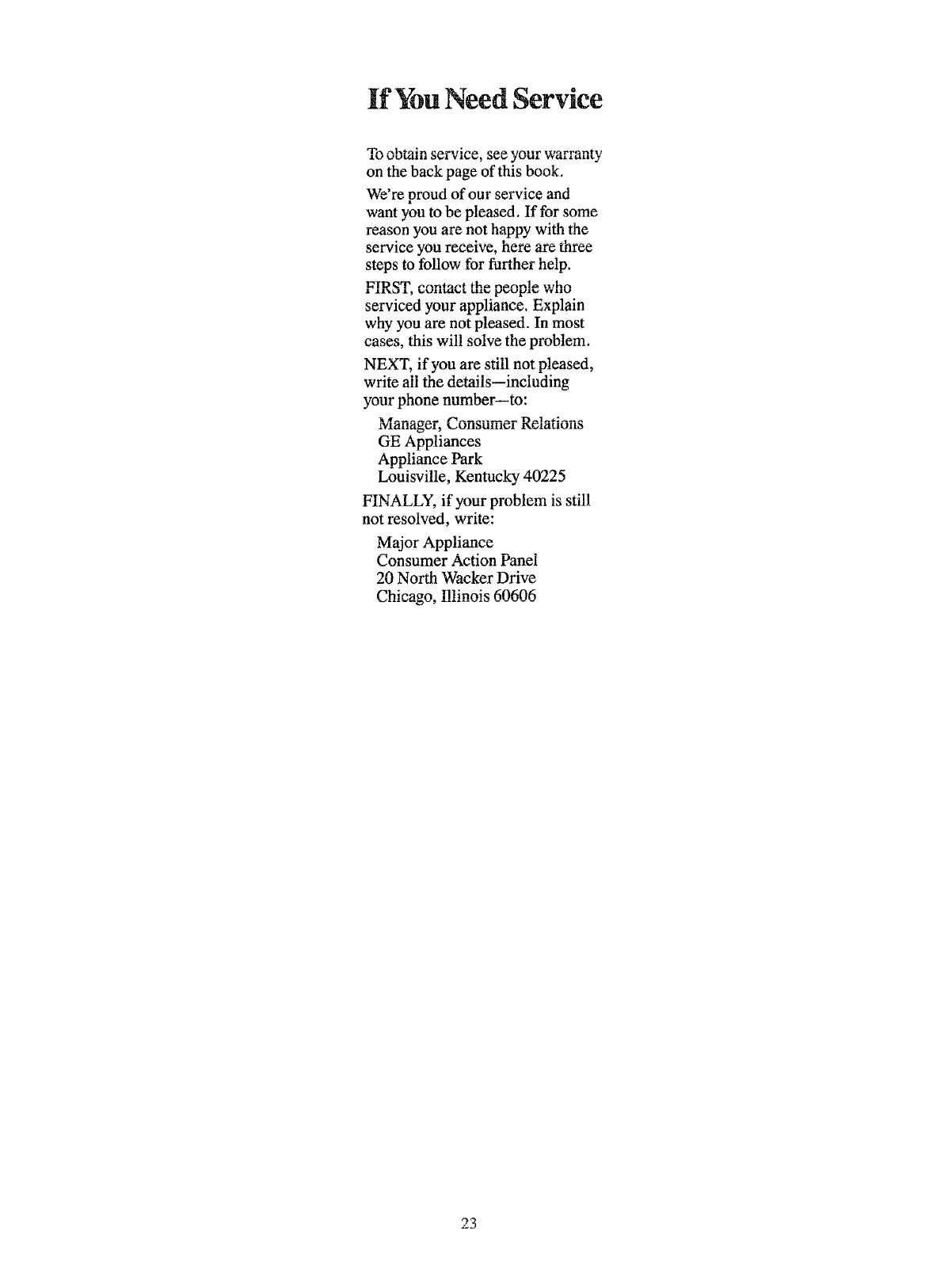

If You Need Service

on the back page of this book.

We're proud of our service and

want you to be pleased. If for some

reason you are not happy with the

service you receive, here are mree

steps to follow for further help.

_TD_T or_tQot the, noonl_ _*,hn

servicedyourappliance.Explain

why you arenotpleased.Inmost

cases, this will solve the problem.

NEXT, if you are still not pleased,

write aH me aetmJs--mcmmng

your phone number--to:

GE Appliances

Appliance Park

Louisville, Kentucky 40225

FINALLY, if your problem is still

not resolved, write:

Major Appliance

Consumer Action Panel

20 North Wacker Drive

Chiea_n_ Illinois 60606

...... zm-,

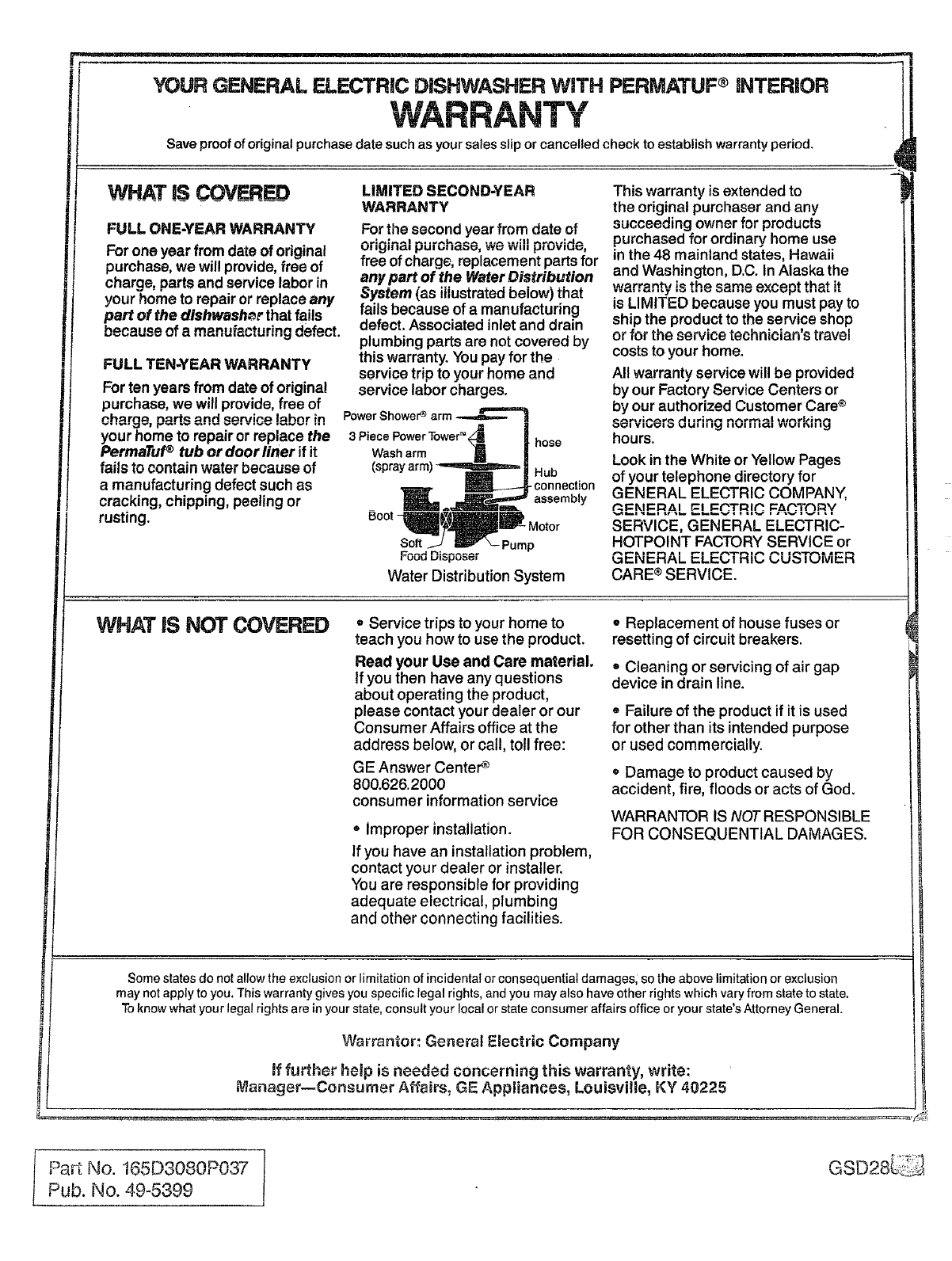

VW-IMM | | T |

Saveproof oforiginalpurchasedate such as your salesslip or cancelledcheck to establish warrantyperiod. g

WHAT IS COVERED LIMITED SECOND-YEAR This warranty is extended to

WARRANTY the original purchaser and any 1|

FULL ONE-YEAR WARRANTY For the second year from date of succeeding owner for products /I

^.:^:-^, ..... k .......... :. ..... :._^ purchased for ordinary home use

F°r°neyearfr°mdate°f°riginalU"'"'"Pu'u"==='w=w"'P'uv'u=' ll

purchase, we will provide,free of free of charge, replacementpartsfor in the 48 mainland states, Hawaii

charge, partsand servicelabor in any part of the WaterDistribution ,,,=rr=nh,andWashington,;_÷ho_=m_D'C',,v,-,_n,lnAlaska_h_tthel,

your home to repairor replace any System (as illustratedbelow) that ......... _ ................. -........

part of the dishwasher that fails fails because of a manufacturing is LIMITED because you must pay to

h,=,,_,,==nf =man,,f:_.t,,rinn ,_,=f,=,.t defect. Associated inlet and drain ship__,__the.,.......product;__to._the_,__,_:__,_service......shop, I

.......................... u....... plumbing parts are riot covered by or ior [flu survnuu[uun[l_:_n _ Lr_vu_ I

FULL TEN-YEAR WARRANTY this warranty.You pay forthe costs to your home. i

service trip to your home and All warranty service will be provided

Forten years from date of original service labor charges, by our Factory Service Centers or i

purchase, we will provide,free of by our authorized Customer Care®!

P.h_rn_ n_rt_ _n_ _€=rltir¢_ |=hnr in Power Shower _ arm

..... _,_v, r,- ....................... -- • 0_1VI_ I_10 U gl II I_J IIUI II I=1 VV_,J ..... '_ ,

your home to repair or replace the 3 Piece Power Tower" ihose hours. I

PermaTuf®tub or door liner if it Washarm Am |

,.:, ........ :........ ,......... ,_......... __ = Look inthe White or Yellow Pages

Idll_ IU UUIIL_LII IW¢;_[_tl Ut:_Ui_U_t_ UI _,oF,,=)".,,,,i _ [_ Hub

a manufacturing defect such as _ _connection of your telephone directory for

cracking, chipping, peeling or _j_ml,==_.'_ assembly GENERAL ELECTRIC COMPANY,

- GENERAL ELECTRIC E._TORY

rusting. Boot-Motor SERVICE, GENERAL ELECTRIC- !

Soft Pump HOTPOINT FACTORY SERVICE or !

uuu u=opuo=_ _,3P'I_II=I'tP_L r'Lr'_ I MIt., _-*UO I UIVIr'I't I

Water Distribution System CARE ®SERVICE. i

WHAT IS NOT COVERED Service trips to your home to

teach you how to use the producL

Read your Use and Care material.

If you then have any questions

about operating the product,

please contact your dealer or our

Consumer Affairs office at the

address below, or call, toll free:

GE Answer Center _

800.626.2000

consumer information service

•improper installation.

If you have an installation problem,

contact your dealer or installer.

You are responsible for providing

adequate electrical, plumbing

and other connecting facilities.

=Replacement of house fuses or

resetting of circuit breakers.

Cleaning or servicing of air gap

device in drain line.

Failure of the product if it is used

for other than its intended purpose

or used commercially.

Damage to product caused bv

accident, fire, floods or acts of God.

WARRANTOR IS NOT RESPONSIBLE

FOR CONSEQUENTIAL DAMAGES. L

Some states do not allow the exclusion or limitation of incidental or consequential damages; so the above limitation or exclusion

may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

To know what your legal rights are in your state, consult your local or state consumer affairs office or your state's Attorney General.

if further help is needed concerning this warranty, write:

_anager--Consumer Affairs, GE Appliances, Louisville, KY 40225

Part No. 165D3080P037

Pub. No. 49-5399

[

GSD28L_._._

GE Dishwasher Manual L0711622

GSD2800D01 GSD2800D01 GE DISHWASHER - Manuals and Guides L0711622 View the owners manual for your GE DISHWASHER #GSD2800D01. Home:Kitchen Appliance Parts:GE Parts:GE DISHWASHER Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
