GEAppliances

GSD4010

GSD4020

GSD4030

PartNO.165D4700P138 PubNo 49-5792

Congratulations!

YouAreNow PartoftheGEFamily.

Welcome to the GE family.

We're proud of our quality

products and we are

corrtmitted to providing

dependable servicer You'll

see it in this eas3,-to-use

Owner's Manual and you'll

hear it in the friendly voices

of our customer service

department.

Best of all, you'll experience

these values each time you

use your dishwasher. That's

important, because your

new dishwasher wi!! be part

of your family for many

years. And we hope you will

be part of ours for a long

time to come.

We thank you for buying

GE. We appreciate your

purchase, and hope you

will continue to rely on us

whenever you need quality

appliances for your' home. Important!

Staplesales slip or cancelled

check here.

Proof of the originalpurchase date

is needed to obtain service under

the warranty.

Writethemodelandserial

numbershere.

#

2

#

Youcan findthemonthe tub watljust

insidethedoor

_& You,

A Semice Partnership.

Ask any GEappliance owner and they wilt

tell you we stand behind our products with

unmatched quality service. However, did

you know that most questions result from

simple problems that you can easily fix

yourself in just a few minutes? This

Owner's Manual can tell you how,

Readthis Manual

Inside you will find many

helpful hints on how to use

and maintain your dishwasher

proper])_ Just a litde preventive

care on your part can save you

a great deal of time and money

over the life of your' dishwasher.

ReviewtheSectionon

Troubleshootingtips

You'll find many answers to

common problems here.

If you review our chart of

Troubleshooting Tips first,

you may not need to call for

service at all.

If YouNeed Service

If you do need service, you can

relax knowdng help is only a

phone call awa F A list of toll-free

customer service numbers is

included in the back section.

Or you can always call the

GE Answer Center ® at

800,626,2000, 24 hours a day,

7 days a week.

SafetyInformation....... 4"7

Operating Instructions

ControlPanel.............. 8

ControlSettings........... 8, 9

DialCycles............ :10,11

UsingtheOishwasher.... 12, 13

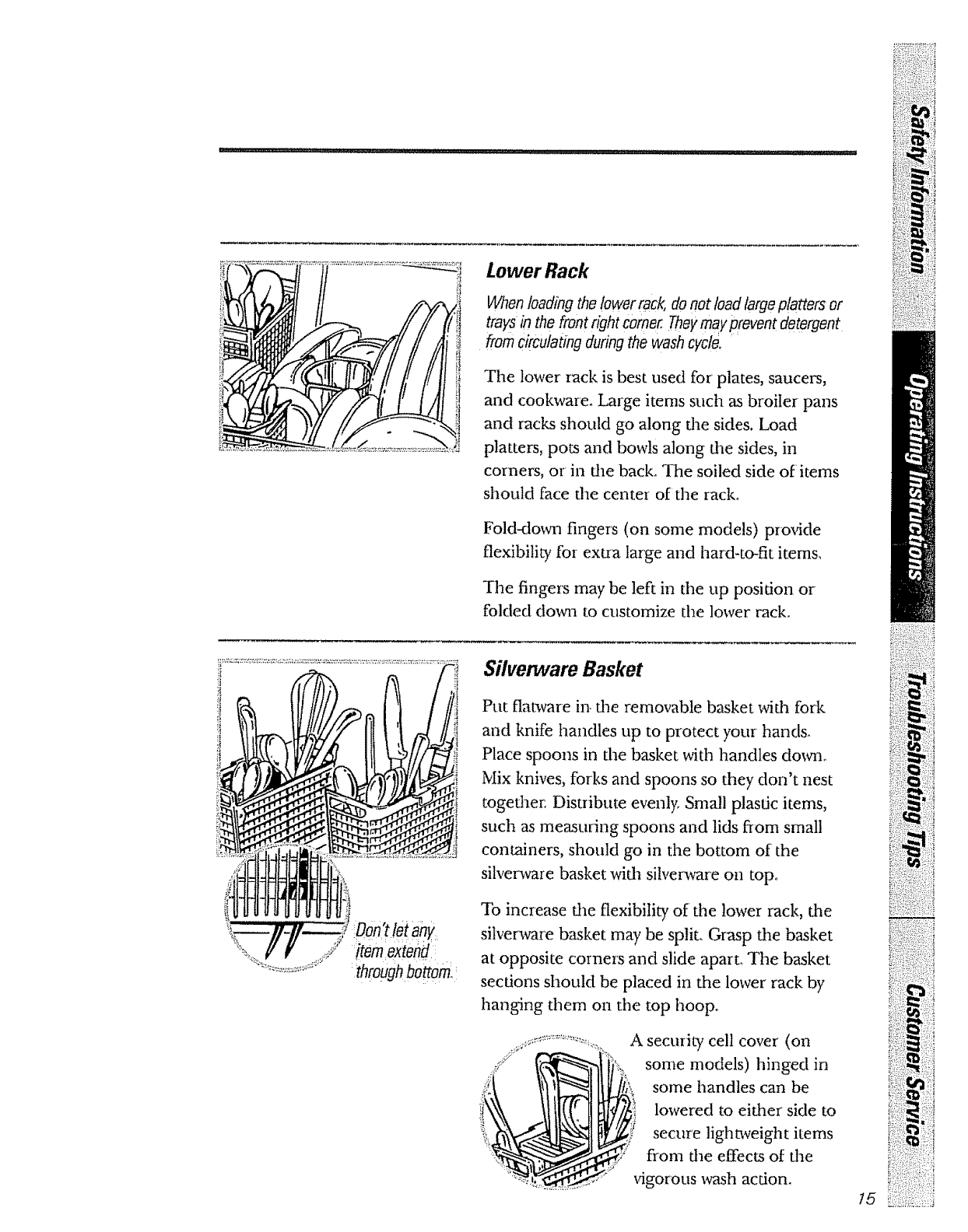

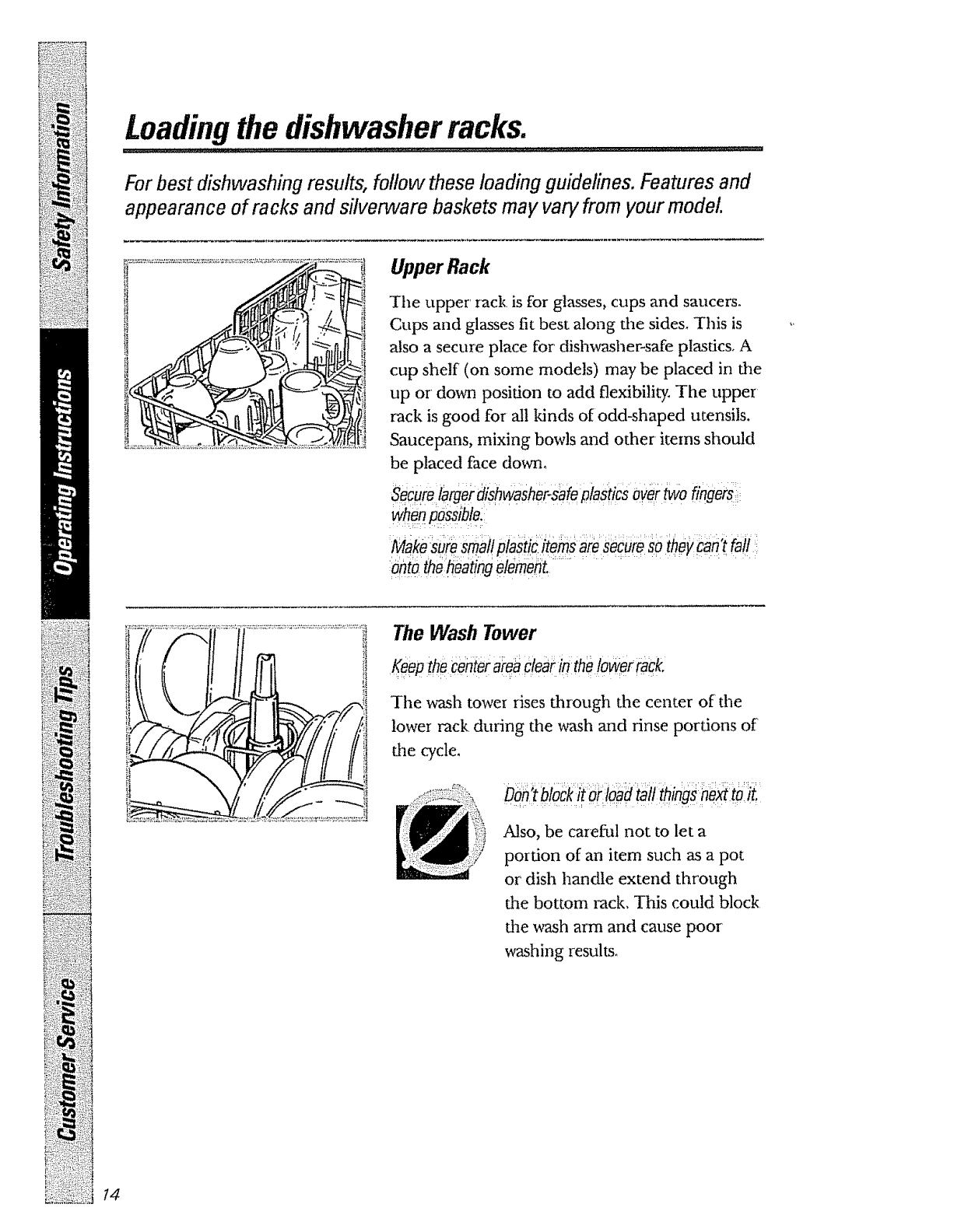

Loadingthe

DishwasherRacks....... 14,t5

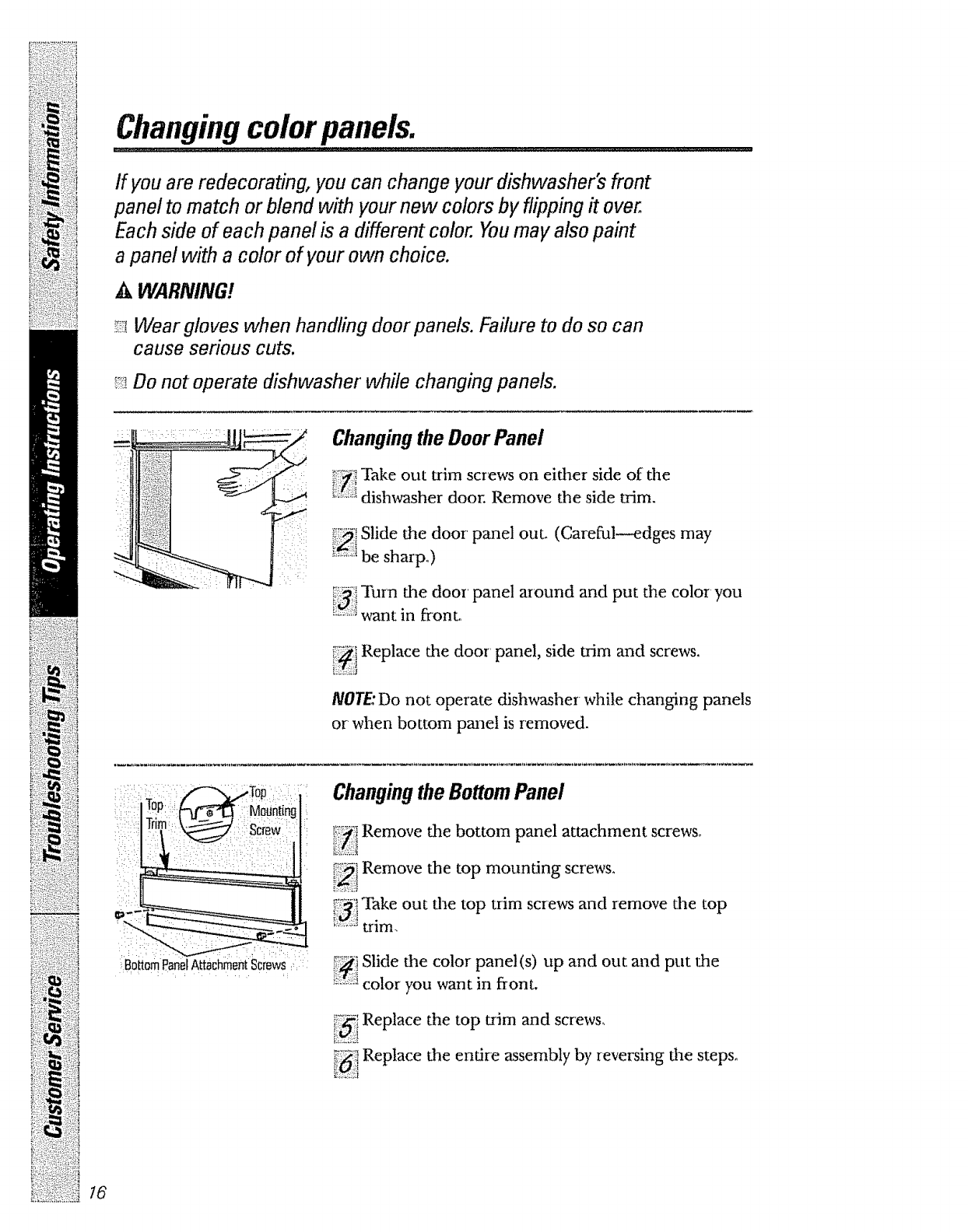

ChangingColorPanels ....... 16

CareandCleaning......... .18

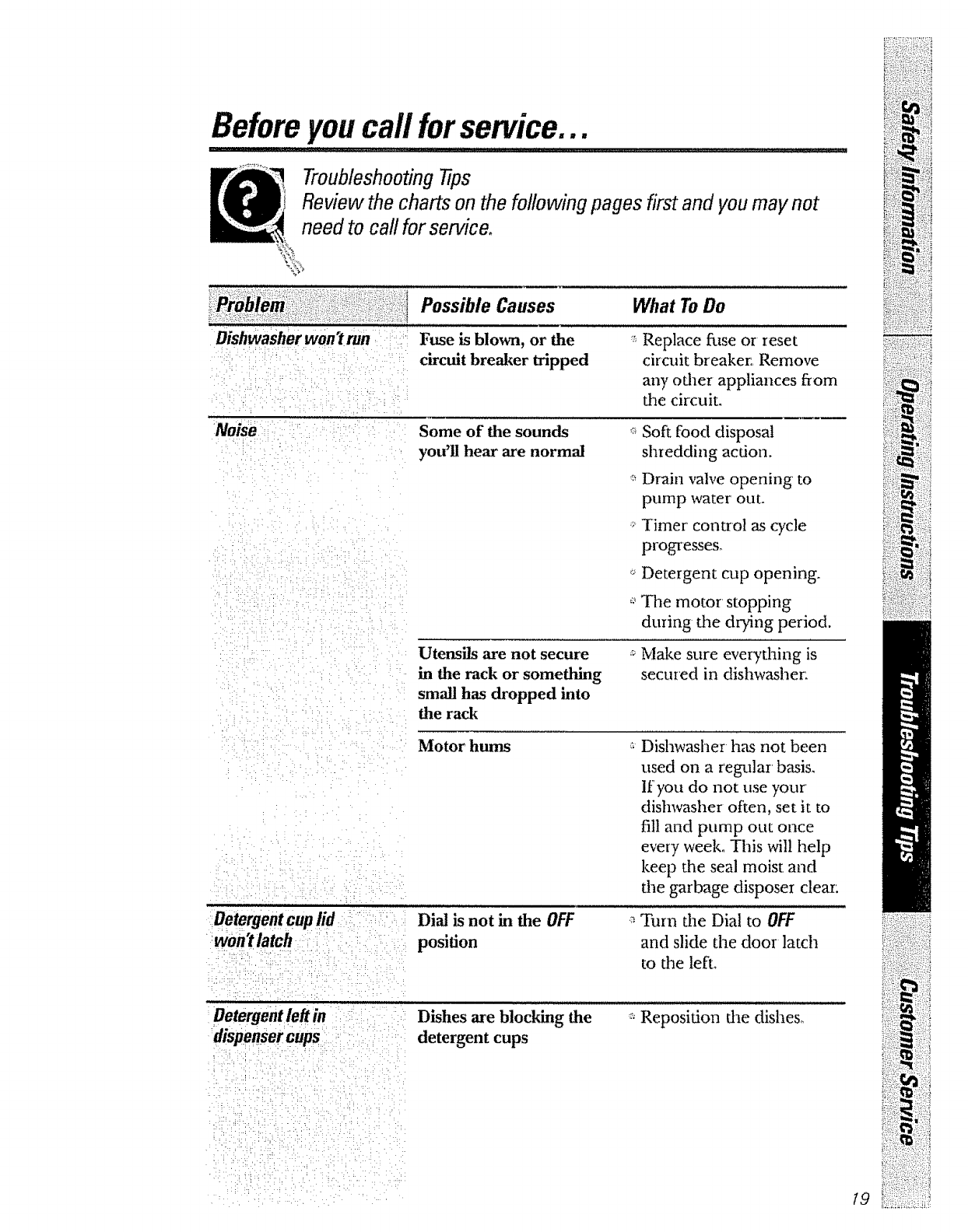

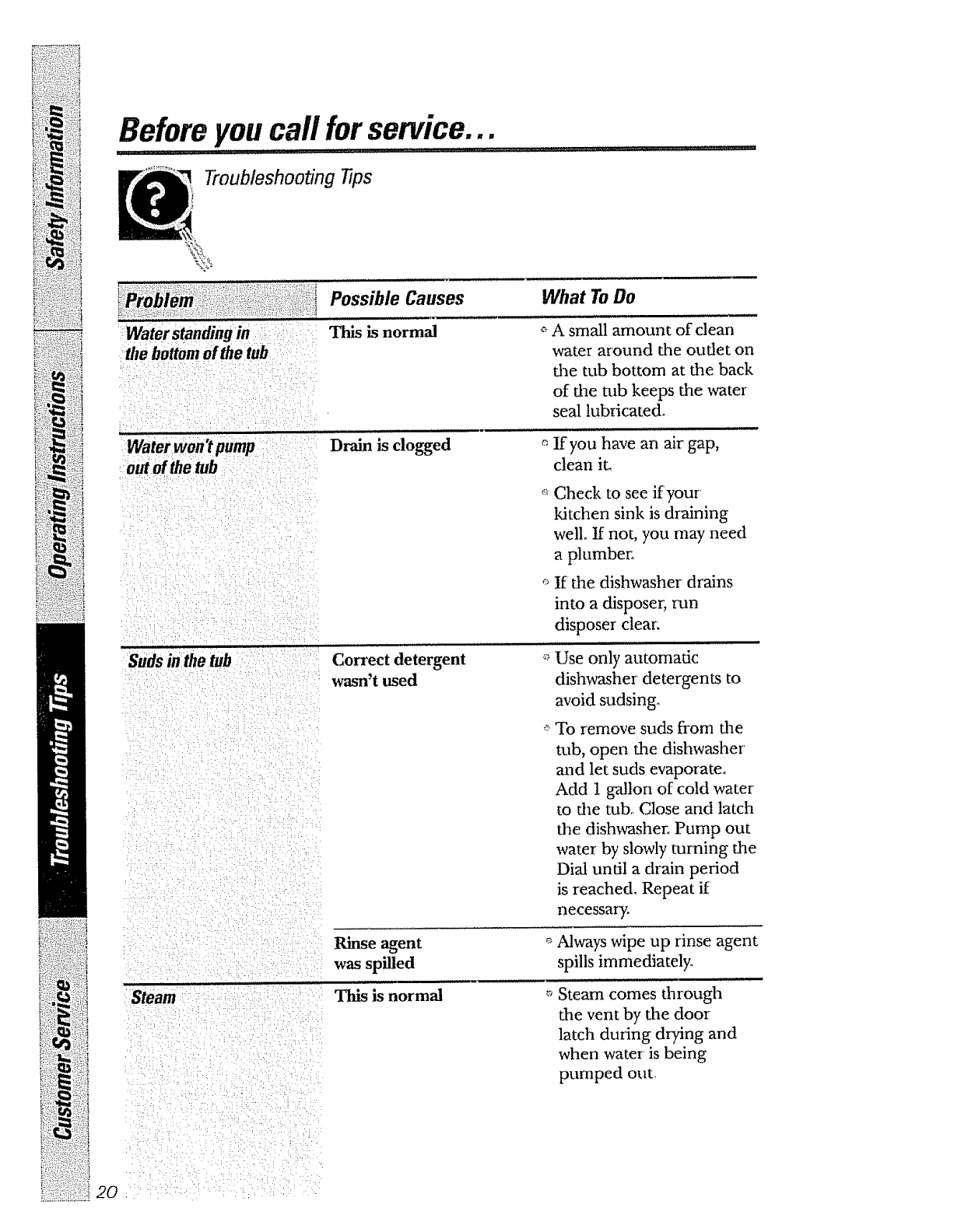

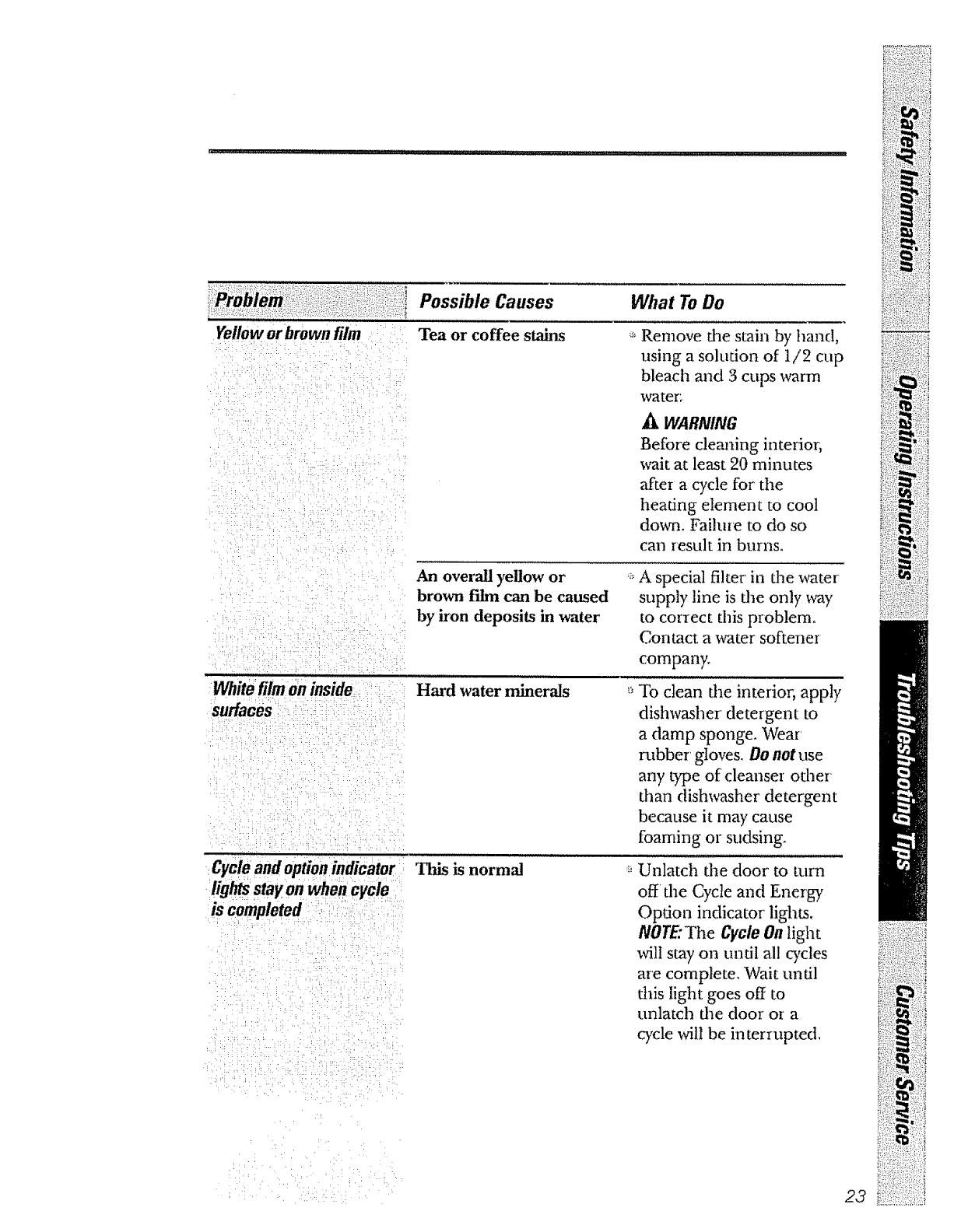

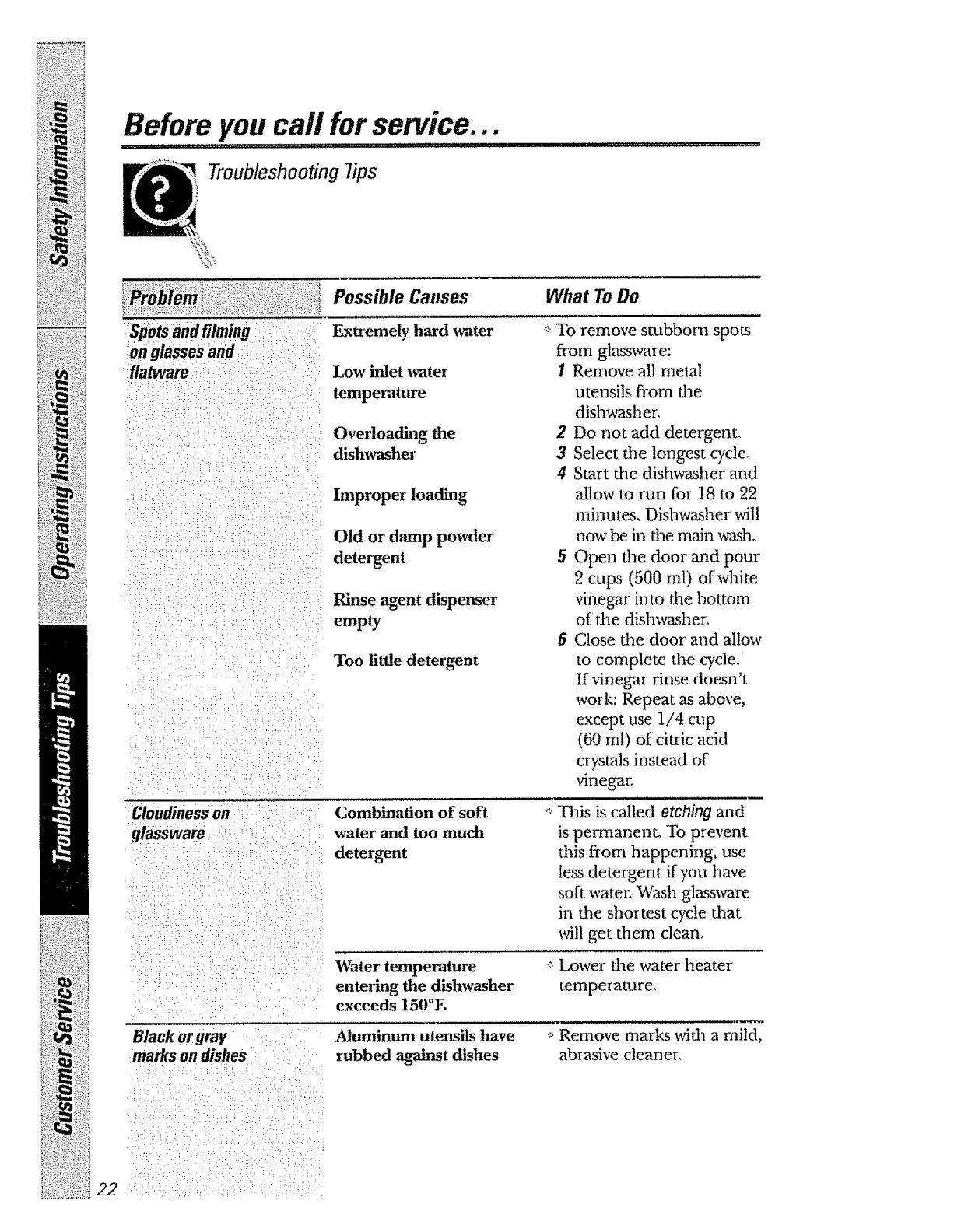

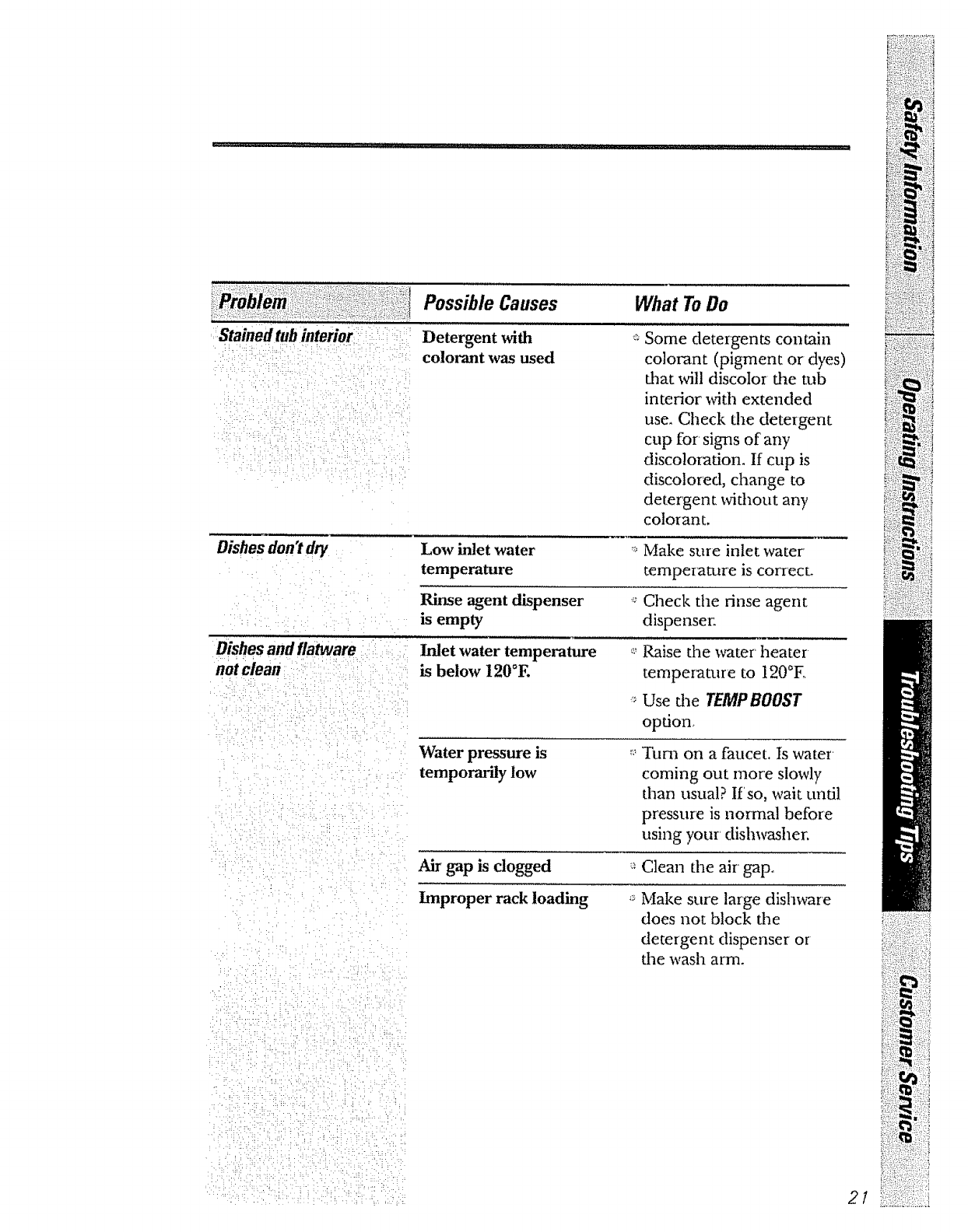

Troubleshooting77ps

BeforeYou

CallForService........ 19"23 ii_

CustomerService

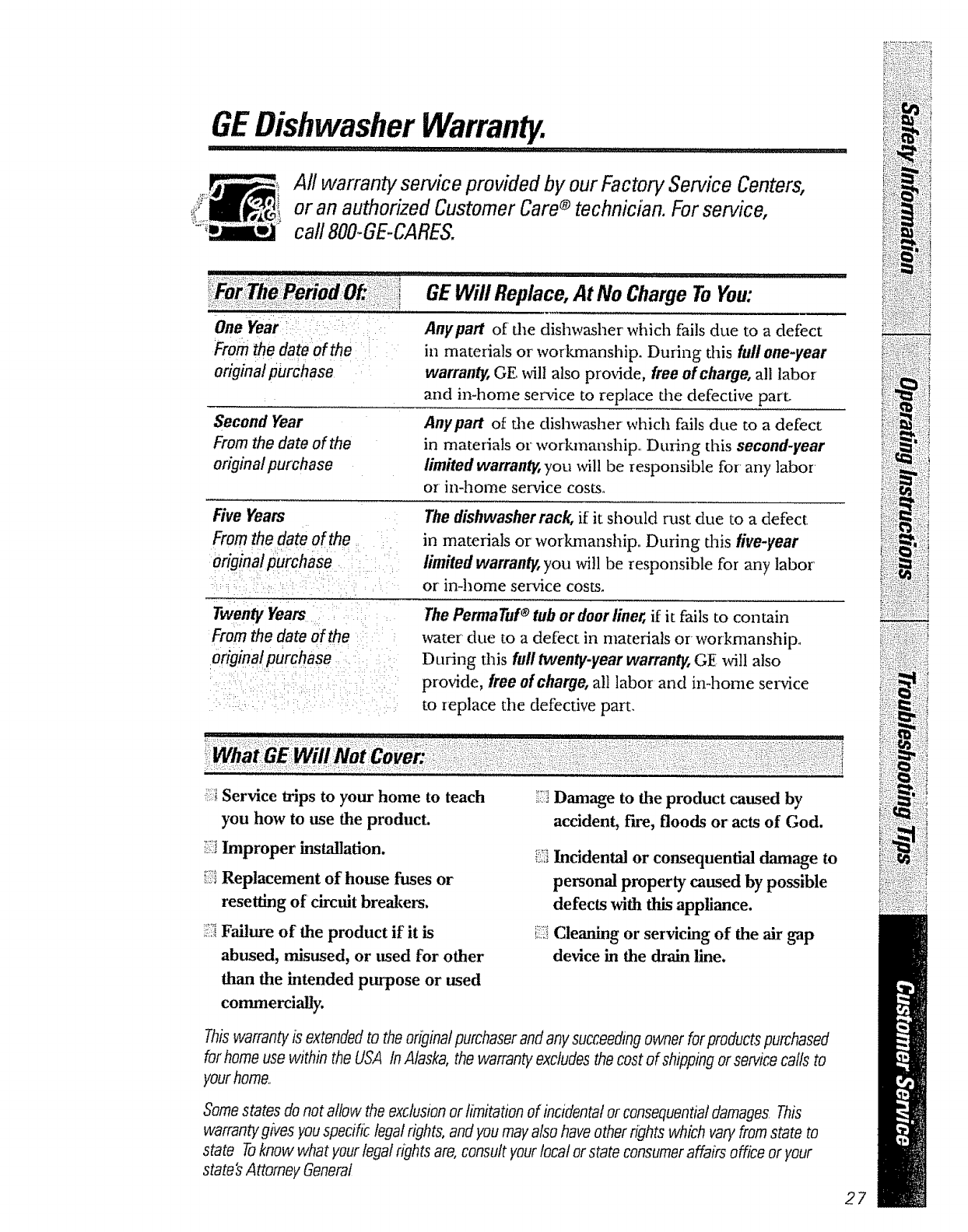

Warranty ................. 27

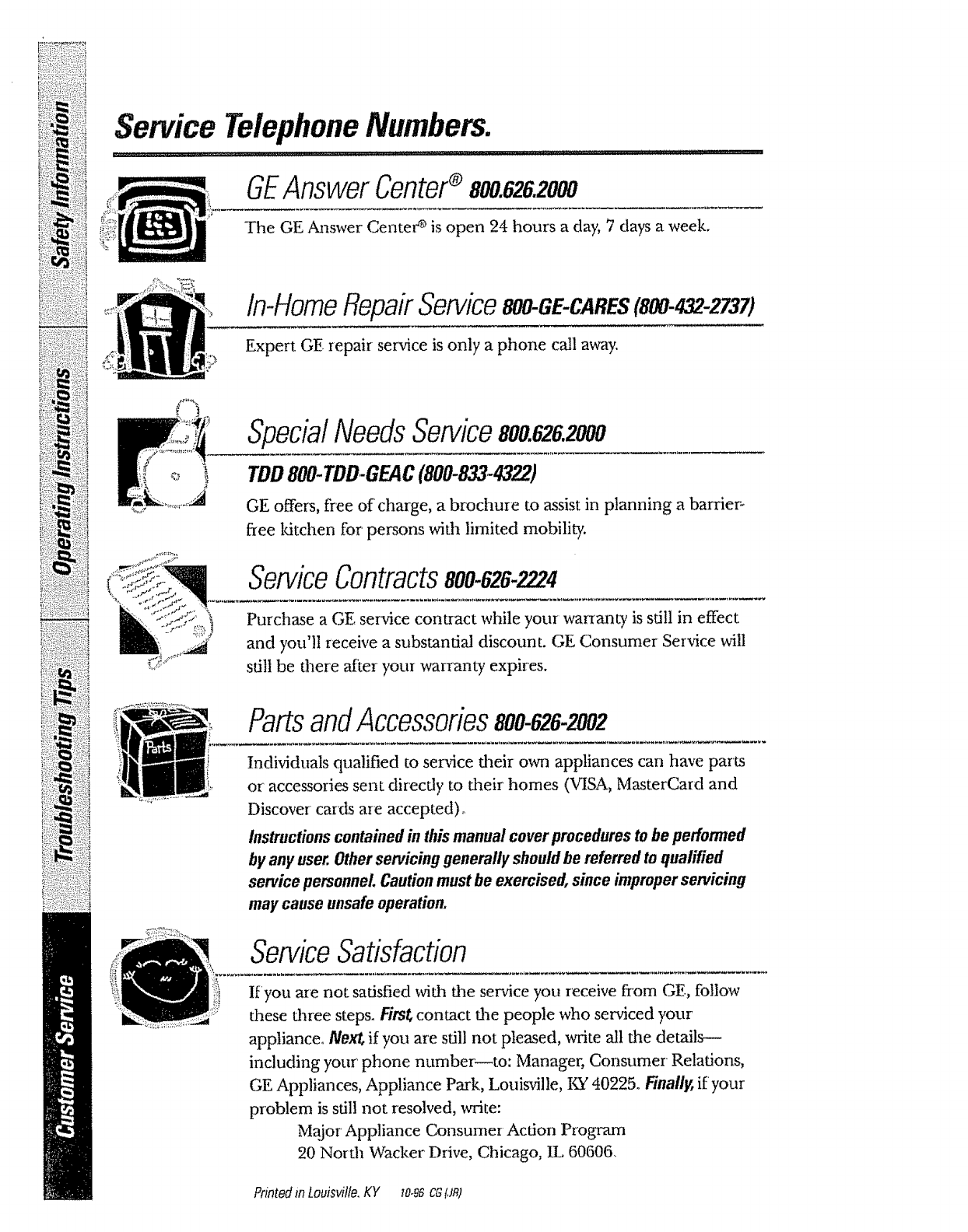

ServiceTelephone

Numbers............ BackCover

3

i 4""

'::t ,

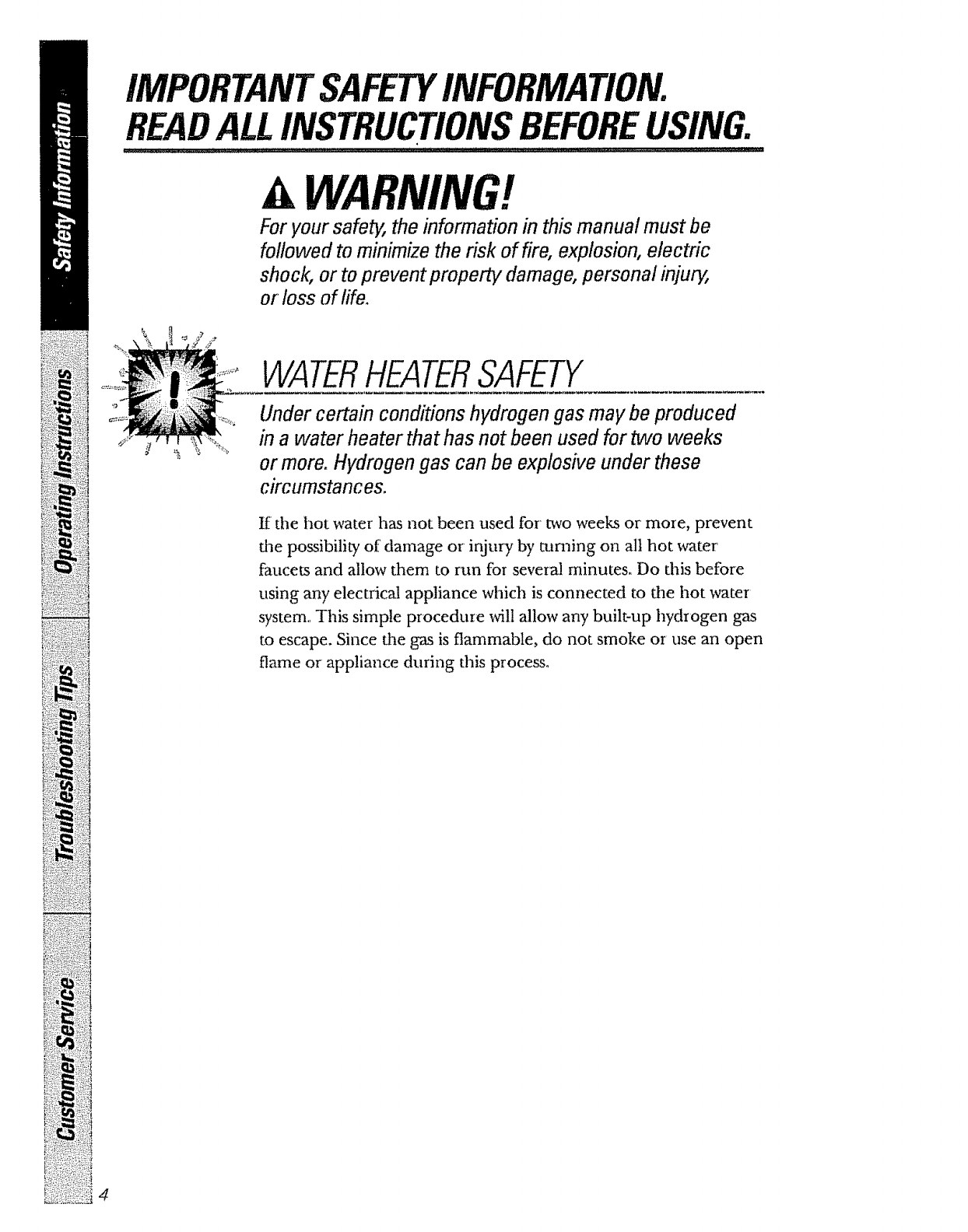

READALLINSTRUCTIOIVS USING.

WARNING!

For your safety, the information in this manual must be

followed to minimize the risk of fire, explosion, electric

shock, or to prevent property damage, personal injury,

or loss of life.

WATERHEATERSAFETY

Under certain conditions hydrogen gas may be produced

in a water heater that has not been used for two weeks

or more. Hydrogen gas can be explosive under these

circumstances.

If the hot water has not been used for two weeks or more, prevent

the possibility of damage or injury by tunaing on all hot water

faucets and allow them to run for several minutes, Do this before

using any electrical appliance which is connected to the hot water

system,, This simple procedure wil! allow any built-up hydrogen gas

to escape. Since the gas is flammable, do not smoke or use an open

flame or appliance during this process,

4

Use this appliance only for its intended purpose as

described in this Owner's Manual

PROPERINSTALLATION

ANDMAINTENANCE

This dishwasher must be properly installed and located in

accordance with the Installation Instructions before #is used.

ff you did not receive an Installation Instructions sheet with

your dishwasher, you can receive one by calling us toll-free

at the GEAnswer Center,_800.626.2000.

Connect to a grounded :7.)!

metal, permanent wiring

system; or run an equipment-

grounding conductor with

the circuit conductors and

connect to the equipment-

grounding terminal or lead

of the appliance.

Improper connection of

the equipment-grounding

conductor can result in

a risk of' electric shock.

Check with a qualified

electrician or service

representative if you ale in

doubt whether the appliance

is properly grounde&

Dispose of discarded

appliances and shipping or'

packing material properly,

Do not attempt to repair

or replace any part of your

dishwasher unless it is

specifically recommended

in this manual. All other

servicing should be referred

to a qualified technician.

i"!To minimize the possibility

of electric shock,, disconnect

this appliance from the

power' supply before

attempting any maintenance,

NOTE:Turning the

dishwasher off does not

disconnect the appliance

from the power supply.

We recommend having a

qualified technician sen4ce

your appliance_

5

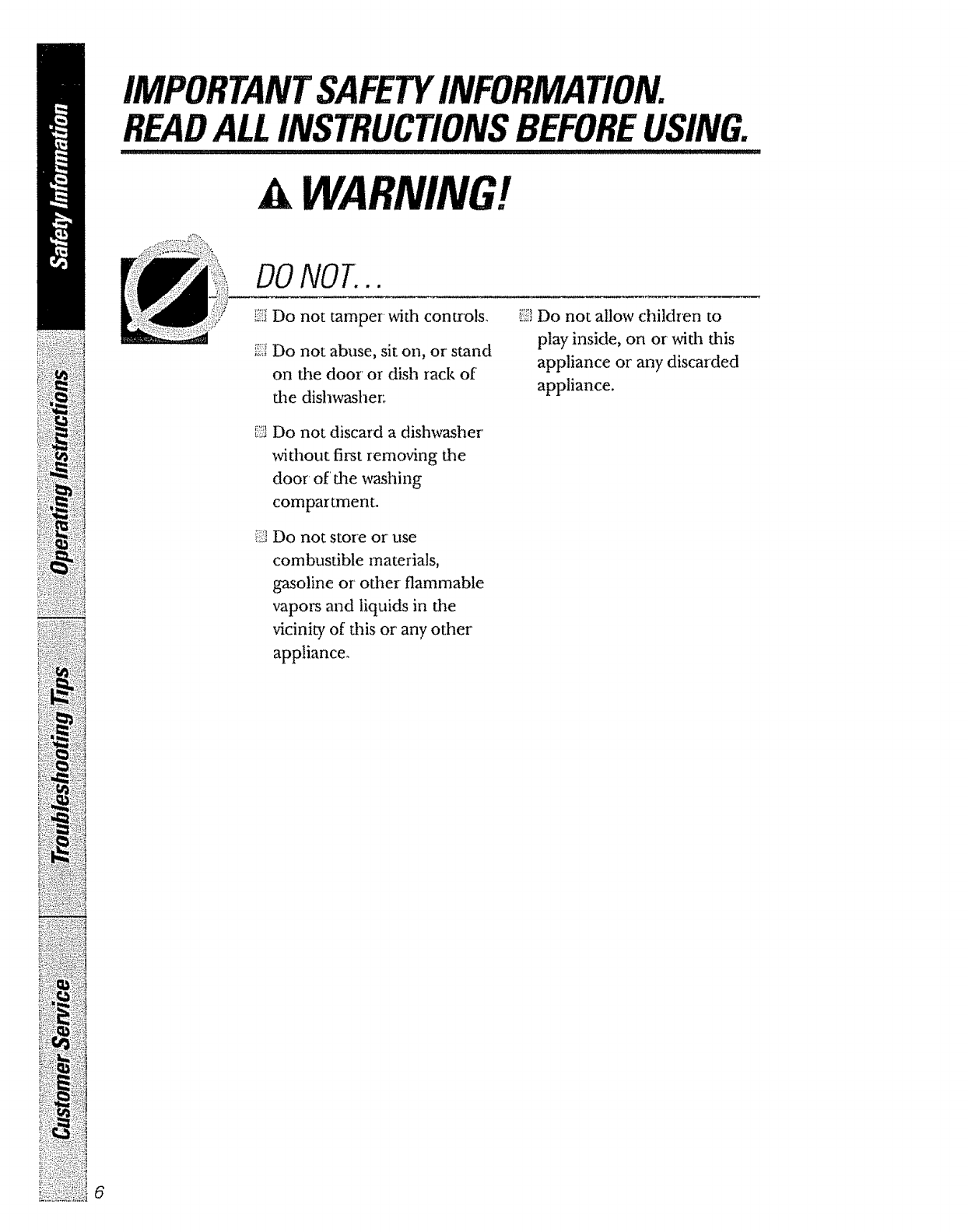

READALLINSTRUCTIONS USING.

AWARNING!

DONOT...

!51!iDo not tamper with controls.

f!iiDo not abuse, sit on, or' stand

on the door or dish rack of

fire dishwasher:

_:::iDo not allow children to

play inside, on or witl_ this

appliance or any discarded

appliance.

Do not discard a dishwasher'

without first removing the

door or the washing

compartment.

Do not store or use

combustible materials,

gasoline or' odaer flammable

vapors and liquids in fl_e

vicinity o[ this or any other

appliance,

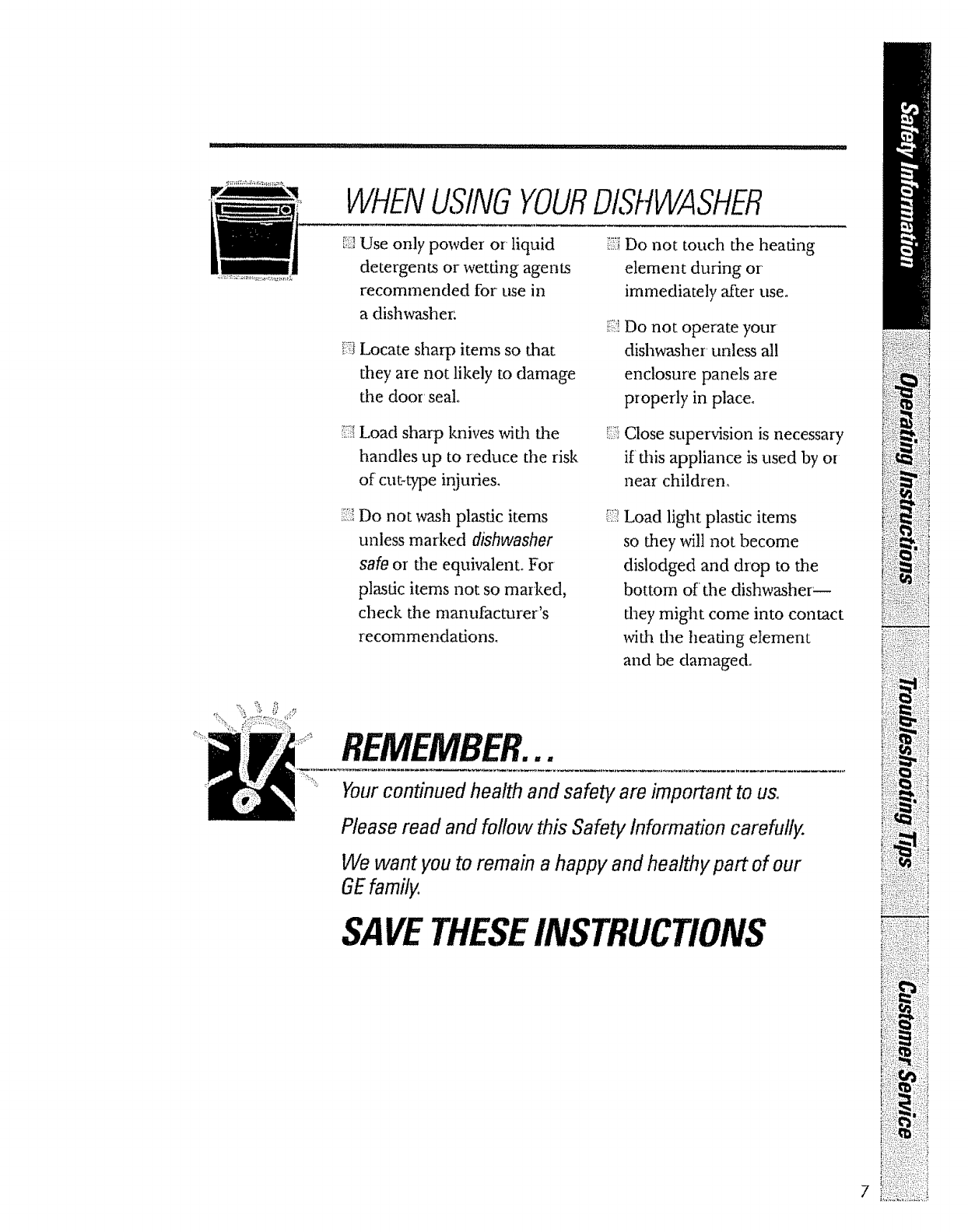

WHENUSINGYOURDISHWASHER

_::,_Use only powder or liquid i!i;:i

detergents or wetting agents

recommended for use in

a dishwasher:

Locate sharp items so that

they are not likely to damage

the door seal

Do not touch the headng

element during or

immediately after use.

_;::::::!Do not operate your

dishwasher unless all

enclosure panels are

properly in place°

,_:._,_:_:iLoad sharp knives with the i;2

handles up to reduce the risk,

of cut-type injuries,

i;! Do not wash plastic items _,5{

unless marked dishwasher

safe or the equiva]ento For

plastic items not so marked,

check the manufacturer's

recommendations.

Close supevdsion is necessary

if dfis appliance is used by or

near children,

Load light plastic items

so they will not become

dislodged and drop to the

bottom of' the dishwasher--

they might come into contact

with the heating element

and be damaged°

REMEMBER...

Yourcontinued health and safety are important to us.

Please read and follow this Safety Information carefully.

We want you to remain a happy and healthy part of our

GEfamilg

ilVSTRUCTIOIVS

i!iii'ili:,ii_'i_

_)ii:i:::,)i

h

¸

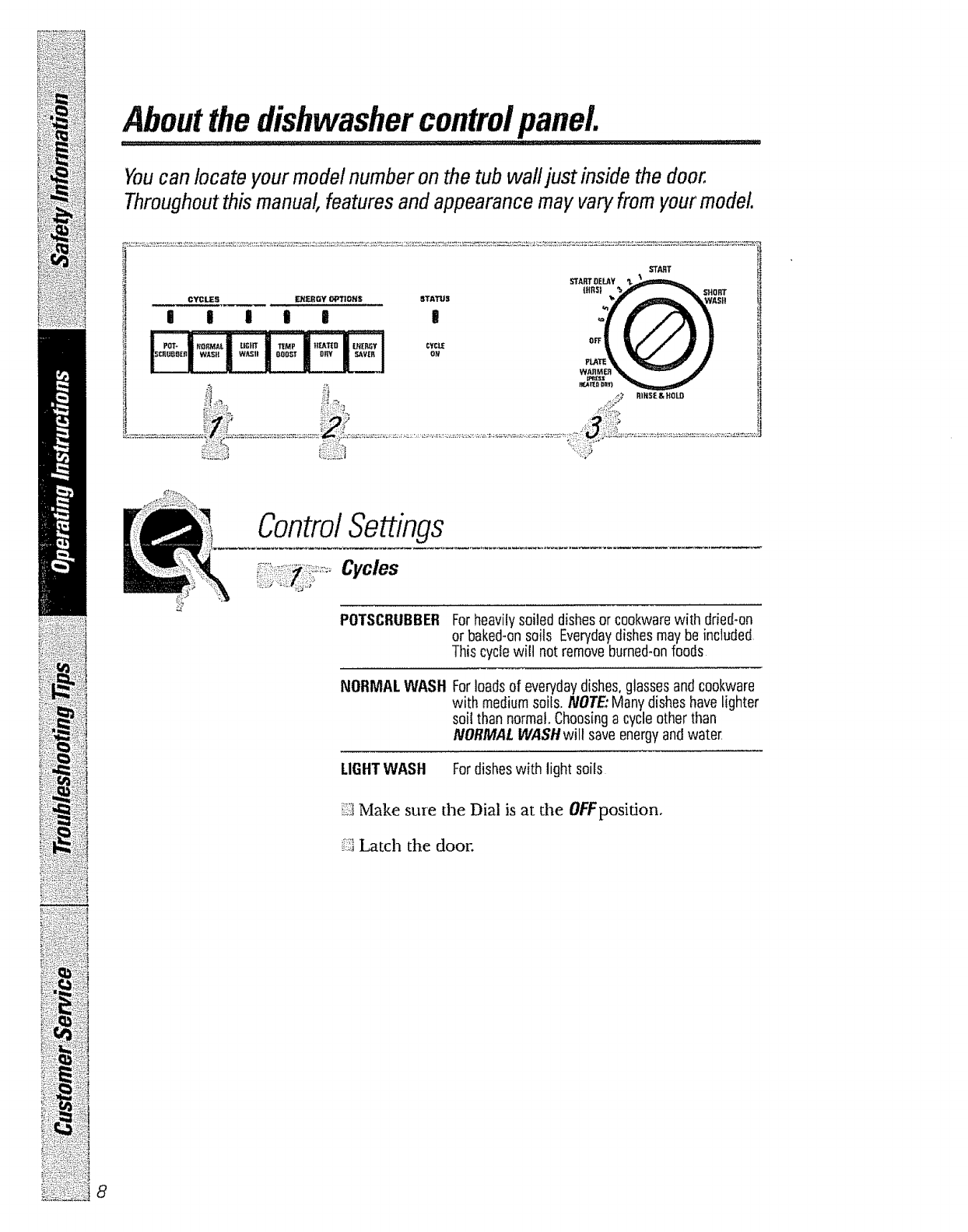

About the dishwasher controlpanel. ....................

Youcan locate your model number on the tub wall just inside the door,

Throughoutthis manual, features and appearance may vary from your model

START

!!?i!:_

ii!:_ii!:{

POTSCRUBBEH Forheavilysoiled dishesor cookwarewith dried-on

or baked-onsoils Everydaydishesmaybe included

Thiscyciewilt not removeburned-onfoods

NORMAL WASH Forloads of everydaydishes,glassesandcookware

with mediumsoifs.NOTE:Many disheshaveLighter

soil than normal.Choosinga cycleother than

NORMAL WASHwill saveenergyandwater.

LIGHTWASH Fordisheswith light soils

i_,i;JMake sure the Dial is at dae 0FFposidon,

':_:_,_,Latch the door.

8

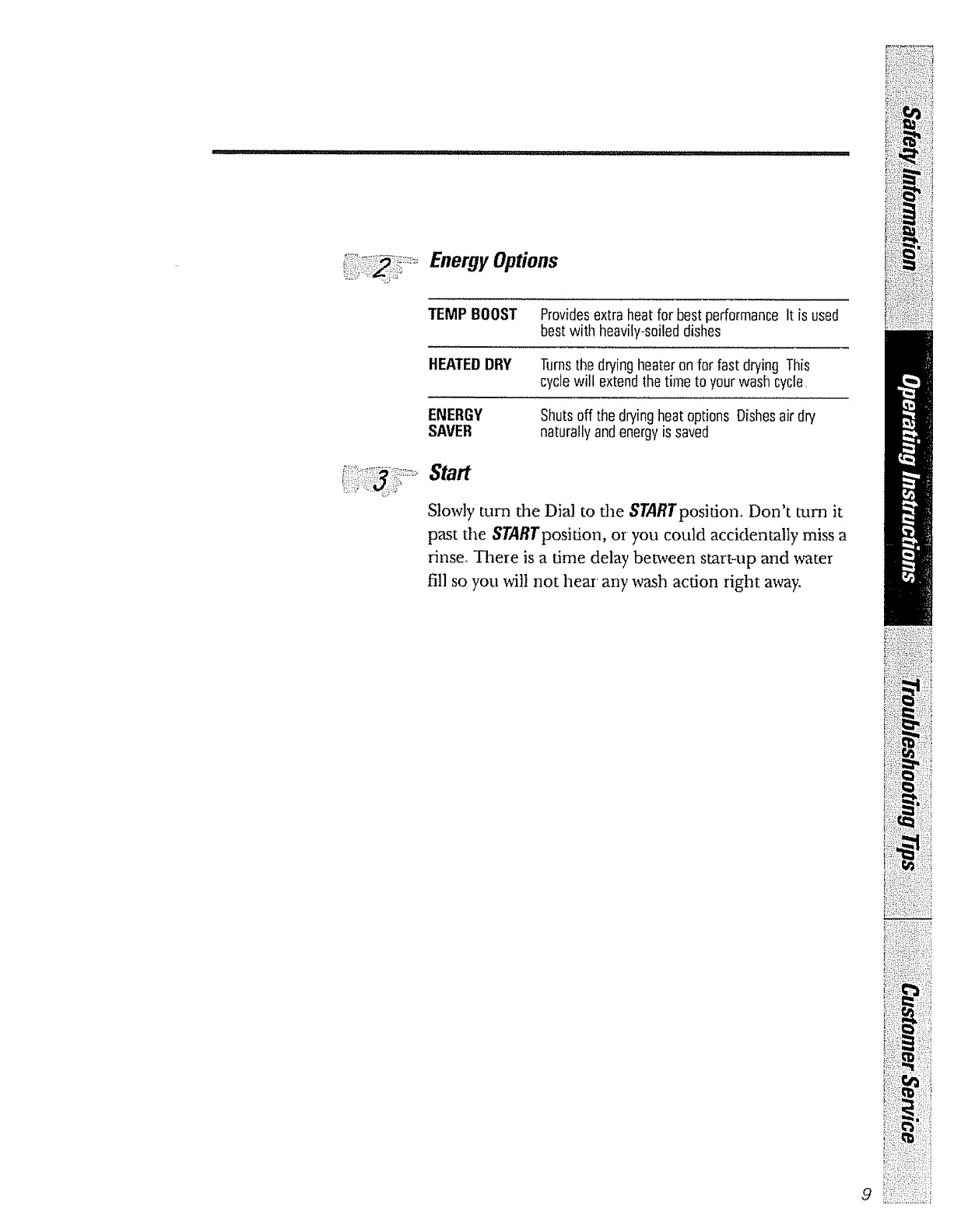

EnergyOptions

TEMP BOOST Providesextra heat for best performanceIt is used

bestwith heavily-soileddishes

HEATEDDRY Turnsthe dryingheateron for fast drying This

cyclewill extendthe time to yourwash cycle,

ENERGY

SAVER Shutsoff the dryingheat options Dishesair dry

naturallyandenergyis saved

Start

Slowly turn the Dial to the STARTposidon. Don't turn it

past tile STaRTposidon,or you could accidentally miss a

rinse° There is a time del W between start-up and "water

fill so you wil! not hear any wash action right away,

9

_!i!_ii__:i_iil

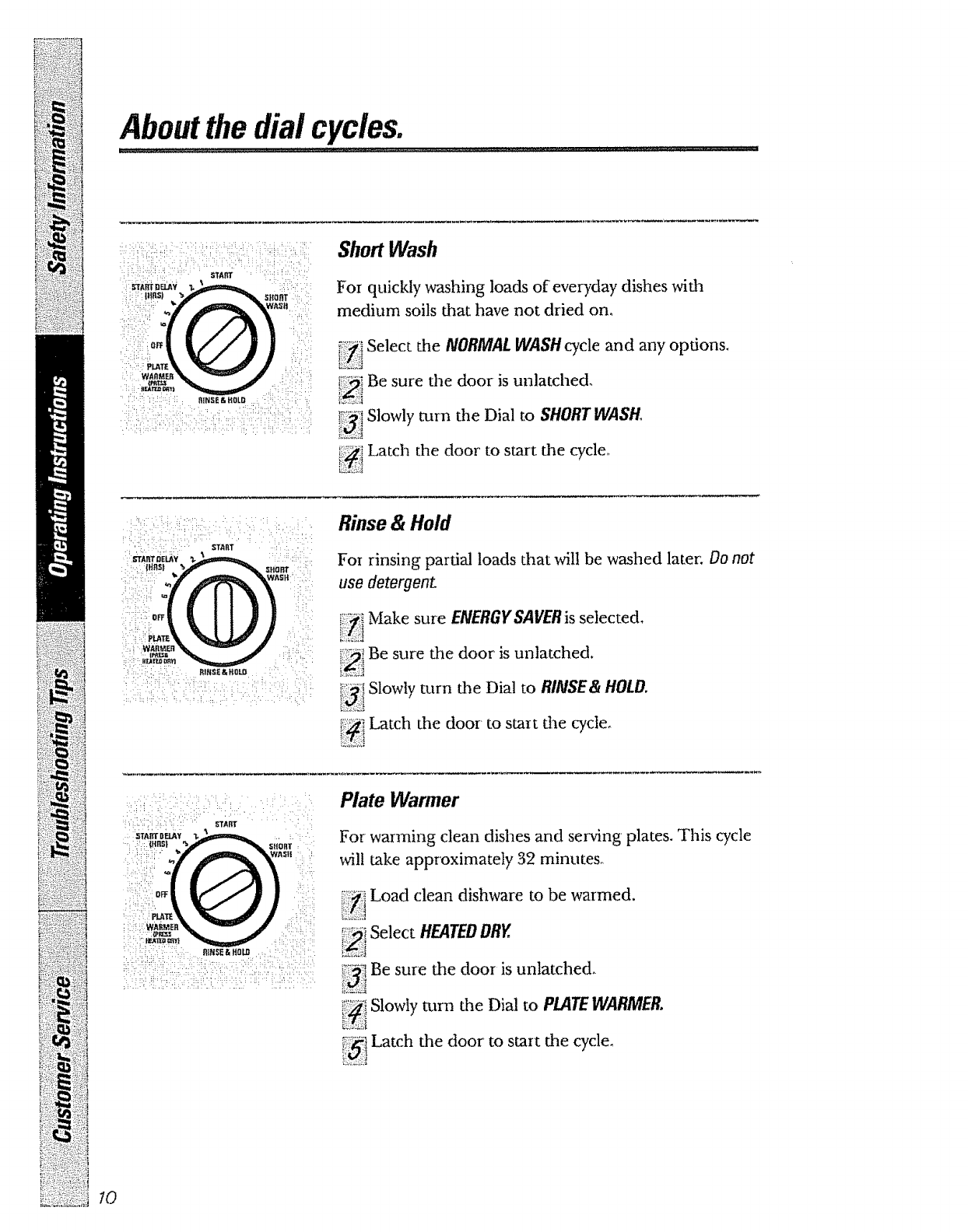

About the dial cycles.

Shoa Wash

: _:_^_D_ :_ For quickly washing loads of everyday dishes with

.: :I !_s):::!' SRQnT : :

:_: _::_; ' ::: medium soils that have not dried on,

_i Select the NORMALWASHcycle and any options,

iBe sure the door is unlatched_

iiSlowly turn the Dial to SHORTWASH,

_i Latch the door to start the cycle°

Rinse & Hold

For rinsing partial loads that will be washed later, D0 not

use detergent.

i Make sure ENERGYSAVERisselected.

iBe sure the door is unlatched.

_ Slowly turn the Dial to RINSE& HOLD,

_] Latch the door to start the cycle_

:_

U_

'_:u:I

Plate Warmer

For warming clean dishes and serving plates. This cycle

wi!l take approximately 32 minutes°

iiLoad clean dishware to be warmed.

iSelect HEATEDDRY.

iBe sure the door is unlatched_

{Slowty turn the Dial to PLATEWARMER.

_i Latch the door to start the cycle,

_AFIT

5TART ]) EL_Y _

•I)'m "f "'" _""M

i PLAT

wp+m'_ ---v +j

RtNSE& tlGED

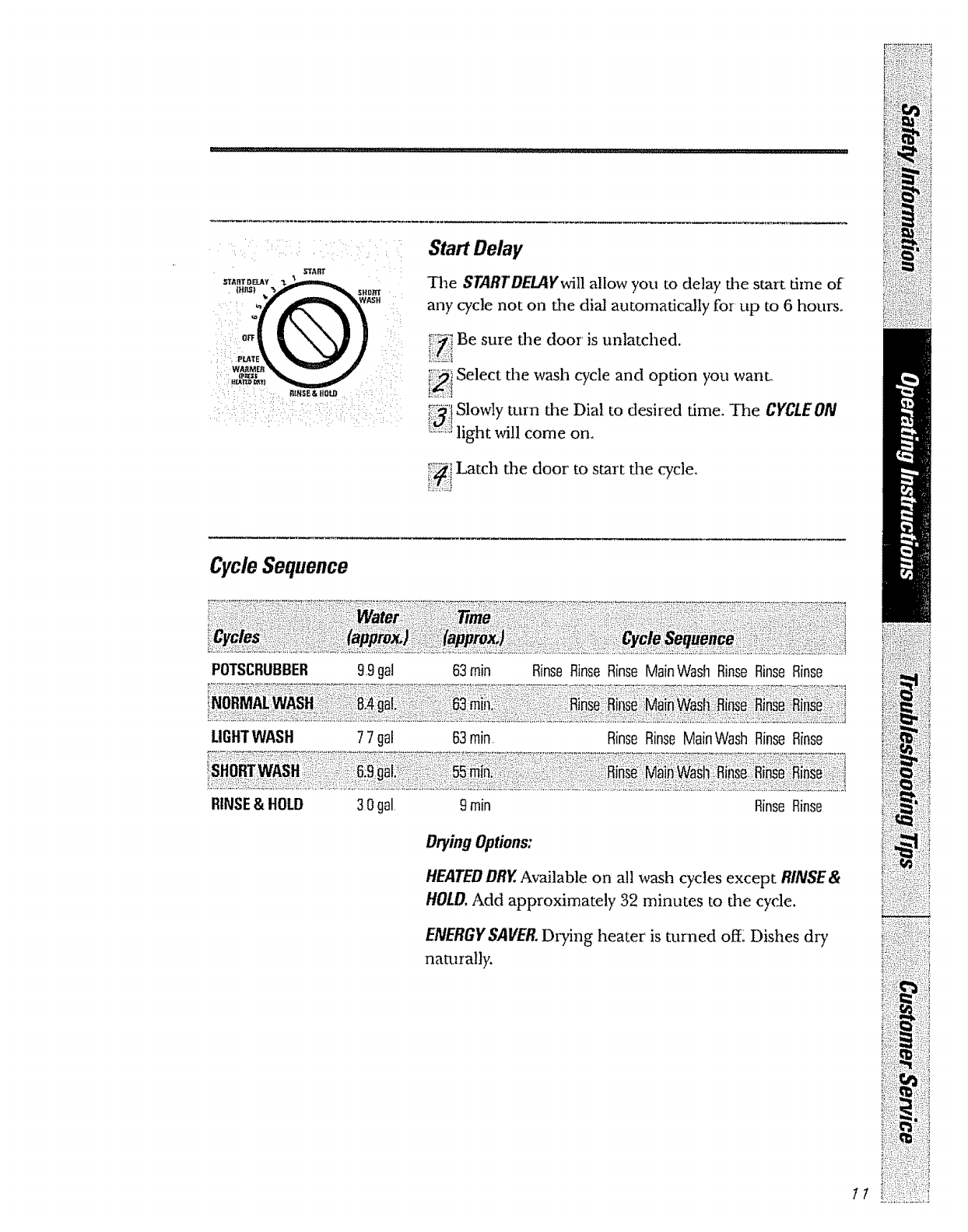

Start Delay

Ihe STARTDELAF WIll allow you to delay the start rime of

any cycle not on file dlal aummadcally for up to 6 hours°

!ii_}iBe sure the door' is unlatched.

_2;i Select the wash cycle and option you wanL

_?_";Slowly turn the Dial to desired time. The CYCLEON

!)i!i/_light will come on.

,i_!!!!r+{Latch the door to start the cycle.

Cycle Sequence

POTSCRUBBER 9,9ga! 63rain RinseRinseRinseMainWash Rinse RinseRinse

LIGHTWASH 77 gaf 63rain

RINSE& HOLD 30 gal

RinseRinse MainWash RinseRinse

9rain RinseRinse

DryingOptions:

HEATEDDRY,Available on all wash cycles except RINSE&

HOLD.Add approximately 32 minutes to the cycle.

ENERGYSAVER.Drying heater is turned off2Dishes dr'i

naturally.

g!!;i:_

i::_:)+;

;!i?_.'¢

g!!_

i!?:i::

=+i;!:!:'4!

++

!:::i722_::{

11

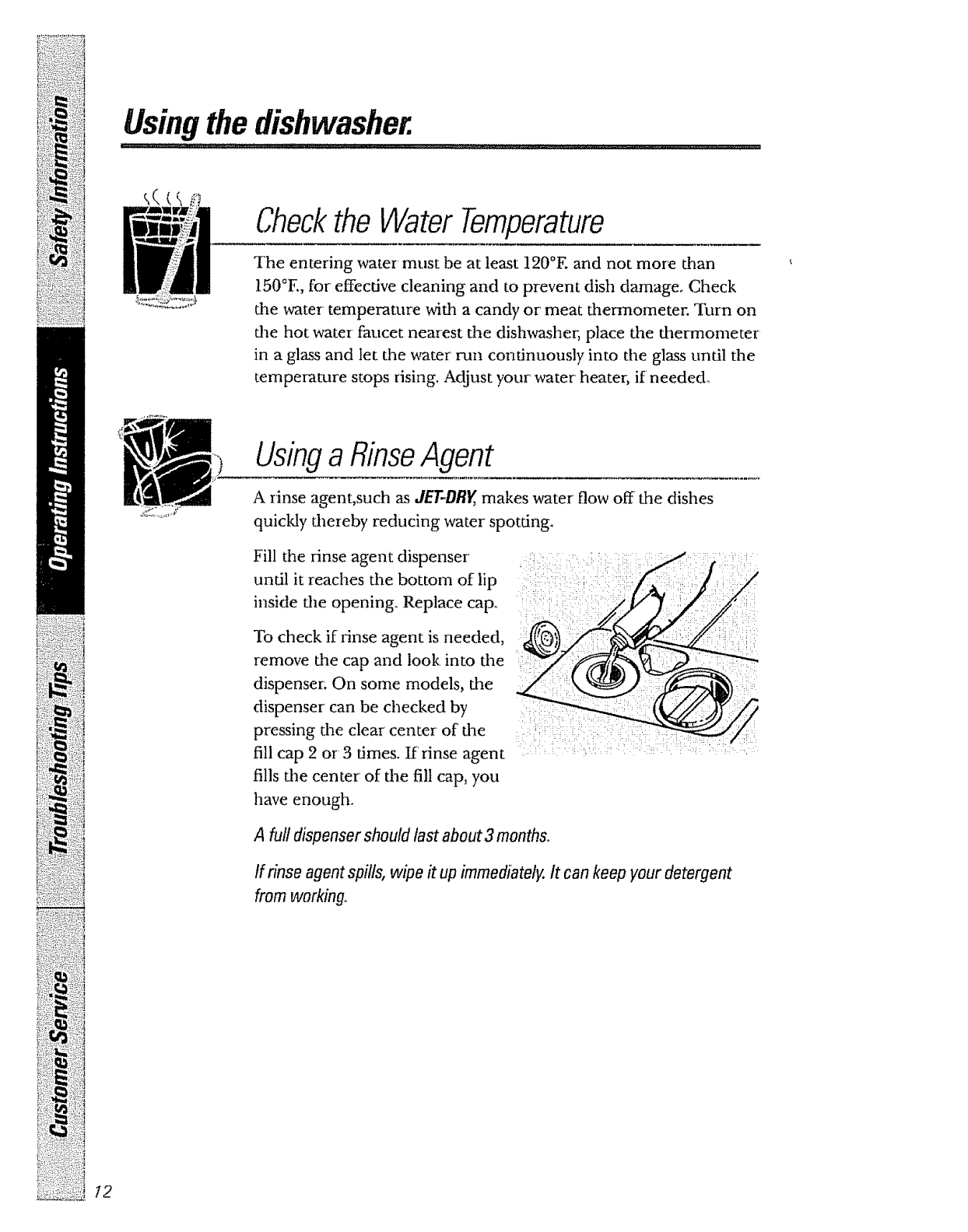

Using the dishwasher.

Checkthe WaterTemperature

The entering water must be at least 120°E and not more than

t50°E, for effective cleaning and to prevent dish damage_ Check

the water temperature with a candy or meat thermometer. Turn on

the hot water faucet nearest the dishwasher, place the thermometer

in a glass and let the water run continuously into the glass until the

temperature stops rising. Adjust your water' heater, if needed°

iiil

i !ii!!

!i:i:ii

:%5;

Usinga RinseAgent

A rinse agent, such as JET-DRY, makes water flow off the dishes

quicldy thereby reducing water spotting.

Fill the rinse agent dispenser' ...... . ..... :: . / .

inside the opening. Replace cap.

remove the cap and look into the _

dispenser; On some models, the _--_")_ :_

dispenser can be checked by

pressing the clear center of the _ • .....

fill cap 2 or3 dines. If rinse agent

fills the center of the fill cap, you

have enough.

A full dispenser should last about 3 months,

If rinse agent spills, wipe #up immediately. It can keep your detergent

fromworking.

t2

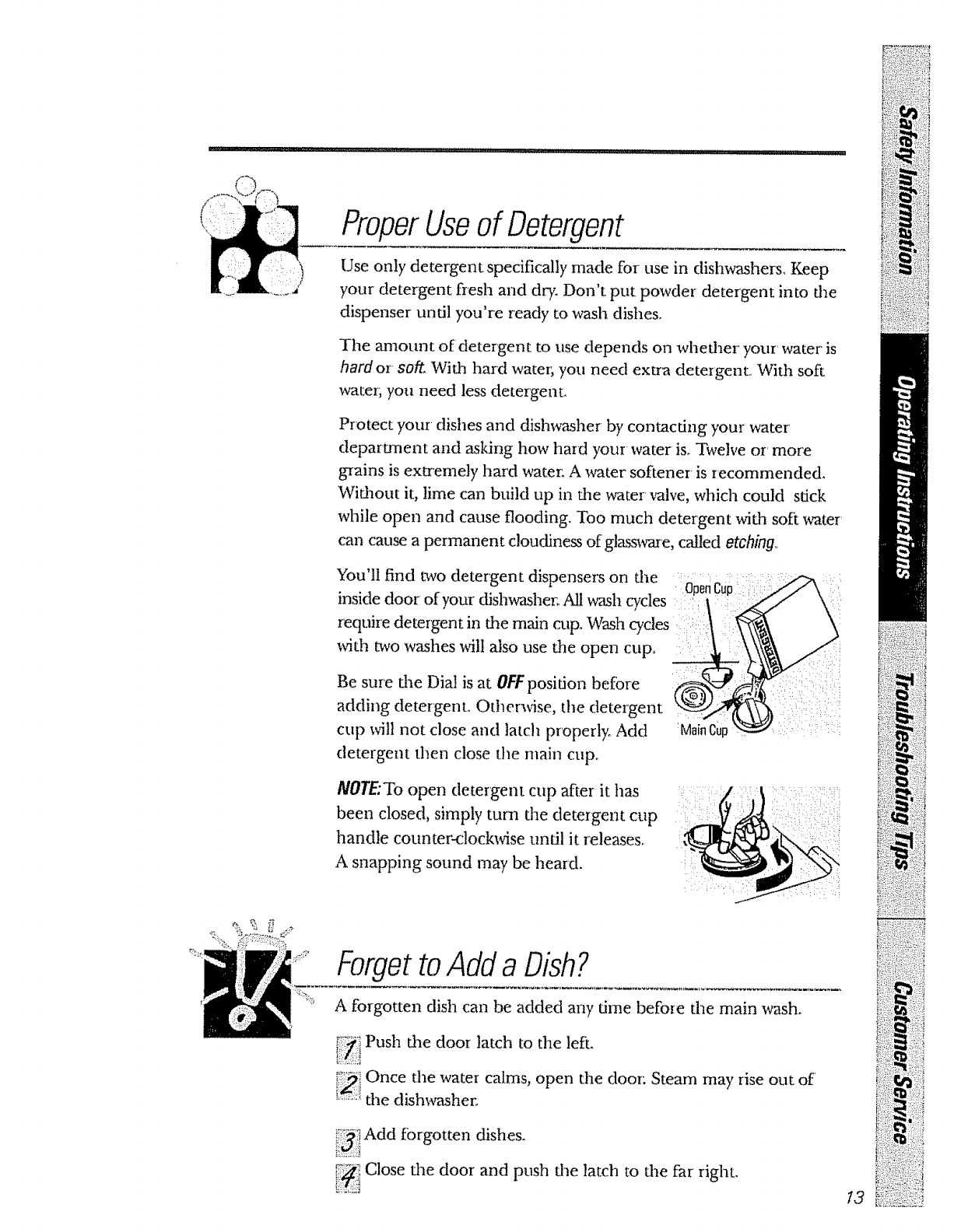

ProperUseof Detergent

Use only detergent specifically made for use in dishwashers, Keep

your detergent fresh and dry, Don't put powder detergent into the

dispenser until you're ready to wash dishes.

The anaount of detergent to use depends on whether your water is

hard or soft. With hard water, you need extra detergent,, With soft

water; you need less detergent.

Protect your dishes and dishwasher by contacting your water

department and asking how hard your water is. Twelve or more

grains is extremely hard water, A water softener is recommended.

Without it, lime can build up in the water' valve, which could stick

while open and cause flooding, Too much detergent with soft water

can cause a permanent cloudiness of glassware, called etchin9

You'll find two detergent dispensers on the OpenCup

inside door of your dishwasher. All wash cycles

require detergent in the main cup, Wash cycles

with two washes will also use the open cup_

Be sure the Dia! is at OFFposidon before

adding detergent° Otherwise, the detergent

cup will not close and latch properly° Add

detergent then close the main cup°

MainCup

NOTE:To open detergent cup aft,er it has

been closed, simply turn the detergent cup :::::

handle counter-clockwise until it releases_ ;

A snapping sound may be heard. :: l :'15:::}

ForgettoAdd a Dish?

A forgotten dish can be added any time before the main wash.

i!_! Push the door latch to the le_L

i_ Once the water calms, open the door. Steam may rise out of

......._=:the dishwasher,,

i_i:i{Add forgotten dishes.

_i Close the door and push the latch to the far right,

h<:_i,{ 13

Loadingthe dishwasher racks.

For best dishwashing results, follow these loading guidelines. Features and

appearance of racks and silverware baskets may vary from your model

Upper Rack

The upper' rack. is for glasses, cups and saucers.

Cups and glasses fit best along the sides, This is

also a secure place for dishwasher-safe plasdcso A

cup shelf (on some models) may be placed in the

up or down position to add flexibility, The upper

rack is good for all kinds o[ odd-shaped utensils,

Saucepans, mixing bowls and other' items should

be placed face down°

Sec,re large?dishwasher-safeplastics ove_-two fingers

h: ossjb e;....................

Make:Suresmall plasti_ ite_s are _ecure sOtheY ¢an'i fall:

iO_t5the:_,fieatin9elemefiti:............................................

The Wash Tower

:Keepithecehter a_'eadear in thefower rack.

The wash tower rises through the center of the

lower rack. during the wash and rinse portions of

the cycle,

'tb!Ock iiiOaJtait:thing#: ext:talt,

Also, be careful not to let a

portion of an item such as a pot

or dish handle extend through

the bottom rack, This could block.

the wash arm and cause poor

washing results°

14

LowerRack

When bading the lower rack, do not load largeplatters or

trays in the front right comer Theymay prevent detergent

from circulating during the wash cycle.

The lower rack is best used for plates, saucers,

and cookware. Large items such as broiler pans

and racks should go along the sides. Load

platters, pots and bowls along the sides, in

corners, or in the back. The soiled side of items

should face the center of the rack°

Fold<lown fingers (on some models) provide

flexibility for extra large and hard-to-fit items,

The fingers may be left in the tip posidon or

folded dowaa to customize the lower rack.

item:extend

:through bottom. '

Silverware Basket

Put flat, rare in the removable basket Mth fork

and knife handles Lip tO protect your hands_

Place spoons in the basket with handles dowaao

Mix knives, forks and spoons so they don't nest

together. Distribute evenly. Small plastic items,

such as measuring spoons and lids from small

containers, should go in the bottom of the

silverware basket with silverware on top.

To increase the flexibility of the lower rack., the

silverware basket may be split. Grasp the basket

at opposite corners and slide apart. The basket

sections should be placed in the lower rack by

hanging them on the top hoop°

A security cell cover (on

some models) hinged in

some handles can be

lowered to either side to

secure ligtmveight items

from the effects of the

vigorous wash action.

15

Changingcolorpanels.

if you are redecorating, you can change your dishwasher's front

panel to match or blend with your new colors by flipping it over,

Eachside of each panel is a different color, Youmay also paint

a panel with a color of your own choice.

AWARNING!

!iii!IWear gtoves when handling door panels. Failure to do so can

cause serious cuts.

!_i5_Do not operate dishwasher while changing panels.

Changing the Door Panel

i!_:_'_i!Take out trim screws on either side of the

i:,_':::_dishwasher door. Remove the side trim,

_21! Slide the door' panel ouL (Careful--edges may

_ii be sharp..)

!!3_iTurn the door panel around and put the color you

_'::::.::_want in front.

i:_i Replace the door panel, side trim and screws.

NOTE:Do not operate dishwasher while changing panels

or when bottom panel is removed.

;:!!i,i

!;;>:!7_

!i::i:?!6

_ii::_:;iRemove the bottom panel attachment screws,

_21i_Remove the top mounting screws,

_:_::ii7:+'+:iTake. out the top trim screws and remove the top

_"-'-+_trim.

{_ii Slide the color panel(s) up and out and put the

............:"color you want in front.

i:_ Replace the top trim and screws,

[_:! Replace the entire ,-assembly by reversing the steps,

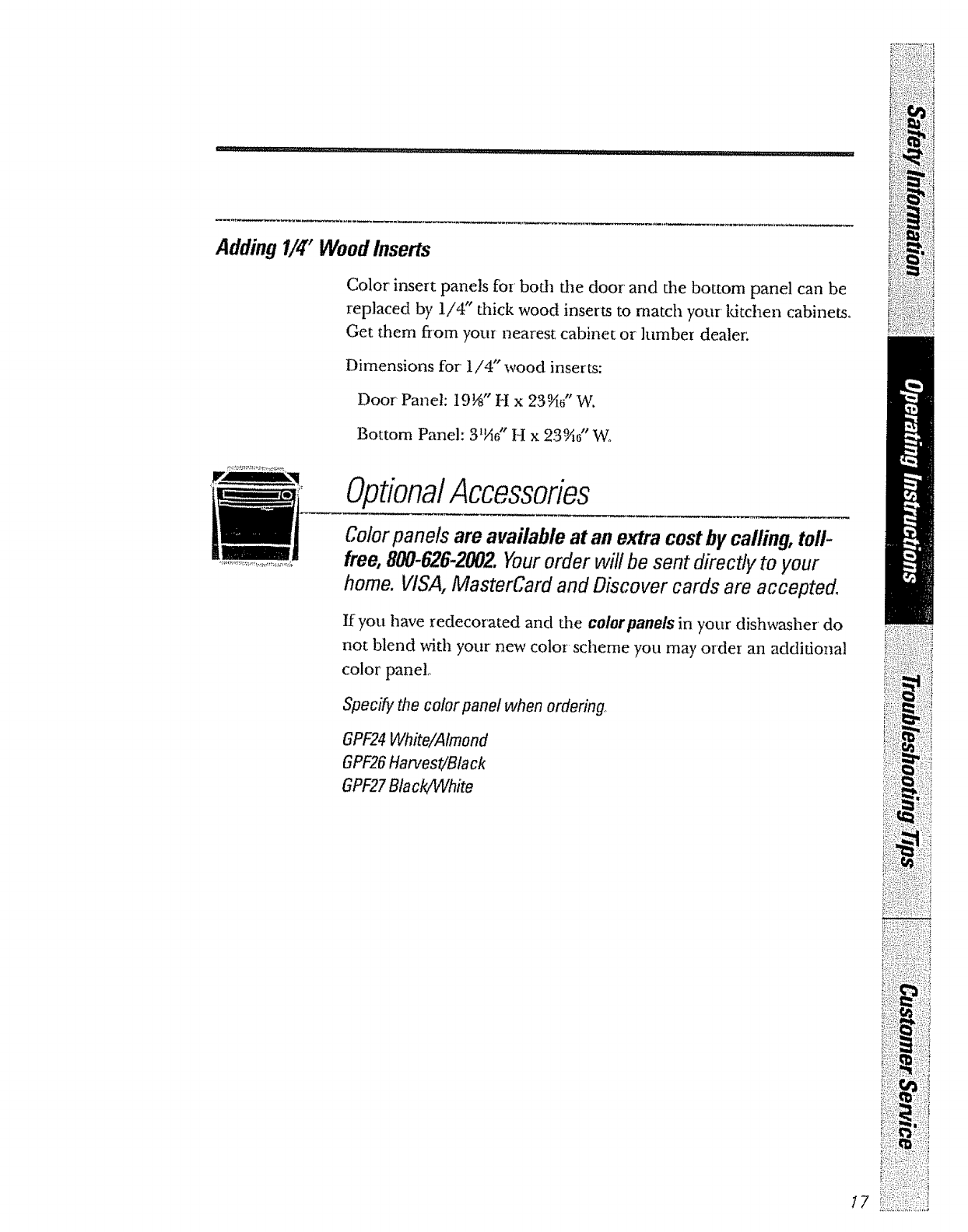

Adding1/#' WoodInserts

Color insert panels for both the door and the bottom panel can be

replaced by 1/4" thick wood inserts to match your ldtchen cabinets.

Get them from your nearest cabinet or lumber dealer.

Dimensions for 1/4" wood inserts:

Door Panel: 19N" H x 239A6" W.

Bottom Panel: 3"Ad' H x 23-%6" Wo

Opfional Accessories

Color panels are available at an extra cost by calling, toll-

free,800-626-2002.Yourorder will be sent directly to your

home. VISA,MasterCard and Discover cards are accepted.

If you have redecorated and the color panels in your dishwasher do

not blend with your new color scheme you may order an additional

color panel

Specify the co!or panel when ordering,

GPF24 White/Almond

GPF26Harvest/Black

GPF27 Black/White

_:,::i?:m:?i!:_

17

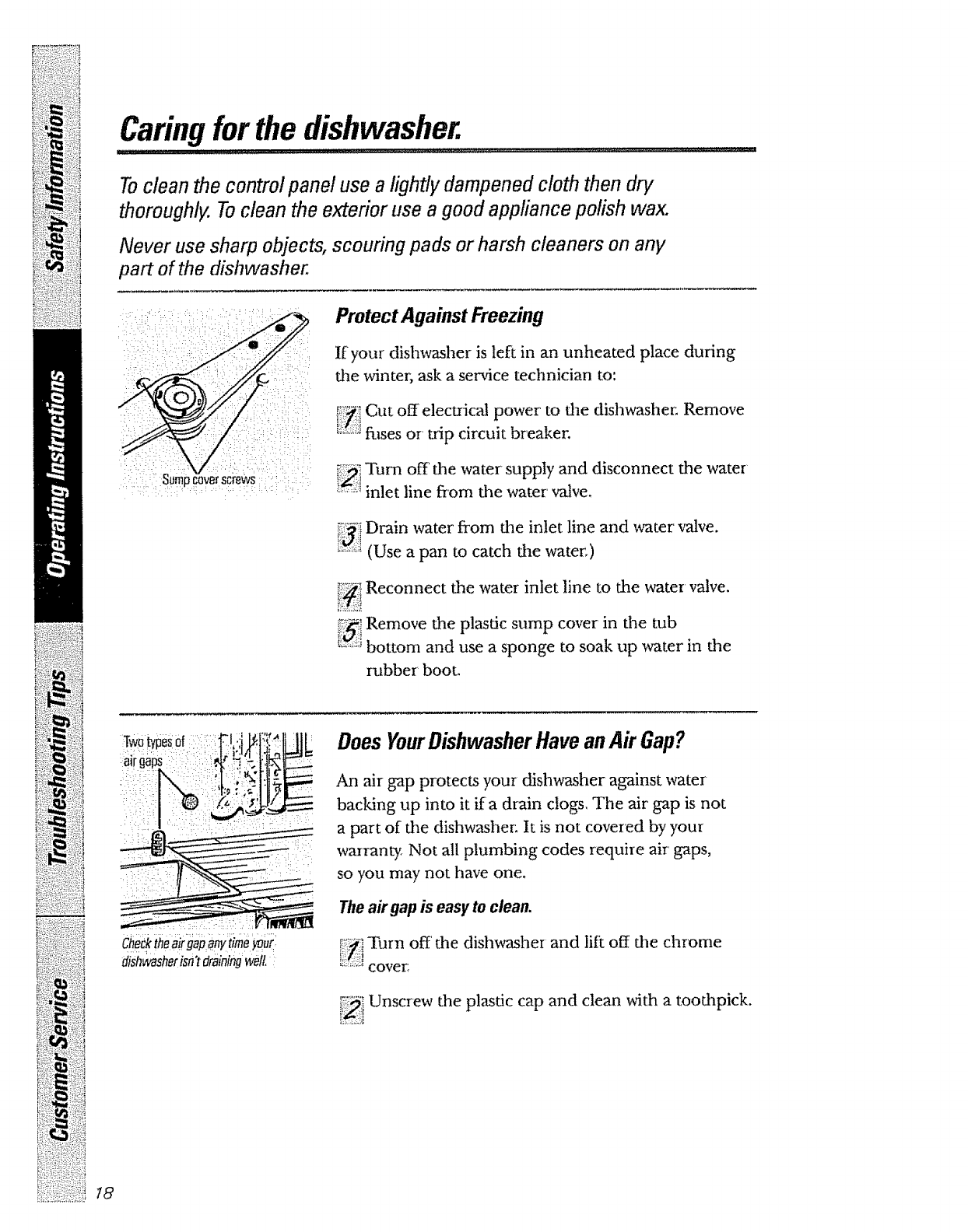

Caringfor the dishwasher.

Toclean the control panel use a lightly dampened cloth then dry

thoroughly. Toclean the exterior use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any

part of the dishwasher.

!!'ii!._91!_

'g!ii_I_ii::_);i

i:ii!_N= !_,ii

:_q:52_a

Protect Against Freezing

If your dishwasher is left in an unheated place during

the winter, ask a service technician to:

!!:_i]Cut off electrical power to the dishwasher. Remove

_"_'_:_!fiases or trip circuit breaker.

_I Turn off' the water supply and disconnect the water

inlet line from the water valve.

_ii Drain water from the inlet line and "water valve.

_:::_;::(Use a pan to catch the water,)

i!_] Reconnect the water inlet line to the water valve.

:'_5! Remove the plastic sump cover in the tub

........bottom and use a sponge to soak up vcater in the

rubber boot,

dishwasherisn'tdrainingwell. :

Does YourDishwasherHave anAk Gap?

An air gap protects your dishwasher against water

backing up into it ifa drain clogs, The air gap is not

a part of the dishwasher. It is not covered by your

warranty. Not all plumbing codes require air gaps,

so you may not have one.

The air gap is easy to clean.

_;i_:_Tuna off' the dishwasher and lift off the chrome

_:._i_:_cover:

_i Unscrew the plastic cap and clean 'with a toothpick.

18

Before you call for service...

Troubleshootingtips

Review the charts on the following pages first and you may not

need to call for service,

Possible Causes What ToDo

Dishwasher won?run Fuse is blown, or the _:,

"circuit breaker tripped

Replace fuse or reset

circuit breaker: Remove

any other appliances from

the circuit.

Noise Some of the sounds

you'll hear are normal

v*Soft food disposal

shredding action.

_':Drain valve opening to

pump water out.

_'Timer control as cycle

progresses°

_ Detergent cup opening.

,._The motor stopping

during the drying period.

Utensils are not secure

in die rack or something

small has dropped into

the rack

._Make sure everything is

secured in dishwasher.

Motor hums

Detergent cup lid

won't latch

Dial is not in the OFF

position

Dishwasher has not been

used on a regular b_is,

If' you do not use your

dishwasher often, set it to

fill and pump out once

every week. This will help

keep the seal moist and

the garbage disposer clear:

Turn the Dial to OFF

and slide the door latch

to the left.

Detergent left in

dispenser cups

:2. .... ,,

£. : :: - : : :.

Dishes are blocking the

detergent cups

_',Reposidon the dishes_

19

Before you call for service...

............ :................... i, , ,, L , L.H

III ' i,., ,,,,,, ,,,,L,,

Troubleshootinglips

_i!_ii i!!ii!i

iiii : iii

Water standing in

the bottom of the tub

Water won't pump

-:outofthe tub

L ¸ 7 •:• •-•Z ••;"

Possible Causes What To Do

This is normal _

Sudsin the tub

Steam

A small amount of clean

water around the outlet on

the tub bottom at the back

of the tub keeps the water

seal lubricated°

L _ • /• '•• •Z•:• • • •: ! • Z -

Drain is clogged If you have an air gap,

clean it,

Check to see if your

ldtchen sink is draining

well. If not, you may need

a plumber,

If the dishwasher drains

into a disposer, mn

disposer clear:

Correct detergent

wasn't used

Use only automatic

dishwasher detergents to

avoid sudsing°

To remove suds from the

rob, open the dishwasher

and let suds evaporate.

Add 1 gallon of cold water'

to the tub° Close and latch

the dishwasher. Pump out

water by slowly turning the

Dial until a drain period

is reached, Repeat i[

necessary,

,•. •• • • •2• ¸

Rinse agent

was spilled

This is normal

Always "wipeup rinse agent

spills immediately.

Steam comes through

the vent by the door

latch during drying and

when water' is being

pumped out,

2O

L-:: _>::: ::: i';q;: :_r ; :;; _y?:, :}; :A--_

_Prob/em_i:"_i,:i_:::iJii:ii;_!?¢i!'_?&;_i!_:_ii:iii::' Possible Causes What ToDo

Stained tub interior:" Detergent with

colorant was used

v

_,Some detergents contain

colorant (pigment or dyes)

that will discolor dae tub

interior with extended

use. Check tim detergent

cup for signs of any

discoloration. If cup is

discolored, change to

detergent widmut any

colorant.

Dishes don't dry Low inlet water

temperature

:_,Make sure inlet water

temperature is correct.

Dishes and flatware

L • • • • _ • : , ,-

Rinse agent dispenser

is empty

Inlet water temperature

is below 120°E

Water pressure is

temporarily low

_:Check the rinse agent

dispenser'.

_-'Paise the water heater

temperature to 120°E

"_Use the TEMPBOOST

opdon_

Turn on a faucet. Is water

coming out more slowly

than usual? If'so, wait until

pressure is normal before

using your dishwasher.

Air gap is clogged _:Clean the air gap.

Improper rack loading ':_Make sure large dishware

does not block the

detergent dispenser or

the wash arm.

]:/;;5

:':!ii

_:i:9:ia =:;i{

!_::!i:ii_ i:::?i:::!

_i11:{:qt_:{:i;:':i

2t

Before Vou call for service...

Troubleshootingtips

iii_ii!!iii!_!i!ii_iii_!

i?ii:_!!!2_:ilil

:,:iiI

!ii; !i:i i

!: '?:i

!i':'_iil

!!?:_:t ::ii_'::

%,1.

Possible Causes What ToDo

Spots and filming

on glasses and

flatware !

Extremely hard water

Low inlet water

temperature

Overloading the

dishwasher

Improper loading

Old or damp powder

detergent

Rinse agent dispenser

empty

Too little detergent

_,,To remove stubborn spots

from glassware:

IRemove all metal

utensils from the

dishwasher.

2 Do not add detergent.

3Select the !ongest oicle_

4Start the dishwasher and

allow to ran for 18 to 22

minutes, Dishwasher will

now be in the main wash.

5Open the door and pour

2 cups (500 ml) ofwhite

vinegar into the bottom

of the dishwasher,

6Close the door' and allow

to complete the cycle.

If' vinegar rinse doesn't

work: Repeat as above,

except use 1/4 cup

(60 ml) of citric acid

crystals instead of

vinegar.

Cloudiness on

glassware

Combination of soft

water and too much

i_!:

marks on dishes

!: : : !,

detergent

Water temperature

entering the dishwasher

exceeds 150°E

This is called etching and

is permanent. To prevent

this from happening, use

less detergent if you have

soft water, "Wash glassware

in the shortest cycle that

will get them clean.

_"Remove marks with a mild,

abrasive cleaner:

.AJuminum utensils have

rubbed against dishes

_*Lower the water heater

temperature,

Possible Causes What To Do

Yellow or brown film Tea or coffee stains _,Remove dae stain by hand,

using a soludon of 1/2 cup

bleach and 3 cups warm

water;

A WA RN/NG

Before cleaning interior,

wait at least 20 minutes

after a cycle for the

heating element to cool

down, Failure to do so

can result in burns°

White film on inside

suffaces :_:

•5: :•:•• • - • "

An overall yellow or

brown film can be caused

by iron deposits in water

Hard water minerals

Aspecial filter' in the water

supply line is the only way

to corTect this problem.

Contact a water softener

company.

To clean the interior, apply

dishwasher detergent to

a damp sponge. Wear'

rubber gloves, Donot use

any type of'cleanser other

than dishwasher detergent

because it may cause

foaming or sudsing.

Cycle and optionindicator

lightsstayon when cycle

is competed _ ..

This is normal Unlatch the door to turn

off dm Cycle and Energy

Option indicator lights.

NOTE'The Cycle On light

will stay on until all cycles

are complete, Wait until

this light goes off to

unlatch the door or a

cycle vdll be interrupted,

L;,,!}:

ili

_i:!:ili!;:i:i

_:':ii;iii

23

_:__!!i__;_ii_

_i!ii:_ _;ii_i_ii

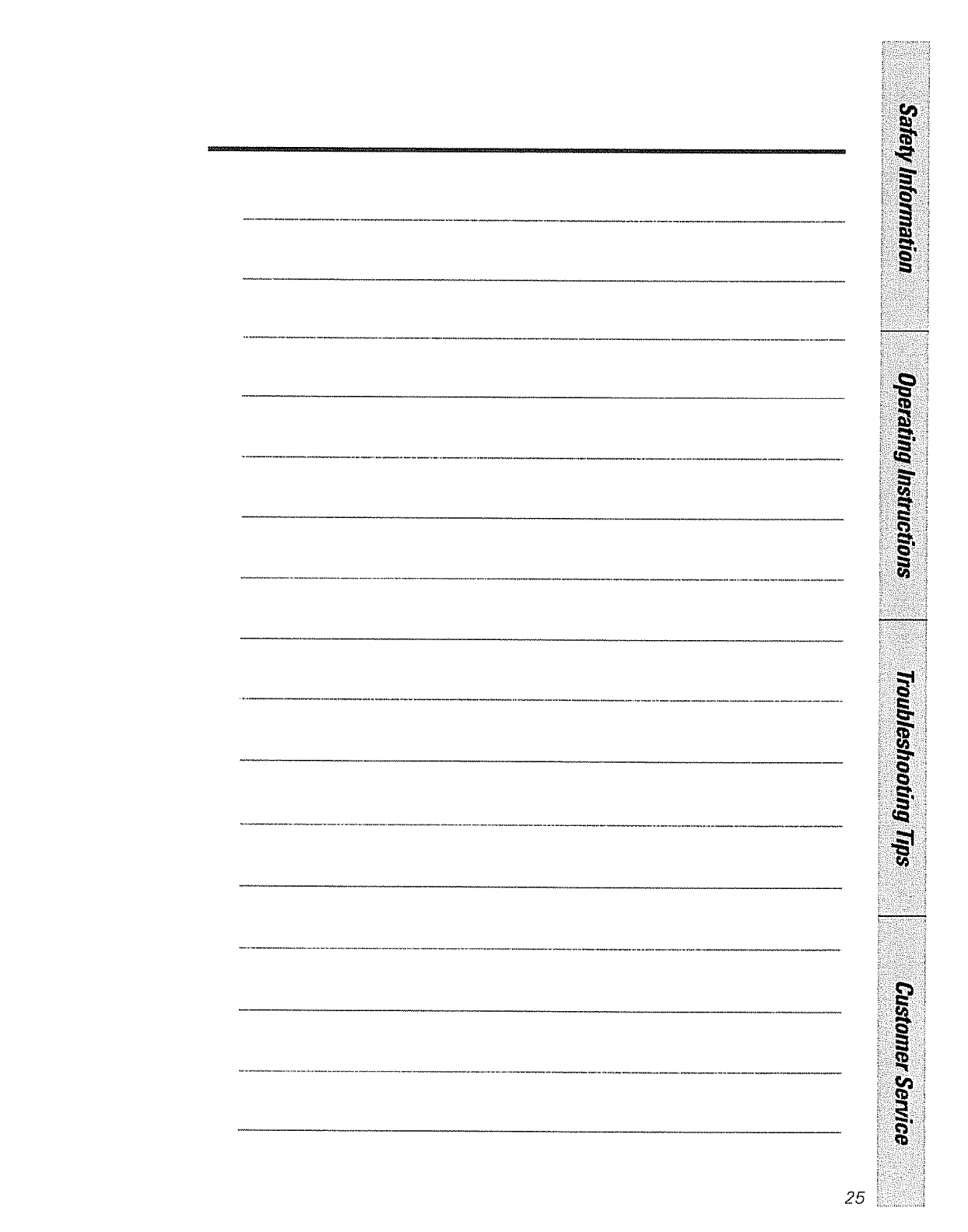

Notes.

i_,!!_:)i!!)i

24

25

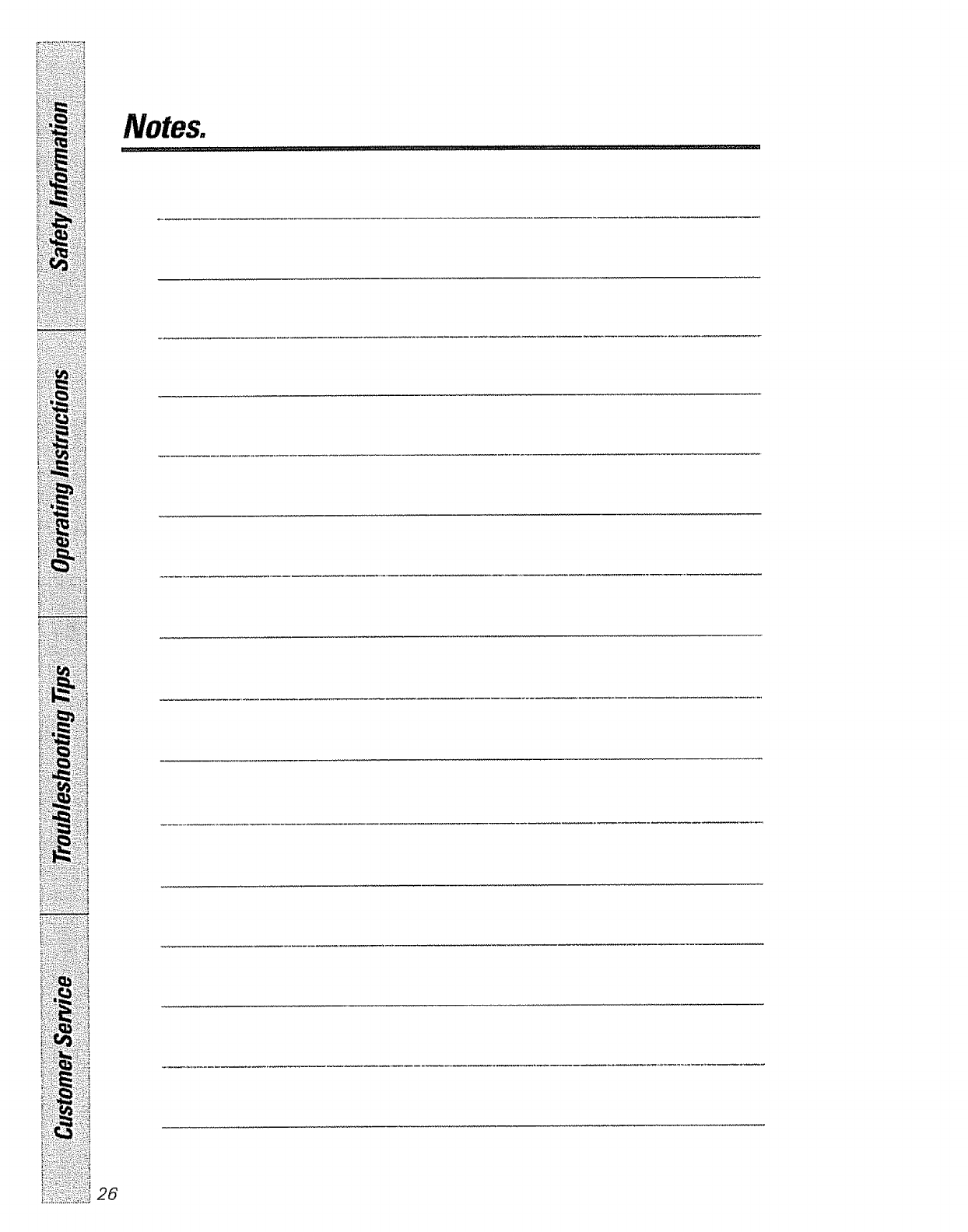

Notes.

26

GEDishwasherWarranty.

,,,,,,,,,

All warranty service provided by our Factory Service Centers,

or an authorized Customer Care®technician. Forservice,

call 800-GE-CARES.

.... :_ _ _.,,,,,,,,,,,,,,, , ,,

GEWill Replace,At No ChargeToYou:

From the date of the :

original purchase

Second Year

From the date of the

original purchase

n

Anypart of the dishwasher which fails due to a defect

in materials or worl_nanship. During this full one-year

warranty,GE will also provide, free of charge, all labor

and in-home service to replace the defective part.

Anypart of the dishwasher which fails due m a defect

in materials or workmanship,. During this second-year

limitedwarrang you will be responsible for' any labor

or in-home service costs.

Five Yeats

Fromthe date of the

original purchase

Thedishwasherrack, if it should rust due to a defect

in materials or workmanship. During this five-year

limitedwarranty,you will be responsible for any labor

or indmme service costs.

Twenty Years

From the date of the

original purchase

The PermaTuf ®tub or door liner, if it fails to contain

water due to a defect in materials or workmanship.

During this full twen_-year warranty,GE will also

provide, free of charge, all labor and in-home service

to replace the de[Ective part.

Service trips to your home to teach

you how to use the product.

......Imp

"_:_ roper installation.

[_iiReplacement of house fuses or

resetting of circuit breakers.

i;;iFailure of the product if it is

abused, misused, or used for other

than the intended propose or used

commercially.

_=_!Damage to the product caused by

accident, fh'e, floods or acts of God.

{';!_iIncidental or consequential damage to

personal property caused by possible

defects with this appliance.

',,_2iiCleaning or servicing of the air gap

device in the drain line.

Thiswarrantyis extendedto theoriginafpurchaserandanysucceedingownerforproductspurchased

forhomeusewithin theUSA InAlaska,thewarrantyexcludesthecostof shippingorservicecallsto

yourhome,,

Some states do not allow the exclusionor limitation of incidental or consequential damages This

warranty gives you specific legal rights, and you may also have other rights which vat'/from state to

state Toknow what your legal rights are, consult your local or state consumeraffairs office or your

state'sAttorney General

ii!

_,:

_!i;!!

27

tl:::!:::!

==i=;:;:i

l:: ii

i!ilili;i!!iii!_iii_ill

iii!ili!!_iii!i!!

ii_i!_iiiiiiii!!

ii_,i¸i,_i¸ii!!ii_i!,ii!iJi¸i_i

_ii,i!:_i:!iiiiiiI

GEAnswerCenter®800.626.2000

The GE/Xmswer Center _ is open 24 hours a day, 7clays a week.

In-HomeRepairService800-GE-CARES(800-_32-2737)

Expert GE repair service is only a phone call away.

Specbl Needs Serw2esoo.626.2ooo

TDD800-TDD-GEAC(800-833_22)

GE offers, free of' charge, a brochure to assist in planning a barrier_

free ldtchen for persons with limited mobility.

Serv#eContracts800-626.2224

Purchase a GE service contract while your warranty is still in effect

and you'll receive a substantial discount. GE Consumer Service will

still be there after your warranty expires.

Par_sandAccessories 800-626-2002

Individuals qualified to service their own appliances can have parts

or accessories sent directly to their homes (VISA, MasterCard and

Discover cards are accepted)°

Instructions contained in this manual cover procedures to be performed

by any user. Other servicing generally should be referred to qualified

service personneL Caution must be exercised, since improper servicing

may cause unsafe operation.

ServiceSatisfaction

If you are not satisfied with the service you receive from GE., follow

these three steps. Firs_ contact the people who serviced "/our

apptiance_ Next, if you are still not pleased, write all the details--

including your phone number_to: Manager, Consumer Relations,

GE Appliances, Appliance Park., Louisville, I_ 40225. Finally,if your

problem is still not resolved, write:

Major Appliance Consumer Action Program

20 North Wacker Drive, Chicago, IL 60606.

Printedin Louisvi!!&KY _o._ cG_m)
