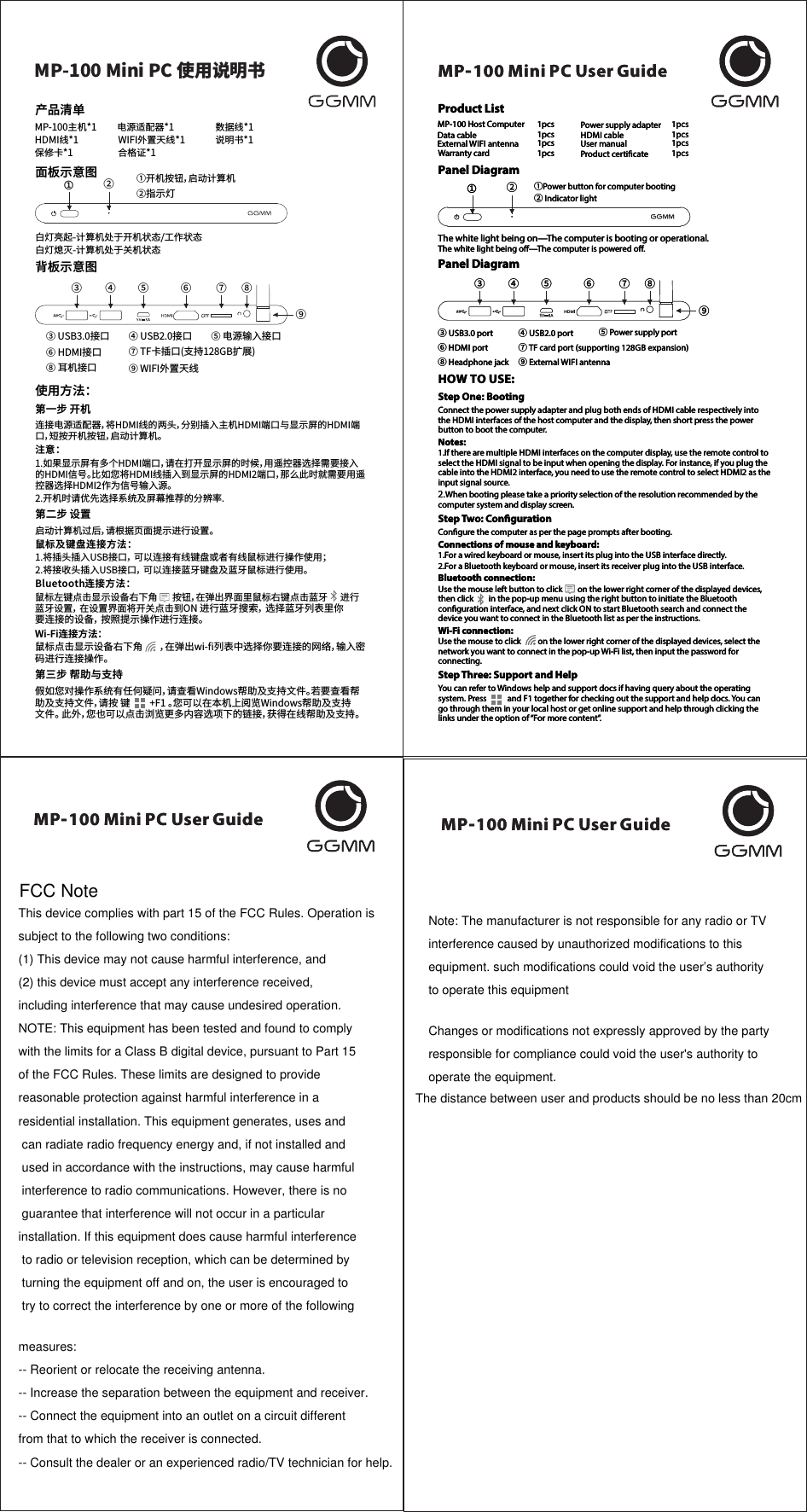

GGMM GGMMMP-100 Mini PC Box User Manual 1

Shenzhen GGMM Industrial Company Limited Mini PC Box 1

User Manual

产品清单⾯板⽰意图⽩灯亮起-计算机处于开机状态/⼯作状态⽩灯熄灭-计算机处于关机状态背板⽰意图使⽤⽅法：第⼀步开机连接电源适配器，将HDMI线的两头，分别插⼊主机HDMI端⼝与显⽰屏的HDMI端⼝，短按开机按钮，启动计算机。注意：1.如果显⽰屏有多个HDMI端⼝，请在打开显⽰屏的时候，⽤遥控器选择需要接⼊的HDMI信号。⽐如您将HDMI线插⼊到显⽰屏的HDMI2端⼝，那么此时就需要⽤遥控器选择HDMI2作为信号输⼊源。2.开机时请优先选择系统及屏幕推荐的分辨率.第⼆步设置启动计算机过后，请根据⻚⾯提⽰进⾏设置。⿏标及键盘连接⽅法：1.将插头插⼊USB接⼝，可以连接有线键盘或者有线⿏标进⾏操作使⽤；2.将接收头插⼊USB接⼝，可以连接蓝⽛键盘及蓝⽛⿏标进⾏使⽤。Bluetooth连接⽅法：⿏标左键点击显⽰设备右下⻆按钮，在弹出界⾯⾥⿏标右键点击蓝⽛进⾏蓝⽛设置，在设置界⾯将开关点击到ON进⾏蓝⽛搜索，选择蓝⽛列表⾥你要连接的设备，按照提⽰操作进⾏连接。Wi-Fi连接⽅法：⿏标点击显⽰设备右下⻆，在弹出wi-fi列表中选择你要连接的⽹络，输⼊密码进⾏连接操作。第三步帮助与⽀持假如您对操作系统有任何疑问，请查看Windows帮助及⽀持⽂件。若要查看帮助及⽀持⽂件，请按键+F1。您可以在本机上阅览Windows帮助及⽀持⽂件。此外，您也可以点击浏览更多内容选项下的链接，获得在线帮助及⽀持。①开机按钮，启动计算机②指⽰灯①②③ ④ ⑤ ⑥ ⑦ ⑧⑨MP-100MiniPC使⽤说明书Product ListPanel DiagramThe white light being on—The computer is booting or operational.The white light being off—The computer is powered off.Panel DiagramHOW TO USE:Step One: BootingConnect the power supply adapter and plug both ends of HDMI cable respectively into the HDMI interfaces of the host computer and the display, then short press the power button to boot the computer.Notes:1.If there are multiple HDMI interfaces on the computer display, use the remote control to select the HDMI signal to be input when opening the display. For instance, if you plug the cable into the HDMI2 interface, you need to use the remote control to select HDMI2 as the input signal source.2.When booting please take a priority selection of the resolution recommended by the computer system and display screen.Step Two: CongurationCongure the computer as per the page prompts after booting.Connections of mouse and keyboard:1.For a wired keyboard or mouse, insert its plug into the USB interface directly.2.For a Bluetooth keyboard or mouse, insert its receiver plug into the USB interface.Bluetooth connection:Use the mouse left button to click on the lower right corner of the displayed devices, then click in the pop-up menu using the right button to initiate the Bluetooth conguration interface, and next click ON to start Bluetooth search and connect the device you want to connect in the Bluetooth list as per the instructions.Wi-Fi connection:Use the mouse to click on the lower right corner of the displayed devices, select the network you want to connect in the pop-up Wi-Fi list, then input the password for connecting. Step Three: Support and HelpYou can refer to Windows help and support docs if having query about the operating system. Press and F1 together for checking out the support and help docs. You can go through them in your local host or get online support and help through clicking the links under the option of “For more content”.①Power button for computer booting②Indicator light①②③ ④ ⑤ ⑥ ⑦ ⑧⑨MP-100Mini PCUser Guide③USB3.0接⼝ ④USB2.0接⼝⑤电源输⼊接⼝⑥HDMI接⼝ ⑦TF卡插⼝(⽀持128GB扩展)⑧⽿机接⼝ ⑨WIFI外置天线MP-100主机*1 电源适配器*1数据线*1HDMI线*1 WIFI外置天线*1说明书*1保修卡*1 合格证*1MP-100 Host Computer Power supply adapter Data cable HDMI cable External WIFI antenna User manual Warranty card Product certicate1pcs1pcs1pcs1pcs1pcs1pcs1pcs1pcs③USB3.0 port ④ USB2.0 port ⑤ Power supply port ⑥ HDMI port ⑦ TF card port (supporting 128GB expansion)⑧ Headphone jack ⑨ External WIFI antennaProduct ListPanel DiagramThe white light being on—The computer is booting or operational.The white light being off—The computer is powered off.Panel DiagramHOW TO USE:Step One: BootingConnect the power supply adapter and plug both ends of HDMI cable respectively into the HDMI interfaces of the host computer and the display, then short press the power button to boot the computer.Notes:1.If there are multiple HDMI interfaces on the computer display, use the remote control to select the HDMI signal to be input when opening the display. For instance, if you plug the cable into the HDMI2 interface, you need to use the remote control to select HDMI2 as the input signal source.2.When booting please take a priority selection of the resolution recommended by the computer system and display screen.Step Two: CongurationCongure the computer as per the page prompts after booting.Connections of mouse and keyboard:1.For a wired keyboard or mouse, insert its plug into the USB interface directly.2.For a Bluetooth keyboard or mouse, insert its receiver plug into the USB interface.Bluetooth connection:Use the mouse left button to click on the lower right corner of the displayed devices, then click in the pop-up menu using the right button to initiate the Bluetooth conguration interface, and next click ON to start Bluetooth search and connect the device you want to connect in the Bluetooth list as per the instructions.Wi-Fi connection:Use the mouse to click on the lower right corner of the displayed devices, select the network you want to connect in the pop-up Wi-Fi list, then input the password for connecting. Step Three: Support and HelpYou can refer to Windows help and support docs if having query about the operating system. Press and F1 together for checking out the support and help docs. You can go through them in your local host or get online support and help through clicking the links under the option of “For more content”.①Power button for computer booting②Indicator light①②③ ④ ⑤ ⑥ ⑦ ⑧⑨MP-100Mini PCUser GuideMP-100 Host Computer Power supply adapter Data cable HDMI cable External WIFI antenna User manual Warranty card Product certicate1pcs1pcs1pcs1pcs1pcs1pcs1pcs1pcs③USB3.0 port ④ USB2.0 port ⑤ Power supply port ⑥ HDMI port ⑦ TF card port (supporting 128GB expansion)⑧ Headphone jack ⑨ External WIFI antennaMP-100Mini PCUser GuideMP-100Mini PCUser GuideThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.to operate this equipmentChanges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.FCC NoteNote: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. such modifications could void the user’s authority to operate this equipmentChanges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.The distance between user and products should be no less than 20cmMP-100Mini PCUser GuideMP-100Mini PCUser Guide
