GIANT ALARM SYSTEM JJ-RC-F8 RF Remote Control User Manual

GIANT ALARM SYSTEM CO., LTD RF Remote Control

Contents

User Manual.

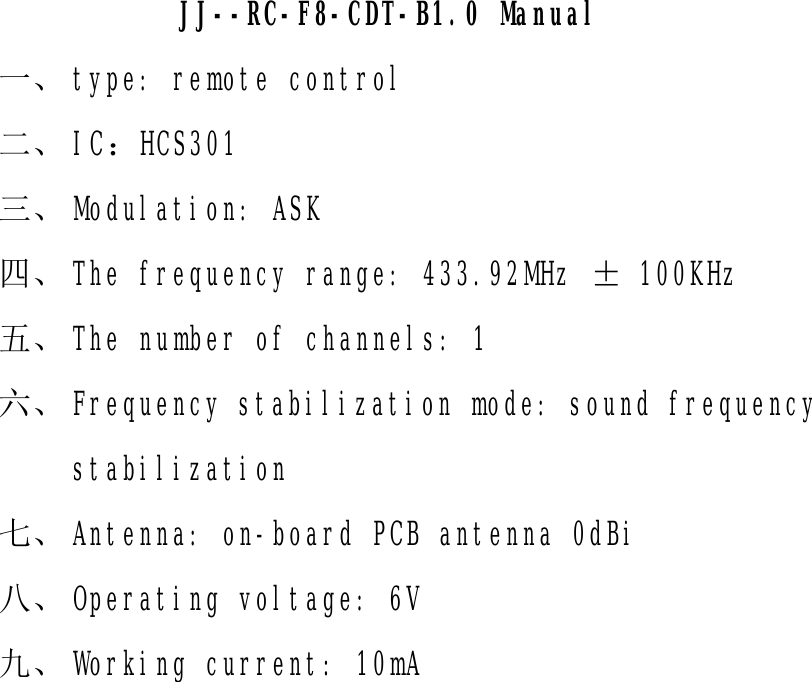

JJ--RC-F8-CDT-B1.0 Manual
一、 type: remote control
二、 IC：HCS301
三、 Modulation: ASK
四、 The frequency range: 433.92MHz ± 100KHz
五、 The number of channels: 1
六、 Frequency stabilization mode: sound frequency
stabilization
七、 Antenna: on-board PCB antenna 0dBi
八、 Operating voltage: 6V
九、 Working current: 10mA

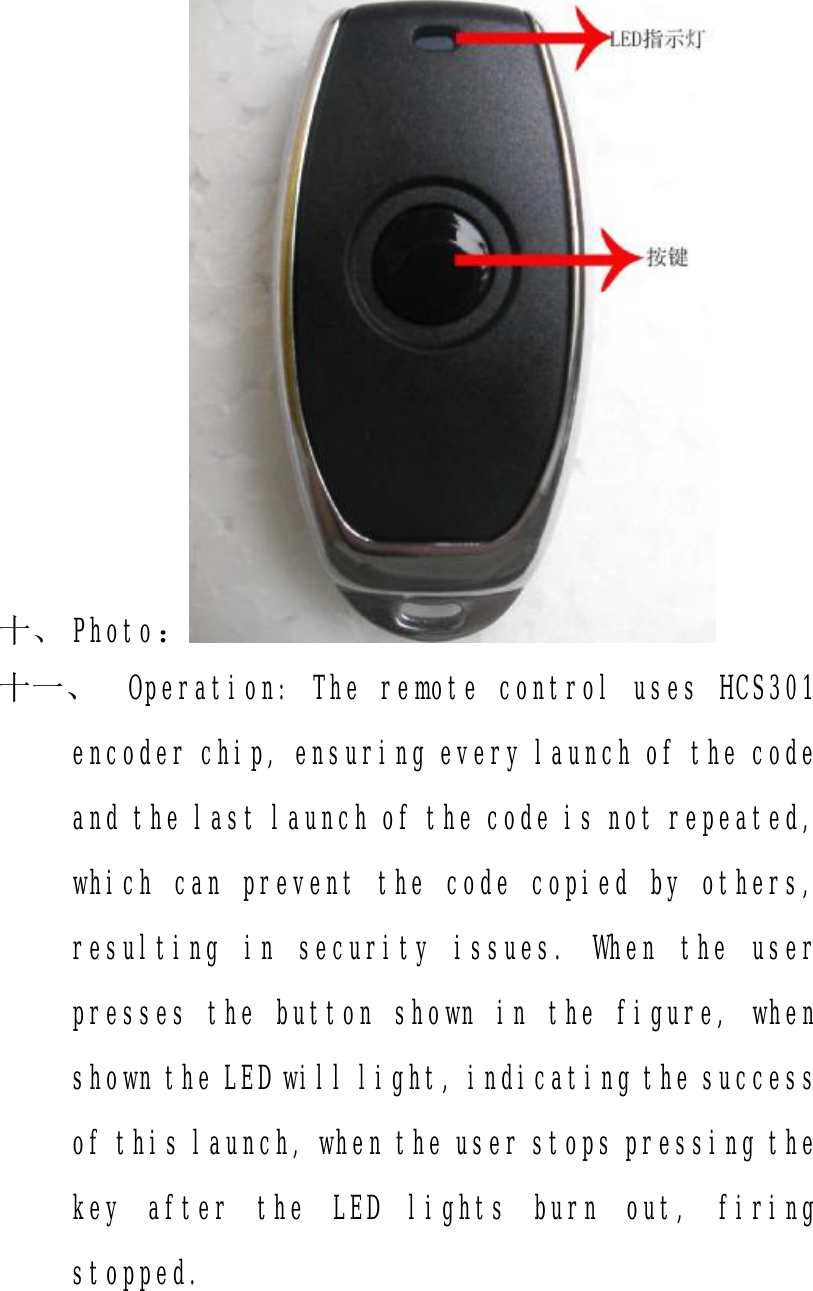

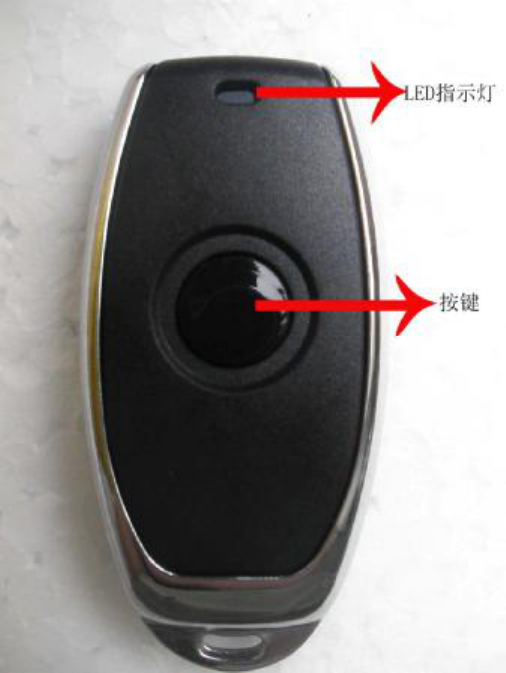

十、 Photo：
十一、 Operation: The remote control uses HCS301
encoder chip, ensuring every launch of the code
and the last launch of the code is not repeated,
which can prevent the code copied by others,
resulting in security issues. When the user
presses the button shown in the figure, when
shown the LED will light, indicating the success
of this launch, when the user stops pressing the
key after the LED lights burn out, firing
stopped.

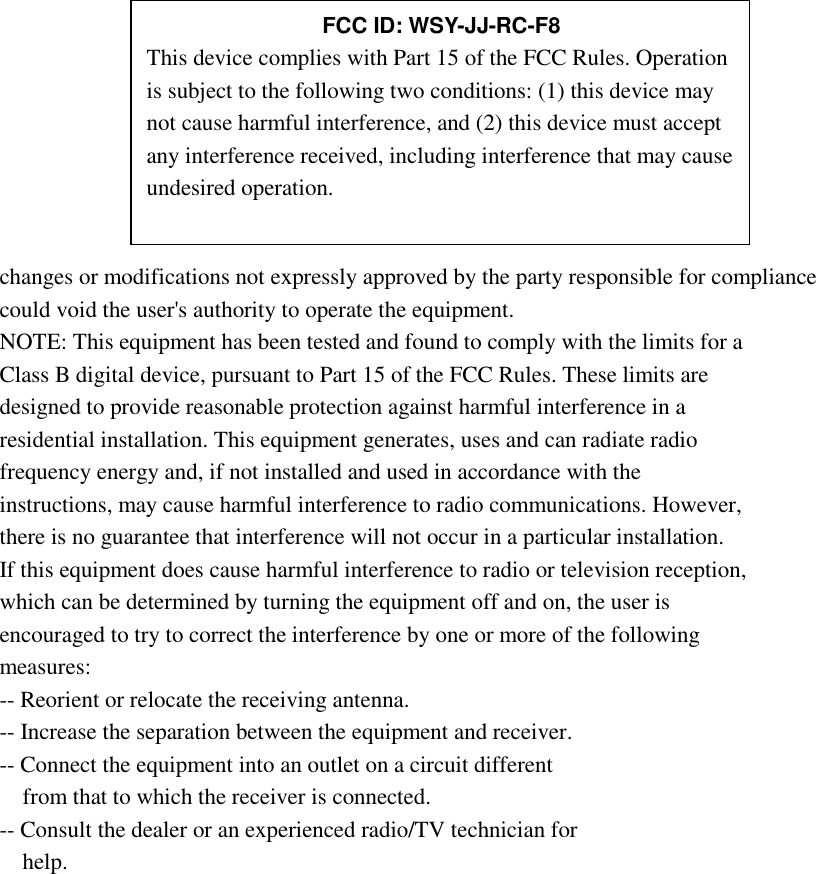

changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
FCC ID: WSY-JJ-RC-F8
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation.
