Touch Switch Manual
1.Specification:
Input Voltage:AC110V-250V
Max Current/3gang:10A
Max Current/1gang:5A
Max Power/3gang:2500W
Max Power/1gang:1250W
Temperature:-20℃-70℃
Quiescent Current:30+-5ua
Chip:66E0185

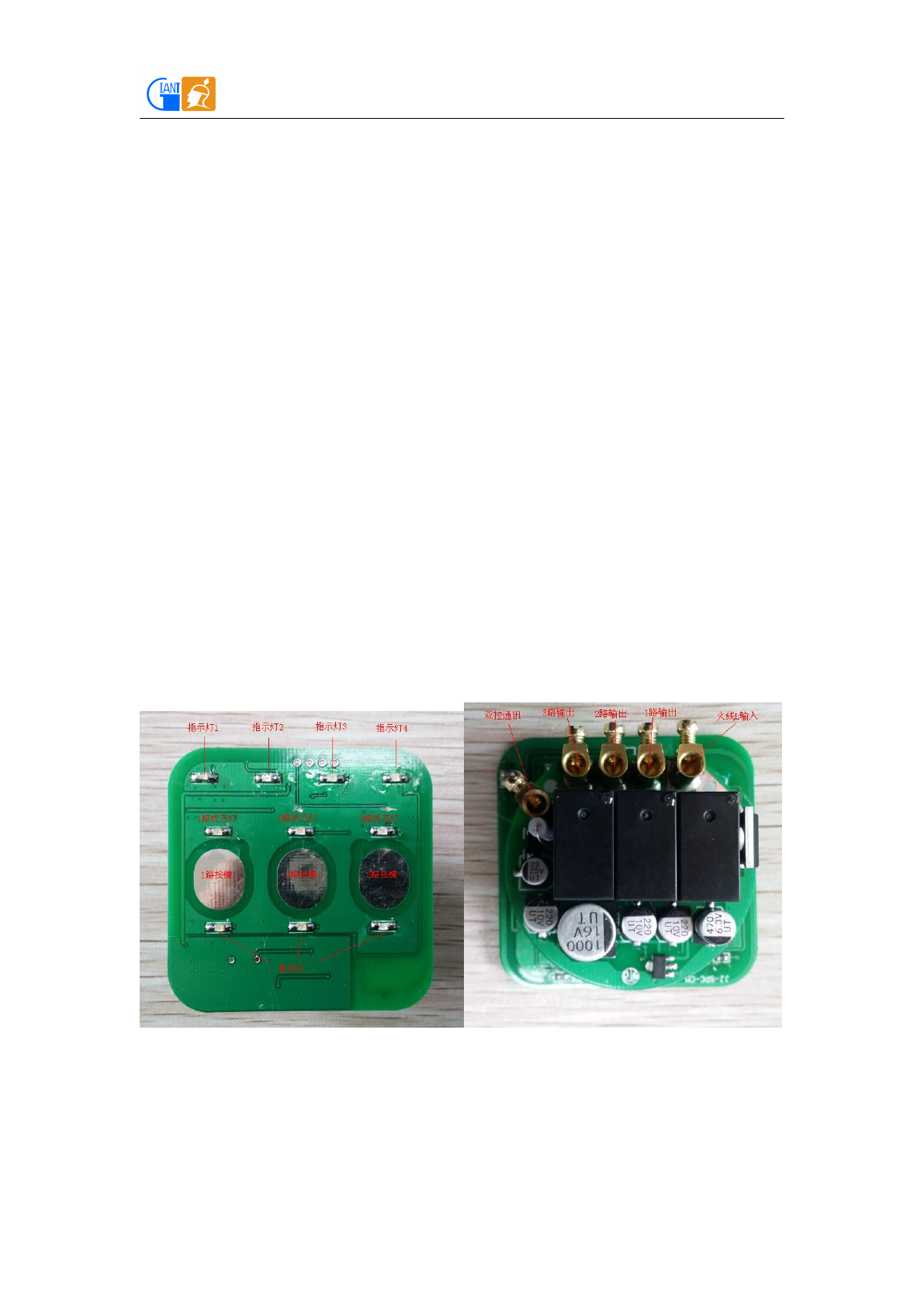

2.Diagram:
3. Instructions:
Item No.: JJ-TSA-01,02-03
Giant Alarm System Co,.Ltd
Tel No.:(86-595)22499516 Phone:+86 18659522516 Website: www.jujiang.net
E-mail:sales09@jujiang.net.cn Skype: jujiang012 WhatsApp:+86 18659522516
No need to turn off the light in dark,you will enjoy the fun of auto light
off or time delay function freely.

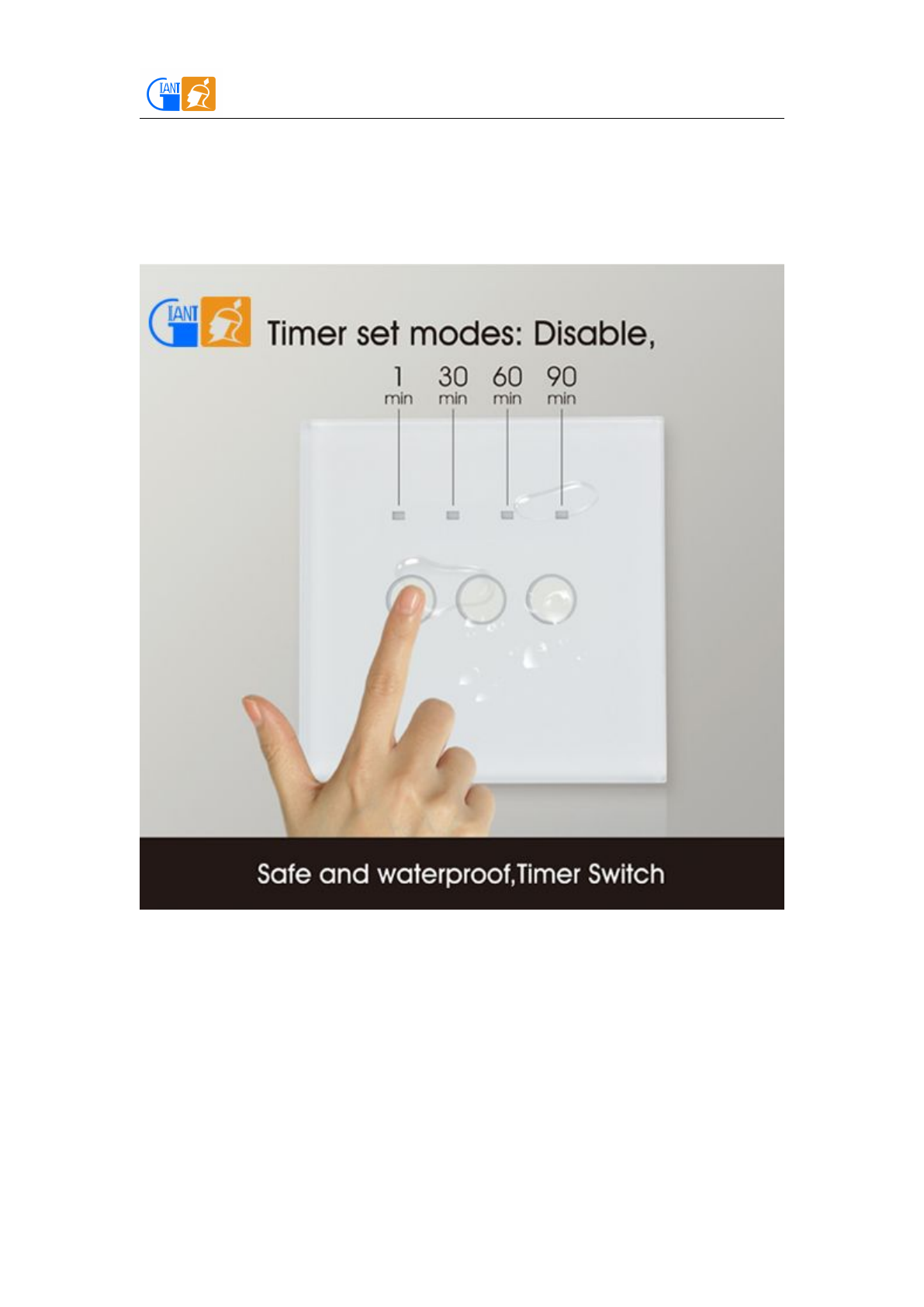

Our timer touch switch can be set to five modes as: Disable (factory
setting is not enabled by default), 1minute, 30minutes, 60minutes and
90minutes etc.
Long touch 5seconds the button of you want to set,come into scroll
state,LED1=1min, LED2=30 mins, LED3=60minutes and LED4 =
90mins modes. The LED blinks when the desired indicator release the
FCC Warning:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
