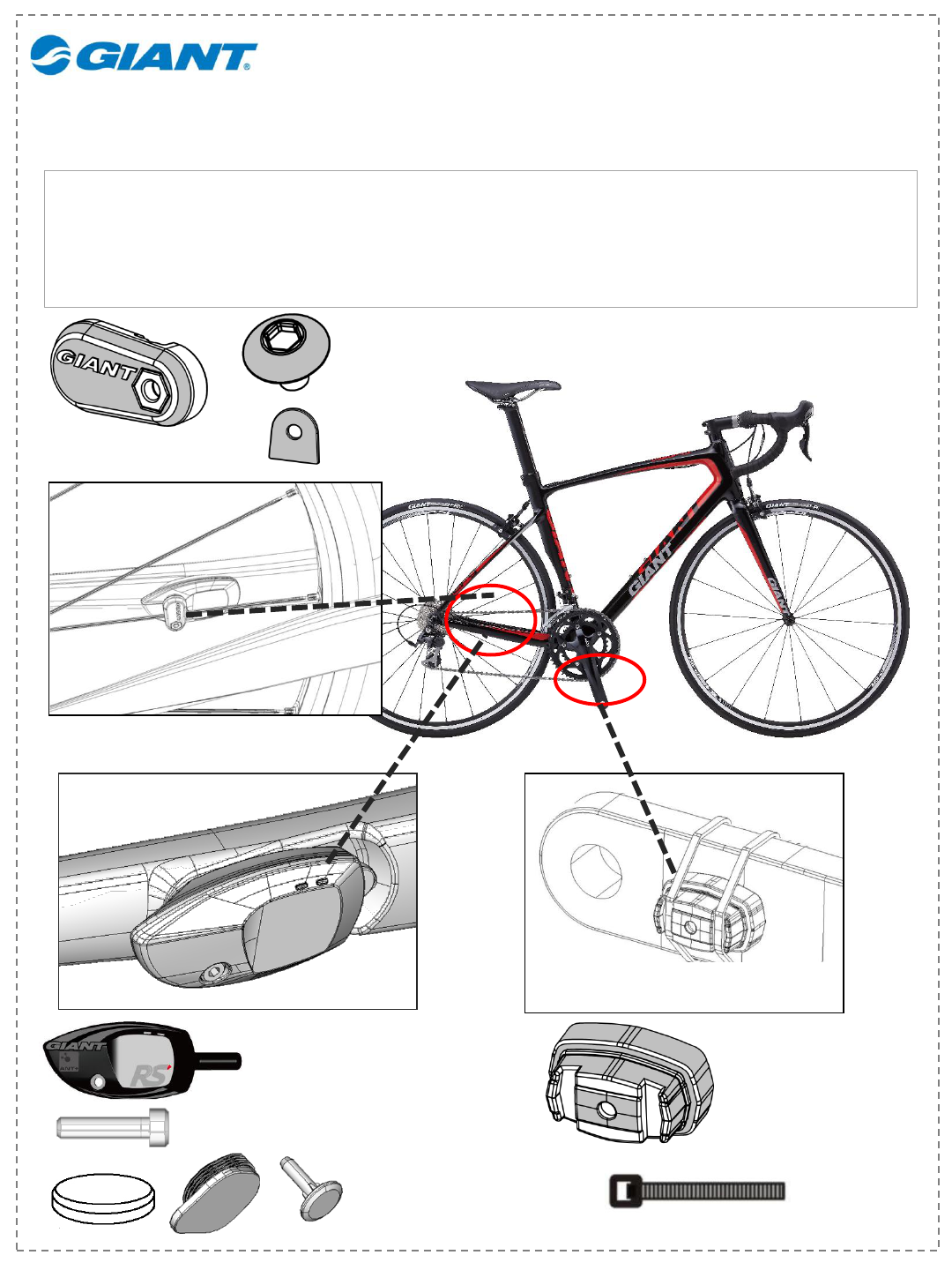

GIANT RIDE-SENSE-G1 RIDE SENSE SENSOR User Manual 1

Giant Manufacturing Co., Ltd. RIDE SENSE SENSOR 1

Users Manual

RideSense
RideSense
Speed magnet
Cadence magnet
Hex bolt: 1x
RideSense: 1x
Speed magnet: 1x
Round Head Screw: 1x
Washer: 1x
Cadence magnet: 1x
Zip tie: 2x
CR2032 1x
Giant RideSense is an integrated ANT+ sensor system available on the following Giant performance
bicycle frames:
• TCR Advanced SL • Defy Advanced SL • Avail Advanced
• TCR Advanced • Defy Advanced • Trinity Composite
Giant RideSense is compatible with computers featuring ANT+ wireless technology.

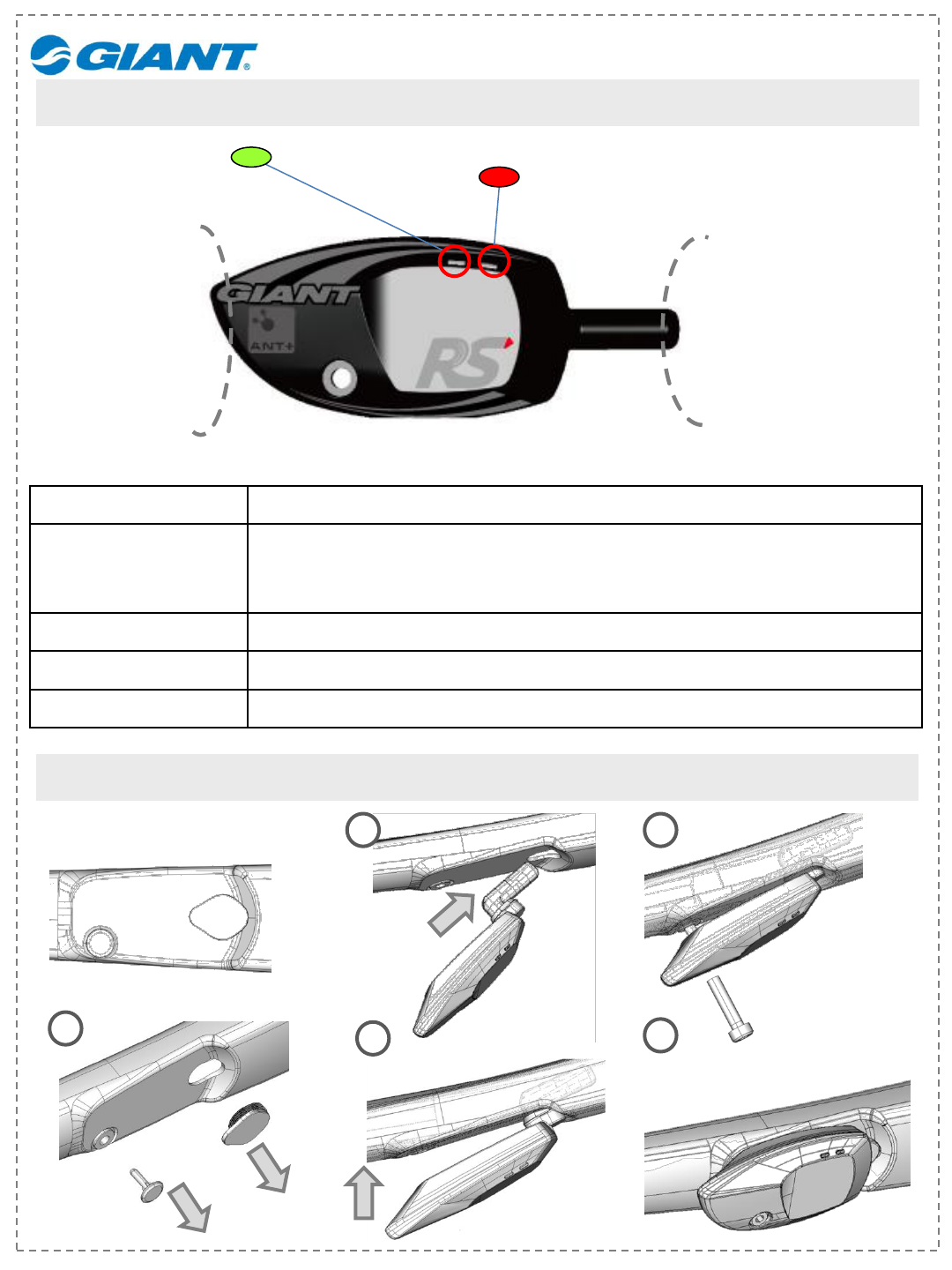

2. Install RideSense
Max: 0.4N-m
3
4
2.5 mm Hex Key
1. RideSense Specifications
Product characteristic
Description
Auto-activation
Activated automatically if magnet has passed the sensor twice in 5 seconds.
The sensor lights will flash for 0.2 seconds when the magnet passes the
sensor for first 10 times.
Sleeping mode
RideSense goes into Sleeping Mode if there is no signal for 20 minutes.
Energy saving
360 hours battery lifespan.
Wireless
Fully compatible with ANT+ wireless technology
Speed sensor light Cadence sensor light
Speed sensor Cadence sensor
2
15

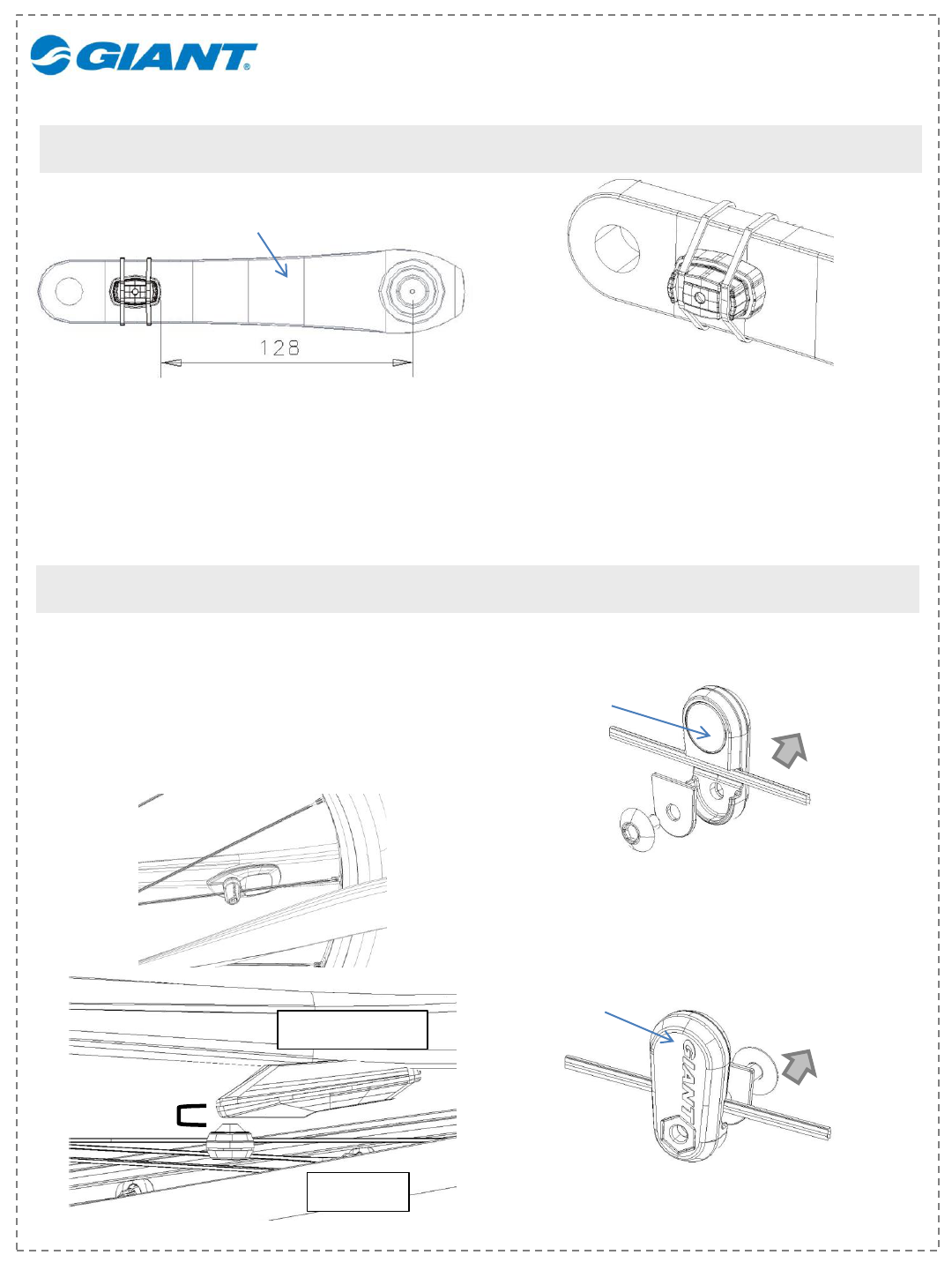

4. Assemble speed magnet
The clearance between speed magnet and
RideSense should be 2~10 mm. To meet this
requirement you can reverse the speed
magnet to get more clearance .
2~10mm
Chain Stay
Wheel
3. Assemble pedal cadence magnet
Inner side of left crank
Position at 128mm from the center of
bottom bracket
1. Remove the tape from magnet and stick it
onto inner inside of the crank .
2. Fix it by using the zip ties.
3. Rotate crank to test if it activates the
cadence sensor (flashing red light).
3mm Hex key
Max: 0.5N-m
Back RideSense
Front side facing towards RideSense
Front
Back side facing towards RideSense
RideSense

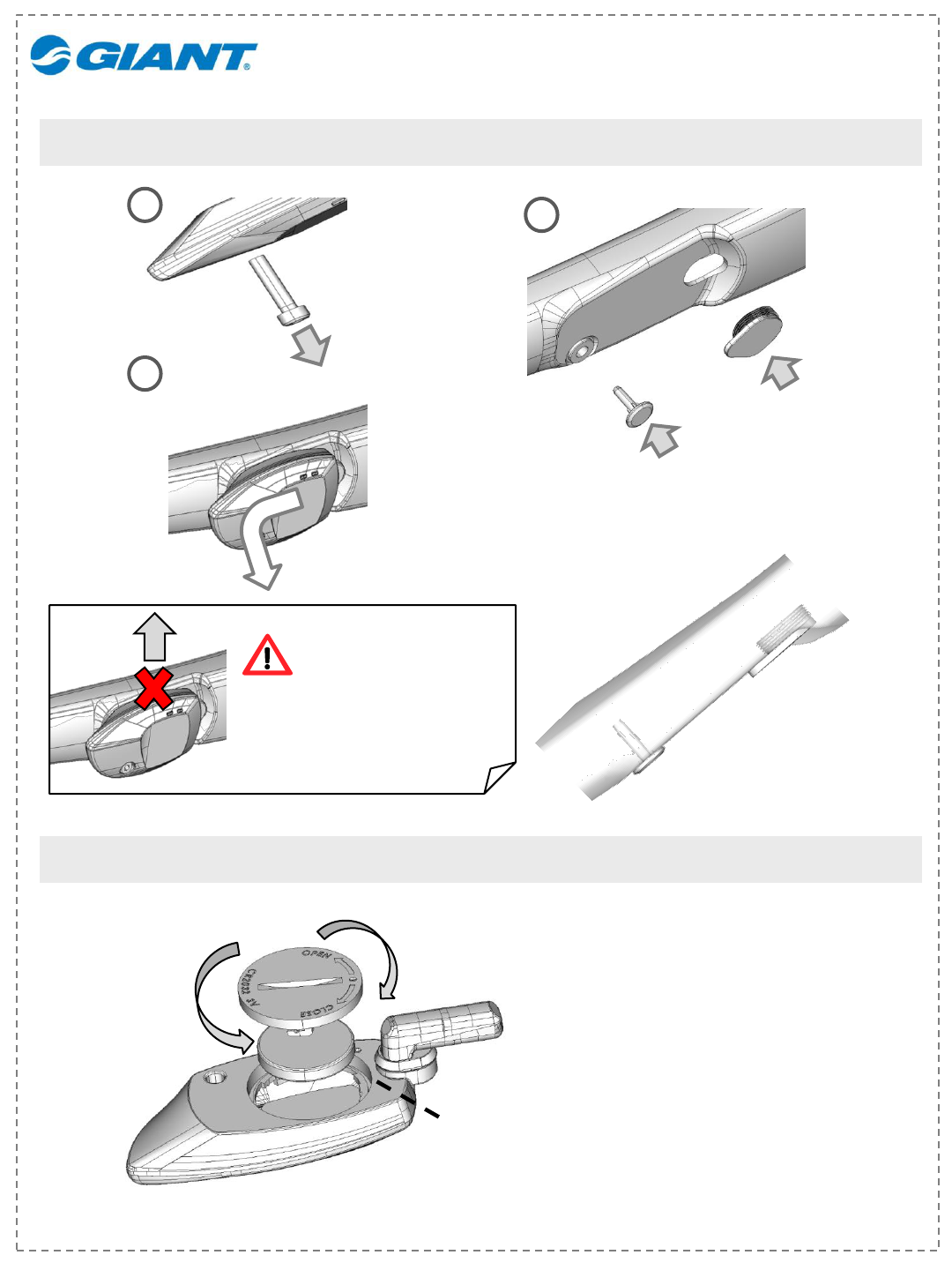

5. Uninstall RideSense
6. Replacing the battery
Open
Close
CR2032 battery
Press the plugs into the Sensor
mount openings.
1
2
3
Pulling RideSense out of the
frame vertically can cause
damage to the sensor.
WARNING
RideSense
RideSense
速度感應座
迴轉感應座
1x
RideSense: 1x
速度感應座: 1x
半圓頭螺絲:1x
墊片: 1x
迴轉感應座: 1x
束節帶: 2x
Giant RideSense 設計能整合安裝於特定Giant 系列公路車，如TCR Advanced SL。
Giant RideSense 能相容於內建ANT+無線技術之車用碼表。
CR2032 1x
2. 安裝RideSense
0.4N-m
3
4
2.5 mm
六角扳手
1. RideSense Specifications
Product characteristic
Description
自動啟動
迴轉或速度感應座於5秒內通過感應區兩次以上時，將自動喚醒
RideSense。
RideSense於感應到迴轉或速度訊號時，感應燈將亮起0.2秒，持續10次。
睡眠模式
連續20分鐘內無訊號變化，系統會進入睡眠模式以節省電力消耗。
節能省電
約360小時的電池壽命。
無線科技
完全相容於ANT+ 無線技術。
速度感應燈(綠)迴轉感應燈(紅)
速度感應區 迴轉感應區
2
15
4. 安裝速度感應座
速度感應座與RideSense之間隙應保有 2~10
mm。為滿足上述之間隙距離，您可反轉
速度感應座以感應座背面向 RideSense以取
得較多的組配間隙。
2~10mm
後下叉
輪組
3. 安裝踏板迴轉感應座
左曲柄內側
固定位置：迴轉感應座距離五通中心約
128mm。
1. 移除感應座背面貼紙，並黏貼於左曲柄
背面之適當位置如左圖所示。
2. 使用束節帶固定迴轉感應座.
3. 轉動曲柄測試是否能正常啟動 RideSense
(閃紅燈)。
3mm
六角扳手
0.5N-m
感應座背面 RideSense
速度感應座正面朝RideSense
感應座正面
速度感應座背面朝RideSense
RideSense

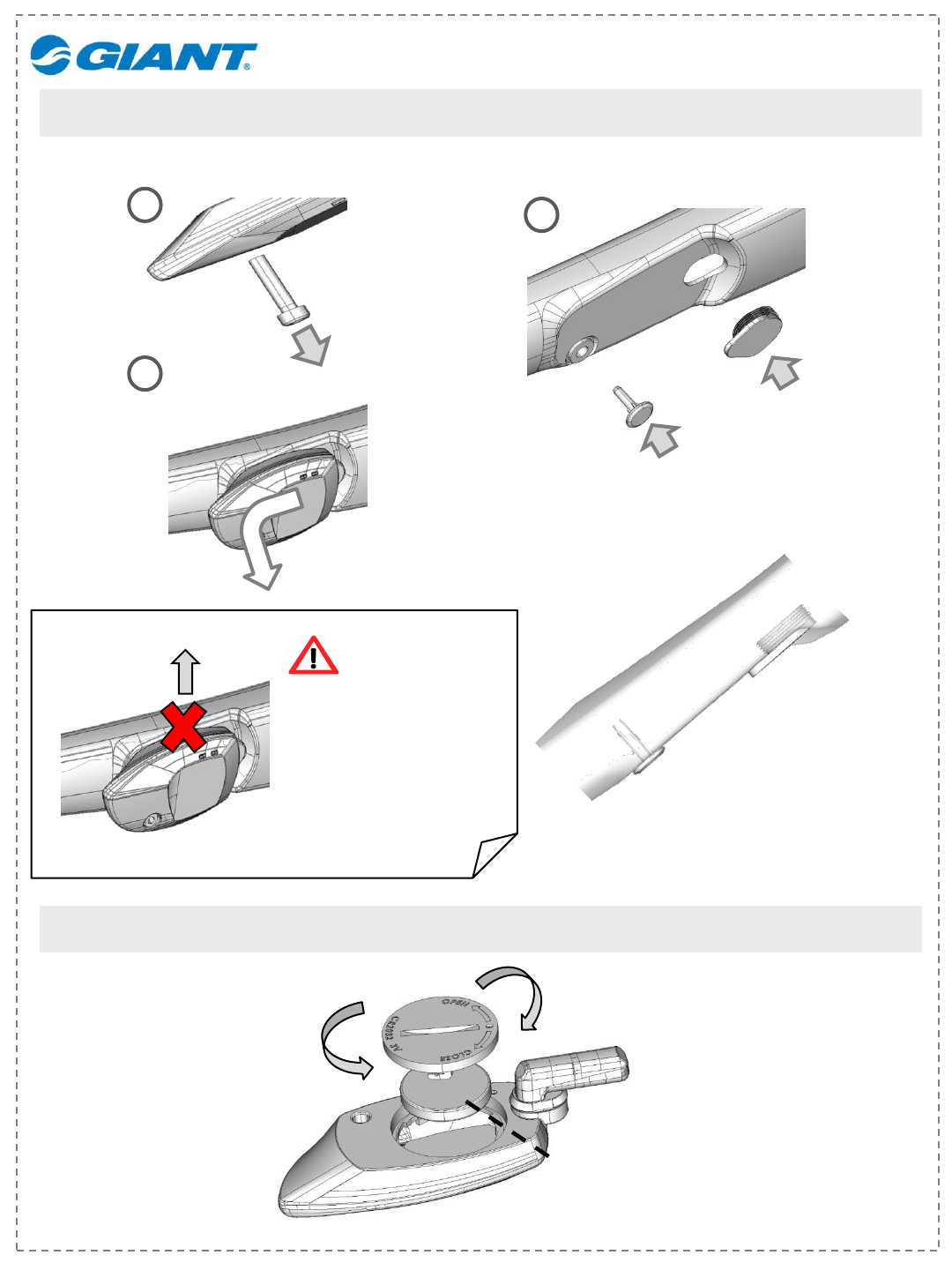

5. 移除RideSense
垂直使力拉出
RideSense將可能造成
RideSense或車架斷裂
或損壞。
注意
6. 更換電池
開
關
CR2032 電池
將塑膠塞置入 RideSense安裝位。
1
2
3
8. Statement 聲明警語
7. Certifications 認證
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications
were met.
Changes or modifications to this device not expressly approved by the party responsible for compliance with FCC
regulations (the manufacturer) could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and , if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged t o try to correct the interference by on or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into and outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or and experienced radio technician for help.
CE-Mark Warning
In a domestic environment this product may cause radio interference in which case the user may be required to
take adequate measures.
IC statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
DGT警語
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變
更原設計之特性及功能。低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，
應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功
率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
