GIGA BYTE TECHNOLOGY 28713AIREK17 Slim Wireless Touchpad Keyboard User Manual
GIGA-BYTE TECHNOLOGY CO., LTD. Slim Wireless Touchpad Keyboard
User manual
![](/img.php?id=2210673&img=bg1.png)

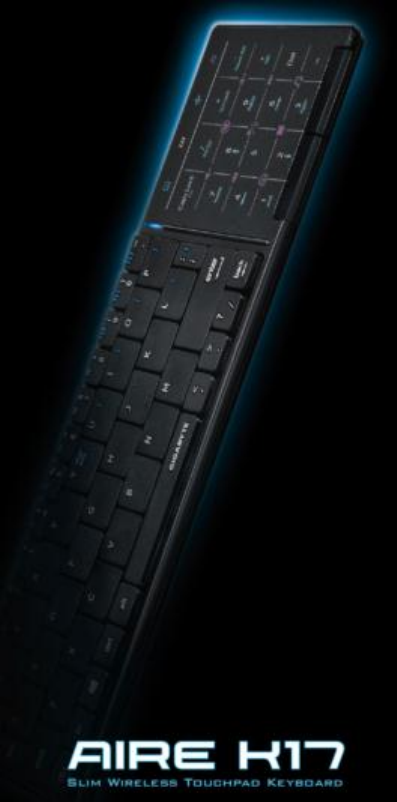

AIRE K17
Slim Wireless Touchpad Keyboard
User’s Manual
Product Information
GIGABYTE
Model No.: GK-AIRE K17
Model Name:Slim Wireless Touchpad Keyboard
Receiver Model No.: AIREK17RX
Model Name: Wireless Receiver
All other brands and trademarks are the properties of their respective owners.
The product specifications are subject to change without notice.
How to Start Your Keyboard
1. Turn on your keyboard and mobile device.
2. Pull out the dongle from the back of the keyboard inside the lid.
3. Plug your dongle into the USB port of your device.
4. Make sure to turn ON the keyboard.
5. The blue LED would shine if the keyboard turns on.
Use Your Keyboard
1. Just type normally as the original keyboard you are using.
2. Functions printed BLUE on the keyboard is to be activated when pressing FN key
at the same time.
3. Before using figures printed BLUE on the keyboard, please make sure numberlock
function is ON.
4. Note: The unit offers a strong power saving management. When you put it away
for more than 30 seconds, the indication light will turn off. Once the keyboard
accesses sleeping mode, to clip any key on the keyboard is compulsory to wake it
up.
5. There is a power on/off switch designed to save the batteries power while
non-usage of a longer period.
Multi-Media Control Touchpad & Indication Light
Control your TV-connected laptop and easily turn up/down the volume, open default
browser or media player by the keyboard without leaving your coach!
1. Power On: The blue light will shine for 5 seconds, then fade out.
2. Touchpad (icon)
Press this icon, and the blue light shines. Use the touchpad the same way as your
notebook. *The actual left/right keys serve function regardless of the mode.
3. Calculator (icon)
Press this icon, and the white light shines. Press the white icons just like using
number pad. *Please make sure numberlock function is ON before using.
4. Function (icon)
Press this icon, and the azure light shines. Press the azure functions keys to make
it work.
5. Media (icon)
Press this icon, and the dark-pink light shines. Press the dark-pink media keys to
activate functions.
Charge the batteries
1. There is a micro-USB nano-receiver. Use the micro-USB line in the box to charge
the batteries by plugging the other side into the USB port. The BLUE indicator
light will start to blink to show that the battery is charging.
2. Charge your keyboard until the indication light stops blinking.
3. The red LED light indicates that batteries inside needs to be re-charged.
Rechargeable battery notice
Danger
Do not attempt to disassemble or modify the battery pack. Attempting to do so can
cause an explosion, or liquid leakage from the battery pack. A battery pack other
than the one specified, or a dissembled or modified battery pack is not covered by
the warranty.
Built-in rechargeable battery notice
Danger
Do not attempt to replace the internal rechargeable lithium batteries. Please contact
support for replacement.
Troubleshooting and Tips:
1. Make sure you have connected the receiver correctly on the PC’s USB port
2. For the best performance, we suggest you to locate the receiver with a distance
from other electric devices, such as the computer monitor or external storage
devices
3. Make sure you have set the communications between the receiver and the
keyboard. Refer to the communication section.
4. Some system devices might conflict with the keyboard. Confirm the IRQ/address
settings of these devices for conflicts, and change the settings as required.
5. When the battery is low, the RED indication light will start blinking. Please charge
the batteries.
6. When your keyboard is inactive, it will enter standby mode. The keyboard lights
will turn off. Your keyboard is not broken or powered off. Press any key and wait
for three seconds, and the keyboard will revert to its normal state.
7. To prolong keyboard life, we suggest switching off the power after each use.
8. Some multi-function keys (eg. Windows, capslock. print, home, play, next,
previous, mute, and scroll-lock, etc.) may not be effective or activate certain
programs on mobile devices.
![](/img.php?id=2210673&img=bg4.png)
Attention
1. Keep away from sharp objects.
2. Do not put objects on the keyboard.
3. Do not force or distort the keyboard.
4. Avoid contact with liquid or food.
5. Do not drop keyboard.
6. Keys may be wiped gently with damp cloth only. Do not soak the keys in water.
Only clean the keyboard when it’s powered off.
FCC Statement
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation if this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
To assure continued compliance, any changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority to
operate this equipment. (Example-use only shielded interface cables when
connecting to computer or peripheral devices).
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference. and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
![](/img.php?id=2210673&img=bg5.png)
This symbol on the product or in the instructions means that your
electrical and electronic equipment should be disposed at the end its
life separately from your household waste. There are separate
collection system for recycling in the EU.
For more information, please contact the local authority or your
retailer where you purchased the product.
