1
USERS’ MANUAL
Aivia M8600 Wireless Macro Gaming Mouse
Model: 28715860000CBS
Aivia M8600 Wireless Macro Gaming Mouse Receiver
Model: 28715860000CBS-RX
2
Aivia M8600 Wireless Macro Gaming Mouse
Aivia, an integrated acronymic word, is derived from its key features –
advanced, intuitive, and versatile interface archetype. The series is to
emphasize the combination of subconscious, design and function as
well as the pursuit of archetype. GIGABYTE believes each mouse and
keyboard are the scrupulous work of mankind’s brainpower. Aivia is
not only an extension to the human intellect, but also an intuitive
extension to the use of artificial intelligence.
The Aivia M8600 has unleashed the limitation and been designed to set you
free from cord while achieving the tough mission in game play. Having
ultra-high precision and 2.4GHz gaming-grade wireless technology, Aivia
M8600 not only shows its excellent performance but also incredible fast
transmission even as a wireless gaming mouse. The battery life persists
over 24 continuous hours in the gaming mode, joint the unique QSBS
TM
Technology – Quick-swap Battery System, makes it a fast and lag-free
gaming mouse.
32KB onboard memory enables 5 profiles set on your M8600, and allows you
to bring your personal settings wherever you go. Combine that with
5600DPI and 1000Hz report rate, the Aivia M8600 now becomes your
extreme weapon than ever.
Feature
GamePlay™ Wireless Technology
Over 24hr battery life in game play
Dual mode wired/ wireless functionality
GHOST™ Macro Engine
![](/img.php?id=1377546&img=bg3.png)
3

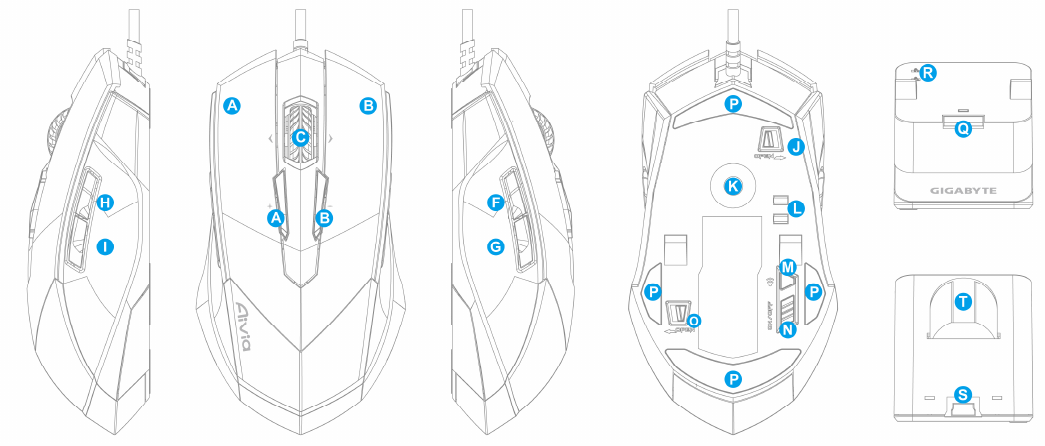

Mouse Introduction
Default button assignments
A Mouse button 1 – Left Click
B Mouse button 2 – Right Click
C Mouse button 3 – Middle Click and 4 ways Scrolling Wheel
D Mouse button 4 – DPI Switching Up
E Mouse button 5 – DPI Switching Down
F Mouse button 6 – Forward
G Mouse button 7 –Back
H Mouse button 8 –Profile Change
I Mouse button 9 – No function (reserved for the left hand mode)
J Cable Lock/ Unlock Switch
K Pro-laser Gaming Sensor
L Battery Charging Connector
M ID Connecting Button
N Power on/off Switch
O Battery Lock/Unlock Switch
P Ultra-Durable
TM
Teflon feet
Q Connecting Button
R Charging Contact Bounce
S Connector Jack for mini USB cable
T Battery inserted jack
4
Installation
Wireless Mode
1. Insert the battery into M8600
2. Switch on M8600.
3. Connect the Charging Dock to your computer with the mini-USB cable.
4. Press the connecting buttons on M8600 and Charging Dock at the same
time. When the pairing process is completed, your M8600 is then ready
for use in wireless mode.
5. To charge M8600 in wireless mode, just place it on the Charging Dock.
There is also a spare charging battery to replace.
Alternatively, M8600 can be charged through the mini USB cable as a
wired mode.
6. To replace the battery with the spare battery, push the battery switch to
the left as shown. The battery will pop out instantly.
Wired Mode
1. Connect the mini-USB end of the cable to M8600.
2. Plug mouse into the USB port of your computer. M8600 is then ready for
use as a wired mouse. Besides, its battery will start charging
automatically in this wired mode.
3. To remove the cable, push the cable switch to the right as shown before
pulling out the mini-USB connector.
Charging Method
There are three different charging methods below.
• Place M8600 on the charging dock connected to your PC. There will be
running green light on the front side of mouse to indicate charging
process.
• Insert your battery to battery inserted jack of the charging dock. Connect
the charging dock to your PC. The red light on charging dock will turn into
green to indicate charging process. When the battery is fully charged, the
LED on charging dock will come back to red light.
• Connect M8600 to your PC with the mini USB cable as a wired mode. The
mouse will start charging automatically.
5
LED Light System
M8600 has a profile/Battery/Sensitivity LED indicator on its front side, which
displays the status of profile/ battery life/sensitivity/ stage.
PROFILE INDICATOR
The LED color of mode indicator would change along with profile switch.
There are 5 different LED colors corresponding 5 profiles to change over on
the mouse. The LED color could be selected from the GHOST Engine
software based on your preference.
BATTERY INDICATOR
The GREEN LEDs show the rest battery life:
61 - 100% Battery: 3 green arrow LEDs
31 - 60% Battery: 2 green arrow LEDs
11 - 30% Battery: 1 green arrow LED
Less than 10% Battery: 3 green arrow blinking LEDs
SENSITIVITY STAGE INDICATOR
The LEDs will turn into RED light while adjusting sensitivity.
- Sensitivity Stage 1: 1 red LED
- Sensitivity Stage 2: 2 red LEDs
- Sensitivity Stage 3: 3 red LEDs
- Sensitivity Stage 4: full red LEDs
6
GHOST
TM
Macro Engine
GHOST
TM
Macro Engine supports Windows 98, Windows 2000, Windows XP,
and Windows7. Install the software to assign buttons and set up your
personal profile.
Please make sure to connect your M8600 with mini USB cable to the PC as a
wired mode while editing the function through GHOST
TM
Engine software.
(In a wireless mode, you are only allowed to change sensitivity,
left-handed/right-handed mode, and gaming/power saving mode in
GHOST
TM
Engine.)
Left-hand/Right-hand Mode
Aivia M8600 is designed both for left-handed and right-handed user. You
may simply switch the left hand/ right hand mode from the selection button
of GHOST
TM
Engine. The description of the buttons then will swap around
automatically.
Gaming mode/ Power Saving Mode
• Gaming mode:
The mouse will go through standby stage for further action. Therefore, it
would consume more energy as gaming mode.
• Power Saving mode:
BUTTON ASSIGNMENT
User can assign various functions to buttons from both ”BASIC FUNCTION”
and ”MACRO SCRIPTS”. All you have to do is drag the function icon and
simply drop to the button you would like to assign. Remember that you may
edit each macro script in the ”MACRO EDITING” tab.
There are five default color LED lights on the panel which indicate five
different profiles set up by users. Each individual profile can be assigned
various settings to 9 customizable buttons. Moreover, you can also change
the color of LED light for each profile
(There are 7 colors and a light-off mode to choose from).
7
MACRO EDITING
The macro editing tab allows you easily to record all the commands,
including key bindings and the press of mouse button.
Each single macro also can be imported and exported onto your hard disk for
further usage.
Start with:
Step1 Click "Record the duration or intervals" if you'd like to record intervals
between two commands.
Step2 Double-click “Cycle through selection of action mode” to change the
execute mode.
Step3 Click "Record" to start creating a macro and recording all the
keystrokes or mouse commands.
Step4 Click "Stop" to finish recording this macro when a macro is done.
Step5 You can also insert additional commands on the “Quick-insert bar”
left.
Step6 After recording a macro, you may drag commands of the macro and
drop into "On-board script" to store this macro on the mouse.
Step7 Double-click on the macro scrip to rename this macro. Moreover, you
may also change icon of your personal macro through clicking
“change icon”.
Step8 Come back to “Button Assign” tab, the macro you had built would
become one application of “Macro scrip” in this tab.
Learn more:
Record the duration or intervals (Time lag)
If this function is marked, it allows you to record the intervals between two
commands.
Cycle through selection of action mode
• Execute once:
To execute a macro once.
• Loop mode:
Re-pressing to stop: Executing a macro continuously, and re-pressing
the assigned button to stop the running macro.
• Fire-button mode:
Executing a macro continuously until you release the assigned button.
8
Export
To export your macro to the PC.
Import
To import a macro to the macro editing in GHOST engine application
program.
Re-edit the macro
Dragging the macro script back to macro editing allows you to re-edit this
macro.
SENSITIVITY/ SCROLLING
Sensitivity
As default setting, there are three sensitivity stages: 800, 1600, 3200 and
5600DPI (dots per inch). You can set up preferred sensitivity value of three
sensitivity stages , then you can simply adjust through on-the-fly switch .
Check “set X and Y axis separately” option to adjust X-Y sensitivity levels.
Report rate
The report rate determines the time intervals that your PC retrieves data
from your mouse. You can set the report rate to
125Hz (8ms), 250Hz (4ms), 500Hz (2ms), or 1000Hz (1ms) by moving the
knob on the slider
Scrolling
You can adjust vertical & horizontal scroll wheel speed by moving the knob
on the slider.
9
Product Specification
Mouse and Receiver:
Antenna Gain=0dBm
Operating Frequency: 2402/ 2439/ 2450/ 2411/ 2468/ 2425/ 2447/
2479MHz
Channel Number: 8 channels
Transmitter Output Power: 0 dBm
Modulation:2.4G GFSK modulator
Operating Temperature Range: 0°C(32°F) ~ 40°C(104°F)
Power Type of wireless module:
Mouse : Battery supply voltage
Receiver : NB or PC USB Port Supply Voltage
Battery (assembled in the mouse)
Battery Pack: BURNABY INTERNATIONAL TECHNOLOGY
Model: SANYO NP 80/ 3.7Vdc 1500mAh
Safety
Caution:
• Please DO NOT directly look into the laser beam.
• Risk of explosion if battery is replaced by an incorrect type
• Dispose of used batteries according to the instruction
Important information:
Long period of repetitive motion using an improperly set-up workplace, or
incorrect body posture may be associated with physical discomfort and
injury to nerves, tendons, and muscles.
FCC Declaration:
• This device has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with
10
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
• This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution:
• Changes or modifications not expressly approved by the party responsible
for compliance could void the user‘s authority to operate the equipment.
• The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
