9

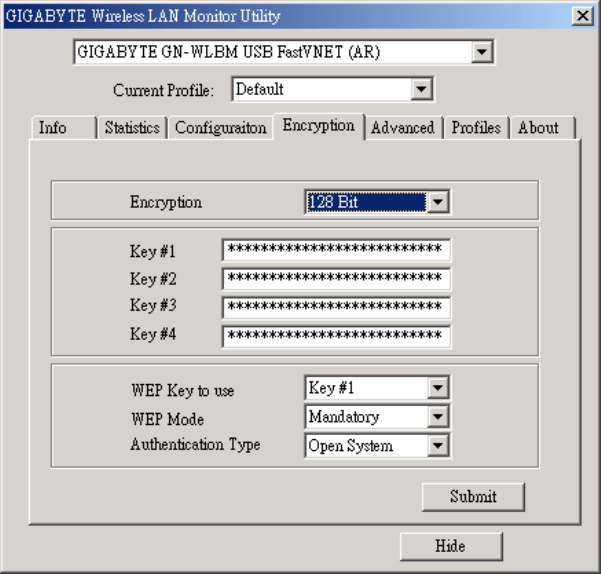

Figure 3-5. Encryption
3-5. Advanced
By Choosing the Advanced option in any of the two modes, you can change advanced
configuration settings, such as the Preamble Type, Fragmentation Threshold, and
RTS/CTS Threshold (Figure 3-6). Figure 3-5 shows the default configuration for the
advanced settings. The USB adapter has an auto-detection feature therefore when
selecting “Auto” for the preamble type it automatically selects the Preamble Type
depending on the Access Point Preamble type
Note: In order to enable the Fragmentation and the RTS/CTS Threshold parameters move
the slide bar with your mouse and then use the right and left arrow keys of your keyboard
in order to select an exact number.
10

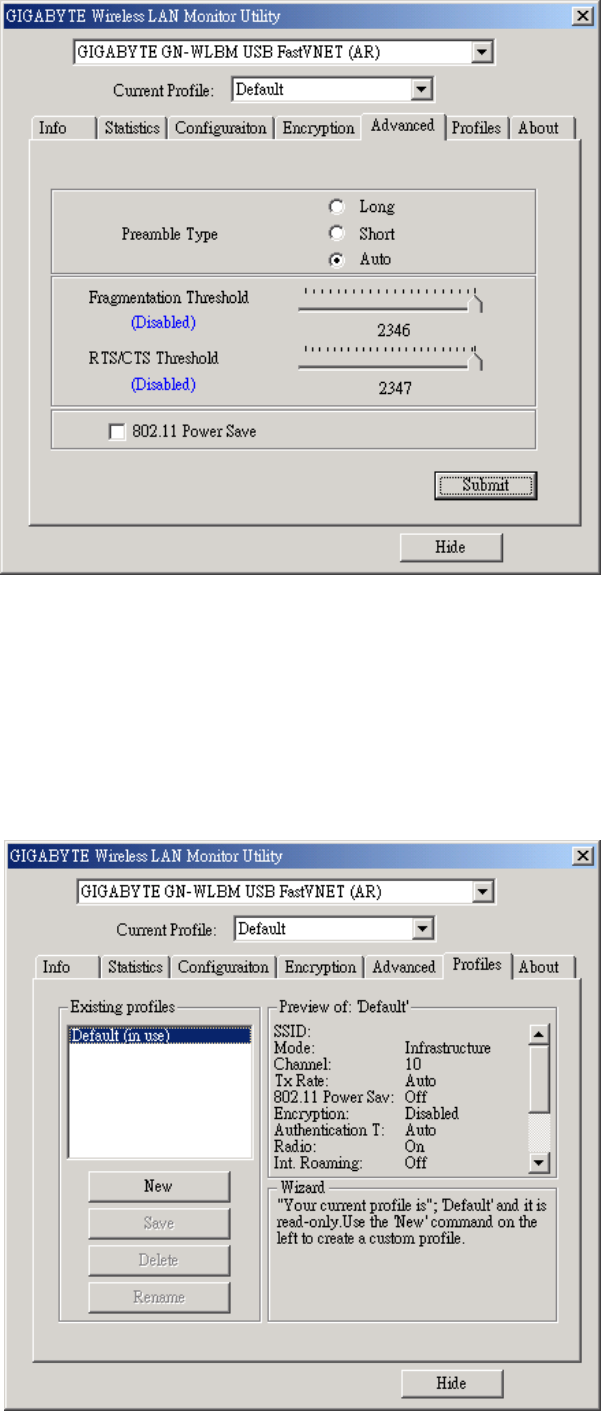

Figure 3-6. Advanced Settings
3-6. Profiles
This option shows you to view your current profile. You can click “New” to create a custom
profile.
Figure 3-7. Your current profile
11
3-7. About
By choosing this option, you can view basic information about the utility like the Driver,
Firmware and Application Version and this adapter’s MAC address.
Figure 3-7. Version information and MAC address
12
Chapter 4. Specification
4-1. System
Standards IEEE 802.11b compliant, Wi-Fi compatible
Host Interface USB 1.1
Modulation 1Mbps: DBPSK; 2Mbps: DQPSK; 5.5 and 11 Mbps: CCK
Transmission Rate 1, 2, 5.5, 11 Mbps
Operating Voltage 5V
Operating Range Open space: 100 - 300m; Indoor: 30 - 100m
4-2. RF Performance
Frequency Band 2.400 ~ 2.4835 GHz (subject to local regulation)
Radio Technology DSSS (Direct Sequence Spread Spectrum)
11 Channels (US, Canada) 4 channels (France)
Number of Channel 14 Channels (Japan) 13 Channels (Most European countries, ETSI)
Output Power 19dBm @ Nominal Temp Range
Receive Sensitivity - 80dBm @ 11 Mbps date rate, 8% PER
Antenna Two built-in diversity antennas
4-3.Safety Regulation and Operating Environment
FCC Part 15 (USA)
EMC certification CE (Europe)
Temperature Range Operating: 0 ~ 50 deg C, Storing: -20 ~ 65 deg C
Humidity Max. 90% Non-condensing
4-4. Software Support
Driver Windows 98/98SE/Me; Windows 2000/XP
Roaming Supports roaming.
Network Protocol TCP/IP, IPX, NetBEUI
Security 64 bit WEP (128 bit WEP optional)
Management Utility Monitors the network situation.
4-5. Mechanical
Dimensions 89.2 x 62 x 14.5 mm
Weight TBD
Packaging Packaging specially used by Gigabyte.
Host Interface USB Type B connector
USB cable 80cm
LED indicator Power and Link
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, (example - use only shielded interface cables
when connecting to computer or peripheral devices) any changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
