GIGA TMS ER755 Mifare Ethernet Reader User Manual 1
GIGA-TMS INC. Mifare Ethernet Reader 1
GIGA TMS >
user manual
Wires Assignment
Wires Assignment
Connector
Symbol
I/O
Without P.O.E Module
With P.O.E Module
Terminal-
Block
VIN
IN
Power Input : DC 7.5~20V
GND
IN
Power Ground
NO
OUT
Normal Open of built-in relay
COM
OUT
Common of built-in relay
NC
OUT
Normal Close of built-in relay
RJ45
Net
IN
Connect to the Ethernet HUB
Connect to the P.O.E HUB
To configure the ER750 reader you need to connect the reader to the Ethernet first as below:
The above housing is for reference only
CAUTION:
The crossed out wheeled bin label that can be found on your product indicates that
this product should not be disposed of via the normal household waste stream.
To prevent possible harm to the environment or human health please separate this
product from other waste streams to en-sure that it can be recycled in an
environmentally sound manner.
For more details on available collection facilities please contact your local
government office or the retailer where you purchased this product.
This information only applies to customers in the European Union.
For other countries, please contact your local government to investigate the possibility of recycling your
product.

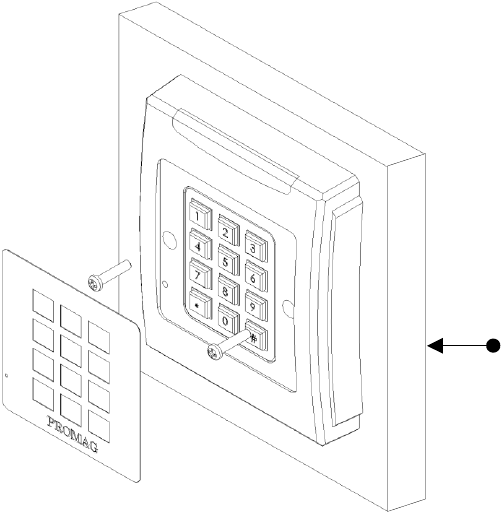

Installation options
WALL
