GIGA TMS FL20S RFID Reader User Manual Visio TM951343 FL20S 00 vsd
GIGA-TMS INC. RFID Reader Visio TM951343 FL20S 00 vsd
GIGA TMS >
Users Manual
Transmit Frequency
OPERATING
Transponder
Interface
ELECTRICAL
MECHANICAL
ENVIRONMENTAL
Power Input
Current Consumption
Dimensions
Weight
Temperature
Humidity
125KHz /13.56MHz Standard
1-Wire / RS-232
10 to 48 VDC
About 30 mA @12VDC
Length : 82.6 mm / Width : 47 mm / Height : 17 mm
110 gm (With Cable)
Operating : -20 ℃ to 70 ℃
Storage : -30 ℃ to 80 ℃
Operating : 10 % to 90 % noncondensing
Storage : Up to 90% noncondensing
Cable Length 90 cm +/- 2cm
Reading distance 2~5 cm Typ
H4001 / H4002 / EM4100/4102 EM card
ISO14443A Mifare, DESFire, Ultralight card
TM951343 Page 1

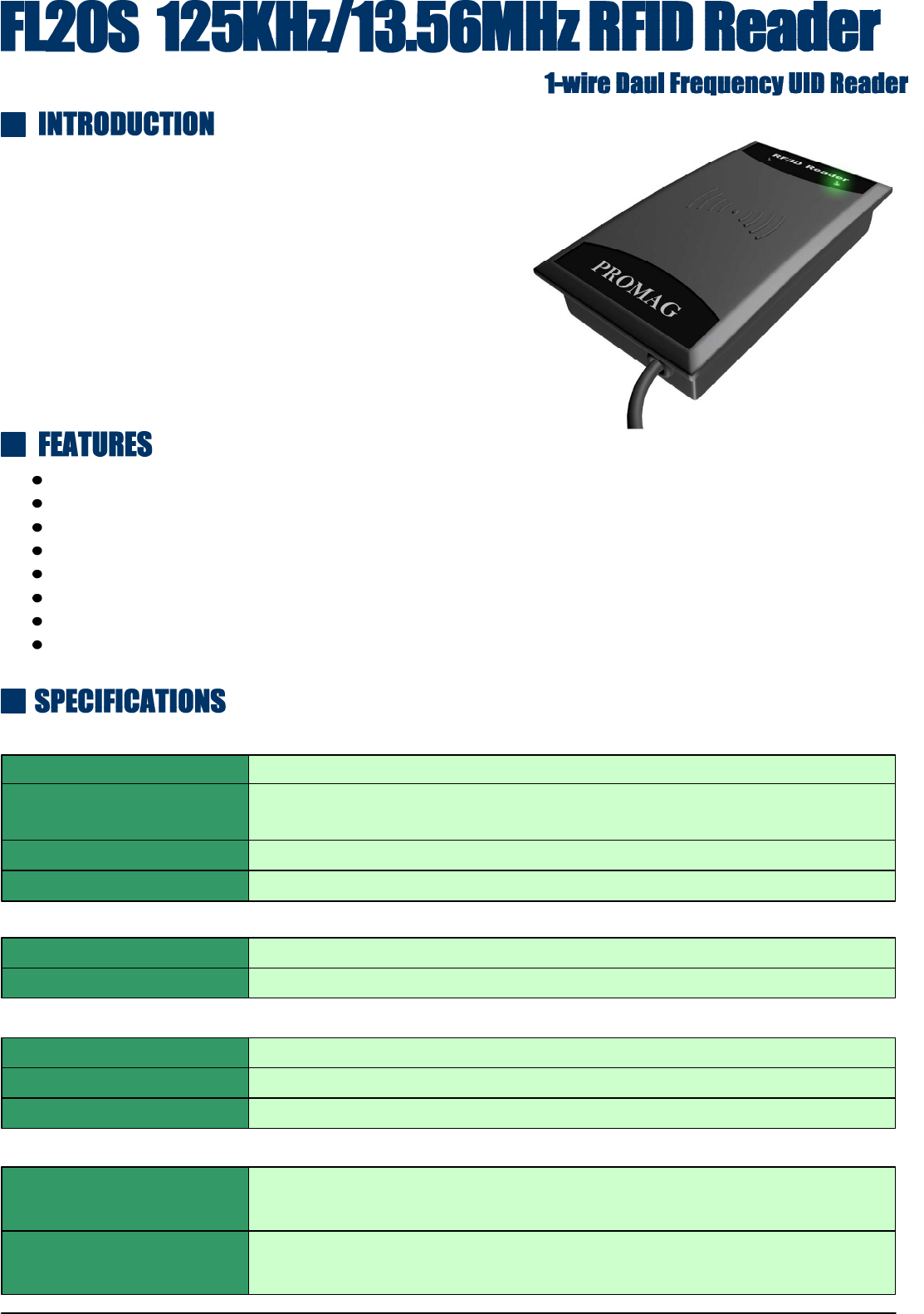

FL20S is EM/Mifare UID Reader with 1-Wire
and RS232 interface, designed to integrate with
vehicle trackers and the other controllers.
With 10~48VDC power input, it’s convenient to
install the reader in different vehicles. It aims to
offer more flexibility to build solutions at
affordable cost, can be used alternatively for
iButton and get your solution working with low
cost EM and Mifare cards.
Frequency: 125KHz and 13.56MHz
Read UID of H4001 / H4002 / EM4100/4102 EM card
Read UID of ISO 14443A Mifare, DESFire card
Support data Output 1-Wire, RS232
Support the other 1-Wire input interface
Available to install on metal surface
Available to install on different vehicles
Weather resistant
Page 2TM951343
LIMITED WARRANTY
Giga-Tms warrants that the products sold pursuant to this Agreement will perform in accordance with Giga-
Tms’s published specifications. This warranty shall be provided only for a period of one year from the date
of the shipment of the product from Giga-Tms (the “Warranty Period”). This warranty shall apply only to the
“Buyer” (the original purchaser, unless that entity resells the product as authorized by Giga-Tms, in which
event this warranty shall apply only to the first re-purchaser).
During the Warranty Period, should this product fail to conform to Giga-Tms’s specifications, Giga-Tms will,
at its option, repair or replace this product at no additional charge except as set forth below. Repair parts
and replacement products will be furnished on an exchange basis and will be either reconditioned or new.
All replaced parts and products become the property of Giga-Tms. This limited warranty does not include
service to repair damage to the product resulting from accident, disaster, unreasonable use, misuse, abuse,
negligence, or modification of the product not authorized by Giga-Tms. Giga-Tms reserves the right to
examine the alleged defective goods to determine whether the warranty is applicable.
Without limiting the generality of the foregoing, Giga-Tms specifically disclaims any liability or warranty for
goods resold in other than Giga-Tms’s original packages, and for goods modified, altered, or treated without
authorization by Giga-Tms.
Service may be obtained by delivering the product during the warranty period to Giga-Tms (8F No. 31 Lane
169, Kang Ning Street, Hsi Chih Dist New Taipei City, Taiwan). If this product is delivered by mail or by an
equivalent shipping carrier, the customer agrees to insure the product or assume the risk of loss or damage
in transit, to prepay shipping charges to the warranty service location, and to use the original shipping
container or equivalent. Giga-Tms will return the product, prepaid, via a three (3) day shipping service. A
Return Material Authorization (“RMA”) number must accompany all returns. Buyers may obtain an RMA
number by contacting with sales@gigatms.com.tw
EACH BUYER UNDERSTANDS THAT THIS GIGA-TMS PRODUCT IS OFFERED AS IS. GIGA-TMS MAKES NO
OTHER WARRANTY, EXPRESS OR IMPLIED, AND GIGA-TMS DISCLAIMS ANY WARRANTY OF ANY OTHER
KIND, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IF THIS PRODUCT DOES NOT CONFORM TO GIGA-TMS’S SPECIFICATIONS, THE SOLE REMEDY SHALL BE
REPAIR OR REPLACEMENT AS PROVIDED ABOVE. GIGA-TMS’S LIABILITY, IF ANY, SHALL IN NO EVENT EXCEED
THE TOTAL AMOUNT PAID TO GIGA-TMS UNDER THIS AGREEMENT. IN NO EVENT WILL GIGA-TMS BE LIABLE
TO THE BUYER FOR ANY DAMAGES, INCLUDING ANY LOST PROFITS, LOST SAVINGS, OR OTHER INCIDENTAL
OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF, OR INABILITY TO USE, SUCH PRODUCT, EVEN
IF GIGA-TMS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY
OTHER PARTY.
LIMITATION ON LIABILITY
EXCEPT AS PROVIDED IN THE SECTIONS RELATING TO GIGA-TMS’S LIMITED WARRANTY, GIGA-TMS’S
LIABILITY UNDER THIS AGREEMENT IS LIMITED TO THE CONTRACT PRICE OF THIS PRODUCT.
GIGA-TMS MAKES NO OTHER WARRANTIES WITH RESPECT TO THE PRODUCT, EXPRESSED OR IMPLIED,
EXCEPT AS MAY BE STATED IN THIS AGREEMENT, AND GIGA-TMS DISCLAIMS ANY IMPLIED WARRANTY,
INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
GIGA-TMS SHALL NOT BE LIABLE FOR CONTINGENT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES TO
PERSONS OR PROPERTY. GIGA-TMS FURTHER LIMITS ITS LIABILITY OF ANY KIND WITH RESPECT TO THE
PRODUCT, INCLUDING ANY NEGLIGENCE ON ITS PART, TO THE CONTRACT PRICE FOR THE GOODS.
GIGA-TMS’S SOLE LIABILITY AND BUYER’S EXCLUSIVE REMEDIES ARE STATED IN THIS SECTION AND IN THE
SECTION RELATING TO GIGA-TMS’S LIMITED WARRANTY.
LED Indicator
1
Off
Off
Blink
Red
On
Blink
Off
Green
Standby
Read OK
Read Error
Description
1
2
3
4
5
Pin
6 Pin Terminal
3
6
Power Input: 10~48 Volts
Power Ground
DATA In/Out
To Next Device
Description
RS232 TX (transmit)
Purple
Blue
Black
Red
Color
Yellow
White
1-Wire
1-Wire
GND
VCC
Signal
RX
TX
RS232 RX (receive)
Sound Indicator
2
Bi-
Buzzer
Read OK
Description
Page 3
1
3
PIN 1
TM951343
2
OnOn ISP Mode
Front View Bottom View
VCC
1-WIRE
GND
RS232 TX
Bi-Bi-Bi Read Error

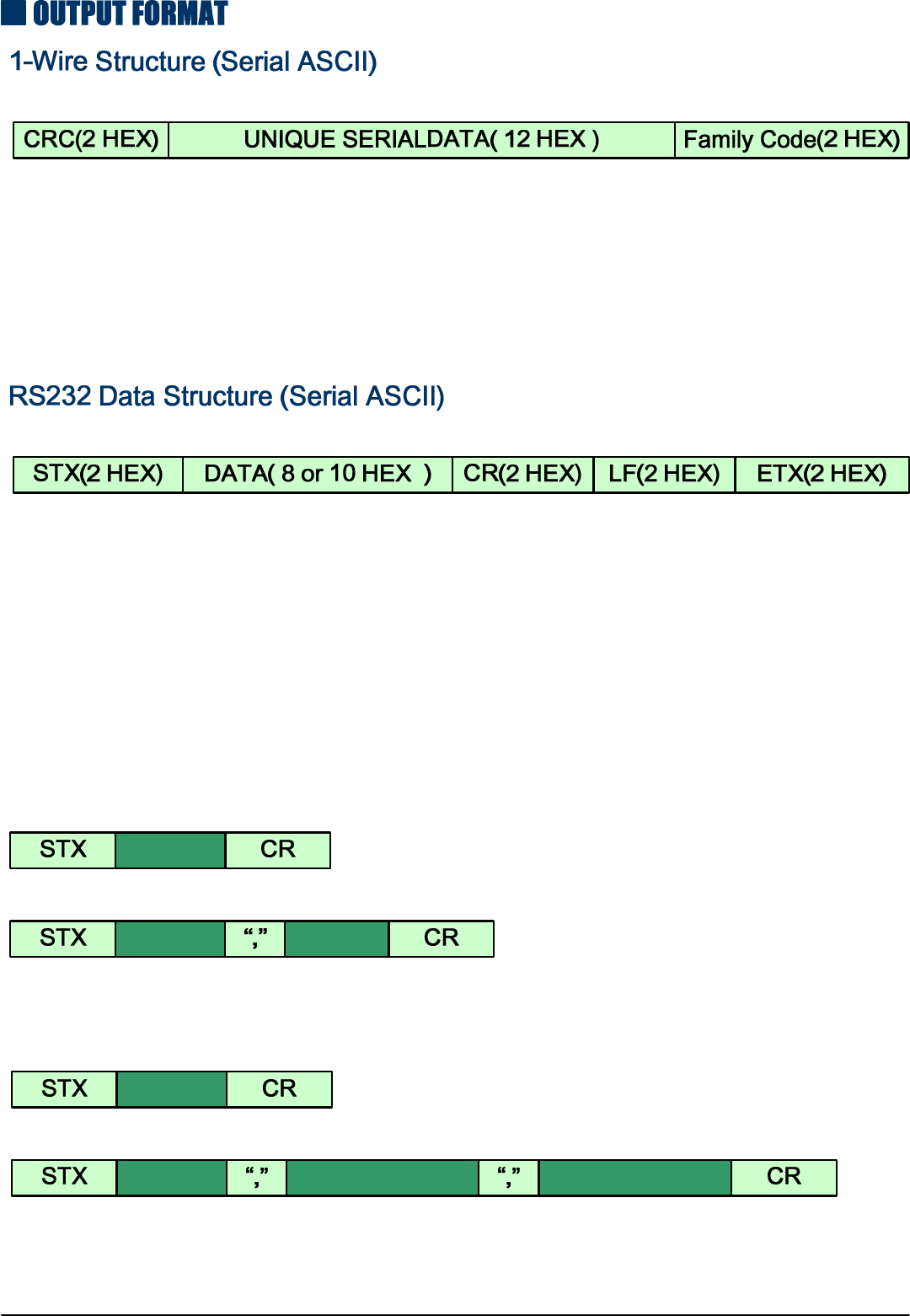

All 1-Wire devices, including iButton devices, contain an 8-byte unique registration
number.
The computation begins with the MSB of the 64-bit,
This 1-Wire Data consists of an 8-bit CRC, a unique 48-bit serial number and an 8-
bit family code.
Baud Rate : 19200,N,8,1
Page 4TM951343
The start character is factory defined as an ‘STX’ (02 HEX). This is followed by 8
Hex characters of data for Mifare Card,10 Hex characters of data for EM Card.
The CR\LF characters serve to bring the received screen text back to the left hand
side and on the line below after the data bytes have been sent.
The ‘ETX’ (03 HEX) character denotes the end of the current transmission.
Baud Rate : 19200,N,8,1
[Ex.]
Host to FL20S
“D”
Host form FL20S
“A” “FL20s”
Host to FL20S
“V”
Host form FL20S
“A” “ROM-T1727” “V1.00R1”
Get Device
Version
Get Device Name
Page 5TM951343

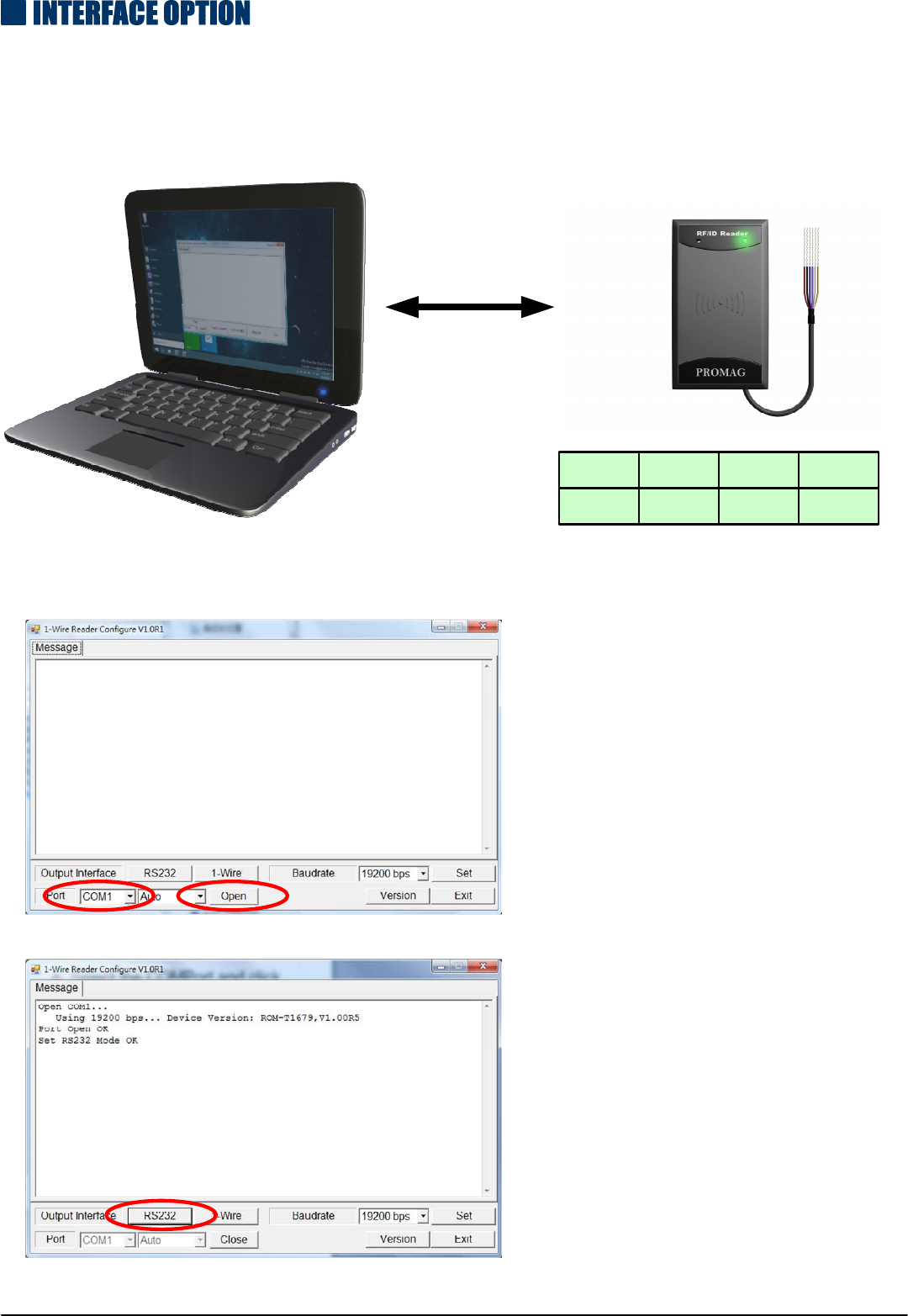

The default interface for FL20S is 1-Wire. For RS232 interface, please
follow its pin assignment as below and use software to set up interface.
1.Connect the FL20S unit with your computer
.
RS232
RED
VDD GND TX RX
BLACK WHITE YELLOW
2.Download 1-Wire Reader Configure software from below link for installation:
http://ftp.gigatms.com.tw/disks/disk5478
A. Select the COMPort and click
the “open” to execute sofeware.
B.Click the “RS232 Output” and
“Exit”.
CAUTION:
The crossed out wheeled bin label that can be found on your product
indicates that this product should not be disposed of via the normal
household waste stream.
To prevent possible harm to the environment or human health please
separate this product from other waste streams to en-sure that it can
be recycled in an environmentally sound manner.
For more details on available collection facilities please contact your
local government office or the retailer where you purchased this
product.
This information only applies to customers in the European Union.
For other countries, please contact your local government to investigate
the possibility of recycling your product.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment. (Example - use only shielded interface cables
when connecting to computer or peripheral devices).
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
