Users Manual
TM EPSON / M317A
MIFARE / DESfire EV1, Reader/Writer Modules
1
FEATURES
INTRODUCTION
The M317A is an ideal module for embedded system
that requests a low power design. M317A provides a
powerful MIFARE / DESfire applications.
Standard Configurations:
13.56MHz MIFARE Reader/Writer
13.56MHz DESfire EV1 Reader/Writer
•
Anti-collision
•
Mifare classic with MAD1/MAD2 /MAD3
function
•
Full 3DES, 3K3DES and AES crypto methods
•
Without NXP SAM AV2 solution
•
T=CL ISO7816 interface supported
•
Plug-in fitting for 13.56Mhz
•
Full MIFARE® functionality.
•
Support ISO 14443 A Mifare® Class /
UrtraLight Mifare® PRO DESfire, DESfire
EV1
•
Serial Interface, CMOS-TTL.
•
Power supply Active 45mA @3.3VDC
•
RF data rate: 106k, 212k, 424k, 848k bps
supported
We welcome OEM inquiries
Custom device programming
is available 臺北縣汐止市康寧街 169 巷 31 號 8 樓
TEL: +886-2-26954214
FAX: +886-2-26954213
e-mail: sales@gigatms.com.tw
http://www.gigatms.com.tw
TM EPSON / M317A
MIFARE / DESfire EV1, Reader/Writer Modules
2

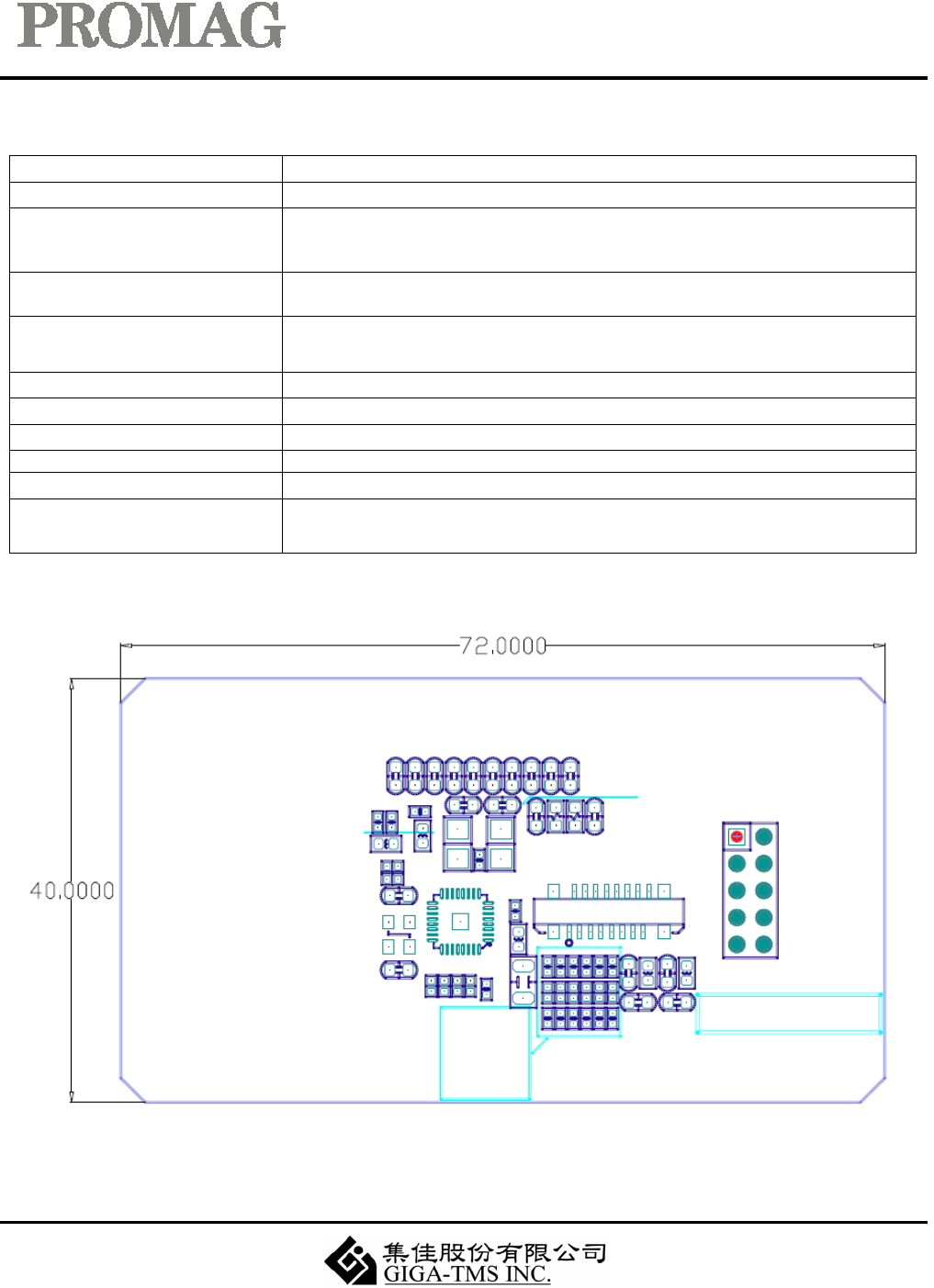

SPECIFICATIONS:
POWER REQUIREMENT 3.3V regulated for Operate Voltage . A linear regulator is recommended.
CURRENT REQUIREMENTS Active 45mA @3.3VDC
INTERFACE SPI
Protocol GNET PLUS
Binary Mode /ASCII Mode
Card T
y
pe ISO 14443 A Mifare® Class / UrtraLight Mifare® PRO
DESfire, DESfire EV1
FERQUENC
Y
13.56MHz
TRANSPONDER Read / Write
CONFIGURE INTERFACE SPI
DIMENSIONS 72mm * 40mm * 1.6mm
WEIGHT < 10 gm
ENVIRONMENT Operating Temp : -0℃ ~ +60℃
Humidity : 10 ~ 90 % relative
PACKAGE DESCRIPTION
We welcome OEM inquiries
Custom device programming
is available 臺北縣汐止市康寧街 169 巷 31 號 8 樓
TEL: +886-2-26954214
FAX: +886-2-26954213
e-mail: sales@gigatms.com.tw
http://www.gigatms.com.tw
TEL: +886-2-26954214
FAX: +886-2-26954213
e-mail: sales@gigatms.com.tw http://www.gigatms.com.tw
3
FCC：
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT
TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Federal Communications Commission Requirements
The equipment has been tested and found to comply with the limits for Class B Digital Device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction, may cause harmful interference to radio communication. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
●Reorient of relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
THE CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE
THE EQUIPMENT.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and receiver.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
FCC Radiation Exposure Statement
The equipment complies with FCC radiation exposure limits set forth for uncontrolled
equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement
C to OET65. The equipment has very low levels of RF energy that it is deemed to comply
without testing of specific absorption ratio (SAR).
IC Statement: (English & Francian) IC Regulations:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired
operation of the device. Le présentappareilestconformeaux CNR d'IndustrieCanada
applicablesaux appareilsradio exempts de licence. L'exploitationestautoriséeaux
deuxconditions suivantes: (1) l'appareilne doitpas produirede brouillage, et (2) l'utilisateurde
l'appareildoitaccepter tout brouillageradioélectriquesubi, mêmesile brouillageestsusceptible
d'encompromettrele fonctionnement.
“This Class B digital apparatus complies with Canadian ICES-003. Cetappareilnumériquede la
classeB estcon for meàla normeNMB-003 du Canada. This Category II radio communication
device complies with Industry Canada Standard RSS-310. Cedispositifde radio
communicationde catégorieII respectela normeCNR-310d’IndustrieCanada.
