GIGA TMS MP100 Multi Protocol RFID READER User Manual HF20
GIGA-TMS INC. Multi Protocol RFID READER HF20
GIGA TMS >
Users Manual

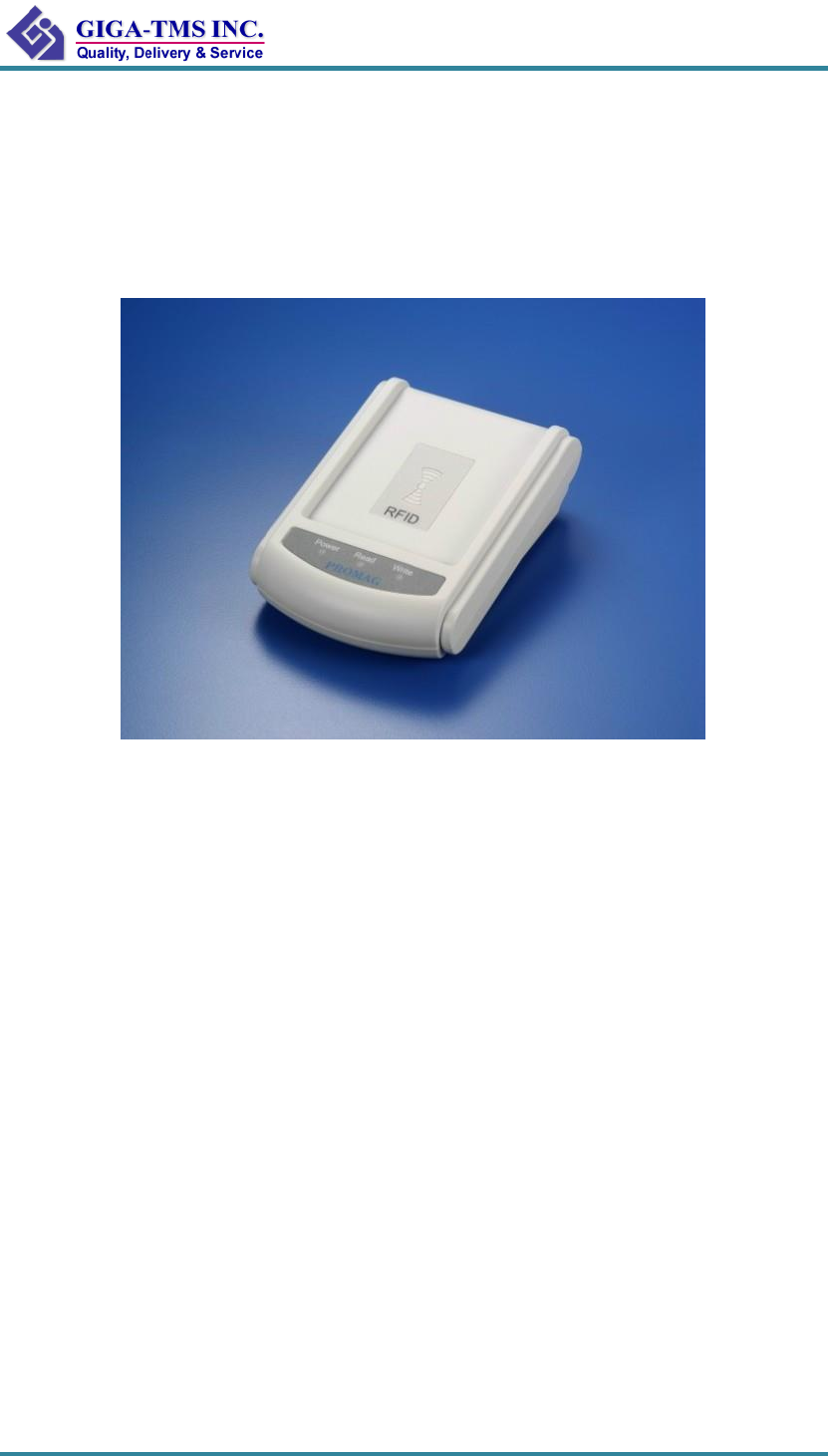

MP100 Hardware User Manual
Copyright© 2013 GIGS-TMS INC Page 1 www.gigatms.com.tw
MP100 Hardware User Manual
Rev1.0
MP100 Hardware User Manual
Copyright© 2013 GIGS-TMS INC Page 2 www.gigatms.com.tw
Revision History
Revision
Date
Author
Description
1.0
2013.04.11
C.K
1st Release
The United States Federal Communications Commission has specified that the
following notice be brought to the attention of users of this product:
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at this own expense.
MP100 Hardware User Manual
Copyright© 2013 GIGS-TMS INC Page 3 www.gigatms.com.tw
Contents
1. Introduction ........................................................................................................... 4
2. Specifications ......................................................................................................... 4
MP100 Hardware User Manual
Copyright© 2013 GIGS-TMS INC Page 4 www.gigatms.com.tw
1. Introduction
Introducing MP100, GIGA-TMS’s latest released RFID module. It not only equips
build-in SAM socket, but also support multiple ISO standards.
Other than contactless RFID cards, MP100 also support SAM card. User do not
need to understand the complicated ISO/IEC 14443 and ISO7816 standard to
operate MP100. With simple command through RS232/USB, user may master
multiple RFID standards easily.
MP100 support wild ranges of transmission protocols and transponder ICs
available on the market. Designed to meet the requirements of both secure
personal identity verification and supply chain management applications.
MP100 is ideal for access control, as well as Automatic Fare Collection(AFC),
ticketing, vending and mobile solutions.
2. Specifications
Specifications
Power requirement
5V regulated for operate voltage
Current
requirement
Active 130mA @ 5VDC
Interface
MP100R – RS232
MP100U – USB(Visual Comport)
Baud rate
19200 N 8 1
Protocol
ISO14443A
Standard functionality
Mifare read and write data
Ultralight read and write data
Ultralight C read and write data
Desfire read and write data
Desfire EV1 read and write data
VISA pay wave read UID
Master pay wave read UID
T=CL
ISO14443B
Standard functionality
MP100 Hardware User Manual
Copyright© 2013 GIGS-TMS INC Page 5 www.gigatms.com.tw
Cepas read UID
SRI read and write data
VISA pay wave read UID
Master pay wave read UID
T=CL
ISO15693
Standard functionality
Tag-IT read and write data
I-Code series read and write data
SIC5600 read and write data
PicoTag read UID and data
Felica read UID
ISO7816
Contactless smart card
Frequency
13.56MHz
Slot
ISO7816 ID Type x 1
ISO7816 SIM Type x1
Dimensions
Weight
Environment
Operating temperature : 0℃ ~ 50℃
Humidity : 10 ~ 90 %relative
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT
ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Federal Communications Commission Requirements
The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
●Reorient of relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
THE CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and receiver.
(2) This device must accept any interference received, including interference that may cause undesired operation.
