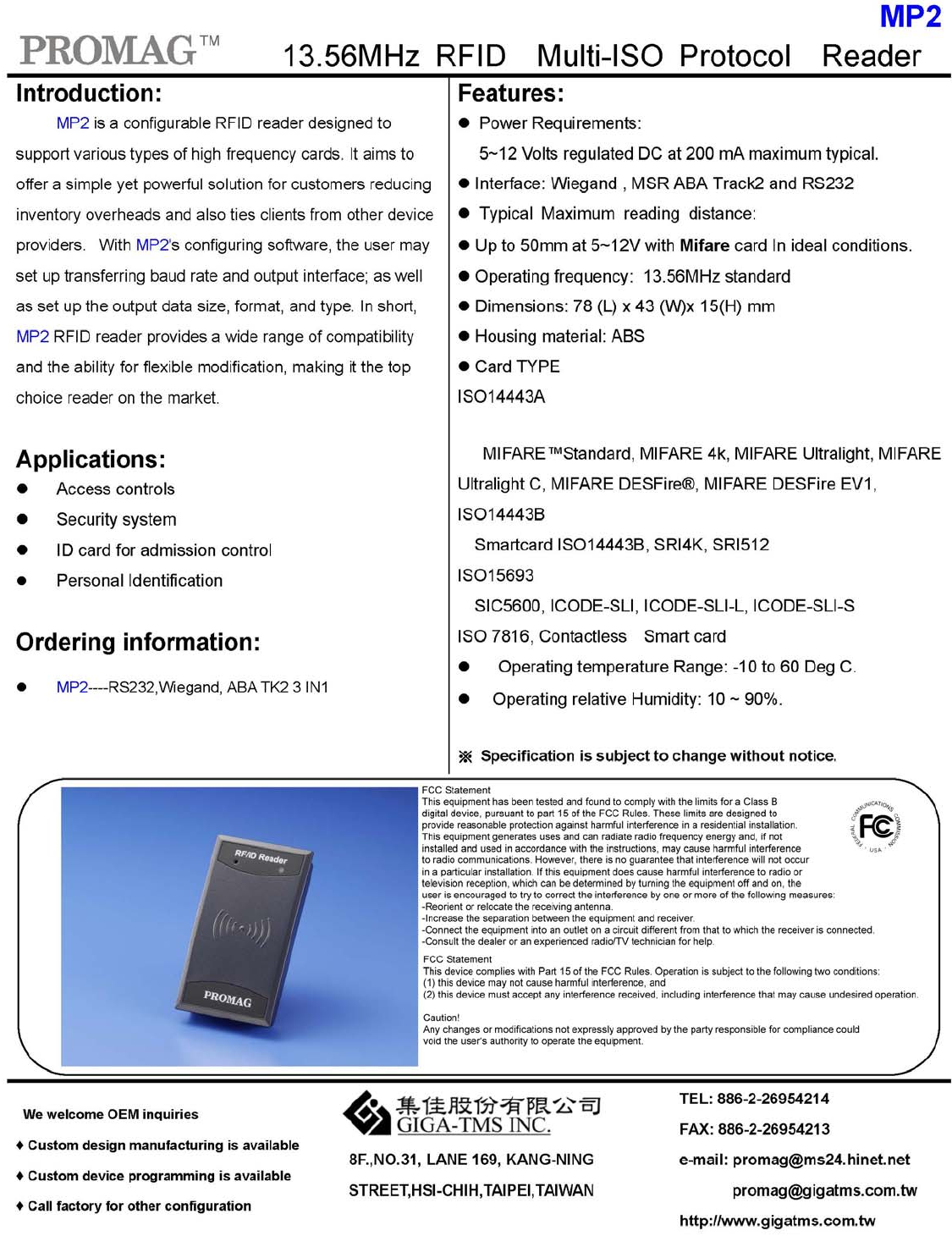

User Manual

8. User Manual.jpg

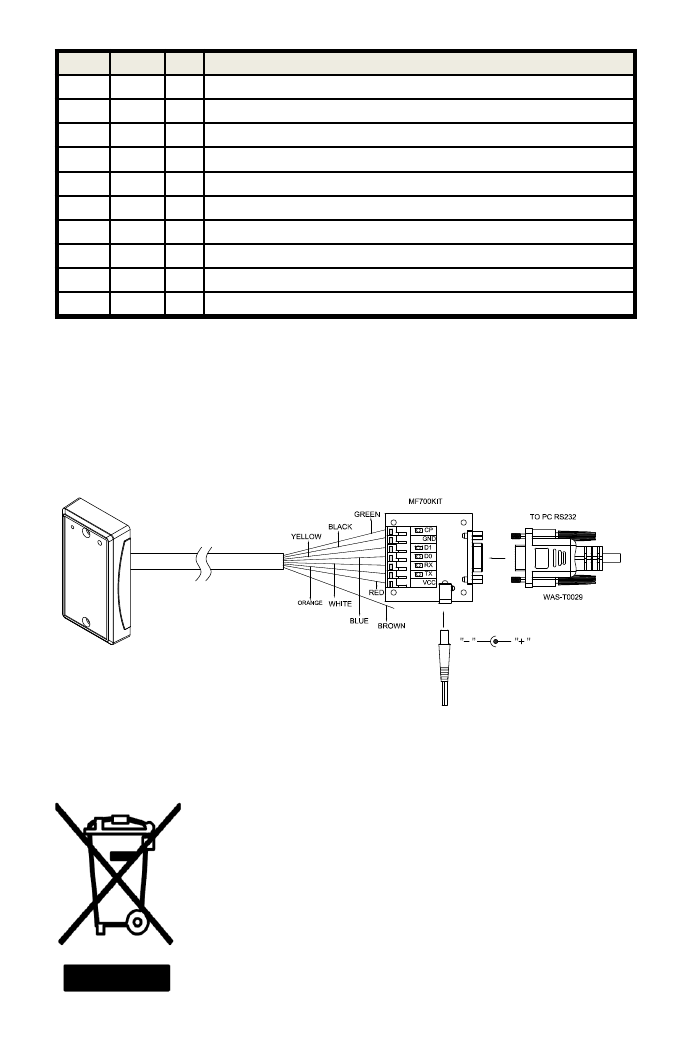

MP2 Wires Assignment

To configure the MP2 reader you must connect the MP2 to the PC by RS232C interface using our software.

CAUTION:

The crossed out wheeled bin label that can be found on your product indicates that this

product should not be disposed of via the normal household waste stream.

To prevent possible harm to the environment or human health please separate this

product from other waste streams to en-sure that it can be recycled in an

environmentally sound manner.

For more details on available collection facilities please contact your local government

office or the retailer where you purchased this product.

This information only applies to customers in the European Union.

For other countries, please contact your local government to investigate the possibility

of recycling your product.

DOC# TM951322

Color Symbol I/O Description

Red VCC IN Power Input: 12VDC

Black GND IN Power Ground + Singal Ground

Yellow D1 OUT Clock (ABA TK2) ; Data 1 (Wiegand)

Blue D0 OUT Data (ABA TK2) ; Data 0 (Wiegand)

Green CP OUT Card Present (ABA TK2)

White RX IN RS232 RXD (To Host TXD)

Orange TX OUT RS232 TXD (To Host RXD)

Brown Boot IN Reboot (While this line wired with GND at power on,MP2 will enter boot phase.)

- -

MF700KIT is a kit for MP2 to connect with PC. It is an optional accessory for purchasing.

Remark:

12VDC
