Users Manual

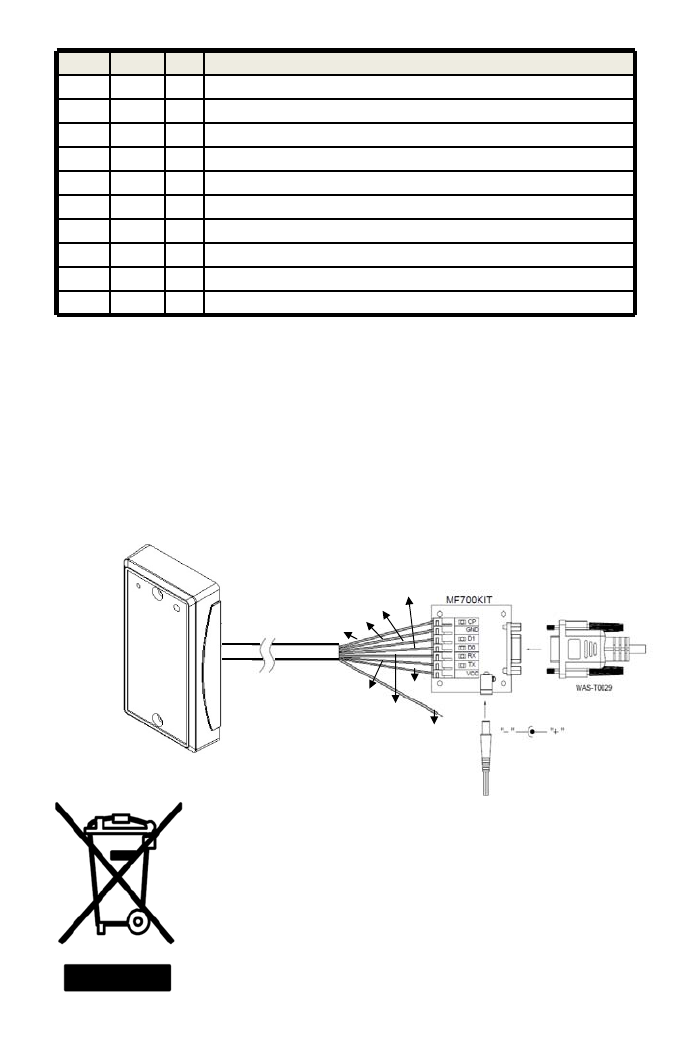

MP3xx Wires Assignment
To configure the MP3xx reader you must connect the MP3xx to the PC by RS232C interface using our software.
CAUTION:
The crossed out wheeled bin label that can be found on your product indicates that this
product should not be disposed of via the normal household waste stream.
To prevent possible harm to the environment or human health please separate this
product from other waste streams to en-sure that it can be recycled in an
environmentally sound manner.
For more details on available collection facilities please contact your local government
office or the retailer where you purchased this product.
This information only applies to customers in the European Union.
For other countries, please contact your local government to investigate the possibility
of recycling your product.
TM951339A
Color Symbol I/O Description
Red VCC IN PowerInput:Typicalwitha12VsupplyAlinearregulatorisrecommended.
Black GND IN PowerGround+SingalGround
Yellow D1 OUT Clock(ABATK2);Data1(Wiegand)
Blue D0 OUT Data(ABATK2);Data0(Wiegand)
Green CP OUT CardPresent(ABATK2)
White RX IN RS232RXD(ToHostTXD)
Orange TX OUT RS232TXD(ToHostRXD)
Brown Boot IN Reboot(WhilethislinewiredwithGNDatpoweron,MP3xxwillenterbootphase.)
‐‐
‐‐
MF700KIT is a kit for MP3xx to connect with PC. It is an optional accessory for purchasing.
Remark:
VDC
Orange
White
Green
Red
Yellow
Black
Blue
Brown
To PC RS232C
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the
following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
. Consult the dealer or an experienced radio/TV technician for
help.
FCC Caution: To assure continued compliance, any changes or
modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this
equipment. (Example - use only shielded interface cables when
connecting to computer or peripheral devices).
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This
device must accept any interference received, including
interference that may cause undesired operation.
