Users Manual
TS100 and TS100A
Hardware User Guide
Dec 18, 2018
TM951361-01
Any part of the contents of this document, without the express written GIGA-TMS
permission, shall not in any documents, electronic, mechanical form of remakes or
spread. File contents are subject to change without notice.
Revisions
Revision Date Description
01 Dec 18, 2018 Preliminary draft
Copyright
©
2018
GIGA-TMS INC.
Printed in Taiwan
Has been tested in accordance to essential protection requirements of the RED –
DIRECTIVE 2014/53/EU, EU-LOW VOLTAGE DIRECTIVE 2014/35/EU on the
approximation of the laws of the Member States relating to Radio Spectrum Matters
and found the test results indeed meet the limitation of the relevant test standard(s)
listed below:
EMC Radio Spectrum Safety Health
EN 301 489-1 :
V2.2.0 (2017)
EN 302 208 V3.2.0
(2018)
IEC 62368-
1 : 2014
/ COR1:2015 and
EN 62368-1:2014 /
A11:2017
EN62311 : 2008
EN 301 489-3 :
V2.1.1 (2017)
EN 300 328 V2.1.1
(2016)
EN 301 489-17 :
V3.2.0 (2017)
Test standard: FCC rules Part 15 subpart B
Test Result: Radiated Emission. FCC Part 15.109/15.107 Class B Test passed.
Test standard: FCC rules Part 15 subpart C 15.247 (2017 - 10)
Test Result: No deviations from the technical specification(s) were ascertained in the
course of the tests performed.
Warning
Federal Communication Commission (FCC) Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
To assure continued compliance, any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate this
equipment. (Example - use only shielded interface cables when connecting to computer
orperipheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
The antennas used for this transmitter must be installed to provide a separation distance
of at least 20 cm from all persons and must not be co-located or operating in conjunction
with any other antenna or transmitter.
Contains transmitter module: FCC ID: 2AC7Z-ESPWROOM02, FCC ID: 2AE2I-ACI810700S
LIMITED WARRANTY
Giga-Tms warrants that the products sold pursuant to this Agreement will perform in
accordance with Giga-Tms’s published specifications. This warranty shall be provided
only for a period of one year from the date of the shipment of the product from
Giga-Tms (the “Warranty Period”). This warranty shall apply only to the “Buyer” (the
original purchaser, unless that entity resells the product as authorized by Giga-Tms, in
which event this warranty shall apply only to the first re-purchaser).
During the Warranty Period, should this product fail to conform to Giga-Tms’s
specifications, Giga-Tms will, at its option, repair or replace this product at no
additional charge except as set forth below. Repair parts and replacement products will
be furnished on an exchange basis and will be either reconditioned or new. All
replaced parts and products become the property of Giga-Tms. This limited warranty
does not include service to repair damage to the product resulting from accident,
disaster, unreasonable use, misuse, abuse, negligence, or modification of the product
not authorized by Giga-Tms. Giga-Tms reserves the right to examine the alleged
defective goods to determine whether the warranty is applicable.
Without limiting the generality of the foregoing, Giga-Tms specifically disclaims any
liability or warranty for goods resold in other than Giga-Tms’s original packages, and
for goods modified, altered, or treated without authorization by Giga-Tms.
Service may be obtained by delivering the product during the warranty period to
Giga-Tms (8F No. 31 Lane 169, Kang Ning Street, Hsi Chih Dist New Taipei City,
Taiwan). If this product is delivered by mail or by an equivalent shipping carrier, the
customer agrees to insure the product or assume the risk of loss or damage in transit,
to prepay shipping charges to the warranty service location, and to use the original
shipping container or equivalent. Giga-Tms will return the product, prepaid, via a three
(3) day shipping service. A Return Material Authorization (“RMA”) number must
accompany all returns. Buyers may obtain an RMA number by contacting with
sales@gigatms.com.tw
EACH BUYER UNDERSTANDS THAT THIS GIGA-TMS PRODUCT IS OFFERED
AS IS. GIGA-TMS MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND
GIGA-TMS DISCLAIMS ANY WARRANTY OF ANY OTHER KIND, INCLUDING ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
IF THIS PRODUCT DOES NOT CONFORM TO GIGA-TMS’S SPECIFICATIONS,
THE SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT AS PROVIDED
ABOVE. GIGA-TMS’S LIABILITY, IF ANY, SHALL IN NO EVENT EXCEED THE
TOTAL AMOUNT PAID TO GIGA-TMS UNDER THIS AGREEMENT. IN NO EVENT
WILL GIGA-TMS BE LIABLE TO THE BUYER FOR ANY DAMAGES, INCLUDING
ANY LOST PROFITS, LOST SAVINGS, OR OTHER INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF, OR INABILITY TO
USE, SUCH PRODUCT, EVEN IF GIGA-TMS HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER PARTY.
LIMITATION ON LIABILITY
EXCEPT AS PROVIDED IN THE SECTIONS RELATING TO GIGA-TMS’S LIMITED
WARRANTY, GIGA-TMS’S LIABILITY UNDER THIS AGREEMENT IS LIMITED TO
THE CONTRACT PRICE OF THIS PRODUCT.
GIGA-TMS MAKES NO OTHER WARRANTIES WITH RESPECT TO THE PRODUCT,
EXPRESSED OR IMPLIED, EXCEPT AS MAY BE STATED IN THIS AGREEMENT,
AND GIGA-TMS DISCLAIMS ANY IMPLIED WARRANTY, INCLUDING WITHOUT
LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE.
GIGA-TMS SHALL NOT BE LIABLE FOR CONTINGENT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES TO PERSONS OR PROPERTY. GIGA-TMS
FURTHER LIMITS ITS LIABILITY OF ANY KIND WITH RESPECT TO THE
PRODUCT, INCLUDING ANY NEGLIGENCE ON ITS PART, TO THE CONTRACT
PRICE FOR THE GOODS.
GIGA-TMS’S SOLE LIABILITY AND BUYER’S EXCLUSIVE REMEDIES ARE
STATED IN THIS SECTION AND IN THE SECTION RELATING TO GIGA-TMS’S
LIMITED WARRANTY.
Contents
Chapter 1 : Introduction ........................................................................ 1
Introduce .............................................................................................................. 1
Fitting ................................................................................................................... 1
Chapter 2：About TS100(TS100A) ....................................................... 2
Specification ........................................................................................................ 2
LED Indication ..................................................................................................... 3
Chapter 3：Troubleshooting ................................................................ 5
Contact Us ............................................................................................. 6
© 2018 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
TS100(TS100A) Hardware User Guide
1
Chapter 1 : Introduction
Introduce
The TS100 and TS100A include Antenna. It is all in one Ultra High Frequency RFID Reader
compliant to ISO18000-6C EPC Gen 2 protocol with an operating range of 860 to 960 MHz.
TS100 include USB HID connect to POS or PC. And TS100A have extra USB HID can
connect to barcode scanner.
Before using the TS100 (TS100A) Reader. We recommend that you should already read
this user guide.
Fitting

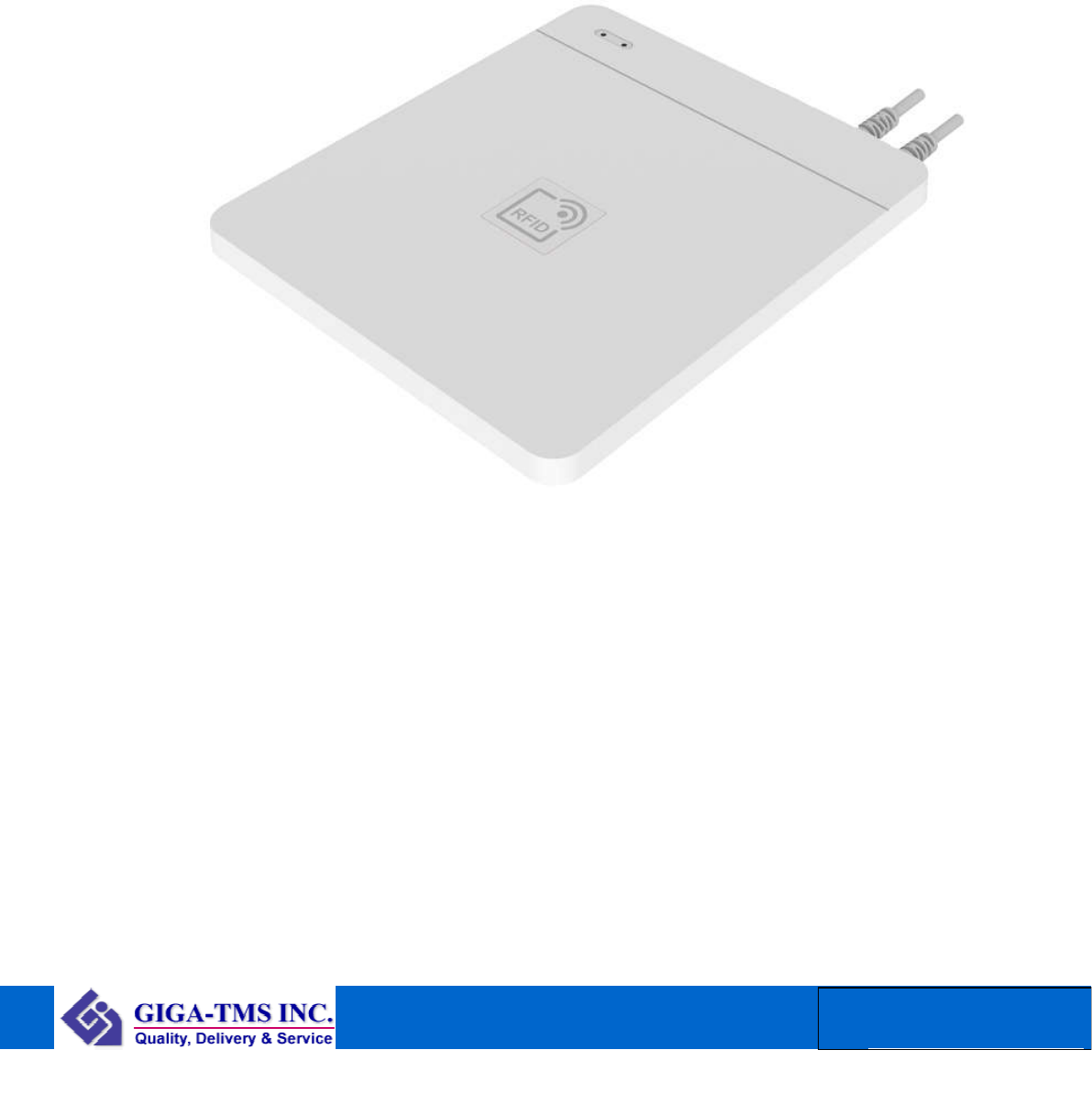

TS100 Top View TS100A Top View
Software download table
© 2018 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
TS100(TS100A) Hardware User Guide
2
Chapter 2：About TS100(TS100A)
Specification
TS100 series
PART NO TS100 TS100A
Standard
RFID spec ISO 18000-6C, EPC Class1 Gen2
Operating Frequency
860-960Mhz Multi-regional Support
Interface Wire - USB HID keyboard emulation
Wireless - 1) 2.4GHz WIFI, 802.11 b/g/n
2) BLE (optional)
Power Require Working : Max 500A@5VDC
Dimension L: 180mm / W: 155mm / H: 9.5mm (without rubber foot)
Physical Characteristics
Weight 396 g 427 g
Environment parameter
Operating : -10°C ~ +60°C Temperature
Storage : -15°C ~ +65°C
Operating : +0% ~ +90% (no coagulation) Humidity
Storage : MAX 90% (no coagulation)
Regulatory approvals
Authentication CE R&TTE FCC ID
EN 301 489-1 : V2.2.0
(2017)
Part 15 subpart B
15.109/15.107
EN 301 489-3 : V2.1.1
(2017)
Part 15 subpart C
15.247 (2017 - 10)
EN 301 489-17 : V3.2.0
(2017)
EN 302 208 V3.2.0 (2018)
EN 300 328 V2.1.1 (2016)
IEC 62368-1 : 2014 /
COR1:2015
EN 62368-1:2014 /
A11:2017
EN62311 : 2008
ESD Contact : 4kv , Air : 8kv
© 2018 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
TS100(TS100A) Hardware User Guide
3

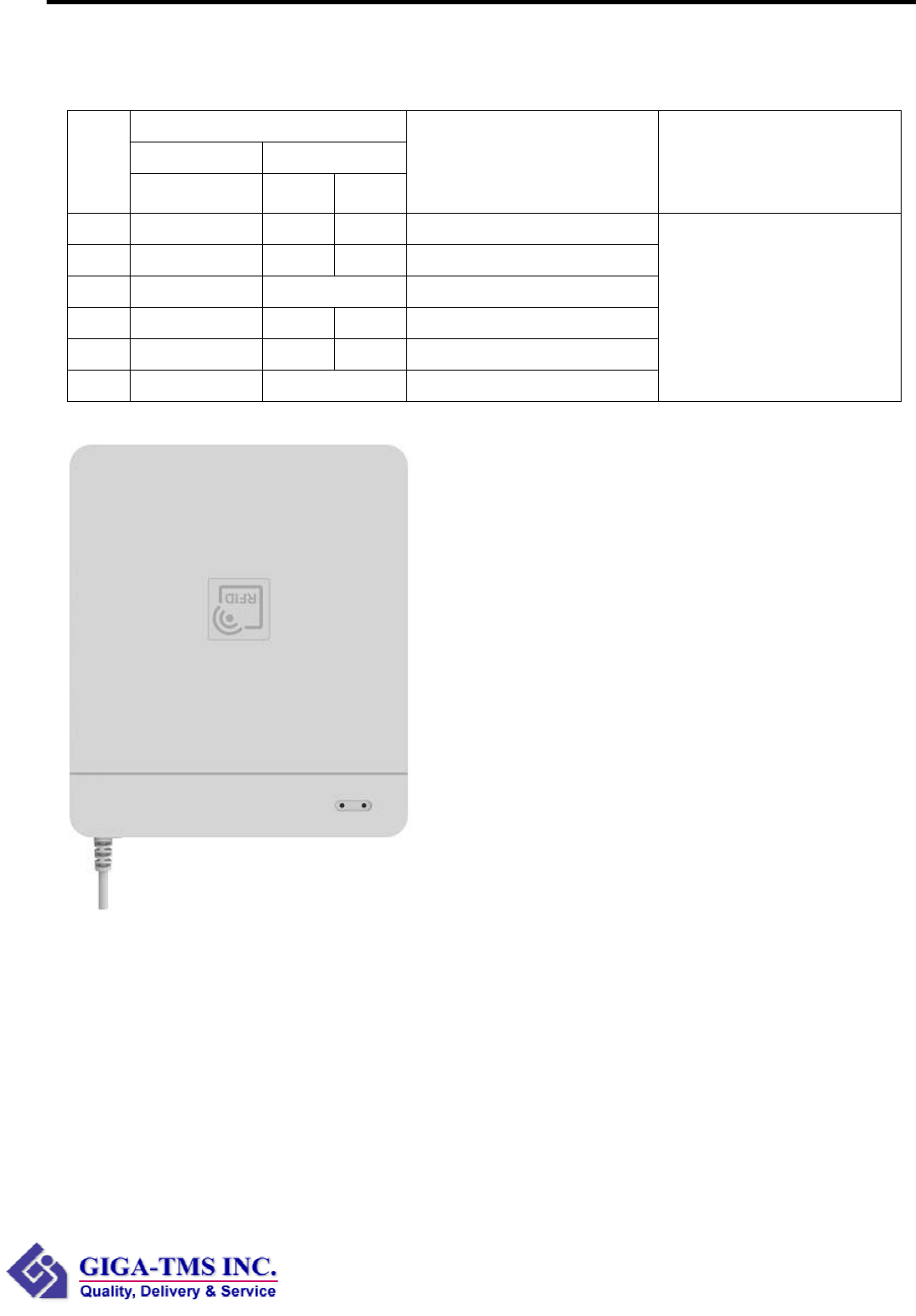

LED Indication
TS100
LED Status
Single LED
Dual LED
Status
Blue Red Green
TS100 mode Buzzer
1 - - ● Reader Mode
2 - - ● Customized Reader Mode
3 - ● Tag Analysis Mode
4 ● - ● Deactivate Mode
5 ● ● - Reactivate Mode
6 ● ● Configure mode
Change mode
Success : Long beep
Failure : Short beep
© 2018 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
TS100(TS100A) Hardware User Guide
4

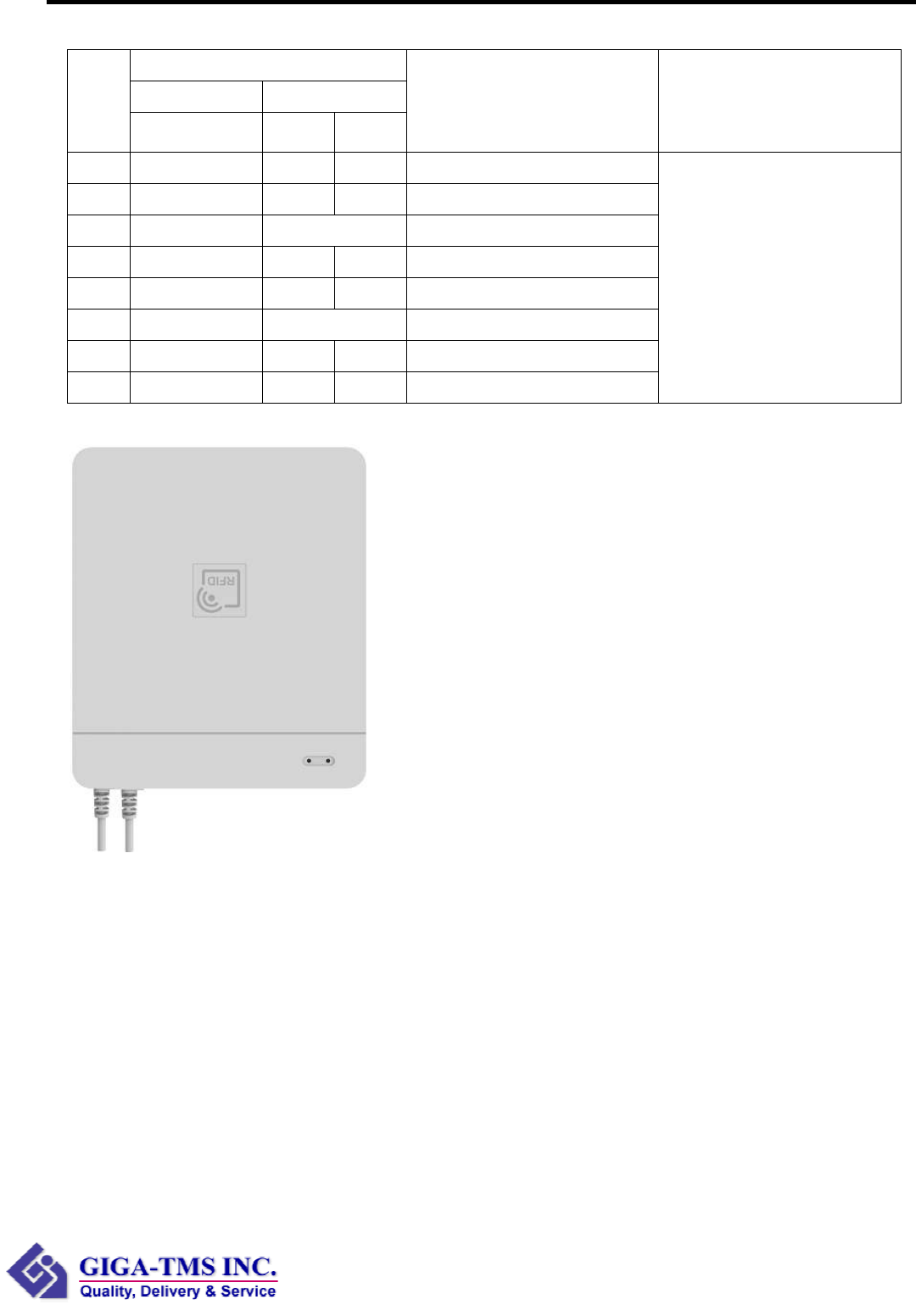

TS100A
LED Status
Single LED
Dual LED
Status
Blue Red Green
TS100A mode Buzzer
1 - - ● Reader Mode
2 - - ● Customized Reader Mode
3 - ● Tag Analysis Mode
4 ● - ● Deactivate Mode
5 ● ● - Reactivate Mode
6 ● ● Configure mode
7 ● - - Encoder Mode
8 - ● - Barcode Verify Mode
Change mode
Success : Long beep
Failure : Short beep
© 2018 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
TS100(TS100A) Hardware User Guide
5
Chapter 3：Troubleshooting
1. Cannot connect to TS100(TS100A) with TS100(TS100A) software?
Please check that the TS100(TS100A) is actually connected to the POS or PC.
Please check the power light of TS100(TS100A) is lighting
© 2018 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
TS100(TS100A) Hardware User Guide
6
Contact Us
Address:
8F, NO.31, Lane 169, Kang-Ning Street, His-Chih Dist, New Taipei City, Taiwan
Tel:
886-2-26954214
Fax:
886-2-26954213
Websites:
www.gigatms.com.tw
Email:
Sales inquiry email - promag@gigatms.com.tw
After sales service - support@gigatms.com.tw
