GIGA TMS TS800 UHF RFID Reader User Manual Visio TM970227 TS800 20181030 vsd
GIGA-TMS INC. UHF RFID Reader Visio TM970227 TS800 20181030 vsd
GIGA TMS >
Users Manual
2018/03/27
TM970227
Safety Certifications
Has been tested in accordance to essential protection requirements of the
R&TTE Directive 1999/5/EC on the approximation of the laws of the Member
States relating to Radio Spectrum Matters and found the test results indeed meet
the limitation of the relevant test standard(s) listed below:
EMC / Radio Spectrum / Safety / Health
EN55032 Class B (2015)
EN55024 (2010)
ICE/EN61000-4-2 (2009)/-3(2006+A2:210)/-8(2010)
EN 301 489 -1: V2.2.0 (2017)
EN 301 489 -3: V2.1.1 (2017)
EN 301 489 -17: V3.2.0 (2017)
EN 302 208: V3.1.1 : (2016)
EN 302 328: V2.1.1 : (2016)
EN 62368 - 1: 2014/A11 : 2017
EN62311 : 2008
Test standard: FCC rules Part 15 subpart C 15.247 (2017 - 10)
Test Result: No deviations from the technical specification(s) were ascertained in
the course of the tests performed.
Test standard: FCC rules Part 15 subpart B
Test Result: Radiated Emission. FCC Part 15. 109 Class B. Test passed.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, Pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
. Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, any changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority to operate
this equipment. (Example - use only shielded interface cables when connecting to computer or
peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
Transmitter. The antennas used for this transmitter must be installed to provide a separation distance
of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Contains transmitter module: FCC ID: 2AC7Z-ESPWROOM02, FCC ID: 2AE2I-ACI810700S
20mm Low-profile, fully integrated Reading Station with antenna
UHF RF Interface Compliant with EPC Class1 Gen2,ISO18000-6C
Configurable RF output power up to 24dBm
Up to 30cm reading range. ( depend on transponder )
Can be mounted on a metal desk
The limited field can only be read above
Support USB Visual Com and HID with USB Type C connector
Integrated wakeup sensing system or external digital input for low
power detection of object presence
Built-in digital input / output for external control
Power supply from the USB port.
2.4 GHz WiFi interface support 802.11 b/g/n
Optional Bluetooth Low Energy ( BLE4.0 )
Optional support iOS / Andriod Application APP

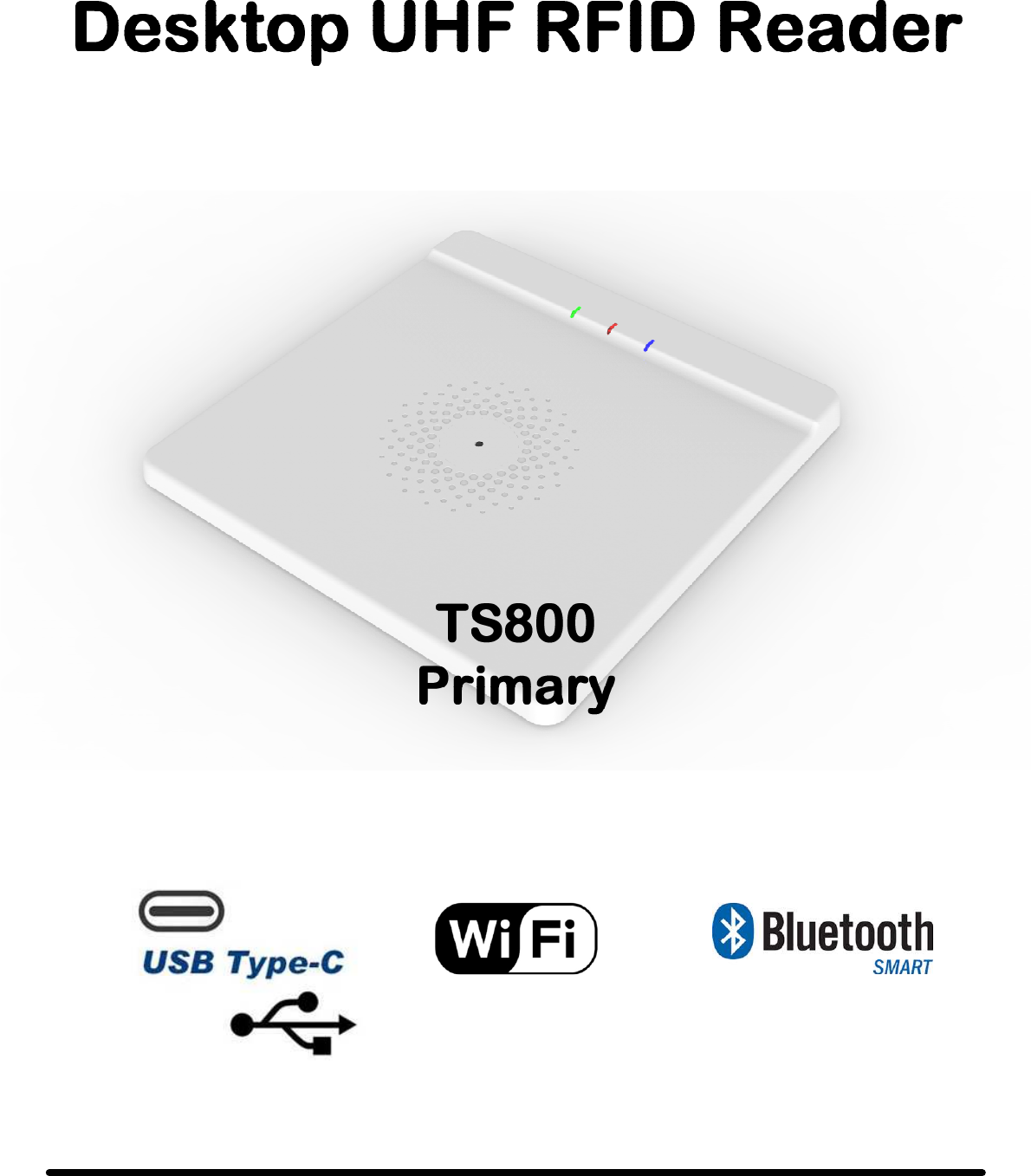

TS800 Reading Station’s innovative design combines industry-
leading UHF reader technology with a unique embedded antenna into
a single, flexible, cost-effective RFID solution for various applications
such as point-of-sales, document tracking, RFID programming
stations and so on. Small in size and convenient, the TS800 Reading
Station is compact enough to fit on most point of sales or desktop
stations.
TS800 is a low-profile, fully integrated Reading Station with
controlled read/write fields for use-cases that demand accurate, well-
defined reading zones such as those found in Retail applications or
any other application requiring a powerful UHF reading station for
stacked RFID-tagged items.
TS800 Is a fixed device that can be fixed on wall or under/built-I the
table for any application that requires a fixed working place.
TS800
Primary
TS800
Primary

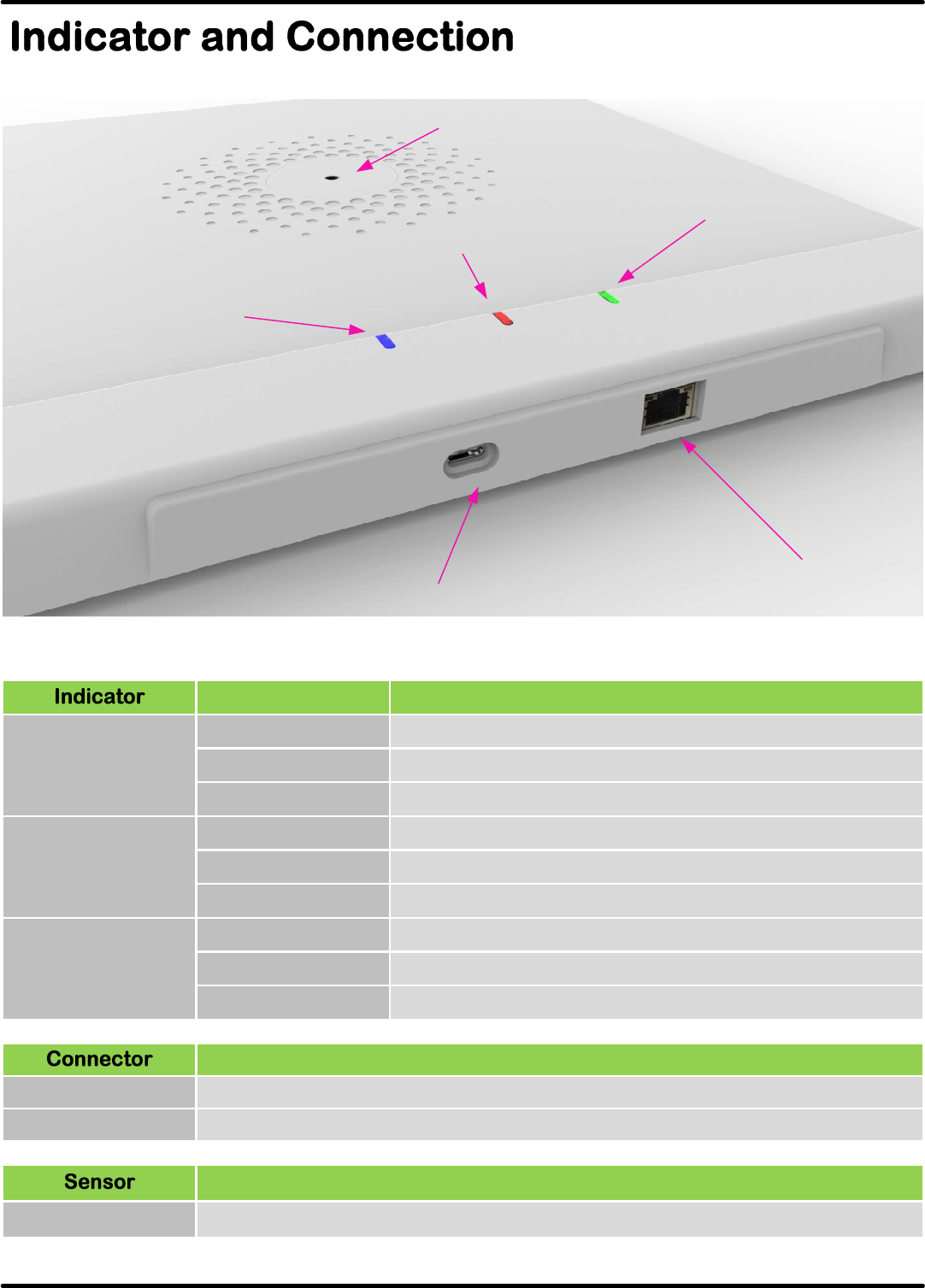

TOF Sensor
Blue LED
WiFi / BLE Status
Green LED
Scan / Read Tag
Red LED
TOF Sensor
USB Type C
RJ45
DI/DO Port
Green LED
Scan / Read Tag
Off Standby
Action Description
Flicker Scan Tag
On Tag is read
Red LED
TOF Sensor
Blue LED
WiFi/BLE Status
Off Power Off
Flicker WiFi / BLE Connecting search
On Wifi / BLE is Connected
USB 2.0 for HID or Visual Com Port for Communication and Power
Description
USB Type C
Digital Input *3 , Digital Output*2 , GND and 5VDC outputRJ45
Detection of object presence and than trigger scan
Description
TOF sensor
Off No objects detected in the field
Flicker Field detected objects but not into the scanning range.
On Field detected objects and into the scanning status.
UHF RFID :
EU: 865~868 MHz
US: 902~928 MHz
5VDC from USB Type C / 900mA
RFID
Operating Frequency
Power Requirement
Power Consumption 2.8 W max
Adjustable 10 ~ 24 dBm
Up to 30 cm
Output Power
Reading Range
Antenna -5.5 dBi Integrated antenna
Wire :
USB 2.0 Type C HID or Visual Com Port
Wireless LAN :
2.4GHz WiFi , 802.11 b/g/n
Support WPA/WPA2
Support Smart Link Function for both Android and iOS device
Bluetooth :
Bluetooth Low Energy, Bluetooth v4.2 Compliant Protocol Stack For
Single-Mode
EPCglobal Class1 Gen2
ISO18000-6C
Communication
Interface
Supported
Transponders
Indicators
Green LED for RFID Scan, Tag Read
Red LED for Object detection
Blue LED for Communication status
Buzzer for sound
Operating : -10°C to +60°C
Storage : -20°C to 70°C
32.0 cm x 32.0 cm x 2.0 cm
Temperature
Dimensions( L x W x H)
Weight Approx. 1.5kg without accessory
ABS Plastic / Metal
White
Housing Material
Color
TS800
Primary
RJ45 8-pin connector providing GPIO signalsI/O Connection
Sensor Time of Flight Ranging sensor
TS800
Primary
UNIT : mm

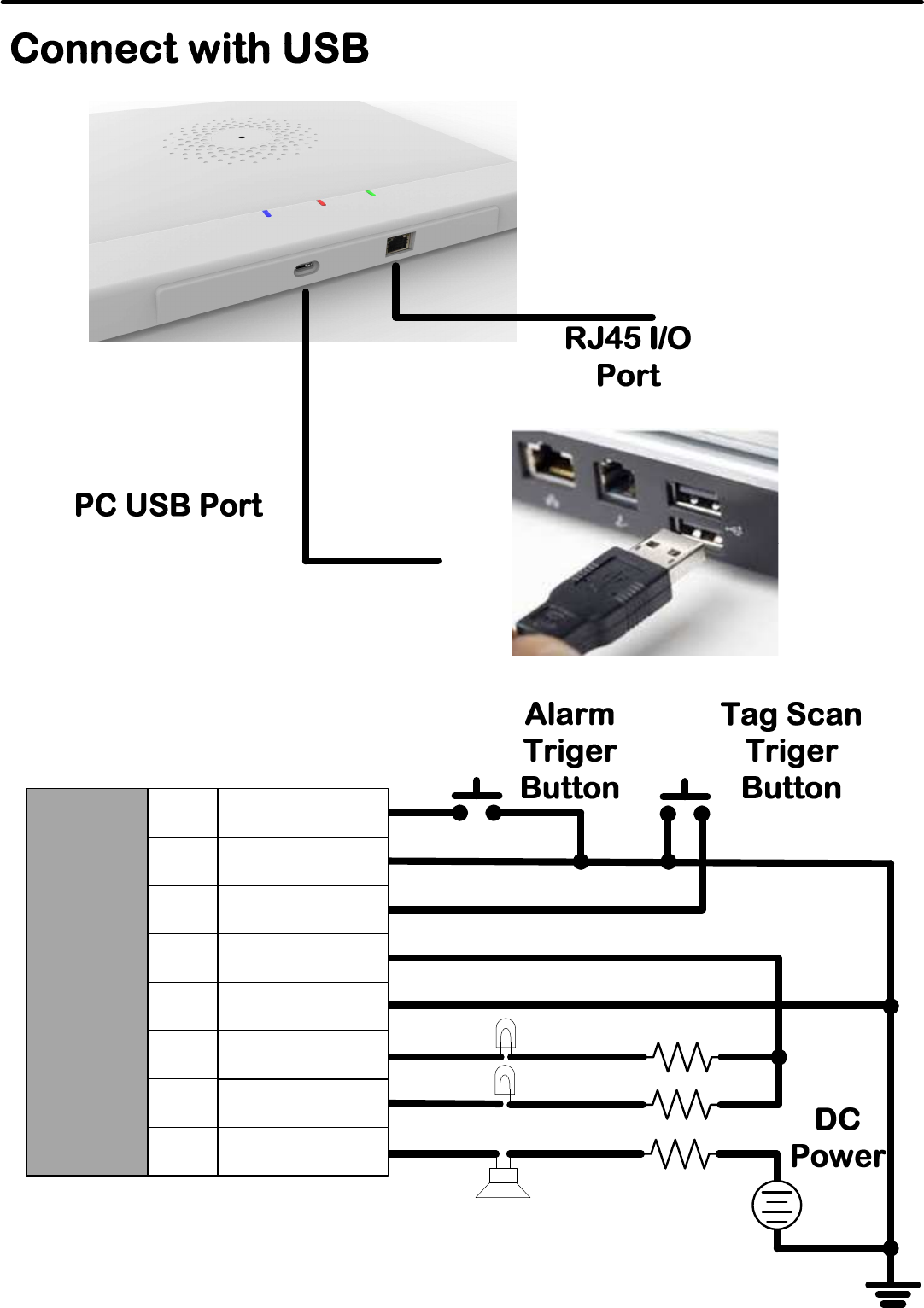

RJ45
I/O Pin
Assignme
nt
Digital Input 2
GND
Digital Input 1
Digital Output 1
+5V/100mA
Output
GND
Digital Output 3
Digital Output
2
1
2
3
8
4
5
6
7
TS800
TS800
