HOME AC ROUTER
Press and hold for 3 seconds then release to repair your network.
Press and hold for 10 seconds then release to reset the router
to factory settings. All user data will be cleared.
If you cannot access the web-based setup page or cannot connect to the router,
you can press the Reset button:
Repair / Reset
HARDWARE
Mesh
GL-B1300 AC router
Ethernet cable
12V/1.5A power adpater
User guide
Package Contents
When powered up, your mini router will broadcast a
Wi-Fi signal with the SSID: GL-XXXXX-xxx.

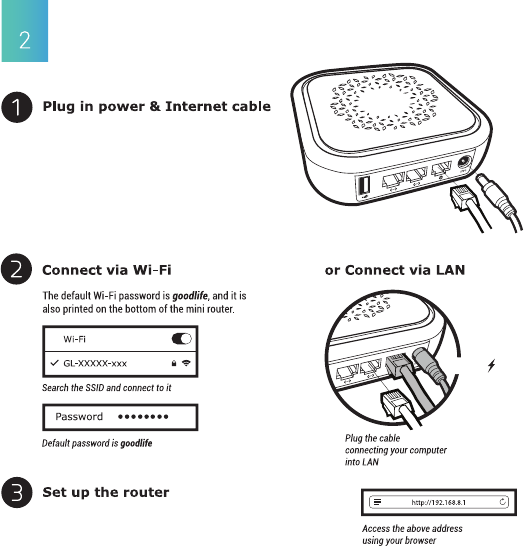

Visit http://192.168.8.1 in your browser to set up your
router; start by choosing your preferred language.
Plug the Internet
cable into WAN
Power In
Power
FIRST-TIME SETTINGS
Data In
Power In
After you have set up your mini router, you will see the main web interface.

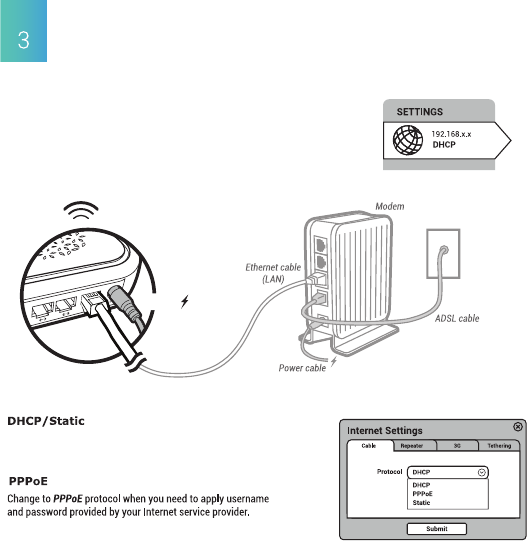

Find the Internet Settings icon, then click the New Connection button.
Choose Cable from the pop-up Internet Settings window.
The default protocol is DHCP. If your network needs a static
setting, you can change it to Static.
Data In
INTERNET SETTINGS
Power In
Sub Router2
Pair routersPlug in power & Internet cable Mesh network
You can pair two routers by pressing their Mesh Buttons at the same time. The pairing
starts right after their Mesh LED lights start blinking. After 2 minutes, their mesh lights
will be soild indicating the mesh network is reday. You can pair another router with the
main router by following above steps.
The mesh network works among routers when their Mesh LED lights are soild. Home
materials and layout can affect how Wi-Fi signal travels. You might need extra
routers to get full Wi-Fi coverage if you have a long narrow layouts and thick walls.
If you have more than one GL-B1300 router, you can set up a mesh network. In a mesh network, the routers will
share same Wi-Fi names (SSID) for 2G and 5G Wi-Fi networks.
WAN
MESH NETWORK SETTINGS
By default, the router with Ethernet cable plugged into its WAN port is the main router. You need to reset the router to change
your main router or release a router used to be in a mesh network.
Power In
Blinking - mesh network is setting up
Off - mesh network is off
Soild - mesh network is ready
WAN 2G + 5G
2G + 5G
2G + 5G
Power In
Main Router Main Router Main Router
Power In
Sub Router1
The router with Ethernet cable plugged into its WAN port is the Main Router. The other routers without
Ethernet cables are Sub Routers.
Sub Router1
Sub Router1
Sub Router2
WIRELESS SETTINGS
GL-XXX-xxx
173M
GL-XXX-xxx-5G
866M
ON
ON Mode
Channel
SSID
Encryption
Password
173M(11ng)
Auto
GL-XXX-xxx
WPA/WPA2 Mixed
AP 2.4G AP 5G
Wireless Settings LAN IPSetting
Wi-Fi Name
Wi-Fi Password
On the Wireless Setting page, you can change your Wi-Fi Name (SSID) and Wi-Fi Password to increase the security of
your router. New changes will be in effect after you click Submit.
Find the Wireless Settings icon, then click the Setting button. The Wireless Settings window will pop up.
It is NOT recommended to turn off your wireless network when you are connecting to your router wirelessly. Otherwise, all wireless
connections to your router will be cut off immediately. To use the hotspot again, you can plug your router into a computer and turn on the
Wi-Fi, or you can repair the network (See Hardware).
Click here to select files or drag and drop them here: .ovpn .zip .tar .gz
Some of your ovpn files need a username, a passowrd and a
passphrase. Please submit yours to authenticate these files.
After uploading the ovpn files, the router will check them. If
you are prompted for a username and password, or a private
key passphrase, or both, a window for VPN Authentication
will pop up so that you can Submit these information for all
files you upload.
This may not be necessary for some service providers.
This router supports OpenVPN client. Using OpenVPN will slow down your Internet
speed because of data encryption.

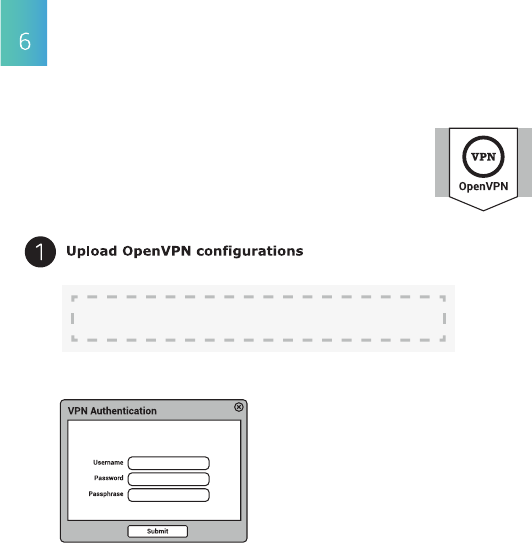

Click the OpenVPN icon and go to the VPN setting page. The first time it will ask
you to upload your OpenVPN client configuration (ovpn files). Usually, you can
download it from your OpenVPN service provider’s website or console. Consult your
service provider for more details.
OPENVPN CLIENT
To protect against DNS leaks, you must customize your DNS servers. You can enable Force all clients to override the
DNS server settings for your client devices. To customize your DNS server, go to Internet Settings > Custom DNS
To get more detailed instructions or information about compatible VPN service providers, please visit http://gl-inet.com/docs/
Using above DIY features might have a risk of bricking your router. We have no obligation to provide support, maintenance,
upgrades, modifications, or new releases on DIY features. We reserve the rights of interpretation on above DIY contents
without further announcement.
DDWRT official firmware is not available for GL.iNet models except for GL-AR150 mini router. For further
information, please visit https://www.dd-wrt.com
DIY GUIDANCE
Shenzhen Guanglianzhitong Tech Co., Ltd.
Room 305-306, Skyworth Digital Bldg., Songbai Rd., Bao’an,
Shenzhen, China
TEL: +86-0755-86606126
SUPPORT
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Note 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a articular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Note 2: 1.Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
2. The minimum separation generally be used is at least 20 cm.
The Equipment named above is confirmed to comply with the requirements setout in the European Council Directive on the
Approximation of the Laws of the Member States relating to RED (2014/53/EU) and RoHS (2011/65/EU). The equipment passed the
test which was performed according to the following European standards:
EN 300 328 V2.1.1; EN 301 893 V2.1.0; EN 300 440 V2.1.1
EN 301 489-1 V2.1.1; EN 301 489-17 V3.1.1
IEC/EN 62368-1:2014 (Second Edition)
IEC/EN 60065:2014 (Eighth Edition)
EN 60950-1:2006 (Second Edition) + A1:2010 + A2:2013
This product uses WiFi
2.4GHz Operating Frequency is 2400~2483.5MHz; 5GHz Operating Frequency is 5150 ~ 5250MHz and 5725 ~ 5850MHz;
RF Exposure: The highest measured 1g (simultaneous transmission)
Manufacturer: GL Technologies (Hong Kong) Limited, Unit 210D, 2/F, Enterprise Place Hong Kong Science Park, Shatin, Hong Kong
Shenzhen Guanglianzhitong Tech Co., Ltd. Room 305-306, Skyworth Digital Bldg., Songbai Rd., Bao’an, Shenzhen, China
FCC ID: 2AFIW-B1300
The Equipment named above is confirmed to comply with the requirements setout in the European Council Directive on the
Approximation of the Laws of the Member States relating to RED (2014/53/EU) and RoHS (2011/65/EU). The equipment passed the
test which was performed according to the following European standards:
EN 300 328 V2.1.1; EN 301 893 V2.1.0; EN 300 440 V2.1.1
EN 301 489-1 V2.1.1; EN 301 489-17 V3.1.1
IEC/EN 62368-1:2014 (Second Edition)
IEC/EN 60065:2014 (Eighth Edition)
EN 60950-1:2006 (Second Edition) + A1:2010 + A2:2013
This product uses WiFi
2.4GHz Operating Frequency is 2400~2483.5MHz; 5GHz Operating Frequency is 5150 ~ 5250MHz and 5725 ~ 5850MHz;
RF Exposure: The highest measured 1g (simultaneous transmission)
Manufacturer: GL Technologies (Hong Kong) Limited, Unit 210D, 2/F, Enterprise Place Hong Kong Science Park, Shatin, Hong Kong
Shenzhen Guanglianzhitong Tech Co., Ltd. Room 305-306, Skyworth Digital Bldg., Songbai Rd., Bao’an, Shenzhen, China
Atheros IPQ4028 Quad-core ARM, @717MHz
DDR3L 256MB / FLASH 32MB
2.4GHz + 5GHz
400Mbps (2.4G) + 867Mbps (5G)
20dBm
IEEE 802.11 a/b/g/n/ac
10/100/1000M
12V 1.5A
< 7W
116*116*37mm / 270g
1WAN, 2LANs, 1USB3.0, 2buttons
0 - 45°C (32 - 113°F)
CPU
Memory / Storage
Frequency
Transmission Rate
Max Tx Power
Protocol
Ethernet Type
Power Input
Power Consumption
Dimension / Weight
Interface
Working Temperature
