User Manual

4G Smart Router
Industrial Grade 4G LTE to WiFi
Designed for Privacy Protection
microSD Max.Model OpenVPN
IoT Gateway
LT E
4G
Specifications
Atheros AR9331, @400MHz
DDR 64MB/ FLASH 16MB
1 WAN, 1LAN, 1 USB2.0, 1 micro USB (power),
SIM card slot, MicroSD card slot, Antenna SMA mount holes
2.4GHz
150Mbps
18dBm
802.11 b/g/n
5V/2A
<3W
105*72*27mm, 170g
CPU
Memory
Interfaces
Frequency
Transmission rate
Tx power (maximum)
Protocol
Power supply
Power consumption
Dimension
Micro SIM Card
(Corner cut facing outside)
TF Card / Micro SD Card (Optional)
Insert Micro SIM Card & Power On
Set up GL-MiFi
Done
Connect via LAN / Wi-Fi
Press & hold the button
for 3 seconds
Default Password is “goodlife”
Go to browser and input IP address
Index > Internet Setting > 3G Settings
Select your “Country / Region”, “Service Provider” and Modem Information
Plugin cable into LAN port
Search the SSID & connect to it
Click here to select files or drag and drop them here: .ovpn .zip .tar .gz
Some of your ovpn files need a username, a passowrd and a
passphrase. Please submit yours to authenticate these files.
After uploading the ovpn files, the router will check them. If
you are prompted for a username and password, or a private
key passphrase, or both, a window for VPN Authentication
will pop up so that you can Submit these information for all
files you upload.
This may not be necessary for some service providers.
This router supports OpenVPN client. Using OpenVPN will slow down your Internet
speed because of data encryption.
Click the OpenVPN icon and go to the VPN setting page. The first time it will ask
you to upload your OpenVPN client configuration (ovpn files). Usually, you can
download it from your OpenVPN service provider’s website or console. Consult your
service provider for more details.

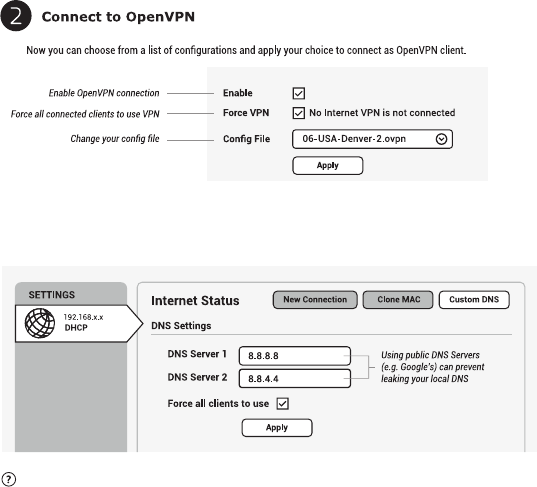

To protect against DNS leaks, you must customize your DNS servers. You can enable Force all clients to override the
DNS server settings for your client devices. To customize your DNS server, go to Internet Settings > Custom DNS
To get more detailed instructions or information about compatible VPN service providers, please visit http://gl-inet.com/docs/
Using above DIY features might have a risk of bricking your router. We have no obligation to provide support, maintenance,
upgrades, modifications, or new releases on DIY features. We reserve the rights of interpretation on above DIY contents
without further announcement.
GL-AR150 has an official DDWRT firmware which you can download from DDWRT website. DDWRT firmware is not
available for other GL models. For further information, please visit https://www.dd-wrt.com
深圳市广联智通科技有限公司
深圳市宝安区石岩街道松白路创维数码大厦305-306 ( +86-0755-86606126 )
ver. 20170720.1
