GLOBALCOM ENGINEERING SPA BV1000CL Contactless Unattended Reader

User manual

This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden.
User Manual
Revision R01-13
P/N: MAEU010
BV1000CL
Contactless Unattended Reader
DRAFT V01
Globalcom Engineering
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
2
INDEX
BV1000CL ......................................................................................................................................................... 1
INDEX .......................................................................................................................................................... 2
FIGURE INDEX .............................................................................................................................................. 2
1 DECLARATION OF CONFORMITY .................................................................................................................... 3
1.2 WARNINGS ............................................................................................................................................. 5
1.3 BV1000CL ENVIRONMENT CONFORMITY ..................................................................................................... 6
1.4 BV1000CL REAR INDICATIONS ..................................................................................................................... 6
2 SAFETY INFORMATIONS AND INSTRUCTIONS ................................................................................................. 7
2.1 GENERAL SAFETY INFORMATION ............................................................................................................ 7
2.2 BASIC RULES .......................................................................................................................................... 7
2.3 IMPORTANT SAFETY INSTRUCTIONS ....................................................................................................... 7
3 WARRANTY CONDITIONS ............................................................................................................................... 8
4 VIEW AND ORDER CODES .............................................................................................................................. 9

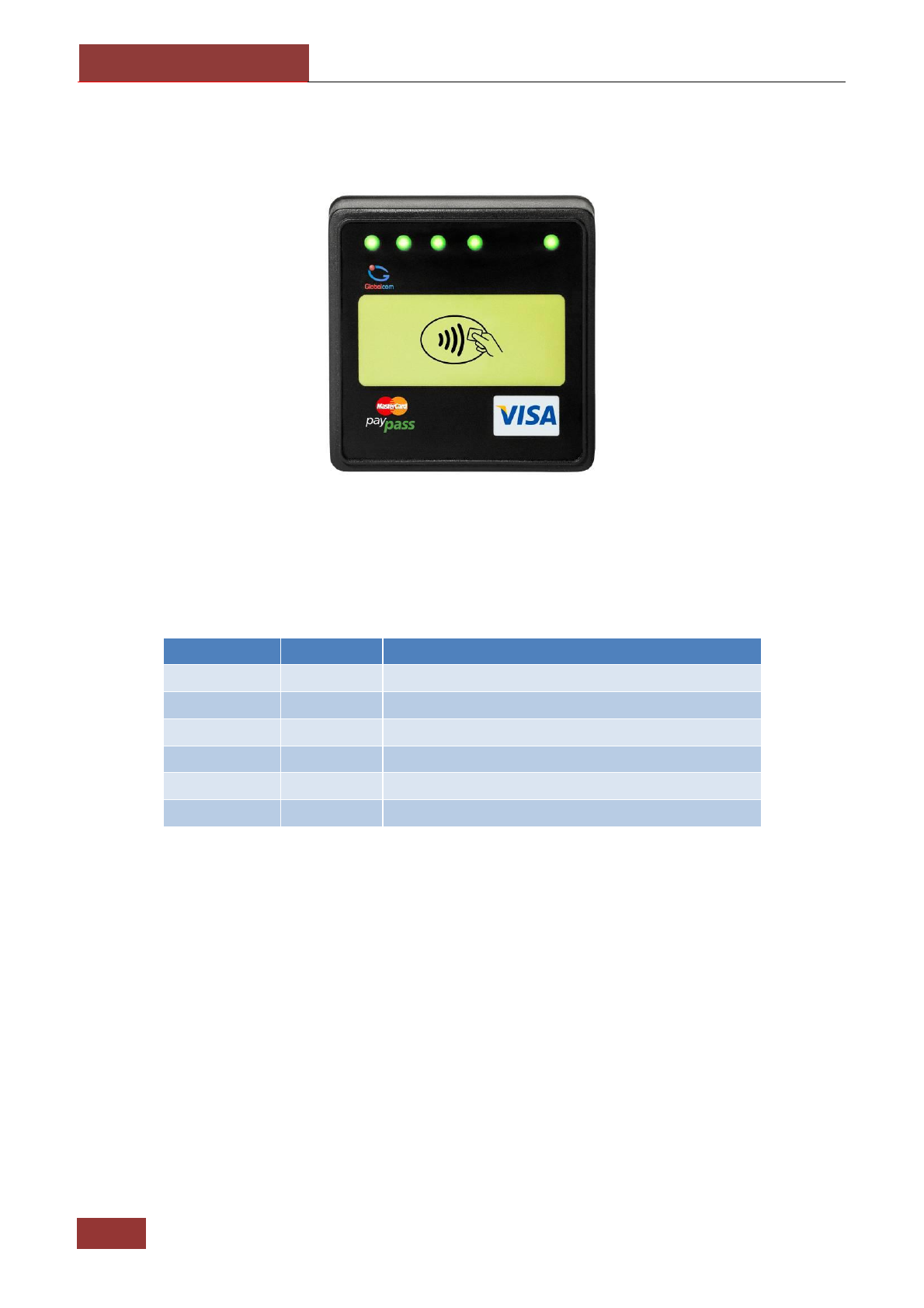

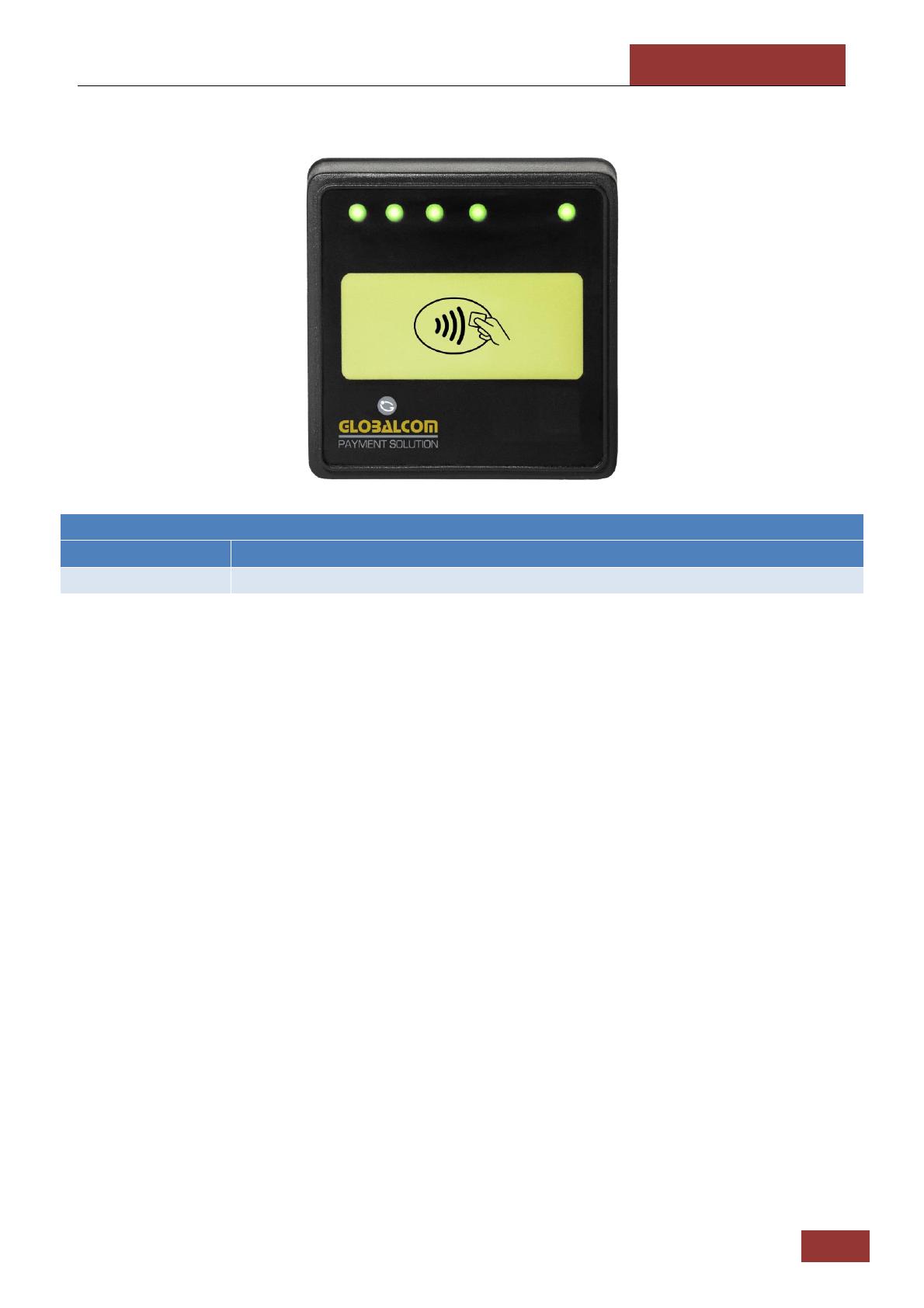

4.1 OVERVIEW ........................................................................................................................................... 10
4.2 PACKING LIST ....................................................................................................................................... 11
5 TECHNICAL SPECIFICATIONS ........................................................................................................................ 12
5.1 BV1000CL TECHNICAL SPECIFICATIONS ................................................................................................. 12
5.2 BV1000CL SPECIFICATIONS ................................................................................................................... 13
6 BV1000CL CONNECTORS VIEW..................................................................................................................... 14
6.1 BV1000CL FRONT VIEW ........................................................................................................................ 14
6.2 BV1000CL BACK VIEW .......................................................................................................................... 15
7 CABLE .......................................................................................................................................................... 18

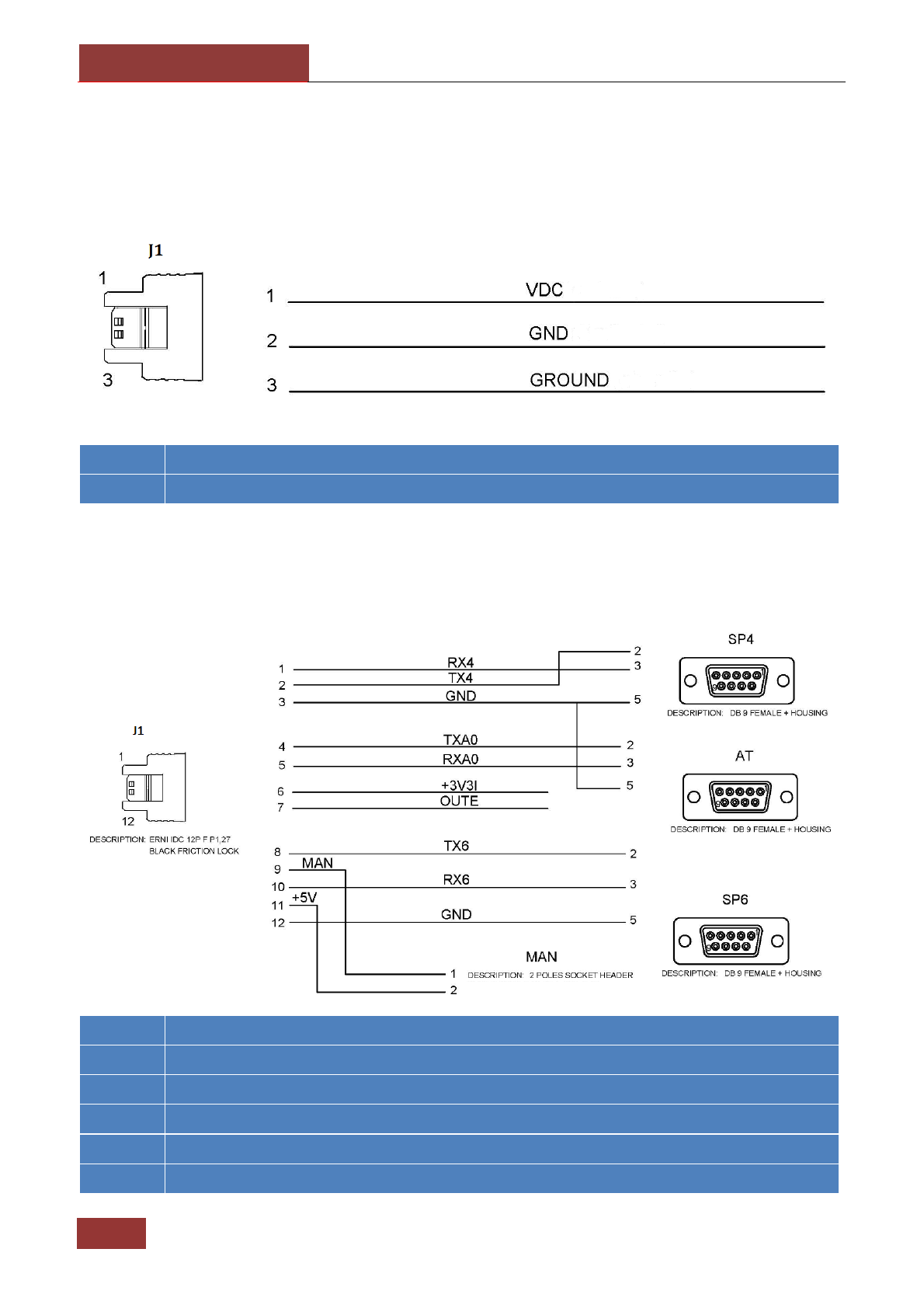

7.1 CAC0096 POWER CABLE ....................................................................................................................... 18
7.2 CAC0136 BV1000CL GBC SERIAL CABLE ................................................................................................. 18

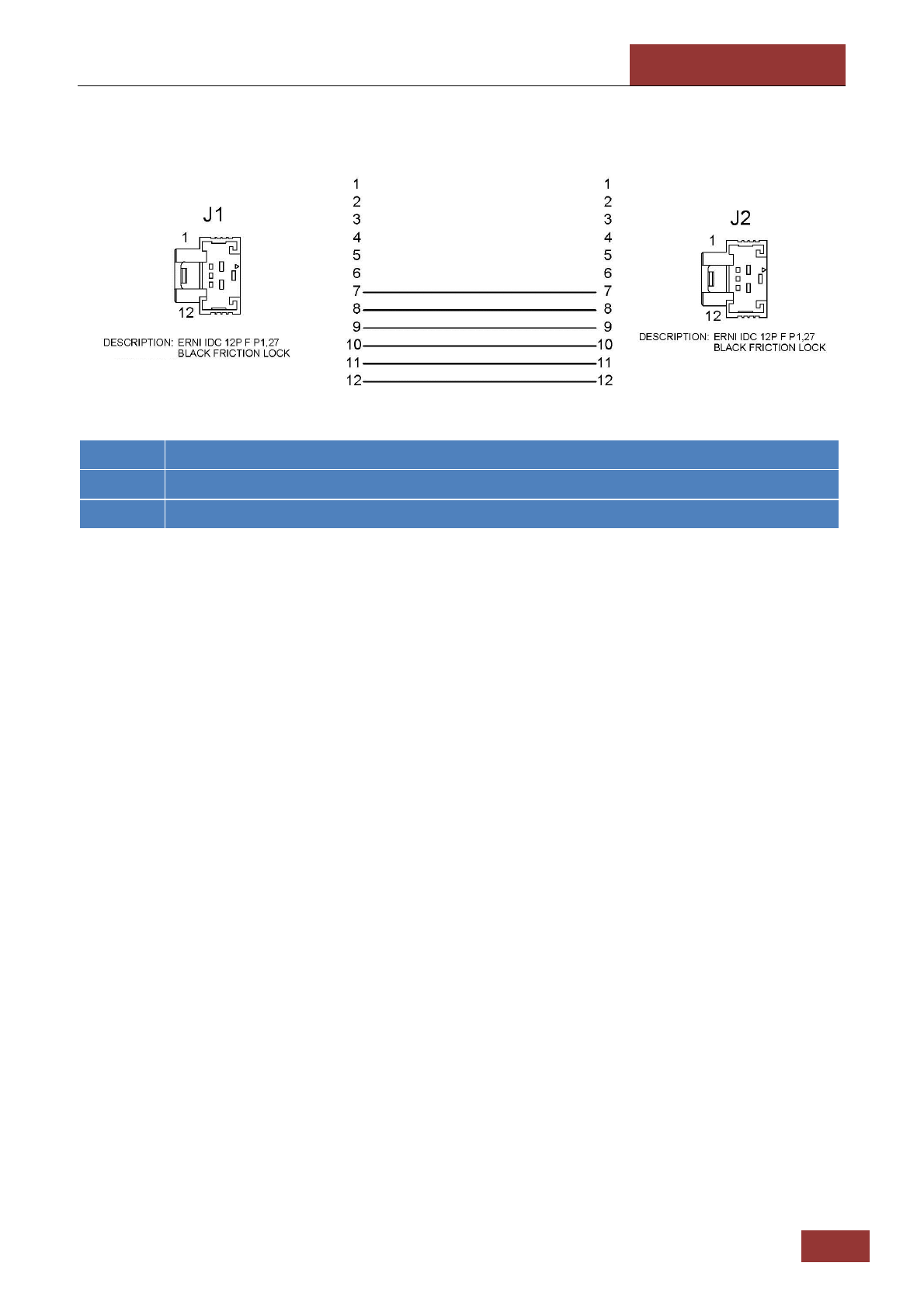

7.3 CAC0138 CABLE BV1000R-BV1000CL .................................................................................................... 19
8 MECHANICAL DIMENSIONS .......................................................................................................................... 20
8.1 BV1000CL MECHANICAL DIMENSIONS .................................................................................................. 20

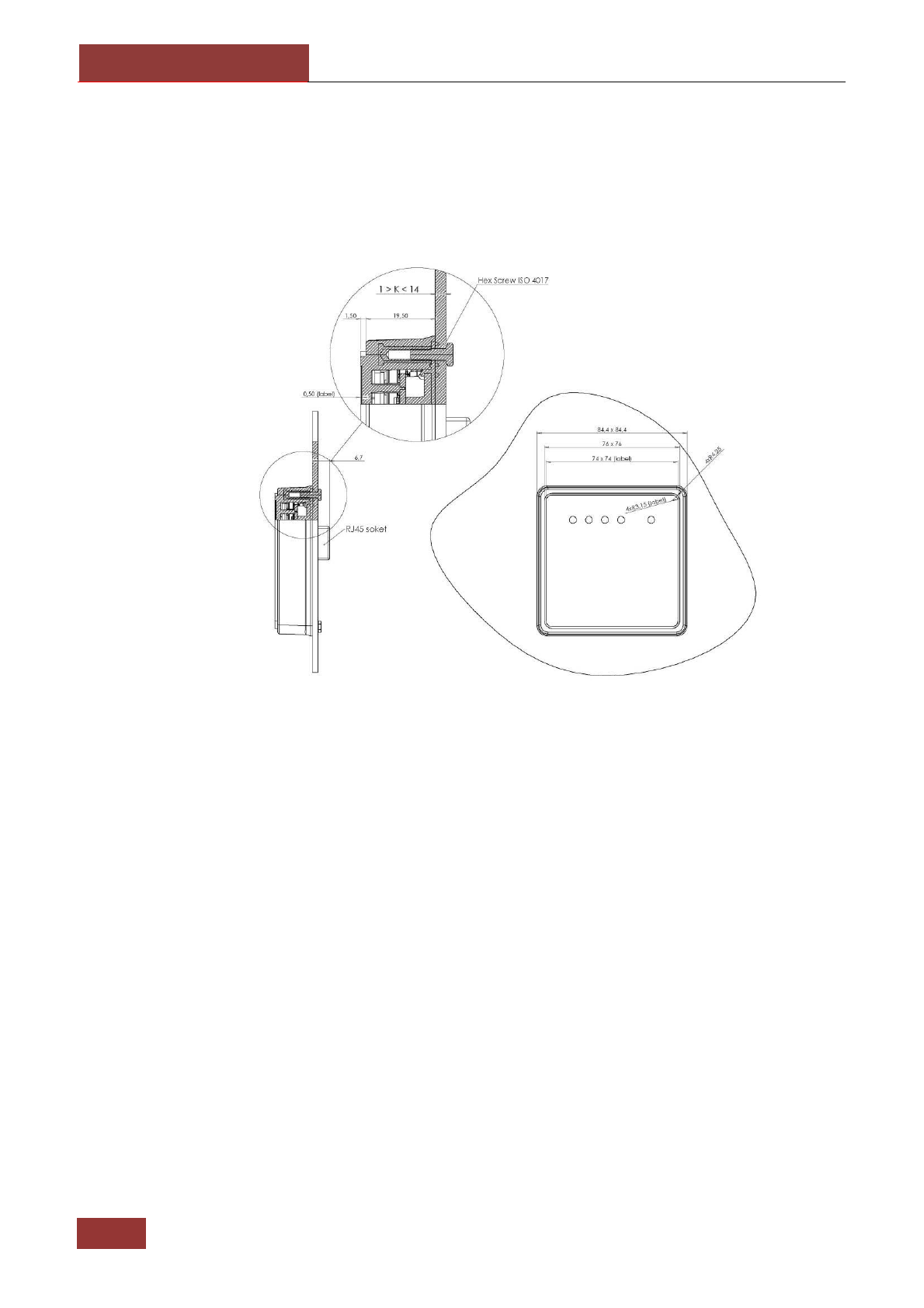

8.2 BV1000CL PANEL DRILLING .................................................................................................................. 22
9 HOW TO CONTACT US ................................................................................................................................. 23
FIGURE INDEX

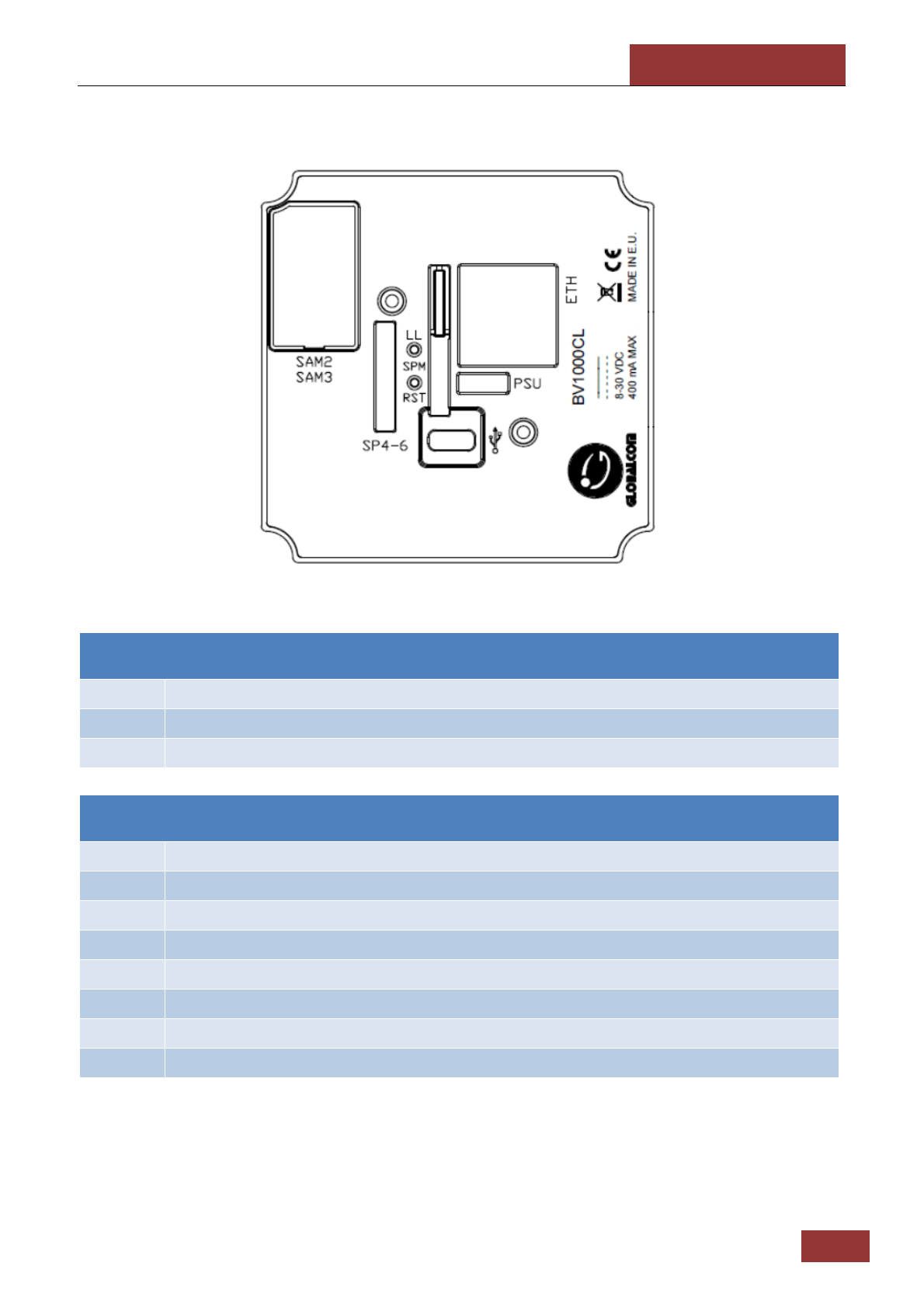

FIGURE 1 – Connector View of the BV1000CL ...................................................................................................................................... 15
FIGURE 2 – Mechanical dimension of the BV1000CL............................................................................................................................ 20

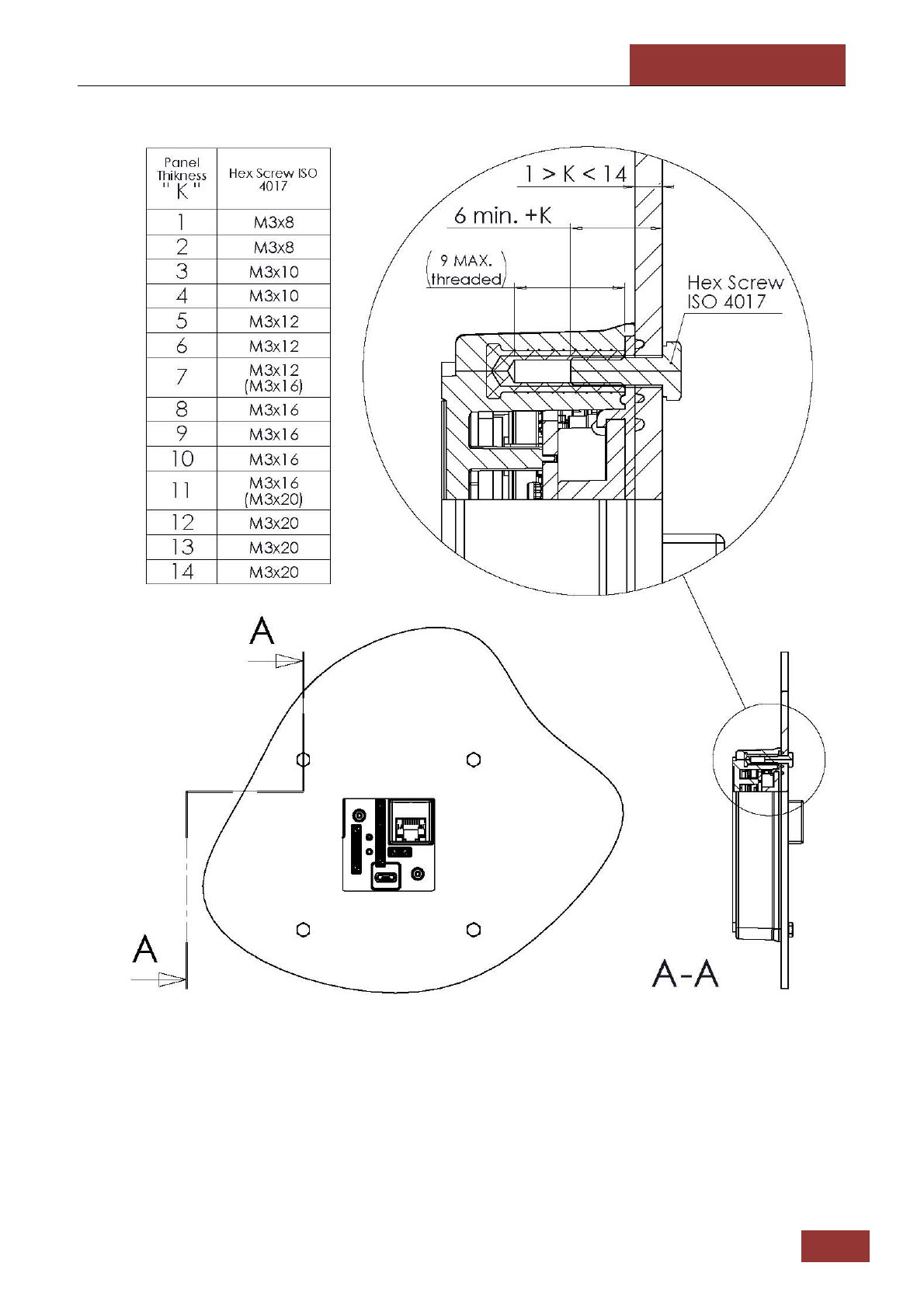

FIGURE 3 – BV1000CL Fixing Screws. .................................................................................................................................................... 21

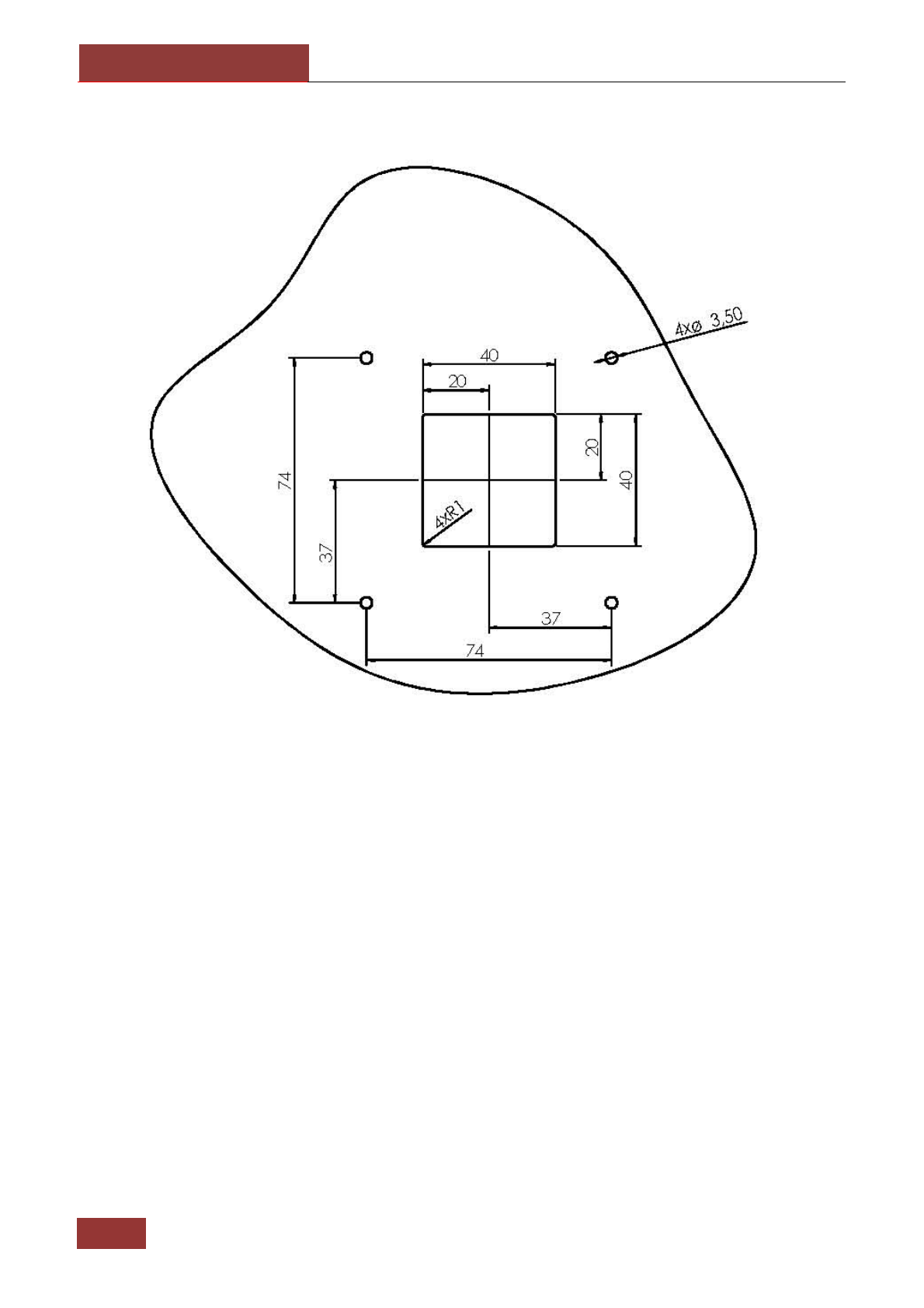

FIGURE 4 - Panel drilling BV1000CL ...................................................................................................................................................... 22
DRAFT V01
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R03
3
1 DECLARATION OF CONFORMITY
Globalcom Engineering declares that the payment system BV1000CL, whose characteristics are
described in this manual, is conform to all relevant essential requirements on radio equipment and
telecommunications terminal equipment RED Directive 2014/53/EU, EMC Directive 2014/30/EU
and ROHS directive 2011/65/EU.
The following standards and essential test suites published in the “Official Journal” of the
European communities, have been used to demonstrate the conformity of the product:
ETSI EN 300-330-1 - Electromagnetic compatibility and Radio spectrum Matters (ERM); Short
Range Devices (SRD); Radio equipment in the frequency range 9 kHz to 25 MHz and inductive
loop systems in the frequency range 9 kHz to 30 MHz - Part 1: Technical characteristics and test
methods.
ETSI EN 300-330-2 - Electromagnetic compatibility and Radio spectrum Matters (ERM); Short
Range Devices (SRD); Radio equipment in the frequency range 9 kHz to 25 MHz and inductive
loop systems in the frequency range 9 kHz to 30 MHz - Part 2: Harmonized EN covering the
essential requirements of article 3.2 of the R&TTE Directive.
ETSI EN 301-489-1 - Electromagnetic compatibility and Radio spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) standard for radio equipment and services - Part 1:
Common technical requirements.
ETSI EN 301-489-3 - Electromagnetic compatibility and Radio spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) standard for radio equipment and services - Part 3: Specific
conditions for Short-Range Devices (SRD) operating on frequencies between 9 kHz and 40 GHz.
EN60950-1 + A11 + A1 + A12+A2 – Information technology equipment – Safety – Part 1: General
requirements
Compliance with these requirements shall be evidenced by the affixing of the CE on the product.
The company responsible for placing the product on the market:
Globalcom Engineering S.p.A.
Via Volta 39 21010 Cardano Al Campo (VA) Italy
DRAFT V01
Globalcom Engineering
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
4
USA Radio Approval Federal Communications Commission (FCC)
PRODUCT NAME: BV1000CL
FCC ID: 2AKMTBV1000CL184A
FCC Rules: Code of Federal Regulations (CFR) no.47 Part 15 - Radio Frequency Devices
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note: this equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction, may cause harmful interference to radio communications. However, there is no
guarantee that the interference will not occur in a particular installation. If this equipment causes
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measure:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that of the receiver.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications made to the equipment not expressly approved by Globalcom
Engineering SPA may void the FCC authorization to operate this equipment.
CANADA Radio Approval (IC)
ISED Certification Number: TO BE INSERTED
Innovation, Science and Economic Development Canada ICES-003 Compliance Label:
CAN ICES-3 (A)/NMB-3(A)
Changes or modifications made to the equipment not expressly approved by Globalcom
Engineering SPA may void the IC authorization to operate this equipment.
DRAFT V01
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
5

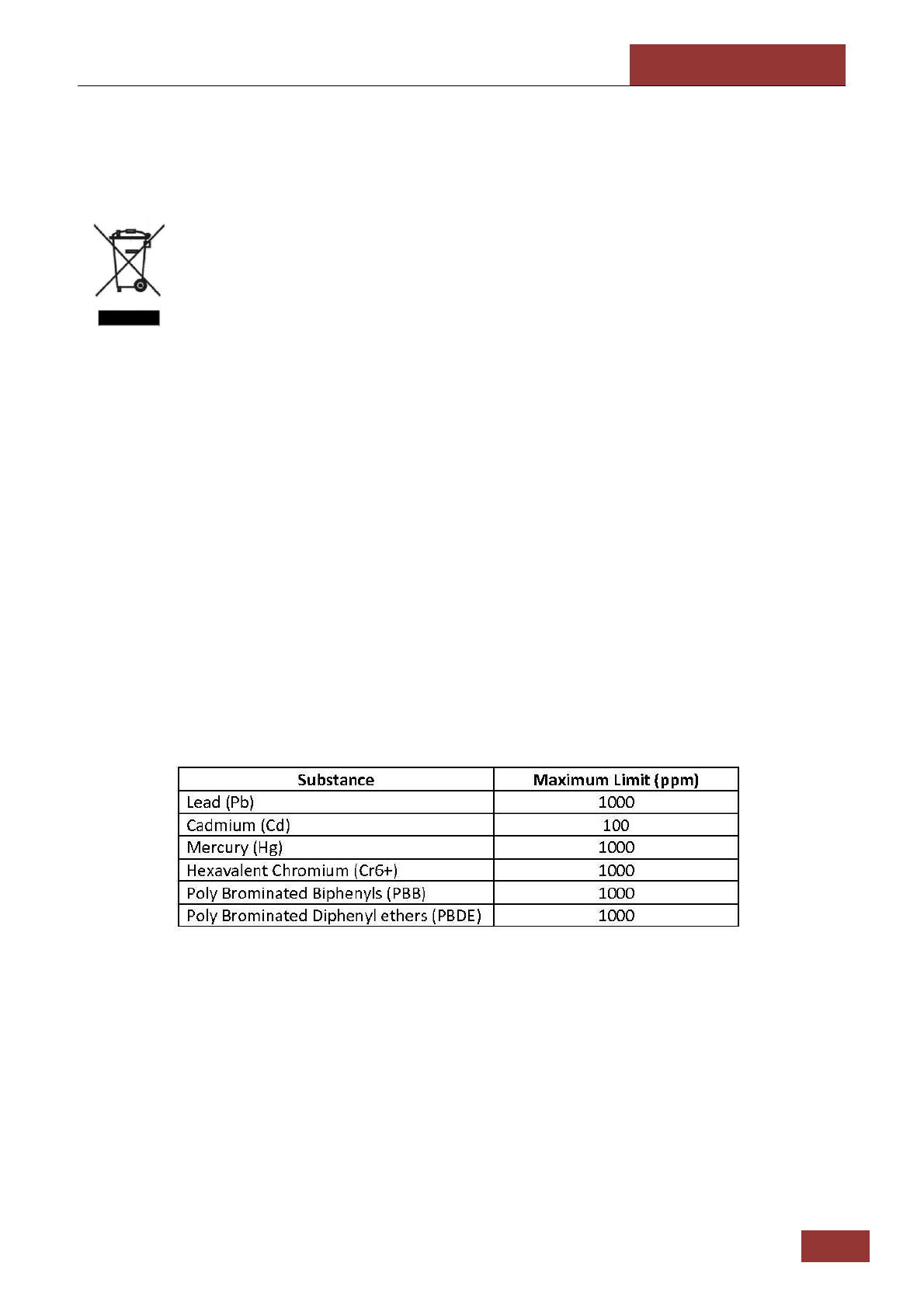

1.2 WARNINGS
This appliance is marked according to the European directive 2012/19/EU on waste electrical and
electronic equipment (WEEE Directive).
The symbol of crossed out wheeled bin on the product indicates that this WEEE must
not be treated as unsorted municipal waste and must be collected separately.
To assure the correct disposal and recycle of this product contact your supplier.
The abandonment or inappropriate disposal of waste can cause harm to environment and harm to
the human health.
By ensuring the correct disposal of this product you will help prevent negative consequences for
the environment and human health, also you will contribute to the preservation of the natural
resources. The device contains lithium manganese dioxide coin cells. The battery must be
disposed at the appropriate collection point.
BV1000CL is compliance with the Directive 2011/65/EU of the European Parliament of the Council
of 8 June 2011 on the restriction of certain hazardous substances in electrical and electronic
equipment (also known as RoHS Recast or RoHS2).
Specifically, BV1000CL do not contain the substances listed in the table below in concentration
greater than listed maximum value.
DRAFT V01
Globalcom Engineering
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
6
1.3 BV1000CL ENVIRONMENT CONFORMITY
Climatic and Vibration tests:
CEI EN 60068-2-1 - Environmental Testing Part 2-1: Tests: - Test A: Cold
CEI EN 60068-2-2 - Environmental Testing Part 2-2: Tests: - Test B: Dry heat
CEI EN 60068-2-14 - Environmental Testing Part 2-14: Tests: - Test N: Change of temperature
CEI EN 60068-2-30 - Environmental Testing Part 2-30: Tests: - Test Db: Damp heat, cyclic (12h +
12h cycle)
CEI EN 60068-2-78 - Environmental Testing Part 2-78: Tests: - Test Cab: Damp heat, steady state
CEI EN 60068-2-6 - Environmental Testing Part 2-6: Tests: - Test Fc: Vibration (sinusoidal)
Salt Mist test:
CEI EN 60068-2-11 - Environmental Testing Part 2-11: Tests: - Test Ka: Salt mist
External Mechanical Impact test (IK10) and Drop test:
CEI EN 62262 - Degrees of protection by enclosures for equipments against external mechanical
impact (IK10)
CEI EN 60068-2-31 - Environmental Testing Part 2-31: Tests: Test Eh: Hammer test
Verification of Internal Protection Code (IP65):
EN 60529+A1+A2 - Degrees of protection provided by enclosures (IP65)
1.4 BV1000CL REAR INDICATIONS
DRAFT V01
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
7
2 SAFETY INFORMATIONS AND INSTRUCTIONS
BV1000CL is conform to the standard EN60950-1+A11+A1+A12+A2 Electrical Safety of Data
Processing Equipment including Electrical Office Equipment.
2.1 GENERAL SAFETY INFORMATION
BV1000CL has been designed and manufactured to meet international safety standard but, like
any electrical apparatus, due care must still be taken.
-Read and understand the instructions before using the equipment
-Not remove any screws to enter into area for non operators
-Not allow liquid to spill into the internal cabinet side
-Not allow anything to rest on the power cord or telecomm cords and ensure a properly
routing of all the cable to prevent damage or accidental contact
-Not continue to operate with the equipment if you are in doubt about its normal working
or if the equipment has been damaged.
2.2 BASIC RULES
1) The responsibility of the safety for the sockets in the power circuits is of the customer
2) Verify that the power supply cable and the sockets are in good conditions
3) Don’t work in dangerous conditions when alone
4) If possible, connect and disconnect the signal cable at power off to avoid risk of shock
caused by possible contact of two equipment at different electrical potential.
5) The client must install a lighting protection if the zone is subject to thunderstorm or
overvoltage.
2.3 IMPORTANT SAFETY INSTRUCTIONS
At the receipt of the equipment is strongly advised to check them to see that there is no evidence
of tampering.
DRAFT V01
Globalcom Engineering
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
8
3 WARRANTY CONDITIONS
Globalcom Engineering warranties its products for a period of twelve months from the date of
delivery.
The warranty covers only defects in materials, defects in manufacturing and doesn’t cover
damages caused to the device by wrong or improper use, from accidental causes or from natural
use.
In addition, the warranty is not applicable in the following cases:
1. The model or the serial number of the device has been altered, erased, removed or made
unreadable.
2. The device has been repaired by unauthorized personnel.
3. The device has been damaged by external causes such as lightning, water, fire, connection
to wrong power supply voltages or sudden overvoltage in the electric system caused by
negligence in the use of the device (not observation of the instructions of use) or by
reasons not attributable to manufacturing defects.
4. The device has been modified to be used in a country different from the countries for
which has been designed or, where applicable, homologated; or has been damaged by
those modifications.
5. The warranty doesn’t cover wearing parts such as batteries, cables, connectors, external
parts or plastic supports that don’t show manufacturing defects.
6. The warranty doesn’t include periodic checks, software updates, settings and maintenance
operations.
The warranty doesn’t provide a spare device to substitute the damaged device during the period
of time necessary for the device reparation.
Shipping costs of the damaged devices is charged to the customer.
The damaged device\devices must be returned with the RMA (Return Authorization number) form
filled and a note indicating the damage or the problem found on the device\devices.
Please contact Globalcom Engineering distribution to obtain a RMA form.
After the end of warranty period, for any repair or assistance operation, will be applied the current
rates for the change of parts, for the labor cost and for the shipping cost.
DRAFT V01
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
9
4 VIEW AND ORDER CODES
PRODUCT CODE
ORDER CODE
DESCRIPTION
1ASA184H02
BV1000CL Compact Unattended Contactless Reader Ethernet Interface
DRAFT V01
Globalcom Engineering
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
10
4.1 OVERVIEW
BV1000CL is a low power unattended Contactless Reader for transaction in parking, buses,
vending machines or ticketing kiosks.
BV1000CL can be used alone or with BV1000R contact reader.
BV1000CL is compliant with EMVco Contactless Specification.
BV1000CL is available with the following interfaces:
Serial Port
USB OTG
Ethernet
GPRS (dongle on cable)
BV1000CL is available with the following Protocols interface:
Retailer Protocol
Mux Protocol
DRAFT V01
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
11
4.2 PACKING LIST
Following are reported the packing lists for each orderable code:
1ASA184H02
QTY
CODE
DESCRIPTION
1
1ASA184H02
BV1000CL Compact Unattended Contactless Reader Ethernet Interface
with Globalcom Italian Keys
1
CAC0096
Cable BV1000R Power L=50cm
Cables not included:
CAC0113
Cable BV1000R Loop For Power On
CAC0138
CABLE BV1000R-BV1000CL L=30cm
DRAFT V01
Globalcom Engineering
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
12
5 TECHNICAL SPECIFICATIONS
5.1 BV1000CL TECHNICAL SPECIFICATIONS
ARCHITECTURE:
Dual ARM Processor 32 bit
MEMORY:
512K internal flash ,8MByte NOR FLASH, 4MByte
PSRAM, 8+4MB dataflash
LEDS
4 green leds for contactless transaction status
1 RGB led for device status
BUZZER
Magnetic buzzer
CONTACTLESS DRIVER:
CLRC663
SAM READER:
2 SAM module connectors
COMMUNICATION:
4 RS-232 serial ports, 1 USB 2.0 OTG, 1 Ethernet
10/100MB.
POWER SUPPLY:
DC from 8V to 30V
POWER CONSUMPTION:
4W Max
BATTERY BACK-UP:
Primary Lithium
SIZE:
84,4 x 84,4 x 21 mm (WxHxD)
CUT AREA:
40 x 40 mm (WxH)
WEIGHT:
100 grams
OPERATING TEMPERATURE:
-25°C ÷ +70°C
STORAGE TEMPERATURE:
-30°C ÷ +80°C
ENVIRONMENT:
Humidity 5-95% not condensing
ENVIRONMENTAL SEALING:
IP65
SHOCK RESISTANCE:
IK10
OPERATING SYSTEM:
FreeRTOS
DEVELOPMENT ENVIRONMENT:
SDK Eclipse GCC GDB
SECURITY:
Security box for system keys
Sign and authentication of the loaded applications
Life cycles of the device
ENCRYPTING:
AES 128, TDES
BOOTING TIME:
700 mS
HOUSING:
Tecno-Polymer
PROTECTIONS:
Tamper evident, resistant, responsive
CONFORMITY:
CE, FCC, UL, ROHS, EMV Cless L1, TQM, PCI 4.1
DRAFT V01
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
13
5.2 BV1000CL SPECIFICATIONS
Processors: BV1000CL has two processors. One is a secure processor, high performance, low
power consumption, compliant with the main security standards.
Main peripherals of the secure processor are a Memory Protection Unit (MPU), an advanced
crypto multiplier for cryptography and authentication, a true random number generator,
dedicated hardware for protection against SPA/DPA attacks and sensors to warranty the
environment protection.
The second processor is a high-performance ARM Cortex™-M4 32-bit RISC core operating at a
frequency up to 168 MHz with memory protection unit (MPU) which enhances application
security.
Contactless Chip Driver: it’s CLRC663 chip from NXP.
The CLRC663 is a highly integrated transceiver IC for contactless communication at 13.56 MHz.
This transceiver IC uses an outstanding modulation and demodulation concept completely
integrated for different kinds of contactless communication methods and protocols at 13.56 MHz.
CLRC663 is connected to cortex M4 processor on a Serial Peripheral Interface (SPI).
RS232 interfaces: the terminal has 4 serial interfaces RS232 connected on Minibridge connectors.
USB OTG Interface: this port is an USB On the Go connected to a microUSB connector.
DRAFT V01
Globalcom Engineering
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
14
6 BV1000CL CONNECTORS VIEW
6.1 BV1000CL FRONT VIEW
Four green leds follow the rule of EMVco, together with the buzzer, to monitor the transaction
status.
The following table specify the RGB LED sequence for a normal transaction, from card insert,
through product selection and vend to card withdrawal.
INDICATOR
STATE
DESCRIPTION
GREEN
STATIC
Ready For Use, Idle State
RED
STATIC
Out Of Order
YELLOW
FLASHING
Please Make Selection
YELLOW
STATIC
Processing Transaction, Please Wait
GREEN
FLASHING
Paid Remove Card
RED
FLASHING
Error, Remove Card – No Payment Made
Notes:
The yellow led indicator is optional so if the reader uses only the red and the green leds, the
sequence remains the same but with the yellow led states removed.
DRAFT V01
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
15
6.2 BV1000CL BACK VIEW
FIGURE 1 – Connector View of the BV1000CL
PSU: Power supply Connector ( +VD.C.)
ERNI P/N 284696 or 101403240001 (3 poles)
PIN1
+VIN
PIN2
GND
PIN3
Protective Ground
SPM: Serial Port
ERNI P/N: 284699 or 100503240001 (8 poles)
PIN1
TX1 Transmit data output RS232
PIN2
RX1 Receive data input RS232
PIN3
GND
PIN4
RTS Request To Send signal RS232 input
PIN5
CTS Clear To Send signal RS232 output
PIN6
NCP Card present signal, active low (open collector)
PIN7
TEN Terminal enable, 1 = BV1000CL active
PIN8
NPU Bidirectional signal output/input active low
DRAFT V01
Globalcom Engineering
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
16
SP4-6: Serial Ports
ERNI P/N: 294920 or 101503240001 (12 Poles)
PIN1
RX4 Receive data input RS232
PIN2
TX4 Transmit data output RS232
PIN3
GND
PIN4
TXA0 Transmit data output RS232
PIN5
RXA0 Receive data input RS232
PIN6
+3V3IP IN
PIN7
OUTE
PIN8
TX6 Transmit data output RS232
PIN9
MAN 1=MAN Active
PIN10
RX6 Receive data input RS232
PIN11
+5V
PIN12
GND
microUSB Connector
PIN1
VBUS USB
PIN2
DM
PIN3
DP
PIN4
ID
PIN5
GND
ETH: LAN Ethernet 10/100MB
RJ45
Green Led
Indicate the network link
OFF = link off
ON = link on
Yellow Led
Indicate the flow of data
Blink = data flowing
LL: LED LINK
Off
Contactless reader not powered
After the power on of the device the led indicates the status of the communications in the
following way:
One Flash:
Contactless reader powered, contactless reader violated
Two Flashes:
Contactless reader powered, BV1000R connected
On
Contactless reader powered, communication with the peripherals absent
Each series of flashes is separated with a second of led powered off.
If one or two of the communications are missing the led will skip the related flashes.
DRAFT V01
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
17
RST : RESET PUSHBUTTON
Press to reset the device
SAM2 SAM3: Dual SAM Connector (Inside the Module)
SAM2
Connector Top (Insertion on top)
SAM3
Connector Bottom (Insertion on bottom)
DRAFT V01
Globalcom Engineering
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
18
7 CABLE
Following some examples of cables:
7.1 CAC0096 POWER CABLE
J1
Connector female ERNI IDC 3 Poles Black Friction Lock (P/N: 101603240001)
Cable
Discrete Wire AWG 24, Length = 50cm
The pin 3 “GROUND” must be used for the grounding of the device.
7.2 CAC0136 BV1000CL GBC SERIAL CABLE
J1
Connector female ERNI IDC 12 Poles Black Friction Lock (P/N: 101903240001)
SP4
Connector SUB-D 9 Poles Female
AT
Connector SUB-D 9 Poles Female
SP6
Connector SUB-D 9 Poles Female
MAN
2 Poles Socket Header Connector
Cable
Discrete Wire AWG 26, Length = 30cm
DRAFT V01
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
19
7.3 CAC0138 CABLE BV1000R-BV1000CL
J1
Connector female ERNI IDC 12 Poles Black Friction Lock (P/N: 101903240001)
J2
Connector female ERNI IDC 12 Poles Black Friction Lock (P/N: 101903240001)
Cable
FLAT Wire AWG 26, Length = 30cm
DRAFT V01
Globalcom Engineering
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
20
8 MECHANICAL DIMENSIONS
8.1 BV1000CL MECHANICAL DIMENSIONS
FIGURE 2 – Mechanical dimension of the BV1000CL
Note: Advised front label thickness 0,25mm. (0.5mm plastic frame).
DRAFT V01
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
21
FIGURE 3 – BV1000CL Fixing Screws.
Note: Maximum fixing torque :1,7Nm.
DRAFT V01
Globalcom Engineering
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
22
8.2 BV1000CL PANEL DRILLING
FIGURE 4 - Panel drilling BV1000CL
DRAFT V01
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
23
9 HOW TO CONTACT US
Dear customer thank you for the choice of our products.
To satisfy any your requirements you can contact us at the following address:
Globalcom Engineering S.p.A.
Via Volta 39 - 21010 Cardano Al Campo (Varese)
Italy
Tel. +39 0331 904454
Fax +39 0331 901835
Internet: www.globalcom-eng.com
e-mail: info@globalcom-eng.com
Globalcom Engineering pursues a policy of continued effort to improve the quality of its products
and evidence published. To this are constantly dedicated resources to ensure the accuracy of the
information contained in the documents.
We will be grateful if you find missing information or not accurate, if you report to us using the
electronic mail box: info@globalcom-eng.com.
Globalcom Engineering reserves the right to make changes to the information contained in this
document to improve the description or anything.
Globalcom Engineering assumes no liability arising from the use of this information or errors and
omissions in such information.
DRAFT V01
Globalcom Engineering
This document contains the proprietary information of Globalcom Engineering. Its receipt or possession does not convey any rights to
reproduce or disclose its contents or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific
written authorization of Globalcom Engineering is strictly forbidden. Mod.N:Q060R04
24
