English
1. Thank you .............................................................4
2. About your Jabra BT5020 ...............................................5
3. What your new headset can do .........................................5
4. Getting started .........................................................6
5. Wear it how you like it ..................................................7
6. How to… ..............................................................7
7. Battery Indicator .......................................................8
8. What the lights mean ..................................................8
9. Using the Jabra BT 5020 with 2 mobile phones ..........................9
10. Using a Jabra Blurtooth Hub ............................................9
11. Using a Jabra Bluetooth adaptor ........................................9
12. Troubleshooting & FAQ ...............................................10
13. Need more help? ......................................................10
14. Taking care of your headset ...........................................10
15. Warranty ..............................................................11
16. Certification and safety approvals ......................................11
17. Glossary ..............................................................12
4RELEASE YOUR JABRA
GB
F
ES
PT
DE
IT
NL
SU
NO
SE
DK
GR
5
Jabra BT125 Bluetooth headset
GB
F
ES
PT
DE
IT
NL
SU
NO
SE
DK
GR
1. Thank you
Thank you for purchasing the Jabra BT5020 Bluetooth Headset. We hope you
enjoy it! This instruction manual will get you started and ready to make the
most of your headset
WARNING
!
Headsets are capable of delivering sounds at loud volumes and high pitched
tones.
Exposure to such sounds can result in permanent hearing loss damage. The
volume level may vary based on conditions such as the phone you are using,
its reception and volume settings, and the environment. Please read the safety
guidelines below prior to using this headset.
Safety guidelines
1. Before using this product follow these steps:
• before putting on the headset, turn the volume control to its lowest
level,
• put the headset on, and then
• slowly adjust the volume control to a comfortable level.
2. During the use of this product
• Keep the volume at the lowest level possible and avoid using the head-
set in noisy environments where you may be inclined to turn up the
volume;
• If increased volume is necessary, adjust the volume control slowly;
and
• If you experience discomfort or ringing in your ears, immediately
discontinue using the headset and consult a physician.
With continued use at high volume, your ears may become accustomed to the
sound level, which may result in permanent damage to your hearing without
any noticeable discomfort.
Using the headset while operating a motor vehicle, motorcycle, watercraft or
bicycle may be dangerous, and is illegal in some jurisdictions. Check your local
laws. Use caution while using your headset when you are engaging in any
activity that requires your full attention. While engaging in any such activity,
removing the headset from your ear area or turning off your headset will keep
you from being distracted, so as to avoid accident or injury.

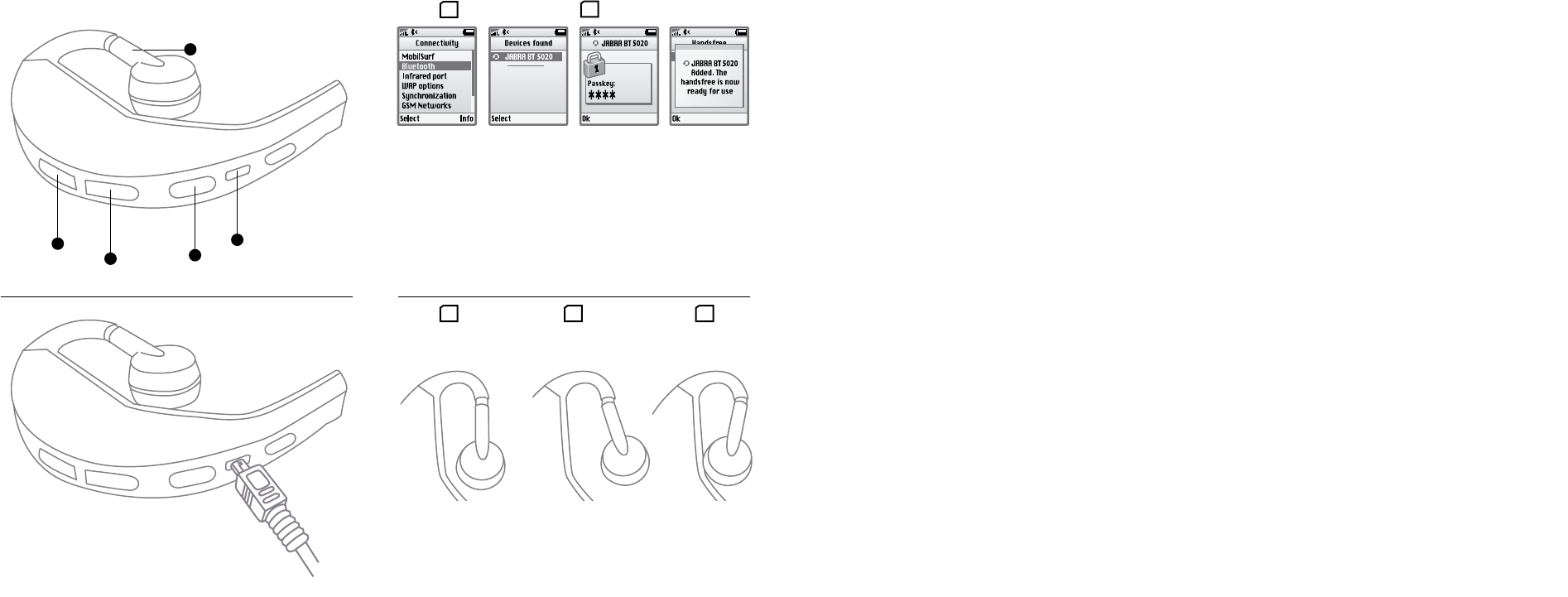

2. About your Jabra BT5020
3. What your new headset can do

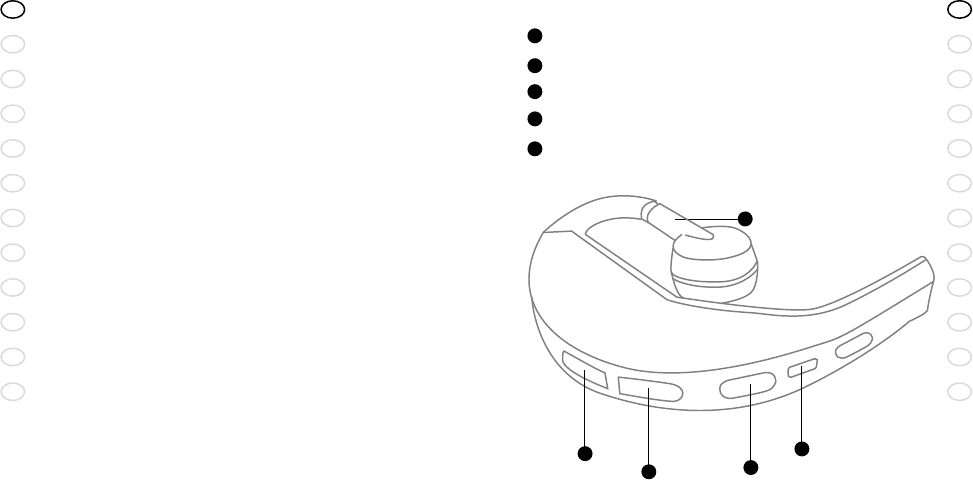

Your Jabra BT5020 lets you do all this:
• Answer calls
•
End calls
• Reject calls
• Voice Dialling (phone dependent)
• Last number redialling
• Call waiting
• Put call on hold
• Mute
• Enable/Disable vibrator
Volume down
Volume up
Adjustable earhook
Light indicator (LED) Answer/end button
Charging socket
1
2
3
4
5
3
4
5
2
1
6RELEASE YOUR JABRA
GB
F
ES
PT
DE
IT
NL
SU
NO
SE
DK
GR
7
Jabra BT125 Bluetooth headset
GB
F
ES
PT
DE
IT
NL
SU
NO
SE
DK
GR
Specications
:
• Talk time up to 10 hours/standby time up to 300 hours
• Rechargeable battery with charging option from AC power supply, PC via
USB cable or car charger (not included)
• Weight 20 grams
• Battery indicator
• Operating range up to 33 feet (approx. 10 meters)
• Headset and hands-free Bluetooth profiles
• Bluetooth specification (see glossary) version 2.0
4. Getting started
The Jabra BT5020 is easy to operate. The answer/end button on the headset
performs the different functions depending on how long you press it.
Instruction: Duration of press
Tap Press briefly
Double Tab 2 quickly repeated Taps
Press Approx: 1 second
Press and hold Approx: 1-2 seconds
1) Charge your headset
Make sure that your Jabra BT5020 headset is fully charged before you start
using it. Use the AC adaptor to charge from a power socket, or charge directly
from your PC with the USB cable provided. Connect your headset as shown
in fig. x. When the LED is solid red, your headset is charging. When the LED is
green, it is fully charged.
2) Turning your headset on and o
• Press the on/off/pairing button to turn on your headset. The LED will
show a green flash when the headset is on.
• Press and hold the on/off/pairing button to turn off your headset. The
LED will turn red when headset is off.

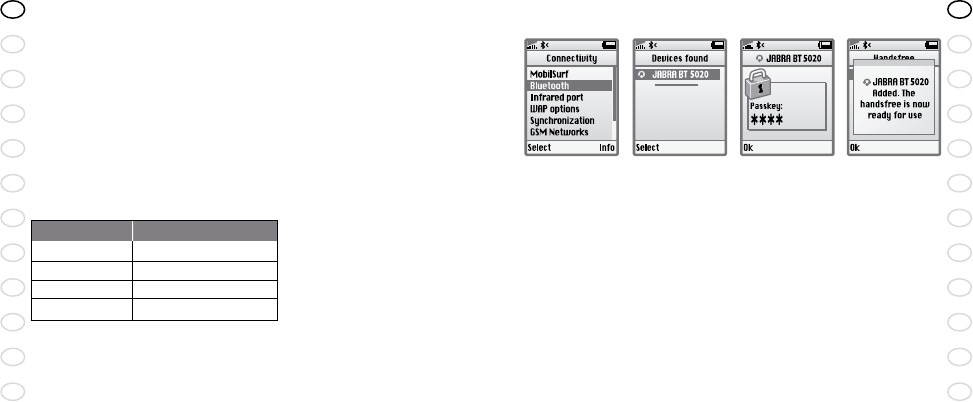

3) Pair it with your phone
Before you use your Jabra BT5020, you need to pair it with your mobile
phone. (Follow step 1-4 in g 3).
A. Put the headset in pairing mode
• Make sure the headset is o .
•
Press and hold the answer/end button until a solid blue light comes on.
B. Set your Bluetooth phone to ‘discover’ the Jabra BT5020
Follow your phone’s instruction guide. This usually involves going to a
‘setup,’ ‘connect’ or ‘Bluetooth’ menu on your phone and selecting the
option to ‘discover’ or ‘add’ a Bluetooth device.* (See example from a
typical mobile phone in g. 3)
C. Your phone will nd the Jabra BT5020
Your phone then asks if you want to pair with it. Accept by pressing ‘Yes’
or ‘OK’ on the phone and conrm with the passkey or PIN = 0000 (4 zeros).
Your phone will conrm when pairing is complete. In case of unsuccessful
pairing, repeat steps 1 to 3.
5. Wear it how you like it
The Jabra BT5020 is ready to wear on your right ear. If you prefer the left,
gently rotate the ear piece to fit left ear. See fig. X.
For optimal performance, wear the Jabra BT 5020 and your mobile
phone on the same side of your body or within line of sight. In general,
you will get better performance when there are no obstructions
between your headset and your mobile phone.
6. How to...
Answer a call
• Tap the answer/end button on your headset to answer a call.
End a call
• Tap the answer/end button to end an active call.
Make a call
• When you make a call from your mobile phone, the call will (subject to
phone settings) automatically transfer to your headset. If your phone does
not allow this feature, tap on the Jabra BT5020’s answer/end button to
transfer the call to the headset.
Reject a call*
• Press the answer/end button when the phone rings to reject an incoming
call. Depending on your phone settings, the person who called you will
either be forwarded to your voice mail or hear a busy signal.
Activate voice dialling*
• Press the answer/end button. For best results, record the voice-dialling tag
through your headset. Please consult your phone’s user manual for more
information about using this feature.
8RELEASE YOUR JABRA
GB
F
ES
PT
DE
IT
NL
SU
NO
SE
DK
GR
9
Jabra BT125 Bluetooth headset
GB
F
ES
PT
DE
IT
NL
SU
NO
SE
DK
GR
Redial last number*
• Double Tap the answer/end button when the headset is on and not used.
Adjust sound and volume
• Press the volume up or down to adjust the volume. Show fig X. (Volume up
button are per default on top of the headset when worn on the right ear).
Mute an ongoing call
• To mute an ongoing call, press both volume up and down at the same time
low beep alert plays during a muted call.
• To un-mute tap either of the volume buttons
Call waiting and placing a call on hold*
This lets you put a call on hold during a conversation and answer a waiting call.
• Press the answer/end button once to put the active call on hold and
answer the waiting call.
• Press the answer/end button to switch between the two calls.
• Tap the answer/end button to end the active conversation.
* Functions marked with * are dependent on your phone supporting these
features. Check your phone’s user manual for further information.
7. Battery Indicator
When the Jabra BT5020 is turned on or a button is pressed more than 1 minute
after last button press, the LED indicator the battery level of the headset.
2 Green flashes = 20% - 100% Charged
2 Yellow flashes = 10% - 20% charged
2 Red flashes = Less than 10% charged
8. What the lights mean
What you see What is the mean about your headset
2 coloured flashes See Battery indicator (section 6)
Flashing blue and green light Incoming call
Flashing blue light Flashing every second: active call
Flashing blue light Flashing every three seconds: in standby
mode (only for 1 minute then off)
Flashing red light Running low on battery
Solid green light Fully charged
Solid red light Charging
Solid blue light In pairing mode – see section 3
9. Using the Jabra BT 5020 with 2 mobile
phones
Jabra BT5020 is capable of having two mobile phones connected to the
headset at the same time. This will give you the freedom of having only
headset to operate both your mobile phones and the operation of the
functions in the headset functions as described in section 5.
Only it must observed that Last Number Redial will dial the number from the
last outgoing call, independent of the mobile phones, and the Voice Dialling
function only will work on the last paired mobile phone.
10. Using a Jabra Bluetooth Hub
The Jabra BT5020 can used along with the Jabra Bluetooth Hub (sold
separately). This will enable you to use the headset with both your mobile
phone and your office phone.
To pair the Jabra BT5020 with the Jabra Bluetooth Hub
The pairing process is a little different:
• Put your Jabra BT5020 in pairing mode
• Put the Jabra Bluetooth Hub in pairing mode.
• Place them close together. You do not need a dedicated pin code to pair
the two Jabra products. Consult the Jabra Bluetooth Hub user manual for
more information on how to connect the Bluetooth hub to your office
phone.
The use of the Jabra BT5020 with the Jabra Bluetooth Hub is very similar to
using the headset with a mobile phone only. The only difference lies in the
transfer of a call to the headset from the office phone.
Transfer the call to the headset
• Tap the answer/end button to transfer the call from the office phone to the
headset via the Jabra Bluetooth Hub
The answering of a call from the office phone requires a hook lifter in order to
have the Jabra BT5020 answer the call automatically.
11. Using a Jabra Bluetooth adaptor
If you want to use the Jabra BT5020 with a non-Bluetooth mobile phone, the
Jabra A210 adaptor is the answer.
It gives you a cordless connection with the following headset feature: answer/
end call, voice dial function (if supported by the phone) and mute. Rejecting
a call, last number redial and putting a call on hold might not be supported
through the headset jack in the mobile phone.
10 RELEASE YOUR JABRA
GB
F
ES
PT
DE
IT
NL
SU
NO
SE
DK
GR
11
Jabra BT125 Bluetooth headset
GB
F
ES
PT
DE
IT
NL
SU
NO
SE
DK
GR
To pair the Jabra BT5020 with the Jabra A210
The pairing process is a little different:
• Put your Jabra BT5020 in pairing mode
• Put the Jabra A210 adaptor in pairing mode
• Place them close together. You do not need a dedicated pin code to pair
the two Jabra products. Consult the Jabra A210 adaptor user manual for more
information.
Making/answering a call when using the Jabra A210
• When you make a call from your mobile phone, the call will automatically
transfer to headset (if it is turned on)
• To answer a call: either tap the answer/end button on your headset, open
the boom arm or press the answer button on your mobile phone
12. Troubleshooting & FAO
I hear crackling noises
• For the best audio quality, always wear you headset on the same side of the
body as the mobile phone
I cannot hear anything in my headset
• Increase the volume in the headset
• Ensure that the headset is paired with the phone
• Make sure that the phone is connected to the headset – if it does not
connect either from the phone’s Bluetooth menu or by tapping the answer/
end button, follow the pairing procedure (see section 3)
I have pairing problems even though my phone indicates otherwise
• You may have deleted your headset pairing connection in your mobile
phone. Follow the pairing instructions in section 3.
Will the Jabra BT5020 work with other Bluetooth equipment?
• The Jabra BT5020 is designed to work with Bluetooth mobile phones. It
can also work with other Bluetooth devices that are compliant with
Bluetooth version 1.1, 1.2 or 2.0 and support a headset and/or hands-free
profile.
13. Need more help?
See the inside cover for your country’s support details.
14. Taking take of your headset
• Always store the Jabra BT5020 with the power off and safely protected.
• Avoid storage at extreme temperatures (above 45’C/113’F – including
direct sunlight – or below -10’C/14’F). This can shorten battery life and
may affect operation. High temperatures may also degrade performance.
• Do not expose the Jabra BT5020 to rain or other liquids.
15. Warranty
Jabra (GN Netcom) warrants this product against all defects in material and
workmanship for a period of two years from the date of original purchase.
The conditions of this warranty and our responsibilities under this warranty
are as follows:
• The warranty is limited to the original purchaser
• A copy of your receipt or other proof of purchase is required
• The warranty is void if the serial number, date code label or product
label is removed, or if the product has been subject to physical abuse,
improper installation, modication, or repair by unauthorized third
parties
• The responsibility of Jabra (GN Netcom) products shall be limited to the
repair or replacement of the product at its sole discretion
• Any implied warranty on Jabra (GN Netcom) products is limited to two
years from the date of purchase on all parts, including any cords and
connectors
• Specically exempt from any warranty are limited-life consumable
components subject to normal wear and tear, such as microphone
windscreens, ear cushions, decorative nishes, batteries, and other
accessories
• Jabra (GN Netcom) is not liable for any incidental or consequential
damages arising from the use or misuse of any Jabra (GN Netcom)
product
• This warranty gives you specic rights and you may have other rights
which vary from area to area
• Unless otherwise instructed in the User Manual, the user may not, under
any circumstances, attempt to perform service, adjustments or repairs
on this unit, whether in or out of warranty. It must be returned to the
purchase point, factory or authorized service agency for all such work
• Jabra (GN Netcom) will not assume any responsibility for any loss or
damage incurred in shipping. Any repair work on Jabra (GN Netcom)
products by unauthorized third parties voids any warranty
16. Certication and safety approvals
CE
This product is CE marked according to the provisions of the R & TTE
Directive (99/5/EC). Hereby, GN Netcom, declares that this product is in
compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
For further information please consult http://www.jabra.com
Within the EU this device is intended to be used in Austria, Belgium, Cyprus,
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece,
12 RELEASE YOUR JABRA
GB
F
ES
PT
DE
IT
NL
SU
NO
SE
DK
GR
13
Jabra BT125 Bluetooth headset
GB
F
ES
PT
DE
IT
NL
SU
NO
SE
DK
GR
Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Poland,
Portugal, Slovakia, Slovenia, Spain, Sweden, The Netherlands, United
Kingdom, and within EFTA in Iceland, Norway and Switzerland.
Bluetooth
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
and any use of such marks by GN Netcom is under license. Other trademarks
and trade names are those of their respective owners.
17. Glossary
Bluetooth is a radio technology that connects devices, such as mobile
phones and headsets, without wires or cords over a short distance (approx.
33 feet). Get more information at www.bluetooth.com.
Bluetooth proles are the dierent ways that Bluetooth devices
communicate with other devices. Bluetooth phones support either the
headset prole, the hands-free prole or both. In order to support a certain
prole, a phone manufacturer must implement certain mandatory features
within the phone’s software.
Pairing creates a unique and encrypted link between two Bluetooth devices
and lets them communicate with each other. Bluetooth devices will not work
if the devices have not been paired.
Passkey or PIN is a code that you enter on your Bluetooth enabled music
device (e.g. a mobile phone) to pair it with your Jabra BT125. This makes your
device and the Jabra BT125 recognize each other and automatically work
together.
Standby mode is when the Jabra BT125 is passively waiting for a call. When
you ‘end’ a call on your mobile phone, the headset goes into standby mode.
Dispose of the product
according to local
standards and regulations.
www.jabra.com/weee
