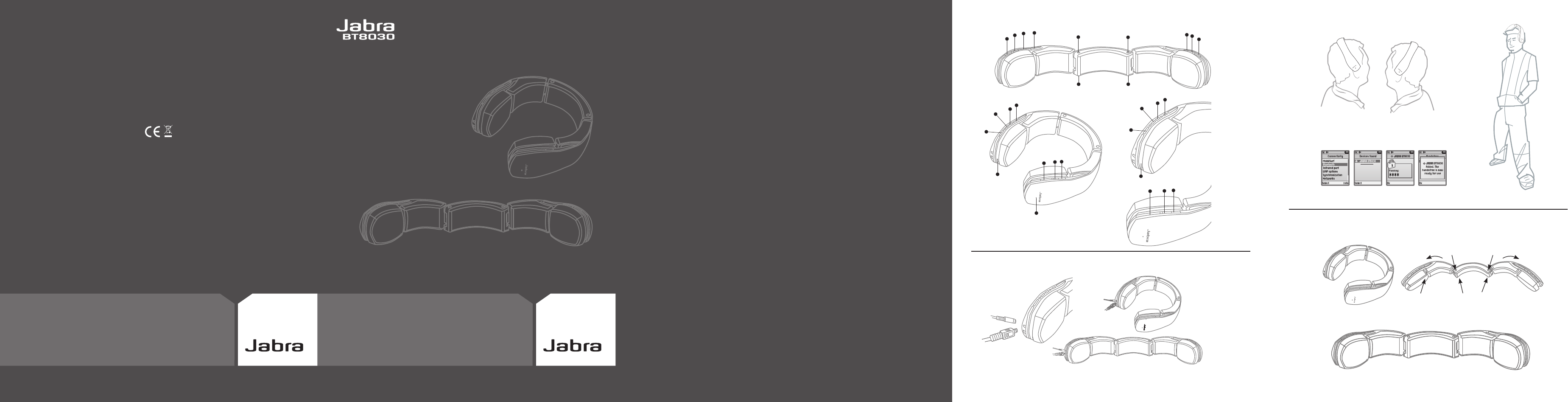

Fig. 1
B
Fig. 2
A
4
3
2
1
9
567
10
1
2
3
4
9
7
6
5
4
321
88
76
5
8 8
Fig. 3
Fig. 4
Fig. 5
Headset mode
Speaker mode
Press Safety Release Buttons
USER MANUAL
1
ENgLiSh
JABRA BT8030 BLUETOOTH STEREO HEADSET”
ENgLiSh
THANK YOU....................................................2
ABOUT YOUR JABRA BT8030....................................2
WHAT YOUR NEW BT8030 CAN DO .............................2
GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
CHARGE YOUR HEADSET.......................................3
TURN ON YOUR HEADSET......................................4
PAIRING WITH A PHONE OR OTHER DEVICE ....................4
WEARING YOUR JABRA BT8030.................................4
TRANSFORMING THE JABRA BT8030 FROM
HEADSET MODE TO SPEAKER MODE ...........................5
HOW TO .......................................................5
WHAT THE LIGHTS MEAN ......................................6
HOW TO PLAY MUSIC IN STEREO ...............................6
USING THE JABRA BT8030 WITH YOUR PC ......................6
TROUBLESHOOTING & FAQ ....................................7
NEED MORE HELP..............................................7
TAKING CARE OF YOUR HEADSET...............................7
WARNING. .....................................................8
WARRANTY ....................................................8
CERTIFICATION ................................................9
GLOSSARY ....................................................10
PARTNUMBER XXXXXX REVB
2
ENgLiSh
JABRA BT8030 BLUETOOTH STEREO HEADSET
3
ENgLiSh
JABRA BT8030 BLUETOOTH STEREO HEADSET”
ThANk yoU
Thank you for purchasing the Jabra BT8030 combined Bluetooth® Headset and Speaker. We hope you enjoy
it! This instruction manual will get you started and ready to make the most of your headset.
AboUT yoUR JAbRA bT8030
The Jabra BT8030 can function both as a Bluetooth Stereo Headset, Bluetooth Stereo Speakers and as a
Bluetooth Speaker phone. This way you will always have the bedst possible solution at hand when you want
listen to music or have an important call.
1
On/o/pairing button
2
Volume Up (+)
3
Volume Down (-)
4
Answer/End button
5
Play/Pause button
6
Skip Next (>>)
7
Skip Previous (<<)
8
Safety Release buttons
9
Microphone
10
LED Light Indicators
WhAT yoUR JAbRA bT8030 cAN do
The Jabra BT8030 lets you connect to one or two devices (see page 4) for phone and music features in both
headset and speaker mode:
Specications:
• Headset mode: Up to 32 hours of talktime or 8 hours of music - standby time up to 240 hours
• Speaker mode: Up to 32 hours of talktime or 8 hours of music
• Rechargeable battery with charging from the AC power supply or car charger (car charger not included)
• Weight xxx grams
• USB cable for connection to PC and for upgrading rmware
• Operating range up to 33 feet (10 meters)
• Advanced Audio Distribution Prole (A2DP), Audio Video Remote Controle Prole (AVRCP) as well as
Headset and Handsfree Bluetooth proles
• Bluetooth specication 2.0 (See glossary page 10)
• Operating range up to 33 feet (approx. 10 meters)
• Headset and hands-free Bluetooth proles
• Bluetooth specication (see glossary) version 1.2
gETTiNg STARTEd
The Jabra BT8030 is easy to operate. The buttons performs dierent functions depending on how long you
press them:
Instruction Duration of press
Tap Press briey and let go
Press Approx: 1 second
Press and hold Approx: 5 seconds
Phone features
• Answer calls
• End calls
• Reject calls*
• Voice dialing*
• Last number redialing*
• Call waiting*
• Put call on hold*
* Phone dependent
Music features
• Play music
• Pause music
• Stop music
• Pause music and answer call*
• Fast Forward*
• Rewind*
• Jump to next track
• Jump to previous track
* Device dependent
chARgE yoUR hEAdSET
Make sure that your Jabra BT8030 is fully charged before you start using it. Use only the charger provided in
the box – do not use chargers from any other devices as this might damage your Jabra BT8030.
Connect the headset as shown of g. 2 to the AC adaptor for the power socket. When the indicator lights are
solid red, your headset is charging. When the lights turn to green, the headset is fully charged.
4
ENgLiSh
JABRA BT8030 BLUETOOTH STEREO HEADSET
5
ENgLiSh
JABRA BT8030 BLUETOOTH STEREO HEADSET”
TURN oN yoUR hEAdSET
• Press the on/o/pairing button to turn on your headset – when the headset is on the LED indicator light
will ash.
• Press and hold the on/o/pairing button to turn the device o. The led ash red to indicate that the
headset is turned o.
PAiRiNg WiTh A PhoNE oR oThER dEvicE
• Before you use your Jabra BT8030 you must pair it up with a mobile phone or/and another Bluetooth
• enabled music device. If you have not paired your headset with a mobile phone before, your headset will
• automatically go into pairing mode. Otherwise use the following procedure:
1 Put the headset into pairing mode:
• Make sure headset is turned o.
• Press and hold the on/o/pairing button until the indicator light is solid blue.
The headset is now in paringmode.
2 Set your mobile phone or other device to ‘discover’ the Jabra BT8030
• Follow your phones instruction guide . This usually involves going to a ‘setup’, ‘connect’ or ‘Bluetooth’
menu on your phone and selecting the option to discover or add a Bluetooth device. (See example from
typical mobile phone in g. 4)
3 Your phone will nd the Jabra BT8030
• Your phone or other device will ask if you want to pair with it, accept this with “Yes” or “ok” and conrm
with the passkey or PIN = 0000 (4 zero’s). Your phone or other device will conrm when pairing is com-
plete. In case of unsuccessful pairing repeat steps 1 to 3.

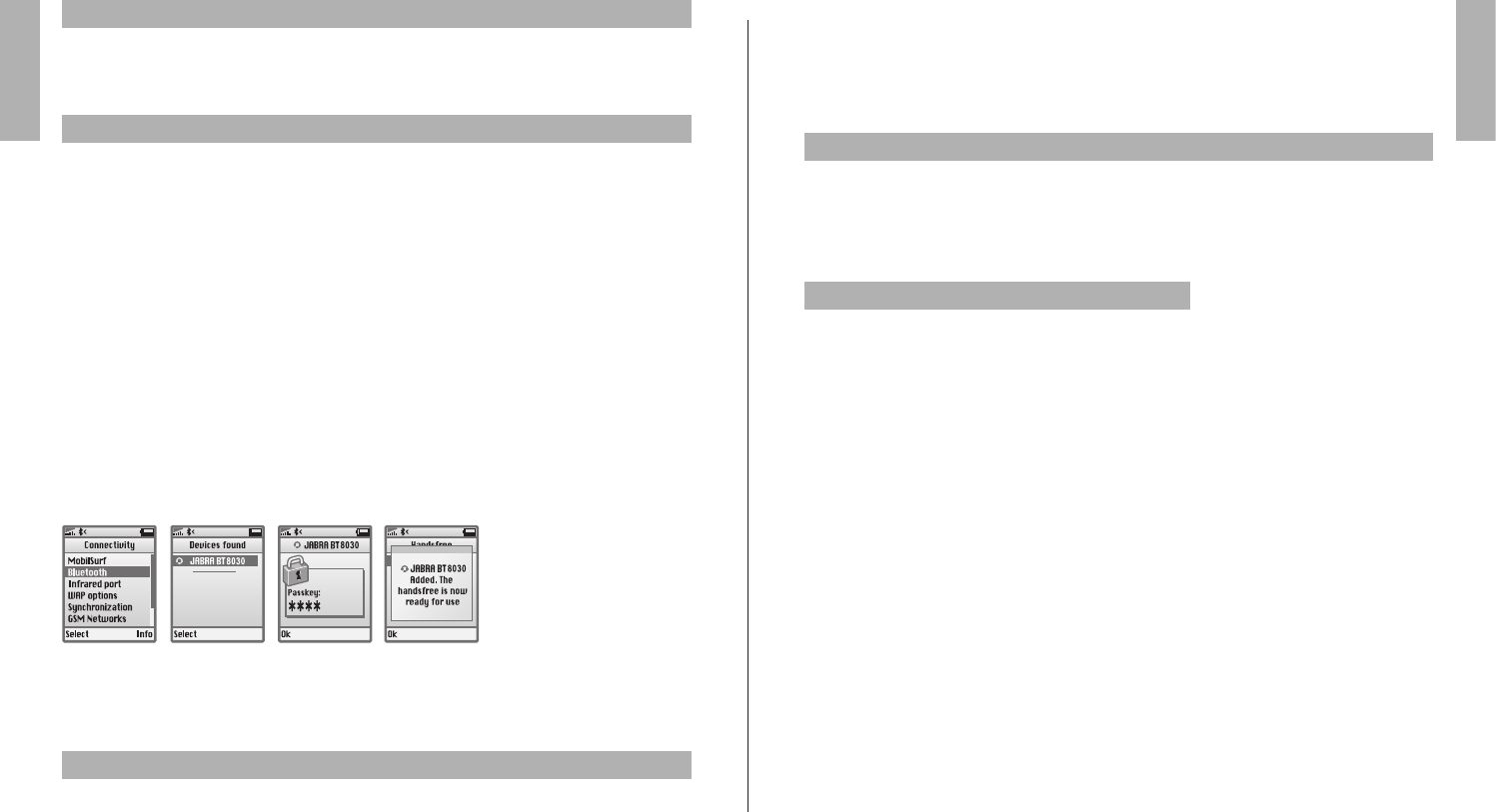

Fig.4
4 Connecting with a second device
You are able to connect your BT8030 with two devices, enabling music playing and phone connectivity at
the same time. Refer to your PC/MP3 player/phone manual for details regarding pairing for that device.
The procedure for the headset is as described above in step 1.
WEARiNg yoUR JAbRA bT8030
As a headset your Jabra BT8030 is designed to be comfortably worn with the headband on your head.
On the side of the headset there is ‘L’ and ‘R’ markings indicating Left and Right position of the headset.
The headset can be adjusted for optimal t by expanding the length of the ear pieces.
Used as a speaker the Jabra BT8030 should be placed on a at surface facing the ear-cushions towards you
and having the buttons on top. The Left (L) and Right (R) markings also indicate the right positioning of the
speaker.
The microphone is integrated in the left earpiece and Digital Signal Processing (DSP) is used for clear pickup
of your voice regardless of use as a headset or a speaker.
TRANSfoRMiNg ThE JAbRA bT8030 fRoM hEAdSET ModE To SPEAkER ModE
To switch from headset mode to speaker mode you will need to press the Safety Release buttons (see g 5)
on the top of the headband, and press the two earpieces outwards. Please note that you need to press the
buttons on each side of the headset to transform to a speaker.
The build-in Safety mechanism is to ensure that the Jabra BT8030 will not go into speaker mode while
operating in headset mode.
hoW To…
When connected via Bluetooth to a stereo device your Jabra BT8030 realizes its full potential. The right hand
side of your Jabra BT8030 is dedicated for use when playing music in stereo. These buttons will work when
the device you have connected to is able to support the Bluetooth remote control (AVRCP) prole – See
glossary for more information on this.
The large button on the right side of the device is the Play button. On the top there are the skip forward and
skip back buttons.
To start Play:
• Make sure your headset is connected in stereo mode (Advanced Audio Distribution Prole (A2DP)). Tap
the Play button once
To Pause:
• Tap the Play button – tap again to resume playing
To Stop:
• Long Press the Play button
Answer a call when playing music:
• Tap the Answer/end button and the music will be paused and the call will be connected. The music will
resume after the call has ended (dependent on your device supporting this feature).
Skip one track forward:
• Tap the Skip Forward button [Skip Forward Symbol]- continue tapping to skip several tracks forward
(see next page)
6
ENgLiSh
JABRA BT8030 BLUETOOTH STEREO HEADSET
7
ENgLiSh
JABRA BT8030 BLUETOOTH STEREO HEADSET”
Skip one track back:
• Tap the skip Back button [Skip Back Symbol] - continue tapping to skip several tracks backward
Fast Forward*:
• Press and hold Skip Forward button [Skip Forward Symbol]
Fast Rewind*:
• Press and hold Skip Back button [Skip Back Symbol] * Device dependent
Using the Jabra BT8030 with your PC
WhAT ThE LighTS MEAN
What you see What is the mean about your headset
Flashing blue light Flashing every second: active on a call
Flashing every three seconds: in standby mode
Solid blue light Parring mode
Flashing red light Running low on battery
Solid red light Charging
Solid green light Fully charged
Solid red (left side) & solid blue light (right side) USB stereo mode (connected to PC)
hoW To PLAy MUSic iN STEREo
When connected via Bluetooth to a stereo device your Jabra BT8030 realizes its full potential. The right hand
side of your Jabra BT8030 is dedicated for use when playing music in stereo. These buttons will work when
the device you have connected to is able to support the Bluetooth remote control (AVRCP) prole – See
glossary for more information on this.
The large button on the right side of the device is the Play button. On the top there are the skip forward and
skip back buttons.
For further details on compatibility and how to connect, please visit: www.jabra.com/bt8030
USiNg ThE JAbRA bT8030 WiTh yoUR Pc
You can connect your Jabra BT8030 with your PC for listening to music or VoIP communication by using a
Bluetooth USB stereo adapter - for example the Jabra A320s. For further details on compatibility and how to
connect, please visit: www.jabra.com/bt8030
Using the headset with the USB cable
You can play in stereo using the USB cable and connect this to a PC that plays in stereo.
In order to activate USB stereo:
1. Attach the USB cable to the device and your PC.
2. Wait 10 seconds and then press the ‘answer end’ and ‘play/pause buttons simultaneously.
TRoUbLEShooTiNg & fAQ
I hear crackling noises
For the best audio quality, always wear your headset on the same side of the body as your mobile phone.
I cannot hear anything in my headset
• Increase the volume on the headset.
• Ensure that the headset is paired with the phone.
• Make sure that the phone is connected to the headset – if it does not connect either from the phone’s
Bluetooth menu or by tapping the answer/end button, follow the pairing procedure (see page 4).
I hear crackling noises
For the best audio quality, always wear your headset on the same side of the body as your mobile phone.
I cannot hear anything in my headset
• Increase the volume on the headset.
• Ensure that the headset is paired with the phone.
• Make sure that the phone is connected to the headset – if it does not connect either from the phone’s
Bluetooth menu or by tapping the answer/end button, follow the pairing procedure (see page 4).
I have pairing problems even though my phone indicates otherwise
You may have deleted your headset pairing connection in your mobile phone.
Follow the pairing instructions in page 4.
Will the Jabra BT8030 work with other Bluetooth equipment?
The Jabra BT8030 is designed to work with Bluetooth mobile phones. It can also work with other Bluetooth
devices that are compliant with Bluetooth version 1.1 or 1.2 and support a headset and/or hands-free
prole.
I cannot use Reject call, call on hold, Redial or voice dialling
These functions are dependent on your phone supporting them. Please check your phone’s manual for
further details
NEEd MoRE hELP?
1. Web: www.jabra.com
(for the latest support info and online User Manuals)
2. E-mail: Tech Support: techsupp@jabra.com
Information: info@jabra.com
3. Phone: 1 (800) 327-2230 (toll-free in USA)
(603) 579-5311 (Canada)
TAkiNg cARE of yoUR hEAdSET
• Always store the Jabra BT8030 with the power o and safely protected.
• Avoid storage at extreme temperatures (above 45°C/113°F – including direct sunlight – or below
-10°C/14°F). This can shorten battery life and may aect operation. High temperatures may also degrade
performance.
• Do not expose the Jabra BT8030 to rain or other liquids.
8
ENgLiSh
JABRA BT8030 BLUETOOTH STEREO HEADSET
9
ENgLiSh
JABRA BT8030 BLUETOOTH STEREO HEADSET”
WARNiNg!
Headsets are capable of delivering sounds at loud volumes and high pitched tones.
Exposure to such sounds can result in permanent hearing loss damage. The volume level may vary based on
conditions such as the phone you are using, its reception and volume settings, and the environment. Please
read the safety guidelines below prior to using this headset.
Safety guidelines
1. Before using this product follow these steps:
• Before putting on the headset, turn the volume control to its lowest level,
• Put the headset on, and then slowly adjust the volume control to a comfortable level.
2. During the use of this product
• Keep the volume at the lowest level possible and avoid using the headset in noisy environments where
you may be inclined to turn up the volume;
• If increased volume is necessary, adjust the volume control slowly;
and
• If you experience discomfort or ringing in your ears, immed lately discontinue using the headset and
consult a physician.
With continued use at high volume, your ears may become accustomed to the sound level, which may result
in permanent damage to your hearing without any noticeable discomfort.
Using the headset while operating a motor vehicle, motorcycle, watercraft or bicycle may be dangerous, and
is illegal in some jurisdictions. Check your local laws. Use caution while using your headset when you are
engaging in any activity that requires your full attention. While engaging in any such activity, removing the
headset from your ear area or turning o your headset will keep you from being distracted, so as to avoid
accident or injury.
WARRANTy
Limited (2) -Year Warranty
GN Netcom A/S, warrants this product to be free from defects in materials and workmanship (subject to the
terms set forth below) for a period of two (2) year from the date of purchase (“Warrenty Period”). During the
Warranty Period, GN will repair or replace (at GN’s discretion) this product or any defective parts (“Warrenty
Service”). If repair or replacement is not commercially practicable or cannot be timely made, GN may choose
to refund to you the purchase price paid for the aected product. Repair or replacement under the terms of
this warranty does not give right to any extension or a new beginning of the period of warranty.
Claims under the Warranty
To obtain Warranty Service, please contact the GN dealer from which you purchased this product or visit
www.gnnetcom.com or www.jabra.com for further information about customer support.
You will need to return this Product to the dealer or ship it to the dealer or to GN (if so indicated on www.
gnnetcom.com or www.jabra.com) in either its original packaging or packaging aording an equal degree
of protection.
You will bear the cost of shipping the product to GN. If the Product is covered by the warranty, GN will bear
the cost of shipping product back to you after the completion of service under this warranty. Return ship-
ping will be charged to you for products not covered by the warranty or requiring no warranty repair.
The Following information must be presented to obtain Warranty Service: (a) the product, and (b) proof of
purchase, which clearly indicates the name and address of the seller, the date of purchase and the product
type, which is evidence that this product is within the Warranty Period. Please further include (c) your return
address. (d) daytime telephone number, and (e) reason for return.
As part of GN/Jabra’s eorts to reduce environmental waste you understand that the product may consist
of reconditioned equipment that contains used components, some of which have been reworked. The used
components all live up to GN/Jabra’s high quality standards and comply with the GN product performance
and reliability specications. You understand that replaced parts or components will become the property
of GN.
Limitation of Warranty
This warranty is only valid for the original purchaser and will automatically terminate prior to expiration if
this product is sold or otherwise transferred to another party. The warranty provided by GN in this statement
applies only to products purchased for use, and not for resale. It does not apply to open box purchases,
which are sold “as is” and without any warranty.
Specically exempt from warranty are limited-life consumable components subject to normal wear and tear,
such as microphone windscreens, ear cushions, modular plugs, ear tips, decorative nishes, batteries, and
other accessories.
This warranty is invalid if the factory-applied serial number, date code label, or product label has been
altered or removed from this product.
This Warranty does not cover cosmetic damage or damage due to misuse, abuse, negligence, Acts of Nature,
accident, disassembling or modication of, or to any part of, the product. This Warranty does not cover dam-
age due to improper operation, maintenance or installation, or attempted repair by anyone other than GN
or a GN dealer which is authorized to do GN warranty work. Any unauthorized repairs will void this warranty.
REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF THE
CONSUMER. GN SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH
OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW,
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEV-
ER, INCLUDING BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL
PURPOSE.
NOTE! This warranty gives you specic legal rights. You may have other rights which vary from location to
location. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages
or implied warranties, so the above exclusions may not apply to you. This warranty does not aect your legal
(statutory) rights under your applicable national or local laws.
cERTificATioN ANd SAfETy APPRovALS
CE
This product is CE marked according to the provisions of the R & TTE Directive (99/5/EC).
Hereby, GN Netcom, declares that this product is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
For further information please consult http://www.jabra.com
Within the EU this device is intended to be used in Austria, Belgium, Cyprus, Czech Republic, Denmark, Esto-
nia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Poland,
Portugal, Slovakia, Slovenia, Spain, Sweden, The Netherlands, United Kingdom, and within EFTA in Iceland,
Norway and Switzerland
Bluetooth
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN
Netcom is under license. Other trademarks and trade names are those of their respective owners.
10
ENgLiSh
JABRA BT8030 BLUETOOTH STEREO HEADSET
11
ENgLiSh
JABRA BT8030 BLUETOOTH STEREO HEADSET”
gLoSSARy
1. Bluetooth is a radio technology that connects devices, such as mobile phones and headsets, without
wires or cords over a short distance (approx. 30 feet). Get more information at www.bluetooth.com.
2. Bluetooth proles are the dierent ways that Bluetooth devices communicate with other devices.
Bluetooth phones supports either the headset prole, the hands-free prole or both. In order to support
a certain prole, a phone manufacturer must implement certain mandatory features within the phone’s
software.
3. Pairing creates a unique and encrypted link between two Bluetooth devices and lets them communicate
with each other. Bluetooth devices will not work if the devices have not been paired.
4. Passkey or PIN is a code that you enter on your mobile phone to pair it with your Jabra BT8030. This
makes your phone and the Jabra BT8030 recognize each other and automatically work together.
5. Standby mode is when the Jabra BT8030 is passively waiting for a call. When you ‘end’ a call on your
mobile phone, the headset goes into standby mode.
6. A2DP (Advanced Audio Distribution Prole) is a Bluetooth Prole that enables stereo sound. Both the
headset and the device it connects to must support A2DP in order to hear stereo sound in the headset.
7. AVRCP (Audio Video Remote Control Prole) is a Bluetooth prole that enables remote control of the
device that the headset is connected to. Both the headset and the device it connects to must support
AVRCP in order for AVRCP to work.
Dispose of the product according
to local standards and regulations.
www.jabra.com/weee
12
ENgLiSh
JABRA BT8030 BLUETOOTH STEREO HEADSET
13
ENgLiSh
JABRA BT8030 BLUETOOTH STEREO HEADSET”
14
ENgLiSh
JABRA BT8030 BLUETOOTH STEREO HEADSET
1
dANSk
JABRA JX10 BLUETOOTH HEADSET
2
dANSk
JABRA JX10 BLUETOOTH HEADSET
3
dANSk
JABRA JX10 BLUETOOTH HEADSET
4
dANSk
JABRA JX10 BLUETOOTH HEADSET 5
NoRSk
JABRA JX10 BLUETOOTH HEADSET
6
NoRSk
JABRA JX10 BLUETOOTH HEADSET
7
NoRSk
JABRA JX10 BLUETOOTH HEADSET
8
NoRSk
JABRA JX10 BLUETOOTH HEADSET 9
SvENSk
JABRA JX10 BLUETOOTH HEADSET
10
SvENSk
JABRA JX10 BLUETOOTH HEADSET
11
SvENSk
JABRA JX10 BLUETOOTH HEADSET
