GN Audio USA BTE1 Bluetooth Headset User Manual

GN Netcom Inc Bluetooth Headset

Contents

User Manual

1
2
TOLL FREE Customer Contact Details:
Phone Numbers:
Belgique/Belgie 00800 722 52272
Danmark 702 52272
Deutschland 0800 1826756
Die Schweiz 00800 722 52272
España 900 984572
France 0800 900325
Italia 800 786532
Luxembourg 00800 722 52272
Nederland 0800 0223039
Norge 800 61272
Österreich 00800 722 52272
Portugal 00800 722 52272
Suomi 00800 722 52272
Sverige 020792522
United Kingdom 0800 0327026
International 00800 722 52272
Email Addresses:
Deutsch support.de@jabra.com
English support.uk@jabra.com
Français support.fr@jabra.com
Italiano support.it@jabra.com
Nederlands support.nl@jabra.com
Español support.es@jabra.com
Scandinavian support.no@jabra.com
1
English
1. Thank you .............................................................4
2. About your Jabra BT2020 ...............................................4
3. What your new headset can do .........................................4
4. Getting started .........................................................5
5. Charge your headset ...................................................5
6. Turning your headset on and off ........................................6
7. Pairing it with your phone ..............................................6
8. Wear it how you like it ..................................................7
9. How to ..............................................................8
10. What the lights mean ..................................................9
11. Troubleshooting & FAQ ................................................9
12. Need more help? ......................................................10
13. Taking care of your headset ...........................................10
14. Protect your hearing ..................................................10
15. Warranty ..............................................................12
16. Certification and safety approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
17. Glossary ..............................................................14
2
1. Thank you
Thank you for purchasing the Jabra BT2020 Bluetooth® headset. We hope
you enjoy it! This instruction manual will get you started and ready to make
the most of your headset.
What is Bluetooth?
Bluetooth is a radio technology that connects devices, such as mobile
phones and headsets, without wires or cords over a short distance (approx.
10 meters/33 feet).
2. About your Jabra BT2020
1
Answer/end button
4
Indicator light (LED)
2
Volume control button
5
MiniGel™
3
Charging socket
6
Microphone boom arm
2
3
1
5
6
4
Fig. 1
3. What your new headset can do
Your Jabra BT2020 lets you do all this:
• Answer calls
• End calls
• Adjust volume level
• Reject calls*
• Voice Dialing*
• Last number redialing*
• Call waiting*
• Place call on hold* * Phone dependent
3
Specications:
Talk time up to 8 hours/standby time up to 200 hours
Rechargeable battery with charging option from AC power supply
or car charger (car charger not included)
Weight 16 grams
Operating range up to 10 meters (approx. 33 feet)
Headset and hands-free Bluetooth proles (see glossary)
Bluetooth version 2.0 (see glossary)
4. Getting started
The Jabra BT2020 is easy to operate. You should follow three steps before
using your headset
1. Charge your headset
2. Activate Bluetooth on your mobile phone (refer to the manual of your
mobile phone)
3. Pair your headset to your mobile phone
The answer/end button on the headset performs the dierent functions
depending on how long you press it.
Instruction: Duration of press
Tap Press briey and let go
Press Approx: 1 second
Press and hold Approx: 5 seconds
5. Charge your headset
Make sure that your headset is fully charged for 2 hours before you start
using it. Use the AC power supply to charge from a power socket. When the
light indicator (LED) has a solid blue LED light, your headset is charging.
When the solid LED light turns o, it is fully charged.
Use only the Jabra charger provided in the box or other Jabra approved
charger accessories - do not use other chargers as this may damage your
headset.
4
6. Turning your headset on and o
Press the answer/end button until you see a burst of blue ashes to turn on
your headset
3 Sec 3 Sec
Press and hold the answer/end button until you see a burst of blue ashes to
turn o your headset.
Please note that the LED indicator light turns o after 1 minute to save
battery. To check if the headset is still on and connected, tap the answer/end
button once. The indicator light should ash back with two single ashes if it
is still on and connected.
7. Pairing it with your phone
Headsets are connected to mobile phones using a procedure called ‘pairing’.
By following a few simple steps, a phone can be paired with a headset in a
matter of minutes.
To pair the Jabra BT2020 with your mobile phone, just follow these three
easy steps:
1. Put the headset in pairing mode
When you turn on your Jabra BT2020 for the rst time, the headset will
automatically start up in pairing mode – i.e. it is discoverable for your
phone. When the headset is in pairing mode, the LED indicator light is
solid blue.

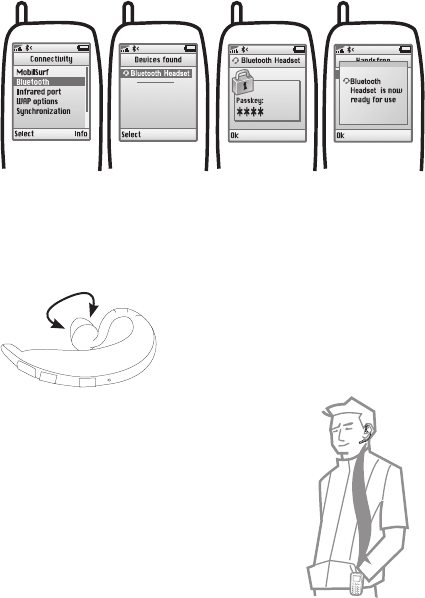

2. Set your Bluetooth phone to discover’ the Jabra BT2020
Follow your phone’s instruction guide. First make sure that Bluetooth is
activated on your mobile phone. Then set your phone to discover the
headset. This usually involves going to a ‘setup, connect’ or ‘Bluetooth’
menu on your phone and selecting the option to discover’ or ‘add’ a
Bluetooth device.
3. Your phone will nd the Jabra BT2020
Your phone will then nd the headset under the name: Bluetooth
headset. Your phone then asks if you want to pair with it. Accept by
5
pressing ‘Yes’ or ‘OK’ on the phone and conrm with the passkey
or PIN = 0000 (zeros). Your phone will conrm when pairing is complete.
In case of unsuccessful pairing, put the Jabra BT2020 into pairing mode
manually. First, make sure the headset is o. Then press and hold the
answer/end button for approximately 5 seconds until the LED has a solid
blue light. The LED will ash before the light is constant – keep holding
down the button until light is constant. When the headset is in pairing
mode, repeat steps 2 and 3.
8. Wear it how you like it
The Jabra BT2020 is ready to wear on your right ear. If you prefer the left ear,
gently rotate the MiniGel™ 180 degrees as shown.
To ensure that you get the best t possible in your ear,
two dierent kinds of MiniGel’s™ are provided with the
Jabra BT2020. To exchange the MiniGel™, simply remove
the gel by twisting it gently.
For optimal performance, wear the Jabra BT2020
and your mobile phone on the same side of your body
or within line of sight. In general, you will get better
performance when there are no obstructions
between your headset and your mobile phone.
6
9. How to...
Answer a call
Tap the answer/end button on your headset to answer a call.
End a call
Tap the answer/end button to end an active call.
Make a call
When you make a call from your mobile phone, the call will (subject to
phone settings) automatically transfer to your headset. If your phone
does not support this feature, tap on the Jabra BT2020´s answer/end
button to transfer the call in the headset.
Reject a call*
Press the answer/end button when the phone rings to reject an in-
coming call. Depending on your phone settings, the person who called
you will either be forwarded to your voice mail or hear a busy signal.
Adjust volume
Tap the volume button (see g. 1) to increase the volume. Press and
hold the volume to decrease the volume to your preferred level
Activate voice dialing*
Press the answer/end button. For best results, record the voice-dialling
tag through your headset. Please consult your phone’s user manual for
more information about using this feature.
Redial last number*
Double tap the answer/end button to redial last number
Call waiting and placing a call on hold*
This lets you put a call on hold during a conversation and answer
a waiting call.
Press the answer/end button once to put the active call on hold and
answer the waiting call.
Press the answer/end button to switch between the two calls.
Tap the answer/end button to end the active conversation.
* Functions marked with * are dependent on your phone supporting these
features. Check your phone’s user manual for further information.
7
10. What the lights mean
What you see What is the mean about your headset
Solid blue light: In pairing mode – see section 3
Slow single ash Connected to phone and in standby mode:*
Slow double ash: Not connected to phone and standby mode*
Quick single ash: Active on call
Quick double ash: Incoming/Outgoing call in headset
Triple ash: Battery low
* BT2020 is equipped with Jabra Discreet Light feature, meaning that light
indicator (LED) turns o after 1 min of non-activity. Headset is still active,
and light will ash again after a tap on the answer/end button or any other
activity.
11. Troubleshooting & FAQ
I hear crackling noises
For the best audio quality, always wear your headset on the same side
of the body as your mobile phone.
I cannot hear anything in my headset
Increase the volume on the headset.
Ensure that the headset is paired with the phone.
Make sure that the phone is connected to the headset – if it does not
connect either from the phone’s Bluetooth menu or by tapping the
answer/end button, follow the pairing procedure (refer to pairing
section in this user manual).
You can determine whether your headset is connected to a device by
looking at the ashes on the headset after tapping the answer/end
button when the headset is on: single slow ashes means that the
headset is connected to a device, double slow ashes means that the
headset is currently not connected.
I have connection problems
You may have deleted your headset pairing connection in your mobile
phone. Follow the pairing instructions; refer to this section in this user
manual.
You can determine whether your headset is connected to a device by
looking at the ashes on the headset after tapping the answer/end
button when the headset is on: single slow ashes means that the
headset is connected to a device, double slow ashes means that the
headset is currently not connected.
Will the Jabra BT2020 work with other Bluetooth equipment?
The Jabra BT2020 is designed to work with Bluetooth mobile phones.
8
It can also work with other Bluetooth devices that are compliant with
Bluetooth version 1.1, 1.2 or 2.0 and support a headset and/or hands-
free Bluetooth prole.
I cannot use Reject call, Call on hold, Redial or Voice dialling
These functions are dependent on your phone supporting them.
Please check your phones manual for further details.
12. Need more help?
Jabra oers Customer Support online at www.jabra.com or you can see the
cover of the quick start guide for your country’s support details.
13. Taking care of your headset
Always store the Jabra BT2020 with the power o and safely protected.
Avoid storage at extreme temperatures (above 45°C/113°F – including
direct sunlight – or below -10°C/14°F). This can shorten battery life and
may aect operation. High temperatures may also degrade
performance.
Do not expose the Jabra BT2020 to rain or other liquids.
14. Protect your hearing
Warnings
Headsets are capable of delivering sounds at loud volumes and high pitched
tones. Exposure to such sounds can result in permanent hearing loss
damage. The volume level may vary based on conditions such as the phone
you are using, its reception and volume settings, and the environment.
Please read the safety guidelines below prior to using this headset.
Safety guidelines
1. Prior to using this product follow these steps:
before putting on the headset, turn the volume control to its lowest
level,
put the headset on, and then
slowly adjust the volume control to a comfortable level.
2. During the use of this product
Keep the volume at the lowest level possible and avoid using the
headset in noisy environments where you may be inclined to turn up
the volume;
If increased volume is necessary, adjust the volume control slowly;
and
If you experience discomfort or ringing in your ears, immediately
discontinue using the headset and consult a physician.
9
With continued use at high volume, your ears may become accustomed to
the sound level, which may result in permanent damage to your hearing
without any noticeable discomfort.
Using the headset while operating a motor vehicle, motorcycle, watercraft
orbicycle may be dangerous, and is illegal in some jurisdictions. Check your
local laws. Use caution while using your headset when you are engaging
in any activity that requires your full attention. While engaging in any such
activity, removing the headset from your ear area or turning o your headset
will keep you from being distracted, so as to avoid accident or injury.
3. Keep out of reach of children:
The plastic bags the product and its parts are wrapped in are not toys for
children. The bags themselves or the many small parts they contain may
cause choking if ingested. Never try to dismantle the product yourself.
None of the internal components can be replaced or repaired by users.
Only authorised dealers or service centres may open the product. If any parts
of your product require replacement for any reason, including normal wear
and tear or breakage, contact your dealer.
Avoid exposing the product to rain or other liquids.
Dispose of the product according to local standardsand regulations.
www.gnnetcom.com/weee
4. ACA TS028 – Ignition of ammable atmospheres
Do not use the Headset in environments where there is a danger of ignition
of ammable gases.
15. Warranty
Service and Warranty Information
Limited Two(2) -Year Warranty
GN, (“GN”), warrants this product to be free from defects in materials
and workmanship (subject to the terms set forth below) for a period of
two (2) year from the date of purchase(“Warrenty Period”). During the
Warranty Period, GN will repair or replace (at GN’s discretion) this product
or any defective parts (“Warrenty Service”). If repair or replacement is not
commercially practicable or cannot be timely made, GN may choose to
refund to you the purchase price paid for the aected product. Repair or
replacement under the terms of this warranty does not give right to any
extension or a new beginning of the period of warranty.
10
Claims under the Warranty
To obtain Warranty Service, please contact the GN dealer from which you
purchasedthis product or visit www.gnnetcom.com or www.jabra.com for
further information about customer support. You will need to return this
Product to the dealer or ship it to the dealer or to GN (if so indicated on
www.gnnetcom.com or www.jabra.com) in either its original packaging or
packaging aording an equal degree of protection.You will bear the cost
of shipping the product to GN. If the Product is covered by the warranty,
GN will bear the cost of shipping product back to you after the completion
of service under this warranty. Return shipping will be charged to you for
products not covered by the warranty or requiring no warranty repair.
The Following information must be presented to obtain Warranty Service:
(a) the product, and (b) proof of purchase, which clearly indicates the name
and address of the seller, the date of purchase and the product type, which
is evidence that this product is within the Warranty Period. Please further
include (c) your return address. (d) daytime telephone number, and (e)
reason for return. As part of GN/Jabras eorts to reduce environmental
waste you understand that the product may consist of reconditioned
equipment that contains usedcomponents, some of which have been
reworked. The used components all live up to GN/Jabras high quality
standards and comply with the GN product performance and reliability
specications. You understand that replaced parts or components will
become the property of GN.
Limitation of Warranty
This warranty is only valid for the original purchaser and will automatically
terminate prior to expiration if this product is sold or otherwise transferred
to another party. The warranty provided by GN in this statement applies
only to products purchased for use, and not for resale. It does not apply
to open box purchases, which are sold “as is and without any warranty.
Specically exempt from warranty are limited-life consumable components
subject to normal wear and tear, such as microphone windscreens, ear
cushions, modular plugs, ear tips, decorative nishes, batteries, and other
accessories. This warranty is invalid if the factory-applied serial number, date
code label, or product label has been altered or removed from this product.
This Warranty does not cover cosmetic damage or damage due to misuse,
abuse, negligence, Acts of Nature, accident, disassembling or modication
of, or to any part of, the product. This Warranty does not cover damage due
to improper operation, maintenance or installation, or attempted repair by
anyone other than GN or a GN dealer which is authorized to do GN warranty
work. Any unauthorized repairs will void this warranty.
REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE
THEEXCLUSIVE REMEDY OF THE CONSUMER. GN SHALL NOT BE LIABLE FOR
ANYINCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY
11
EXPRESS ORIMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT
PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL
OTHER EXPRESS AND IMPLIED WARRANTIES WHATSO¬EVER, INCLUDING BUT
NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A
PRACTICAL PURPOSE.
NOTE! This warranty gives you specic legal rights. You may have other rights
which vary from location to location. Some jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages or implied
warranties, so the above exclusions may not apply to you. This warranty
does not aect your legal (statutory) rights under your applicable national
or local laws.
16. Certication and safety approvals
CE
This product is CE marked according to the provisions of the R & TTE
Directive (99/5/EC). Hereby, GN, declares that this product is in compliance
with the essential requirements and other relevant provisions of Directive
1999/5/EC.
For further information please consult http://www.jabra.com
Within the EU this device is intended to be used in Austria, Belgium, Cyprus,
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece,
Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Poland,
Portugal, Slovakia, Slovenia, Spain, Sweden, The Netherlands, United
Kingdom, and within EFTA in Iceland, Norway and Switzerland.
Bluetooth
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
and any use of such marks by GN is under license. Other trademarks and
trade names are those of their respective owners.
17. Glossary
Bluetooth is a radio technology that connects devices, such as mobile
phones and headsets, without wires or cords over a short distance (approx.
33 feet).
Bluetooth is safe to use. It is secure too, so once a connection has been
made no-one can listen in and there is no interference from other Bluetooth
devices either. Get more information at www.bluetooth.com.
Bluetooth proles are the dierent ways that Bluetooth devices
communicate with other devices. Bluetooth phones support the headset
prole, the hands-free prole or both. In order to support a certain prole, a
phone manufacturer must implement certain mandatory features within the
phone’s software.
Pairing creates a unique and encrypted link between two Bluetooth devices
12
and lets them communicate with each other. Bluetooth devices will not work
if the devices have not been paired.
Passkey or PIN is a code that you enter on your Bluetooth enabled device
(e.g. a mobile phone) to pair it with your Jabra BT2020. This makes your
device and the Jabra BT2020 recognize each other and automatically work
together.
Standby mode is when the Jabra BT2020 is passively waiting for a call. When
you end’ a call on your mobile phone, the headset goes into standby mode.
Dispose of the product according to local standards and regulations. www.
jabra.com/weee
Dispose of the product
according to local
standards and regulations.
www.jabra.com/weee
13
www.jabra.com
Made in China
© 2007 GN A/S. All rights reserved. Jabra® is a registered
trademark of GN A/S. All other trademarks included
herein are the property of their respective owners. The
Bluetooth® word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by GN
A/S is under license. (Design and specications subject
to change without notice).
Type: BTE1
FCC ID: BCE-BTE1
IC:2386C-BTE1

Navigation menu
