GN Audio USA GC-00002 Stratus XL Android User Manual

SteelSeries ApS Stratus XL Android

User Manual

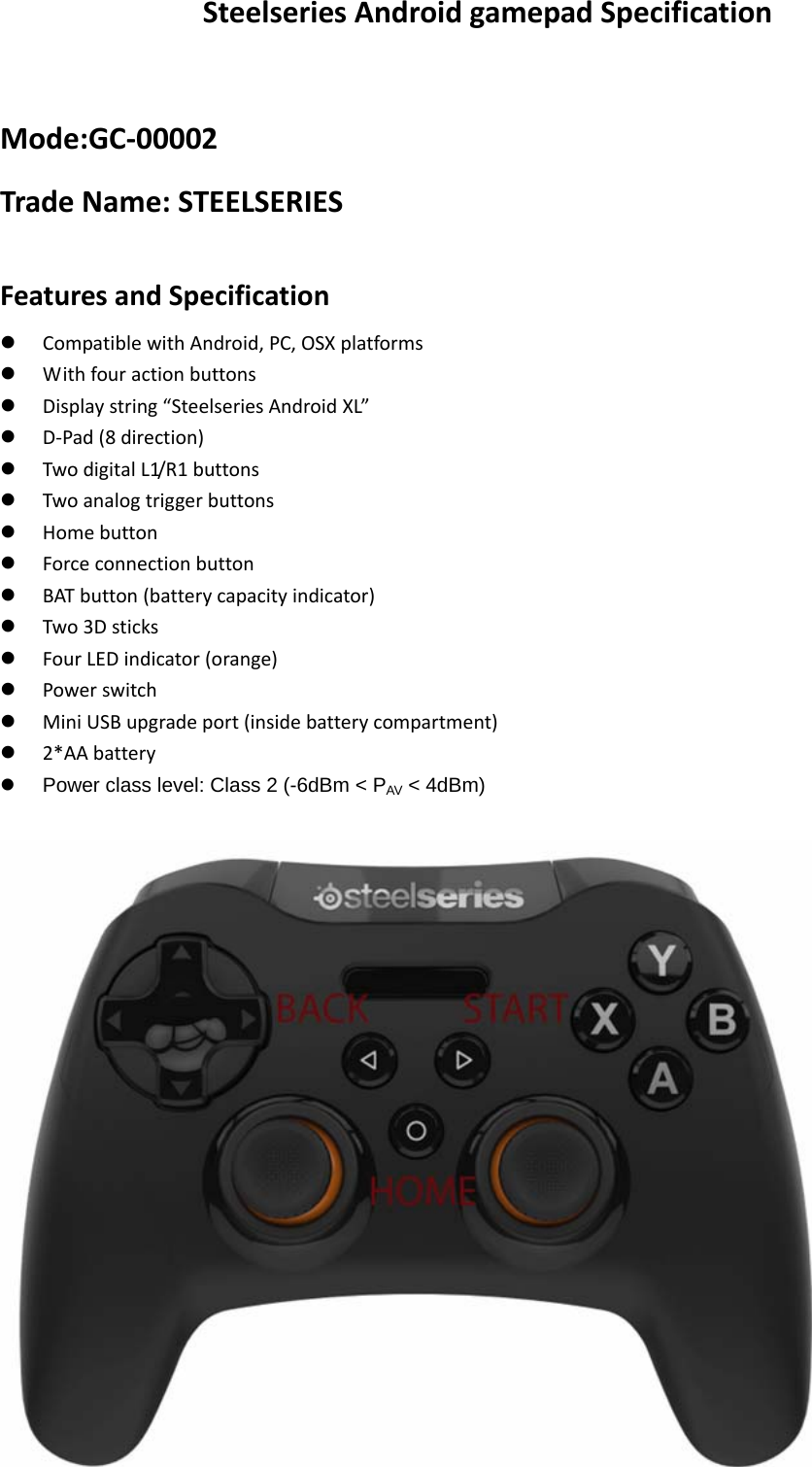

SteelseriesAndroidgamepadSpecificationMode:GC‐00002TradeName:STEELSERIESFeaturesandSpecificationz CompatiblewithAndroid,PC,OSXplatformsz Withfouractionbuttonsz Displaystring“SteelseriesAndroidXL”z D‐Pad(8direction)z TwodigitalL1/R1buttonsz Twoanalogtriggerbuttonsz Homebuttonz Forceconnectionbuttonz BATbutton(batterycapacityindicator)z Two3Dsticksz FourLEDindicator(orange)z Powerswitchz MiniUSBupgradeport(insidebatterycompartment)z 2*AAbatteryz Power class level: Class 2 (-6dBm < PAV < 4dBm) 

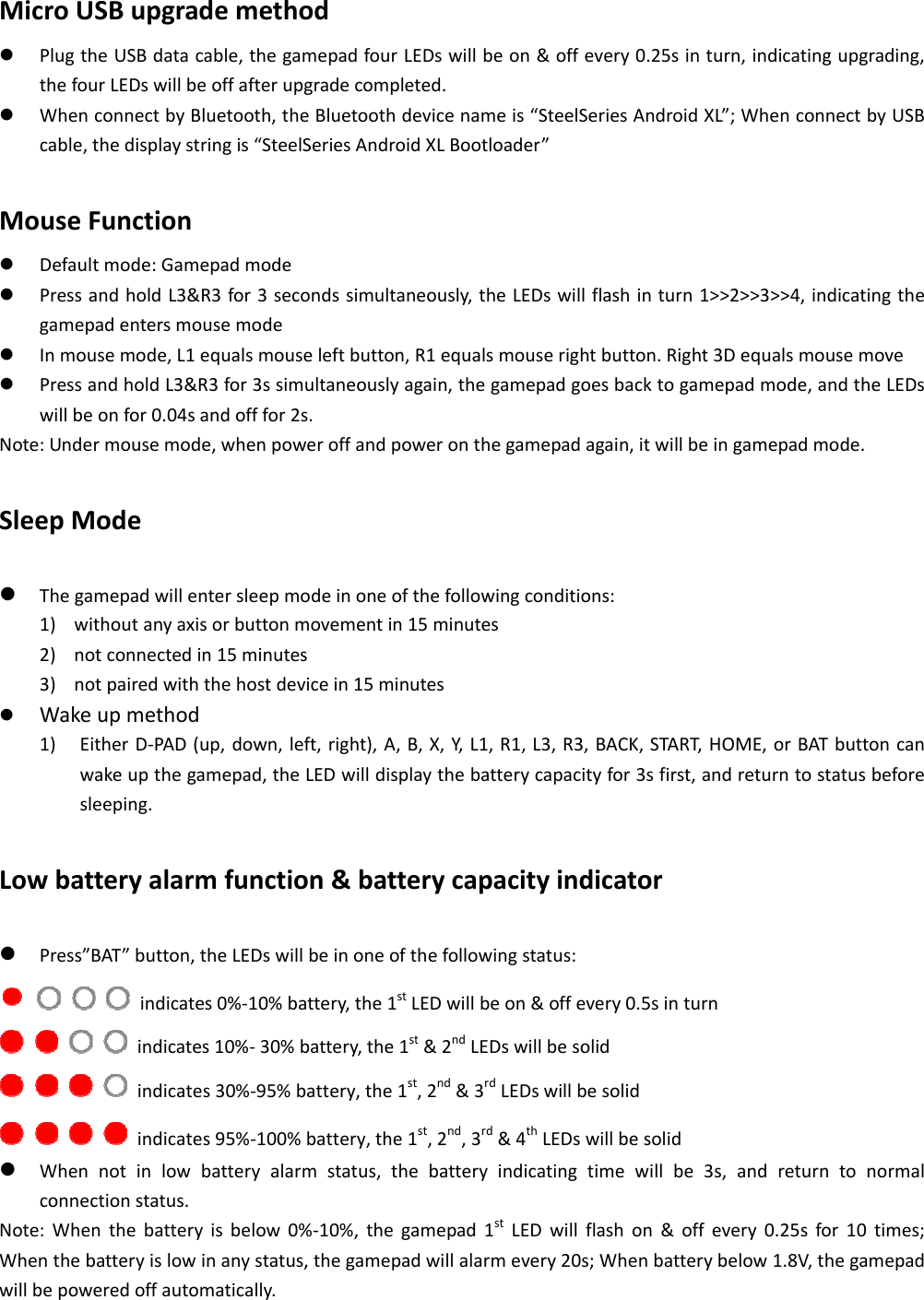

MicroUSBupgrademethodz PlugtheUSBdatacable,thegamepadfourLEDswillbeon&offevery0.25sinturn,indicatingupgrading,thefourLEDswillbeoffafterupgradecompleted.z WhenconnectbyBluetooth,theBluetoothdevicenameis“SteelSeriesAndroidXL”;WhenconnectbyUSBcable,thedisplaystringis“SteelSeriesAndroidXLBootloader”MouseFunctionz Defaultmode:Gamepadmodez PressandholdL3&R3for3secondssimultaneously,theLEDswillflashinturn1>>2>>3>>4,indicatingthegamepadentersmousemodez Inmousemode,L1equalsmouseleftbutton,R1equalsmouserightbutton.Right3Dequalsmousemovez PressandholdL3&R3for3ssimultaneouslyagain,thegamepadgoesbacktogamepadmode,andtheLEDswillbeonfor0.04sandofffor2s.Note:Undermousemode,whenpoweroffandpoweronthegamepadagain,itwillbeingamepadmode.SleepModez Thegamepadwillentersleepmodeinoneofthefollowingconditions:1) withoutanyaxisorbuttonmovementin15minutes2) notconnectedin15minutes3) notpairedwiththehostdevicein15minutesz Wakeupmethod1) EitherD‐PAD(up,down,left,right),A,B,X,Y, L1,R1,L3,R3,BACK,START,HOME,orBATbuttoncanwakeupthegamepad,theLEDwilldisplaythebatterycapacityfor3sfirst,andreturntostatusbeforesleeping.Lowbatteryalarmfunction&batterycapacityindicatorz Press”BAT”button,theLEDswillbeinoneofthefollowingstatus:    indicates0%‐10%battery,the1stLEDwillbeon&offevery0.5sinturn    indicates10%‐30%battery,the1st&2ndLEDswillbesolid    indicates30%‐95%battery,the1st,2nd&3rdLEDswillbesolid    indicates95%‐100%battery,the1st,2nd,3rd&4thLEDswillbesolid z Whennotinlowbatteryalarmstatus,thebatteryindicatingtimewillbe3s,andreturntonormalconnectionstatus.Note:Whenthebatteryisbelow0%‐10%,thegamepad1stLEDwillflashon&offevery0.25sfor10times;Whenthebatteryislowinanystatus,thegamepadwillalarmevery20s;Whenbatterybelow1.8V,thegamepadwillbepoweredoffautomatically.

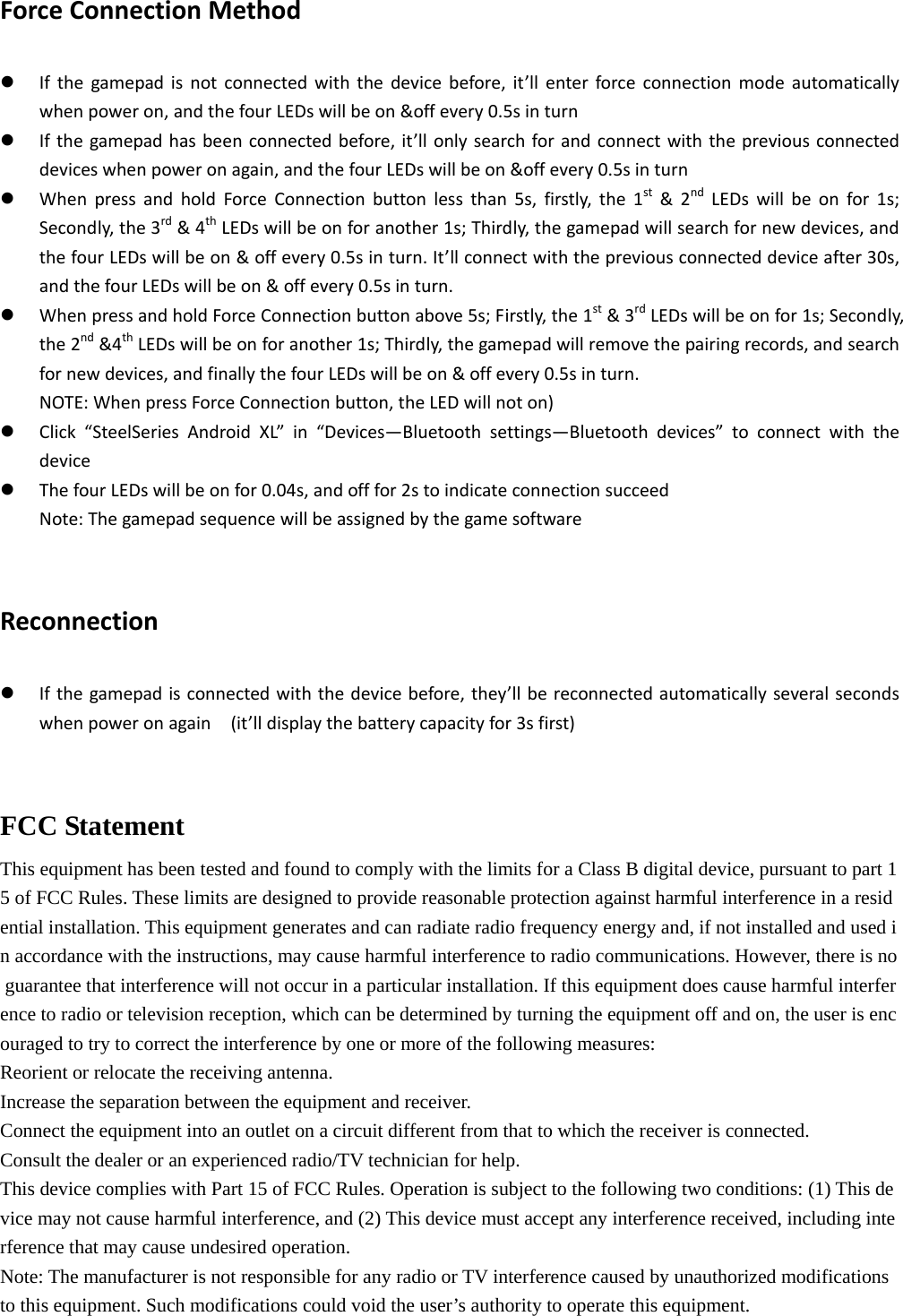

ForceConnectionMethodz Ifthegamepadisnotconnectedwiththedevicebefore,it’llenterforceconnectionmodeautomaticallywhenpoweron,andthefourLEDswillbeon&offevery0.5sinturnz Ifthegamepadhasbeenconnectedbefore,it’llonlysearchforandconnectwiththepreviousconnecteddeviceswhenpoweronagain,andthefourLEDswillbeon&offevery0.5sinturnz WhenpressandholdForceConnectionbuttonlessthan5s,firstly,the1st&2ndLEDswillbeonfor1s;Secondly,the3rd&4thLEDswillbeonforanother1s;Thirdly,thegamepadwillsearchfornewdevices,andthefourLEDswillbeon&offevery0.5sinturn.It’llconnectwiththepreviousconnecteddeviceafter30s,andthefourLEDswillbeon&offevery0.5sinturn.z WhenpressandholdForceConnectionbuttonabove5s;Firstly,the1st&3rdLEDswillbeonfor1s;Secondly,the2nd&4thLEDswillbeonforanother1s;Thirdly,thegamepadwillremovethepairingrecords,andsearchfornewdevices,andfinallythefourLEDswillbeon&offevery0.5sinturn.NOTE:WhenpressForceConnectionbutton,theLEDwillnoton)z Click“SteelSeriesAndroidXL”in“Devices—Bluetoothsettings—Bluetoothdevices”toconnectwiththedevicez ThefourLEDswillbeonfor0.04s,andofffor2stoindicateconnectionsucceedNote:ThegamepadsequencewillbeassignedbythegamesoftwareReconnectionz Ifthegamepadisconnectedwiththedevicebefore,they’llbereconnectedautomaticallyseveralsecondswhenpoweronagain(it’lldisplaythebatterycapacityfor3sfirst)FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate this equipment.

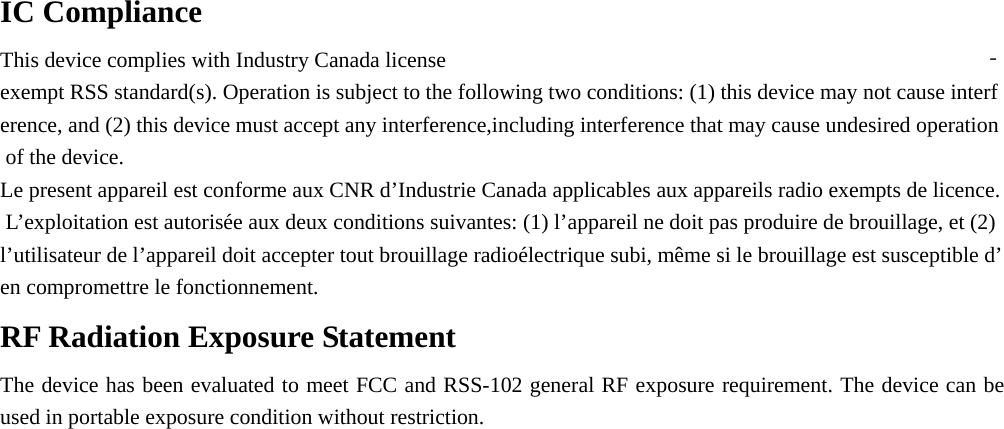

IC Compliance This device complies with Industry Canada license ‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,including interference that may cause undesired operation of the device. Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. RF Radiation Exposure Statement The device has been evaluated to meet FCC and RSS-102 general RF exposure requirement. The device can be used in portable exposure condition without restriction.
