User Manual
BRAGE
2
Brage
CONTENTS
1. WELCOME ........................................3
2. OVERVIEW ...................................... 4
3. HOW TO WEAR ................................5
3.1 HEIGHT ADJUSTMENT 5
3.2 FOLDABLE HINGES 6
4. HOW TO CHARGE ............................7
4.1 BATTERY STATUS 7
5. HOW TO CONNECT ......................... 8
5.1 CONNECT TO A BLUETOOTH DEVICE 8
5.2 CONNECT TO AN NFC DEVICE 9
5.3 CONNECT TO 3.5 MM JACK CONNECTOR 10
5.4 CONNECT TO USB 11
6. HOW TO USE ................................12
6.1 TURN HEADSET ON/OFF 15
6.2 MULTIPLE CALL HANDLING 15
6.3 VOICE GUIDANCE 16
7. SUPPORT .......................................17
7.1 FAQ 17
7.2 HOW TO CARE FOR YOUR HEADSET 18
8. TECHNICAL SPECIFICATIONS ........19
3
Brage
1. WELCOME
Thank you for purchasing the Brage. We hope you
will enjoy it!
BRAGE FEATURES
High definition Dolby® Digital Plus enhanced
sound via exclusive Brage Sound App.
Optimized sound excellence with portable
devices.
Turntable Touch Control for easy music and call
management.
Life proof - tough, shatterproof and constructed
for ultimate portability.
Premium comfort for extended wear: memory
foam ear cups and padded headband.
Foldable design for quick and compact storage.
Superior call quality – Noise Blackout™ with dual
mic technology.
NFC for easy pairing.
Detachable corded option for when you need to
be wired.
Connects with all Bluetooth® ready devices –
phones, computers, tablets and more.
4
Brage
2. OVERVIEW
OFF
Adjustable
Headband
Brage Sound APP
button
3.5mm Jack
Connector
3.5mm audio cable Micro-USB cable
Foldable Hinges
On/Off/Pairing
switch
Turntable Touch
Controls
Multi-function
button
Battery and
Connection status
lights
Multi-function
button
NFC zone
Micro-USB Port
5
Brage

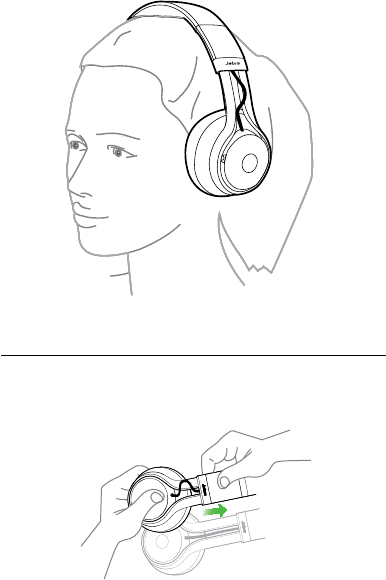

3. HOW TO WEAR
3.1 HEIGHT ADJUSTMENT
Get the perfect fit by adjusting the headband, as
illustrated.
6
Brage

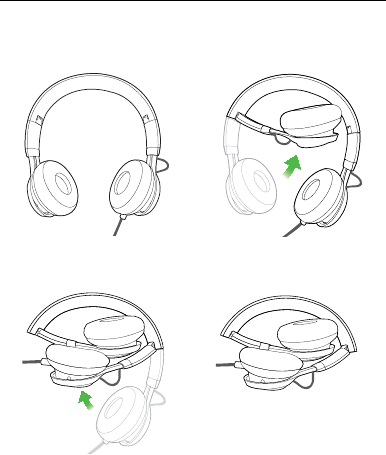

3.2 FOLDABLE HINGES
The headset can be folded when not in use.
7
Brage
4. HOW TO CHARGE
Plug the headset into any available USB port on
your PC using the micro-USB cable.
4.1 BATTERY STATUS
Tap the Multi-function button when not on a call to
see the battery status. It takes 2-4 hours to fully
charge the headset.
LED COLOR BATTERY LEVEL
Green Medium/High
Red Low
Flashing red Critically low
8
Brage
5. HOW TO CONNECT
5.1 CONNECT TO A BLUETOOTH DEVICE
1. Hold the On/Off/Pairing switch in the Pairing
position for 3 secs.
2. Pairing mode will be announced in the
headphones, and the Bluetooth light will flash
blue.
3. Follow the voice-guided pairing instructions to
pair to your Bluetooth device.
9
Brage
5.2 CONNECT TO AN NFC DEVICE
1. Turn the on (set the On/Off/Pairing switch to
the On position).
2. Hold an NFC device against the NFC zone of the
headphones (left earcup).
NFC zone
NOTE: Different NFC devices have NFC implemented in
different ways. The size and sensitivity of the NFC zone
may vary between devices.
10
Brage

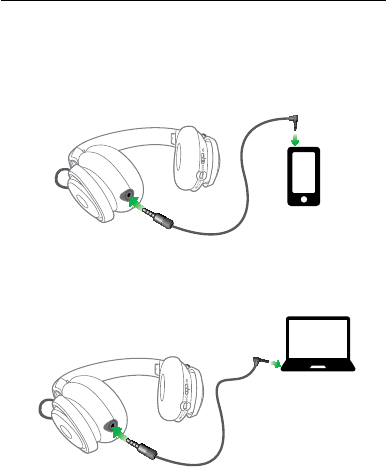

5.3 CONNECT TO 3.5 MM JACK CONNECTOR
Connect the headset to a 3.5 mm jack connector on
your mobile device or PC using the supplied music
cable.
NOTE: Bluetooth and headset connections are disabled
when connected to the 3.5 mm Jack Connector.
11
Brage
5.4 CONNECT TO USB
Connect the headset to a USB slot or PC using the
supplied micro-USB cable.
NOTE: It is possible to connect to a mobile device
wirelessly and to your PC via USB at the same time.
12
Brage
6. HOW TO USE
OFF
On/O/Pairing switch
Turntable Touch Controls
Multi-function button
Multi-function
button
NFC zone
Brage Sound App button
13
Brage
WIRELESS USE  MUSIC
Play/pause
music Tap the Multi-function button
Adjust
speaker
volume
Swipe a finger in a circular
motion on the Turntable Touch
Controls
Skip music
tracks
Double-tap the front or back of
the Turntable Touch Controls to
skip track forwards or backwards
WIRELESS USE  CALLS
Answer/
end call Tap the Multi-function button
Reject call Press and hold (1 sec) the
Multi-function button
Redial last
number
Double-tap the Multi-function
button.
Brage
Sound
App
Tap the Brage Sound App button
(left earcup) to launch the Brage
Sound App on your connected
device (if installed)
14
Brage
WIRED USE  MUSIC PHONE DEPENDENT
Play/pause
music Tap the Multi-function button
Skip music
tracks
Double-tap/triple-tap the
Multi-function button on the
cord
WIRED USE  CALLS PHONE DEPENDENT
Answer/
end call Tap the Multi-function button
Reject call Press and hold (1 sec) the
Multi-function button
Redial last
number
Double-tap the Multi-function
button.
15
Brage
6.1 TURN HEADSET ON/OFF
Set the On/Off/Pairing switch to On or Off.
6.2 MULTIPLE CALL HANDLING
The headset can accept and handle multiple calls
simultaneously.
Put current call on
hold and answer
incoming call
Press (2 secs) the
Multi-function button
Switch between held
call and active call
Press (2 secs) the
Multi-function button
Reject incoming call Double-tap the
Multi-function button
16
Brage
6.3 VOICE GUIDANCE
WHAT YOU HEAR
To connect Brage, go to the Bluetooth menu on
your phone and select it from the list.
Connected
Disconnected
Connection cancelled
2 devices connected
No device connected
Battery level low
Sound prompts off
Sound prompts on
Redialing
17
Brage
7. SUPPORT
7.1 FAQ
Q I hear crackling noises
A Bluetooth is a radio technology that is sensitive to
objects between the headset and the connected
device. Ensure the headset and the connected device
are within range (up to 10 meters or 30 feet).
Q I cannot hear anything
A - Increase the speaker volume.
-
Ensure that the headset is connected to a device.
Q I am having Bluetooth connection problems
A Check your mobile device’s Bluetooth menu and
delete/forget the headset. Re-connect the headset to
your Bluetooth device following the Bluetooth connec-
tion instructions.
Q Will the headset support other Bluetooth
equipment?
A The headset is designed to work with Bluetooth
mobile devices. It can also support other Bluetooth
devices that can support a headset, hands-free and/or
advance audio distribution profile.
18
Brage
7.2 HOW TO CARE FOR YOUR HEADSET
Always store the headset with the power off
and safely protected.
Avoid storage at extreme temperatures (above
70°C/158°F or below -40°C/-40°F). This can
shorten battery life and may affect operation.
High temperatures may also degrade
performance.
Do not expose the headset to rain or other
liquids.
19
Brage
8. TECHNICAL
SPECIFICATIONS
TOPIC DESCRIPTION
Weight: 240 grams
Dimensions: H 178.8 mm x W 160.1 mm
x L 73 mm
Microphone: Omni-directional dual microphone
Speaker: 40 mm
Operating range: Up to 10 meters
Bluetooth version: 3.0
Paired devices: Up to 8 devices, connected to 2 at
same time
Supported Bluetooth profiles: Headset profile v1.2, hands free
profile v1.6, A2DP v1.2, AVRCP v1.4
Talk time: Up to 12 hours
Standby time: Up to 10 days
Operating temperature: -10° C to 55° C (14 F to 131 F)
Storage temperature: -40° C to 65° C (-40 F to 149 F)
Pairing passkey or PIN: 0000
