935 Dual User Manual

jabra.com/pro935
User Manual
JABRA PRO 935
© 2013 GN Netcom A/S. All rights reserved. Jabra® is a registered
trademark of GN Netcom A/S. All other trademarks included herein
are the property of their respective owners. The Bluetooth® word
mark and logos are owned by the Bluetooth SIG, Inc. and any use
of such marks by GN Netcom A/S is under license. (Design and
specifications subject to change without notice).
Declaration of Conformity can be found on
www.jabra.com/CP/US/declarations-of-conformity
MADE IN CHINA
MODEL: XXXXX
3
ENGLISH
JABRA SOLEMATE MINI
1. WELCOME .......................................... 4
2. PRODUCT OVERVIEW ........................ 5
2.1 HEADSET
2.2 BASE
2.3 OPTIONAL ACCESSORIES
3. CHARGE THE HEADSET ..................... 7
3.1 BATTERY STATUS
4. HOW TO WEAR ................................. 8
4.1 HEADBAND
4.2 EARHOOK
4.3 NECKBAND OPTIONAL ACCESSORY
5. HOW TO CONNECT ...........................10
5.1 CONNECT TO PC SOFTPHONE
5.2 CONNECT TO MOBILE DEVICE BLUETOOTH
5.3 CONNECT USING NFC
6. HOW TO USE ....................................12
6.1 MULTIPLE CALL HANDLING
7. VOICE GUIDANCE .............................14
8. SOFTWARE .......................................15
8.1 JABRA PC SUITE
8.2 UPDATE FIRMWARE
8. SUPPORT ..........................................16
8.1 FAQ
8.2 HOW TO CARE FOR YOUR JABRA DEVICE
9. TECHNICAL SPECIFICATIONS ...........17
4
ENGLISH
JABRA SOLEMATE MINI
1. WELCOME
Thank you for using the Jabra PRO 935. We hope
you will enjoy it!
JABRA PRO 935 FEATURES
XXXX
5
ENGLISH
JABRA SOLEMATE MINI
2. PRODUCT OVERVIEW
2.1 HEADSET
2.2 BASE
Mute
indicator
Battery
indicator
Audio link
indicator
Clear dial
tone switch
Microphone
volume
controls
USB port (rmware
update only)
Desk phone
button
Mobile device
button
Power adapter
port
Handset port
Headset port
Aux port
Volume down button
Volume up button
Mute button
NFC
Multi-function button
LED indicator
NFC zone
6
ENGLISH
JABRA SOLEMATE MINI
FOLDABLE BASE STAND
The Jabra PRO 935 base stand can be folded into
three positions: open, closed and standing.
CLICK
7
ENGLISH
JABRA SOLEMATE MINI

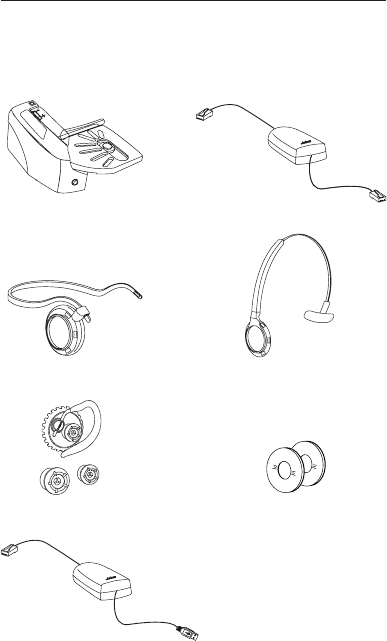

2.3 OPTIONAL ACCESSORIES
The following Jabra PRO accessories are available
separately. Visit jabra.com for a full accessory
overview.
Neckband attachment
Replacement earhook, with
earbuds
Replacement ear cushions
Replacement headband attachment
Jabra GN1000 Electronic hookswitch adapter
(actual product may vary from illustration)
Service cable
8
ENGLISH
JABRA SOLEMATE MINI
3. CHARGE THE HEADSET
The headset will charge when docked in the base,
and the base is connected to a PC.
It takes approx. 3 hours to charge the headset.
9
ENGLISH
JABRA SOLEMATE MINI
3.1 BATTERY STATUS
BATTERY TABLE
10
ENGLISH
JABRA SOLEMATE MINI

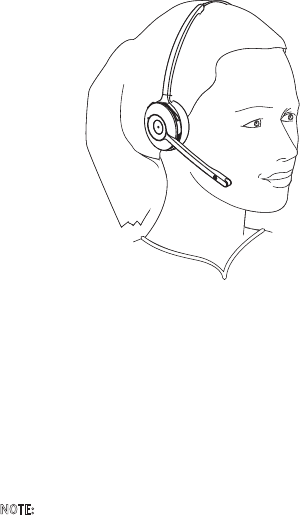

4. HOW TO WEAR
The Jabra PRO 935 headset can be worn in three
different wearing-styles:
Headband
Earhook
Neckband (optional accessory)
All wearing-styles can be worn on either the left or
right ear.
NOTE: It is important to position the microphone close to the
mouth for maximum noise cancellation.
11
ENGLISH
JABRA SOLEMATE MINI

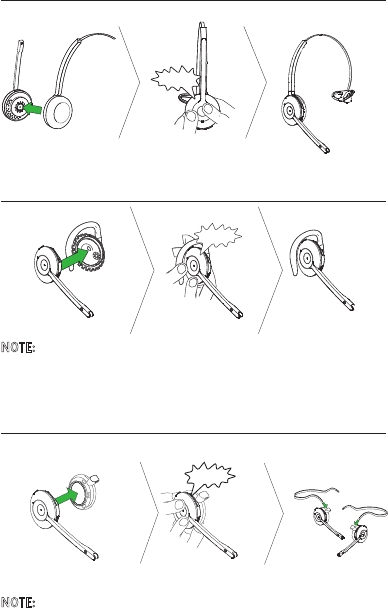

4.1 HEADBAND
CLICK
4.2 EARHOOK
CLICK
NOTE: The earhook is not supplied in all regions, and can be
purchased on jabra.com.
4.3 NECKBAND OPTIONAL ACCESSORY
R
L
CLICK
NOTE: The neckband can be purchased on jabra.com
12
ENGLISH
JABRA SOLEMATE MINI

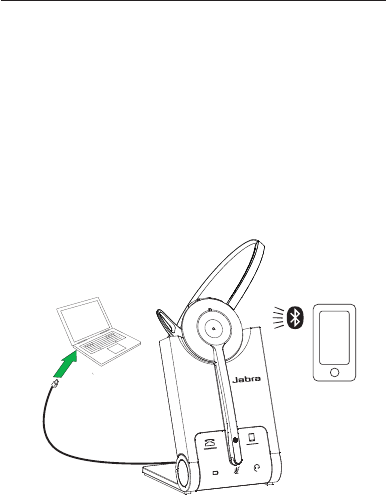

5. HOW TO CONNECT
5.1 CONNECT TO PC SOFTPHONE
1. Connect the base to your PC using the supplied
USB cable.
2. Plug the base into a power supply using the
supplied wall charger.
3. Dock the headset in the base.
13
ENGLISH
JABRA SOLEMATE MINI
5.2 CONNECT TO MOBILE DEVICE
BLUETOOTH
1. Connect the base to a power supply.
2. Press and hold (5 secs) the Mobile phone button
on the base.
3. Pairing mode will be announced in the headset
after 3 seconds, and the LED will light up blue.
4. Follow the voice-guided pairing instructions in
the headset to pair to your Bluetooth device.
14
ENGLISH
JABRA SOLEMATE MINI

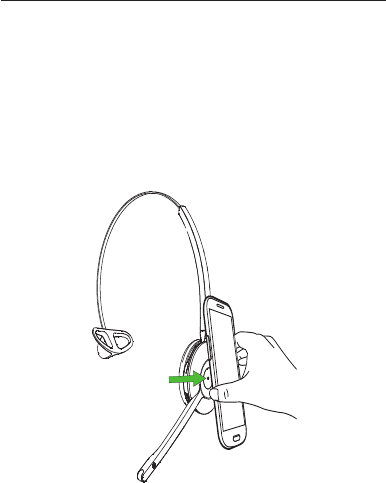

5.3 CONNECT USING NFC
NFC is a faster, simpler way to connect using
Bluetooth.
1. Ensure NFC is enabled on the mobile device.
2. Tap the NFC zone on the mobile device against
the NFC zone on the headset.
NFC zone
15
ENGLISH
JABRA SOLEMATE MINI
6. HOW TO USE
Desk phone
button
Mobile device
button
FUNCTION ACTION
Answer call Tap the Multi-function
button
End/reject call Tap the Multi-function
button
Adjust speaker
volume
Tap the Volume up or
Volume down button
Mute/un-mute Tap the Mute button
Switch between
desk phone and
mobile phone
Tap the Desk phone button
or Mobile device button on
the base
Volume down button
Volume up button
Mute button
NFC
Multi-function button
16
ENGLISH
JABRA SOLEMATE MINI
6.1 MULTIPLE CALL HANDLING
The headset can accept and handle multiple calls
simultaneously.
CALL FUNCTION HOW TO DO IT
End current call and
answer incoming call
Tap the Multi-function
button
Switch between held
call and active call
Press and hold (2 secs)
the Multi-function
button
Put current call on
hold and answer
incoming call
Press and hold (2 secs)
the Multi-function
button
Reject incoming call,
when on a call
Tap the Multi-function
button
17
ENGLISH
JABRA SOLEMATE MINI
7. VOICE GUIDANCE
The headset plays a variety of voice announcements
to indicate status and connection guidance.
LISTEN WHAT YOU HEAR
Go to the Bluetooth menu on your mobile
device and connect to Jabra PRO
Power on
Power off
Low battery
Mobile connected
Mobile disconnected
PC connected
PC disconnected
Mute on
Mute off
18
ENGLISH
JABRA SOLEMATE MINI
8. SOFTWARE
8.1 JABRA PC SUITE
Jabra PC Suite is a collection of software designed
to support, manage and enable optimal
functionality for Jabra devices.
Download the latest version - jabra.com/pcsuite
It is highly recommended to install Jabra PC Suite.
8.2 UPDATE FIRMWARE
Updating firmware improves performance or adds
new functionality to your Jabra PRO 935. Jabra PC
Suite must be installed to update firmware.
To update firmware:
Launch the Jabra Firmware Updater installed
with Jabra PC Suite, or
Check for the latest version via Jabra Control
Center > Help > Check for Updates.
19
ENGLISH
JABRA SOLEMATE MINI
9. SUPPORT
9.1 FAQ
View the full FAQ on Jabra.com/pro935.
9.2 HOW TO CARE FOR YOUR JABRA
DEVICE
Always store the headset with the power off.
Avoid storage at extreme temperatures (below
-XX°C/-XX°F or above XX°C/XX°F). This can
shorten battery life and may affect speaker
operation.
Do not expose the headset or base to rain or
other liquids.
20
ENGLISH
JABRA SOLEMATE MINI
10. TECHNIC AL
SPECIFICATIONS
JABRA PRO 935 SPECIFICATION
Weight: Headset: XX
Base: XX
Dimensions: Headset: H XXmm x W XXmm x L XXmm
Base: H XXmm x W XXmm x L XXmm
Microphones:
Speakers:
Operating range: XXm/XXft (phone dependent)
Bluetooth version: 3.0
Paired devices: Up to 8 paired devices, Two active
device connected at a time
Supported Bluetooth
profiles:
A2DP(v1.2), Hands Free Profile (v1.6),
Headset profile(v1.2)
Talk time: Up to XX hours
Standby time: Up to XX days
Operating
temperature: -XX°C to XX°C (XX°F to XX°F)
Storage temperature: -XX°C to XX°C (-XX°F to XX°F)
Pairing passkey or
PIN: 0000
21
ENGLISH
JABRA SOLEMATE MINI
REV A
www.jabra.com/pro935
