Introduction
Congratulations on the purchase of your new hearing instruments. ReSound’s innovative sound
technology and design, combined with the customised device programming selected by your
hearing care professional, will make hearing a more enjoyable experience. Hearing instruments
will enable you to hear sounds that you may not have heard in years because of your hearing loss.
Practice and a positive attitude are important in learning to use hearing instruments Your ReSound
instruments have been adjusted according to your individual hearing loss and needs. Some people
adjust quickly to wearing hearing instruments in their ears and hearing new sounds; other
people may need more time.
Please read this manual carefully in order to wholly benefit from the use of your hearing instru-
ments. With proper care, maintenance, and usage, your hearing instruments will aid you in
better communication for many years. Ask your hearing care professional if you have any ques-
tions.
ReSound is a registred trade mark of ReSound A/S
Hearing instrument model:
Battery size: Receiver tube length: Dome size:
Left serial number: Right serial number:
89
Care and maintenance . . . . . . . . . . . . . . .30
Daily maintenance . . . . . . . . . . . . . . . . . . 31
Replacing wax filters. . . . . . . . . . . . . . . . . 32
General precautions. . . . . . . . . . . . . . . . .34
General warnings . . . . . . . . . . . . . . . . . . .35
Battery warning Information . . . . . . . . . . . 37
Troubleshooting guide . . . . . . . . . . . . . . .38
Technical data .....................46
Warranty and repairs . . . . . . . . . . . . . . . . 47
Temperature test, transport and
storage information. . . . . . . . . . . . . . . . . .48
CONTENTS
Statement .........................2
Intended use .......................4
List of countries . . . . . . . . . . . . . . . . . . . . .4
Introduction ........................6
Description of the hearing instruments . . . 10
Getting started.....................12
On/Off function . . . . . . . . . . . . . . . . . . . . 12
SmartStart........................13
Inserting/Replacing the battery . . . . . . . . . 14
Low battery indicator . . . . . . . . . . . . . . . . 15
Inserting/removing hearing instruments . . . 16
Operation of the hearing instrument . . . . . 19
Volume control (optional). . . . . . . . . . . . . . 19
Programme button (optional). . . . . . . . . . . 21
Flight mode .......................23
Telephone use.....................24
Listen to radio or TV . . . . . . . . . . . . . . . . 25
Cellular phones . . . . . . . . . . . . . . . . . . . . 25
PhoneNow .......................26
Tele-loop systems . . . . . . . . . . . . . . . . . .29

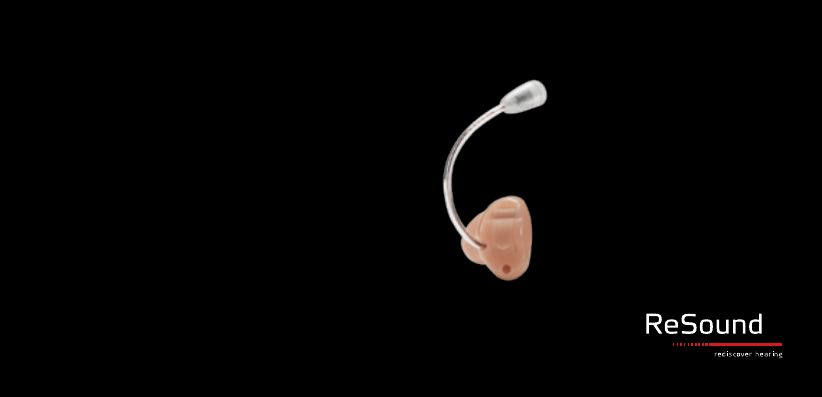

GN ReSound
ReSound Live
XXXXXXX
10 11
AL910-MP, AL910-M, AL710-MP
AL710-M, AL510-MP, AL510-M
AL930-MUW, AL930-MPW, AL930-MW
AL930-MU, AL930-MP, AL930-M
AL730-MUW, AL730-MPW, AL730-MW
AL730-MU, AL730-MP, AL730-M
AL530-MUW, AL530-MPW,AL530-MW
AL530-MU, AL530-MP, AL530-M
AL950-MUW, AL950-MPW, AL950-MW
AL950-MU, AL950-MP, AL950-M
AL750-MUW, AL750-MPW, AL750-MW
AL750-MU, AL750-MP, AL750-M
AL550-MUW, AL550-MPW,AL550-MW
AL550-MU, AL550-MP, AL550-M

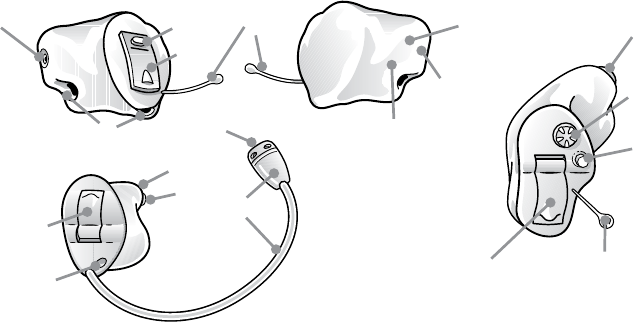

1. Programme button (optional)
2. Battery compartment and On/Off switch
3. Removal cord (optional)
4. Sound outlet
5. Wax filter
6. Venting
7. Microphone sound inlet(s)
8. Remote microphone and tubing
(for remote microphone devices)
9. Volume control (optional)
10. Model
11. Manufacturer
12. Serial number
Hearing instrument type designation is: BO312 and BO13 and this document contains
information regarding the following models of these types:
8
41
10
6
11
7
2
4
9
1
3
12
4
2
3
6
5
2
12 13
SmartStart
Hearing instruments can be turned on once you have placed them on your ears. If you prefer to
turn them on just prior to placing them in your ears, your hearing care professional can activate
a function called SmartStart. This function will delay the time in which the hearing instruments
turn on by several seconds after the battery compartment is closed. With SmartStart, a beep
will be heard for each second of the delay period.
Getting started
On/Off function
1. When the battery door is closed, the hearing instrument
will turn on, and the default program will be activated.
2. To turn the hearing instrument off, open the battery door.
Many individuals can use their fingernail to pull it open.
Tip: Whenever the hearing instruments are not in use, remember to open
the battery doors to avoid unnecessary battery consumption.
On
Off
14 15
Low battery indicator
Your hearing care professional can activate a low battery indicator in your hearing instruments.
The hearing instrument will reduce amplification and emit a beep signal if battery power gets too
low. This signal will recur every five minutes until the hearing instrument automatically switches
off. The low battery indicator can vary slightly, depending on the type of battery used. It is
recommended that you keep spare batteries on hand.
Low battery indicator (instruments paired with accessories only)
Active usage of the ReSound Unite accessories (Remote Control, Phone Clip and Unite TV)
requires more battery power from the hearing instruments than when these are working without
accessories. When the battery in the hearing instrument has depleted to a level at which use of the
ReSound Unite TV and Phone Clip cannot be supported, the hearing instrument will play two
sets of descending tones. After this, your hearing instrument and ReSound Unite Remote Con-
trol will continue to work as usual, but you will not be able to use your ReSound Unite TV and
Inserting/Replacing the battery

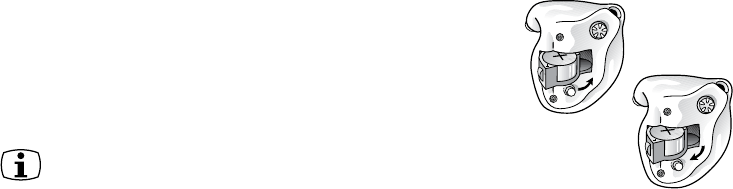

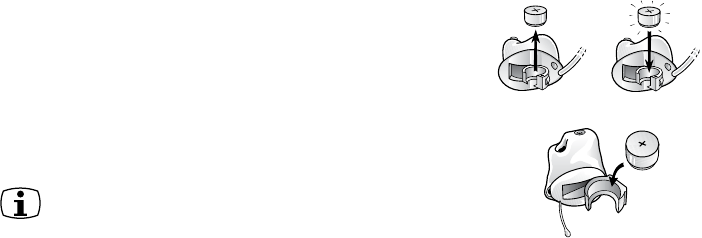

Open the battery door completely by using your fingernail.
1. Remove the used battery if present. Insert the new battery
with the positive side in the correct position. The battery door
has a ‘+’ indicator to help determine the correct insertion.
2. Always use new Zinc-Air batteries that have a minimum
remaining shelf life of 1 year
3. Gently close the battery door.
Tip: Remove the batteries to prevent battery leakage or
corrosion when the hearing instruments are not in use for
an extended period of time.
16 17

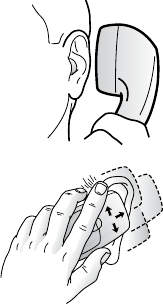

3. Insert the hearing instrument into your ear canal. Opening and closing your
mouth may ease insertion.
4. Gently push the microphone into the creased area of the ear that is located
above the microphone entrance, and make sure the tubing is in place.
By experimenting, an easier method may be discovered. With proper insertion,
hearing instruments should fit snugly but comfortably. If the hearing instru-
ments cause irritation of the ears, contact your hearing care professional.
Never attempt to modify the shape of the hearing instrument yourself.
Tip: It may be helpful to pull your ear up and outward with your opposite
hand during insertion.
Phone Clip. At some point the battery level will also be too low to support the remote control as
well and you will once again hear the descending tones. The hearing instruments will continue
to work as usual.
Once a new battery is inserted, full operation of the accessories will resume.
Inserting/Removing hearing instruments
Insertion

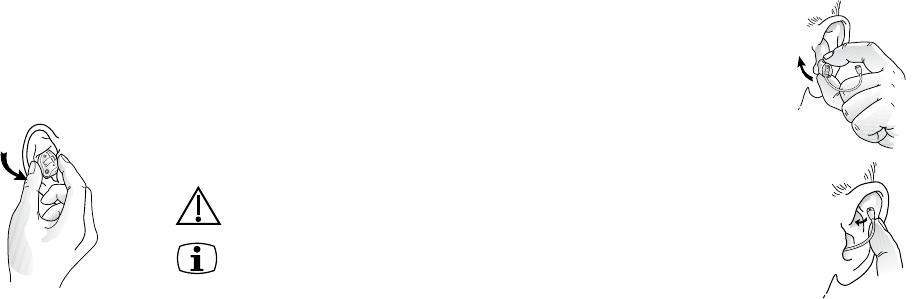

1. Hold the hearing instrument between your thumb and index finger, either
above and below or on the sides.
2. Place the sound outlet portion into your ear canal. Turn the top part of the
earmould gently backwards and forwards so that it tucks behind the fold of
skin above your ear canal.
18 19
Removal options
1. Hold the removal cord with your thumb and index finger and pull outward.
2. Hold the edges of the hearing instrument with your thumb and forefinger
and pull outward while slightly rotating your hand forward.
3. If remote microphone hearing instruments do not have a removal cord,
gently pull outward with the microphone tubing.
Note: Consult your hearing care professional if you have
difficulty removing the hearing instruments.
Operation of the hearing instrument
Volume control (Optional)
The volume control will allow the volume of hearing instruments to be increased or decreased.

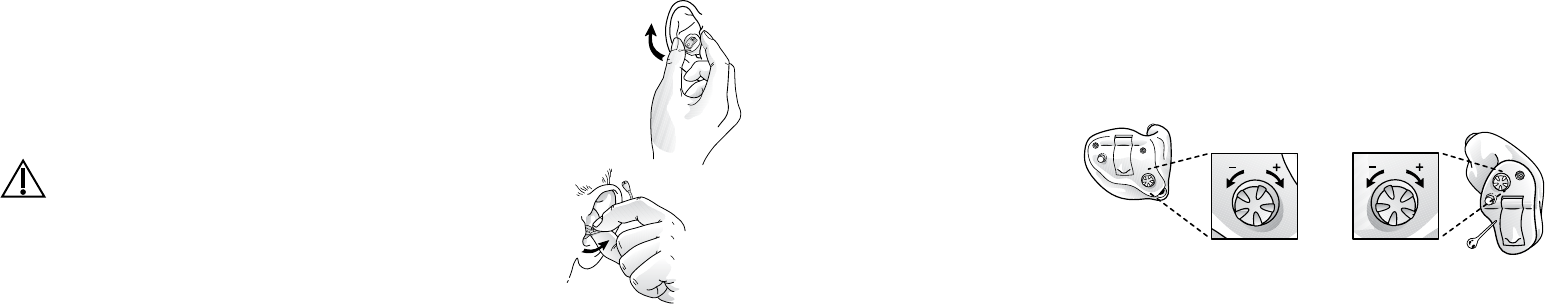

1. To increase the volume, rotate the volume control forward (towards your face when you are
wearing the hearing instruments).
2. To decrease the volume,
rotate the volume control
backward (away from your
face).
20 21
Programme button (Optional)
Depending on your experience level with hearing instruments, individual hearing needs, and the
type of listening environments you experience, your hearing care professional may activate ad-
ditional programmes in the hearing instrument. If additional programmes have been activated,
the following list explains how they work.
1. You can switch between programmes by pushing the push button once.
2. You will then hear one or more beeps. The number of beeps indicates which programme you
have selected (one beep=programme one, two beeps=programme two, etc.).
3. When the hearing instruments are turned off and then back on, the hearing instrument
always returns to the default setting (programme one).
When volume is increased or decreased, a beep signal will be heard for each incremental
change. When the upper or lower limits of the volume range are reached, a beep signal with a
longer duration will be heard.
22 23
Flight mode*
When boarding a flight wireless functionality must be deactivated, as it is not allowed to radiate
radio signals during flights.
It is possible to disable wireless operation by opening and closing the battery compartment of
the hearing instrument while at the same time pressing the push button.
When disabled manually, wireless operation may be re-enabled by opening and closing the bat-
tery compartment normally, (i.e. without at the same time pressing the push button).
*Instruments paired with ReSound Unite accessories only
Programme Description of when to use
1
2
3
4
24 25
Telephone use
Finding the optimal position for holding a tele phone may require practice
for some individuals, and one or more of the following suggestions may
be helpful.
• Hold the telephone as you would normally.
• Hold the telephone towards the top of the ear (closer to where the
microphones are).
• If whistling occurs, holding the tele phone in the same position may
help the hearing instrument to eliminate the feedback.
• Any whistling may also be decreased by holding the telephone slightly
away from the ear.
• Depending on your individual needs, your hearing care professional
may activate a programme specifically for telephone use.
Listen to radio or TV
When listening to the TV or the radio, start out by listening to news commentators since they
usually speak clearly, then try other programmes.
If you find it difficult to listen to TV or radio, your hearing care professional will be able to give you
advice on available accessories to enhance your listening capabilities for TV and radio.
Cellular phones
Your hearing instrument is designed to comply with the most stringent Standards of International
Electromagnetic Compatibility. However, not all cell phones are hearing instrument compatible.
The varying degree of disturbance can be due to the nature of your particular cellular phone or
of your wireless telephony service provider.
If you find it difficult to obtain a good result while using your cellular phone, your hearing care
professional will be able to give you advice on available accessories to enhance listening
capabilities.
26 27
PhoneNow
The PhoneNow function, allows your hearing instrument to automatically switch to your tele-
phone programme when a telephone receiver is raised to the ear. When the telephone receiver
is removed from the ear, the hearing instrument automatically returns to the previous listening
programme.
Placement of PhoneNow magnets
In order to place PhoneNow magnets properly:
1. Clean the telephone receiver thoroughly.
2. Hold the telephone vertically, in a position similar to when
making a telephone call.
3. Place the magnets just below the telephone receiver. If necessary, move the magnet to
another position to improve ease of use and comfort while speaking.
4. Only use a recommended cleaning agent to clean the telephone prior to placing the magnet
on the phone.
PhoneNow usage
Telephones can be used in a normal manner. A short melody will indicate that the Phone-
Now feature has automatically switched the hearing instrument to your telephone programme.
Initially, you may need to move the telephone receiver slightly to find the best position for reliable
PhoneNow activation and good hearing on the telephone.
28 29
PhoneNow precautions
1. Keep magnets out of reach of pets, children and individuals who are mentally challenged. If
a magnet is swallowed, please seek advice from a medical practitioner.
2. The magnet used to strengthen the magnetic field of a telephone receiver may affect
functionality of some medical devices or electronic systems. Always keep the magnet or
a telephone equipped with the magnet at least 30 cm (12”) away from pacemakers, credit
cards and other magnetically sensitive devices.
3. High distortion during dialing or phoning may mean that the magnet is not in the optimal
position relative to the telephone receiver. To avoid the issue, please move the magnet to
another place on the telephone receiver.
4. Only use magnets supplied by GN ReSound.
Tele-loop systems
Many places, such as theatres, houses of worship, and schools are equipped with tele-loop
systems. When using a telecoil programme with tele-loop systems, sound is picked up directly
and may improve speech understanding. If there is no sound from the hearing instruments in
a tele-loop system and with a telecoil programme activated, the tele-loop system may not be
turned on or is not operating correctly. If a facility is not equipped with a tele-loop system, sitting
as close as possible to the front may be helpful.
30 31
Daily maintenance
It is important to keep your hearing instrument clean and dry. On a daily basis, clean the hearing
instruments using a soft cloth or tissue. Remove any wax or debris from hearing instruments
using a brush and/or a wire loop. In order to avoid damage due to humidity or excessive perspi-
ration, the use of a drying kit is recommended.
Care and maintenance
Proper handling
The face plate of your hearing instrument is protected by a layer of protective, hydrophobic
nanocoat material. However, please follow the following instructions to further prolong the du-
rability of your hearing instruments.
1. Never immerse hearing instruments in water or other liquids, as liquids may cause permanent
damage to the hearing instruments.
2. Avoid rough handling of hearing instruments or dropping them on hard surfaces or floors.
3. Do not leave hearing instruments in or near direct heat or sunlight, as excessive heat can
cause damage or deform the casing.
4. Hair spray, make-up, etc. may damage hearing instruments, and they should be removed
prior to the application of cosmetics.
32 33
Replacing wax filters
Custom hearing instruments may have wax filters that protect against wax and moisture. It is
recommended that these are changed as needed.
To change these filters, the following steps are needed:
1. Brush the sound outlet area with the sound outlet pointed down.
2. Insert the threaded end of the wax filter tool into the used wax filter, and gently rotate
clockwise.
3. Gently pull until the used filter is removed.
4. Discard the used filter in the slot located in the wax filter kit by pressing it into the center,
sliding it to one end of the slot, and pull until the filter is discarded.
5. Flip the wax filter tool around, locate a new filter in the dial, and press the tip of the tool into
the center of the dial.
6. Gently pull the new filter out of the dial.
7. Align the new filter to the sound outlet.
8. Press the new filter into the opening, and simultaneously pull and rock back and forth until
the new wax filter is in place.
Tip: Pressing on the new filter with the flat side of the wax filter tool can ensure that the
filter is correctly in place.
Note: If a different type of wax filter is used for your hearing instruments, or if your
hearing instruments do not utilise wax filters, consult your hearing care professional for
guidance.
34 35
General precautions
1. Do not leave hearing instruments in the sun, near an open fire, or in a hot, parked car.
2. Do not wear hearing instruments while showering, swimming, in heavy rain, or in a moist atmo-
sphere such as a steam bath or sauna.
3. Should the hearing instrument become moist, remove the battery and place the hearing
instrument in a closed container with a drying agent. Your hearing care professional can provide
options for drying containers or kits.
4. Remove the hearing instruments when applying items such as cosmetics, perfume, after shave,
hair spray, and suntan lotion.
5. When wireless function is activated, the device uses low-powered digitally coded transmissions
in order to communicate with other wireless devices. Although unlikely, nearby electronic devices
may be affected. In that case, move the hearing instrument away from the affected electronic
device.
6. When using wireless functionality and the devices are affected by electromagnetic interference,
move away from the source.
General warnings
1. Consult a hearing care professional if you discover a foreign object in your ear canal, if you experience
skin irritation, or if excessive ear wax accumulates with the use of the hearing instrument.
2. Different types of radiation, for example, from NMR, MRI or CT scanners, may damage hearing
instruments. It is recommended not to wear hearing instruments during these or other similar
procedures. Other types of radiation, such as burglar alarms, room surveillance systems, radio
equipment, mobile telephones, contain less energy and will not damage hearing instruments.
However, they have the potential to momentarily affect the sound quality or temporarily create
strange sounds from hearing instruments.
3. Do not wear hearing instruments in mines, oil fields, or other explosive areas unless those areas
are certified for hearing instrument use.
4. Do not allow others to use your hearing instruments. This may cause damage to the hearing
instruments or to the hearing of the other individual.
36 37
12. For use of wireless functionality only use ReSound Unite accessories. For further guidance
please refer to the user guide of the relevant ReSound Unite accessory.
13. Warning: If device is broken, DO NOT USE.
5. Due to choking hazards, hearing instrument usage by children or individuals who are mentally
challenged should be supervised at all times.
6. Hearing instruments should be used only as prescribed by your hearing care professional.
Incorrect use may result in hearing loss.
7. Warning to hearing care professionals: Special care should be exercised in selecting and fitting
hearing instruments with maximum sound pressure level that exceeds 132dB SPL with an IEC
60711:1981 occluded ear simulator. There may be a risk of impairment of the remaining hearing.
8. Be careful when boarding flights to deactivate the wireless functionality.
9. Keep magnets out of reach of pets, children and individuals who are mentally challenged. If a
magnet is swallowed, please seek advice from a medical practitioner.
10. Turn off your wireless functionality by using the flight mode in areas where radio frequency
emission is prohibited.
11. Only connect ReSound hearing instruments to ReSound accessories intended and qualified to
be used with ReSound hearing instruments.
Battery warning information
Batteries, although very small, contain dangerous substances, and should be disposed of
carefully. This is for the safety of you and the environment. Please note:
1. DO NOT attempt to recharge standard zinc air batteries. They may leak or explode.
2. DO NOT attempt to dispose of batteries by burning them.
3. DO NOT place batteries in your mouth. Consult a physician immediately if a battery has been
swallowed, as they can be harmful to your health.
4. Keep batteries away from pets, children and individuals who are mentallly challenged.
38 39
TROUBLESHOOTING GUIDE
SYMPTOM CAUSE
No sound • Not turned on
• Dead battery
• Battery door will not close
• Blocked wax filter
POSSIBLE REMEDY
• Turn on by closing the battery door
• Replace battery
• Insert battery properly
• Replace wax filter or consult your hearing care professional
40 41
TROUBLESHOOTING GUIDE
SYMPTOM CAUSE
Not loud
enough
• Incorrect earmould placement
• Blocked sound outlet filter
• Change in hearing sensitivity
• Excessive ear wax
• Volume set too low
POSSIBLE REMEDY
• Reinsert hearing instrument carefully
• Change filter or consult your hearing care professional
• Consult your hearing care professional
• Consult your physician
• Increase the volume control if available or consult your hearing care professional
42 43
TROUBLESHOOTING GUIDE
SYMPTOM CAUSE
Excessive • Incorrect hearing instrument placement
whistling / feedback • Excessive ear wax
• Feedback control may need to be adjusted
• Hearing instrument settings not optimal
POSSIBLE REMEDY
• Re-insert hearing instrument carefully
• Consult your hearing care professional
• Consult your hearing care professional
• Consult your hearing care professional
44 45
If there are any other problems not mentioned in this guide,
please contact your hearing care professional.
TROUBLESHOOTING GUIDE
SYMPTOM CAUSE
Sound distorted / • Weak battery
not clear • Improper hearing instrument fit
• Hearing instrument damaged
• Hearing instrument settings not optimal
POSSIBLE REMEDY
• Replace battery
• Consult your hearing care professional
• Consult your hearing care professional
• Consult your hearing care professional
46 47
Warranty and repairs
ReSound provides a warranty on hearing instruments in the event of defects in workmanship or
materials, as described in applicable warranty documentation.
In its service policy, ReSound pledges to secure functionality at least equivalent to the original
hearing instrument.
As a signatory to the United Nations Global Compact initiative, ReSound is committed to
doing this in line with environment-friendly best practices. Hearing instruments therefore, at
ReSound’s discretion, may be replaced by new products or products manufactured from new
or serviceable used parts, or repaired using new or refurbished replacement parts.
The warranty period of hearing instruments is designated on your warranty card, which is pro-
vided by your hearing care professional.
TECHNICAL DATA
Hearing Instrument
Model
Maximum output
(2ccCoupler /
IEC 60118-7)
AL910-M, AL710-M, AL510-M
AL910-MP, AL710-MP, AL510-MP
112 dB SPL (typical)
117 dB SPL (typical)
AL930-M, AL730-M, AL530-M, AL930-MW, AL730-MW, AL530-MW
AL930-MP, AL730-MP, AL530-MP, AL930-MPW, AL730-MPW, AL530-MPW
AL930-MU, AL730-MU, AL530-MU, AL930-MUW, AL730-MUW, AL530-MUW
112 dB SPL (typical)
117 dB SPL (typical)
128 dB SPL (typical)
AL950-M, AL750-M, AL550-M, AL950-MW, AL750-MW, AL550-MW
AL950-MP, AL750-MP, AL550-MP, AL950-MPW, AL750-MPW, AL550-MPW
AL950-MU, AL750-MU, AL550-MU, AL950-MUW, AL750-MUW, AL550-MUW
112 dB SPL (typical)
117 dB SPL (typical)
128 dB SPL (typical)
48 49
For hearing instruments that require service, please contact your hearing care professional for
assistance.
ReSound hearing instruments that malfunction must be repaired by a qualified technician. Do
not attempt to open the case of hearing instruments, as this will invalidate the warranty
Temperature test, transport and storage information
GN ReSound Hearing Instruments are subjected to various tests in temperature and damp
heating cycling between -25 C and +70C according to internal and industry standards.
During transport or storage, the temperature should not exceed the limit values of -20C to 60C
and relative humidity of 90% RH, non condensing (for limited time). The air pressure between
500 and 1100 hPa is appropriate.
Notes
50 51
Notes Notes
52 53
Be aware of information marked with the warning symbol
WARNING points out a situation that could lead to serious injuries,
CAUTION indicates a situation that could lead to minor and moderate injuries.
Advice and tips on how to handle your hearing instrument better.
Equipment includes RF transmitter.
Product is a Type B applied part.
Faceplate/Electronics by: ReSound A/S
Any issues relating to the EU Medical Device Directive 93/42/EEC, or Council
Directive 1999/5/EEC on Radio Equipment and Tele communications terminal
equipment should be directed to ReSound A/S
Please ask your local hearing care professional
concerning disposal of your hearing instrument
Worldwide Headquarters
ReSound A/S
Lautrupbjerg 7
DK-2750 Ballerup, Denmark
Tel.: +45 45 75 11 11
Fax: +45 45 75 11 19
www.resound.com
United Kingdom
GN ReSound Ltd.
Kirtlington Business Centre
Portway
Kirtlington
Oxon OX5 3JA
Tel.: +44 1869 352 800
Fax: +44 1869 343 466
www.gnresound.co.uk
Australia
GN ReSound Pty. Ltd.
Unit R1 Regents Park Estate
391 Park Road
Regents Park NSW 2143
Tel.: (free) 1800 658 955
Fax: +61 2 9743 7472
www.gnresound.com.au
New Zealand
GN ReSound (NZ) Ltd.
12 Parkway Drive
Mairangi Bay
Auckland
Tel.: (free) 0800 900 126
Fax: (free) 0800 007 695
www.gnresound.co.nz
17483400-GB-10.11 Rev.B
