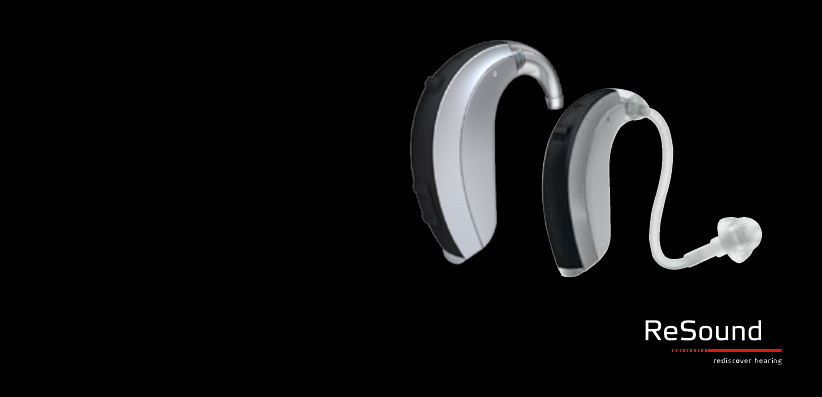

USER GUIDE
BEHIND-THE-EAR (BTE) MODELS:
STANDARD TUBE
THIN TUBE
2
3
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from the one in which the receiver •
is connected.
Consult the dealer or an experienced radio/TV technician for help.•
Changes or modifications can void the user´s authority to operate the equipment
Hearing instrument type designations for models included in this user guide are: M70-80, FCC
ID: X26M70-80 and M60, FCC ID: X26M60. Please see page 10 for list of models referring to
both types.
Statement:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not cause harmful inter-
ference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
4
5
Intended use
Generic air-conduction hearing instruments are wearable sound-amplifying devices intended to
compensate for impaired hearing. The fundamental operating principle of hearing instruments
is to receive, amplify, and transfer sound to the ear drum of a hearing impaired person.
List of countries:
Products without wireless functionality are intended for worldwide sales.
Products with wireless functionality are intended for sale in countries within the European Eco-
nomic Area as well as Switzerland.
Specification of restrictions: You are not allowed to operate the equipment within 20 km of the
centre of Ny Ålesund, Norway.
The products are in compliance with the following regulatory requirements:
In EU: the device conforms to the Essential Requirements according to Annex I of Council •
Directive 93/42/EEC for medical devices (MDD) and essential requirements and other
relevant provisions of Directive 1999/5/EC (R&TTE). The declaration of conformity may be
consulted at www.resound.com
In US: FCC CFR 47 Part 15, subpart C, section 15.249.•
Other identified applicable international regulatory requirements in countries outside the •
EU and US. Please refer to local country requirements for these areas.
Products are categorized as class 2 receivers according to EN 300 440•
![](/img.php?id=1474217&img=bg4.png)
6
7
Hearing instrument model:
Battery size: Tube type: Dome size:
Left serial number: Right serial number:
Introduction
Congratulations on the purchase of your new hearing instruments. ReSound’s innovative
sound technology and design, combined with the customized programming selected by your
hearing care professional, will make hearing a more enjoyable experience. Hearing instruments
will enable you to hear sounds that you may not have heard in years because of your hearing loss.
Practice and a positive attitude are important in learning to use hearing instruments. Your ReSound
instruments have been adjusted according to your individual hearing loss and needs. Some people
adjust quickly to wearing hearing instruments in their ears and hearing new sounds; other
people may need more time.
Please read this manual carefully in order to wholly benefit from the use of your hearing instru-
ments. With proper care, maintenance, and usage, your hearing instruments will aid you in
better communication for many years. Ask your hearing care professional if you have any ques-
tions.
ReSound is a registred trade mark of GN ReSound A/S
8
9
Direct audio input (optional)............30
Connecting/Disconnecting audio boots . .30
Care and maintenance ...............32
Daily maintenance ..................33
Cleaning earmoulds .................33
Cleaning thin tubes and domes ........34
How to apply domes ................35
ReSound Standard domes ...........35
ReSound Tulip domes ...............36
General precautions.................37
General warnings ...................38
Battery warning Information ...........41
Troubleshooting guide ...............42
Technical Data .....................50
Warranty and repairs ................52
Temperature test, transport and
storage information..................53
Contents
Statement .........................2
Intended use .......................4
List of countries .....................4
Introduction ........................6
Description of the hearing instruments ...10
Getting started.....................12
On/Off function ....................12
SmartStart ........................12
Inserting/Replacing the battery .........13
Low battery indicator ................14
Sports lock .......................15
Inserting/removing hearing instruments...16
Operation of the hearing instrument .....20
Volume control (optional)..............20
Programme button (optional)...........21
Flight mode .......................23
Telephone use ....................24
Listen to radio or TV ................25
Cellular phones ....................25
PhoneNow .......................26
Telecoil (optional) ...................29
Tele-loop systems ..................29
![](/img.php?id=1474217&img=bg6.png)
10
11
6
1
5
4
3
2
10
7
8/9
8/9
11
13
12
Hearing instruments of type M70-80
are available in the following variants:
AL 987-DVIW
AL 977-DVIW Open - AL 977-DVIW
AL 787-DVIW
AL 777-DVIW Open - AL 777-DVIW
AL 587-DVIW
AL 577-DVIW Open - AL 577-DVIW
ALT 987-DVIW
ALT 977-DVIW Open - ALT 977-DVIW
ALT 787-DVIW
ALT 777-DVIW Open - ALT 777-DVIW
ALT 587-DVIW
ALT 577-DVIW Open - ALT 577-DVIW
Hearing instruments of type M60 are
available in the following variants:
AL 967-DIW Open - AL 967-DIW
AL 767-DIW Open - AL 767-DIW
AL 567-DIW Open - AL 567-DIW
ALT 967-DIW Open - ALT 967-DIW
ALT 767-DIW Open - ALT 767-DIW
Programme button1.
Battery compartment & 2.
On/Off switch
Sound outlet3.
Front microphone inlet4.
Back microphone inlet5.
Volume control (optional)6.
Direct audio input7.
Left/Rightindicator 8.
(Left=Blue/Right=Red)
Battery lock (optional)9.
Model10.
Manufacturer11.
Serial number12.
Sports lock13.
![](/img.php?id=1474217&img=bg7.png)
12
13
turn on by several seconds after the battery compartment is closed. With SmartStart, a beep
will be heard for each second of the delay period.
Inserting/Replacing the battery
Open the battery door completely by using your fingernail. 3.
Remove the used battery if present. Insert the new battery with the positive 4.
side in the correct position.
Always use new Zinc-Air batteries that have a minimum remaining shelf 5.
life of 1 year.
Gently close the battery door.6.
Tip: Remove the batteries to prevent battery leakage or corrosion when the hearing
instruments are not in use for an extended period of time.
Getting started
On/Off function
When the battery door is closed, the hearing instrument 1.
turns on, and the default program will be activ ated.
To turn off the hearing instrument, open the battery door. 2.
Many individuals can use their fingernail to pull it open.
Tip: Whenever the hearing instruments are not in use, remember to turn them off to avoid
unnecessary battery consumption.
SmartStart
Hearing instruments can be turned on once you have placed them on your ears. If you prefer to
turn them on just prior to placing them on your ear, your hearing care professional can activate
a function called SmartStart. This function will delay the time in which the hearing instruments
On
Off
14
15
two sets of descending tones. After this, your hearing instrument and ReSound Unite Remote
Control will continue to work as usual, but you will not be able to use your ReSound Unite TV
and Phone Clip. At some point the battery level will also be too low to support the remote con-
trol as well and you will once again hear the descending tones. The hearing instruments will
continue to work as usual. Once a new battery is inserted, full operation of the accessories will
resume.
Sports lock
The Sports lock will be applied or adjusted by your hearing care professional.
Low battery indicator
Your hearing care professional can activate a low battery indicator in your hearing instruments.
The hearing instrument will reduce amplification and play a melody if battery power gets too
low. This signal will recur every five minutes until the hearing instrument automatically switches
off. The timing of the low battery indicator can vary slightly, depending on the type of battery
used. It is recommended that you keep spare batteries on hand.
Low battery indicator (instruments paired with accessories only)
Active usage of the ReSound Unite accessories (Remote Control, Phone Clip and Unite TV)
requires more battery power from the hearing instruments than when they are working without
accessories which means that battery life is highly dependent on the amount of wireless
accessory usage. When the battery in the hearing instrument has depleted to a level at which use
of the ReSound Unite TV and Phone Clip cannot be supported, the hearing instrument will play
![](/img.php?id=1474217&img=bg9.png)
16
17
By experimenting, an easier method may be discovered. With proper insertion,
hearing instruments should fit snugly but comfortably. If the hearing instruments
cause irritation of the ears, contact your hearing care professional.
Note: Never attempt to modify the shape of the hearing instrument, ear-
moulds, or tubing yourself.
Tip: It may be helpful to pull your ear up and outward with your opposite
hand during insertion.
Inserting/Removing hearing instruments
Insertion (custom earmoulds)
Hold the earmould between your thumb and index finger and position its sound outlet in 1.
your ear canal.
Slide the earmould all the way into your ear with a gentle, twisting movement.2.
Turn the top part of the earmould gently backwards and forwards so that it tucks behind the 3.
fold of skin above your ear canal.
Move the earmould up and down and gently press to ensure it is positioned correctly in the 4.
ear. Opening and closing your mouth can ease insertion.
Make sure the hearing instrument is seated behind the ear.5.
![](/img.php?id=1474217&img=bga.png)
18
19
Removal (custom earmolds)
Hold a portion of your earmould towards the back of the ear.1.
Pull the earmould outward and simultaneously rotate the earmould forward.2.
Consult your hearing care professional if you have difficulties removing the hearing 3.
instrument.
Removal (domes/custom earmoulds with thin tubes)
Hold the thin tube with your thumb and forefinger and pull the tube 1.
outward.
For thin tube custom earmoulds, grasp the removal string and pull the 2.
earmould outward.
Consult your hearing care professional if you have difficulties removing 3.
the hearing instrument.
Insertion (domes/custom earmoulds with thin tubes)
Hold the thin tube where it bends, and gently push the dome into the ear canal. Push the 1.
dome far enough into the ear canal so that the thin tube lies flush with the head.
It is important that the tube and the dome fit correctly into your ear.2.
When the dome is place correctly, you should not be able to see the thin tube sticking out 3.
when facing a mirror.
Note: You should never attempt to bend
or modify the shape of the thin tube.
![](/img.php?id=1474217&img=bgb.png)
20
21
Programme button
Depending on your experience level with hearing instruments,
individual hearing needs, and the type of listening environments
you experience, your hearing care professional may activate
additional programmes. If additional programmes have been
activated, the following list explains how they work.
You can switch between programmes by pushing the push 1.
button once.
You will then hear one or more beeps. The number of beeps indicates which programme you 2.
have selected (one beep = programme one, two beeps = programme two, etc.).
When the hearing instruments are turned off and then back on, the hearing instrument 3.
always returns to the default setting (programme one).
Operation of the hearing instrument
Volume control (optional)
The volume control will allow the volume of hearing instruments
to be increased or decreased.
To increase the volume, push the volume control up.1.
To decrease the volume, push the volume control down.2.
When volume is increased or decreased, a beep signal will be
heard for each incremental change. When the upper or lower limits of the volume range are
reached, a beep signal with a longer duration will be heard.
![](/img.php?id=1474217&img=bgc.png)
22
23
Flight mode*
When boarding a flight wireless functionality must be deactivated, as it is not allowed to radiate
radio signals during flights.
It is possible to disable wireless operation by opening and closing the battery compartment of
the hearing instrument while at the same time pressing the push button.
When disabled manually, wireless operation may be re-enabled by opening and closing the bat-
tery compartment normally, (i.e. without at the same time pressing the push button).
*Instruments paired with ReSound Unite accessories only
Programme Description of when to use
1
2
3
4
![](/img.php?id=1474217&img=bgd.png)
24
25
Listen to radio or TV
When listening to the TV or the radio, start out by listening to news commentators since they
usually speak clearly, then try other programmes.
If you find it difficult to listen to TV or radio, your hearing care professional will be able to give you
advice on available accessories to enhance your listening capabilities for TV and radio.
Cellular phones
Your hearing instrument is designed to comply with the most stringent Standards of Interna-
tional Electromagnetic Compatibility. However, not all cell phones are hearing instrument com-
patible. The varying degree of disturbance can be due to the nature of your particular cellular
phone or of your wireless telephone service provider.
If you find it difficult to obtain a good result while using your cellular phone, your hearing care
professional will be able to give you advice on available accessories to enhance listening
capabilities.
Telephone use
Finding the optimal position for holding a telephone may require practice
for some individuals, and one or more of the following suggestions may
be helpful.
Hold the telephone as you would normally.1.
Hold the telephone towards the top of the ear (closer to where the 2.
microphones are).
If whistling occurs, it may take a few seconds of holding the telephone in the same position 3.
before the hearing instrument eliminates the feedback.
Any whistling may also be decreased by holding the telephone slightly away from the ear.4.
Depending on your individual needs, your hearing care professional may activate a 5.
programme specifically for telephone use.
![](/img.php?id=1474217&img=bge.png)
26
27
Only use a recommended cleaning agent to clean the telephone prior to placing the magnet 4.
on the phone.
PhoneNow usage
Telephones can be used in a normal manner. A short melody will indicate that the PhoneNow
feature has automatically switched the hearing instrument to your telephone programme.
Initially, you may need to move the telephone receiver slightly to find the best position for reliable
PhoneNow activation and good hearing on the telephone.
PhoneNow precautions
Keep magnets out of reach of pets, children and people with mental disabilities. If a magnet 1.
is swallowed, please seek advice from a medical practitioner.
PhoneNow
The PhoneNow function, allows your hearing instrument to automatically switch to your tele-
phone programme when a telephone receiver is raised to the ear. When the telephone receiver
is removed from the ear, the hearing instrument automatically returns to the previous listening
programme.
Placement of PhoneNow magnets
In order to place PhoneNow magnets properly:
Clean the telephone receiver thoroughly.1.
Hold the telephone vertically, in a position similar to when 2.
making a telephone call.
Place the magnets just below the telephone receiver. If necessary, move the magnet to 3.
another position to improve ease of use and comfort while speaking.
28
29
Telecoil (optional)
If equipped, a telecoil can be activated by your hearing care professional and accessed through
one of the additional programmes. A telecoil picks up a telephone’s magnetic signal and con-
verts it to sound. An optional telephone programme may help to improve speech understanding
on the telephone. When using a telecoil programme, the receiver of the telephone may need to
be held closer to the hearing instrument. The handset of the telephone may need to be moved
to slightly different positions in order to find the best reception.
Tele-loop systems
Many places, such as theatres, houses of worship, and schools are equipped with tele-loop
systems. When using a telecoil programme with tele-loop systems, sound is picked up directly
and may improve speech understanding. If there is no sound from the hearing instruments in
a tele-loop system and with a telecoil programme activated, the tele-loop system may not be
turned on or is not operating correctly. If a facility is not equipped with a tele-loop system, sitting
as close as possible to the front may be helpful.
The magnet used to strengthen the magnetic field of a telephone receiver may affect 2.
functionality of some medical devices or electronic systems. Always keep the magnet or
a telephone equipped with the magnet at least 30 cm (12”) away from pacemakers, credit
cards and other magnetically sensitive devices.
High distortion during dialing or phoning may mean that the magnet is not in the optimal 3.
position relative to the telephone receiver. To avoid the issue, please move the magnet to
another place on the telephone receiver.
Only use magnets supplied by GN ReSound.4.
![](/img.php?id=1474217&img=bg10.png)
3
2
45
1
30
31
Once in place, move the boot in the direction 2.
of the battery compartment.
Gently click the audio boot onto the hearing instrument.3.
Disconnecting audio boots
Press and hold the button on the front side 4.
of the audio boot.
Gently remove the audio boot from the hearing 5.
instrument.
Direct audio input (optional)
Use of direct audio input (DAI), which enables a direct connection of the hearing instruments to
items such as television, radio, and remote microphones, may increase speech understanding
for some individuals. The sound source is connected to the hearing instruments by a cable or
a wireless FM system to the audio boot. This accessory connects to the bottom of the hear-
ing instruments, and once properly clicked into place, the hearing instruments switch to DAI
automatically.
Connecting/Disconnecting audio boots
Connecting audio boots
Align the tip of the audio boot with the groove just above the battery 1.
compartment and below the model number.
![](/img.php?id=1474217&img=bg11.png)
32
33
Daily maintenance
It is important to keep your hearing instrument clean and dry. On a daily
basis, clean the hearing instruments using a soft cloth or tissue. In order
to avoid damage due to humidity or excessive perspiration, the use of
a drying kit is recommended.
Cleaning earmoulds
Remove the earmould and attached tubing from the hearing 1.
instruments prior to cleaning.
Clean the earmould using a mild soap, and rinse with lukewarm water.2.
After cleaning, dry earmoulds thoroughly and remove any residual 3.
water and debris from the tubing utilising an air bulb and wire loop.
Care and maintenance
Proper handling
Your hearing instrument is protected by a layer of protective, hydrophobic nanocoat material.
However, please follow these instructions to further prolong the durability of your hearing instru-
ments.
Never immerse hearing instruments in water or other liquids, as liquids may cause permanent 1.
damage to the hearing instruments.
Avoid rough handling of hearing instruments or dropping them on hard surfaces or floors.2.
Do not leave hearing instruments in or near direct heat or sunlight, as excessive heat can 3.
cause damage or deform the casing.
Hair spray, make-up, etc. may damage hearing instruments. Remove the instruments prior 4.
to the application of cosmetics.
![](/img.php?id=1474217&img=bg12.png)
12
34
35
Note: Thin tube and dome systems should be changed every three months or sooner, should
the components become stiff or brittle.
How to apply domes
It is recommended that your hearing care professional change domes, as incorrect dome
replacement could result in the dome falling out in the ear.
ReSound Standard domes
Push the new dome over the 1.
flanges on the thin tube.
Make sure that the new dome is 2.
properly and securely mounted.
Note: Earmould tubing may become stiff, brittle, or discoloured over time. Contact your
hearing care professional regarding tube changes.
Cleaning thin tubes and domes
Remove thin tubes from hearing instruments before cleaning by 1.
unscrewing them counter clockwise.
Wipe down thin tubes and domes with a damp cloth.2.
In order to clear the thin tube of moisture and debris, push the black 3.
cleaning rod through the thin tube, beginning at the end opposite the
dome.
![](/img.php?id=1474217&img=bg13.png)
36
37
ReSound Tulip domes
Tulip domes are mounted in a similar manner to standard domes, but a few extra steps are
required. Tulip domes consist of two “petals”. It is important to note that the largest petal is the
outermost petal. To ensure this:
Push the largest petal away from the thin tube using a finger. This bends the petal forward.1.
Then push the largest petal back, and it will be placed on top of the smaller petal.2.
General precautions
Do not leave hearing instruments in the sun, near an open fire, or in a hot, parked car.1.
Do not wear hearing instruments while showering, swimming, in heavy rain, or in a moist 2.
atmosphere such as a steam bath or sauna.
Should the hearing instrument become moist, remove the battery and place the hearing 3.
instrument in a closed container with a drying agent. Your hearing care professional can
provide options for drying containers or kits.
Remove the hearing instruments when applying items such as cosmetics, perfume, after-4.
shave, hair spray, and suntan lotion.
When wireless function is activated, the device uses low-powered digitally coded 5.
transmissions in order to communicate with other wireless devices. Although unlikely,
nearby electronic devices may be affected. In that case, move the hearing instrument away
from the affected electronic device.
![](/img.php?id=1474217&img=bg14.png)
38
39
When using wireless functionality and the devices are affected by electromagnetic interference, 6. move away from the source.
General warnings
Consult a hearing care professional if you think there may be a foreign object in your ear canal, 1. if you experience skin irritation, or if excessive ear wax accumulates with the use of the hearing
instrument.
Different types of radiation, from e.g. NMR, MRI, or CT scanners, may damage hearing 2. instruments. It is recommended not to wear hearing instruments during these or other similar
procedures. Other types of radiation, such as burglar alarms, room surveillance systems, radio
equipment, mobile telephones, contain less energy and will not damage hearing instruments.
However, they have the potential to momentarily affect the sound quality or temporarily create
strange sounds from hearing instruments.
Do not wear hearing instruments in mines, oil fields, or other explosive areas unless those areas 3. are certified for hearing instrument use.
Do not allow others to use your hearing instruments. This may cause damage to the hearing 4. instruments or to the hearing of the other individual.
Due to choking hazards, hearing instrument usage by children or individuals who are mentally 5. challenged should be supervised at all times.
Hearing instruments should be used only as prescribed by your hearing care professional. 6. Incorrect use may result in hearing loss.
Warning to hearing care professionals: Special care should be exercised in selecting and 7. fitting hearing instruments with maximum sound pressure level that exceeds 132dB SPL with
an IEC 60711:1981 occluded ear simulator. There may be a risk of impairment of the remaining
hearing.
Be careful when boarding flights to deactivate the wireless functionality.8.
![](/img.php?id=1474217&img=bg15.png)
40
41
Battery warning information
Batteries, although very small, contain dangerous substances, and should be disposed of care-
fully. This is for the safety of you and the environment. Please note:
DO NOT attempt to recharge standard zinc air batteries. They may leak or explode.1.
DO NOT attempt to dispose of batteries by burning them.2.
DO NOT place batteries in your mouth. Consult a physician immediately if a battery has been 3.
swallowed, as they can be harmful to your health.
Keep batteries away from pets, children and individuals who are mentallly challenged.4.
Keep magnets out of reach of pets, children and people with mental disabilities. If a magnet is 9. swallowed, please seek advice from a medical practitioner.
Turn off your wireless functionality by using the flight mode in areas where radio frequency 10. emission is prohibited.
Only connect ReSound hearing instruments to ReSound accessories intended and qualified to 11. be used with ReSound hearing instruments.
For use of wireless functionality only use ReSound Unite accessories. For further guidance 12. please refer to the user guide of the relevant ReSound Unite accessory.
![](/img.php?id=1474217&img=bg16.png)
42
43
TROUBLESHOOTING GUIDE
SYMPTOM CAUSE
No sound Not turned on•
Dead battery•
Battery door will not close•
Blocked earmould or tube•
Blocked wax filter•
POSSIBLE REMEDY
Turn on by closing the battery door•
Replace battery•
Insert battery properly•
Clean earmould or tube•
Replace wax filter or consult your hearing care professional•
![](/img.php?id=1474217&img=bg17.png)
44
45
TROUBLESHOOTING GUIDE
SYMPTOM CAUSE
Not loud
enough
Incorrect earmould placement •
Blocked earmould or dome•
Blocked sound outlet filter•
Change in hearing sensitivity•
Excessive ear wax •
Volume set too low•
POSSIBLE REMEDY
Reinsert earmould•
Clean earmould, replace dome, replace filter•
Change filter or consult your hearing care professional•
Consult your hearing care professional•
Consult your physician •
Increase the volume control if available or consult your hearing care professional•
![](/img.php?id=1474217&img=bg18.png)
46
47
TROUBLESHOOTING GUIDE
SYMPTOM CAUSE
Excessive
whistling / feedback
Incorrect earmould placement•
Incorrect dome placement•
Excessive ear wax•
Feedback control may need adjustment•
Earmould tubing worn or damaged•
Thin tube connection loose•
Hearing instrument settings not optimal•
POSSIBLE REMEDY
Re-insert earmould carefully•
Re-insert dome•
Consult your hearing care professional•
Consult your hearing care professional•
Consult your hearing care professional•
Change thin tube or consult your hearing care professional•
Consult your hearing care professional•
![](/img.php?id=1474217&img=bg19.png)
48
49
If there are any other problems not mentioned in this guide,
please contact your hearing care professional.
TROUBLESHOOTING GUIDE
SYMPTOM CAUSE
Sound
distorted /
not clear
Weak battery•
Improper earmould or dome fit•
Hearing instrument damaged•
Hearing instrument settings not optimal•
POSSIBLE REMEDY
Replace battery•
Consult your hearing care professional•
Consult your hearing care professional•
Consult your hearing care professional•
![](/img.php?id=1474217&img=bg1a.png)
50
51
Technical Data
Hearing Instrument
Model
Maximum output
(2ccCoupler / IEC 60118-7)
Models AL977/87-DVIW, AL777/87-DVIW, AL577/87-DVIW,
AL967-DIW, AL767-DIW, AL567-DIW
are available in following variants:
Standard tube
AL967-DIW, AL767-DIW, AL567-DIW Open
ALT967-DIW, ALT767-DIW Open
119 dB SPL (typical)
AL977-DVIW, AL777-DVIW, AL577-DVIW Open
ALT977-DVIW, ALT777-DVIW, ALT577-DVIW Open
123 dB SPL (typical)
Technical Data
Hearing Instrument
Model
Maximum output
(2ccCoupler / IEC 60118-7)
AL967-DIW, AL767-DIW, AL567-DIW
ALT967-DIW, ALT767-DIW
123 dB SPL (typical)
AL977-DVIW, AL777-DVIW, AL577-DVIW
ALT977-DVIW, ALT777-DVIW, ALT577-DVIW
127 dB SPL (typical)
AL987-DVIW, AL787-DVIW, AL587-DVIW
ALT987-DVIW, ALT787-DVIW, ALT587-DVIW
130 dB SPL (typical)
52
53
For hearing instruments that require service, please contact your hearing care professional for
assistance.
ReSound hearing instruments that malfunction must be repaired by a qualified technician. Do
not attempt to open the case of hearing instruments, as this will invalidate the warranty.
Temperature test, transport and storage information
GN ReSound Hearing Instruments are subjected to various tests in temperature and damp
heating cycling between -25 C and +70C according to internal and industry standards.
During transport or storage, the temperature should not exceed the limit values of -20C to 60C
and relative humidity of 90% RH, non condensing (for limited time). The air pressure between
500 and 1100 hPa is appropriate.
Warranty and repairs
ReSound provides a warranty on hearing instruments in the event of defects in workmanship or
materials, as described in applicable warranty documentation.
In its service policy, ReSound pledges to secure functionality at least equivalent to the original
hearing instrument.
As a signatory to the United Nations Global Compact initiative, ReSound is committed to
doing this in line with environment-friendly best practices. Hearing instruments therefore, at
ReSound’s discretion, may be replaced by new products or products manufactured from new
or serviceable used parts, or repaired using new or refurbished replacement parts.
The warranty period of hearing instruments is designated on your warranty card, which is pro-
vided by your hearing care professional.
![](/img.php?id=1474217&img=bg1c.png)
Please ask your local hearing care professional
concerning disposal of your hearing instrument
Be aware of information marked with the warning symbol
WARNING points out a situation that could lead to serious injuries,
CAUTION indicates a situation that could lead to minor and moderate injuries.
Advice and tips on how to handle your hearing instrument better.
Equipment includes RF transmitter.
Product is a Type B applied part.
![](/img.php?id=1474217&img=bg1d.png)
17483300-GB-11.03 Rev. E
Worldwide Headquarters
ReSound A/S
Lautrupbjerg 7
DK-2750 Ballerup, Denmark
Tel.: +45 45 75 11 11
Fax: +45 45 75 11 19
www.resound.com
United Kingdom
GN ReSound Ltd.
Kirtlington Business Centre
Portway
Kirtlington
Oxon OX5 3JA
Tel.: +44 1869 352 800
Fax: +44 1869 343 466
www.gnresound.co.uk
Australia
GN ReSound Pty. Ltd.
Unit R1 Regents Park Estate
391 Park Road
Regents Park NSW 2143
Tel.: (free) 1800 658 955
Fax: +61 2 9743 7472
www.gnresound.com.au
New Zealand
GN ReSound (NZ) Ltd.
12 Parkway Drive
Mairangi Bay
Auckland
Tel.: (free) 0800 900 126
Fax: (free) 0800 007 695
www.gnresound.co.nz
Any issues relating to the EU Medical Device Directive
93/42/EEC, or Council Directive 1999/5/EC on Radio
Equipment and Telecommunications terminal equipment
should be directed to ReSound A/S
