AD360II-C
Instruction Manual
Foreword
Before using this product
Please read this user manual carefully in order to ensure your safety and the proper operation of
this product. Keep for future reference.
Thank you for purchasing a GODOX product.
WITSTRO TTL Powerful & Portable Flash AD360II-C applies to Canon EOS series cameras and is
compatible with E-TTL II autoflash. With this E-TTL II compatible flash, your shooting will become
simpler. You can easily achieve a correct flash exposure even in complex light-changing
environments.
WITSTRO AD360II-C flash system is an AD360II-C flash with a bare tube, external power pack,
wireless manual power control, and a range of dedicated light shaping accessories. AD360II-C is 5
to 7 times powerful as typical hotshoe flashes with the size and weight alike. It offers studio
quality light for outdoor and live shooting. The AD360II-C offers:
Compatible with Canon E-TTL II: Fully support Canon E-TTL II camera flash. Workable as
Master or Slave unit in a wireless flash group.
Dot-matrix LCD panel: with clear and convenient operation.
Built-in 2.4G wireless transmission: with all-in-one functions and 100 meters further
transmission
Studio quality light: up to 360Ws, GN 80 (m ISO 100, with AD-S2 standard reflector).
Approx. 28mm flash coverage when operating on a camera with the standard reflector.
One AD360 can overpower the sun.
External battery pack: PB960 (lithium, 11.1V/4500mAh), 0.05-4.5s recycling and 450
full power flashes.
Lightweight and portable even with power and accessories
Wireless control on power levels and triggering (with FT-16 trigger)
Wide-range accessories: softbox, beauty dish, snoots, color gels, etc. All lighting
accessories fit for barebulb flashes from most brands.
Power adjusts from full power to 1/128 in 1/3 stop increments
Stable color temperature at 5600±200K over the entire power range
Multi flash, Focus-assist beam on/off & Hi-Speed sync triggering
The powerful and portable AD360II-C meets the demands of freelance commercial photographers,
photojournalists, wedding and beach portraiture shooters, event and backpack photographers,
photograph enthusiasts, etc. It is compatible with market-available cameras from Canon, Nikon,
Pentax, and Olympus, etc and fits for almost any flash trigger.
For Your Safety
1. Always keep this product dry. Do not use in rain or in damp conditions.
2. This product contains high-voltage electronic parts. Touching the high-voltage circuit inside it
may result in electric shock. Do not disassemble. Should repairs become necessary, this
product must be sent to an authorized maintenance center.
3. Stop using this product if it breaks open due to extrusion, falling or strong hit. Otherwise,
electric shock may occur if you touch the electronic parts inside it.
4. Do not fire the flash directly into the eyes (especially those of babies) within short distances.
Otherwise visual impairment may occur. When taking pictures for babies, keep the flash unit at
least 1 meter (3.3 feet) away from them. Using bounce flash to reduce light intensity is also
recommended.
5. Do not use the flash unit in the presence of flammable gases, chemicals and other similar
materials. In certain circumstances, these materials may be sensitive to the strong light
emitting from this flash unit and fire or electromagnetic interference may result.
6. Do not leave or store the flash unit if the ambient temperature reads over 50°C (e.g. in
automobile). Otherwise the electronic parts may be damaged.
7. Be cautious when using the AD360II-C on your camera. AD360II-C is slightly heavy so that an
AD360II-C on your camera may damage the camera hotshoe.
Contents
Foreword
For your safety
Name of Parts
Body
Control Panel
Included Accessories
Separately Sold Accessories
Installing Reflector (Other Accessories)
Attaching Flash Tube
Connecting to a Power Pack
Connecting the Flash to a Camera
Replacing the Off-Camera Adapter
Power Management
Flash Mode— E-TTL Autoflash
FEC (Flash Exposure Compensation)
FEB (Flash Exposure Bracketing)
FEL: Flash Exposure Lock
High-Speed Sync
Second-Curtain Sync
Flash Mode—M: Manual Flash
Flash Mode—Multi/Stroboscopic Flash
Wireless Flash Shooting: Optic Transmission
Wireless Settings
Master Unit’s Flash OFF
Setting the Communication Channel
ETTL: Fully Automatic Wireless Flash Shooting
ETTL: Use the Wireless Shooting of Flash Ratio
M: Wireless Flash Shooting with Manual Flash
Multi: Wireless Flash Shooting with Manual Flash
Wireless Flash Shooting: Ratio (2.4G) Transmission
Other Applications
Wireless Control Function
Modeling Flash
Auto Focus Assist Beam
Assist Beam Setting
Bounce Flash
Sync Triggering
PC Sync Socket Triggering
C.Fn: Setting Custom Functions
Control with the Camera’s Menu Screen
Protection Function
Technical Data
Troubleshooting
Firmware Upgrade
Compatible Camera Models
Maintenance
Conventions used in this Manual
This manual is based on the assumption that both the camera and camera flash’s power
switches are powered on.
Reference page numbers are indicated by “p.**”.
The following alert symbols are used in this manual:
The Caution symbol indicates a warning to prevent shooting problem.
The Note symbol gives supplemental information.
Name of Parts
Body:
01. Accessory Mount
02. Accessory Locking Ring
03. Flash Tube
04. Tube Socket
05. Umbrella Mounting Hole
06. Release Button
07. Power Socket
08. Wireless Control Port
09. Sync Cord Jack
10. PC Sync Socket
11. MF-Assist Beam
12. Light Sensor
13. Control Panel
14. Hotshoe Stand
15. Mini USB Port
Control Panel:
15 < MODE > Mode Selection Button
16. < > Wireless Selection Button
17. Select Dial
18. <SET > Set Button
19. ON/OFF Power Switch
20. < > Test Button / Flash Ready Indicator
21. Function Button 1
22. Function Button 2
23. Function Button 3
24. Function Button 4
LCD Panel
(1) E-TTL Autoflash
(2) M Manual Flash
(3) Multi Flash
(4)Radio Transmission Shooting/Optic Transmission Shooting
Master Unit
Slave Unit
The flash unit is not powered by itself, but draws power from Godox power pack PB960
(sold separately).
Included Accessories
1-Flash tube
1-Protecting bag
1-Mini stand
1-Off-camera adapter
1-Reflector
1-Power cable
The display will only show the settings currently applied.
The functions displayed above function buttons 1 to 4, such as and
, change according to settings’ status.
When a button or dial is operated, the LCD panel illuminated. (Page **)
2-Reflector diffuser
1-Instruction manual
Separately Sold Accessories
The product can be used in combination with the following accessories sold separately, so as to
achieve best photography effects:
X1C Wireless Flash Trigger, FT-16 Remote Control, Softbox, Beauty Dish, Fold up umbrella，
Snoots, Light stand, etc.
Installing Reflector (Other Accessories)
1. Rotate Accessory Locking Ring (2) counter-clockwise until it is loosen.
2. Insert the reflector into the Accessory Mount (1).
3. Rotate Accessory Locking Ring (2) clockwise to lock it up. Do not over-tighten.
Attaching Flash Tube
1. Remove the reflector or other accessories from the flash head.
2. Match the red dot on the base of the flash tube with the red dot in the Tube Socket (4). Push the
flash tube in until it is securely seated into the socket.
Connecting to a Power Pack
1. Before connecting, make sure that the power pack is turned off.
2. Plug one end of Power Cable into Power Socket (7) of the flash unit, and insert the other end
into the output socket of the power pack.
3. Turn on the power pack. Normally the flash unit will be fully charged and ready to work.
*The flash unit is not powered by itself, but draws power from Godox power pack PB960 (sold
separately).
*For the instructions of the power pack, see the related user manual.
Connecting the Flash to a Camera
1. Loosen the locking ring on the mounting foot.
2. Slip the mounting foot of the flash unit into the camera hotshoe.
3. Secure the flash unit by rotating the locking ring the direction of the row.
Replacing the Off-Camera Adapter
The off-camera adapter is useful when using the product as an off-camera flash. There is a 1/4″
mounting hole at the bottom of the off-camera adapter. To install the off-camera adapter,
1. Use a screwdriver (not included) to remove the four screws at the bottom of this product. Then
take out the bottom part carefully as illustrated.
2. Install the off-camera adapter at the bottom of this product.
3. Tighten all the screws.
Power Management
ON/OFF Power Switch (19) controls the on/off of the flash unit. Turn off the power pack if the flash
unit will not be used for an extended period (approx. 1 hour).
Flash Mode— E-TTL Autoflash
Disabling Auto Power Off function is recommended when the flash is used off camera.
(C.Fn-APO, Page 22)
This flash has three flash modes: E-TTL, Manual (M), and Multi (Stroboscopic). In E-TTL mode, the
camera and the flash will work together to calculate the correct exposure for the subject and the
background. In this mode, multiple TTL functions are available: FEC, FEB, FEL, HSS, second
curtain sync, modeling flash, control with the camera’s menu screen.
* Press <MODE> Mode Selection Button and three flash modes will display on the LCD panel one
by one with each pressing.
ETTL Mode
Press <MODE > Mode Selection Button to enter E-TTL mode. The LCD panel will display
<>.
● Press the camera release button halfway to focus. The aperture will be displayed in the
viewfinder.
● When the shutter button is fully pressed, the flash will fire a pre-flash that the camera will
use to calculate exposure and flash output the instant before the photo is taken.
FEC: Flash Exposure Compensation
With FEC function, this flash can adjust from -3 to +3 in 1/3rd stops. It is useful in situations where
minor adjusting of the TTL system is needed based on the environment.
Setting FEC:
1. Press Function Button 2 < >. The icon < > and flash exposure compensation
amount will be highlighted on the LCD panel.
2. Set the flash exposure compensation amount.
● Turn the Select Dial to set the amount.
● “0.3”means 1/3 step, “0.7”means 2/3 step.
● To cancel the flash exposure compensation, set the amount to “+0”.
3. Press <SET > button again to confirm the setting.
FEB: Flash Exposure Bracketing
You can take three flash shots while automatically changing the flash output for each shot from
-3 to +3 in 1/3rd stops. The camera will record three images with different exposures: one
exposed according to camera calculations, one over-exposed and another under-exposed. Over
and under exposure amount is user adjustable. This function helps get correct exposure
especially in shooting moving objects or when environmental lights are complex.
1. Press function button 3 < >. The icon < > and the exposure bracketing amount
will be highlighted on the LCD panel.
2. Set the exposure bracketing amount.
● Turn the Select Dial to set the amount.
● “0.3”means 1/3 step, “0.7”means 2/3 step.
3. Press <SET> button again to confirm the setting. Then the FEC and FEB settings are
displayed on the LCD panel.
FEL: Flash Exposure Lock
FEL can lock the correct flash exposure setting for any part of the scene.
FEB will be cancelled after three photos are taken.
For best results, set the camera drive mode to “single” and ensure the flash is ready before
shooting.
FEB can be used with FEC and FEL.
You can prevent the FEB from being cancelled automatically after three photos are taken.
The FEB shooting sequence can be changed.
With <ETTL> displayed on the LCD panel, press the camera’s <FEL> button. If the camera does
not have the <FEL> button, press the < > button.
1. Focus the subject.
2. Press the <FEL> button.
* Aim the subject at the center of the viewfinder and press <FEL> button.
* The camera flash will fire a preflash and the required flash output for the subject is retained
in memory.
* Each time the <FEL> button is pressed, a preflash will be fired and a new flash exposure
setting will be locked.
High-Speed Sync
High Speed Sync (FP flash) enables the flash to synchronize with all camera shutter speeds. This is
convenient when you want to use aperture priority for fill-flash portraits.
1、Press Function Button 4 < > so that < > is displayed.
2、Check that < > is displayed in the viewfinder.
If the subject is too far away and underexposure, the < > icon will blink in the
viewfinder. Move closer to the subject and try the FE lock again.
If <ETTL> is not displayed on the LCD panel, FE lock cannot be set.
If the subject is too small, FE lock might not be very effective.
If you set a shutter speed that is the same as or slower than the camera’s
maximum flash sync speed, < > will not be displayed in the viewfinder.
With high-speed sync, the faster the shutter speed, the shorter the effective flash
range.
To return to normal flash, press < > button again. Then < > will
disappear.
Second-Curtain Sync
With a slow shutter speed, you can create a light train following the subject. The flash fires right
before the shutter closes.
Press function button 4 < > button so that < > is displayed on the LCD panel.
M: Manual Flash
The flash output is adjustable from 1/1 full power to 1/128th power in 1/3rd stop increments. To
obtain a correct flash exposure, use a hand-held flash meter to determine the required flash
output.
1. Press <MODE > button so that < > is displayed.
2. Turn the Select Dial to choose a desired flash output amount.
3. Press <SET> button again to confirm the setting.
Flash Output Range
The following table makes it easier to see how the stop changes in terms of f/stop when you
increase or decrease the flash output. For example, when you decrease the flash output to 1/2,
1/2-0.3, or 1/2-0.7, and then increase the flash output to more than 1/2, 1/2+0.3, 1/2+0.7, and 1/1
will be displayed.
Figures displayed when reducing flash output level→
1/1 1/1–0.3 1/1-0.7 1/2 1/2-0.3 1/2-0.7 1/4 …
1/2+0.7 1/2+0.3 1/4+0.7 1/4+0.3 …
←Figures displayed when increasing flash output level
Optic S1 Secondary Unit Setting
In M manual flash mode, press < S1/S2> button so that this flash can function as an optic S1
secondary flash with optic sensor. With this function, the flash will fire synchronously when
the main flash fires, the same effect as that by the use of radio triggers. This helps create
multiple lighting effects.
Optic S2 Secondary Unit Setting
Press < S1/S2> button so that this flash can also function as an optic S2 secondary flash with
optic sensor in M manual flash mode. This is useful when cameras have pre-flash function. With
this function, the flash will ignore a single “preflash” from the main flash and will only fire in
response to the second, actual flash from the main unit.
Multi: Stroboscopic Flash
With stroboscopic flash, a rapid series of flashes is fired. It can be used to capture a multiple
images of a moving subject in a single photograph.
You can set the firing frequency (number of flashes per sec. expressed as Hz), the number of
flashes, and the flash output.
1. Press <MODE> button so that <MULTI> is displayed.
2. Turn the Select Dial to choose a desired flash output.
3. Set the flash frequency and flash times.
● Press Function Button 3 < > button to select the flash times. Turn the Select Dial
to set the number.
S1 and S2 optic triggering is only available in M manual flash mode.
● Press Function Button 4 < > button to select the flash times. Turn the Select Dial
to set the number.
● After you finish the setting, press <SET> button and all the settings will be displayed.
Calculating the Shutter Speed
During stroboscopic flash, the shutter remains open until the firing stops. Use the formula below
to calculate the shutter speed and set it with the camera.
Number of Flashes / Flash Frequency = Shutter Speed
For example, if the number of flashes is 10 and the firing frequency is 5 Hz, the shutter speed
should be at least 2 seconds.
To avoid overheating and deteriorating the flash head, do not use stroboscopic flash more than 10
times in succession. After 10 times, allow the camera flash to rest for at least 15 minutes. If you try to
use the stroboscopic flash more than 10 times in succession, the firing might stop automatically to
protect the flash head. If this happens, allow at least 15 minutes’ rest for the camera flash.
Stroboscopic flash is most effective with a highly reflective subject against a dark background.
Using a tripod and a remote control is recommended.
A flash output of 1/1 and 1/2 cannot be set for stroboscopic flash.
Stroboscopic flash can be used with“buLb”.
If the number of flashes is displayed as “--”, the firing will continue until the shutter closes or
the battery is exhausted. The number of flashes will be limited as shown by the following table.
Maximum Stroboscopic Flashes:
1 2 3 4 5 6-7 8-9
1/4 7 6 5 4 4 3 3
1/8 14 14 12 10 8 6 5
1/16 30 30 30 20 20 20 10
1/32 60 60 60 50 50 40 30
1/64 90 90 90 80 80 70 60
1/128 100 100 100 100 100 90 80
10 11 12-14 15-19 20-50 60-199
1/4 2 2 2 2 2 2
1/8 4 4 4 4 4 4
1/16 8 8 8 8 8 8
1/32 20 20 20 18 16 12
1/64 50 40 40 35 30 20
1/128 70 70 60 50 40 40
If the number of flashes is displayed as “--”, the maximum number of flashes will be as shown in
the following table regardless of the flash frequency.
Flash Output 1/4 1/8 1/16 1/32 1/64 1/128
Number of
Flashes
2 4 8 12 20 40
Wireless Flash：Optic Transmission
Hz
FlashOutput
Hz
FlashOutput
This product supports wireless flash application and functions as either a master
or a slave unit. As a master unit, it can control Canon speedlites e.g. 580EXII,
600EX-RT via wireless. As a slave unit, it can receive wireless signals of Canon
speedlites e.g. 580EXII, 600EX-RT and commanders of Canon cameras e.g.
7D/60D/600D.
You can set up two to three slave groups for E-TTL II autoflash shooting. With E-TTL II
autoflash, you can easily create various lighting effects.
Any flash settings (of flash exposure compensation, high-speed sync, FE lock, FEB, manual
flash, Multi flash) on the master unit will be automatically sent to the slave units. So the
only thing you need to do is to set the master unit to ETTL mode without any operation
for the slave units at all during the shooting.
This flash can work in ETTL autoflash, M manual flash, and Multi stroboscopic flash modes
when set as a master unit.

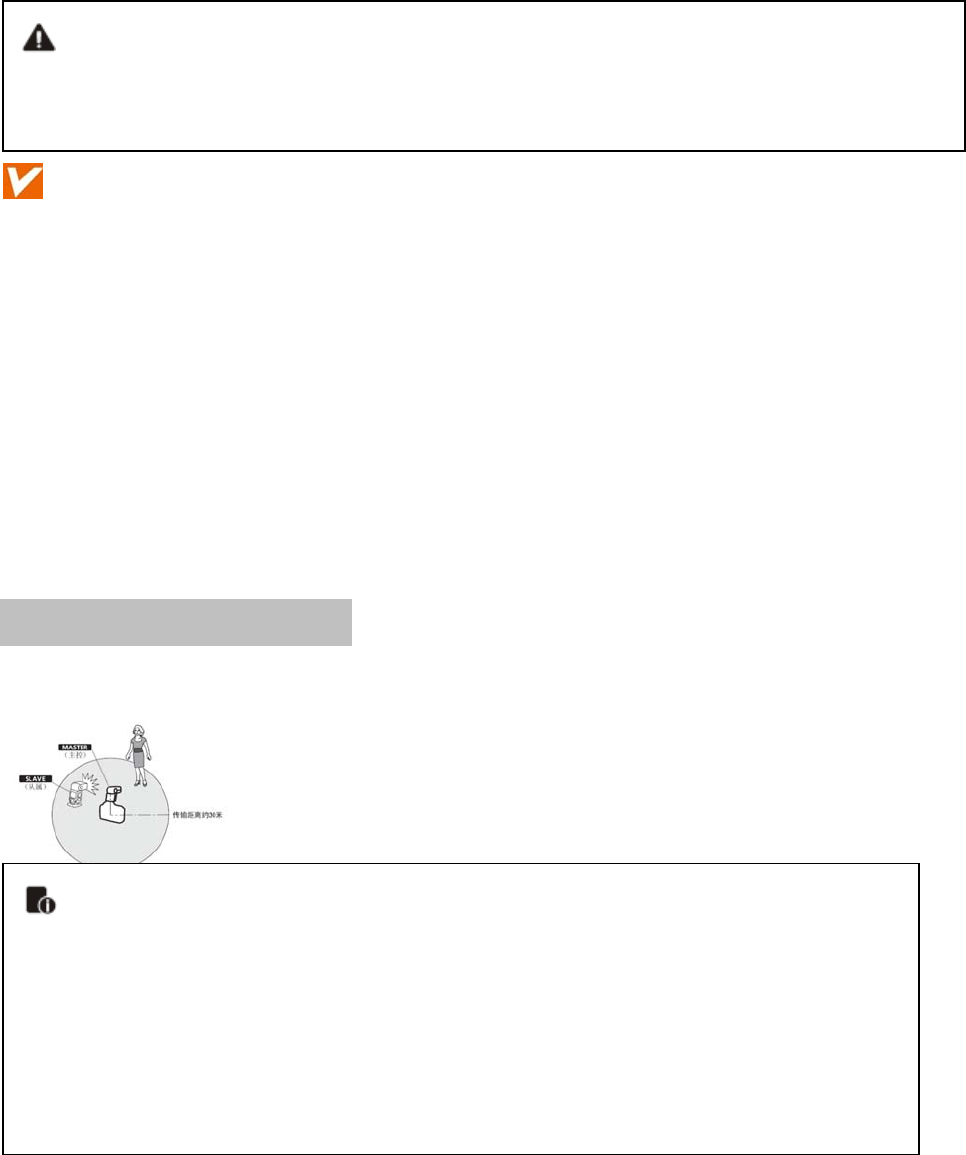

Positioning and Operation Range
1．Wireless Settings
Even with multiple slave units, the master unit can control all of them via wireless.
In this user manual, “master unit” refers to the camera flash on a camera and
“slave unit” will be controlled by the master unit.
You can switch between normal flash and wireless flash. For normal flash shooting, be sure to
set the wireless setting to OFF.
Master Unit Setting
1. Press < > button so that < >和< > are displayed on the LCD panel.
Slave Unit Setting
1. Press < > button again so that < >和< > are displayed on the LCD
panel.
2. Master Unit’s Flash OFF
When the master unit is set to OFF, only the slave units will fire a flash.
1. Press Function Button 4 so that < > is displayed on the LCD panel.
2. Press Function Button 1 < > to control the ON/OFF of the master unit.
< >：The master unit flash firing is ON.
< >：The master unit flash firing is OFF.
3. Setting the Communication Channel
If there are other wireless flash systems nearby, you can change the channel IDs to prevent
signal interference. The channel IDs of the master unit and the slave unit(s) must be set to the
same.
1. Press Function Button 4 so that < > is displayed on the LCD panel.
2. Press Function Button 1 so that < > is displayed on the LCD panel. Turn the Select
Dial to choose a channel ID from 1 to 4.
Even if the master unit flash firing is disabled, it still fires a preflash to transmit wireless
signals.
3. Press the <SET> button to confirm.
4. ETTL：Fully Automatic Wireless Flash Shooting
Using Automatic Wireless Flash with a Single Slave Unit
1、Master Unit Setting
● Attach a
AD360II-C camera flash on the camera and set it as the master Unit.
● As a master unit, AD360II-C can control Canon speedlites e.g. 580EXII, 600EX-RT via
wireless.
2、Slave Unit Setting
● Set the other camera flash as the wireless slave unit.
● As a slave unit, AD360II-C can receive wireless signals of Canon speedlites e.g. 580EXII,
600EX-RT and commanders of Canon cameras e.g. 7D/60D/600D.
3、Check the communication channel.
● If the master unit and slave unit(s) are set to a different channel, set them to the same
channel.
4、Position the camera and flashes.
● Position the camera and flashes as the picture shows.
5、Set the master unit’s flash mode to <ETTL>.
● Set the master unit’s flash mode to <ETTL>.
● For shooting, <ETTL> will automatically be set for the slave unit.
● Set the master unit flash firing as ON to fire a flash.
6、Check that the flash is ready.
● Check that the master flash ready indicator is lightened.
● When the slave flash ready indicator is ready, the AF-assist beam lighting area will blinks
at 1 second intervals.
7、Check the flash operation.
● Press the master unit’s Test Button<>。
● Then, the slave unit will fire. If not, adjust the slave unit’s angle toward the master unit and
distance from the master unit.
Using Automatic Wireless Flash with Multiple Slave Units
When stronger flash output or more convenient lighting operation is needed, increase the
number of slave units and set it as a single slave unit.
To add slave units, use the same steps as setting “automatic wireless flash with a single slave
unit”. Any flash group can be set (A/B/C).
When the number of slave units is increased and the master unit flash firing is ON, automatic
control is implemented to make all groups of flashes fire the same flash output and ensure
the total flash output up is to standard exposure.
The slave unit might be out of order or fire an unwanted flash due to the nearby
fluorescent lamp or computer screen.
Press the depth-of-field preview button on the camera to fire a modeling flash.
If the slave unit’s auto power off function is workable, press the master unit’s test button to
power it on. Please note that test firing is unavailable during the camera’s regular metering
time.
By making some settings, the auto AF-assist transmitter will not blink after the slave unit’s
flash ready indicator is lightened.
Using Fully Automatic Wireless Flash
The FEC and other settings that set on the master unit will also be appeared on the slave unit
automatically. The slave unit does not need any operation. Use the following settings to make
wireless flashes according to the same methods with normal flash shooting.
● Flash Exposure Compensation （/Page**） ● High-Speed Sync （/Page**）
● Flash Exposure Bracketing（/Page**） ● Manual Flash（Page**）
● Flash Exposure Lock（Page**） ● Stroboscopic Flash（Page**）
About Master Unit
Use two or more master units. By preparing several cameras that with master units flash attached,
cameras can be changed in shooting while keeping the same lighting source (slave unit).
ETTL: Use the Wireless Shooting of Flash Ratio

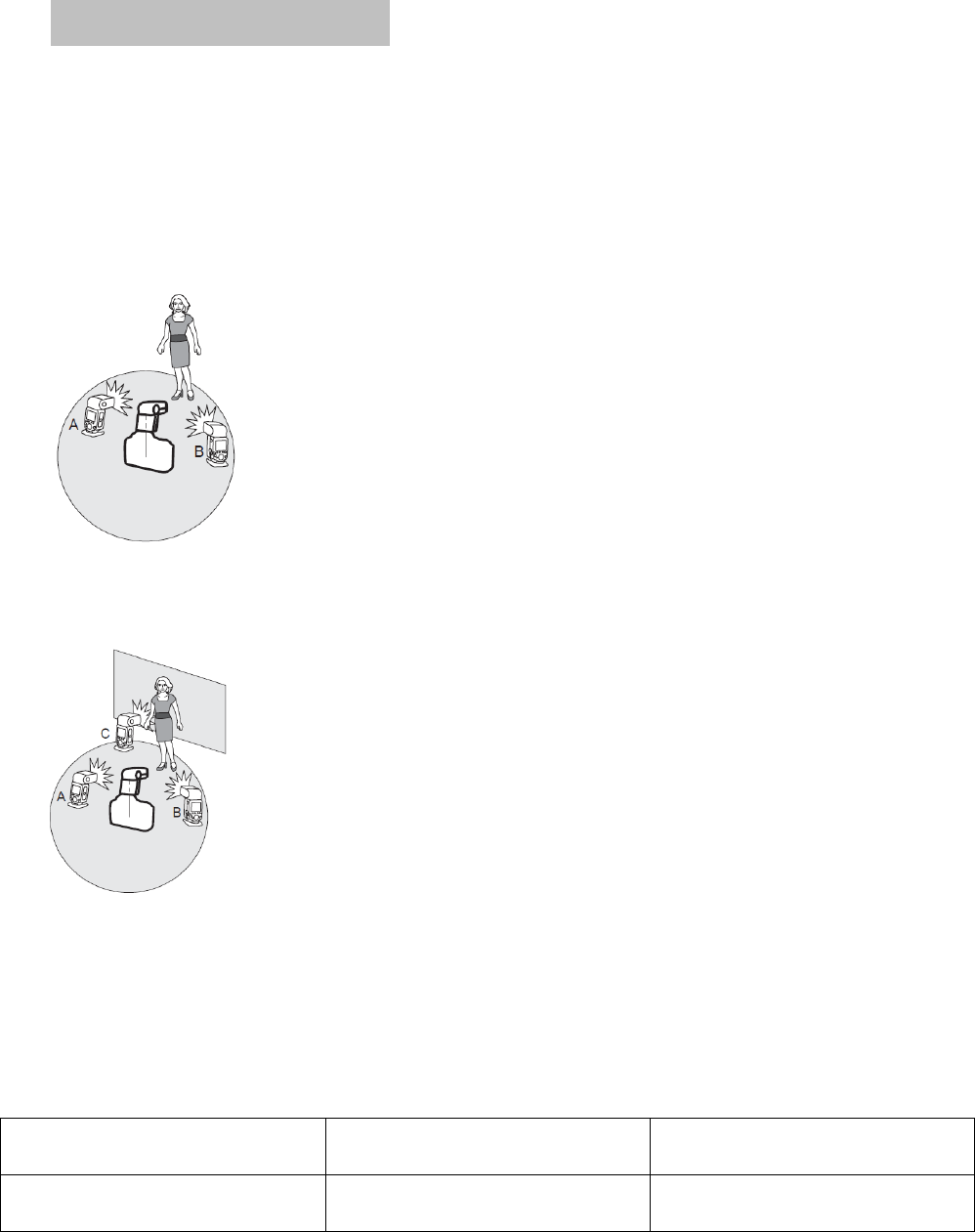

Autoflash Shooting with Two Slave Unit
Divide the slave units into A and B groups and balance their shooting illumination (flash ratio).
Auto control exposure to make the total output of A and B flash groups up to standard exposure.
1、Setting the flash groups of slave unit.
● Set the flash as slave unit.
● Press Function Button 3< > and choose <A> or <B>.
● Set one slave unit as <A>, the other as <B>.
The firing frequency of stroboscopic flash during the optic transmission shooting can be set from
1Hz to 199Hz.
Press Function Button 4 so that < >、<>和< > are displayed.
2、Setting < >.
● Step 2 to Step 4 are set on the master unit.
● Press the Function Button 4 on the master unit so that < > is displayed.
3、Setting <RATIO A:B>.
● Press Function Button 2 < > so that <RATIO A:B> is displayed.
4、Setting flash ratio.
● Press Function Button 3 < >.
● Turn the Select Dial to set the amount of flash ratio and press<SET> button to confirm.
5、Taking the picture.
● The slave units will flash according to the flash ratio.
Autoflash Shooting with Three Slave Unit
You can add firing group C to firing groups A and B. C is convenient to set lighting so as to
eliminate the subject’s shadow. The basic setting method is the same as “Autoflash Shooting
with Two Slave Unit”.
1、Setting the slave group <C>.
● Use the same method of step 1 to set the slave unit of flash group<C>.
2、Setting <RATIO A:B C>.
● Use the same method of step 2 and step 3 (see page **) to set the master unit as <RATIO
A:B C>.
3、Setting flash exposure compensation.
● Use the same method of step 1 to set the slave unit of flash group<C>.
● Press Function Button 2 < >. Turn the Select Dial to set the amount of flash exposure
compensation and press<SET> button to confirm.

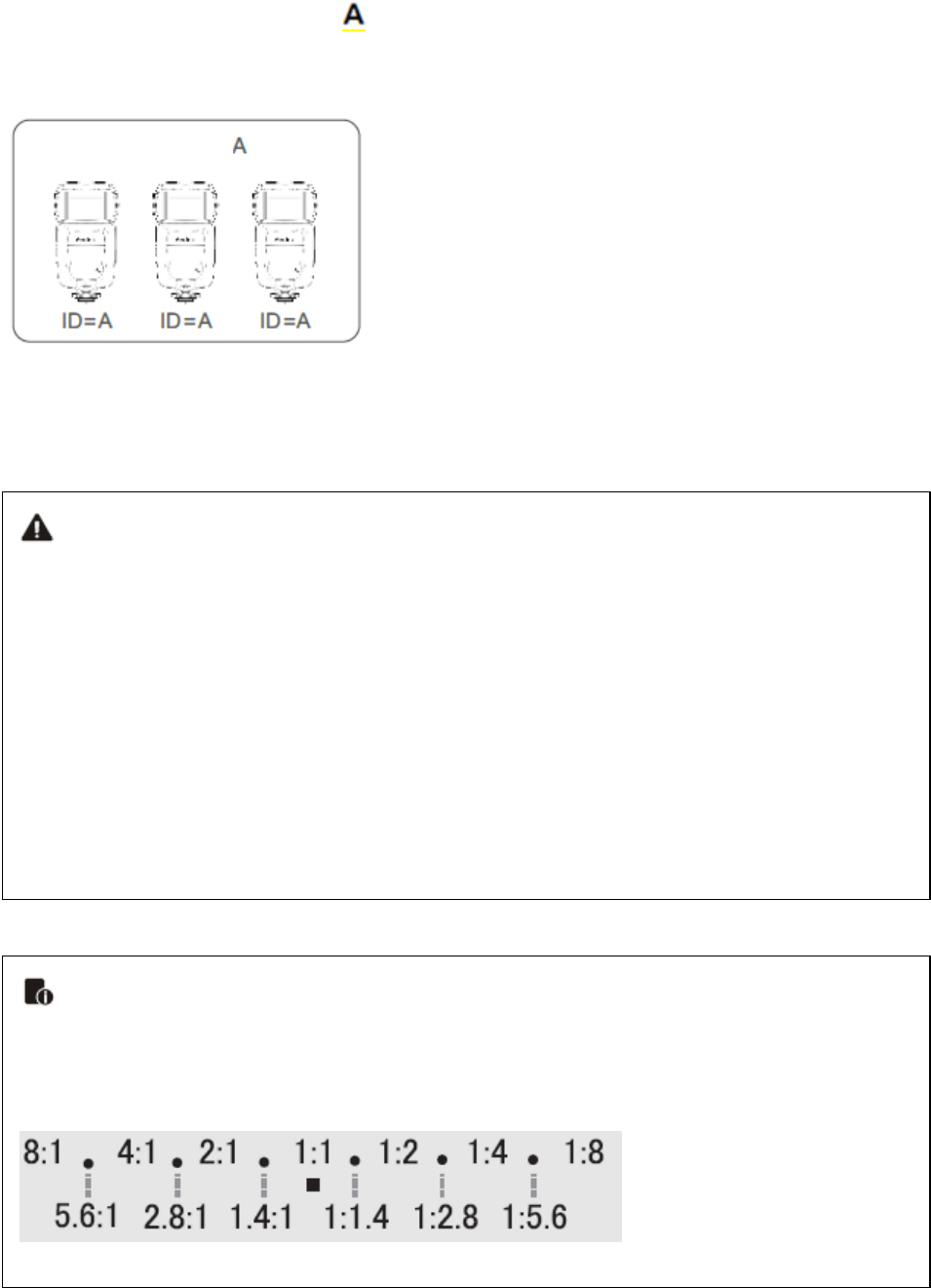

About Slave Group Control
If three slave units are all set to < > in terms of slave ID, these slave units will be controlled
as if they were one camera flash in slave group A.
5. M: Wireless Flash Shooting with Manual Flash
● When setting < RATIO A:B C >, group A, B and C will fire a flash synchronously; when
setting< RATIO A:B >, group C will not fire a flash.
● If shooting under the situation that group C is toward the main shooting subject, over
exposure might occurred.
● In some EOS film cameras that support E-TTL autoflash, you cannot perform multiple flash
wireless shooting with a flash ratio setting.
● The flash ratio of 8:1 to 1:1 to 1:8 is equivalent to 3:1 to 1:1 to 1:3 (1/2 step increment).
● The details of the flash ratio settings are as follows.
Part
This describes wireless (multiple shooting) using manual flash. You can shoot with a different flash
output setting for each slave unit (firing group). Set all parameters on the master unit.
1、Setting the flash mode to <M>.
2、Setting the number of flash groups.
● When < MENU 1> is displayed, press the Function Button 2 < > to set the groups to
fire.
● The setting changes as follows each time you press the button:
ALL（RATIO OFF）→
A/B（RATIO A：B）→
A/B/C（RATIO A：B：C）。
3、Setting flash output.
● Press Function Button 3 < >. Turn the Select Dial to set the flash output of the
groups. Press <SET> button to confirm.
4、Taking the picture.
● Each group fires at the set flash ratio.
Setting <M> Flash Mode
You can directly operate the slave unit to manually set the manual flash or stroboscopic flash.
1、Setting the slave unit.
2、Setting flash mode to <M>.
● Press <MODE> button so that < M > is displayed.
● When ALL < RATIO OFF > is set, set A, B or C as the firing group for the slave units.
● To fire multiple slave units with the same flash output, select ALL < RATIO OFF > in step 2.
● Set the manual flash output.
6、Multi: Manual Wireless Flash Shooting
1、Setting <MULTI> stroboscopic flash.
● Press <MODE> button so that <MULTI> is displayed.
● Setting the stroboscopic flash.
Wireless Flash Shooting: Radio (2.4G)
Transmission
Using a flash (master/slave) with a radio transmission wireless shooting function make it easy
to shoot with advanced wireless multiple flash lighting, in the same way as E-TTL II autoflash
shooting.
The basic relative position and operation range are as shown in the picture. You can then
perform wireless E-TTL II /ETTL autoflash shooting just by setting the master unit to <ETTL>.
Positioning and Operation Range (Example of wireless flash shooting)
● Autoflash Shooting with One Slave Unit
The firing frequency of stroboscopic flash during the optic transmission wireless shooting can be
set from 1Hz to 199Hz (settings from 250 Hz to 500 Hz are not available).
● Use the supplied mini stand to position the slave unit.
● Before shooting, perform a test flash and test shooting.
● The transmission distance might be shorter depending on the conditions such as
positioning of slave units, the surrounding environment and whether conditions.
Wireless Multiple Flash Shooting
You can divide the slave units into two or three groups and perform E-TTL II/E-TTL autoflash
while changing the flash ratio (factor). In addition, you can set and shoot with a different flash
mode for each firing group, for up to 5 groups.
● Auto Shooting with Two Slave Groups
● Auto Shooting with Three Slave Groups
Wireless shooting using radio transmission has advantages over wireless shooting using optic
transmission, such as being less affected by obstacles, and not having to point the slave unit’s
wireless sensor toward the master unit. The main functional differences are as follows:
Function Radio Transmission Optic Transmission
Distance 100m 15m
Channel 1~32 1~4
A/B/C Power OFF，1/128~1/1 1/128~1/1
Other Applications
Wireless Control Function
The flash unit is built in with a Wireless Control Port so that you can wirelessly adjust the power
level of the flash and the flash triggering.
To control the flash wirelessly, you need a FT-16 remote control set (on-camera and on-flash).
Insert its receive end into the Wireless Control Port on the flash and insert the transmit end into
the camera hot shoe. Settings made on the hotshoe-mounted transmit and receive ends will be
wirelessly communicated to the flash. Then you can press the camera shutter release button to
trigger the flash. You can also hold the transmit end at hand to control your off-camera flash.
Modeling Flash
If the camera has a depth-of-field preview button, pressing it will fire the flash continuously
for 1 second. This is called modeling flash.
It enables you to see the shadow effects on the subject and the lighting balance. You can fire
the modeling flash during wireless or normal flash shooting.
For full instructions on the use of FT series remote control, see its user manual.
To avoid overheating and deteriorating the flash head, do not fire the modeling flash
for more than 10 consecutive times. If you fire the modeling flash 10 consecutive
times, allow at least 10 minutes’ break for the camera flash.
The modeling flash cannot be fired with the EOS 300 and Type-B cameras.
Auto Focus Assist Beam
In poorly-lit or low-contrast shooting environments, the built-in auto focus assist beam will
automatically light on to make it easier for autofocus. The beam will light up only when autofocus
is difficult and get out as soon as the autofocus becomes correct.
If you want to turn off the auto focus assist beam, set the “AF” to “OFF” on the C.Fn settings.
Position Effective Range
Center 0.6~10m / 2.0~32.8 feet
Periphery 0.6~5m / 2.0~16.4 feet
Assist Beam Setting
The flash has two ways to light on the assist beam: auto focus (AF) and manual focus (MF).
Press Function Button 1 （MF/C.Fn）to choose.
Auto focus (AF): The assist beam is lighted on by camera.
Manual focus (MF): The assist beam is lighted on manually.
Turn off the assist beam: Set “AF”to OFF on the C.Fn menu, and the assist beam will be
turned off.
Bounce Flash
By pointing the flash head toward a wall or ceiling, the flash will bounce off the surface before
illuminating the subject. This can soften shadows behind the subject for a more
natural-looking shot. This is called bounce flash.
If you find the auto focus assist beam does not light up, this is because the camera
has got a correct autofocus.
To set the bounce direction, hold the flash head and turn it to a satisfying angle.
0-270° horizontally and -15°-90° vertically
Sync Triggering
The Sync Cord Jack is a Φ3.5mm plug. Insert a trigger plug here and the flash will be fired
synchronously with the camera shutter.
PC Sync Socket Triggering
Use remote cable to connect the camera and the AD360II-C through its PC sync socket (10),
and the flash will be fired synchronously with the camera shutter.
C.Fn: Setting Custom Functions
The following table lists the available and unavailable custom functions of this flash. The
icon“√”indicates the flash custom function is supported but “0”indicates the custom function
is not supported.
If the wall or the ceiling is too far away, the bounced flash might be too weak and result in
underexposure.
The wall or the ceiling should be a plain, white color for high reluctance. If the bounce surface
is not white, a color cast may appear in the picture.
C.Fn Custom Functions
Custom
Function Signs
Functions Setting Signs
Settings &
Descriptions
Custom
Functions
No.
APO Auto power off
ON ON
C.Fn-01
OFF OFF
FEB ACL FEB auto cancel
ON ON
C.Fn-03
OFF OFF
FEB FEB order
0 → − → +
C.Fn-04
- → 0 → +
AF AF-assist beam
ON ON
C.Fn-08
OFF OFF
BEEP Beeper
ON ON
C.Fn-20
OFF OFF
LIGHT Backlighting time
12sec Off in 12 sec.
C.Fn-22 OFF Always off
ON Always lighting
LCD LCD contrast ratio 0~9 10 levels
1. Press < Zm/C.Fn > Backlight/Custom Setting Button for 2 seconds or longer until C.Fn
menu is displayed. The “Ver x.x” in the top-right corner refers to the software version.
2. Select the Custom Function No.
* Turn the Select Dial to select the Custom Function No.
3. Change the Setting.
* Press<SET> button and the Setting No. blinks.
* Turn the Select Dial to set the desired number. Pressing <SET> button will confirm the
settings.
* After you set the Custom Function and press <MODE> button, the camera will be ready to
shoot.
4. In the C.Fn states, long press the “Clear”button for 2 seconds until “OK”is displayed on
the panel, which means the values in C.Fn can be reset.
Control with the Camera’s Menu Screen
If the camera flash is attached to an EOS camera which has a speedlite control function, the flash
can be controlled using the camera’s menu screen. For the menu operation procedure, refer to
your camera’s instruction manual.
Setting Camera Flash Functions
The following flash functions are settable according to different flash modes.
1. Flash mode
2. Shutter sync (1st/2nd curtain, high speed sync)
3. FEB
4. Flash exposure compensation
5. Flash firing
6. Clear camera flash’s settings
Custom Functions of Camera Flash
C.Fn-01，C.Fn-03，C.Fn-04，C.Fn-08, C.Fn-20, and C.Fn-22.
Clear All Flash Custom Functions

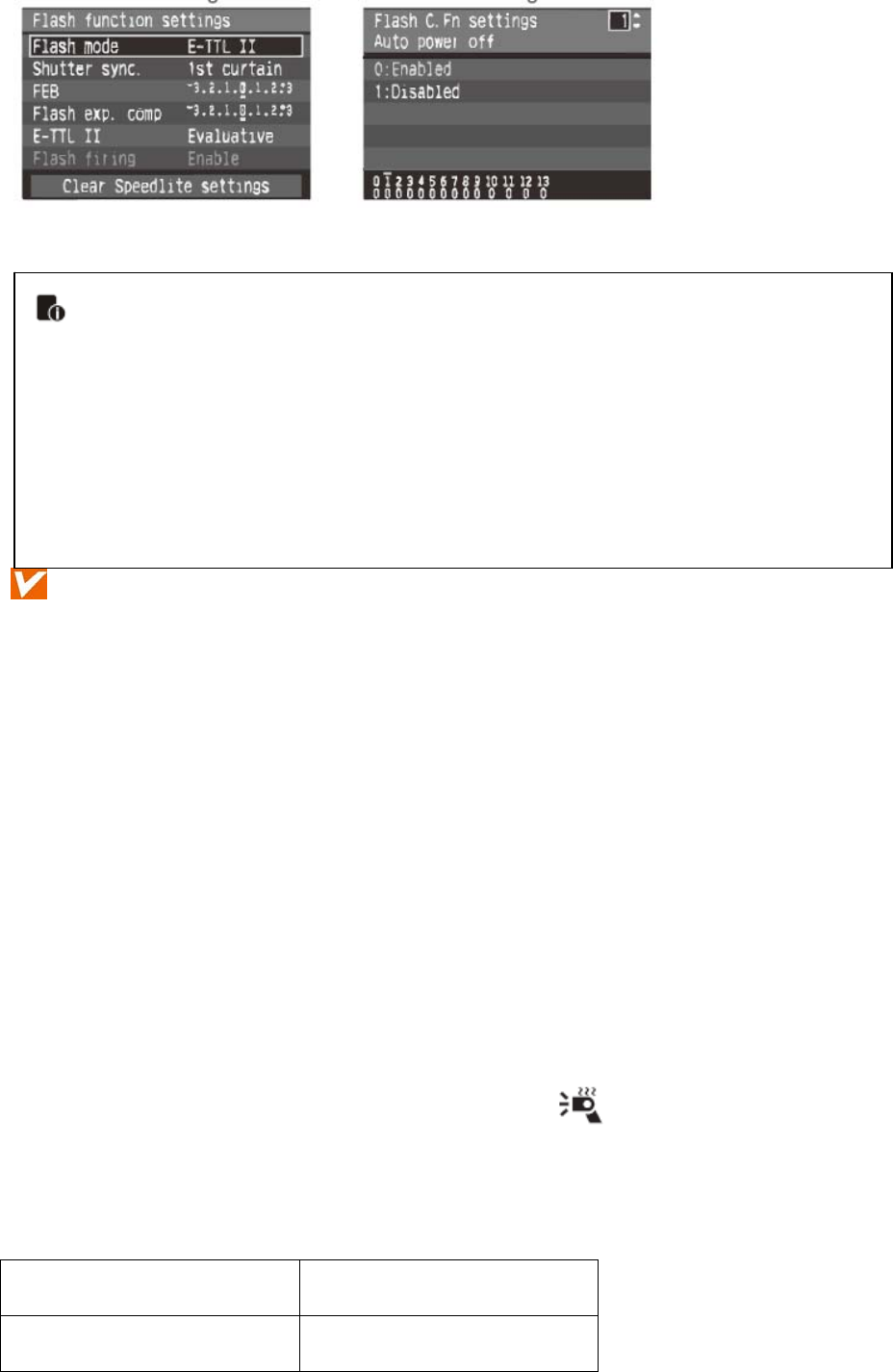

Flash function settings screen Flash C.Fn settings screen
*Screens from the EOS-1D Mark III.
Protection Function
1. Over-Temperature Protection
To avoid overheating and deteriorating the flash head, do not fire more than 75 continuous
flashes in fast succession at 1/1 full power. After 30 continuous flashes, allow a rest time of at
least 75 minutes.
If you fire more than 75 continuous flashes and then fire more flashes in short intervals, the
inner over-temperature protection function may be activated and make the recycling time
over 10 seconds. If this occurs, allow a rest time of about 10 minutes, and the flash unit will
then return to normal.
When the over-temperature protection is started, is shown on the LCD display.
Number of flashes that will activate over-temperature protection:
Power Output Level Number of Flashes
1/1 75
If flash exposure compensation has already been set with the camera flash, flash
exposure compensation cannot be set with the camera. To set it with the camera, the
camera flash’s flash exposure compensation must be set to zero.
If any Flash Custom Functions and flash settings other than flash exposure
compensation have been set by both the camera and the flash, the latest settings
will take effect.
1/2（+0.3,+0.7） 100
1/4（+0.3,+0.7） 150
1/8（+0.3,+0.7） 200
1/16（+0.3,+0.7） 300
1/32（+0.3,+0.7） 500
1/64（+0.3,+0.7）
1/128（+0.3,+0.7）
1000
Number of flashes that will activate over-temperature protection in high-speed sync triggering mode:
Power Output Times
1/1 30
1/2（+0.3,+0.7）; 40
1/4（+0.3,+0.7）; 50
1/8（+0.3,+0.7）; 60
1/16（+0.3,+0.7）
1/32（+0.3,+0.7）;
75
1/64（+0.3,+0.7）;
1/128（+0.3,+0.7）;
100
2. Other Protections
The system provides real-time protection to secure the device and your safety. The following lists
prompts for your reference:
Prompts on LCD Panel Meaning
E1 A failure occurs on the recycling system so that the flash cannot fire.
Please restart the flash unit. If the problem still exists, please send this
product to a maintenance center.
E2 The system gets excessive heat. Please allow a rest time of 10 minutes.
E3 The voltage on two outlets of the flash tube is too high. Please send this
product to a maintenance center.
E9 There are some errors occurred during the upgrading process. Please
using the correct firmware upgrade method.
Technical Data
Model AD360II-C
•Type
Compatible Cameras Canon EOS cameras (E-TTL II autoflash)
Guide No. (m ISO 100) 80 (m ISO 100, with AD-S2 standard reflector)
Approx. 28mm flash coverage when operating on a camera
with the standard reflector.
Vertical Rotation Angle -15° to 90°
Horizontal Rotation
Angle
0 to 270°
Flash Duration 1/300 to 1/10000 seconds
•Exposure Control
Exposure control system E-TTL II autoflash and manual flash
Flash exposure
compensation (FEC)
Manual. FEB: ±3 stops in 1/3 stop increments (Manual FEC and
FEB can be combined.)
FE lock With <FEL> button or< > button
Sync mode High-speed sync (up to 1/8000 seconds), first-curtain sync, and
second-curtain sync
Multi flash Provided (up to 100 times, 199Hz)
•Wireless Flash (Optic transmission and 2.4G transmission)
Wireless flash function Master, Slave, Off
Controllable slave
groups
3 (A, B，and C)
Transmission
range
(approx.)
Optic Indoors: 12 to 15 m / 39.4 to 49.2 ft.
Outdoors: 8 to 10 m / 26.2 to 32.8 ft.
Master unit reception angle: ± 40 ° horizontally, ± 30 °
vertically
2.4G 100m
Channels Optic 4 (1, 2, 3, and 4)
2.4G 32 (1~32)
Slave-ready indicator Two red indicators blink
Modeling flash Fired with camera’s depth-of-field preview button
•Auto Focus Assist Beam
Effective range (approx.) Center: 0.6~10m / 2.0~32.8 feet
Periphery: 0.6~5m / 2.0~16.4 feet
•Power Supply
Power Supply GODOX PB960 lithium power pack
Full Power Flashes 450 (with PB960 power pack)
Recycle Time Approx. 0.05-4.5s (with PB960 power pack)
Power Saving Power off automatically after approx. 90 seconds of idle operation. (60
minutes if set as slave)
• Sync Triggering
Mode
Hotshoe, 3.5mm sync line, PC sync socket, Wireless control port
•Color
Temperature
5600±200k
•Dimensions
Dimension 210*85*79mm (flash tube & reflector not included)
Net Weight 800g (flash tube & reflector not included)
Troubleshooting
If there is a problem, refer to this Troubleshooting Guide.
TheCameraFlashdoesnotfire.
Thecameraflashisnotattachedsecurelytothecamera.
Attachthecamera’smountingfootsecurelytothecamera.
TheelectricalcontactsoftheCameraFlashandcameraaredirty.
Cleanthecontacts.
<>or<>isnotdisplayedintheviewfinderofcamera.
Waituntiltheflashisfullyrecycledandtheflashreadyindicatorlightsup.
Iftheflashreadyindicatorlightsup,but<>or<>isnotdisplayedintheviewfinder,check
whetherthisflashunitissecurelyattachedtothecamerahotshoe.
Iftheflashreadyindicatordoesnotlightupafteralongwait,checkwhetherthebatterypoweris
enough.Ifthebatterypowerislow,<>willappearandblinkontheLCDpanel.Pleasereplace
thebatteryimmediately.
Theflashexposureisunderexposedoroverexposed.
Therewasahighlyreflectiveobject(e.g.glasswindow)inthepicture.
UseFElock(FEL).
Youusedhigh‐speedsync.
Withhigh‐speedsync,theeffectiveflashrangewillbeshorter.Makesurethesubjectiswithinthe
effectiveflashrangedisplayed.
YouusedManualFlashmode.
SettheflashmodetoETTLormodifytheflashoutput.
Firmware Upgrade
This flash supports firmware upgrade through the USB port. Update information will be
released on our official website.
Compatible Camera Models
This flash unit can be used on the following Canon EOS series camera models:
5D Mark III 5D Mark II 6D 7D 60D 50D 40D
30D 650D 600D 550D 500D 450D 400D Digital
1000D 1100D
This table only lists the tested camera models, not all Canon EOS series cameras. For
the compatibility of other camera models, a self-test is recommended.
Rights to modify this table are retained.
USB connection line is not included in this product. The USB port is a
standard Micro USB socket. Common USB connection line is applicable.
Maintenance
-Shut down the device immediately should abnormal operation be detected.
-Avoid sudden impacts and the product should be dedusted regularly.
-It is normal for the flash tube to be warm when in use. Avoid continuous flashes if unnecessary.
-Maintenance of the flash must be performed by our authorized maintenance department which
can provide original accessories.
-This product, except consumables e.g. flash tube, is supported with a one-year warranty.
-Unauthorized service will void the warranty.
-If the product had failures or was wetted, do not use it until it is repaired by professionals.
-Changes made to the specifications or designs may not be reflected in this manual.
FCC Warning
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
