GODOX PHOTO EQUIPMENT XT32 Wireless Power-Control Flash Trigger User Manual 1
GODOX PHOTO EQUIPMENT CO.LTD Wireless Power-Control Flash Trigger 1
Users Manual
闪光灯功率遥控触发器
Wireless Power-Control Flash Trigger
For Canon
说 明 手 册
Instruction Manual
中英文双语
Chinese English Bilingual
705-XT32C0-00 Made In China
地址/Add: 深圳市宝安区福永镇福洲大道西新和村华发工业园A4栋
Building A4, Xinhe Huafa Industrial Zone, Fuzhou RD West, Fuyong
Town, Baoan District, Shenzhen 518103, China
电话/Tel: +86-755-29609320(8062) 传真/Fax: +86-755-25723423
邮箱/E-mail: godox@godox.com
深圳市神牛摄影器材有限公司
GODOX Photo Equipment Co., Ltd
前言
安全须知
部件
机身
LCD显示屏
电池
安装电池
低电池电量指示
使用引闪器
使用热靴触发闪光灯
使用PC接口无线触发闪光灯
02
02
04
05
06
目录
设置发射器
电源开关
AF对焦辅助灯开关
频道设置
组别设置
功率设置
试闪
控制造型灯
控制声音
锁定功能
设置自定义功能
注意事项
引闪器的保养
产品参数
兼容相机列表
07
11
11
12
13
感谢您购买XT32C闪光灯功率遥控触发器。
该触发器适用佳能相机控制神牛闪光灯，远程直接控制具备神牛X无线系统的闪光灯(如
TT685系列、V860II系列、AD360II系列、AD600系列、闪客II系列等)。而对于没有具备
X无线系统但带有USB无线端口的神牛闪光灯（如V860系列、V850、AD360、QT系列、
SK系列等），可以使用XTR-16或者XTR-16S接收器实现功率调节和引闪等控制。信号稳
定，反应灵敏，方便摄影师灵活布光，满足多种拍摄需求。同时可以连接具有PC接口的相机
使用。支持高速闪光同步，最大闪光同步速度达1/8000s*。
*：限制条件——相机的最大快门速度为1/8000s。
前言
请勿拆卸或改造
违反此警告可能会触电或导致产品故障。若本产品因为摔落或其他意外事故造成破损，
请取出电池并将产品送至厂家授权的维修中心进行检查维修。
保持干燥
请勿用湿手接触产品，亦不可将产品浸入水中或暴露于雨中，否则可能引起火灾或触
电。
请勿在易燃气体环境中使用
违反此警告可能引起爆炸或火灾。
安全须知
为防止损坏您的相机，或避免您或他人受伤，在使用本设备前请仔细阅读下面的安全须
知，并妥善保管以便所有本产品使用者可随时参阅。
请遵守本节中所列举的各项预防措施，否则可能对产品造成损害。
以下标记表示警告，提醒您应该在使用本产品前阅读这些信息，以防止可能发生的损害。
- 02 -- 01 -
请勿在儿童伸手可及之处保管本产品
本产品包含可能引起窒息的零件。如果儿童不小心吞食了零件，请立即送往医院救治。
若发生任何故障，请立即关闭触发器电源
若发现本产品冒烟或发出异味，请立即取出电池并将本产品送至授权的维修中心进行检
查维修，以避免燃烧。若在此情景下继续使用，可导致受伤。
请勿置于高温中
请勿将本产品放置于阳光直射下的封闭车辆内或其他极高温的地方，否则可能导致火灾
或损坏本产品的外壳或内部部件。
使用电池的注意事项
操作不当可能导致电池漏液或爆裂，因此在使用本产品时，请注意以下事项，正确使用
电池：
只能使用本手册中列出的电池。请勿混用新旧电池或不同类型的电池。
请仔细阅读并遵守由厂商提供的警告或指示。
切勿使电池短路或拆卸电池。
切勿将电池投入火中或加热升温。
切勿试图以反方向安装电池。
当电量用尽时，电池容易漏液。所以为了避免产品受损，请在长期不使用本产品或
电量用尽时取出电池。
如果受损电池中的液体接触到皮肤或衣服，请立即用大量清水冲洗。
安全须知
- 04 -- 03 -

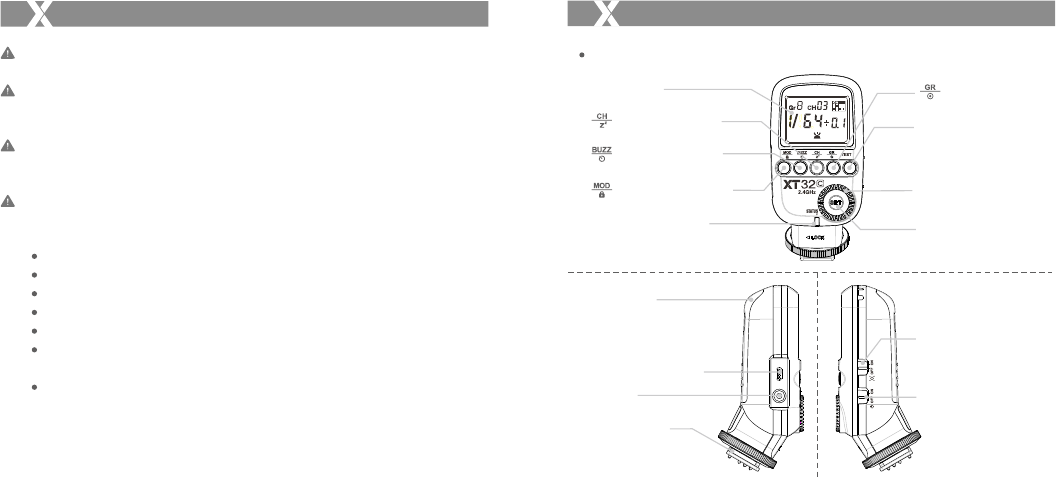

部件
STATUS状态指示灯
--红色LED显示
造型灯/锁定设置按钮
TEST触发按键
值设定拨盘
Micro USB供电接口
PC接口
电池仓(背)
相机触发热靴
LCD显示屏
机身
声音/延时设置按钮
频道/睡眠设置按钮
SET设置按钮
组别/PC口设置按钮
电源开关
--ON 打开电源
--OFF 关闭电源
AF辅助对焦灯开关
--ON 辅助对焦灯输出
--OFF 无辅助对焦灯输出
- 06 -
- 05 -

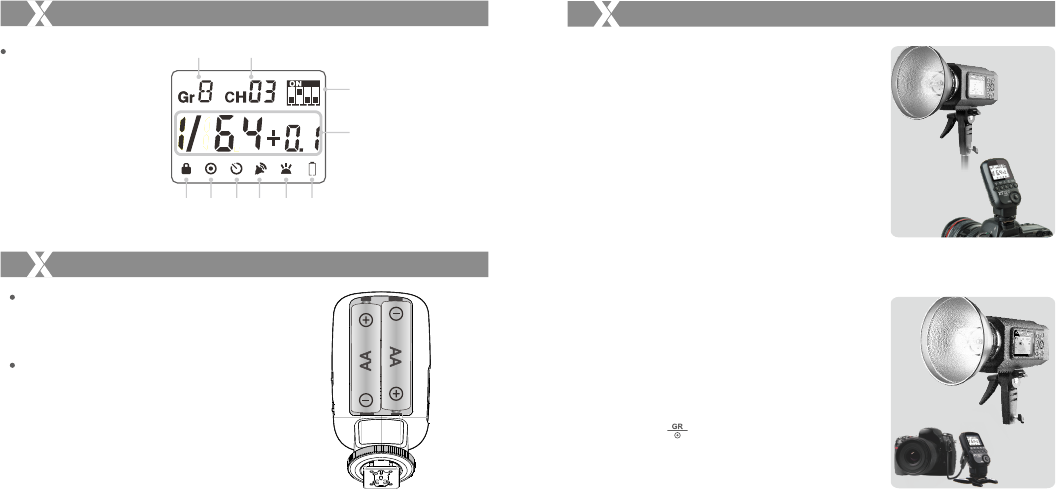

部件

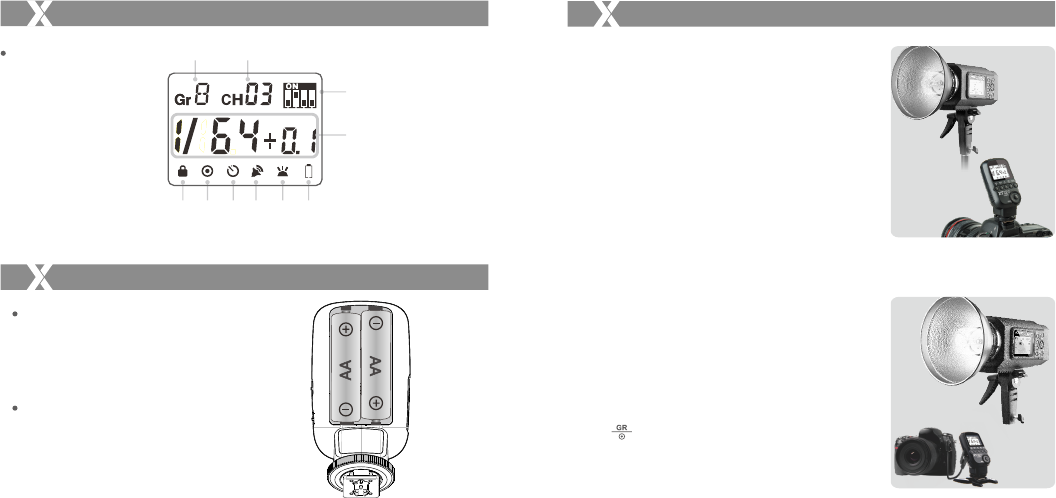

(A)组别 (B)频道 (C)档位值 (D)锁定符号 (E)PC输出符号 (F)延时符号
(G)声音符号 (H)造型灯符号 (I)低电量符号
A
E
D
B
C
I
LCD显示屏 B
F G H
安装电池
滑开发射器与接收器背面的电池盒
盖，根据电池盒内的正负极指示，
分别装入2节AA电池。
低电池电量指示
电池电量较低时(2节电池<2.4V），
低电图标会闪烁，此时请更换电池，
否则在距离较远时会出现漏闪或不
闪现象。
电池 2. 使用PC接口无线触发闪光灯
使用方法：
2.1 设置好发射端和接收端的频道和组别。
2.2 发射器端缺省将PC接口作为输入口，控制接收
器端的闪灯进行闪光。
2.3 正常方式按下快门。将使用PC接口信号控制闪
光。
2.4 PC接口可以设置为输出口，具体操作：长按
< >按钮2秒以上，直到屏幕显示设置界面,
将PC接口设置为输出模式, 显示“OU”。
1. 使用热靴触发闪光灯
使用方法：
1.1 关闭相机电源，将发射器放置于相机热靴插座上，
打开发射器电源开关和相机电源。
1.2 通过“频道设置按钮”选择频道，使发射器与接收端
选择的频道一致。
1.3 按下相机快门即可引闪，同时发射器“状态指示
灯”闪亮红色。
使用引闪器
- 07 -
设置发射器

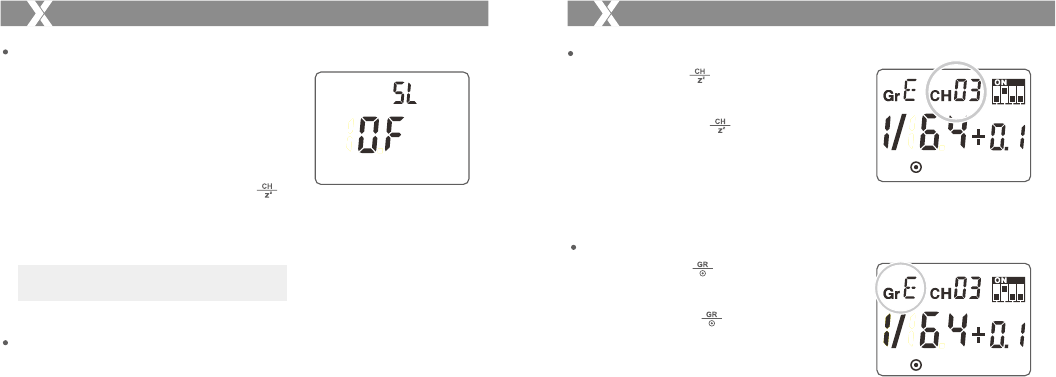

把电源开关拨至“ON”即可打开电源, 状态指示
灯不显示。在没有操作引闪器的情况下, 产品会在
设置时间段(1分钟/3分钟/10分钟/30分钟)进入睡
眠, 按下按键或者半按相机可以唤醒引闪器。
睡眠时间设置: 长按< >2秒以上, 直至屏幕显
示设置界面, 旋转旋钮调整睡眠时间。
注意：长时间不使用时请关闭电源, 以免耗电！
电源开关
AF对焦辅助灯开关

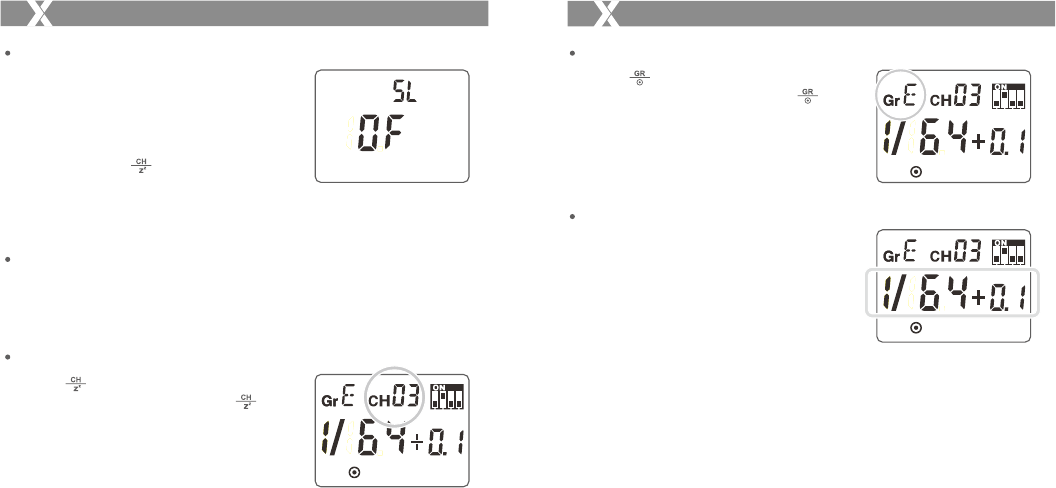

频道设置
1. 短按< > 按钮，频道值闪烁。
2. 拨动拨盘选择合适的频道值。再次按< >按
钮，当前频道值被选定。
3. 引闪器共32个频道，可以在1-32频道之间切
换。使用前请务必将发射器和接收器置于相同
频道。
把电源开关拨至“ON”, 允许输出AF对焦光线。
相机无法对焦时, 对焦灯会自动点亮; 对好焦,对焦
灯会自动熄灭。
设置发射器
组别设置
1. 短按< > 按钮，组别值闪烁。
2. 拨动拨盘选择合适的组别值。再次按< >按
钮，当前组别值被选定。
3. 引闪器共16个组别，可以在0~9、A~F频道之
间切换。调整功率前请务必将发射器和接收器
置于相同组别。

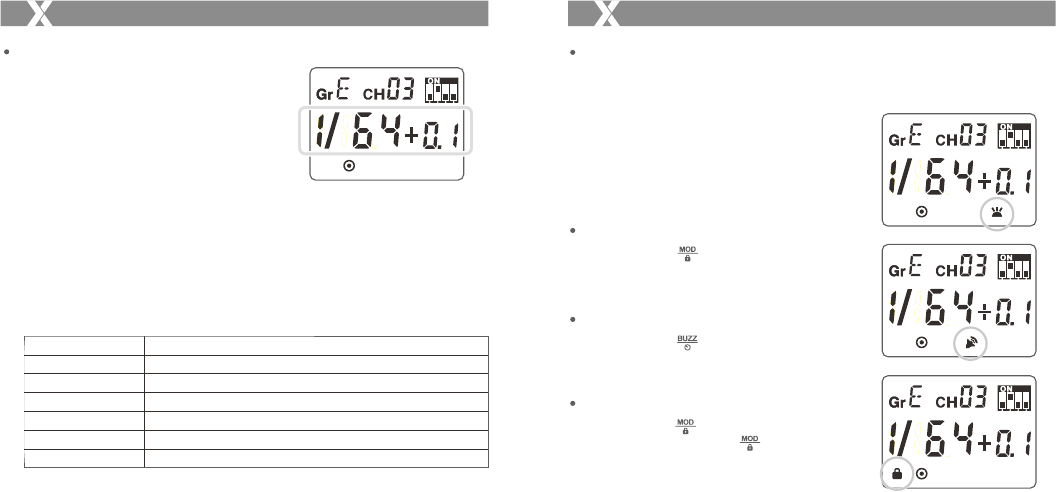

功率设置
1. 旋转拨盘可以调整档位大小。
*由于XT32C可以无线控制神牛的机顶闪光灯、外
拍灯和影室闪光灯，产品型号较多，档位有差
异，所以在档位显示模式上做了6种模式。客户可
以根据需求选择。
长按<SET>按钮2秒以上，直至屏幕显示功率设
置界面，旋转旋钮调节档位模式。
- 08 -
2. 快速双击SET按键可控制功率的ON/OFF。
设置发射器
试闪
1. 按<TEST>触发按钮，可以测试闪光是否
正常。
2. 按下<TEST>触发按键，此时状态指示灯亮
红色，引闪接受器端闪光灯。
3. 发射器端的设置值将同时同步到接收端中。
设置发射器
设置自定义功能
- 10 -- 09 -

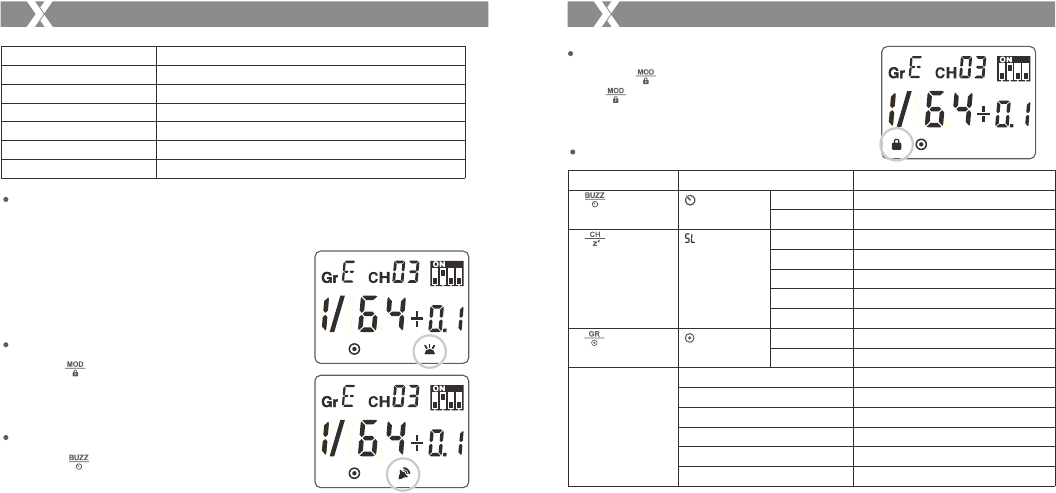

控制造型灯
1. 短按< >按钮可以控制造型灯的开启和关
闭。
控制声音
1. 短按< >按钮可以控制声音的开启和关
闭。
锁定功能
1. 长按< >按钮可以锁定当前设置; 再长按
< >按钮可以解锁。
设置和说明
关闭
时延N*100 us
1分钟无操作进入睡眠
3分钟无操作进入睡眠
10分钟无操作进入睡眠
30分钟无操作进入睡眠
不睡眠
PC口连接相机
PC口连接闪灯
档位范围：1/128~1/1;档位调节：1/3
档位范围：1/128~1/1;档位调节：1/10
档位范围：1/256~1/1;档位调节：1/3
档位范围：1/256~1/1;档位调节：1/10
档位范围：1.0~7.0;档位调节：0.1
档位范围：5.0~10;档位调节：0.1
00
1~100
01
03
10
30
OF
IN
OU
操作(长按2秒以上)
< >
< >
< >
<SET>1/128+0.3(默认)
1/128+0.1
1/256+0.3
1/256+0.1
1.0
5.0
显示内容
设置显示
1/128+0.3(默认)
1/128+0.1
1/256+0.3
1/256+0.1
1.0
5.0
说明
档位范围: 1/128~1/1; 档位调节: 1/3
档位范围: 1/128~1/1; 档位调节: 1/10
档位范围: 1/256~1/1; 档位调节: 1/3
档位范围: 1/256~1/1; 档位调节: 1/10
档位范围: 1.0~7.0; 档位调节: 0.1
档位范围：5.0~10; 档位调节：0.1
- 12 -
- 11 -
注意事项
1. 如不能正确引闪或拍摄, 请检查电池是否正确安装以及是否打开引闪器电源; 引闪器是否设
置在同一频道; 连接线或热靴口是否已正确牢固连接到位; 功能模式是否设置正确。
2. 如相机出现只能拍摄不能对焦现象, 请检查机身或镜头是否设定为MF手动对焦, 请设置为
AF自动对焦。
3. 如您的引闪器受到他人干扰引闪或拍摄, 改变引闪器的频道设置即可。
4. 如您发现触发距离有限或者有漏闪现象, 请检查是否电池耗尽, 请尝试更换电池。
引闪器的保养
避免跌落：如果受到强烈碰撞或振动，引闪器可能会发生故障。
保持干燥：本产品是非防水产品，如果将其浸入水中或放置于高湿度的环境中将可能发生故
障。内部构造生锈可能会导致无法修理的损害。
避免温度骤变：温度的突变，诸如在寒冷天进出温暖的大楼将可能会使引闪器内部结露。为
避免结露，请将引闪器事先装入手提袋或塑料包内，以防温度突变。
远离强磁场：无线电广播发射机等设备产生的强静电或强磁场可能会干扰本产品正常工作。
型号
兼容相机
内置无线
调制方式
供电方式
高速同步
辅助对焦
后帘同步
传输范围(约)
频道
组别
时延设置
造型灯
声音
记忆功能
尺寸/净重
规格参数
XT32C
Canon相机
支持所有具有PC输出口的相机
2.4G频率
MSK
2*AA 电池
有(1/8000s)
手动开启
有(相机方设置)
>100米
32个
16个(0~9、A~F)
有(0~10ms, 以100us为单位设置)
ON/OFF
ON/OFF
设置2秒后的参数会自动记忆，重新开机自动恢复
100x50x52(mm)/80g
- 13 - - 14 -
Foreword
For Your Safety
Names of Parts
Body
LCD Panel
Battery
Installing Batteries
Low Battery Level Indication
Using the Flash Trigger
As a Wireless Flash Trigger
with Hot Shoe
As a Wireless Flash Trigger
with PC Sync Socket
15
16
18
19
20
Setting the Transmitter
Power Switch
Power Switch of AF Assist Beam
Channel Settings
Group Settings
Power Output Settings
Test Flash
Modeling Flash Control
Sound Control
Lock Functions
Setting Custom Functions
Attentions
Maintenance
Technical Data
Compatible Camera Models
21
26
26
27
28
Contents
兼容相机列表
本机可兼容以下佳能EOS系列的相机型号：
5D Mark III 5D Mark II 6D
此表格仅列举目前已测试的相机型号, 未涵盖所有佳能EOS系列相机。其他相机型
号, 用户可自行测试。
本公司保留未来修改此表格内容的权利。
7D 60D 50D
40D 30D 650D 600D 550D 500D 450D
1000D 1100D
400D Digital
1DX
Foreword
Thanks for your purchase of this XT32C wireless power-control flash trigger.
This flash trigger applies to Canon cameras. It can also directly control flashes which have
built-in Godox wireless X system (e.g. TT685 series, V860II series, AD360II series, AD600
series, QuickerII series, etc.). As to the flashes which do not have Godox wireless X system
but have USB wireless control port (e.g.V860 series, V850, AD360, QT series, SK series,
etc.), a XTR-16 or XTR-16S receiver can be used in combination to achieve power
adjustment and triggering. Featuring multi-channel triggering, stable signal transmission,
and sensitive reaction, it gives photographers unparalleled flexibility and control over their
strobist setups. XT32C can also connect to the cameras which have PC sync sockets. It
supports high-speed sync function and the max flash synchronization speed is up to
1/8000s *.
*: 1/8000s is achievable when the camera has a max camera shutter speed of 1/8000s. .
- 15 -
For Your Safety
- 16 -
To prevent damage to your product or injury to you or to others, read the following safety
precautions in their entirety before using this device. Keep these safety instructions where
all those who use this device will read them.
Failure to observe the precautions listed in this section could result in damage to the
product.
The following icon indicates warnings that should be read before using this device in case
of possible damage or injury.
Do not disassemble or modify
Failure to observe this precaution could result in electric shock or product malfunction.
Should the product break open as the result of a fall or other accident, remove the
batteries and take the product to an authorized maintenance center for inspection.
Keep dry
Do not handle with wet hands or immerse in or expose to water or rain. Failure to
observe this precaution could result in fire or electric shock.
Do not use in the presence of flammable gas
Failure to observe this precaution could result in explosion or fire.
Keep out of reach of children
This device contains small parts which may pose a choking hazard. Consult a
physician immediately if a child swallows any part of this device.
Turn off the transceiver immediately in the event of malfunction
Should smoke or an unusual smell comes from this device, remove the batteries
immediately in case of burning and take the device to an authorized maintenance
center for inspection. Injuries could occur if it is further used.
Do not expose to high temperature
Do not leave the device in a closed vehicle in the sun or in other areas subject to
For Your Safety
- 17 -
extremely high temperature. Failure to observe this precaution could result in fire or
damage to the casing or internal parts.
Observe precautions when handling batteries
Batteries may leak or explode if improperly handled. Observe the following precautions
when handling batteries for use in this device:
Use only batteries listed in this manual. Do not use old and new batteries or
batteries of different types at the same time.
Read and follow all warnings and instructions provided by the manufacturer.
Batteries cannot be short-circuited or disassembled.
Do not put batteries into a fire or apply direct heat to them.
Do not attempt to insert batteries upside down or backwards.
Batteries are prone to leakage when fully discharged. To avoid damage to the
product, be sure to remove batteries when the product is not used for a long time or
when batteries run out of charge.
Should liquid from the batteries come into contact with skin or clothing, rinse
immediately with fresh water.
FCC WARNING
Any Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause
undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

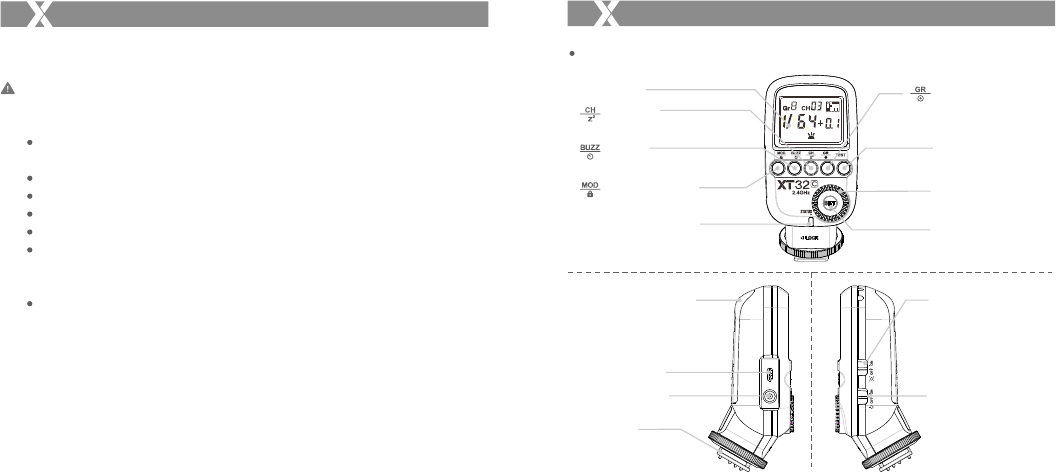

Names of Parts
- 18 -
Body
Status Indicator Lamp
--LED Red Color Lamp
Modeling Lamp/
Lock Setting Button
TEST Trigger Button
Select Dial
Micro USB Port
PC Sync Socket
Battery Compartment
Hot Shoe
Camera Connection
LCD Panel
Sound/
Delay Setting Button
Channel/
Sleep Setting Button
SET Button
Group/
PC Sync Socket
Setting Button
Power Switch
--ON (Power On)
--OFF (Power Off)
AF Assist Beam Switch
--ON (AF Assist
Beam outputs)
--OFF (AF Assist
Beam do not output)
2. As a Wireless Flash Trigger with PC Sync
Socket
2.1 Set the transmitter end and receiver end to the
same channel and group.
2.2 The transmitter will control the flash on the
receiver end to fire via using PC Sync Socket
as input by default.
2.3 Press the camera shutter and use the PC Sync
Socket’s signal to control the flash.
2.4 PC Sync Socket can also be set as output. Long
press the < > Button over 2 seconds until
the settings screen is displayed on the panel.
Then, set the PC Sync Socket as output mode
and “OU” is displayed.
Names of Parts
- 19 - - 20 -
(A)Group (B)Channel (C)Output Level (D)Lock Icon (E)PC Output Icon
(F)Delay Icon (G)Sound Icon (H)Modeling Lamp Icon (I)Low Battery Indicator
A
E
D
B
C
I
LCD Panel B
F G H
Installing Batteries
As shown in the illustration, slide the battery
compartment lid of the transmitter and
receiver and insert two AA batteries separately.
Low Battery Level Indication
When the battery power (2 AA batteries <2.4V)
gets low, Status Indicator Lamp blinks quickly
(blink cycle=0.5s). Please replace new batteries,
as low power leads to no flash or flash missing
in case of long distance.
Battery
1. As a Wireless Flash Trigger through Hot Shoe
1.1 Mount the transmitter on camera hotshoe and
turn it on before turning on the camera.
1.2 Set the transmitter and the receiver to the same
channel by pressing Channel Setting Button.
1.3 Press the camera shutter button, and the flash
will be triggered simultaneously. Status
Indicator Lamp of transmitter turns red.
Using the Flash Trigger
- 21 -
Setting the Transmitter
Slide the Power Switch to ON, and the device is
on and Status Indicator Lamp will not blink. When
in idle use, the flash trigger will enter sleep mode
after a period of time (set as 1 minute/3 minutes/
10 minutes/30 minutes). Press any button or half
press the camera can wake it up.
Setting the sleeping time: Long press the < >
Button over 2 seconds until the settings screen is
displayed on the panel. Turn the Select Dial to
choose the sleeping time.
Note: In order to avoid power consumption, turn
off the transmitter when not in use.
Power Switch
Slide the power switch to ON, and the AF lighting
is allowed to output. When the camera cannot
focus, the AF assist beam will turn on; when the
camera can focus, the AF assist beam will turn off.
Power Switch of AF Assist Beam
Channel Setting
1. Short press the < > Button until the channel
amount blinks.
2. Turn the Select Dial to choose the appropriate
channel. Press the < > Button again to
confirm the setting.
3. This flash trigger contains 32 channels which can
be changed from 1 to 32. Set the transmitter and
the receiver to the same channel before usage.
Setting the Transmitter
Group Settings
1. Short press the < > Button and the selected
group will blink.
2. Turn the Select Dial to choose the appropriate
group. Press the < > Button again to confirm
the setting.
3. This flash trigger contains 16 groups which can
be changed from 0 to 9 and A to F. Set the
transmitter and the receiver to the same group
before usage.
- 22 -
- 23 -
Test Flash
1. Press the <TEST> Trigger Button to see the
whether flash will fire normally or not.
2. Fully press the <TEST> Trigger Button, and
the Status Indicator Lamp turns red and the
flash on the receive end can be triggered.
3. The settings on the transmitter end will
synchronize to the receiver end at the same
time.
Setting the Transmitter
- 24 -
Sound Control
Short press the < > Button can control the
ON/OFF of sound.
Lock Functions
Long press the < > Button can lock the current
settings and long press the < > again to unlock.
Modeling Flash Control
Short press the < > Button can control the
ON/OFF of modeling lamp.
Power Output Settings
1. Turn the Select Dial to adjust the power output
level.
*As XT32C can control so many flashes and
each flash has different power output level,
there are 6 modes to be displayed. Choose
one according to your needs.
Long press the <SET> Button over 2 seconds
until the power output level is displayed. Turn
the Select Dial to choose the power output
mode.
Display
1/128+0.3(by default)
1/128+0.1
1/256+0.3
1/256+0.1
1.0
5.0
Description
Power output range: 1/128~1/1; Power output adjustment: 1/3
Power output range: 1/128~1/1; Power output adjustment: 1/10
Power output range: 1/256~1/1; Power output adjustment: 1/3
Power output range: 1/256~1/1; Power output adjustment: 1/10
Power output range: 1.0~7.0; Power output adjustment: 0.1
Power output range: 5.0~10; Power output adjustment: 0.1
Setting the Transmitter
2. Double-click the SET button to control the
ON/OFF of the power output.
- 25 - - 26 -
Attentions
1. Unable to trigger flash or camera shutter. Make sure batteries are installed correctly and
Power Switch is turned on. Check if the transmitter and the receiver are set to the same
channel, if the hotshoe mount or connection cable is well connected, or if the flash
triggers are set to the correct mode.
2. Camera shoots but does not focus. Check if the focus mode of the camera or lens is set
to MF. If so, set it to AF.
3. Signal disturbance or shooting interference. Change a different channel on the device.
4. Operating distance limited or flash missing. Check if batteries are exhausted. If so,
change them.
Maintenance
Avoid sudden drops. The device may fail to work after strong shocks, impacts, or
excess stress.
Keep dry. The product isn’t water-proof. Malfunction, rust, and corrosion may occur and
go beyond repair if soaked in water or exposed to high humidity.
Avoid sudden temperature changes. Condensation happens if sudden temperature
changes such as the circumstance when taking the transceiver out of a building with
higher temperature to outside in winter. Please put the transceiver in a handbag or
plastic bag beforehand.
Keep away from strong magnetic field. The strong static or magnetic field produced
by devices such as radio transmitters leads to malfunction.
OFF
Synchronization delay N*100 us
Enter sleep mode after 1 minute of idle use
Enter sleep mode after 3 minutes of idle use
Enter sleep mode after 10 minutes of idle use
Enter sleep mode after 30 minutes of idle use
Do not enter sleep mode
PC Sync socket connect with camera
PC sync socket connects with flash
Power output range: 1/128~1/1; Power output adjustment: 1/3
Power output range: 1/128~1/1; Power output adjustment: 1/10
Power output range: 1/256~1/1; Power output adjustment: 1/3
Power output range: 1/256~1/1; Power output adjustment: 1/10
Power output range: 1.0~7.0; Power output adjustment: 0.1
Power output range: 5.0~10; Power output adjustment: 0.1
Setting the Transmitter
Setting Custom Functions
00
1~100
01
03
10
30
OF
IN
OU
< >
< >
< >
<SET>1/128+0.3 (by default)
1/128+0.1
1/256+0.3
1/256+0.1
1.0
5.0
SL
Display
Operation
(Long press the button
over 2 seconds)
Settings and Description
5D Mark III 5D Mark II 6D 7D 60D 50D
40D 30D 650D 600D 550D 500D 450D
1000D 1100D
400D Digital
1DX
- 27 -
This flash trigger can be used on the following Canon EOS series camera models:
This table only lists the tested camera models, not all Canon EOS series cameras.
For the compatibility of other camera models, a self-test is recommended.
Rights to modify this table are retained.
Compatible Camera Models
- 28 -
Technical Data
Model
Compatible Cameras
Built-in remote system
Modulation mode
Power supply
High-speed sync
Focus assist
Second curtain sync
Transmission range(approx.)
Channel
Group
Synchronization delay set
Modeling lamp
Sound
Memory function
Dimension/Weight
XT32C
Canon cameras
Support for the cameras that have PC sync socket.
2.4G Wireless transmission
MSK
2*AA batteries
Yes (1/8000s)
Manual open
Yes (Setting on the camera)
>100m
32
16 (0~9; A~F)
Yes (0~10ms, use 100us as the unit)
ON/OFF
ON/OFF
Settings will be stored for 2 seconds after last operation and
recover after a restart
100x50x52mm/80g
