GOTRON ELECTRONIC GQ3028 Mobile Phone User Manual GQ3028 V1
SHENZHEN GOTRON ELECTRONIC CO.,LTD Mobile Phone GQ3028 V1
15_GQ3028 UserMan,r1.pdf
0
ulefone
Mobile Phone-GQ3028
User’s Guide
SHENZHEN GOTRON ELECTRONIC CO.,LTD.
1
1 THE BASICS ............................................................. 4
1.1 OVERVIEW ............................................................. 4
1.2 SAFETY GUIDE ....................................................... 5
1.3 SAFETY WARNINGS AND NOTICES ........................ 7
1.3.1 General attention ................................................ 7
1.3.2 Notices when using your phone .......................... 8
1.3.3 Notices when using the battery ......................... 11
1.3.4 Charging your phone ........................................ 13
1.3.5 Cleaning and maintenance ............................... 17
2 GETTING STARTED ................................................... 18
2.1 COMPONENT NAME AND EXPLANATION.................. 18
2.1.1 Technical parameters ................................. 18
2.1.2 Icons ............................................................. 19
2.2 KEY EXPLANATIONS ............................................. 21
2.3 USING THE TOUCHSCREEN ................................. 22
2.4 CONNECTING TO THE NETWORK......................... 22
2.4.1 Inserting and removing the SIM card ................ 22
2.4.2 Turning your phone on and off .......................... 23
2.4.3 Unlocking the SIM card .................................... 24
2.4.4 Unlocking your phone ....................................... 25
2.4.5 Connecting to the network ................................ 25
2.4.6 Making a call .................................................... 26
2.4.7 Making a domestic call ..................................... 26
2
2.4.8 Making an international call ............................ 27
2.4.9 Making a call from the list ................................ 27
2.4.10 Making an emergency call .............................. 28
2.4.11 Call menu ........................................................ 28
3 FUNCTIONAL MENU ................................................. 31
3.1 FILE MANAGEMENT ............................................ 31
3.2 SENDING AN EMAIL ............................................. 32

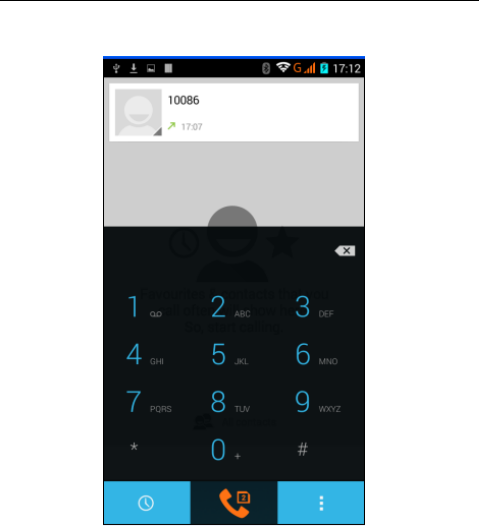

3.3 DIALING ............................................................... 33

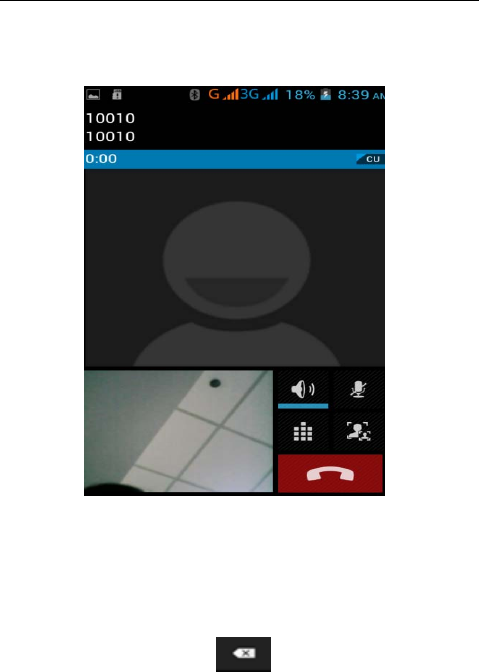

3.4 3G VIDEO CALL ................................................... 34
3.5 CALCULATOR ...................................................... 35
3.6 BROWSER............................................................ 36

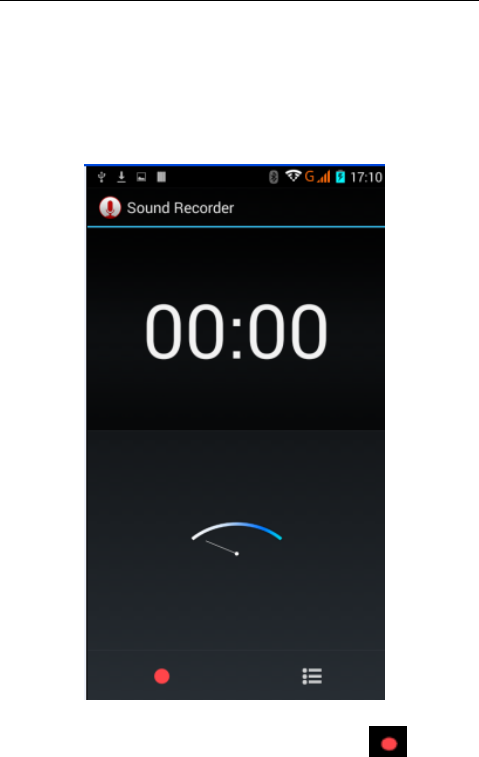

3.7 VOICE RECORDER .............................................. 38

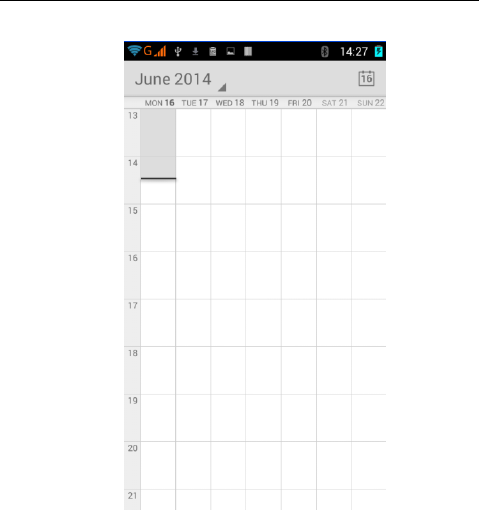

3.8 CALENDAR .......................................................... 39
3.9 SETTINGS ............................................................ 41

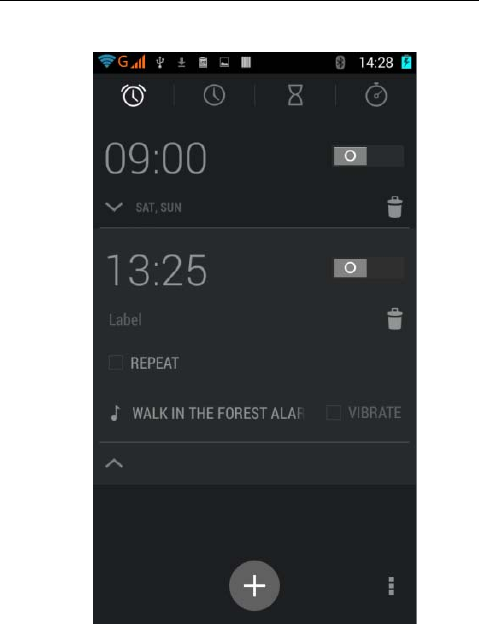

3.10 CLOCK ............................................................... 43

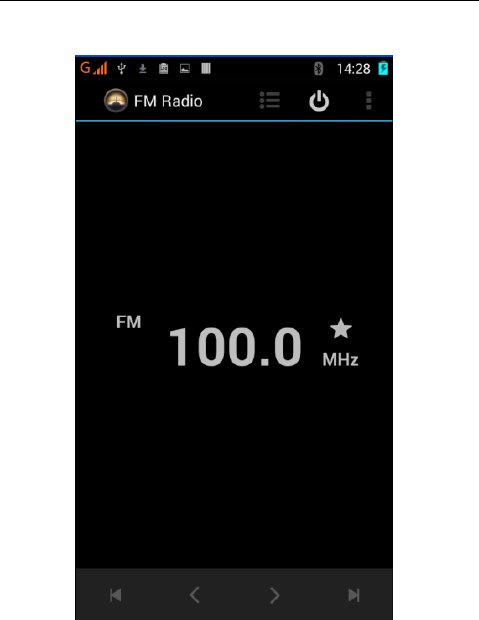

3.11 RADIO ................................................................ 45
3.12 GOOGLE SEARCH ............................................. 47

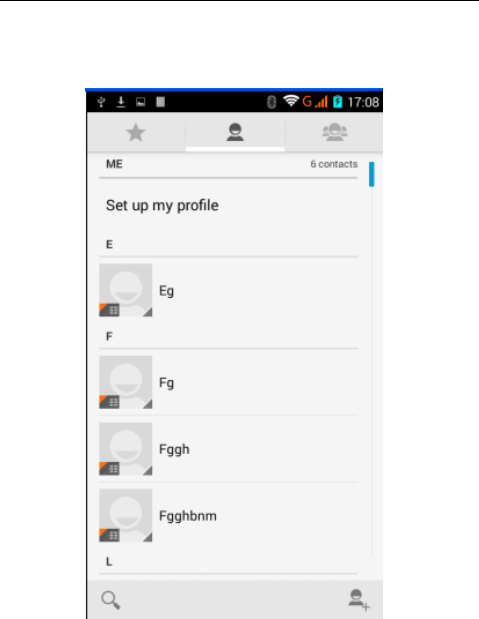

3.13 CONTACTS ........................................................ 47
3.14 GALLERY ........................................................... 49
3.15 CAMERA ............................................................ 50
3.16 MESSAGING ...................................................... 52
3.17 NOTIFICATION MENU ........................................ 54
3.18 DOWNLOAD CONTENT ...................................... 55
3

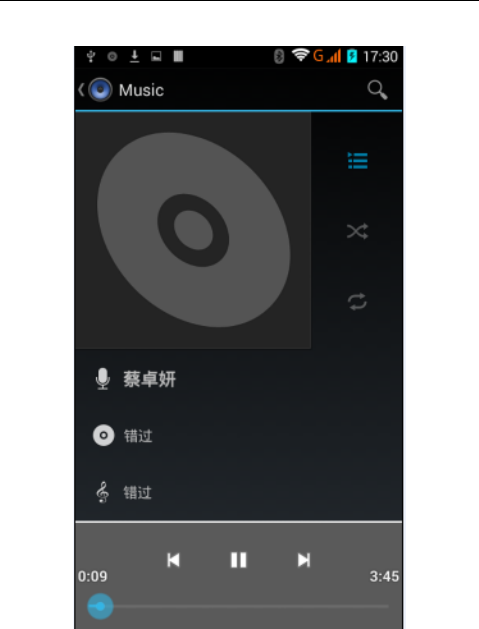

3.19 MUSIC ................................................................ 56
3.20 CALL RECORDS ................................................ 58
3.21 WIDGET ............................................................. 59
3.22 SELECTING WALLPAPER SOURCE ................... 60

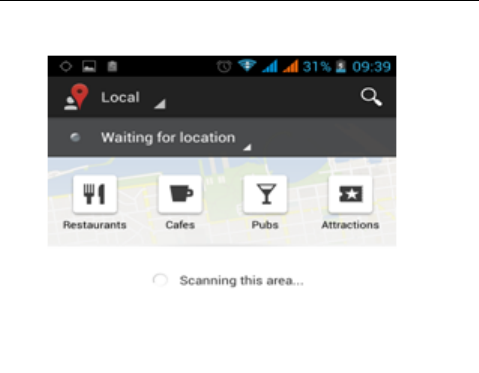

3.23 LOCAL SEARCH ................................................. 61
3.24 NOTE ................................................................. 62
3.25 FLASHLIGHT ...................................................... 63

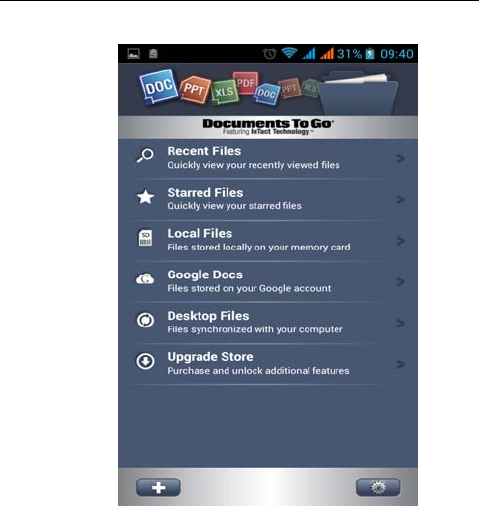

3.26 DOCUMENTS TO GO ......................................... 64
3.27 MOBOPLAYER .................................................... 65
3.28 MAP ................................................................... 66
3.29 NAVIGATION ...................................................... 68
3.30 VOICE SEARCH ................................................. 69

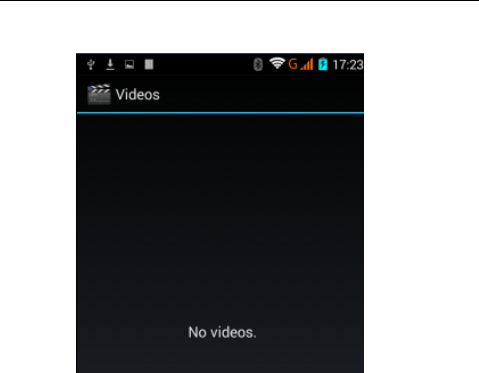

3.31 VIDEOS .............................................................. 70
3.32 SIM CARD APPLICATION ................................... 71
3.33 GMAIL ............................................................... 71
3.34 GOOGLE TALK .................................................. 73

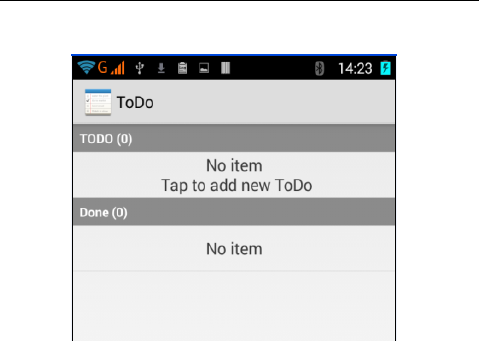

3.35 TODO ................................................................ 73
3.36 BACKUP AND RESET .......................................... 74

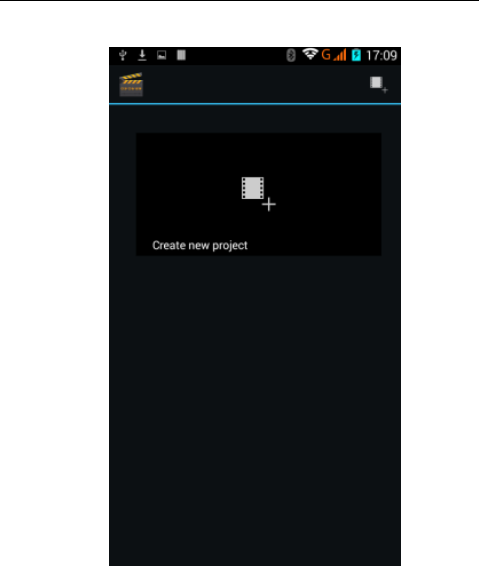

3.37 FILM WORKSPACE ............................................. 75
3.38 PLAY STORE ....................................................... 76
4. TEXT INPUT ......................................................... 77
5 SD CARD INTRODUCTION ................................. 80
6 FAQS AND SOLUTIONS ...................................... 84
4
1 The Basics
1.1 Overview
Thank you for choosing the GSM/ GPRS/
WCDMA/ LTE digital Mobile Phone. After reading this
guide you will be able to fully master the use of your
phone and appreciate all its functions and ease of use.
Not only does the Mobile Phone provide you with
basic call functions such as call Register, but also with
many practical functions and services, to improve the
time you spend working and playing.
The color screen mobile phone complies with the
G GSM/ GPRS/ WCDMA/ LTE technology and has
been approved by certification authorities both
domestically and abroad.
The availability of some services and features
described in this manual depends on the network and
your subscription. Therefore, some menu items may
not be available in your phone. The shortcuts to
menus and features may also vary from phone to
phone.
Our company reserves the right to revise this
5
manual content without prior notice.
1.2 Safety guide
If your mobile phone is lost or stolen, please
contact the telecommunications authorities or a
sales agent immediately to have a hold on the
phone and the SIM card. This will prevent
economic loss caused by unauthorized calls
made from your mobile phone.
When you contact the telecommunications
authorities or a sales agent, they will need to
know the IMEI number of our mobile phone
(remove battery to expose number located on the
label on back of phone). Please copy this number
and keep in a safe place for future use.
In order to avoid the misuse of your mobile
phone please take the following preventative
measures:
- Set the PIN number of your mobile phone’s
SIM card and change this number
immediately if it becomes known to a third
party.
- Please keep the phone out of sight when
leaving it in a vehicle. It is best to carry the
6
phone with you, or lock it in the trunk.
- Set call barring.
7
1.3 Safety warnings and notices
Before using your mobile phone, read and
understand the following notices carefully to ensure
you will use it safely and properly.
1.3.1 General attention
Only the battery and battery charger specified
by our company should be used in your
phone. Other products might result in battery
leakage, overheating, fire or explosion.
To avoid your phone malfunctioning, or
catching fire, please do not violently impact,
jolt or throw your phone.
Please do not place the battery, mobile phone,
or charger in a microwave oven or
high-pressure equipment. Otherwise it could
lead to unexpected accidents such as
damage to the circuitry or fire hazard.
Please do not use your phone near flammable
or explosive gases, otherwise it could cause
malfunction of your phone or fire hazard.
Please do not subject your phone to high
temperatures, high humidity or dusty places;
otherwise this may lead to the malfunction of
8
your phone.
Keep your phone out of the reach of small
children. Your phone is not a toy. Children
could hurt themselves.
To avoid your phone falling and
malfunctioning or being damaged, please do
not place it on uneven or unstable surfaces.
1.3.2 Notices when using your phone
Turn off your mobile phone where the phone
is not allowed, such as, on the airplane or in
hospitals. Using the mobile phone in those
places may impact the normal operation of
electronic devices and medical instruments.
Follow relevant regulations when using your
mobile phone in those places. Your mobile
phone has the auto turn-on feature. Check
your alarm clock settings to confirm that your
mobile phone will not be turned on
automatically during flight.
Please do not use your mobile phone near
the weak signal or high precision electronic
devices. RF interference might cause
malfunctioning of such electronic devices and
other problems. Special tips must be paid
9
near the following equipment: hearing aids,
pace makers and other medical electronic
devices, fire detectors, automatic doors and
other automatic control installations. To find
out the effect of mobile phones on a
pacemaker or other pieces of electronic
medical equipment please contact the
manufacturers or local sales agents of the
equipment.
Please do not subject the LCD to impact or
use the screen to strike things, as this will
damage the LCD board and cause leakage of
the liquid crystal. There is a risk of blindness
if the liquid crystal substance gets into the
eyes. If this occurs rinse eyes immediately
with clear water (under no circumstances rub
your eyes) and go immediately to a hospital
for treatment.
Do not disassemble or modify your mobile
phone, as it will lead to damage to the phone
such as battery leakage or circuitry failure.
Under very rare circumstances using the
mobile phone in certain model cars may
negatively affect the internal electronic
10
equipment. In order to assure your safety
under such circumstances please do not use
the mobile phone.
Please do not use needles, pen tips, or other
sharp objects on the keypad as this may
damage the mobile phone or cause it to
malfunction.
In the event of antenna malfunction, do not
use your phone, as it could be harmful to
human body.
Avoid letting the phone come into close
contact with magnetic objects such as
magnetic cards as the radiation waves of the
mobile phone may erase the information
stored on floppy disks, pay cards and credit
cards.
Please keep small metal objects, such as
thumbtacks far away from the receiver. When
the receiver is in use it becomes magnetic
and may attract these small metal objects
and thus these may cause injury or damage
the mobile phone.
Avoid having the mobile phone come into
contact with water or other liquids. If liquids
11
enter the phone, this could cause a short
circuit, battery leakage or other malfunction.
1.3.3 Notices when using the battery
The battery has a limited service life. The
remaining life gets shorter as the times of
charging increase. If the battery becomes
feeble even after the charging, this indicates
the service life is over and you have to use a
new battery.
Do not dispose of old batteries with everyday
domestic garbage. Please dispose of old
batteries at the directed places with specific
rules for their disposal.
Please do not throw batteries into a fire, as
this will cause the batter to catch fire and
explode.
When installing the battery, do not use force
or pressure, as this will cause the battery to
leak, overheat, crack and catch fire.
Please do not use wires, needles or other
metal objects to short-circuit the battery. Also,
do not put the battery near necklaces or other
metal objects, as this will cause the battery to
leak, overheat, crack and catch fire.
12
Please do not solder the contact points of the
battery, as this will cause the battery to leak,
overheat, crack and catch fire.
If the liquid in the batteries goes into the eyes,
there is a risk of blindness. If this occurs do
not rub the eyes, but immediately rinse eyes
with clear water and go to the hospital for
treatment.
Please do not disassemble or modify the
battery, as this will cause the battery to leak,
overheat, crack and catch fire.
Please do not use or place the batteries near
high temperature places such as near a fire
or heating vessel, as this will cause the
battery to leak, overheat, crack and catch
fire.
If the battery overheats, changes color, or
becomes distorted during use, charging, or
storage, please stop using and replace it with
a new battery.
If the liquid from the battery comes in contact
with skin or clothing this could cause burning
of the skin. Immediately use clear water to
rinse and seek medical tips if necessary.
13
If the battery leaks or gives off a strange odor,
please remove the battery from the vicinity of
the open fire to avoid a fire or explosion.
Please do no let the battery become wet as
this will cause the battery to overheat, smoke
and corrode.
Please do not use or place batteries in places
of high temperature such as in direct sunlight,
as this will cause the battery to leak and
overheat, lower performance, and shorten
the battery’s life.
Please do not continuously charge for more
than 24 hours.
1.3.4 Charging your phone
Connect the connector of charger to the mobile
phone. The battery level indicator flashes on the
screen. Even if the phone has been turned off, the
charging image still appears, indicating that the
battery is being charged. If the phone is overused
when the current is insufficient, it may take longer
time for the charging indicator to appear on the
screen after the charging begins.
When the battery level indicator does not flash
and indicates the battery is full, this indicates the
14
charging has been completed. If the phone is off
during charging, the charging being completed
image also appears on the screen. The charging
process often takes 3 to 4 hours. During the
charging, the battery, phone and charger gets
warm, this is a normal phenomenon.
Upon the completion of charging, disconnect the
charger from AC power socket, and from the
mobile phone.
Notes:
During charging, the phone must be placed in
well-ventilated environment of -20 ℃~ ＋45 . ℃
Always use the charger supplied by your phone
manufacturer. Using an unauthorized charger
might cause danger and invalidate the
authorization and warranty clauses for your
phone.
The standby time and call duration provided by
the manufacturer are based on ideal operating
environment. In practice, the battery's operating
time varies depending on network conditions,
operating environment and usage methods.
Make sure the battery has been installed before
charging. It is best not to remove the battery while
15
charging.
Upon completion of charging, disconnect the
charger from your phone and the power supply.
If you have not disconnected the charger from your
phone and the power supply, the charger will continue
to charge the battery after about 5 to 8 hours when the
batter level decreases substantially. We advise you
not to do like this, as it lowers your phone performance
and shortens your phone life.
Notices when using your charger
Please use AC 220 volts. The use of any
other voltage will cause battery leakage, fire
and cause damage to the mobile phone and
charger.
It is forbidden to short circuit the charger, as
this will cause electrical shock, smoking and
damage to the charger.
Please do no use the charger if the power
cord is damaged, as this will cause fire or
electrical shock.
Please immediately clean any dust gathered
on the electrical outlet.
Please do no place vessels with water near
16
the charger in order to avoid water splashing
onto the charger and causing an electrical
shortage, leakage or other malfunction.
If the charger comes in contact with water or
other liquid the power must immediately be
switched off to avoid an electrical short or
shock, fire or malfunction of the charger.
Please do not disassemble or modify the
charger, as it will lead to bodily harm,
electrical shock, fire or damage to the
charger.
Please do not use the charger in the
bathroom or other excessively moist areas,
as this will cause electrical chock, fire or
damage to the charger.
Please do not touch the charger with wet
hands, as this will cause electrical shock.
Do not modify or place heavy objects on the
power cord, as this will cause electrical shock
or fire.
Before cleaning or carrying out maintenance
please unplug the charger from the electrical
outlet.
When unplugging charger, do not pull on the
17
cord, but rather hold on to the body of the
charger, as pulling on the cord will damage
the cord and lead to electrical shock or fire.
1.3.5 Cleaning and maintenance
The mobile phone, battery, and charger are
not water resistant. Please do not use them
in the bathroom or other excessively moist
areas and likewise avoid allowing them to get
wet in the rain.
Use a soft, dry cloth to clean the mobile
phone, battery and charger.
Please do not use alcohol, thinner, benzene
or other solvents to wipe the mobile phone.
A dirty outlet will cause poor electrical contact,
lose of power and even inability to recharge.
Please clean regularly.
18
2 Getting Started
2.1 Component name and explanation
2.1.1 Technical parameters
Handset: Mobile Phone
Model: GQ3028
Drand name: ulefone
Lithium-ion battery
Model: Power
Nominal voltage: 3.8V
Capacity: 3250mAh
Travel charger
Model: HCSD-1685015:
Input: 100-240V, 50/60Hz, 0.4A
Output: 5V, 1.5A
19
2.1.2 Icons
In the standby mode, the following icons may
appear in standby screen:
Icon Description
Indicate the intensity of network signals.
Show missed calls.
Location by satellite.
Receive a new message.
An application is being downloaded.
The downloading is over.
The alarm clock has been set and
activated.
A call is in progress.
The phone is playing a song.
Show battery level.
20
Enable USB.
The access is blocked.
Get connected to the wireless network
Turn on the Bluetooth.
No SIM card is installed in the phone.
GPRS data connection is on.
21
2.2 Key explanations
Key Explanations
Return key ●Return to the previous menu.
Menu key ●Show options of current menu.
Home key
●At any status, press the key to
return to the standby screen.
Power key
● Hold down this key to turn your
phone off and on.
● Generally, press this key to lock
the mobile phone.
Side volume
keys
● During the conversation, press
the two keys to adjust the volume.
● While playing an audio file,
press the two keys to adjust the
volume.
Note: In this guide, the phrase “press the key”
refers to pressing and thereafter releasing a key.
“Hold down a key” refers to pressing a key and
keeping it depressed for 2 seconds or longer.
22
The descriptions and functions of keys
depend on the model of your phone.
2.3 Using the touchscreen
Your phone provides many touch keys in the
Main screen. To use these keys correctly,
calibrate the touch screen in advance (see
“Calibrator”). Meanwhile please follow the
instructions:
■Do not touch the screen with wet hands.
■Do not touch the screen with great forces.
■Do not touch the screen with metallic or
conductive objects.
2.4 Connecting to the network
2.4.1 Inserting and removing the SIM card
Turn off the phone; remove the battery and
unplug other external power supplies. Insert
the SIM card into the SIM holder as shown in
the phone.
When you need to remove the SIM card, turn
off the phone, remove the battery and then
remove the SIM card from the holder.
Warning: Do turn off your phone before removing
the SIM card. Never insert or remove the SIM
card when an external power supply is connected,
23
as this may cause damage to the SIM card.
2.4.2 Turning your phone on and off
To turn on the phone, hold down the POWER
key on the top; to turn off the phone, hold down
the POWER key.
If you have turned on your phone without
inserting the SIM card, the phone will prompt you
to install the SIM card. With the SIM card already
inserted, your phone automatically verifies the
availability of the SIM Card.
Then, the screen shows the following:
Enter PIN1 —— if your have set the SIM card
password.
Enter phone password —— if you have set
your phone password
Search for network—— the phone searches
for the appropriate
network.
Notes：
If when you turn on the mobile phone, an
exclamation mark appears on the screen and
does not disappear, this is possibly caused by
misoperation, that is, you press the Power key
and the Volume Up key at the same time. Such
24
misoperation activates the recovery mode, hence
the occurrence of exclamation mark. If you just
turn off the phone, next time when you turn it on, it
will still come to the recovery mode.
Solution：
Press the Home key when the exclamation mark
and robot appear, a menu will pop up. Use the
Menu key to select "reboot system now" to
restart the phone.
2.4.3 Unlocking the SIM card
The PIN 1 (personal identification number)
secures your SIM card from being misused by
others. If you have selected this function, you must
enter the PIN1 code each time you turn on the
phone so that you may unlock the SIM card and
then make or answer calls. You can deactivate SIM
card protection (see “Safety settings”). In this case,
the misuse of your SIM card cannot be prevented.
Press the Hang Up key to turn on your
phone;
Enter your PIN1 code. Clear the incorrect
digits by using the right soft key, and press
OK for confirmation. e.g. if your PIN1 is 1234,
please enter:
1 2 3 4
If you enter incorrect numbers for three times
in succession, your SIM card will be locked and
25
your phone will ask you to enter PUK 1 number. If
you do not know the PUK1 code, do not try.
Instead, contact your network service provider.
See “Safety settings”.
Note: your network service provider sets a
standard PIN1 code (4 to 8 digits) for your SIM
card. You should immediately change this number.
See “Safety settings”.
2.4.4 Unlocking your phone
To prevent unauthorized use, you can set
phone protection. If you have selected this
function, you must draw unlocking pattern each
time you turn on your phone, to unlock the phone
and then make or answer calls. You may clear the
unlocking pattern (see “Safety settings”). In this
case, the unauthorized use of your phone cannot
be protected.
If you forget your phone password, you must
contact the retailer or local authorized service
center to unlock your phone.
2.4.5 Connecting to the network
Once your SIM card is unlocked, your phone
searches for available network automatically (the
screen will show the network searching is
underway). If your phone has found the available
network, the name of network service provider
26
appears at the center of screen.
Note: Making an emergency call。Note: If “only for
emergency calls” appears on the screen, it
indicates that you are beyond the network
coverage (service area), and that you can still
make emergency calls depending on the signal
intensity.
2.4.6 Making a call
When the logo of network service provider
appears on the screen, you can make or answer a
call. The bars at the upper left corner of screen
indicate the intensity of network signal.
Conversation quality is significantly affected
by obstacles, thus moving within a small area
while making or answering a call can improve the
conversation quality.
2.4.7 Making a domestic call
In the Dial screen, enter a number, and press
the Dial key to make a call. To change the number,
delete the digits you have entered. During dialing,
the animation appears on the screen. After the
call is picked up, the screen will show call status
information. If the connection alert tone has been
set, your phone will ring the alert tone (network
dependent).
To end a call, press the Hang Up key.
27
Zone code Phone number Dial key
2.4.8 Making an international call
To make an international call, hold down the
0 key on the Dialing screen until the international
prefix "+” for appears. This allows you to dial an
international number without knowing its
international fix (e.g. 00 for China).
Following the entry of international prefix,
enter the country code and complete phone
number. For the country codes, follow the general
conventions, for example, 49 for Germany, 44 for
UK, and 46 for Sweden.
Like making an international call via a fixed
telephone, omit the “0” at the head of a city code.
For example, to call our hotline from another
country, you can dial:
+86 21 114
+ Country code Complete phone
number Dial key
2.4.9 Making a call from the list
All calls dialed and received are stored within
a list in your phone. Those dialed and received
recently are exhibited at the top of the list (see
“Call Register”). All the numbers are sorted by
Dialed Calls, Received Calls and Missed Calls.
28
Your phone also provides options for you to view
all calls. When the call Register is full, the old
numbers will be deleted automatically. To view the
list, do the following:
To view the dialed calls, press the Dial key
You can dial any number from the list by
pressing the Dial key.
When the call list appears, press OK to see
details, or go to Options -> Save to place the
number into your Phonebook.
2.4.10 Making an emergency call
If you are beyond the network coverage (see
network-signal-intensity bars at the upper left
corner of the screen), you can still make
emergency calls. If your network service provider
does not provide roaming service to the area, the
screen will show “only for emergency calls”,
alerting you that you can only make such calls. If
you are within the network coverage, you can also
make emergency calls even without the SIM card.
If any emergency arises, dial 112/911 (or
other emergency call number) for emergency
help.
2.4.11 Call menu
The Call menu is only visible during an active
call, and features such as Call Waiting, Call
Diverting, and Multiple-party Call are network
29
dependent. Contact your network service
provider.
The call options include:
Mute
Do not send local voice.
Handsfree
Switch on the loudspeaker to amplify the
30
voice.
Hold
Put the current call on hold or retrieve the call
on hold.
End a call.
End the current call.
New call
Make another new call.
More
*Start voice recording
Start voice recording.
31
3 Functional Menu
（※The following features depends on specific
models）
3.1 File Management
The file management is composed of sdcard
and sdcard 2, while sdcard is the memory of the
phone, sdcard 2 is the external SD card. In the file
management, files can be searched rapid,
deleted or edited in each card and new filescan
be created.
32
3.2 Sending an Email
You can send an Email to anyone who has
an Email address.
Entering the procedure and set an account,
you can click the account so that you come into
the account already created, you can also
activate, compile and create an account and then
delete the operating. The email can be sent and
received just like in a computer. This procedure
requires the network support.
33
3.3 Dialing
When dialing, you can have a quick acess to
the call records, contacts and digit dial keyboard
(used for manual dialing) by the menu key on the
screen.
34
3.4 3G video call
Click a number portrait in the phonebook,
and you can do these things instantly: dial, send a
message and make a video call. During the video
call, you can select applications such as adjusting
it to mute mode, switching to robot portrait,
turning off the voice and intercepting photos to SD
35
card.
3.5 Calculator
Your phone provides a calculator with 4 basic
functions for the convenience of your calculating.
Press this button , and you delete the
input and output in bitwise.
Notice: this calcutor is of limited accuracy
and sometimes it causes error, please forgive us
36
for the inconvenience.
3.6 Browser
The browser allows you to surf on the net
and browse the page just like on the computer.
You can create on the phone a bookmark and
synchronize it with computer. You can have a
37
quick access to your favorite sites on the main
screen.
You could view web pages in longitudinal or
transverse mode. The page rotates according to
the rotation of the phone and automatically
adjusts to fit the page.
38
3.7 Voice Recorder
The recorder could be used to record audio
files.
To start voice recording: Tap
39
To end voice recording: Tap
To play back voice recording: Tap
The audio files are automatically stored on
your phone. Click the Menu key,
and you can operate and set the recorded voice.
The file can be in document management and
various players can be selected to play the
voices.
3.8 Calendar
Calendar allows you to view your schedules
and events at any time. You may view schedules
one by one or several ones at the same time.
Select to show calendar by day, week or
month. If “by week (or month)”, the calendar will
be shown by week (or month). This application is
convenient for you to view schedule or add
events.
40
41
3.9 Settings
Reach the menu and customize your phone
settings. SIM card management: SIM card can be
managed and made settings.
WLAN: WLAN can be turned on and off and
made some settings.
Bluetooth: Bluetooth can be turned on and
42
off and settings are made.
The information flow usage: It makes you in
full awareness of the usage of the information.
More: Click more and you will set up flight
mode and VPN and more.
Audio profiles: General, silent, meeting and
outdorr optional. In the meanwhile, customized
setting-up of some scene modes are allowed.
Select a mode and enter the customized
setting-up, operational are vibration, volume, ring
tones, notifications and key beep, etc.
Display: Customized setting-up of the phone
luminance, wallpaper, the screen and screen
time-out and font size is allowed.
Storage: The internal memory of the storage
card and of the phone is shown.
Battery: The usage detail of the batteryis
shown.
Applications: View, manage and delete the
applications on your phone.
Account and synchronization: Set the
synchronization of your phone account with your
phone.
Location service: Set the service during the
43
locating.
Safety: Set unlocking pattern; lock the SIM
card; set the SD card.
Language and keypad: Select a language
and input method.
Backup and reset: Reset DRM and restore
factory settings to clear all personal data on your
phone.
Date and time: Set current time and date.
Schedule power on/off: set the time to turn
on or off your phone.
Auxiliary function: Some auxiliary functions
can be set.
Developers’ options: Set some options used
by developers.
About phone: View the model, service
status, mobile software and hardware information,
etc.
3.10 Clock
Clock
Enter the menu to display the current time.
44
Alarms
Your phone provides many groups of alarm
clocks. Select one of them to edit and customize
alarm clock.
45
3.11 Radio
Wear your earpieces of radio before
searching for channels.
46
Glossary:
Channel list: Display the list of FM radio
channels. You can select to play one of them. (the
list can contain 20 channels maximum)
Search: Select this option to automatically
47
search for channels and generate the list of
channels.
Loudspeaker: Press the button to use the
radio loudspeaker.
and : Tap to move to another
channel.
.
3.12 Google Search
You can locally search for the information
you need.
3.13 Contacts
The “contacts ” lets you easily call your
colleagurs or friends, or send emails or short
messages to them. You may add contacts directly
from your phone, or synchronize “contacts” with
any application on your computer. You may open
“contacts ” directly from the Main screen, or open
48
it via the “Dialing” application.
Add a contact:
To add a contact, directly enter the name and
phone number, or import the name and phone
number from the SIM card. (The number of
contacts you can add is limited by the memory of
49
your phone.)
Search for contacts:
To search for a contact, press the Search key in
search screen, and a search box will pop up. In
the search box, enter the key words, such as first
name, second name and company name. While
you are entering the key word, the matching
contacts immediately appear.
Edit a contact:
To edit details of a contact, select “Edit a
contact”.
Delete a contact:
To delete the current contact, select “Delete a
contact”.
From the menu, you can also synchronize with
or share an account or import or export a contact.
3.14 Gallery
Gallery is a picture manager that typically
exhibits miniatures, supports the features of “save
picture”, “set pictures as desktop” and “share
picture”.
50
3.15 Camera
Your phone provides the camera and video
recorder features. Wherever you go, you can take
high-resolution photos and videos. It also
supports advanced camera features such as
51
image stabilization, face embelishment,
panorama shooting, high dynamic range and zero
delay shutter, which can also be customized.
52
3.16 Messaging
Messaging lets you send text and multimedia
messages to any contact that has an SMS device.
The multimedia messages include photos, video
clips (for iPhone 3GS or other new style phones),
contacts information, and voice memos. What’s
more, you can send messages to several
contacts at the same time.
53
Note: Perhaps Messaging is not available in
all countries and regions. Probably you need pay
for using Messaging. For more information,
consult your network operator.
As long as you are within the network, you
can use “Messaging”. As long as you can make a
call, you can send messages. You probably have
54
to pay for sending or receiving messages,
depending on your network operator.
Send a message: Tap it, enter the number
and name of the contact or select the contact from
Contacts. Tap the text box above keypad, enter
the information and then tap “Send”.
After selecting the number, you can select
such options as Call, Add subject, Attach, Insert
facial expression, and more.
Tap Settings to set ringtone, Delivery reports,
and maximum quantity of messages.
3.17 Notification Menu
Slide and pull down menu on the main
interface, you can see the message notice and
choose whether to turn on or off WIFI, Bluetooth,
GPS, off-line mode. In the data connection, the
current SIM is available to make data connection
of GPRS. Slide it around you can see the options
of profile for your convenience.
55
3.18 Download Content
You can download through the browser
things and pictures you want and list them in the
Download Content menu.
56
3.19 Music
Music is used for enjoying the stored audio
files. Select Music, you can see the menus of
“ List of played songs”, “Songs”, “Specialists” and
“Artists”.
57
To pause playing a song Tap
To resume playing a song Tap ►
58
To skip to the next song
or reading material Tap
Return to the previous
song or reading material Tap
To move fast backward or
forward
Touch and hold or . The
3.20 Call Records
Come into the call records, you can view
missed calls, reveived calls and outgoing calls.
The calling time is viewed in each record and
features such as calling, sending messages and
adding to new contacts can be set. Deleting call
records and seting up speed dial can be done in
the menu.
59
3.21 Widget
The widget is on the right of applications in
Main Menu, holding down this widget, you can
drag it anywhere you want in the main screen. It is
convenient for you to enter that procedure.
60
3.22 Selecting Wallpaper Source
Hold down the main screen, the options of
selecting wallpaper source will appear, then you
can set up wallpapers you like.
61
3.23 Local search
You can find some merchants and service
facilities near a location, which you can find
through GPS navigation.
62
3.24 Note
Add note,Convenient you to check,delete and sort
at any time.
63
3.25 Flashlight
Enter flashlight app,click the turn on button,can
open to light,user-friendly.
64
3.26 Documents To Go
Convenient you seee,edit&create Microsoft
Word,Excel and PowerPoint file and review Adobe
PDF and Attached.
65
3.27 MoboPlayer
A smart view play that support various format
video,you can easily paly stored video files.
66
3.28 Map
The Map application provides the street maps,
pictures, mixed views, and street views of many
countries and regions in the world. You can get
real-time traffic conditions, as well as detailed
directions of driving, public transit, or walking. To
get the direction of driving, find the starting point,
67
and then enter the destination.
The maps, directions and location-based
information are provided by relevant data services.
These data services may vary from time to time,
and be not available in some regions, thus the
provided maps, directions and location-based
information may be invalid, incorrect or incomplete.
If the location service is closed when you open
the “Map”, the system may ask you to enable the
service. But you can use the “map” without
enabling the location service.
68
3.29 Navigation
By virtue of GPS signal receiver, your current
location is shown on the electronic map. If you
have set the destination, the system will tell you
the route. This saves your time.
Signals from GPS satellites can be received
only when you are using your phone outdoors or
at the window through which you can see the sky.
How to use the feature: In the Main screen,
select “Settings”, click “Location and Safety”, tick
“Use GPS satellite”, and then reach the
navigation menu. Note that it may take 10
minutes or more for your phone to determine your
current location for the first time.
69
3.30 Voice Search
Support voice search,through voice search
website on google.
70
3.31 Videos
A videos software,can detect mobile video and
auto generate play list,you can easily paly stored video
files.
71
3.32 SIM Card Application
This function is provided by the network
provider.I f the SIM card and network providers do not
support this kind of service,the function will not be
able to use.Please contact the network provider to get
more information.
3.33 GMail
Gmail is a free web mail service in Google.It can
be permanently retained the important mail,documents
and pictures.It can make the communication more
simple,effective and fun.Gmail will automatically send
72
e-mail to the group and reply directly to dialogue,so
you can easily enter the emails to reply,just like
chart.Now,you also can chart with other with Gmail.
No pop-up window or banner advertising in
Gmail,and almost no spam in it.With the Google
search,you will easy to find the important information.
73
3.34 Google Talk
Google Talk is a downloadable chat application
developed by Google. Check out what Google Talk
can do:
3.35 ToDo
Add todo,can write schedule notice and set deadline
data.Review schedule and finish schedule more
Convenient.
74
3.36 Backup and Reset
Backup personal data and applications to sdcard,can
restore at anytime if want.
75
3.37 Film Workspace
<Film Workspace> is a perfect video edit
software,let you can put together your stored
music,photo and short video form a falm,enjoy your
life.
76
3.38 Play store
You can download and install the required
application in the store.
Install the application program
Follow the steps below,you can download and
install the application:
77
First,enter the list of mobile phone application
and open the Play Store.
Second,you will find the recommendation,latest
and necessary options when you enter the
store.You also can find a search button on the lower
right corner.You can get the class of all application
when you click on the category options,and get it if
you click on the button of ranking.You also can get
everything about the application which you want.
Third,you can knew the brief introduction and
user rating after you found the application which you
want.It good for you to make a evaluation on the
program.
Last,click on the button of install which at the
bottom of the screen after you have found the
application which you want to install.The Play Store
will download it.And next,you can install it.
4. Text Input
Enter text via the keypad. Examples of text
include contact details, emails, short messages,
and websites. The keypad provides the functions
78
of spelling prediction, spelling correction and
learning while using.
The smart keypad may give you prompts of
correct spelling, depending on which application
you are using.
Enter text：
1 Tap the text box (memo, or new contact) to
call the keypad.
2 Tap the keys on keypad.
At the initial stage, you can tap keys using
either of your index fingers. Once you get familiar
with the keypad, you can try tapping keys using
both of your thumbs.
While tapping a key, the corresponding letter
will appear above your thumb or another finger. If
you are tapping a wrong key, you may slide to the
correct one. Only when your tapping finger leaves
a key, can the corresponding letter be entered in
the text box.
79
To delete a character
Tap 。
To enter an
upper-case letter Tap , and then tap that
letter.
To enter a digit
Tap , and then tap that digit.
80
To enter a symbol
Tap , and then tap that
symbol.
Quickly enter a space Press the space key twice
successively.
To toggle input
methods Hold down to to bring up
the keyboard.
5 SD Card Introduction
Your mobile phone supports SD card to
expand the memory. Install the SD card according
to the indication.
As one of storages for your phone, SD card
has been set as the default storage at factory. You
can directly use it without making any settings.
Use as flash disk: If “Phone——Data
Wire——PC” is well connected, the PC will
prompt “New hardware is found”, and “MT65xx
Android Phone requires to be installed” will
appear in the dialog box。
81
After checking and confirmation, reconnect
“Phone - Data Wire - PC”, and pull down
notification menu in the standby interface:
Select “connected as USB Storage, and the
following screen pops up.
82
Select “USB storage device”, and such
dialogue box pops up:
You can synchronize files on the computer with
those on the phone according to your needs or you
can manage files on the storage card.
Select “MTP storage” to support the phone to
function as a U-disk. If your computer is not
supported by WIN7, you need to install MTP drive
83
(you can directly update window player to the latest
wmp11 which comes with MTP drive).
Follow the prompts appearing in the phone to
operate, so that data uploading and downloading
with U disk can be achieved.
Select “Camera PTP”, you can export photos on
the phone to the computer.
Note: Your mobile phone supports the plug-in
feature. Without turning off your phone, however,
it does not support inserting or remove T card.
Generally, it is not recommended to remove and
install the SD card.
84
6 FAQs and Solutions
If you have any questions about the phone,
please find the solutions from the table below.
FAQs Causes Solutions
Poor
reception
When you use your
phone at poor
reception areas, for
example, near high
rise buildings or
base rooms, the
radio wave cannot
be transmitted
effectively.
Avoid this as far as
you can.
When you use your
phone at network
traffic congestion,
such as working
time and off-duty
time, the congestion
can result in poor
reception.
Avoid this as far as
you can.
This is related to the
distance to base
station in question.
You may ask the
network service
provider to provide
service coverage
map.
Echoes or
noises
The trunk line of
network is in bad
condition. It is a
regional problem.
Hang off the call
and dial again.
Choose another
better line.
85
In some areas, the
call lines are in bad
condition.
Shorter
standby time
The standby time is
relevant to network
settings.
In poor reception
areas, turn off your
phone temporarily.
Replace the
batteries
Change with a new
battery.
When no signals
are received, your
phone will continue
searching for base
stations, thus
consuming a large
amount of battery
power and reducing
standby time.
Use your phone at
strong signal areas
or Turn off the
phone temporarily.
Failed to turn
on your
phone
The battery power is
used up.
Check the battery
power level or
charge the battery.
SIM card
error
The SIM card is
damaged.
Contact your
network service
provider.
The SIM card is not
properly installed.
Ensure the SIM
card is properly
installed.
The metallic face of
the SIM card is
contaminated.
Wipe the face with
a clean cloth.
Failed to
connect to
the network
The SIM card is
invalid.
Contact your
network service
provider.
Beyond the GSM
coverage.
Consult the network
service provider for
service areas.
86
The signal is feeble. Retry at a stronger
signal area.
Failed to
make a call
The call barring
feature is used.
Cancel the call
barring settings.
The fixed dialing
number feature is
used.
Cancel the fixed
dialing number
settings.
PIN code
error
Enter incorrect PIN
codes for three
times in succession.
Contact your
network service
provider.
Failed to
charge the
battery
The battery or the
charger is
damaged.
Change a new
battery or charger.
Charge the battery
when ambient
temperature is
lower than -20℃
or above 25℃.
Change the
environment.
Poor connection. Check whether the
plug is properly
connected.
Failed to add
contacts to
phonebook
The storage space
of phonebook is
used up.
Delete some
contacts from the
phonebook.
Failed to set
up some
features
Your network
service provider
does not provide the
services, or you
haven’t subscribed
them.
Contact your
network service
provider.
87
FCC Warning:
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Any Changes or modifications not expressly
approved by the party responsible for compliance
could void the user's authority to operate the
equipment.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
88
-Increase the separation between the equipment
and receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV
technician for help.
The SAR limit of USA (FCC) is 1.6 W/kg averaged
over one gram of tissue.
Device types GQ3028 (FCC ID: SW9-GQ3028)
has also been tested against this SAR limit. The
highest reported SAR values for head, body-worn
accessory, and product specific (Hotspot) are
0.88 W/kg, 1.19 W/kg, and 1.38 W/kg respectively.
The Max simultaneous SAR is 1.38 W/kg. This
device was tested for typical body-worn
operations with the back of the handset kept
10mm from the body. To maintain compliance with
FCC RF exposure requirements, use accessories
that maintain a 10mm separation distance
between the user's body and the back of the
handset. The use of belt clips, holsters and similar
accessories should not contain metallic
components in its assembly. The use of
accessories that do not satisfy these
requirements may not comply with FCC RF
exposure requirements, and should be avoided.
