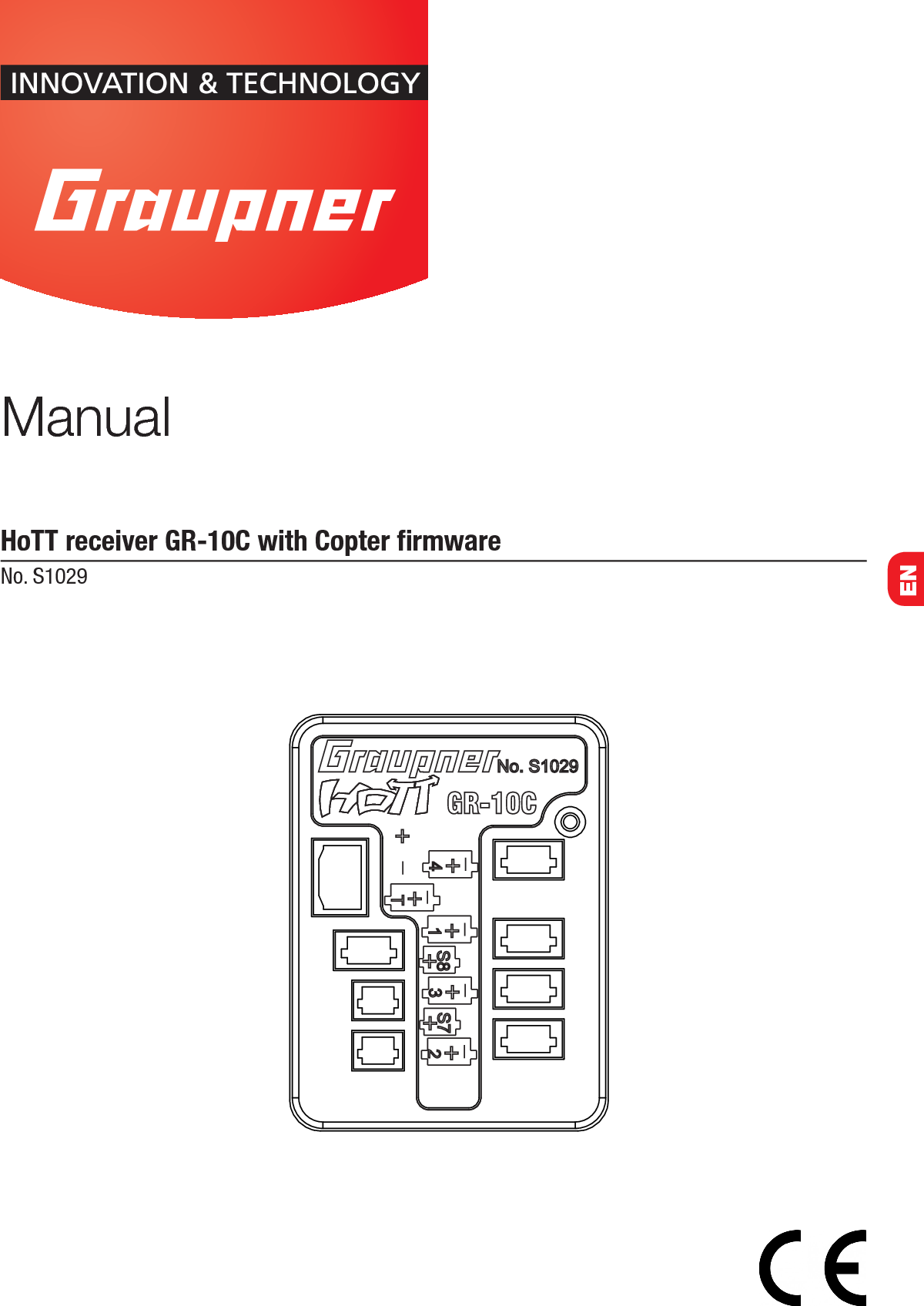

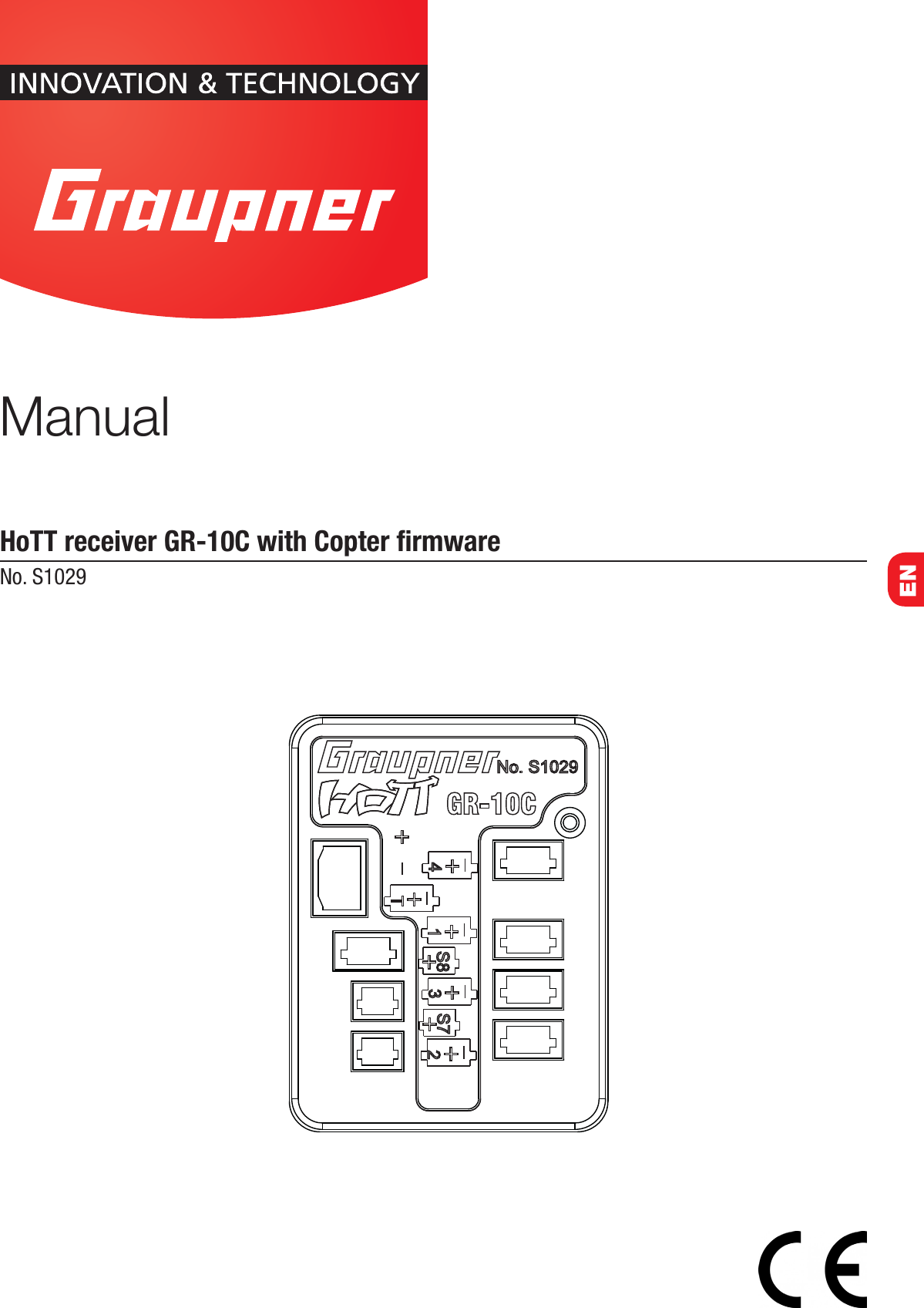

User Manual

ManualENHoTT receiver GR-10C with Copter firmwareNo. S1029
2 - 20 GR-10C_jh_V1

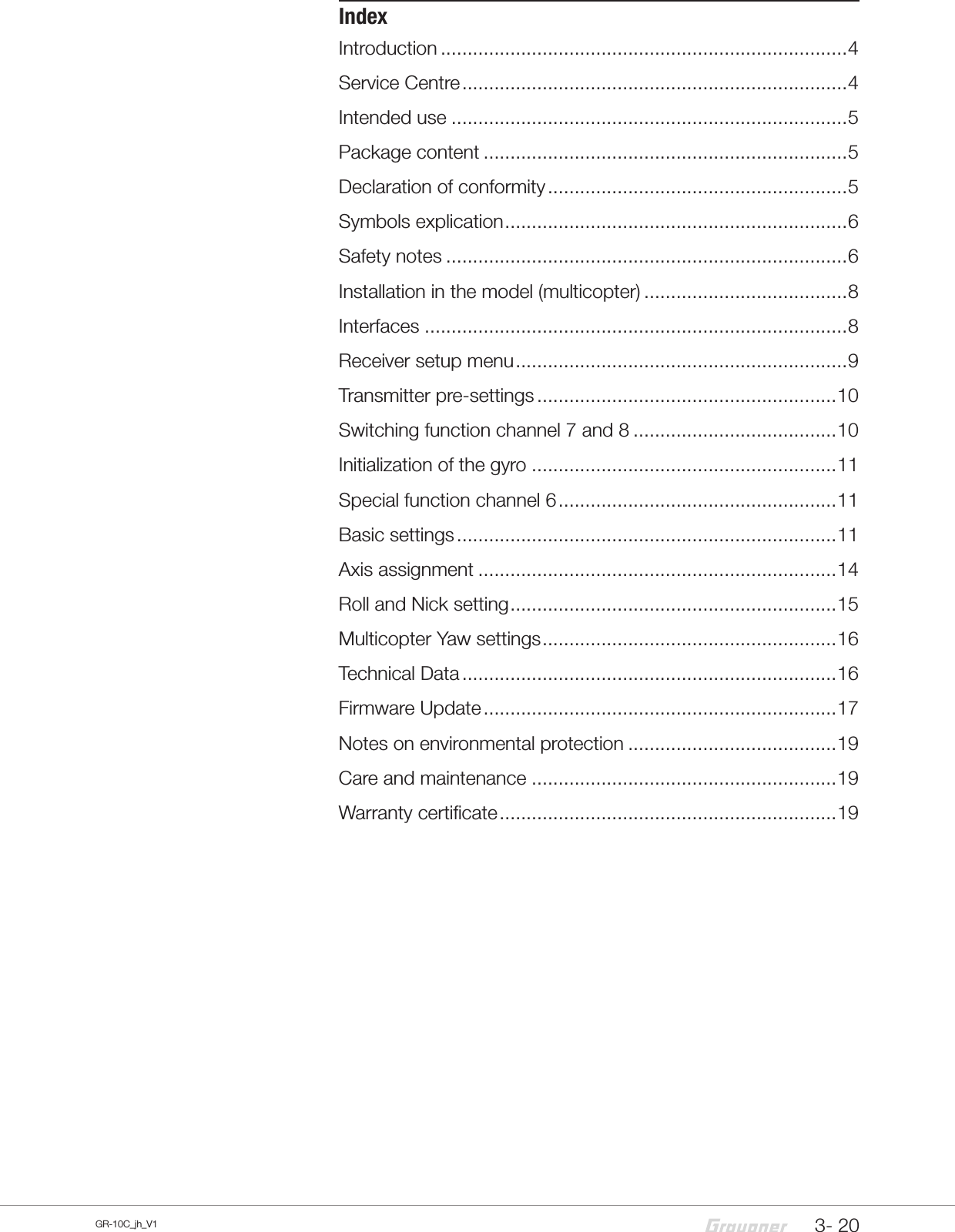

3- 20GR-10C_jh_V1IndexIntroduction ............................................................................4Service Centre ........................................................................4Intended use ..........................................................................5Package content ....................................................................5Declaration of conformity ........................................................5Symbols explication ................................................................6Safety notes ...........................................................................6Installation in the model (multicopter) ......................................8Interfaces ...............................................................................8Receiver setup menu ..............................................................9Transmitter pre-settings ........................................................10Switching function channel 7 and 8 ......................................10Initialization of the gyro .........................................................11Special function channel 6 ....................................................11Basic settings .......................................................................11Axis assignment ...................................................................14Roll and Nick setting .............................................................15Multicopter Yaw settings .......................................................16Technical Data ......................................................................16Firmware Update ..................................................................17Notes on environmental protection .......................................19Care and maintenance .........................................................19Warranty certificate ...............................................................19

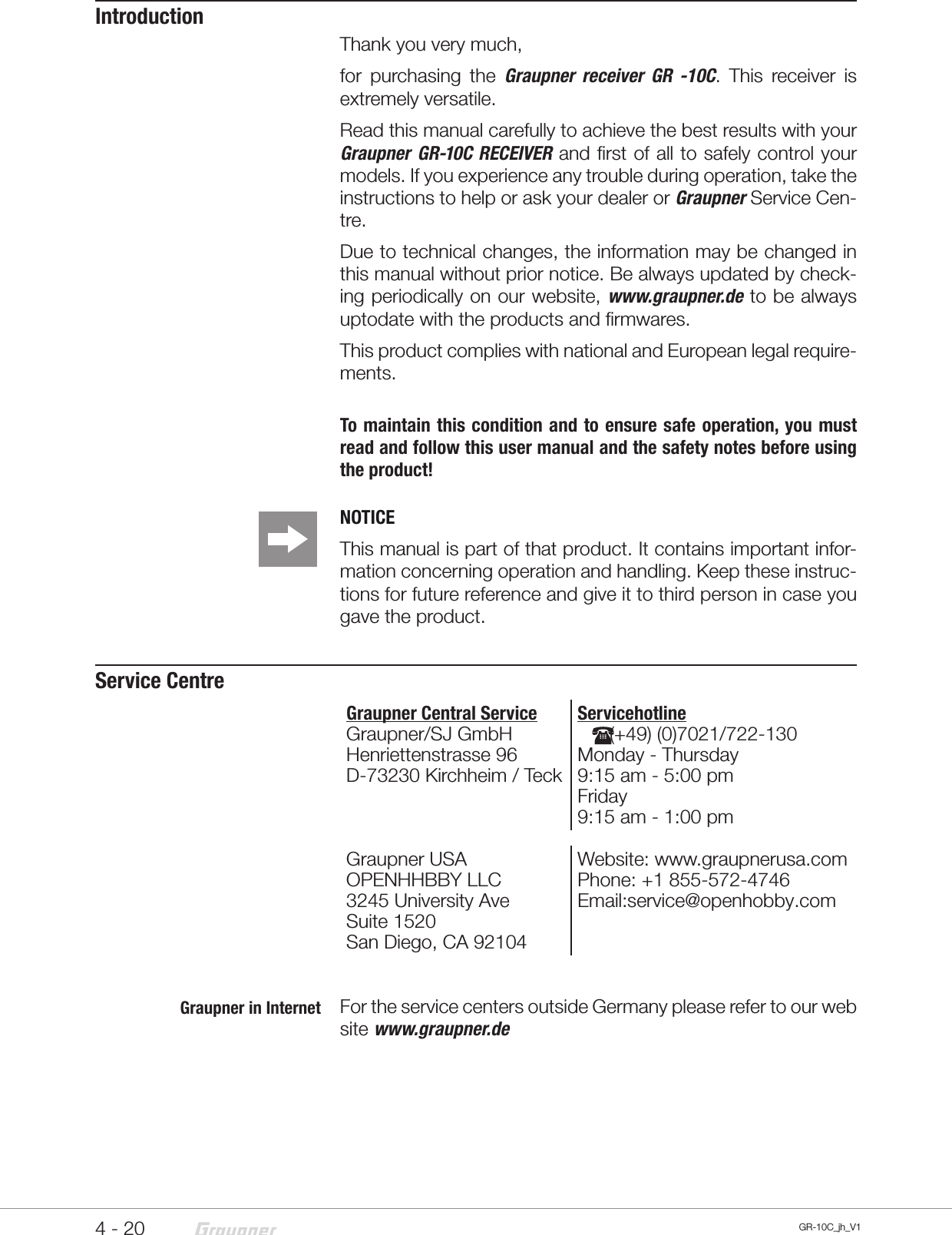

4 - 20 GR-10C_jh_V1IntroductionThank you very much,for purchasing the Graupner receiver GR -10C. This receiver is extremely versatile.Read this manual carefully to achieve the best results with your Graupner GR-10C RECEIVER and first of all to safely control your models. If you experience any trouble during operation, take the instructions to help or ask your dealer or Graupner Service Cen-tre.Due to technical changes, the information may be changed in this manual without prior notice. Be always updated by check-ing periodically on our website, www.graupner.de to be always uptodate with the products and firmwares.This product complies with national and European legal require-ments.To maintain this condition and to ensure safe operation, you must read and follow this user manual and the safety notes before using the product!NOTICEThis manual is part of that product. It contains important infor-mation concerning operation and handling. Keep these instruc-tions for future reference and give it to third person in case you gave the product.Service CentreGraupner Central ServiceGraupner/SJ GmbHHenriettenstrasse 96D-73230 Kirchheim / TeckServicehotline (+49) (0)7021/722-130Monday - Thursday9:15 am - 5:00 pmFriday9:15 am - 1:00 pmGraupner USA OPENHHBBY LLC3245 University AveSuite 1520San Diego, CA 92104Website: www.graupnerusa.comPhone: +1 855-572-4746Email:service@openhobby.comFor the service centers outside Germany please refer to our web site www.graupner.deGraupner in Internet

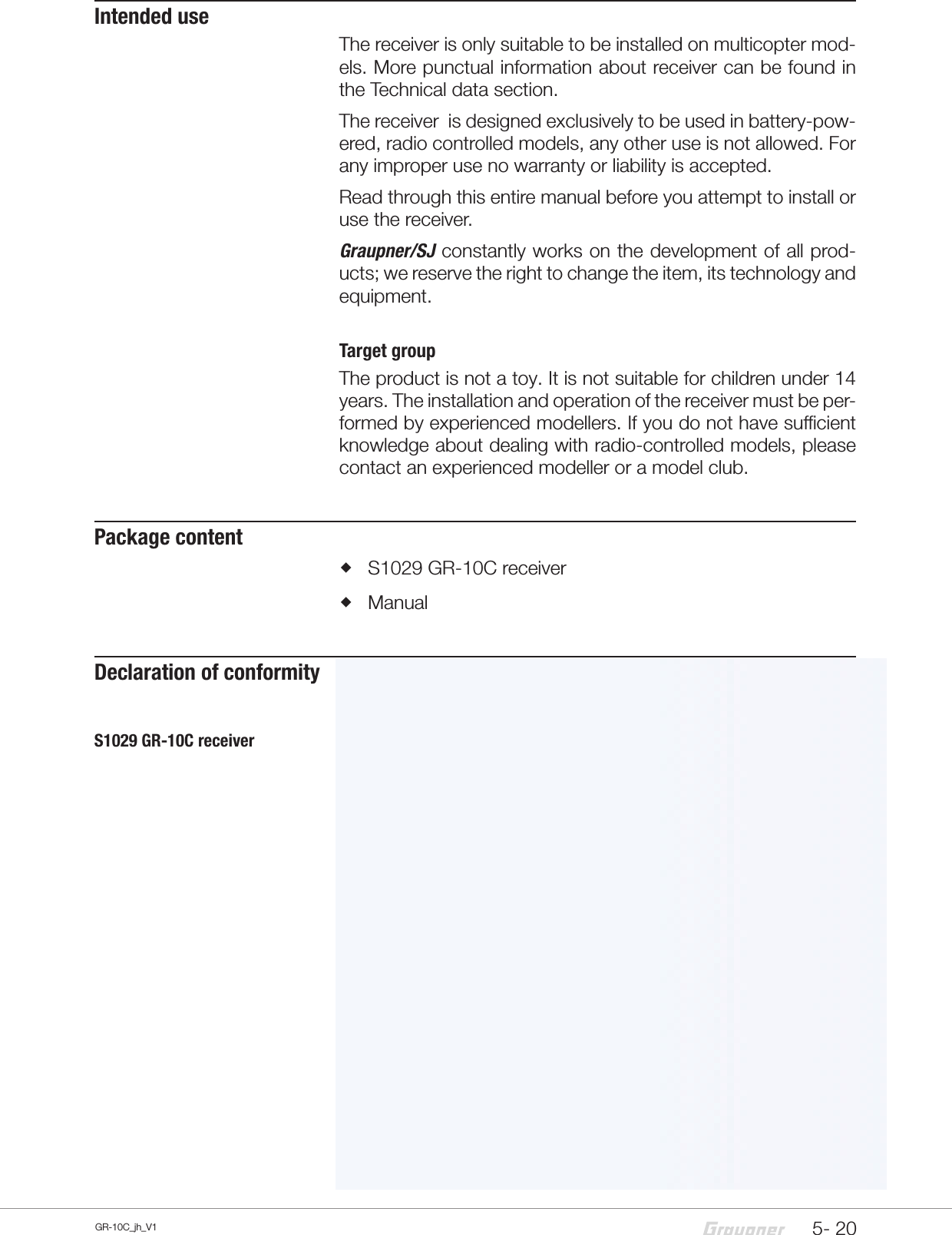

5- 20GR-10C_jh_V1Intended useThe receiver is only suitable to be installed on multicopter mod-els. More punctual information about receiver can be found in the Technical data section.The receiver is designed exclusively to be used in battery-pow-ered, radio controlled models, any other use is not allowed. For any improper use no warranty or liability is accepted. Read through this entire manual before you attempt to install or use the receiver.Graupner/SJ constantly works on the development of all prod-ucts; we reserve the right to change the item, its technology and equipment.Target groupThe product is not a toy. It is not suitable for children under 14 years. The installation and operation of the receiver must be per-formed by experienced modellers. If you do not have sufficient knowledge about dealing with radio-controlled models, please contact an experienced modeller or a model club.Package content S1029 GR-10C receiver ManualDeclaration of conformityS1029 GR-10C receiverGraupner/SJ declares that the product is conform to EU norms.EN 301 489-1 V1.9.2 EN 301 489-17 V2.2.1EN 300 328 V1.8.1EN 60950-1+A11+A1+A12+A2:2013EN 62311:2008

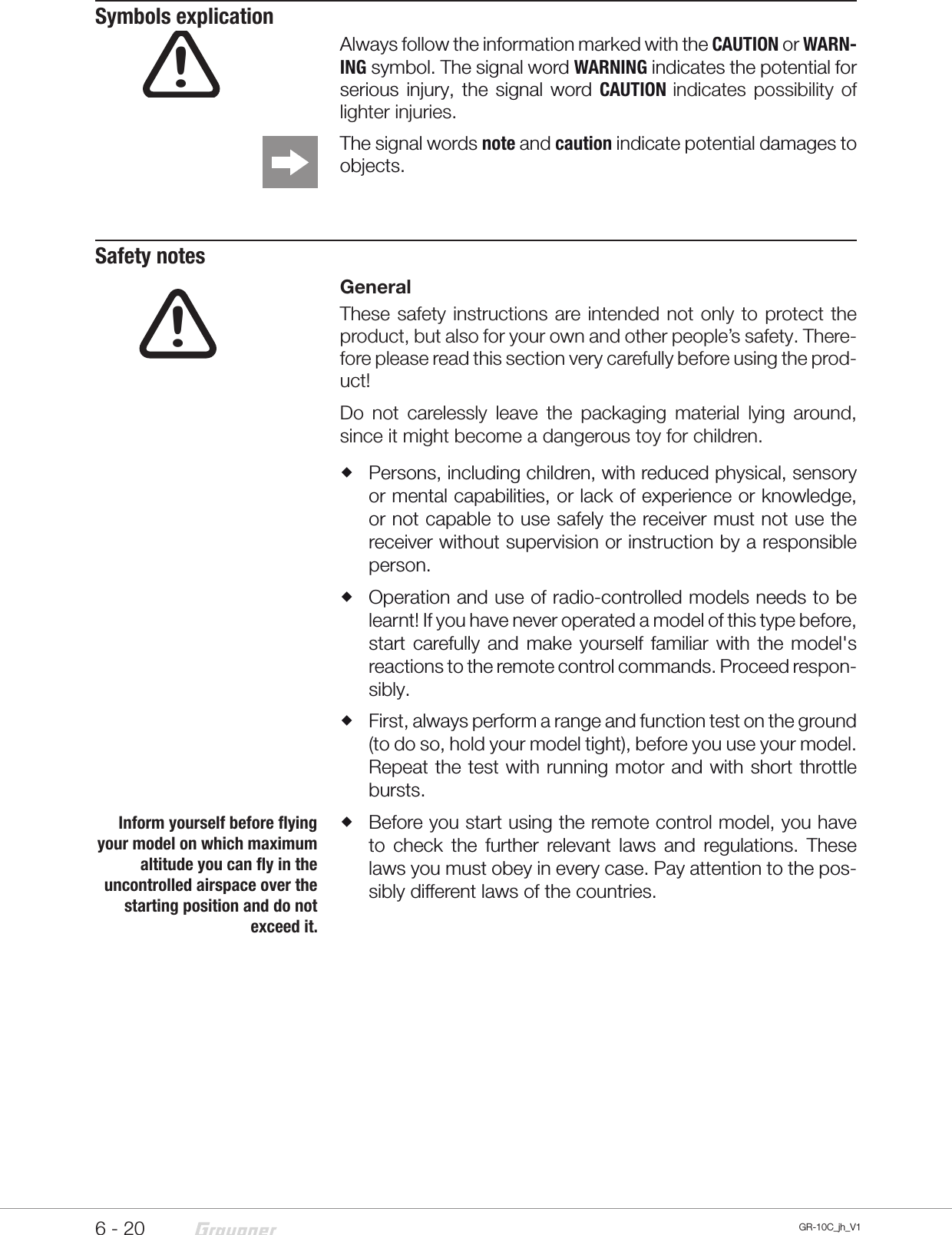

6 - 20!GR-10C_jh_V1Symbols explicationAlways follow the information marked with the CAUTION or WARN-ING symbol. The signal word WARNING indicates the potential for serious injury, the signal word CAUTION indicates possibility of lighter injuries.The signal words note and caution indicate potential damages to objects.Safety notesGeneralThese safety instructions are intended not only to protect the product, but also for your own and other people’s safety. There-fore please read this section very carefully before using the prod-uct!Do not carelessly leave the packaging material lying around, since it might become a dangerous toy for children. Persons, including children, with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, or not capable to use safely the receiver must not use the receiver without supervision or instruction by a responsible person. Operation and use of radio-controlled models needs to be learnt! If you have never operated a model of this type before, start carefully and make yourself familiar with the model's reactions to the remote control commands. Proceed respon-sibly. First, always perform a range and function test on the ground (to do so, hold your model tight), before you use your model. Repeat the test with running motor and with short throttle bursts. Before you start using the remote control model, you have to check the further relevant laws and regulations. These laws you must obey in every case. Pay attention to the pos-sibly different laws of the countries. !Inform yourself before flying your model on which maximum altitude you can fly in the uncontrolled airspace over the starting position and do not exceed it.

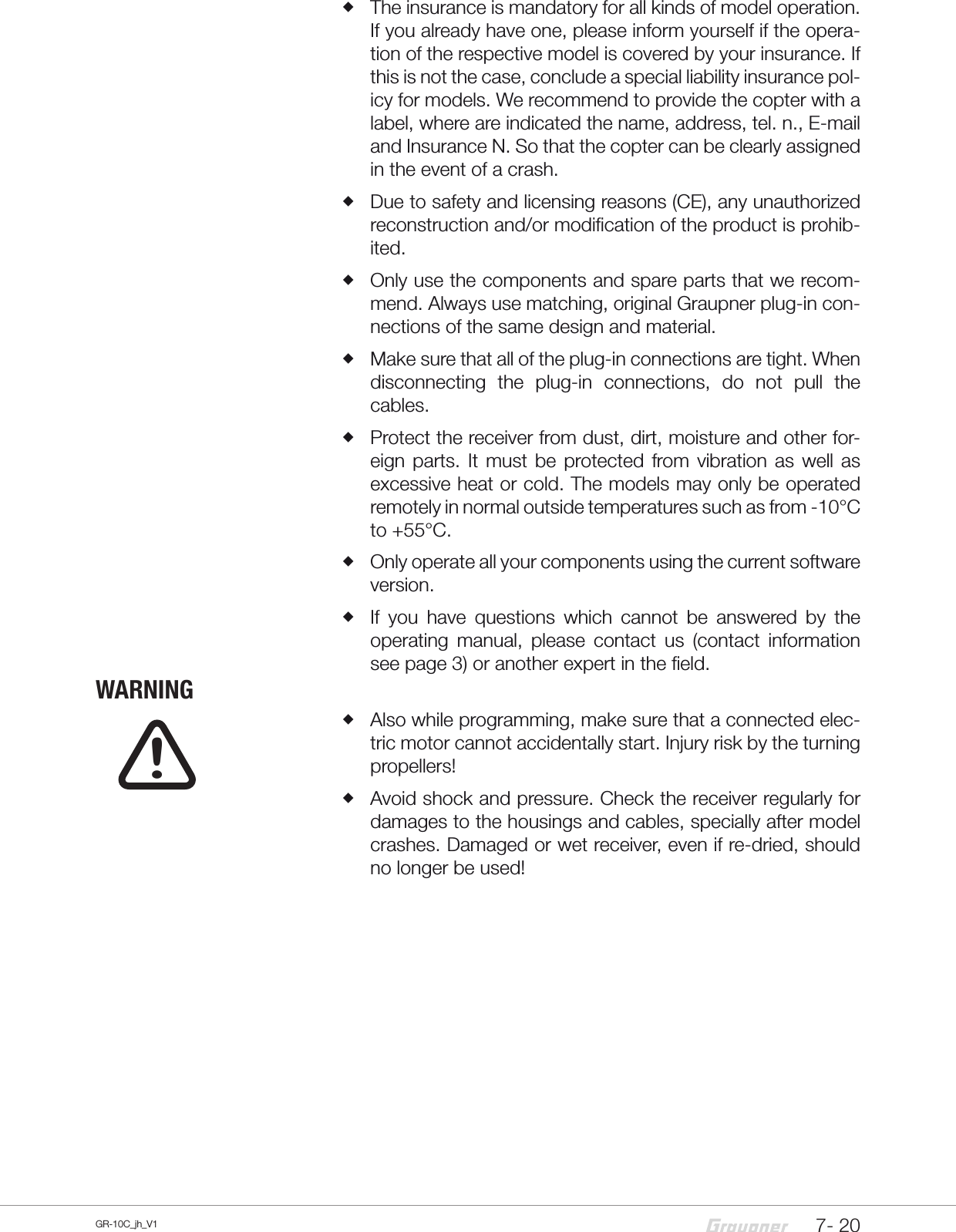

7- 20GR-10C_jh_V1 The insurance is mandatory for all kinds of model operation. If you already have one, please inform yourself if the opera-tion of the respective model is covered by your insurance. If this is not the case, conclude a special liability insurance pol-icy for models. We recommend to provide the copter with a label, where are indicated the name, address, tel. n., E-mail and Insurance N. So that the copter can be clearly assigned in the event of a crash. Due to safety and licensing reasons (CE), any unauthorized reconstruction and/or modification of the product is prohib-ited. Only use the components and spare parts that we recom-mend. Always use matching, original Graupner plug-in con-nections of the same design and material. Make sure that all of the plug-in connections are tight. When disconnecting the plug-in connections, do not pull the cables. Protect the receiver from dust, dirt, moisture and other for-eign parts. It must be protected from vibration as well as excessive heat or cold. The models may only be operated remotely in normal outside temperatures such as from -10°C to +55°C. Only operate all your components using the current software version. If you have questions which cannot be answered by the operating manual, please contact us (contact information see page 3) or another expert in the field.WARNING Also while programming, make sure that a connected elec-tric motor cannot accidentally start. Injury risk by the turning propellers! Avoid shock and pressure. Check the receiver regularly for damages to the housings and cables, specially after model crashes. Damaged or wet receiver, even if re-dried, should no longer be used!!
8 - 20 GR-10C_jh_V1Installation in the model (multicopter)The receiver must be aligned at right angles to the copter on the receiver platform. The lower surface of the receiver must always be parallel to one of the copter sides. Prior to installation, remove the sticker on the back of the receiver. We recommend using double-sided tape No.: S8376 for Gr-18 to fix the receiver in place.BindingBinding is only possible if the receiver has not been linked with a bound transmitter since being switched on (red LED lights). If you wish to bind the receiver to a new model memory, this is the procedure: Switch the transmitter’s RF section off in the “Basic model settings” menu (see transmitter manual) Switching the receiver on Initiate binding in the transmitter’s “Basic model settings” menu. If the red LED of the receiver goes out within about 10 sec-onds and the green LED is illuminated, the binding process has been completed successfully. Your transmitter/receiver combination is now ready for oper-ation. If the red LED is still lit, the "binding“ failed. In this case, repeat the whole procedure.InterfacesConnect the motors' speed controllers to the receiver's ports (C1 _ C4). The connectors are reverse polarity protected: note the small chamfers on the sides. Never use force – the connec-tors should engage easily. The polarity is also printed on the receiver; the negative wire (-) is brown, the positive (+) red and the signal orange. The ports S7 and S8 are switch outputs (see chapter "Switch function channel 7 and 8")AttentionThe connection scheme is different from HoTT receivers No. 33565 and 33575. Use the adapter No. 33565.1 for the chan-nel ports, but in this case invert the two external cables signal and minus. To do it lift lightly the connector holder with a needle or with a sharpen cutter and pull the cable.Allocation of the channel portsCH4CH1CH3CH2BatteryT/9S8S7

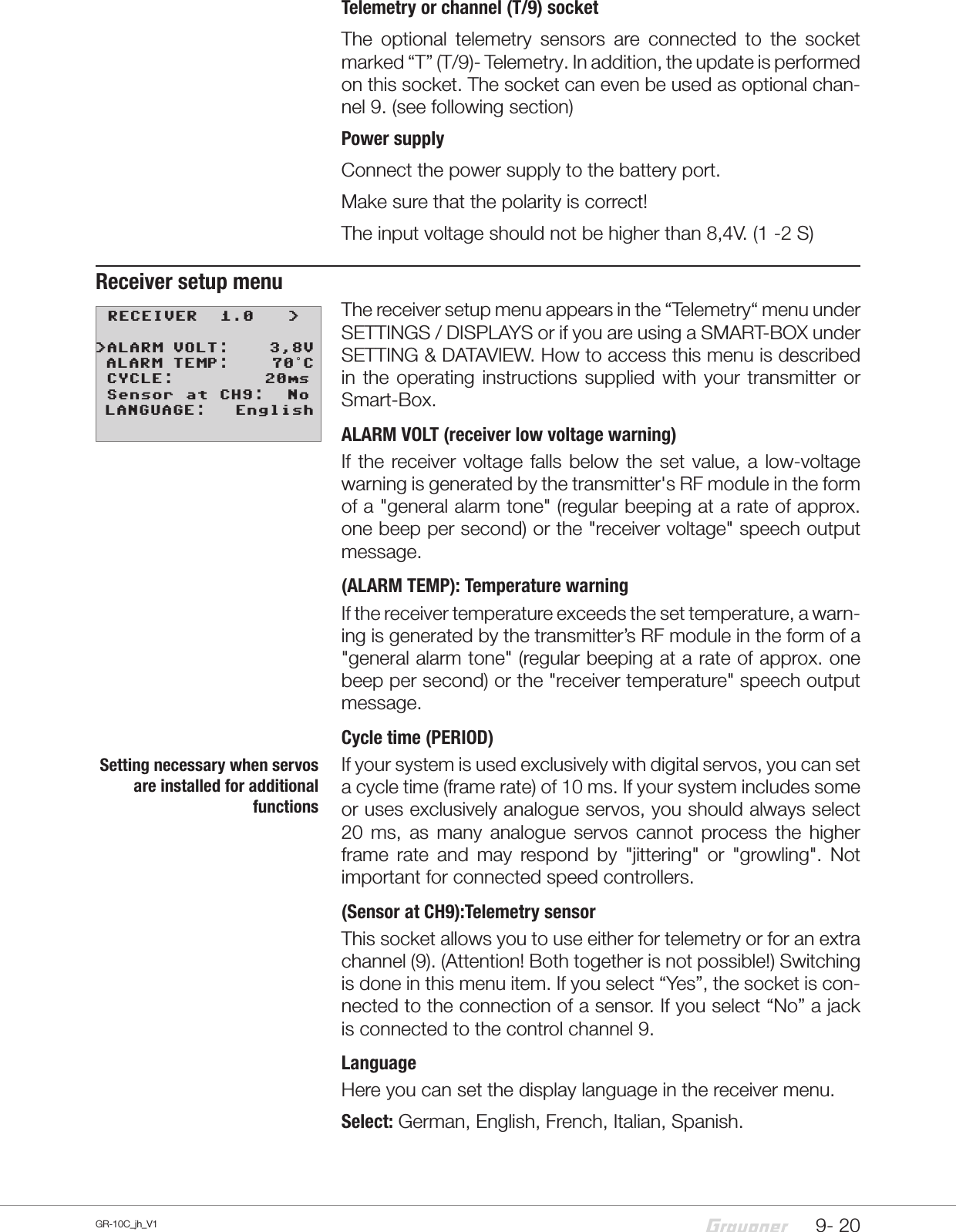

9- 20GR-10C_jh_V1Telemetry or channel (T/9) socketThe optional telemetry sensors are connected to the socket marked “T” (T/9)- Telemetry. In addition, the update is performed on this socket. The socket can even be used as optional chan-nel 9. (see following section)Power supplyConnect the power supply to the battery port.Make sure that the polarity is correct!The input voltage should not be higher than 8,4V. (1 -2 S)Receiver setup menuThe receiver setup menu appears in the “Telemetry“ menu under SETTINGS / DISPLAYS or if you are using a SMART-BOX under SETTING & DATAVIEW. How to access this menu is described in the operating instructions supplied with your transmitter or Smart-Box.ALARM VOLT (receiver low voltage warning)If the receiver voltage falls below the set value, a low-voltage warning is generated by the transmitter's RF module in the form of a "general alarm tone" (regular beeping at a rate of approx. one beep per second) or the "receiver voltage" speech output message.(ALARM TEMP): Temperature warningIf the receiver temperature exceeds the set temperature, a warn-ing is generated by the transmitter’s RF module in the form of a "general alarm tone" (regular beeping at a rate of approx. one beep per second) or the "receiver temperature" speech output message.Cycle time (PERIOD)If your system is used exclusively with digital servos, you can set a cycle time (frame rate) of 10 ms. If your system includes some or uses exclusively analogue servos, you should always select 20 ms, as many analogue servos cannot process the higher frame rate and may respond by "jittering" or "growling". Not important for connected speed controllers.(Sensor at CH9):Telemetry sensor This socket allows you to use either for telemetry or for an extra channel (9). (Attention! Both together is not possible!) Switching is done in this menu item. If you select “Yes”, the socket is con-nected to the connection of a sensor. If you select “No” a jack is connected to the control channel 9.LanguageHere you can set the display language in the receiver menu.Select: German, English, French, Italian, Spanish. RECEIVER 1.0 >>ALARM VOLT: 3,8V ALARM TEMP: 70°C>CYCLE: 20ms Sensor at CH9: No LANGUAGE: EnglishSetting necessary when servos are installed for additional functions

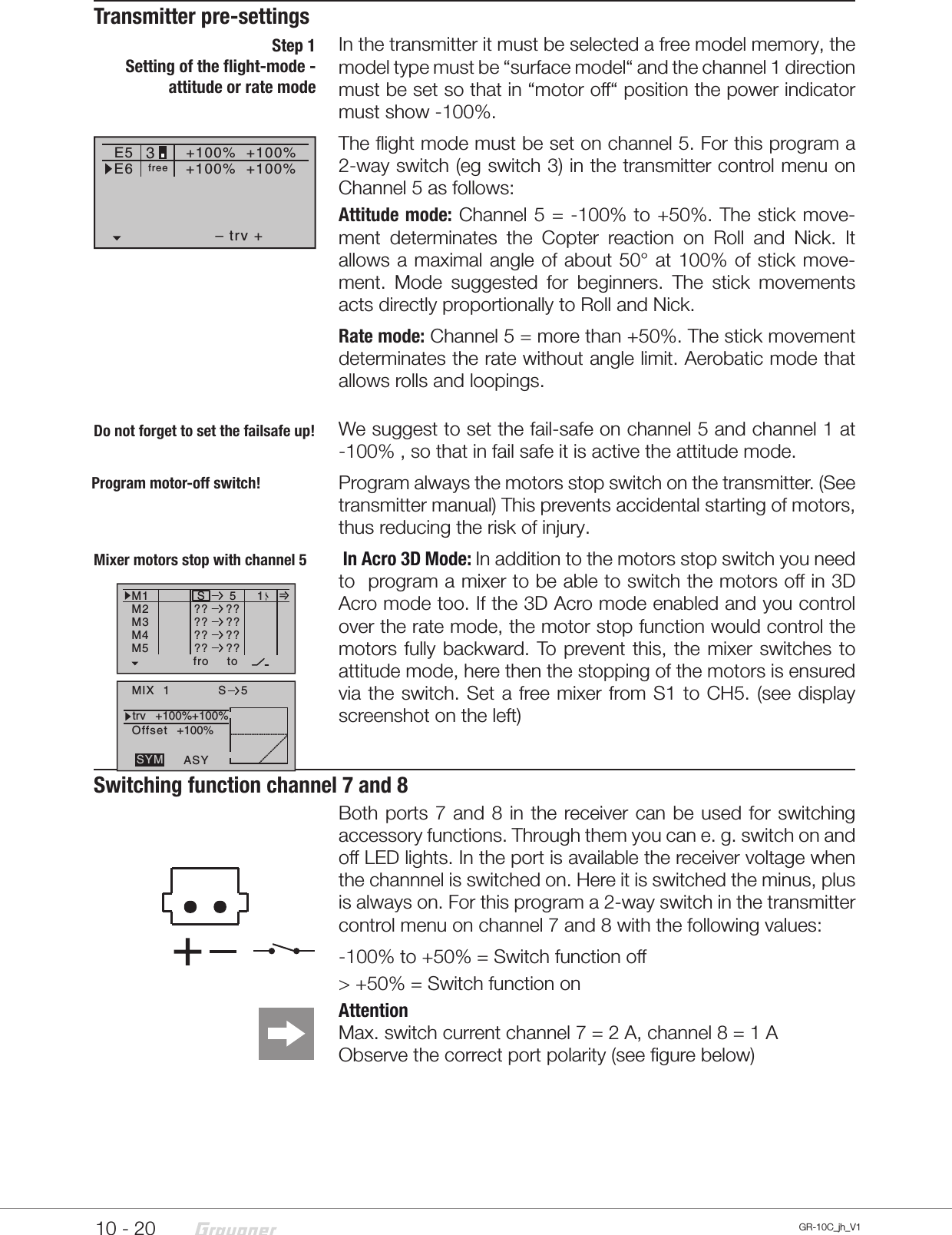

10 - 20 GR-10C_jh_V1Transmitter pre-settingsIn the transmitter it must be selected a free model memory, the model type must be “surface model“ and the channel 1 direction must be set so that in “motor off“ position the power indicator must show -100%.The flight mode must be set on channel 5. For this program a 2-way switch (eg switch 3) in the transmitter control menu on Channel 5 as follows:Attitude mode: Channel 5 = -100% to +50%. The stick move-ment determinates the Copter reaction on Roll and Nick. It allows a maximal angle of about 50° at 100% of stick move-ment. Mode suggested for beginners. The stick movements acts directly proportionally to Roll and Nick.Rate mode: Channel 5 = more than +50%. The stick movement determinates the rate without angle limit. Aerobatic mode that allows rolls and loopings. We suggest to set the fail-safe on channel 5 and channel 1 at -100% , so that in fail safe it is active the attitude mode.Program always the motors stop switch on the transmitter. (See transmitter manual) This prevents accidental starting of motors, thus reducing the risk of injury. In Acro 3D Mode: In addition to the motors stop switch you need to program a mixer to be able to switch the motors off in 3D Acro mode too. If the 3D Acro mode enabled and you control over the rate mode, the motor stop function would control the motors fully backward. To prevent this, the mixer switches to attitude mode, here then the stopping of the motors is ensured via the switch. Set a free mixer from S1 to CH5. (see display screenshot on the left)Switching function channel 7 and 8Both ports 7 and 8 in the receiver can be used for switching accessory functions. Through them you can e. g. switch on and off LED lights. In the port is available the receiver voltage when the channnel is switched on. Here it is switched the minus, plus is always on. For this program a 2-way switch in the transmitter control menu on channel 7 and 8 with the following values:-100% to +50% = Switch function off> +50% = Switch function onAttention Max. switch current channel 7 = 2A, channel 8 = 1AObserve the correct port polarity (see figure below)Step 1Setting of the flight-mode - attitude or rate modeE5– trv ++100%E6+100%+100% +88%+100%free3Do not forget to set the failsafe up!Program motor-off switch!Ty p fro zuM1M2M3S5?? ??M4M5?? ???? ???? ??1=toMIX 1trv +100%+100%OffsetASYSYMS 5+100%Mixer motors stop with channel 5

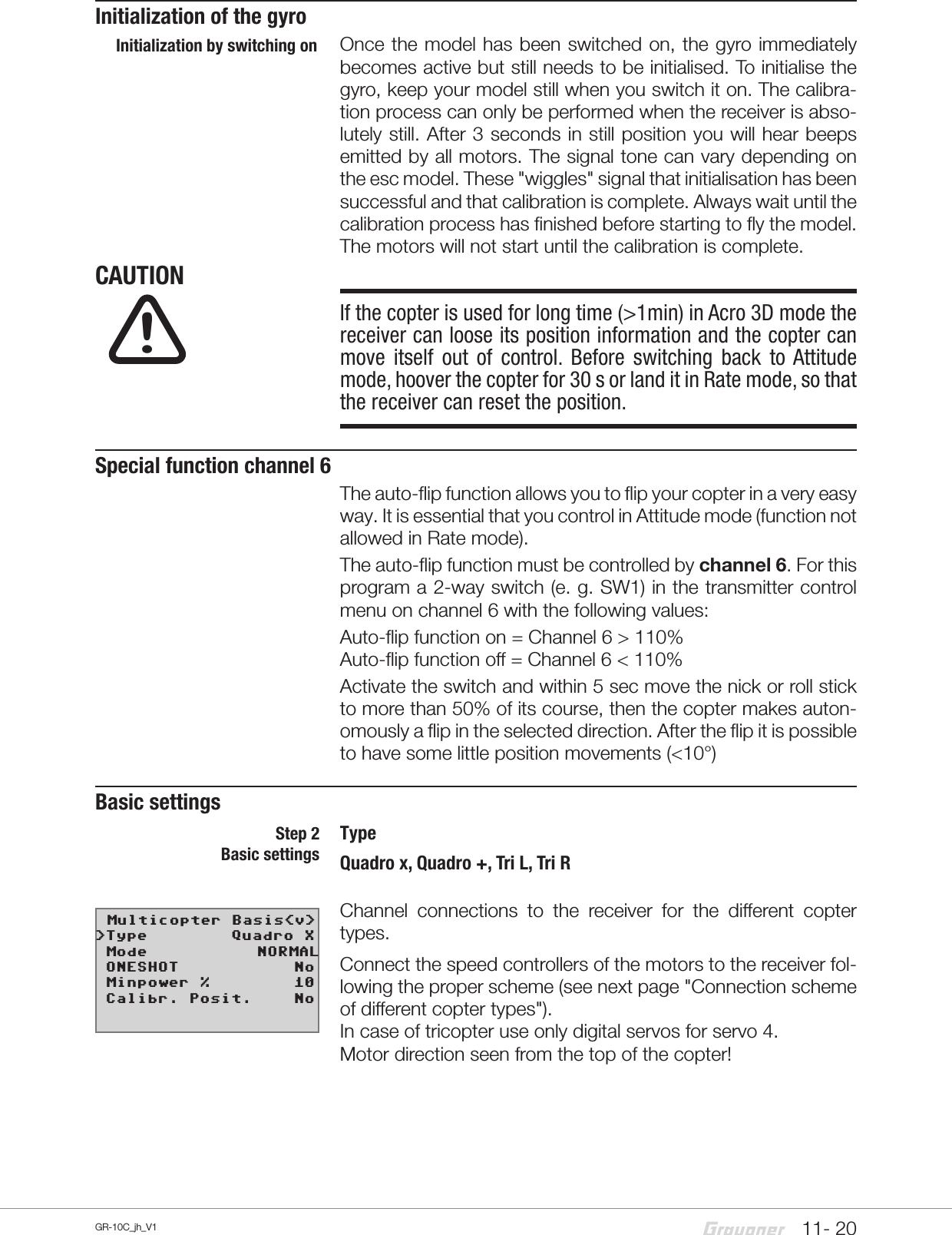

11- 20GR-10C_jh_V1Initialization of the gyroOnce the model has been switched on, the gyro immediately becomes active but still needs to be initialised. To initialise the gyro, keep your model still when you switch it on. The calibra-tion process can only be performed when the receiver is abso-lutely still. After 3 seconds in still position you will hear beeps emitted by all motors. The signal tone can vary depending on the esc model. These "wiggles" signal that initialisation has been successful and that calibration is complete. Always wait until the calibration process has finished before starting to fly the model. The motors will not start until the calibration is complete.CAUTIONIf the copter is used for long time (>1min) in Acro 3D mode the receiver can loose its position information and the copter can move itself out of control. Before switching back to Attitude mode, hoover the copter for 30 s or land it in Rate mode, so that the receiver can reset the position.Special function channel 6The auto-flip function allows you to flip your copter in a very easy way. It is essential that you control in Attitude mode (function not allowed in Rate mode).The auto-flip function must be controlled by channel 6. For this program a 2-way switch (e. g. SW1) in the transmitter control menu on channel 6 with the following values:Auto-flip function on = Channel 6 > 110%Auto-flip function off = Channel 6 < 110%Activate the switch and within 5 sec move the nick or roll stick to more than 50% of its course, then the copter makes auton-omously a flip in the selected direction. After the flip it is possible to have some little position movements (<10°)Basic settingsTypeQuadro x, Quadro +, Tri L, Tri RChannel connections to the receiver for the different copter types.Connect the speed controllers of the motors to the receiver fol-lowing the proper scheme (see next page "Connection scheme of different copter types").In case of tricopter use only digital servos for servo 4.Motor direction seen from the top of the copter!Initialization by switching on!Step 2Basic settings Multicopter Basis< v > >Type Quadro X Mode NORMAL ONESHOT No Minpower % 10 Calibr. Posit. No
12 - 20 GR-10C_jh_V11234 Quadro +Quadro X1243123Tri LR+L= Servo directionServo 4= Yaw123Tri RR+L= Servo directionServo 4= YawConnection scheme of different types of copterMODEESC settings for the learning of the controller the receiver K1 sig-nal will be passed directly to the controller.Normal is set for ‘normal‘ multicopter (without reverse rotation).Acro 3D setting for multicopter whose speed controllers are equipped with reverse rotation. (Acro flight mode)Note:For safety reason the Type and Mode changes take effect after switching off and on (only for this parameter).CAUTIONRisk of injury by rotating propellers when motors are running. The motors can start while switching from Attitude to Rate mode. Hold the throttle stick in central position when you switch. Install the propellers only as very last operation before flight.Start and land always in Attitude mode. Note that in Rate mode the throttle curve has different reaction. (see scheme on the right)!

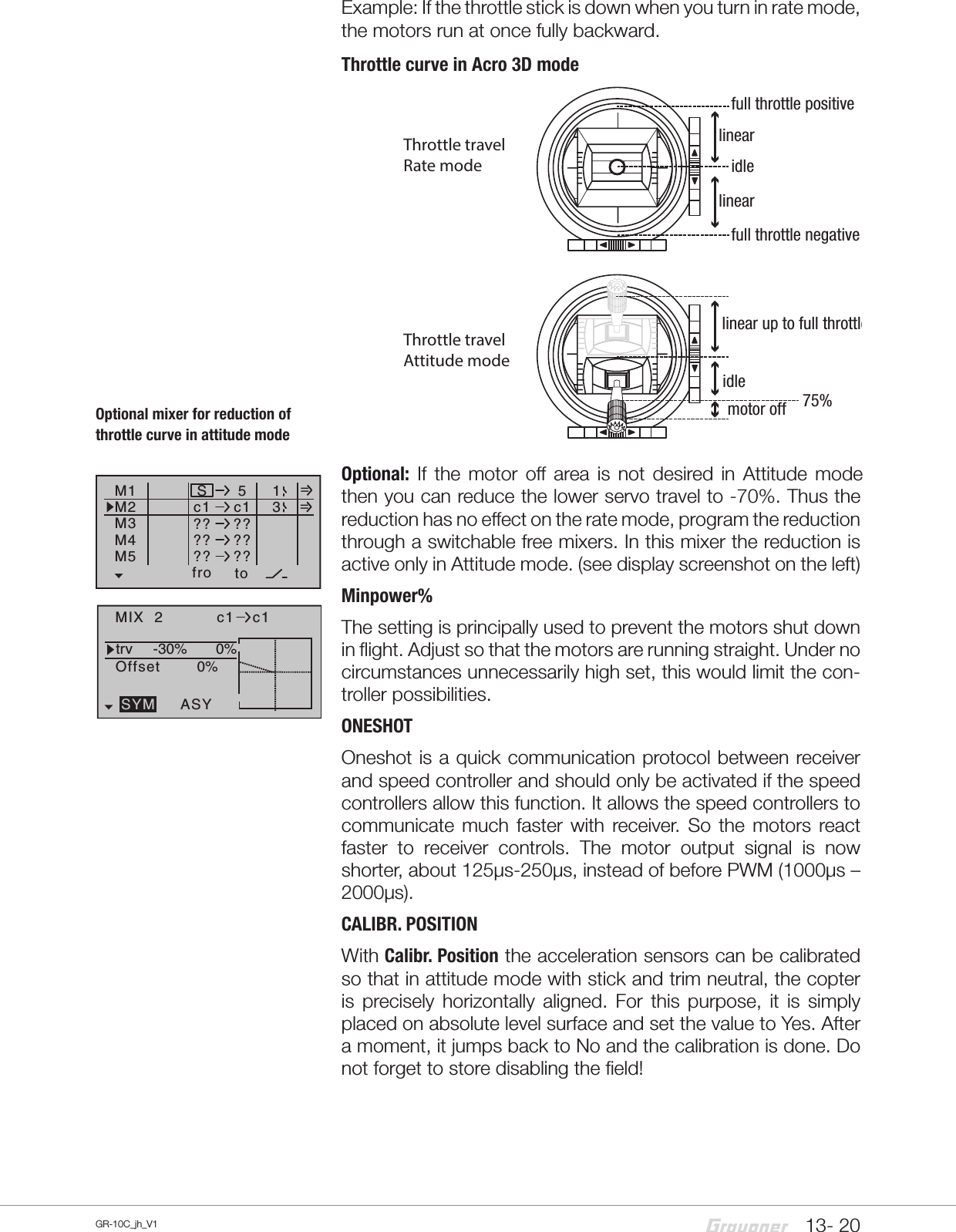

13- 20GR-10C_jh_V1Example: If the throttle stick is down when you turn in rate mode, the motors run at once fully backward.Throttle curve in Acro 3D modeOptional: If the motor off area is not desired in Attitude mode then you can reduce the lower servo travel to -70%. Thus the reduction has no effect on the rate mode, program the reduction through a switchable free mixers. In this mixer the reduction is active only in Attitude mode. (see display screenshot on the left)Minpower%The setting is principally used to prevent the motors shut down in flight. Adjust so that the motors are running straight. Under no circumstances unnecessarily high set, this would limit the con-troller possibilities.ONESHOTOneshot is a quick communication protocol between receiver and speed controller and should only be activated if the speed controllers allow this function. It allows the speed controllers to communicate much faster with receiver. So the motors react faster to receiver controls. The motor output signal is now shorter, about 125µs-250µs, instead of before PWM (1000µs – 2000µs).CALIBR. POSITIONWith Calibr. Position the acceleration sensors can be calibrated so that in attitude mode with stick and trim neutral, the copter is precisely horizontally aligned. For this purpose, it is simply placed on absolute level surface and set the value to Yes. After a moment, it jumps back to No and the calibration is done. Do not forget to store disabling the field!full throttle positivefull throttle negativeidlelinear up to full throttleidleThrottle travel Rate modeThrottle travel Attitude modelinear linear motor off 75%Ty p fro zuM1M2M3S5c1 c1M4M5?? ???? ???? ??1=to3=MIX 2trv -30% 0%OffsetASYSYMc1 c10%Optional mixer for reduction of throttle curve in attitude mode
14 - 20 GR-10C_jh_V1Axis assignmentSetup: Setup: Yes/NoAssignment of the gyros and their operating direction.In the receiver’s “Axis assign” menu, go to the “Setup” option and set it to “Setup: Yes”. Now assign the axes as follow:On the transmitter, briefly set the roll command fully to the right; the roll axis is highlighted. Roll the copter more than 45 degrees to the right the identified axis with the required prefix is dis-played, the field is no longer highlighted and identification of this axis is complete.Now do the same for nick: on the transmitter, briefly set the nick command so that it is fully forward. Roll the copter more than 45 degrees forwards; the axis is displayed, the field is no longer highlighted and identification of this axis is complete.Finally complete the procedure for yaw: on the transmitter, briefly set the yaw command fully to the right. Turn the copter so that the nose turns more than 45 degrees to the right; the axis is dis-played, the field is no longer highlighted and identification of this axis is complete.The gyros and operating directions have now been assigned. Now check to make sure that the operating directions are cor-rect.To do this remove the propeller of the copters and give approximately a quarter throttle, all motors are running at the same speed.Tilt the Copter in Attitude mode so that its nose is facing downwards the front motors must turn faster than back ones. Tilt the Copter in Attitude mode to one side the motors of the side, in witch you tilt the model, must turn faster then the motors on the other side. Axis assignment < >Setup No ROLL +0 NICK +0 YAW +0Step 3Axis assignment in the gyro

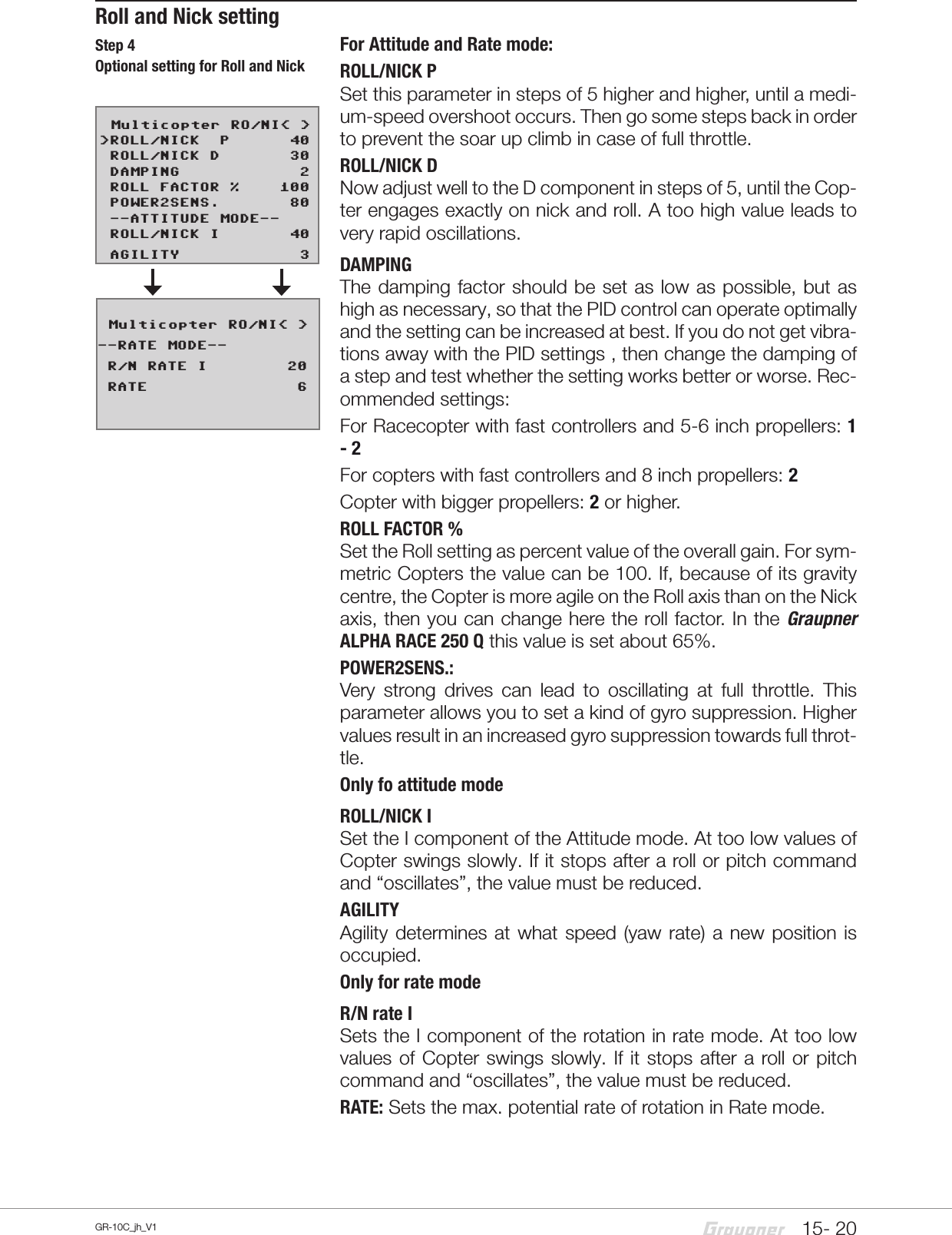

15- 20GR-10C_jh_V1Roll and Nick settingFor Attitude and Rate mode:ROLL/NICK PSet this parameter in steps of 5 higher and higher, until a medi-um-speed overshoot occurs. Then go some steps back in order to prevent the soar up climb in case of full throttle.ROLL/NICK DNow adjust well to the D component in steps of 5, until the Cop-ter engages exactly on nick and roll. A too high value leads to very rapid oscillations.DAMPINGThe damping factor should be set as low as possible, but as high as necessary, so that the PID control can operate optimally and the setting can be increased at best. If you do not get vibra-tions away with the PID settings , then change the damping of a step and test whether the setting works better or worse. Rec-ommended settings:For Racecopter with fast controllers and 5-6 inch propellers: 1 - 2For copters with fast controllers and 8 inch propellers: 2Copter with bigger propellers: 2 or higher.ROLL FACTOR %Set the Roll setting as percent value of the overall gain. For sym-metric Copters the value can be 100. If, because of its gravity centre, the Copter is more agile on the Roll axis than on the Nick axis, then you can change here the roll factor. In the Graupner ALPHA RACE 250 Q this value is set about 65%.POWER2SENS.:Very strong drives can lead to oscillating at full throttle. This parameter allows you to set a kind of gyro suppression. Higher values result in an increased gyro suppression towards full throt-tle.Only fo attitude modeROLL/NICK ISet the I component of the Attitude mode. At too low values of Copter swings slowly. If it stops after a roll or pitch command and “oscillates”, the value must be reduced.AGILITYAgility determines at what speed (yaw rate) a new position is occupied.Only for rate modeR/N rate ISets the I component of the rotation in rate mode. At too low values of Copter swings slowly. If it stops after a roll or pitch command and “oscillates”, the value must be reduced.RATE: Sets the max. potential rate of rotation in Rate mode. Multicopter RO/NI< >>ROLL/NICK P 40 ROLL/NICK D 30 DAMPING 2 ROLL FACTOR % 100 POWER2SENS. 80 --ATTITUDE MODE-- ROLL/NICK I 40 AGILITY 3 Multicopter RO/NI< >--RATE MODE-- R/N RATE I 20 RATE 6Step 4Optional setting for Roll and Nick

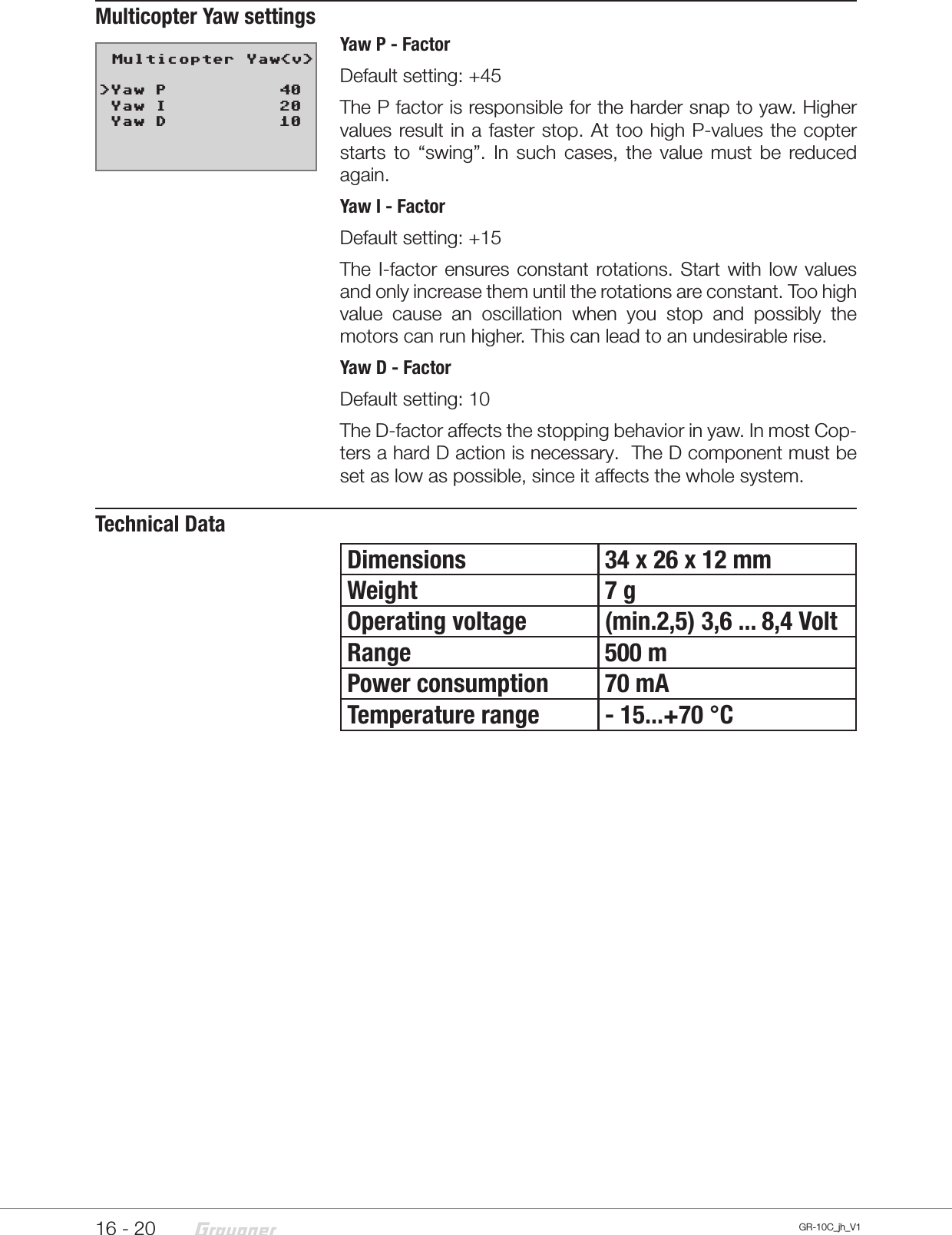

16 - 20 GR-10C_jh_V1Multicopter Yaw settingsYaw P - FactorDefault setting: +45The P factor is responsible for the harder snap to yaw. Higher values result in a faster stop. At too high P-values the copter starts to “swing”. In such cases, the value must be reduced again.Yaw I - FactorDefault setting: +15The I-factor ensures constant rotations. Start with low values and only increase them until the rotations are constant. Too high value cause an oscillation when you stop and possibly the motors can run higher. This can lead to an undesirable rise.Yaw D - FactorDefault setting: 10The D-factor affects the stopping behavior in yaw. In most Cop-ters a hard D action is necessary. The D component must be set as low as possible, since it affects the whole system.Technical DataDimensions 34 x 26 x 12 mmWeight 7 gOperating voltage (min.2,5) 3,6 ... 8,4 VoltRange 500 mPower consumption 70 mATemperature range - 15...+70 °C Multicopter Yaw<v>>Yaw P 40 Yaw I 20 Yaw D 10

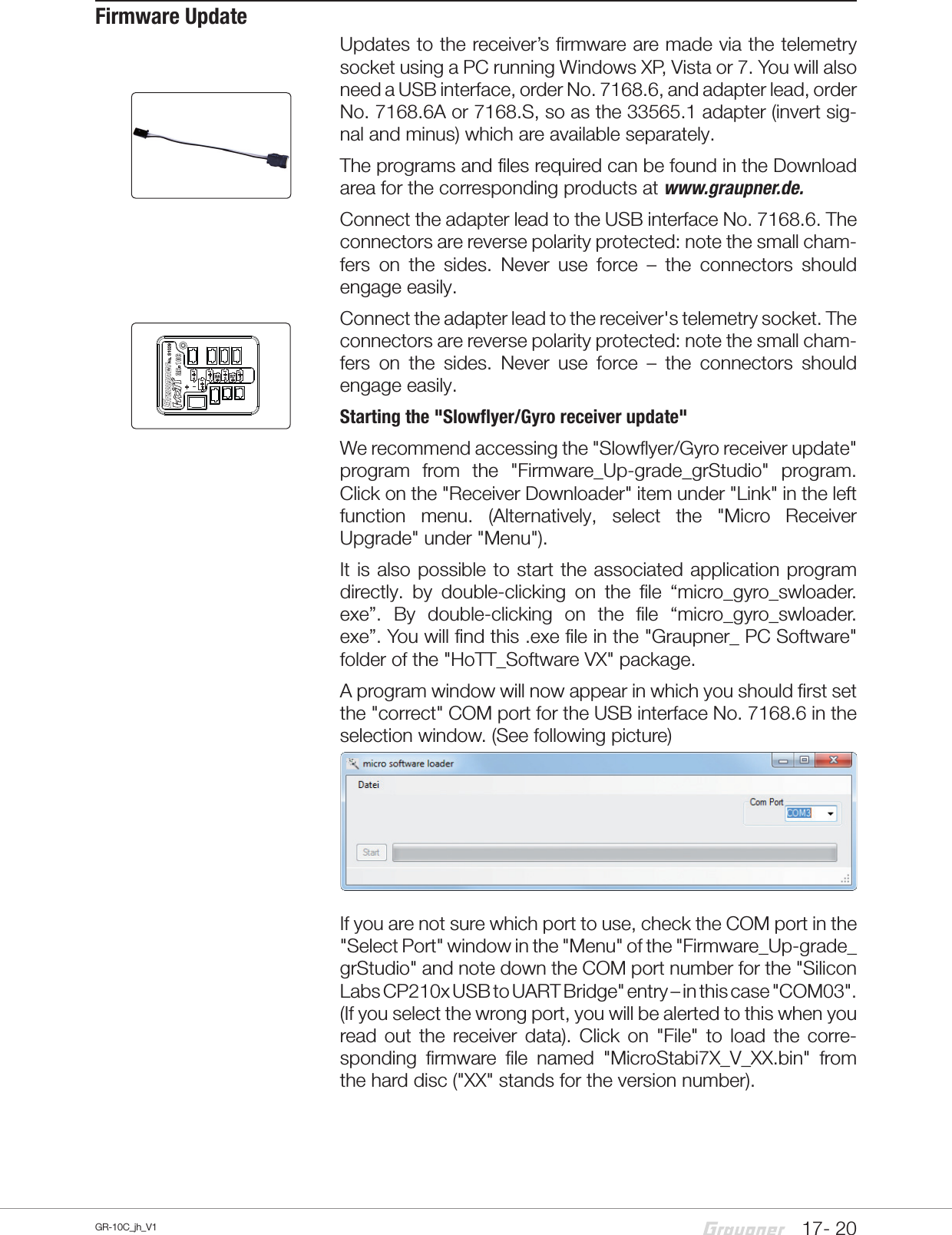

17- 20GR-10C_jh_V1Firmware UpdateUpdates to the receiver’s firmware are made via the telemetry socket using a PC running Windows XP, Vista or 7. You will also need a USB interface, order No. 7168.6, and adapter lead, order No. 7168.6A or 7168.S, so as the 33565.1 adapter (invert sig-nal and minus) which are available separately.The programs and files required can be found in the Download area for the corresponding products at www.graupner.de.Connect the adapter lead to the USB interface No. 7168.6. The connectors are reverse polarity protected: note the small cham-fers on the sides. Never use force – the connectors should engage easily.Connect the adapter lead to the receiver's telemetry socket. The connectors are reverse polarity protected: note the small cham-fers on the sides. Never use force – the connectors should engage easily.Starting the "Slowflyer/Gyro receiver update" We recommend accessing the "Slowflyer/Gyro receiver update" program from the "Firmware_Up-grade_grStudio" program. Click on the "Receiver Downloader" item under "Link" in the left function menu. (Alternatively, select the "Micro Receiver Upgrade" under "Menu").It is also possible to start the associated application program directly. by double-clicking on the file “micro_gyro_swloader. exe”. By double-clicking on the file “micro_gyro_swloader. exe”. You will find this .exe file in the "Graupner_ PC Software" folder of the "HoTT_Software VX" package.A program window will now appear in which you should first set the "correct" COM port for the USB interface No. 7168.6 in the selection window. (See following picture)If you are not sure which port to use, check the COM port in the "Select Port" window in the "Menu" of the "Firmware_Up-grade_grStudio" and note down the COM port number for the "Silicon Labs CP210x USB to UART Bridge" entry – in this case "COM03". (If you select the wrong port, you will be alerted to this when you read out the receiver data). Click on "File" to load the corre-sponding firmware file named "MicroStabi7X_V_XX.bin" from the hard disc ("XX" stands for the version number).

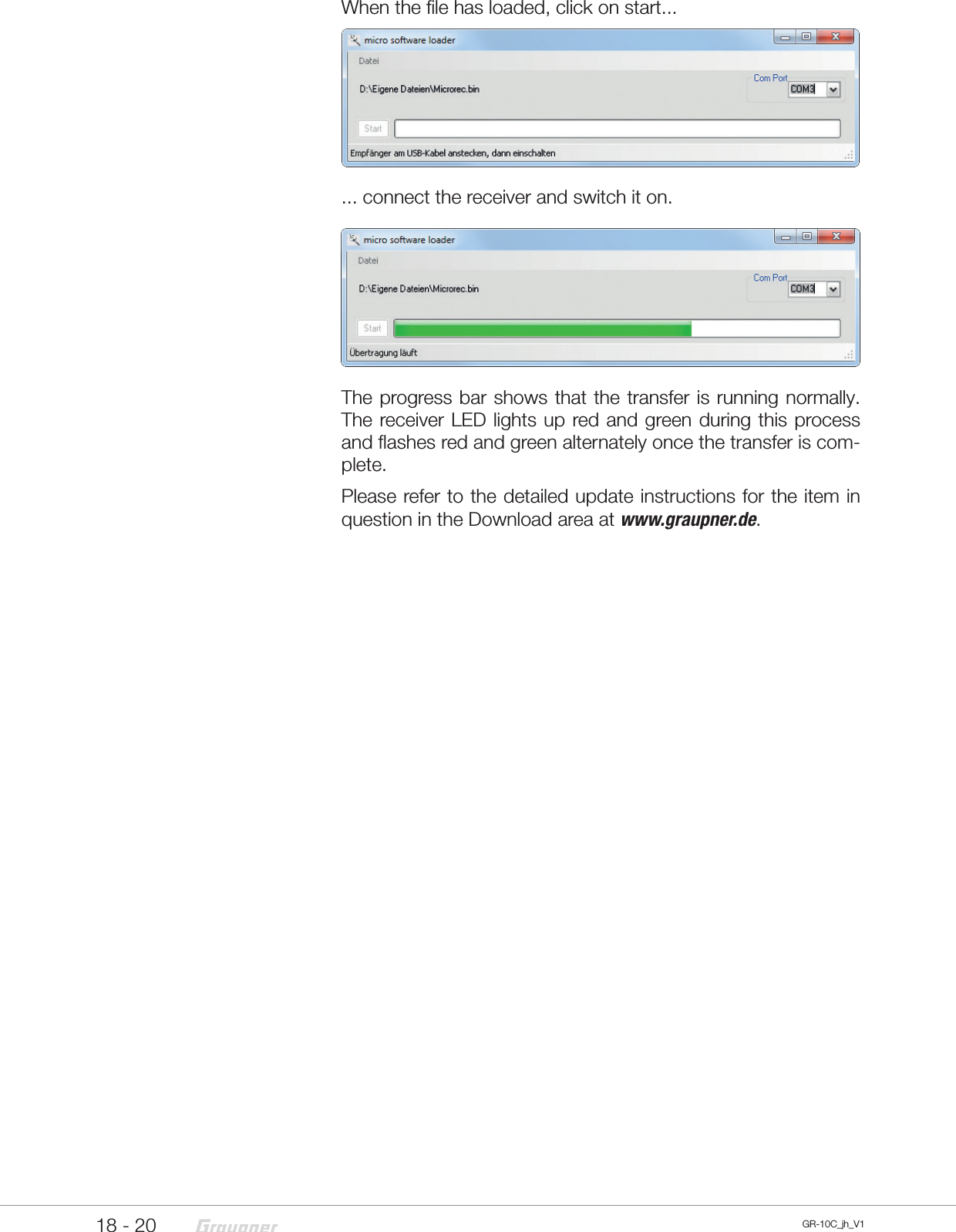

18 - 20 GR-10C_jh_V1When the file has loaded, click on start...... connect the receiver and switch it on.The progress bar shows that the transfer is running normally. The receiver LED lights up red and green during this process and flashes red and green alternately once the transfer is com-plete. Please refer to the detailed update instructions for the item in question in the Download area at www.graupner.de.
19- 20GR-10C_jh_V1Notes on environmental protectionDisposal notesThis symbol on the product, user manual or packaging indicates that this product must not be disposed of with other household waste at the end of its life. It must be handed over to the appli-cable collection point for the recycling of electrical and electronic equipment. The materials are recyclable as marked. By recycling, material reusing or other forms of scrap usage you are making an impor-tant contribution to environmental protection. Batteries and accumulators must be removed from the device and disposed of at an appropriate collection point. Please inquire if necessary from the local authority for the appropriate disposal site.Care and maintenanceNotes on careThe product does not need any maintenance, it works so as it is without any special care. In your own interests protect it from dust, dirt and moisture. Clean the product only with a dry cloth (do not use detergent!) lightly rub.Warranty certificateThe Graupner, Henriettenstrassee 96, 73230 Kirchheim/Teck grants from the date of purchase of this product for a period of 24 months. The warranty applies only to the material or opera-tional defects already existing when you purchased the item. Damage due to wear, overloading, incorrect accessories or improper handling are excluded from the guarantee. The legal rights and claims are not affected by this guarantee. Please check exactly defects before a claim or send the product, because we have to ask you to pay shipping costs if the item is free from defects.The present construction or user manual is for informational pur-poses only and may be changed without prior notice. The cur-rent version can be found on the Internet at www.graupner.de on the relevant product page. In addition, the company Graupner has no responsibility or liability for any errors or inaccuracies that may appear in construction or operation manuals. No liability can be accepted for printing errors.P

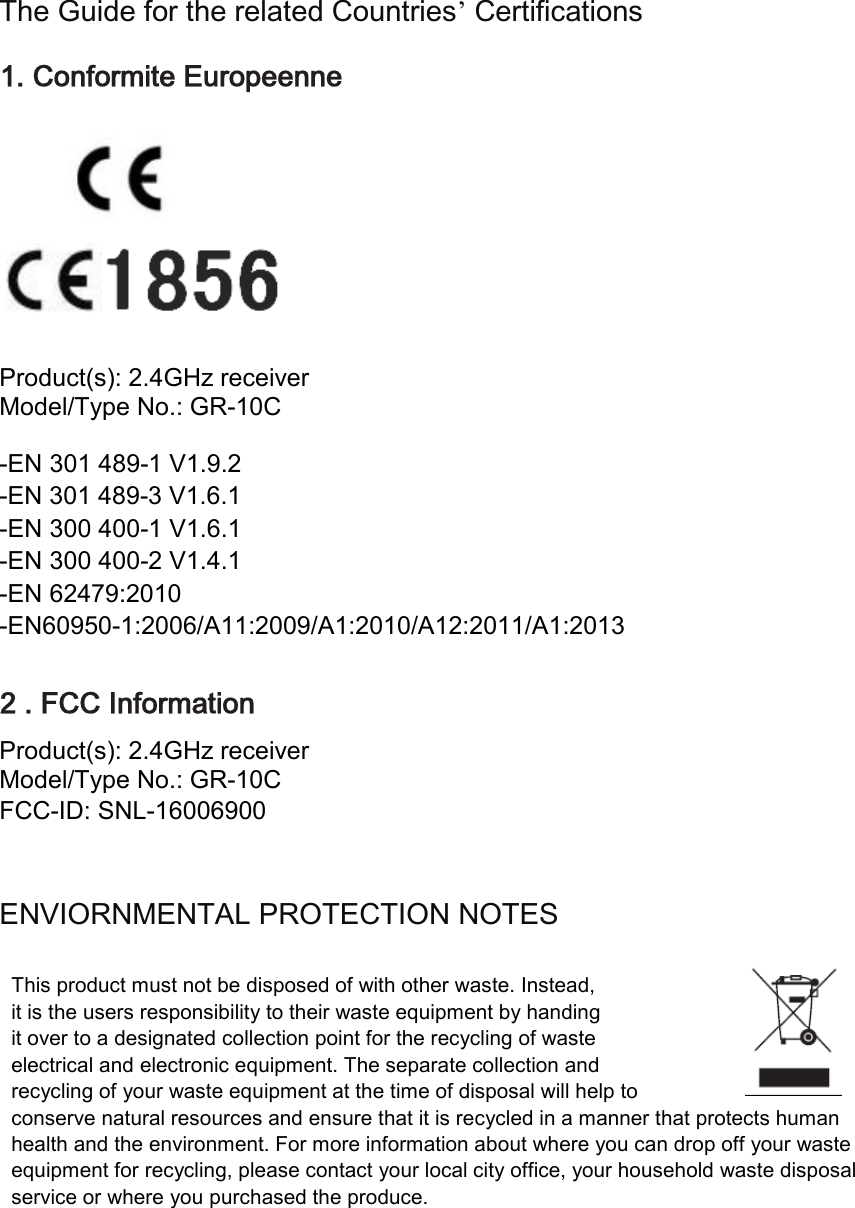

deliberant Page 1 The Guide for the related Countries’ Certifications 1. Conformite Europeenne Product(s): 2.4GHz receiver Model/Type No.: GR-10C -EN 301 489-1 V1.9.2 -EN 301 489-3 V1.6.1 -EN 300 400-1 V1.6.1 -EN 300 400-2 V1.4.1 -EN 62479:2010 -EN60950-1:2006/A11:2009/A1:2010/A12:2011/A1:2013 2 . FCC Information Product(s): 2.4GHz receiver Model/Type No.: GR-10C FCC-ID: SNL-16006900 ENVIORNMENTAL PROTECTION NOTES This product must not be disposed of with other waste. Instead, it is the users responsibility to their waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or where you purchased the produce.

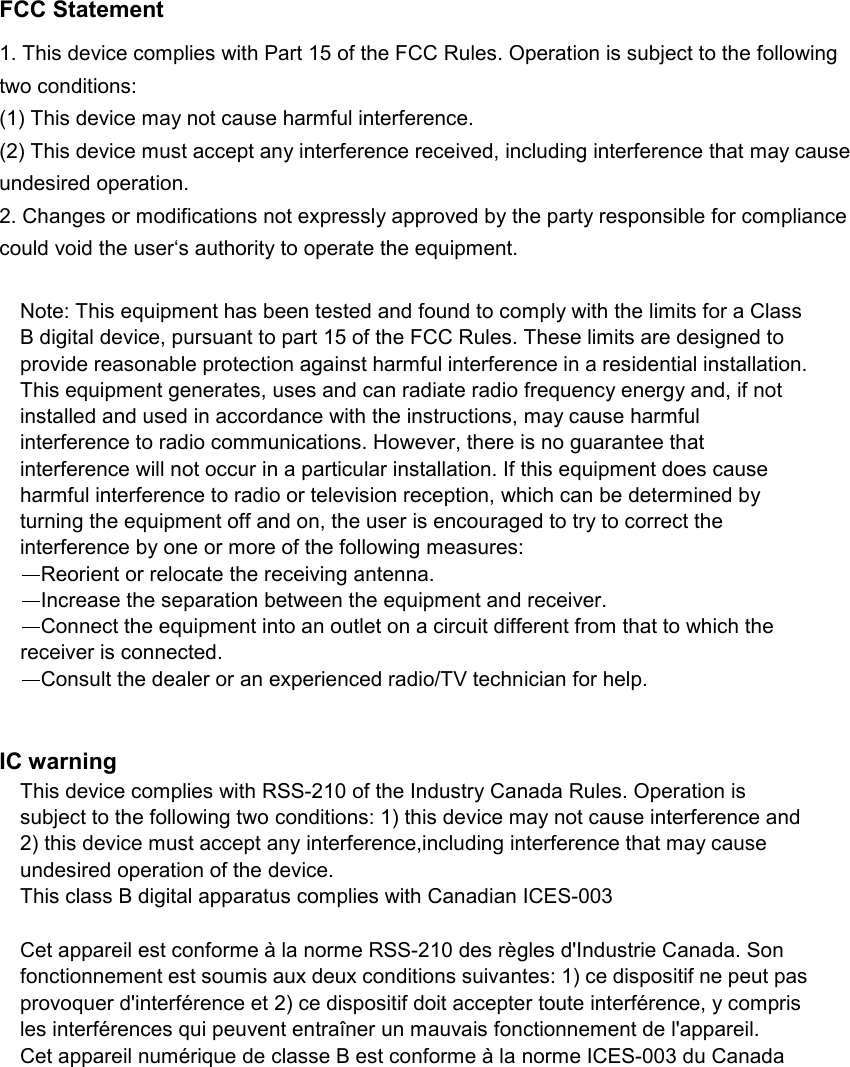

deliberant Page 2 FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. IC warning This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference,including interference that may cause undesired operation of the device. This class B digital apparatus complies with Canadian ICES-003 Cet appareil est conforme à la norme RSS-210 des règles d'Industrie Canada. Son fonctionnement est soumis aux deux conditions suivantes: 1) ce dispositif ne peut pas provoquer d'interférence et 2) ce dispositif doit accepter toute interférence, y compris les interférences qui peuvent entraîner un mauvais fonctionnement de l'appareil. Cet appareil numérique de classe B est conforme à la norme ICES-003 du Canada
