GRAUPNER 36204210 FREQUENCY HOPPING MODULE User Manual
GRAUPNER CO., LTD. FREQUENCY HOPPING MODULE
GRAUPNER >
User Manual
- 1 -
SJ 2.4GHz Transceiver Module TM01 & TM02
Integrators Installations Manual
1.Introduction
TM01 and TM02 Module consist of a 2.4GHz transceiver, Power Amplifier for 100mW output
and a Low noise Amplifier for improved receiver sensitivity.
2.Specification
1)Operating Voltage
TM01: DC 3.3V
TM02: DC 3.3V
2)Operating Current
TX Mode: 160mA
RX Mode: 35mA
3)Frequency: 2400~2483.5MHz
4)RF output Power: Max 18.53dBm
5)Dimension
TM01: 32mm x 70mm x 5.7mm
TM02: 32.8mm x 60.05mm x 4.2mm
3.Antenna Spec
Appropriate FCC/CE/KC standards specified below 1.2dBi antenna is used.
-KMAP2440S2522T1: 2.4GHz Patch Antenna, 0dBi
-KMAP2440S2525T1: 2.4GHz Patch Antenna, 0.5dBi
-WPC.25A.07.0150C: 2.4GHz Patch Antenna, 0.5dBi
-C329-RF-001: 2.4GHz Dipole Antenna, 1.2dBi
-AT000067: 2.4GHz Dipole Antenna, 1.2dBi
- 2 -

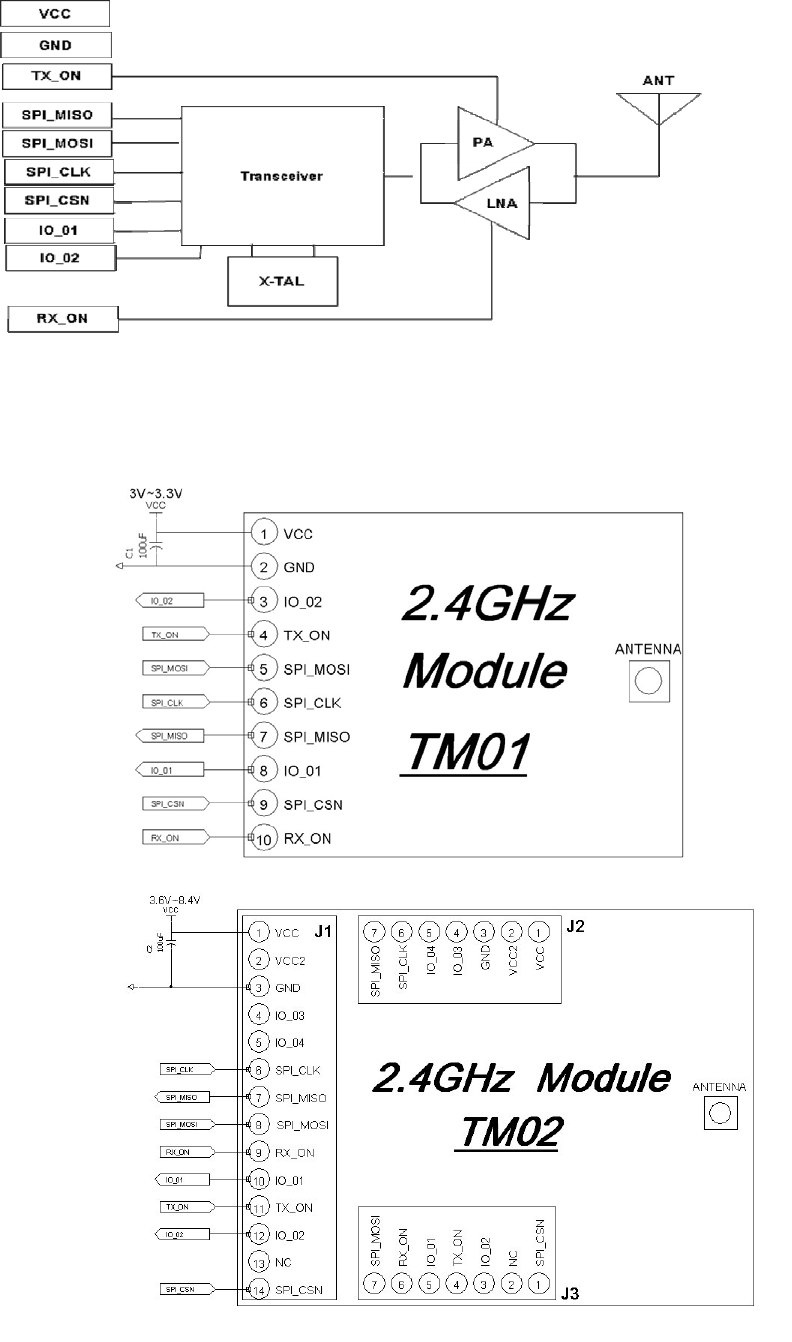

4.Block Diagram
5.Application Schematic
TM02 is controlled by J1 or J2 and J3.
- 3 -
6.SPI Interface and Packet format
[Configuration Register Write and Read Operations]
[SPI Interface Timing Requirements]
[Packet Format]
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution
Modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
FCC Compliance Information : This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation
IMPORTANT NOTE:
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.This transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter or antenna,
3) OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change.
As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed (for example, digital device emissions, PC peripheral requirements,
etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID can not be used on the final product. In these circumstances, the
OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
Maximum antenna gain allowed for use with this device is 1.
GUIDANCE REQUIREMENT / RESPONSIBILITY: Pursuant to the Transmitter
Module Equipment Authorization Guide (KDB 996369 D01), the party responsible for the
module grant shall provide guidance to the host manufacturer for compliance with the Part
15B requirements. Please acknowledge and document this responsibility.
