Chameleon 8 01

User Manual

™

NOTICE:

This catalog provides a summary of the basic product specifications and features. Before using

each product, please thoroughly read this user manual. Because of our continuous research for

improvements, the contents in this catalog may be changed without prior notice. Since the

image of each product is printed, the color of the photo may be different from that of the real

product. This manual contains proprietary information protected by copyright. All rights are

reserved. No part of this manual may be reproduced by any mechanical, electronic or other

means, in any form, without prior written permission of the manufacture. We will be exempted

from responsibility for any damage which may be caused by any defect of this product.

Table of Contents

1. Hardware………………………………………………………………………………..3........

1.1 Packaging……………………………………………………………………………..

1.2 Contents……………………………………………………………………………....

1.3 Tablet Details ………………………………………………………………………

1.4 Device Labeling and Security ………………………………………………….

1.5 Charger Details………………………………………………………………………

1.6 Switch Device ON/OFF……………………………………………………………………….

1.7 Charge Device……………………………………………………………………………..

1.8 Insert USB……………………………………………………………………………………………….

1.9 Insert HDMI………………………………………………………………………………..

1.10 Insert SIM…………………………………………………………………………………………………..

1.11 Insert SD………………………………………………………………………………………………………..

1.12 Insert Headphones …………………………………………………………………………………

1.13 Tablet Lock……………………………………………………………………………………………….

1.14 Stylus (Digital Signature Pen)……………………………………………………..

1.15 Fingerprint Capture……………………………………………………………………….

1.16 General Notes……………………………………………………………………………

3. Product Specifications…………………………………………………………………………………….

2. Troubleshooting…………………………………………………………………………………………….

4. Health and Safety Information………………………………………………………………………..

5-7

17-19

1. Hardware

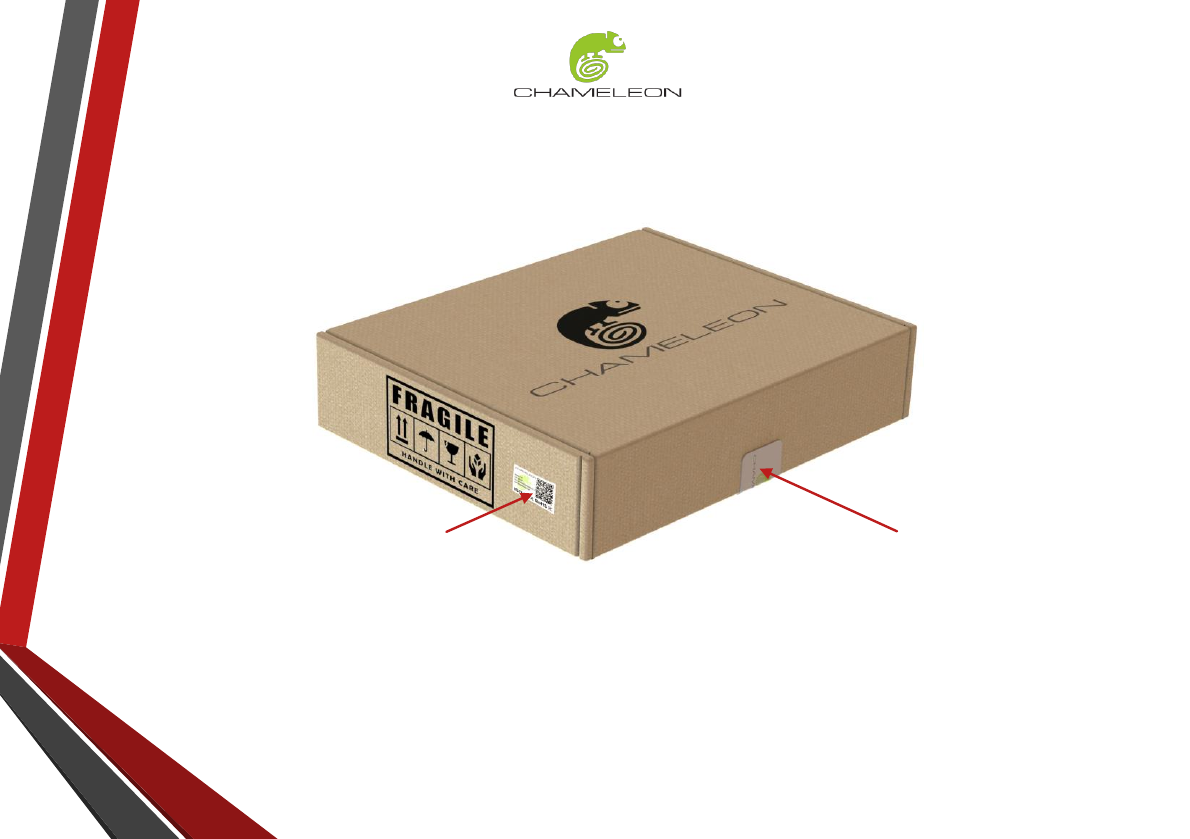

1.1 Packaging

Size: 328mm x 267mm x 72mm

Weight: 1.4kg

•Each Chameleon device is neatly foam-packaged inside a clearly marked carton box.

•Each box is sealed with a tamper evident seal to ensure quality and authenticity.

•Check to ensure that the ‘Tracking & Security Label’ on the side of box is an exact copy of the ‘Tracking &

Security Label’ located on the back of the biometric tablet.

Tamper Evident Seal

Tracking & Security Label

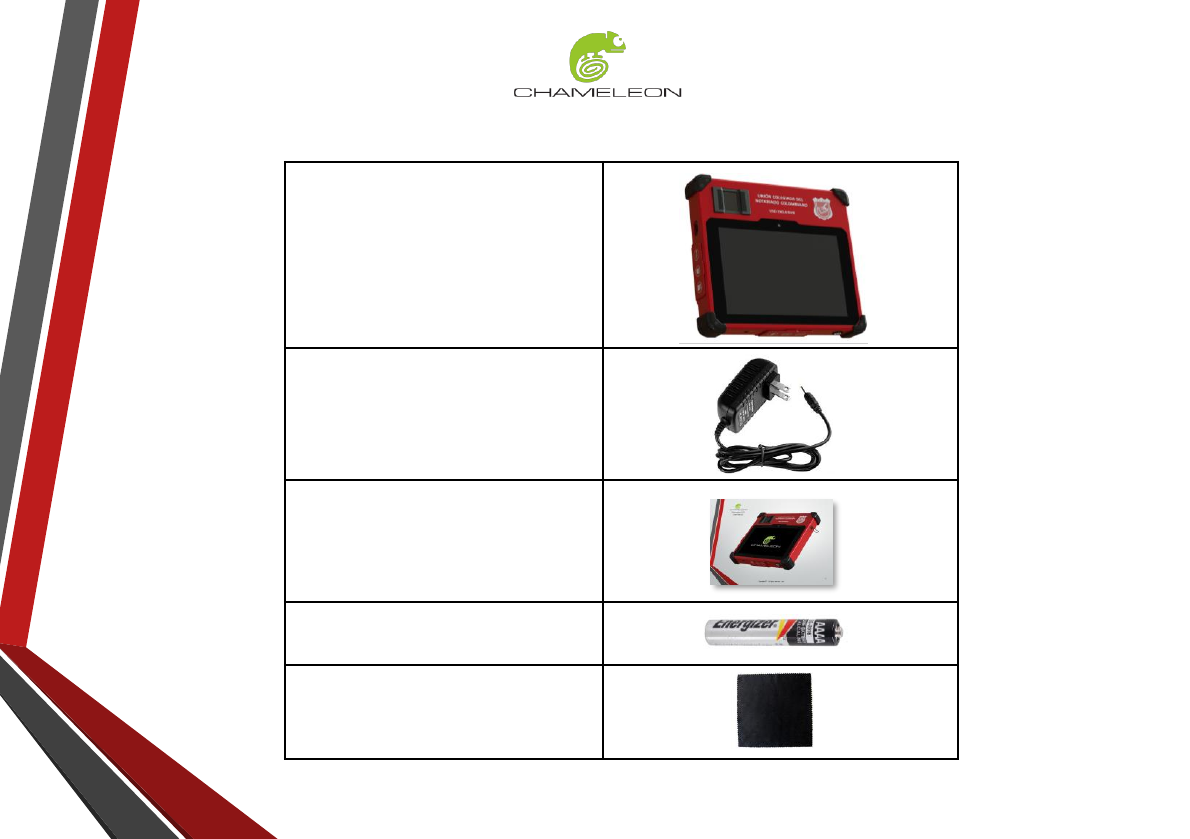

1.2 Contents

1 x Chameleon Biometric Tablet

(with Stylus)

1 x DC Charger

1 x User Manual

1 x Screen Cleaning Cloth

1 x AAA Spare Stylus Battery

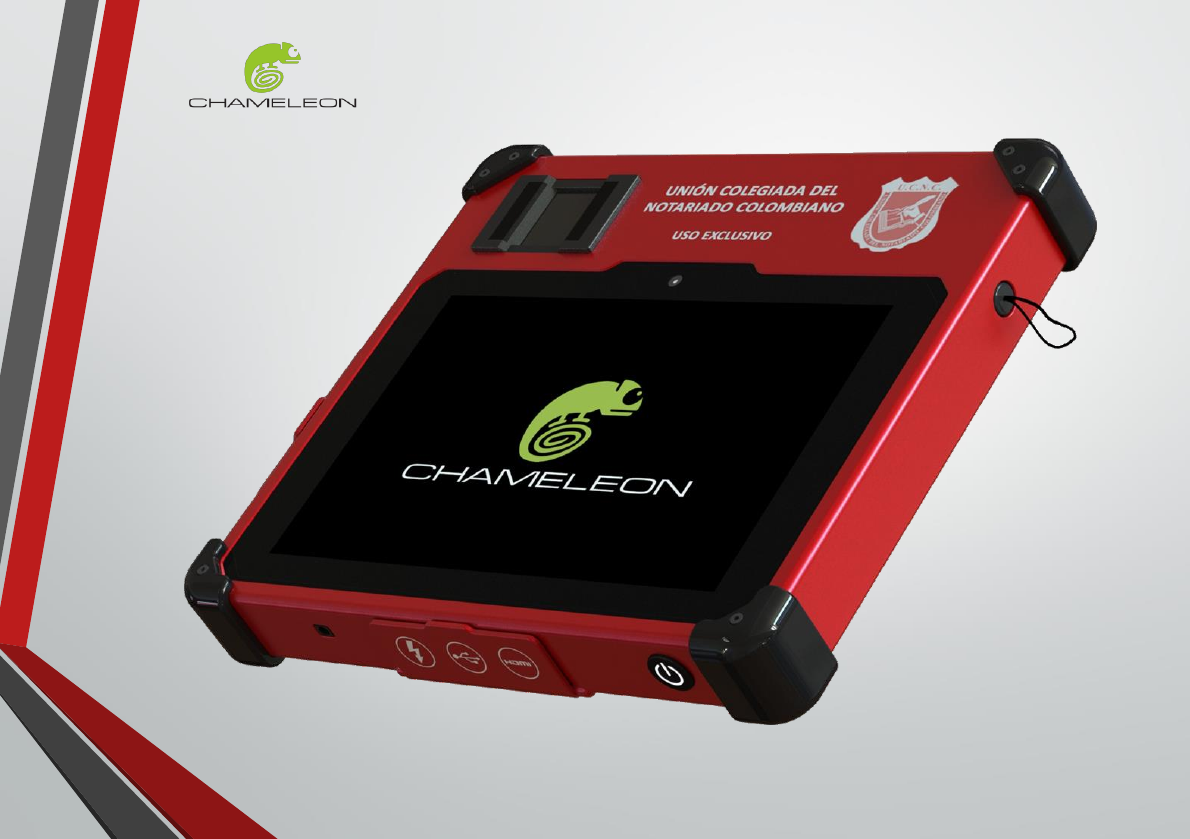

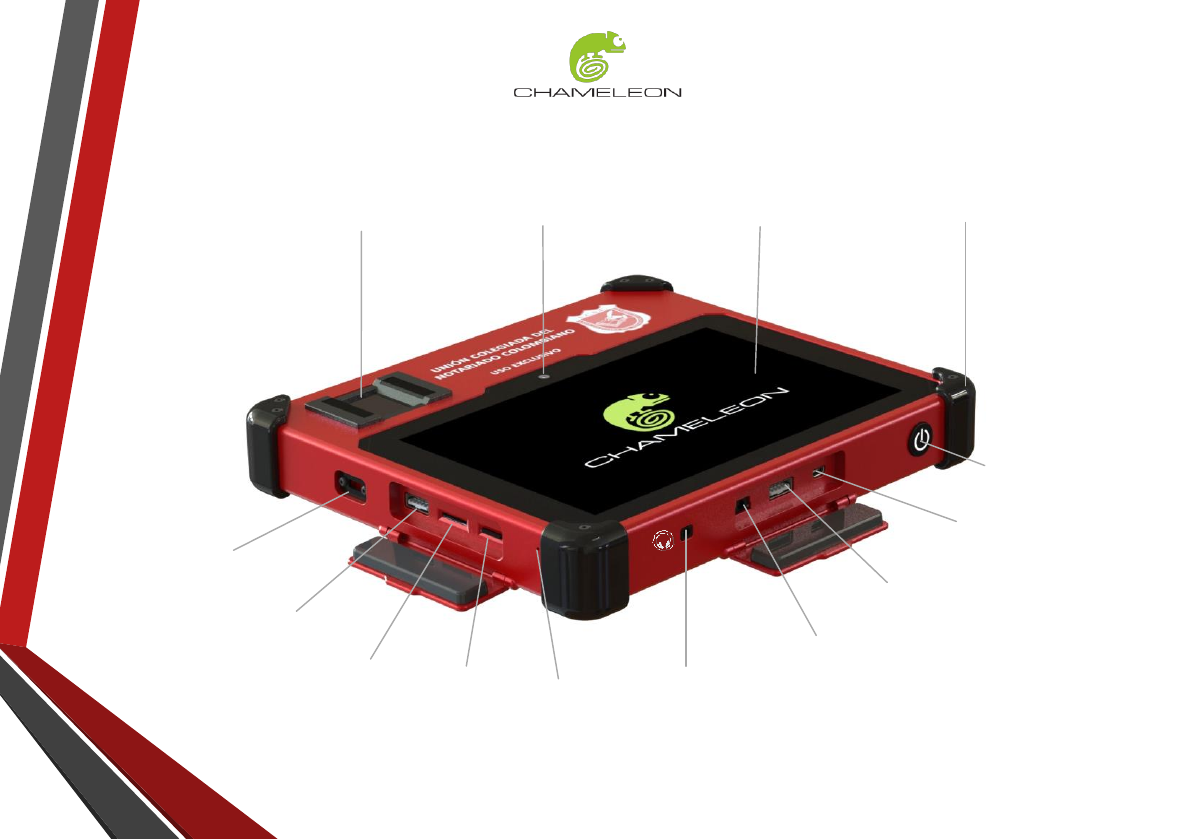

1.3 Tablet Details

Optical Fingerprint Scanner

Lock Slot

Rugged Corners

ON/OFF Switch

8” Touch ScreenFront Camera

SIM Port TF Port

(micro SD)

DC Charge Input

Headphones

USB Port

HDMI Port

Microphone

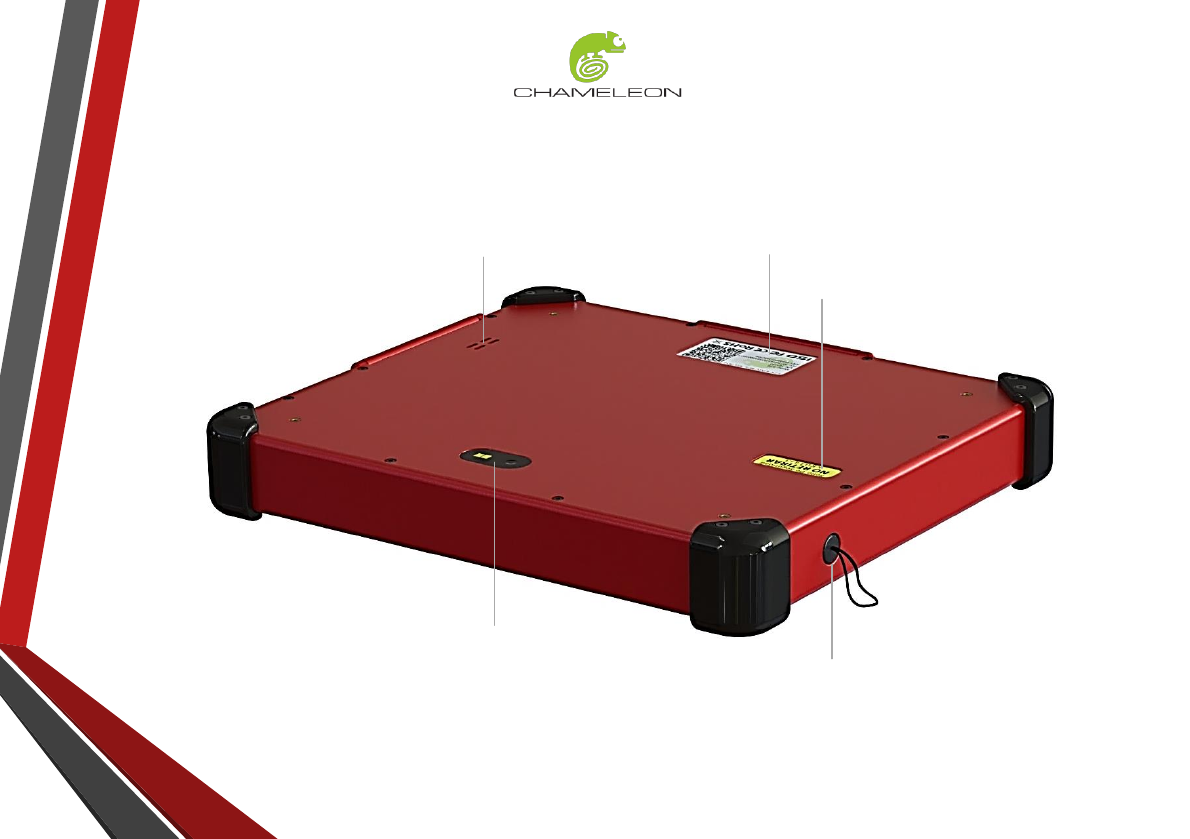

1.3 Tablet Details

Back Camera & Flash

Speaker

Stylus Pen

Tamper Proof Seal

Tracking & Security Label

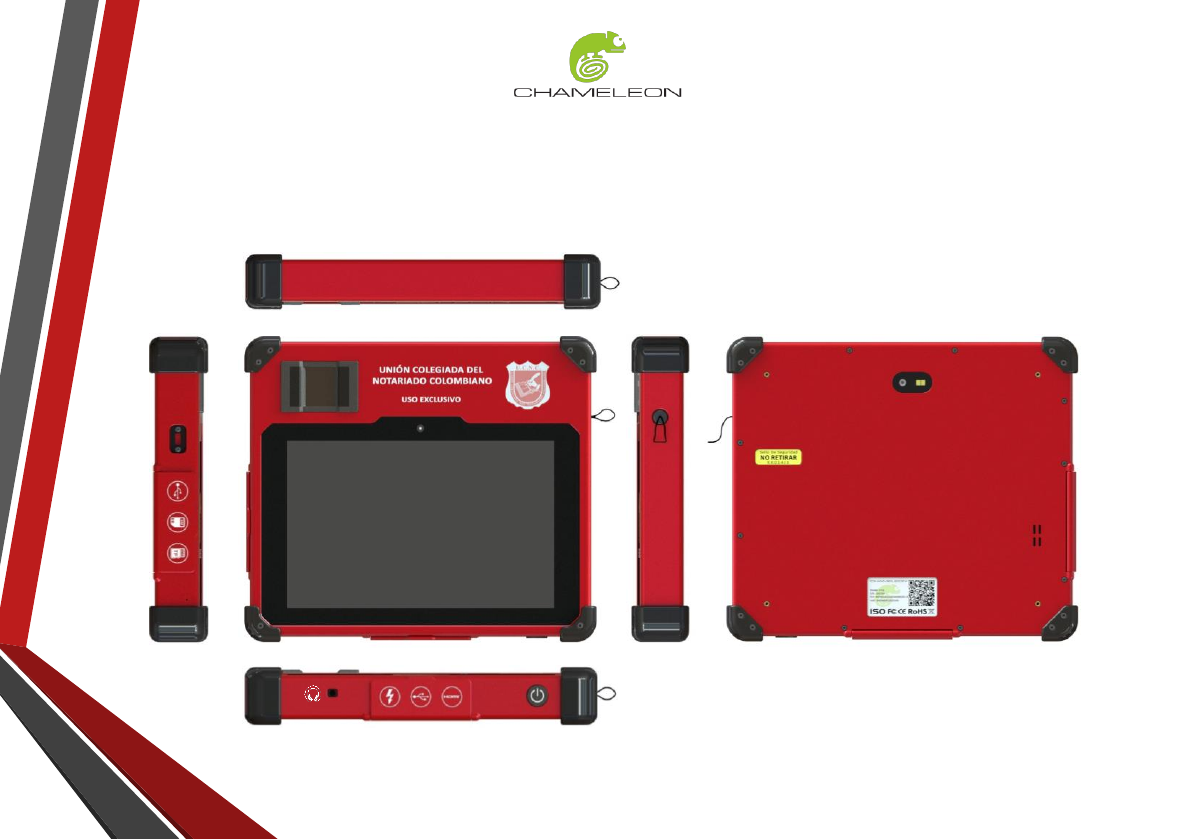

1.3 Tablet Details

DIMENSIONS: 227mm x 197mm x 35mm

WEIGHT: 990g

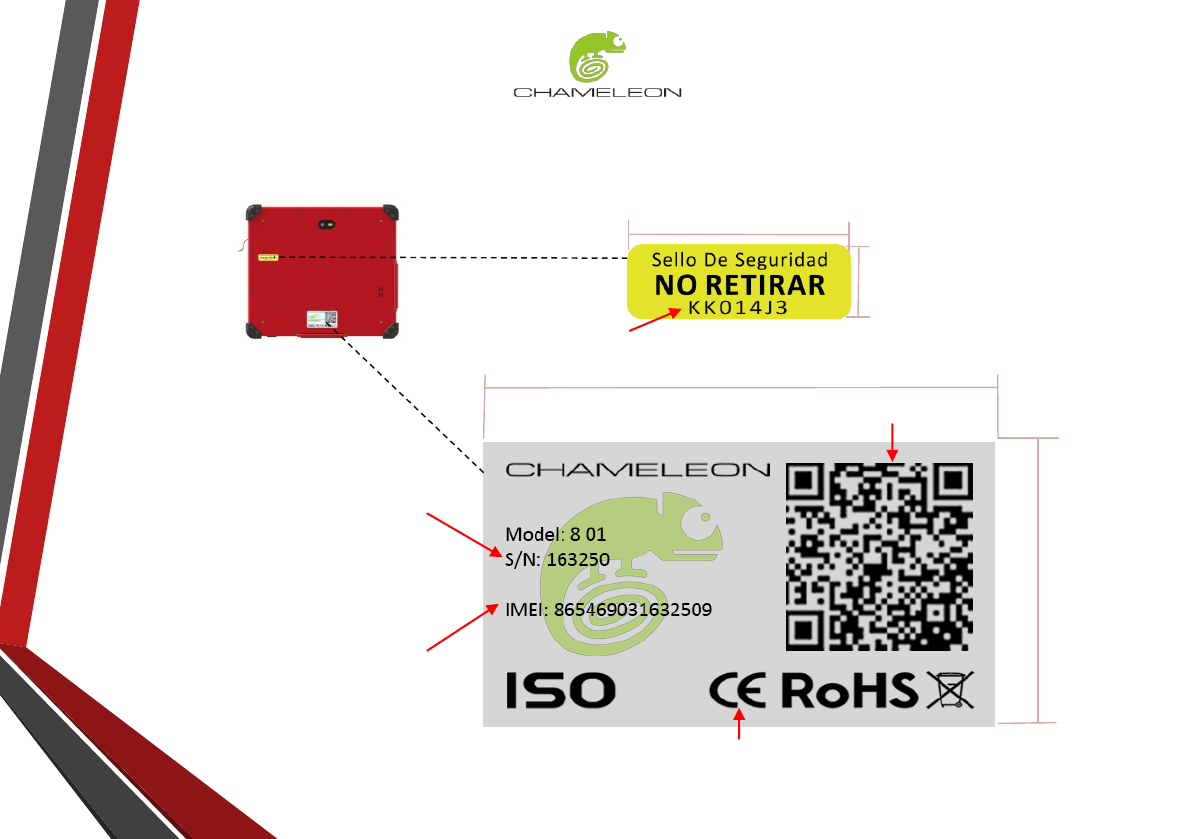

1.4 Device Labeling and Security

Tracking and Security Tamper Evident Labels (Located on the back of device) DO NOT REMOVE!!!!

45mm

25mm

QR-Code

Unique Serial-Number

Unique IMEI- Number

Certifications

30mm

10mm

Unique Serial-Number

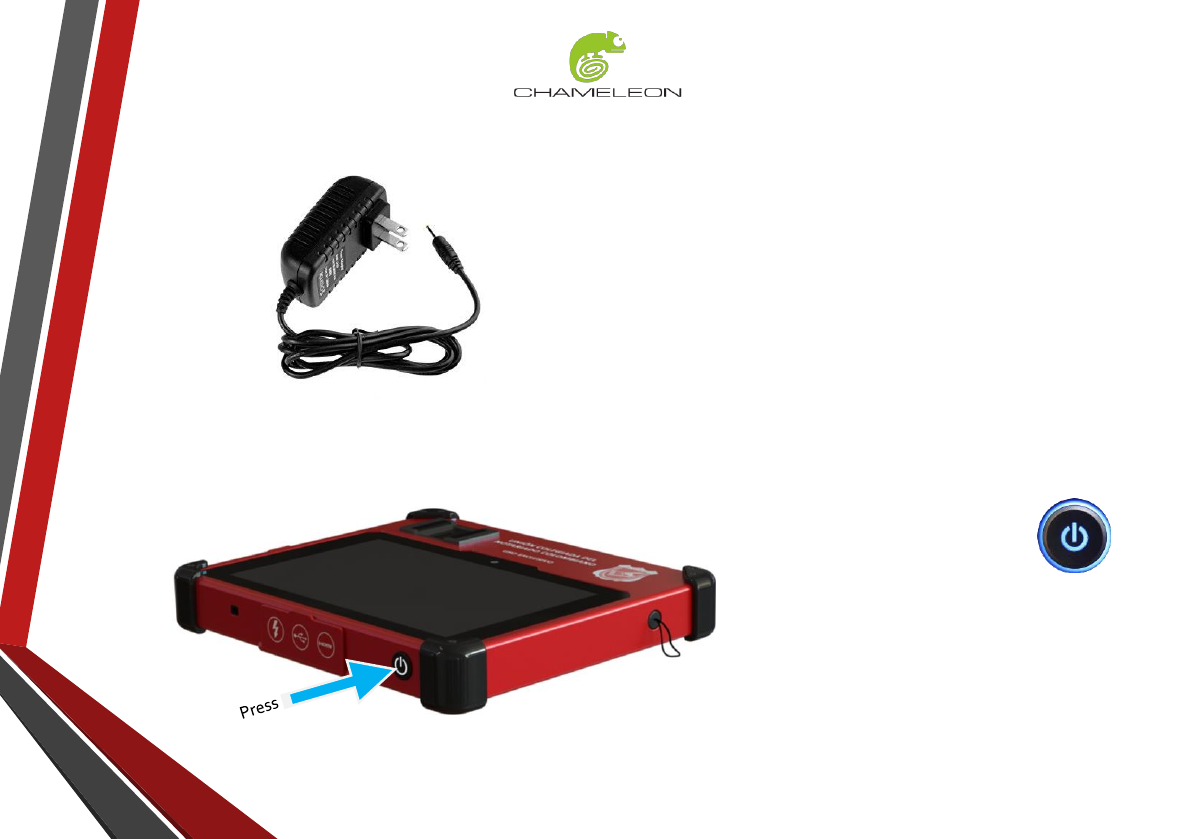

1.5 Charger Details

•AC/DC Adapter

•Input: 100-240V~50/60Hz, 0.8A

•Output: 5V-----5.0A

•Conforms to UL STD.60950-1

•Certified to CSA STD. C22.2NO.60950-1 for I.T.E use only.

1.6 Switch Device ON/OFF

POWER ON device:

•Press and hold the power button

for 3 seconds. The power button

will display a blue color LED light

and the screen will switch on when

device is active.

POWER OFF device:

•Shut down Windows via the OS. The device is

inactive only when blue LED light on power

button turns off.

•If system can’t shut down via OS, press and

hold the power button for 20 seconds to initiate

a complete system reset.

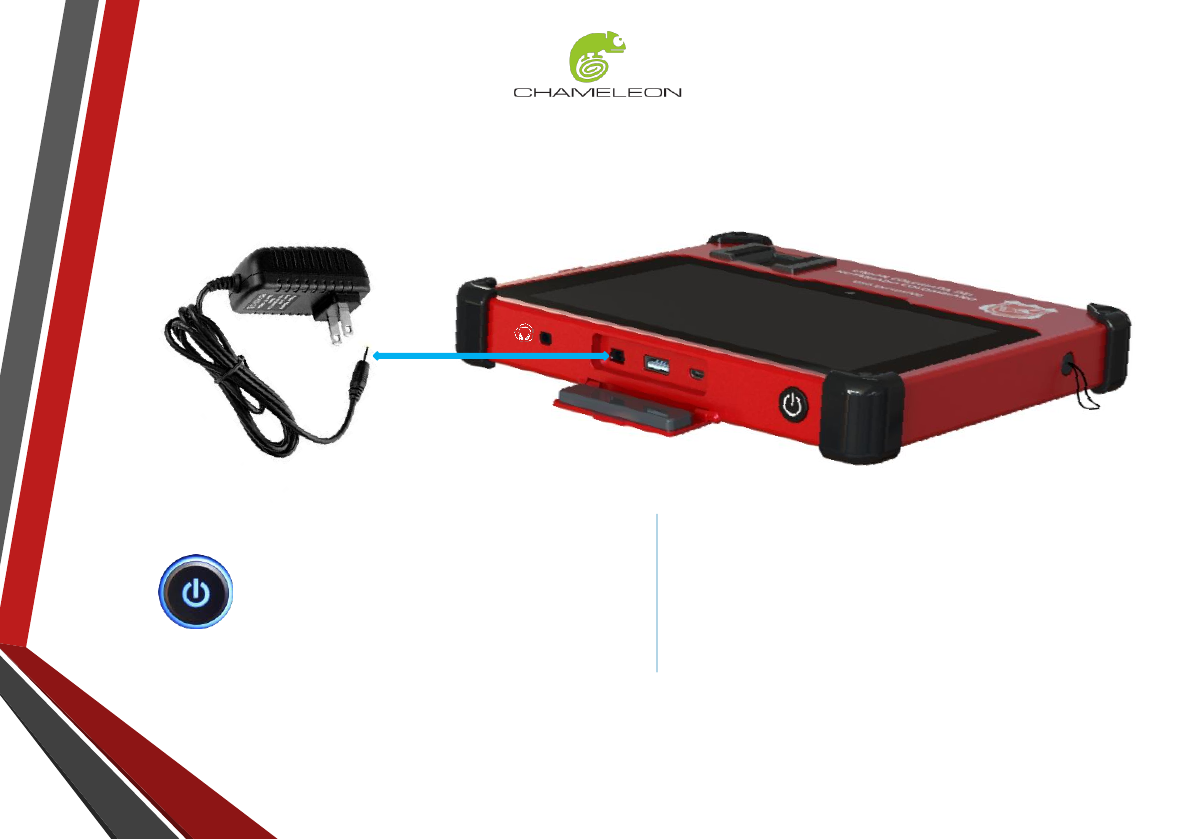

1.7 Charge Device

AC/DC Adaptor Biometric Tablet

Charge when device is power-off:

•Plug AC Adaptor (Charger) into wall plug

power outlet and connect the cable to Tablet.

•The blue power button LED light will turn on

for 3 seconds.

•This is the indication that the device is

receiving power and charging the battery.

Charge when device is power-on:

•Plug AC/DC Adaptor (Charger) into wall plug

and connect cable to Biometric Tablet.

•The Battery Icon on Status Bar in Windows

OS will indicate when device is charging.

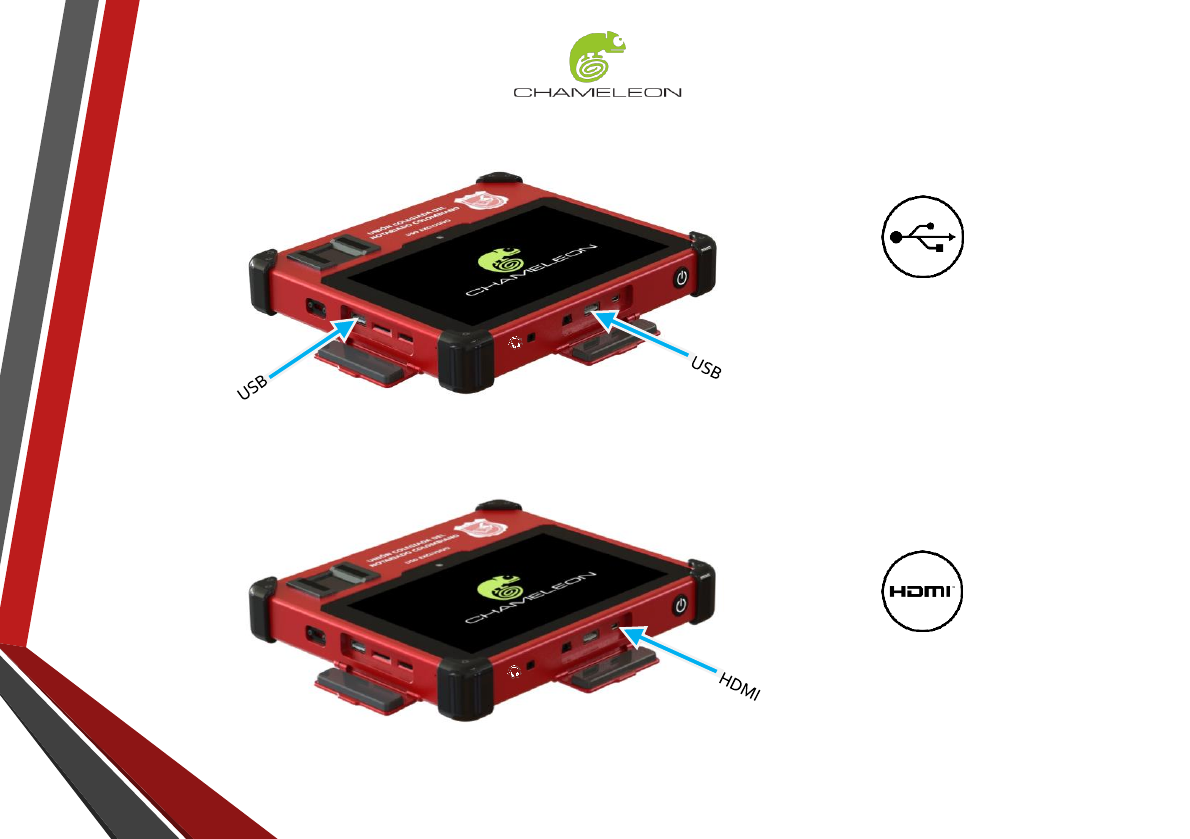

1.8 Insert USB

Insert USB into any of the

2 x available USB2.0 slots

1.9 Insert HDMI

Insert Micro HDMI into the

one available Micro HDMI slot

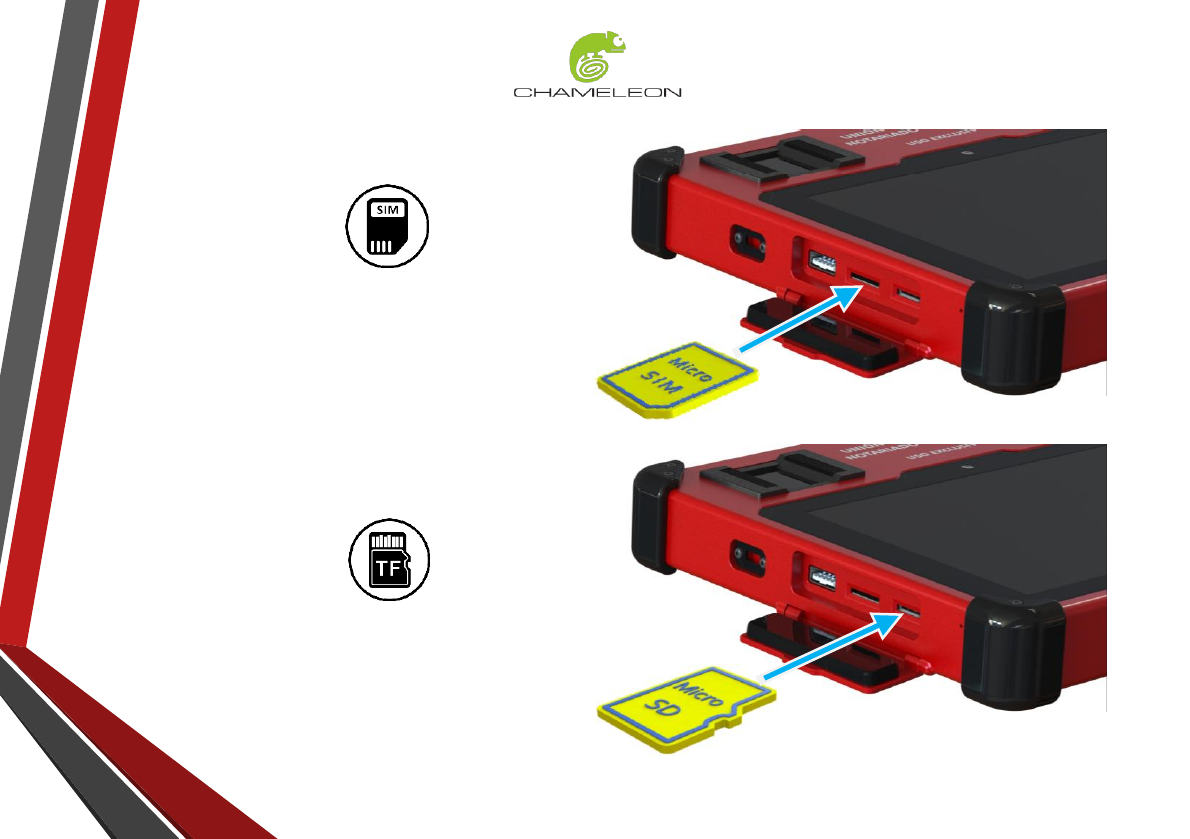

1.10 Insert SIM

Insert Micro SIM card into SIM card

slot. Make sure SIM orientation is

correct as per illustration.

1.11 Insert SD

Insert TF (Micro SD) card into FT card

slot. Make sure that the card

orientation is correct as per illustration.

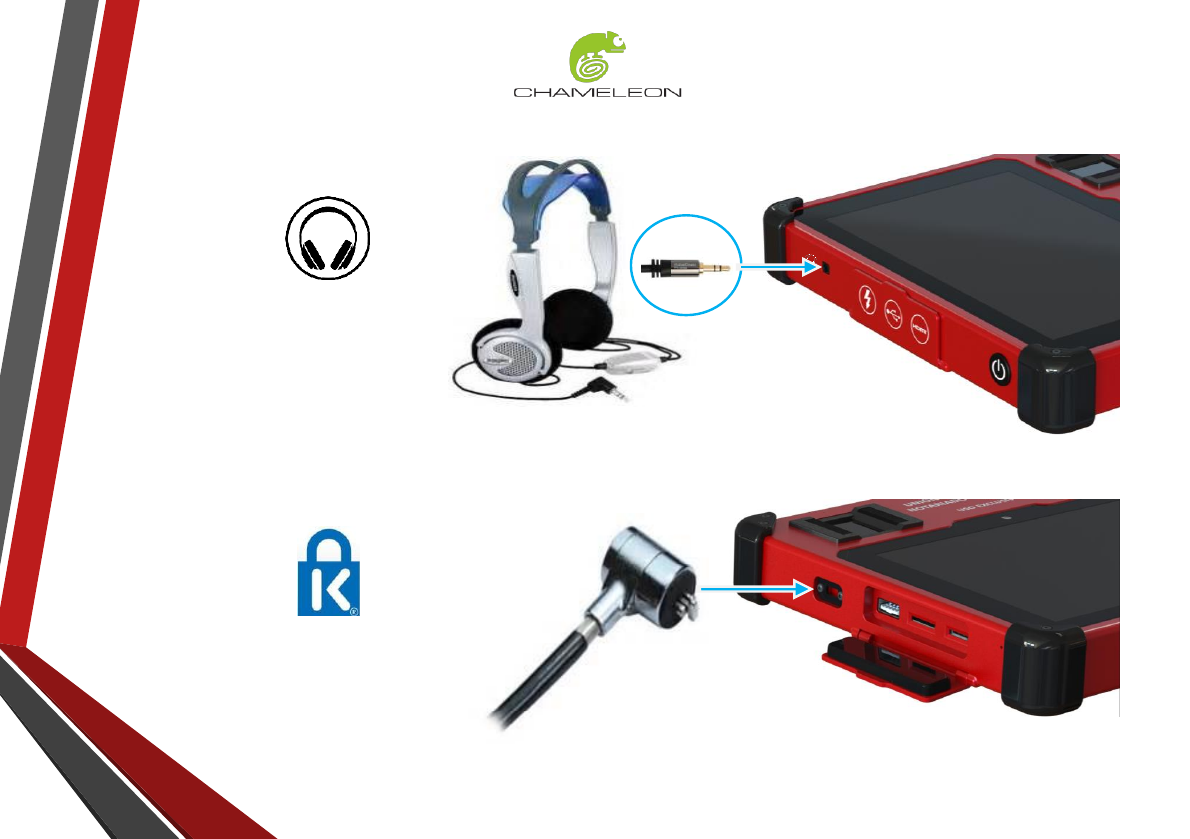

1.12 Insert Headphones

Insert 3.5mm Headphone

Jack into Audio Socket.

1.13 Tablet Lock

Protected by Kensington®

lock compatibility

3.5mm

Jack

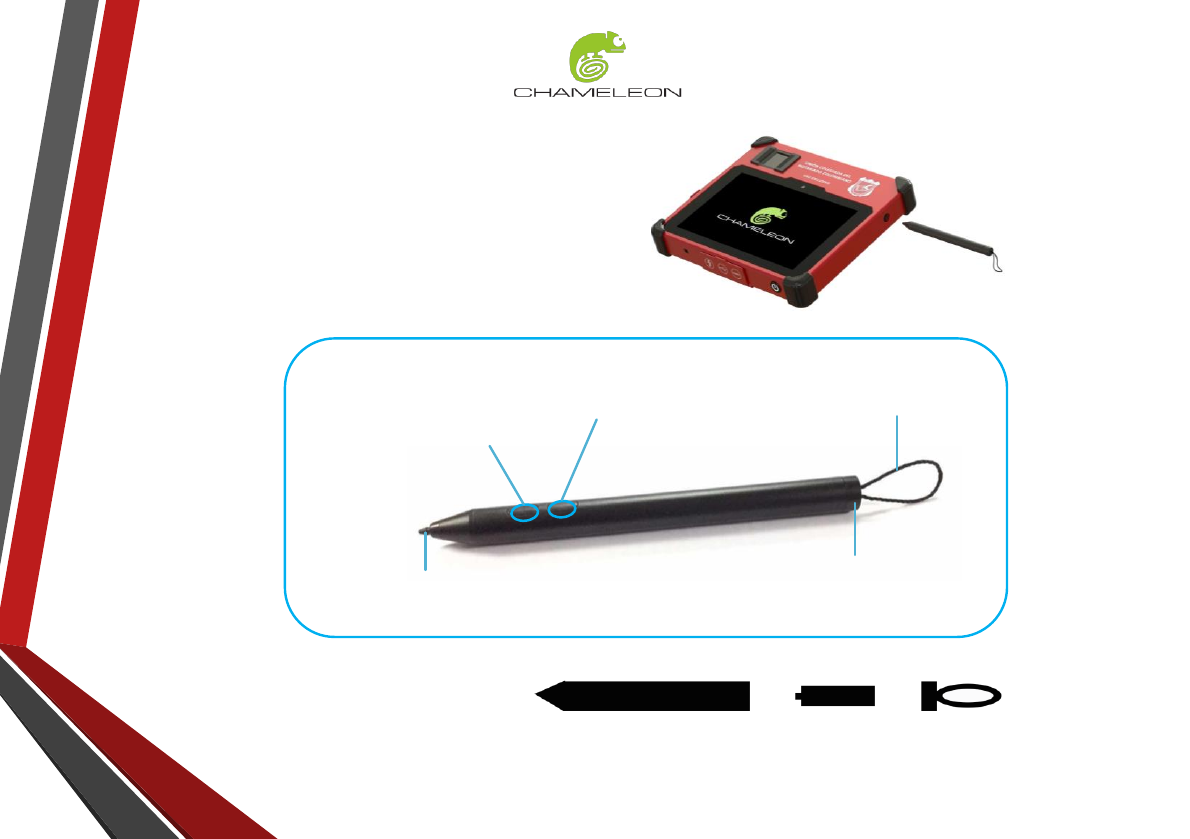

1.14 Stylus (Digital Signature Pen)

•The Stylus is a removable slide-in /

slide-out digital pen located on the

right side of biometric tablet.

•To use, simply pull Stylus out via the

string attachment.

Primary Button

•Click to select and hold

down to activate sub-

windows.

Eraser Button

•Hold down button to

erase digital lines.

String

Attachment

Removable

End Cap

Tip

Replacing the Stylus Battery: +_

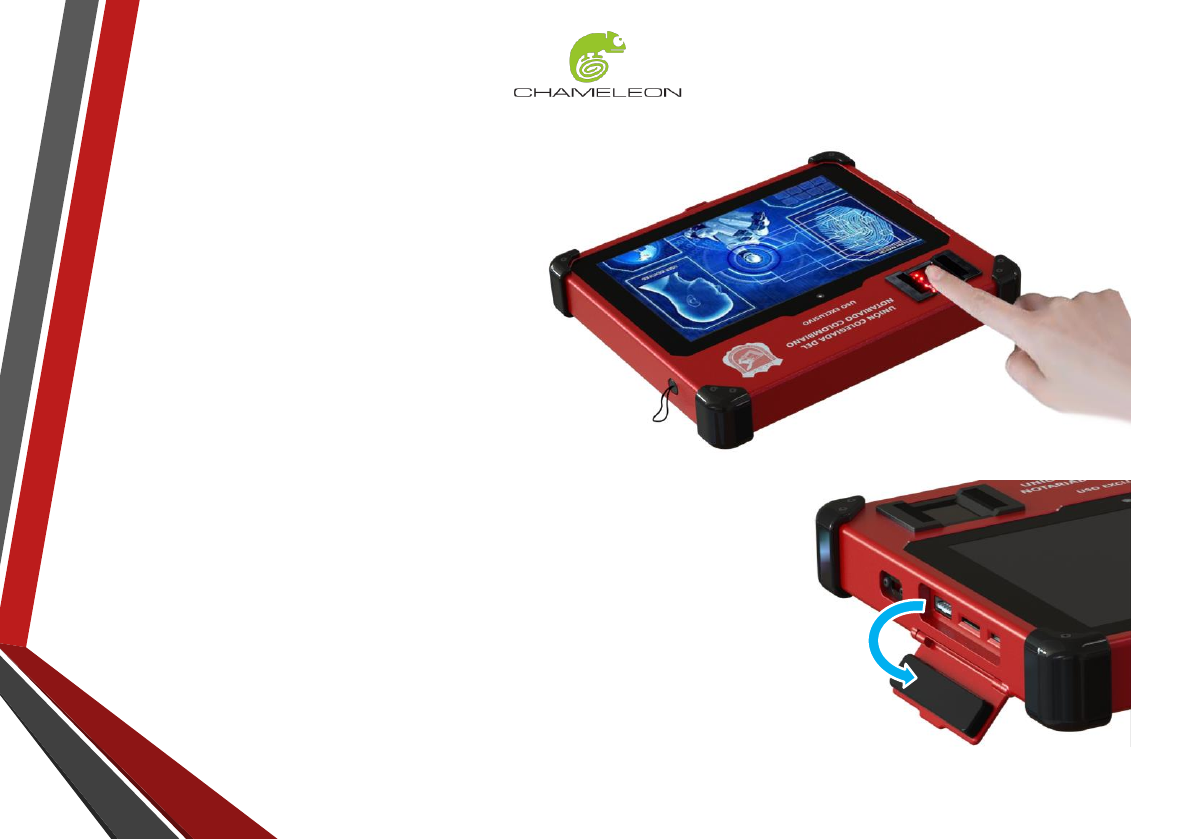

1.15 Fingerprint Capture

•The fingerprint sensor is initiated via the

software and will display a red LED light

on capture window when activated.

•Simply push down a single finger onto

the capture window to start a scan.

•Do not use excessive force.

•The fingerprint sensor is multi-

directional and can capture prints from

front or back.

•Always keep capture window clean.

1.16 General Notes

•Your Biometric Tablet is a product of superior design and

craftsmanship and should be treated with care.

•Do not use harsh chemicals, cleaning solvents, or strong

detergents to clean the mobile device.

•The doors on device can only open to 140°maximum. Do not try

to force the doors open wider as they will break.

•Do not remove or damage any of the 2 x tamper resistant seals on

the back of device.

•Do not try to force fit any card or cable into the device ports.

•DO NOT OPEN THE DEVICE! Only manufacturer trained and

approved technicians are allowed to open the device.

140°MAX

1.Q: How do I reset the Stylus?

1.A: Pull out and remove the tip of the Stylus. Unscrew the end cap on the back of the Stylus and remove the battery.

- Now reconnect the battery and screw the end cap back on. Lastly push the tip of the Stylus back in.

2.Q: How do I retrieve my Stylus should string attachment break?

2.A: *Use paper clip (or similar object) to slightly extrude Stylus-end and remove.

*or Notify a trained technician to retrieve the Stylus.

NOTE: After retrieving Stylus the back end cap must be replaced with a new one.

3.Q: My fingerprint reader is not detecting any fingerprints?

3.A: Step 1 : Make sure the finger capture window is clean and dry.

Step 2 : Check if red LED light turns on in capture window (showing device is powered on). If light does not turn on,

restart your tablet

Step 3 : If fingerprint reader is still not working, go to device manager in your Windows OS and confirm if device is

detected. Also confirm that driver is installed.

Step 4: Contact your software support for help. If problem is not software related, he will contact an approved

technician to open device and repair problem.

4.Q: Why does my tablet not detect my sim card?

4.A: Note that sim cards are not hot-swappable! Tablet must be shut down (not only restarted) before replacing sim

cards. If problem persists, check if modem in detected in device manager and confirm that latest drivers are

installed. Contact technical support should problem persist.

2. Troubleshooting

3. Technical Specifications

Operating System

Microsoft Windows 10 Home X64 Bit System

High Performance System

CPU:

Intel® Atom™ x5-Z8350 Processor

2M Cache, 1.44GHz (up to 1.92 GHz)

GPU: Gen8

-LP 12EU up to 500MHz

Supported Display: MIPI 1900 x 1200 @ 60fps

HDMI 1.4b 1920 x 1080 @ 60fps

High Speed Internal Memory/Storage

4GB RAM DDR3L

32GB ROM (EMMC 4.51)

Display

8” 10-Point G+G Capacitive Multi-Touch LCD Display

Corning Antiglare Glass, Sunlight Readable

Resolution: 1200x800 Pixels, 680 cd/m2

Media Supported

H.263, MPEG4, H.264, H.265

(HEVC), VP8, VP9, MVC, MPEG2, VC1, JPEG

Cellular

Connectivity

3G Modem

: Fibocom H380-Q50-00 Module

GSM/GPRS/EDGE Band(MHz): 850&900&1800&1900

WCDMA Band(MHz): 850&900&1900&2100

HSDPA (

Mbps): 21

HSUPA (

Mbps): 5.76

-Fi Connectivity

802.11 b/g/n

Bluetooth Connectivity

Bluetooth 4.0

Camera

Back: Integrated 8.0 mega pixels, auto focus and LED flash

Front : 2.0 Mega Pixels

GPS

Integrated Monolithic GPS and GLONASS Receiver

Sensor

3Axis Sensor

3. Technical Specifications

Fingerprint Scanner

Optical Single Fingerprint Sensor

Resolution 500 dpi / 256

Gray

Platen Size 18.0mm x 25.4mm (0.71” X 1.0”)

Sensing Area 17.0mm x 25.0mm (0.67” x 0.99”)

Image Size 320 x 480 pixels

FBI PIV/FIPS 201 & FBI Mobile ID FAP20 Certified Image Quality

NIST certified interoperable image & template format standards

(ANSI

-378/ISO 19794-2, ISO 19794-4)

Image Compression Standard (WSQ)

Advanced Live Finger Detection (LFD) Technology

Works Under Direct Sunlight up to 100,000 Lux

Enrolment Time < 0.1 second

Verification Time < 0.1 second

Identification Time 100,000 matches / second

Ports

2 x USB 2.0 Ports

1 x Micro SIM,

1 x Micro SD(Max Support 128Gb)

1 X Micro HDMI

1 x DC Charge Port

1 X Audio Port (Supports 3.5mm Headphone Jack)

Protective Casing

Rugged IP65 Protective Housing

Anti

-impact ABS-PC Shell

Rubberized Corners

MIL

-STD-810G

1.5m Drop Tested

Water Resistant, Dust Proof and Shock Resistant

3. Technical Specifications

Speaker

1 x 1W Speaker

Microphone

1 x Internal Microphone

Battery

1 x Internal

Rechargable Lithium-Polymer 3.7V/13Ah Battery

Power Adaptor

Input: AC100

-240V 50/60Hz 0.8A Max

Output: +5v/5A

Signature Stylus

Digital

Signature Pen

1024 Pen Pressure Levels

0.5mm Hovering Hight

133pps Pen Digitizer Rate

AAAA Battery 1.5Volt

0.6~1.6V Battery Supply Voltage

Output Frequency 500KHz, approx. 1.5%

Active Force between 20g and 500g

Win 10 Certified

Dimensions

227mm x 197mm x 35mm

Weight

990g

Environmental conditions:

Operating conditions: Storage

Temperature

-10oC ~ +50oC -20oC ~ +60o

Humidity 10%<RH<90% 5%<RH<95%

(non

-condensing)

4. Health and Safety Information

This section outlines the safety precautions associated with using your Chameleon Biometric Tablet.

Warning: To avoid electrical shock, do not open device. Refer servicing

and repair to qualified personnel only.

Use the supplied AC adaptor only. If you use other types, it may cause

fire, electrical shocks or a malfunction.

Operating Environment

Remember to follow any special regulations in force in any area, and always switch your mobile device off whenever it is

forbidden to use it, or when it may cause interference or danger. Do not use your biometric tablet in restricted areas.

Switch your mobile device off in any facility where posted notices require you to do so. When connecting the mobile device

or any accessory to another device, read its user’s guide for detailed safety instructions. Do not connect incompatible

products. Most modern electronic equipment is shielded from Radio Frequency (RF) signals. However, certain electronic

equipment may not be shielded against the RF signals from your wireless mobile device. Consult the manufacturer to

discuss alternatives.

Cautions

Any changes or modifications to your mobile device not expressly approved in this document could void your warranty for

this equipment and void your authority to operate this equipment. Although your mobile device is quite sturdy, it is a

complex piece of equipment and can be broken. Avoid dropping, hitting, bending, or sitting on it. Keep your Chameleon

device away from liquids of any kind. Precipitation, humidity, and liquids contain minerals that will corrode electronic

circuits.

Other Important Safety Information

Only qualified personnel should service this device. Faulty service may be dangerous and may invalidate any warranty

applicable to the device. Ensure that any mobile devices or related equipment used in your vehicle are securely mounted.

Switch your mobile device off before boarding an aircraft. The use of wireless mobile devices in aircraft is illegal and may

be dangerous to the aircraft’s operation. Keep the mobile device and all its parts out of the reach of small children.

FCC RF EXPOSURE INFORMATION:

WARNING!! Read this information before using your Tablet

In August 1986 the Federal Communications Commission (FCC) of the United States with its action

in Report and Outer FCC 96-326 adopted an updated safety standard for human exposure to radio

frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are

consistent with the safety standard previously set by both U.S. and international standards bodies.

The design of this Tablet complies with the FCC guidelines and these international standards. Use

only the supplied or an approved antenna. Unauthorized antennas modifications, or attachments

could impair call quality, damage the Tablet, or result in violation of FCC regulations. Do not use the Tablet

with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn

may result. Please contact your local dealer for replacement antenna.

BODY-WORN OPERATION:

This device was tested for typical body-worn operations with the back/front of the Tablet kept 0cm

from the body. To comply with FCC RF exposure requirements, a minimum separation distance of 0

cm must be maintained between the user's body and the back/front of the Tablet, including the

antenna. Third-party belt-clips, holsters and similar accessories containing metallic components shall

not be used. Body-worn accessories

that cannot maintain 0cm separation distance between the user’s body and the back/front of the Tablet

, and have not been tested for typical body-worn operations may not comply with FCC RF

exposure limits and should be avoided.

For more information about RF exposure, please visit the FCC website at www.fcc.gov

Your wireless handheld portable Tablet is a low power radio transmitter and receiver. When it is

ON, it receives and also sends out radio frequency (RF) signals. In August, 1996, the Federal

Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for hand-

held wireless Tablet. Those guidelines are consistent with the safety standards previously set by

both U.S. and international standards bodies:

<ANSIC95.1> (1992) / <NCRP Report 86> (1986) / <ICNIRP> (1999)

Those standards were based on comprehensive and periodic evaluations of the relevant scientific

literature. For example, over 120 scientists, engineers, and physicians from universities, government

health agencies, and industry reviewed the available body of research to develop the ANSI Standard

(C95.1). Nevertheless, we recommend that you use a hands-free kit with your Tablet (such as an

earpiece or headset) to avoid potential exposure to RF energy. The design of your Tablet complies

with the FCC guidelines (and those standards).

Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications,

or attachments could damage the Tablet and may violate FCC regulations.

NORMAL POSITION:

Hold the Tablet as you would any other Tablet with the antenna pointed up and over your

shoulder.

RF Exposure Information:

This product is compliance to FCC RF Exposure requirements and refers to FCC website

https://apps.fcc.gov/oetcf/eas/reports/GenericSearch.cfm search for FCC ID: 2AM8GCHAMELEON to

gain further information include SAR Values.

This device complies with part 15 of the FCC rules. Operation is subject to the following two

conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause

undesired operation.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized

modifications to this equipment. Such modifications could void the user’s authority to operate the

equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates uses

and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

-Consult the dealer or an experienced radio/TV technician for help

Do not use the device with the environment which below minimum -10℃ or over maximum 50℃,

the device may not work.

Changes or modifications to this unit not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Ad Hoc function is supported but not able to operate on non-US frequencies.

GUANGZHOU LIE DUN ELECTRONICS TECHNOLOGY CHAMELEON IP54 - IP 67 Rugged Handheld, Desktop & Tablet Devices User Manual PowerPoint Presentation

GUANGZHOU LIE DUN ELECTRONICS TECHNOLOGY CO. LIMITED IP54 - IP 67 Rugged Handheld, Desktop & Tablet Devices PowerPoint Presentation

15_Chameleon UserMan

Navigation menu

Namespaces

Views

Navigation
