User Manual: Gaggia Silvia V3.5 Parts Diagram - New Boiler
Open the PDF directly: View PDF
.
Page Count: 15
RLCSILVIA v.10
SPARE PARTS CATALOGUE
en-US
SILVIA Page 2 / 15 SPARE PARTS CATALOGUE
RLCSILVIA v.10 16/01/2014
SILVIA
HOME LINE
SILVIA Page 3 / 15 SPARE PARTS CATALOGUE
RLCSILVIA v.10 16/01/2014
Index
Table 14001/08 - HOUSING SILVIA................................................................................................................................................ 4
Table 14002/08 - HYDRAULIC CIRCUIT/COPPER HEATING ELEMENT SILVIA ................................................................................. 6
Table 14002/13 - HYDRAULIC CIRCUIT/STAINLESS STEEL ELEMENT SILVIA .................................................................................. 8
Table 14003/08 - BREWING GROUP SILVIA................................................................................................................................. 10
Alphanumeric index..................................................................................................................................................................... 12

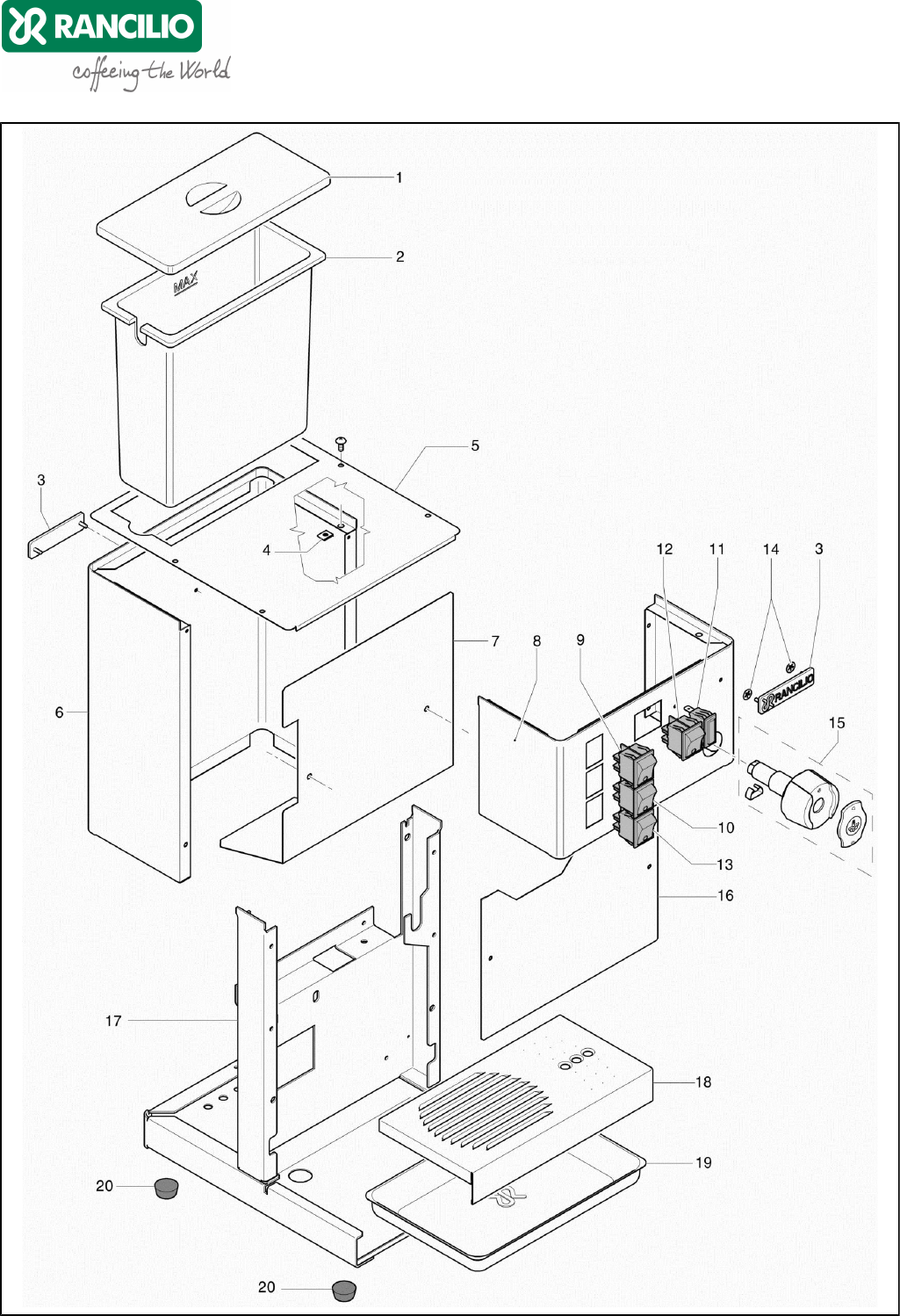

14001/08
HOUSING SILVIA
SILVIA Page 4 / 15 SPARE PARTS CATALOGUE
RLCSILVIA v.10 16/01/2014
14001/08
HOUSING SILVIA
SILVIA Page 5 / 15 SPARE PARTS CATALOGUE
RLCSILVIA v.10 16/01/2014
POS. CODE DESCRIPTION QTY START DATE END DATE NOTES
1 38123011 Cover 1
2 38123012 Water tank 1
3 42200121 Rancilio Plate MM 70 1
4 37900809 Plate U/8/11/9 1
5 32330363 SILVIA TOP 1
6 32330362 SILVIA BODY 1
7 32330367 SILVIA SHIELD 1
8 32330361 SILVIA FACE 1
9 34030047 TECNA COFFEE SWITCH 1
10 34030029 SWITCH WATER STYLE 1
11 34030060 INDICATOR 220V 1
12 34030037 ON-OFF SWITCH SILVIA /08 1
13 34030038 STEAM SWITCH FANTASY 1
14 37900505 ROUND FIXER D3 H106 1
15 10060186 WHOLE STEAM HAND WHEEL SILVIA /08 1
16 32330370 SILVIA/08 MOULDING 1
17 10880150 SILVIA FRAME 1
18 32330369 SILVIA LEAVE-CUP GRATE 1
19 32330365 SILVIA DRAIN TANK 1
20 36310008 NANCY Support black 1

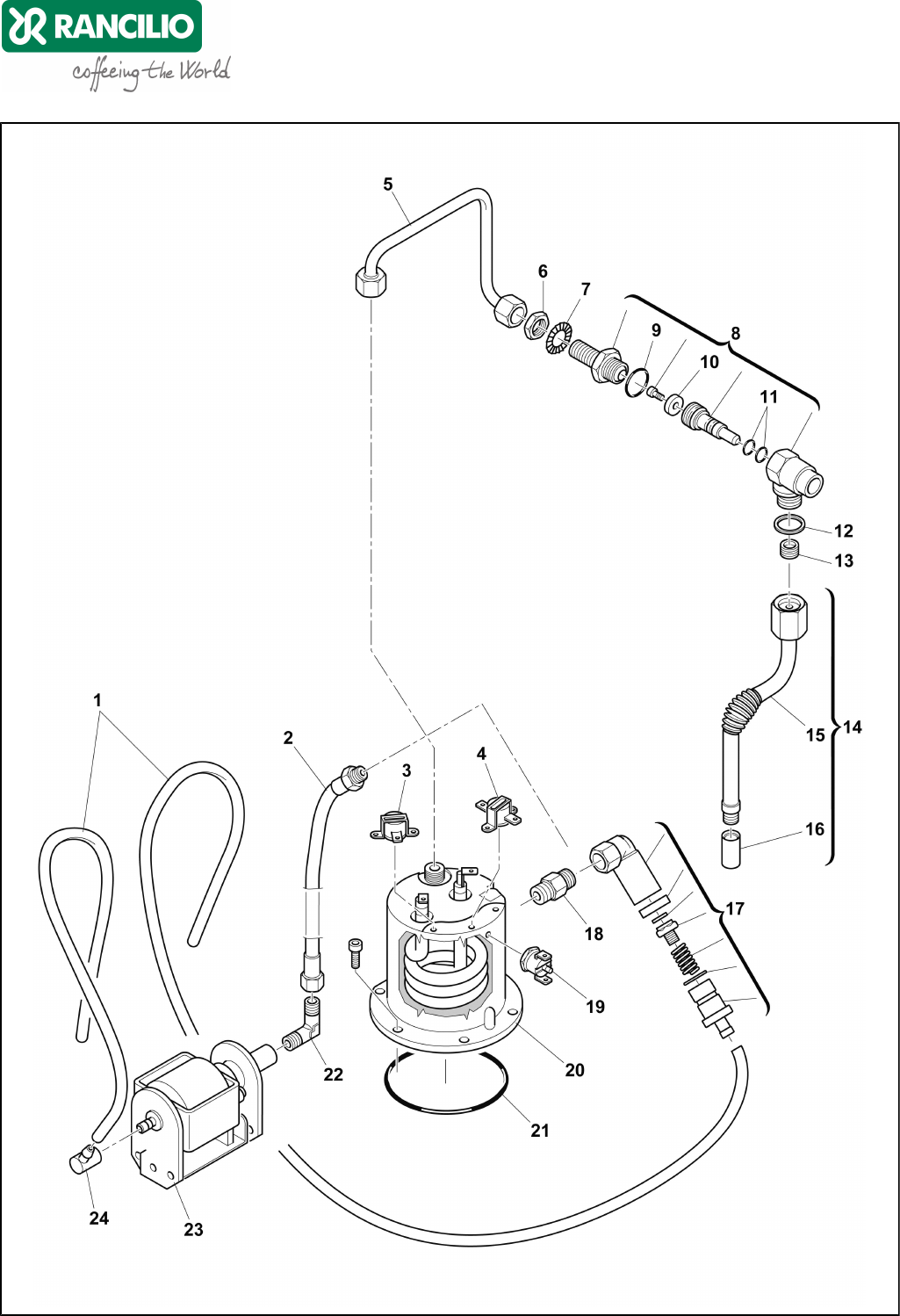

14002/08
HYDRAULIC CIRCUIT/COPPER HEATING ELEMENT SILVIA
SILVIA Page 6 / 15 SPARE PARTS CATALOGUE
RLCSILVIA v.10 16/01/2014
14002/08
HYDRAULIC CIRCUIT/COPPER HEATING ELEMENT SILVIA
SILVIA Page 7 / 15 SPARE PARTS CATALOGUE
RLCSILVIA v.10 16/01/2014
POS. CODE DESCRIPTION QTY START DATE END DATE NOTES
1 38228002 Silicone hose D. 9 x 6mmL = 560 mm 1
2 69000702 FLEX PIPE INOX LONGE MM.190 1/8F 1/8M 1
3 34200296 thermostat 100 Silvia 1
4 34200295 thermostat 140 Silvia 1
5 10042109 PIPE BOILER-STEAM COCK SILVIA 1
6 23217005 LOW NUT 1/4" GAS 1
7 37431400 WASHER DIAM.14 1
8 10060119 steam tap Silvia 1
10705169 STEAM COCK COMPLETE SILVIA 08 1
9 27350001 GASKET 3/8 SP. 1 Gas 1
10 36302002 Gasket Past Valve 1
11 36402001 Gasket O-Ring 6.07 X 1.78 EPDM 105 1
12 36220009 Gasket Nut Note Teflon 1
13 36930016 Gasket 1
39110038 Spring 1
14 10049063 STEAM PIPE SILVIA 1
15 36990004 Rubber for Steam PIPES 1
16 23000115 STEAM SPRAYER SILVIA 1
17 10060406 EXPANSION VALVE MISS 1
18 23000052 STEAM JUNCTION BOILER-EXPENC. VALVE MISS 1
19 34200058 THERMOSTAT 165ï TY 60R 1
20 20102945 BOILER MISS+HELEMENT V110 1
20102946 BOILER MISS+HEATING ELEM.230V 1
21 36405001 Gasket Ring 146 177 Silicone 1
22 69200070 FITTING 1/8M 1/8M 1
23 34011023 PUMP EP5 120V NEW 1
34011026 PUMP EP5 230V 1
24 38121034 PIPE PUMPS EP5 1
25 37060513 SCREW M5 X 12 1

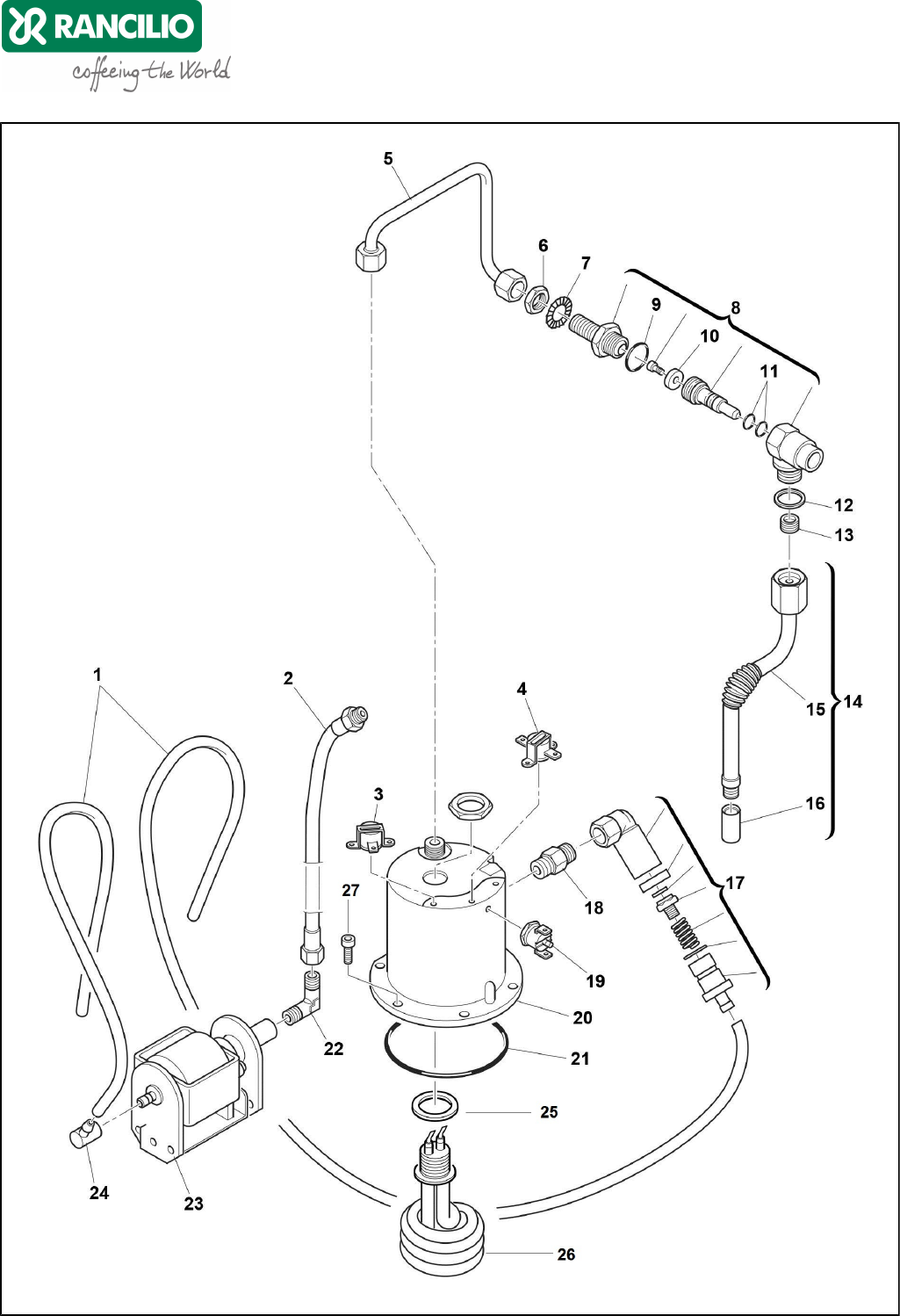

14002/13
HYDRAULIC CIRCUIT/STAINLESS STEEL ELEMENT SILVIA
SILVIA Page 8 / 15 SPARE PARTS CATALOGUE
RLCSILVIA v.10 16/01/2014
14002/13
HYDRAULIC CIRCUIT/STAINLESS STEEL ELEMENT SILVIA
SILVIA Page 9 / 15 SPARE PARTS CATALOGUE
RLCSILVIA v.10 16/01/2014
POS. CODE DESCRIPTION QTY START DATE END DATE NOTES
1 38228002 Silicone hose D. 9 x 6mmL = 560 mm 1
2 69000702 FLEX PIPE INOX LONGE MM.190 1/8F 1/8M 1
3 34200296 thermostat 100 Silvia 1
4 34200295 thermostat 140 Silvia 1
5 10042109 PIPE BOILER-STEAM COCK SILVIA 1
6 23217005 LOW NUT 1/4" GAS 1
7 37431400 WASHER DIAM.14 1
8 10060119 steam tap Silvia 1
10705169 STEAM COCK COMPLETE SILVIA 08 1
9 27350001 GASKET 3/8 SP. 1 Gas 1
10 36302002 Gasket Past Valve 1
11 36402001 Gasket O-Ring 6.07 X 1.78 EPDM 105 1
12 36220009 Gasket Nut Note Teflon 1
13 36930016 Gasket 1
39110038 Spring 1
14 10049063 STEAM PIPE SILVIA 1
15 36990004 Rubber for Steam PIPES 1
16 23000115 STEAM SPRAYER SILVIA 1
17 10060406 EXPANSION VALVE MISS 1
18 23000052 STEAM JUNCTION BOILER-EXPENC. VALVE MISS 1
19 34200058 THERMOSTAT 165ï TY 60R 1
20 10705636 kit boiler inox 110-120v silvia 1
10705637 kit boiler inox 220-240v silvia 1
21 36405001 Gasket Ring 146 177 Silicone 1
22 69200070 FITTING 1/8M 1/8M 1
23 34011023 PUMP EP5 120V NEW 1
34011026 PUMP EP5 230V 1
24 38121034 PIPE PUMPS EP5 1
25 36220023 gasket 30 x 22,5 x 2 boiler Silvia 1
26 10110209 kit wiring silvia 1
10705638 kit heating element+gasket 110-120v Silvia 1
10705639 kit heating element+gasket 220-240v Silvia 1
27 37060513 SCREW M5 X 12 1

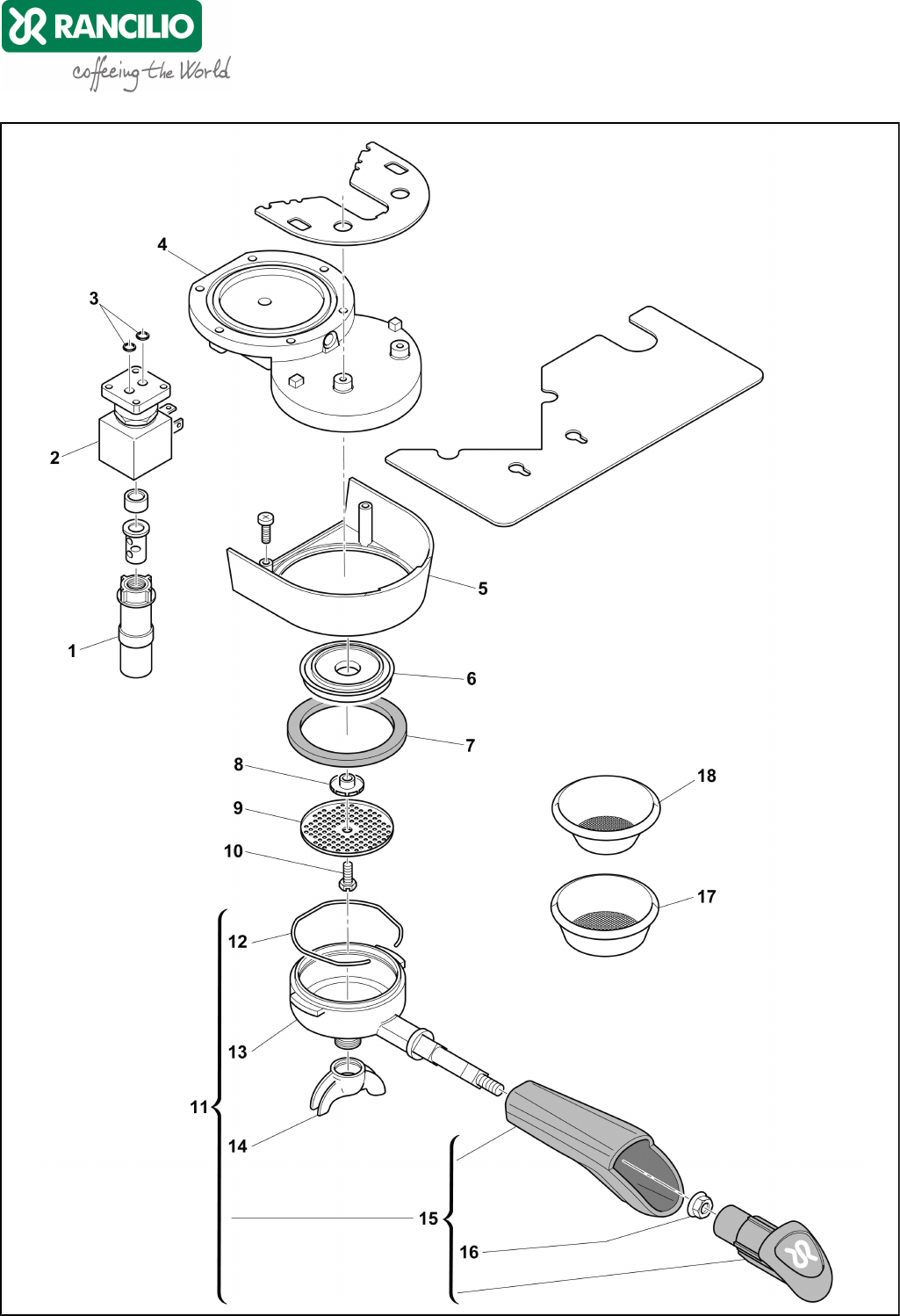

14003/08
BREWING GROUP SILVIA
SILVIA Page 10 / 15 SPARE PARTS CATALOGUE
RLCSILVIA v.10 16/01/2014
14003/08
BREWING GROUP SILVIA
SILVIA Page 11 / 15 SPARE PARTS CATALOGUE
RLCSILVIA v.10 16/01/2014
POS. CODE DESCRIPTION QTY START DATE END DATE NOTES
1 10090002 THERM.GROUP JETBREAKER 1
2 34040012 Electrovalve 3 Way 220V 50Hz Miss 1
3 36402001 Gasket O-Ring 6.07 X 1.78 EPDM 105 1
4 20103021 BODY SILVIA /08 1
5 38123549 GROUP COVER SILVIA 1
6 20200182 ECO SPACE GROUP NICKEL 1
7 36301030 Gasket Undertorque MISS 1
8 25139001 GROUP JETBREAKER 1
9 40200005 SHOWER NET 1
10 37030518 SHOWER SCREW 1
11 10070108 FILTER HOLDER COMPLETE 1
12 25105001 FILTER SPRING 1
13 20112011 FILTER-HOLDER 1
14 20112111 WHOLE 2 DOSE BEAK MISS NUO 1
15 10705091 KIT FILTER HOLDER TAP 07 1
16 37320800 Nut M 8 1
17 40100010 2 CUP FILTER 1
18 40100001 1 CUP FILTER 1
Alphanumeric index
SILVIA Page 12 / 15 SPARE PARTS CATALOGUE
RLCSILVIA v.10 16/01/2014
Code No. table Pos.
10042109 14002/08 5
10042109 14002/13 5
10049063 14002/08 14
10049063 14002/13 14
10060119 14002/08 8
10060119 14002/13 8
10060186 14001/08 15
10060406 14002/08 17
10060406 14002/13 17
10070108 14003/08 11
10090002 14003/08 1
10110209 14002/13 26
10705091 14003/08 15
10705169 14002/08 8
10705169 14002/13 8
10705636 14002/13 20
10705637 14002/13 20
10705638 14002/13 26
10705639 14002/13 26
10880150 14001/08 17
20102945 14002/08 20
20102946 14002/08 20
20103021 14003/08 4
20112011 14003/08 13
20112111 14003/08 14
20200182 14003/08 6
23000052 14002/08 18
23000052 14002/13 18
23000115 14002/08 16
23000115 14002/13 16
23217005 14002/08 6
23217005 14002/13 6
25105001 14003/08 12
25139001 14003/08 8
27350001 14002/08 9
27350001 14002/13 9
32330361 14001/08 8
32330362 14001/08 6
32330363 14001/08 5
32330365 14001/08 19
32330367 14001/08 7
32330369 14001/08 18
32330370 14001/08 16
34011023 14002/08 23
34011023 14002/13 23
34011026 14002/08 23
34011026 14002/13 23
34030029 14001/08 10
34030037 14001/08 12
34030038 14001/08 13
34030047 14001/08 9
34030060 14001/08 11
34040012 14003/08 2
34200058 14002/08 19
34200058 14002/13 19
34200295 14002/08 4
34200295 14002/13 4
34200296 14002/08 3
34200296 14002/13 3
36220009 14002/08 12
36220009 14002/13 12
36220023 14002/13 25
36301030 14003/08 7
36302002 14002/08 10
36302002 14002/13 10
36310008 14001/08 20
36402001 14002/08 11
Code No. table Pos.
36402001 14002/13 11
36402001 14003/08 3
36405001 14002/08 21
36405001 14002/13 21
36930016 14002/08 13
36930016 14002/13 13
36990004 14002/08 15
36990004 14002/13 15
37030518 14003/08 10
37060513 14002/08 25
37060513 14002/13 27
37320800 14003/08 16
37431400 14002/08 7
37431400 14002/13 7
37900505 14001/08 14
37900809 14001/08 4
38121034 14002/08 24
38121034 14002/13 24
38123011 14001/08 1
38123012 14001/08 2
38123549 14003/08 5
38228002 14002/08 1
38228002 14002/13 1
39110038 14002/08 13
39110038 14002/13 13
40100001 14003/08 18
40100010 14003/08 17
40200005 14003/08 9
42200121 14001/08 3
69000702 14002/08 2
69000702 14002/13 2
69200070 14002/08 22
69200070 14002/13 22
Alphanumeric index
SILVIA Page 13 / 15 SPARE PARTS CATALOGUE
RLCSILVIA v.10 16/01/2014
