This document describes a simple method for characterizing GS1011MIPS WLAN module based
RF parameters, such as transmitted spectra and receiver sensitivity. It will be described step by step
below that how to control and setup.
Step 1 : Extract to CDM20814_WHQL_Certified.zip, it is a USB to UART driver, then setup it.
Step 2 : Setup teraterm_utf8-4.58.exe program, this program can help to send command to module.
Step 3 : Double click UTF-8 execute file as shown below, it will occur after completing step2 install.

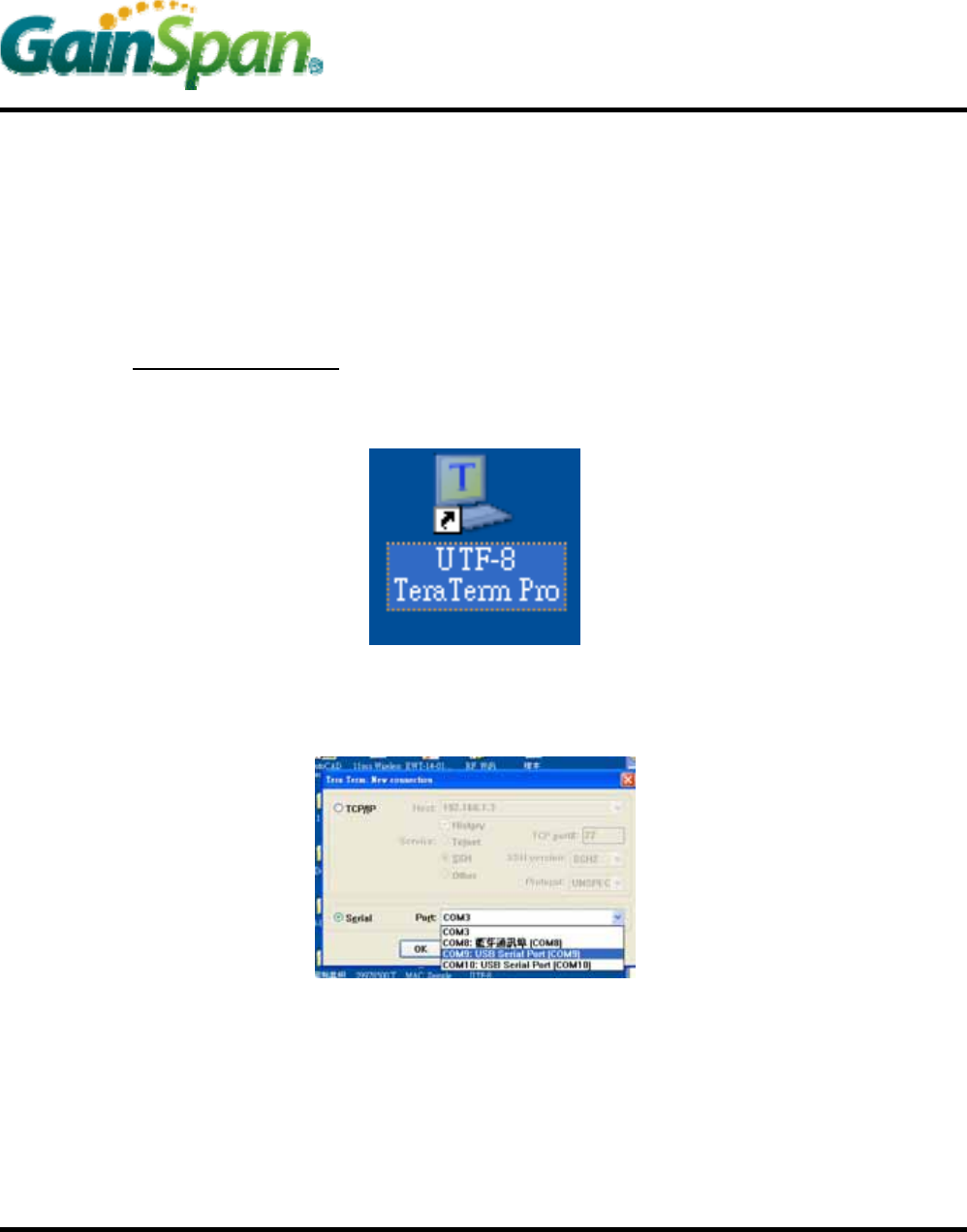

Figure 1
Step 4 : When implement UTF-8, selecting Serial port correctly.
Figure 2
GS1011MIPS
User Manual Sheet of 11 Mar. 27, 2012
Proprietary Information and Specifications are Subject to Change
3
Step 5 : After entering UTF-8, send command at. If connection is successful, it will reply ok.
Step 6 : Now any legal command can be keyed in and if UTF-8 reply ok, the command is implemented

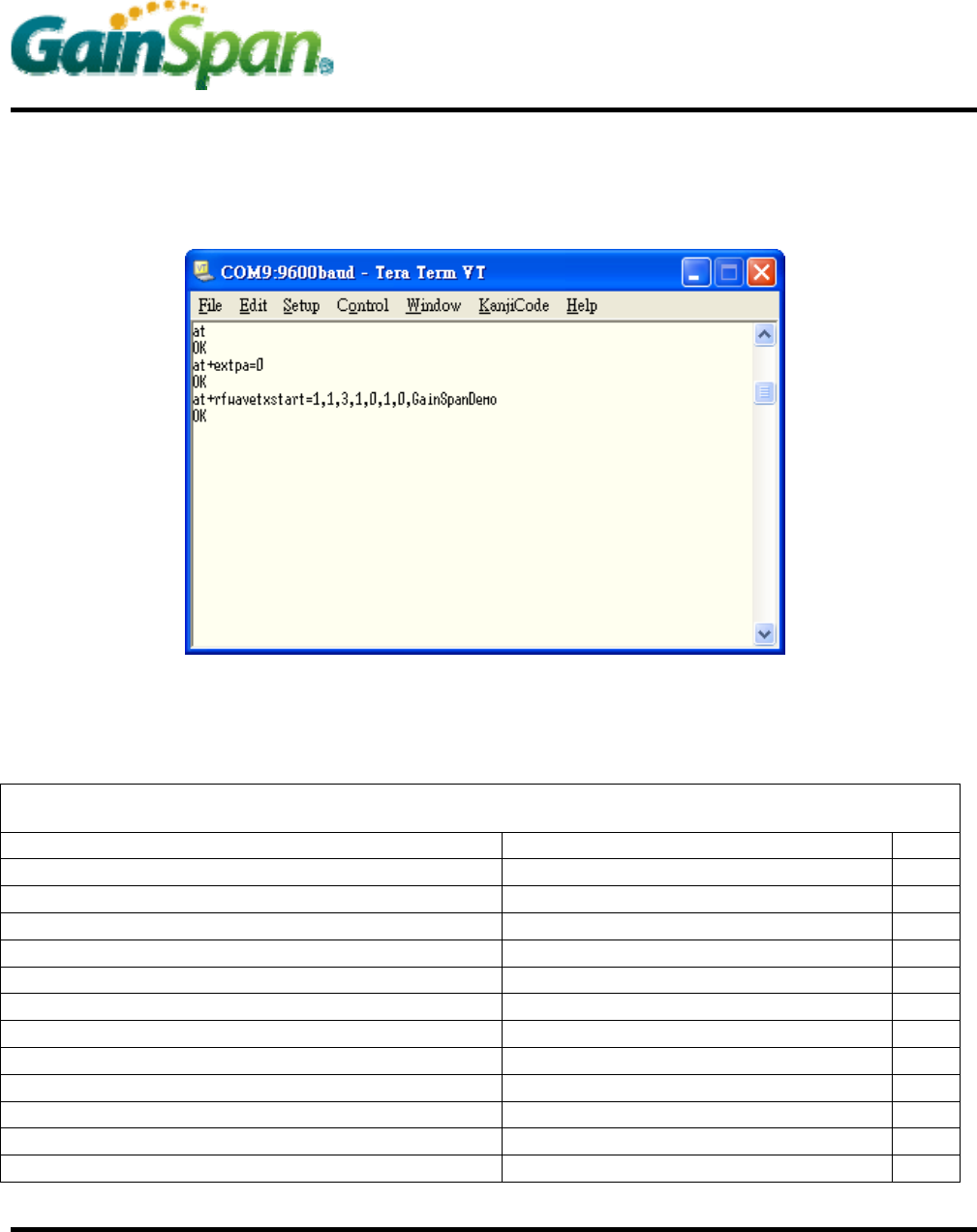

successful like below figure.
Figure 3
A series of legal command:
Internal PA Transmitted
Transmitted Tx at 11Mbps for every channel
Command Action
at+extpa=0 Start up internal Power Amplifier
at+rfwavetxstart=1,1,3,1,0,1,0,GainSpanDemo Continuous Tx Channel 1, 11Mbps
at+rfwavetxstart=1,2,3,1,0,1,0,GainSpanDemo Continuous Tx Channel 2, 11Mbps
at+rfwavetxstart=1,3,3,1,0,1,0,GainSpanDemo Continuous Tx Channel 3, 11Mbps
at+rfwavetxstart=1,4,3,1,0,1,0,GainSpanDemo Continuous Tx Channel 4, 11Mbps
at+rfwavetxstart=1,5,3,1,0,1,0,GainSpanDemo Continuous Tx Channel 5, 11Mbps
at+rfwavetxstart=1,6,3,1,0,1,0,GainSpanDemo Continuous Tx Channel 6, 11Mbps
at+rfwavetxstart=1,7,3,1,0,1,0,GainSpanDemo Continuous Tx Channel 7, 11Mbps
at+rfwavetxstart=1,8,3,1,0,1,0,GainSpanDemo Continuous Tx Channel 8, 11Mbps
at+rfwavetxstart=1,9,3,1,0,1,0,GainSpanDemo Continuous Tx Channel 9, 11Mbps
at+rfwavetxstart=1,10,3,1,0,1,0,GainSpanDemo Continuous Tx Channel 10, 11Mbps
at+rfwavetxstart=1,11,3,1,0,1,0,GainSpanDemo Continuous Tx Channel 11, 11Mbps
GS1011MIPS
User Manual Sheet of 11 Mar. 27, 2012
Proprietary Information and Specifications are Subject to Change
4
at+rfwavetxstart=1,12,3,1,0,1,0,GainSpanDemo Continuous Tx Channel 12, 11Mbps
at+rfwavetxstart=1,13,3,1,0,1,0,GainSpanDemo Continuous Tx Channel 13, 11Mbps
at+rfwavetxstart=1,14,3,1,0,1,0,GainSpanDemo Continuous Tx Channel 14, 11Mbps
At+rfstop Stop action
Transmitted Tx at 5.5Mbps for every channel
at+extpa=0 Start up internal Power Amplifier
at+rfwavetxstart=1,1,2,1,0,1,0,GainSpanDemo Continuous Tx Channel 1, 5.5Mbps
at+rfwavetxstart=1,2,2,1,0,1,0,GainSpanDemo Continuous Tx Channel 2, 5.5Mbps
at+rfwavetxstart=1,3,2,1,0,1,0,GainSpanDemo Continuous Tx Channel 3, 5.5Mbps
at+rfwavetxstart=1,4,2,1,0,1,0,GainSpanDemo Continuous Tx Channel 4, 5.5Mbps
at+rfwavetxstart=1,5,2,1,0,1,0,GainSpanDemo Continuous Tx Channel 5, 5.5Mbps
at+rfwavetxstart=1,6,2,1,0,1,0,GainSpanDemo Continuous Tx Channel 6, 5.5Mbps
at+rfwavetxstart=1,7,2,1,0,1,0,GainSpanDemo Continuous Tx Channel 7, 5.5Mbps
at+rfwavetxstart=1,8,2,1,0,1,0,GainSpanDemo Continuous Tx Channel 8, 5.5Mbps
at+rfwavetxstart=1,9,2,1,0,1,0,GainSpanDemo Continuous Tx Channel 9, 5.5Mbps
at+rfwavetxstart=1,10,2,1,0,1,0,GainSpanDemo Continuous Tx Channel 10, 5.5Mbps
at+rfwavetxstart=1,11,2,1,0,1,0,GainSpanDemo Continuous Tx Channel 11, 5.5Mbps
at+rfwavetxstart=1,12,2,1,0,1,0,GainSpanDemo Continuous Tx Channel 12, 5.5Mbps
at+rfwavetxstart=1,13,2,1,0,1,0,GainSpanDemo Continuous Tx Channel 13, 5.5Mbps
at+rfwavetxstart=1,14,2,1,0,1,0,GainSpanDemo Continuous Tx Channel 14, 5.5Mbps
At+rfstop Stop action
Transmitted Tx at 2Mbps for every channel
at+extpa=0 Start up internal Power Amplifier
at+rfwavetxstart=1,1,1,1,0,1,0,GainSpanDemo Continuous Tx Channel 1, 2Mbps
at+rfwavetxstart=1,2,1,1,0,1,0,GainSpanDemo Continuous Tx Channel 2, 2Mbps
at+rfwavetxstart=1,3,1,1,0,1,0,GainSpanDemo Continuous Tx Channel 3, 2Mbps
at+rfwavetxstart=1,4,1,1,0,1,0,GainSpanDemo Continuous Tx Channel 4, 2Mbps
at+rfwavetxstart=1,5,1,1,0,1,0,GainSpanDemo Continuous Tx Channel 5, 2Mbps
at+rfwavetxstart=1,6,1,1,0,1,0,GainSpanDemo Continuous Tx Channel 6, 2Mbps
at+rfwavetxstart=1,7,1,1,0,1,0,GainSpanDemo Continuous Tx Channel 7, 2Mbps
at+rfwavetxstart=1,8,1,1,0,1,0,GainSpanDemo Continuous Tx Channel 8, 2Mbps
at+rfwavetxstart=1,9,1,1,0,1,0,GainSpanDemo Continuous Tx Channel 9, 2Mbps
at+rfwavetxstart=1,10,1,1,0,1,0,GainSpanDemo Continuous Tx Channel 10, 2Mbps
at+rfwavetxstart=1,11,1,1,0,1,0,GainSpanDemo Continuous Tx Channel 11, 2Mbps
at+rfwavetxstart=1,12,1,1,0,1,0,GainSpanDemo Continuous Tx Channel 12, 2Mbps
at+rfwavetxstart=1,13,1,1,0,1,0,GainSpanDemo Continuous Tx Channel 13, 2Mbps
at+rfwavetxstart=1,14,1,1,0,1,0,GainSpanDemo Continuous Tx Channel 14, 2Mbps
At+rfstop Stop action
GS1011MIPS
User Manual Sheet of 11 Mar. 27, 2012
Proprietary Information and Specifications are Subject to Change
5
Transmitted Tx at 1Mbps for every channel
at+extpa=0 Start up internal Power Amplifier
at+rfwavetxstart=1,1,0,1,0,1,0,GainSpanDemo Continuous Tx Channel 1, 1Mbps
at+rfwavetxstart=1,2,0,1,0,1,0,GainSpanDemo Continuous Tx Channel 2, 1Mbps
at+rfwavetxstart=1,3,0,1,0,1,0,GainSpanDemo Continuous Tx Channel 3, 1Mbps
at+rfwavetxstart=1,4,0,1,0,1,0,GainSpanDemo Continuous Tx Channel 4, 1Mbps
at+rfwavetxstart=1,5,0,1,0,1,0,GainSpanDemo Continuous Tx Channel 5, 1Mbps
at+rfwavetxstart=1,6,0,1,0,1,0,GainSpanDemo Continuous Tx Channel 6, 1Mbps
at+rfwavetxstart=1,7,0,1,0,1,0,GainSpanDemo Continuous Tx Channel 7, 1Mbps
at+rfwavetxstart=1,8,0,1,0,1,0,GainSpanDemo Continuous Tx Channel 8, 1Mbps
at+rfwavetxstart=1,9,0,1,0,1,0,GainSpanDemo Continuous Tx Channel 9, 1Mbps
at+rfwavetxstart=1,10,0,1,0,1,0,GainSpanDemo Continuous Tx Channel 10, 1Mbps
at+rfwavetxstart=1,11,0,1,0,1,0,GainSpanDemo Continuous Tx Channel 11, 1Mbps
at+rfwavetxstart=1,12,0,1,0,1,0,GainSpanDemo Continuous Tx Channel 12, 1Mbps
at+rfwavetxstart=1,13,0,1,0,1,0,GainSpanDemo Continuous Tx Channel 13, 1Mbps
at+rfwavetxstart=1,14,0,1,0,1,0,GainSpanDemo Continuous Tx Channel 14, 1Mbps
At+rfstop Stop action
Received command
Command Action
AT+RFRXSTART=1,1 Rx on channel 1
AT+RFRXSTART=2,1 Rx on channel 2
AT+RFRXSTART=3,1 Rx on channel 3
AT+RFRXSTART=4,1 Rx on channel 4
AT+RFRXSTART=5,1 Rx on channel 5
AT+RFRXSTART=6,1 Rx on channel 6
AT+RFRXSTART=7,1 Rx on channel 7
AT+RFRXSTART=8,1 Rx on channel 8
AT+RFRXSTART=9,1 Rx on channel 9
AT+RFRXSTART=10,1 Rx on channel 10
AT+RFRXSTART=11,1 Rx on channel 11
AT+RFRXSTART=12,1 Rx on channel 12
AT+RFRXSTART=13,1 Rx on channel 13
AT+RFRXSTART=14,1 Rx on channel 14
At+rfstop Stop action
GS1011MIPS
User Manual Sheet of 11 Mar. 27, 2012
Proprietary Information and Specifications are Subject to Change
6
Antenna Information
PCB Antenna
Frequency range 2400 MHz – 2500 MHz
Peak gain -3.06 dBi

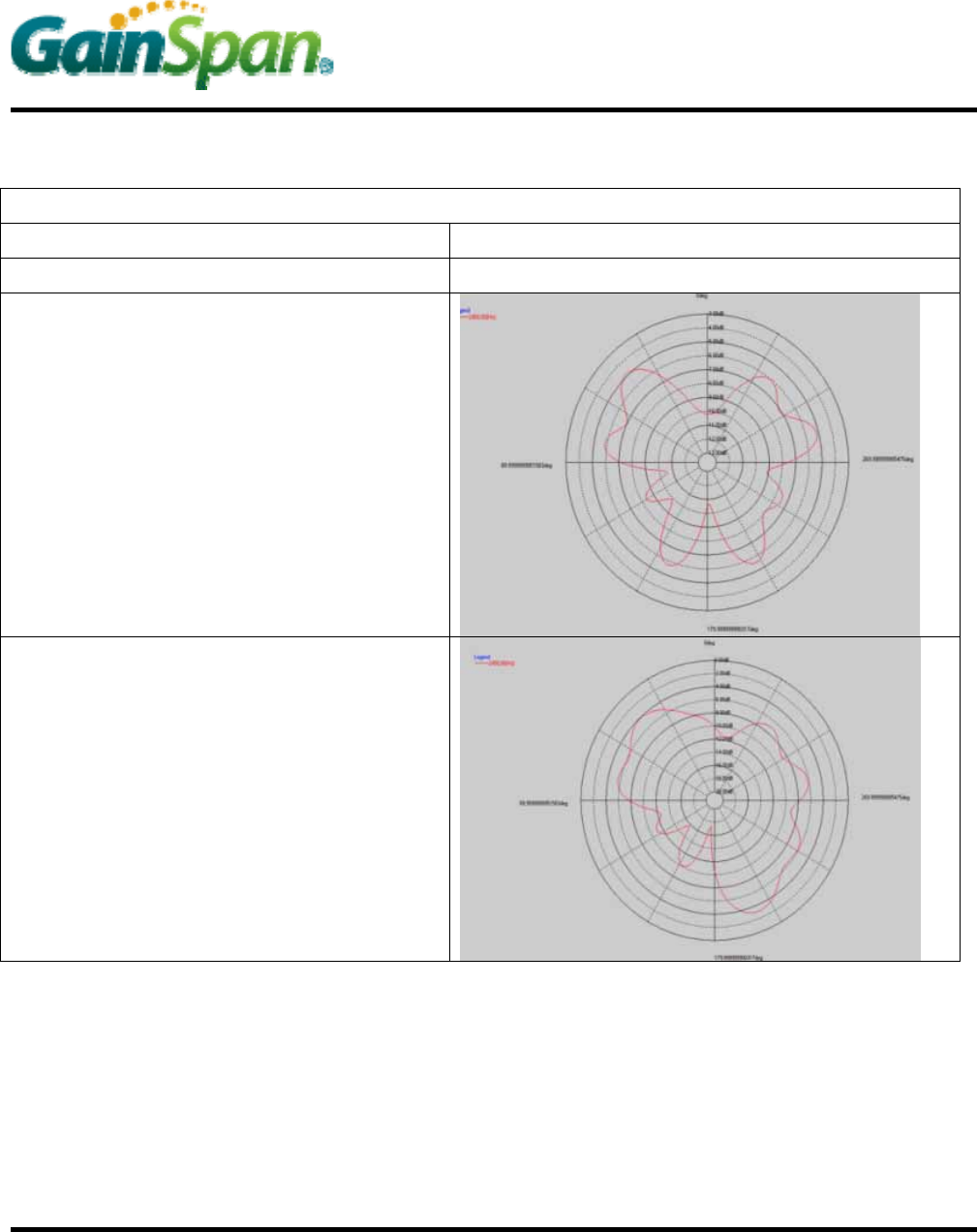

EIRP(2450MHz)-XY cut
EIRP(2450MHz)-XZ cut
GS1011MIPS
User Manual Sheet of 11 Mar. 27, 2012
Proprietary Information and Specifications are Subject to Change
7
EIRP(2450MHz)-YZ cut

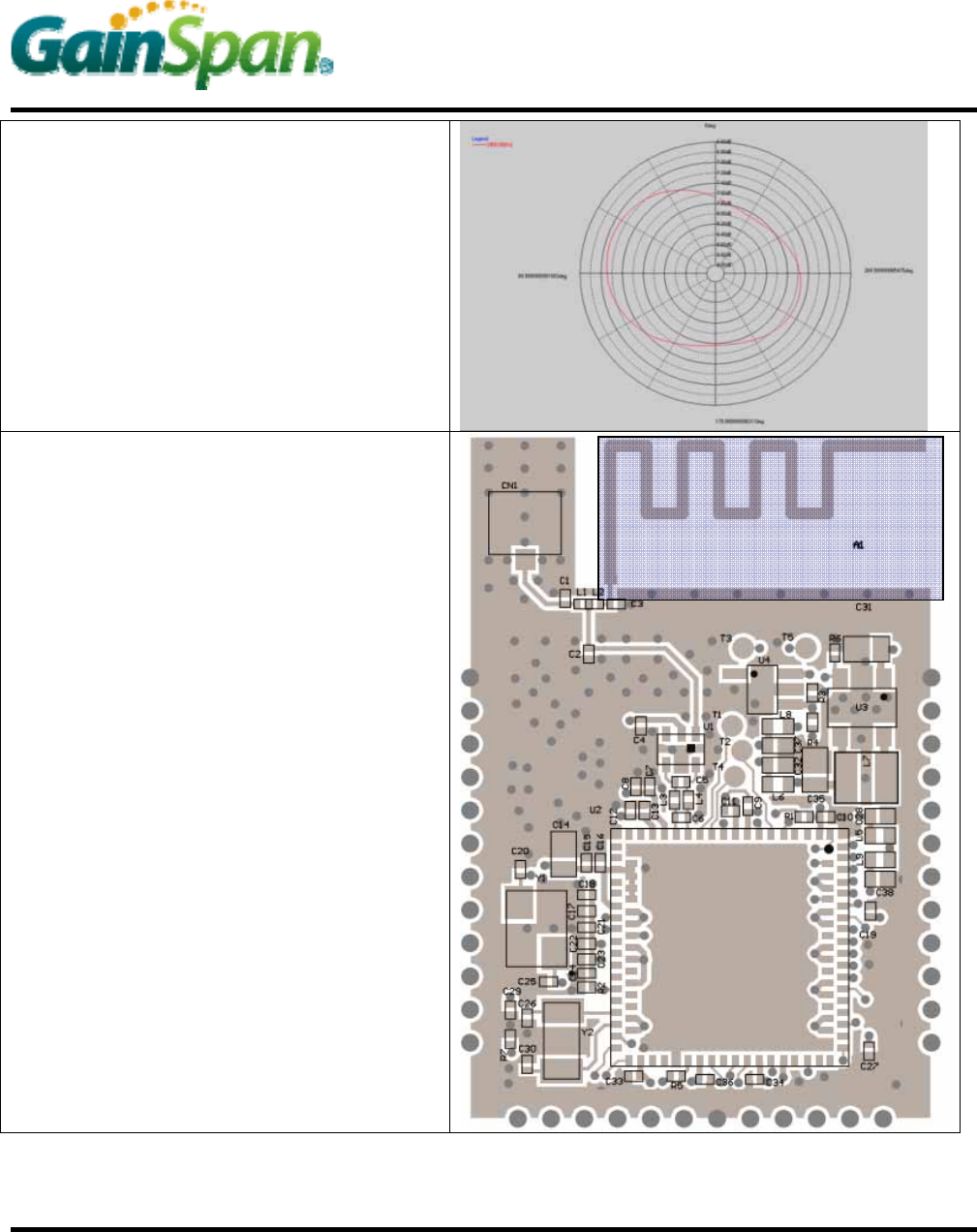

Antenna Location
GS1011MIPS
User Manual Sheet of 11 Mar. 27, 2012
Proprietary Information and Specifications are Subject to Change
8
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions : (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC) radio
frequency exposure limits. The Wireless Device should be used in such a
manner such that the potential for human contact during normal operation is minimized.
This device has been certified for use in Canada. Status of the listing in the
Industry Canada’s REL (Radio Equipment List) can be found at the following web address:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Additional Canadian information on RF exposure also can be found at the following web address:
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
