nVIDIA
GeForce 2 MX
Multimedia VGA Controller
Installation Guide
Version 1.0
07/2000
Copyrights and Liabilities
The information contained in this manual has been validated at the time of this
manual’s production. The manufacturer reserves the right to make any changes and
improvements on the product described in this manual at any time and without notice.
Consequently, the manufacturer assumes no liability for damages incurred directly or
indirectly from errors, omissions or discrepancies between the product and the
manual. All registered trademarks are the property of their respective owners.
Copyright © 1999 All rights reserved. No reproduction of this document in any form
is permitted without prior written authorization from the manufacturer.
Trademark
All products and company names are trademarks or registered trademarks of their
respective holders.
MMG2MX0-01E-00
FCC Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Notice:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy, and if not
installed and used in accordance with manufacturer's instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
. Reorient or relocate the receiving antenna.
. Increase the separation between the equipment and receiver.
. Plug the computer into a different outlet so that the two devices are on different
branch circuits.
. If necessary, the user should consult the dealer or an experienced radio/television
technician for additional suggestions.
Warning:
Shielded interface cables must be used in order to comply with emission limits.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
CSA Notice:
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
Table of Contents
Chapter 1 Overview..................................................................1
Chapter 2 Hardware Installation.............................................2
Chapter 3 Software Installation...............................................4
Chapter 4 Display Properties for Windows..............................7
Chapter 5 Expertool for Windows..........................................12
Chapter 6 Technical Information ..........................................16
Chapter 7 Trouble Shooting...................................................20
1
Congratulation on the purchase of your new graphics accelerator card! You are now
the owner of a state-of-the-art video adapter that offers features and functionality
equal to, and beyond any other in its VGA class.
System Requirements
The minimum system requirements for installing the graphics card are as
follows:
¾ a personal computer with a Pentium, Pentium II, Pentium III or compatible
microprocessor and at least 8MB of memory
¾ a VGA analog monitor supporting a minimum 60Hz vertical refresh rate
¾ an available AGP or PCI bus slot
¾ a CD-ROM drive
Features
¾ NVIDIA 256 Bit GeForce 2 MX GPU
¾ 2nd Generation Transform and Lighting Engine
¾ Digital dual display architecture and NVIDIA shading rasterizer
¾ Support 32/64MB SDR Video Memory (Optional)
¾ 350MHz RAMDAC, Resolution up to 2048x1536 @ 75Hz
¾ 175MHz Core Clock and 166MHz Memory Clock
¾ Integrated second-generation transform and lighting engines
¾ 4 texels per clock and 32-bit color with 32-bit z/stencil
¾ Cube environment mapping
¾ DirectX and S3TC texture compression
¾ 700M texel fill rate
¾ 20M triangles/sec setup and 2.8 GB/second memory bandwidth
¾ Supports up to 4 display interfaces-CRT, TV, Digital Panel Interface
¾ Dual CRTC/Simultaneous Dual Display
¾ Support for VIP2.0 interface
¾ AGP 4X with Fast Writes
¾ DVD and HDTV ready motion compensation for MPEG-2 decoding
¾ Support TV-Out and DVI Interface for LCD Panel (Optional)
Software Support
¾ Microsoft Windows 95/98/2000
¾ Microsoft Windows NT4.0
¾ DirectDraw
¾ Direct3D Direct Video
¾ ActiveX
Chapter 1 Overview
2
Back of
computer
Static electricity can severely damage electronic parts. Take these precautions:
) Before touching any electronic parts, drain the static electricity from your body.
You can do this by touching the internal metal frame of your computer while
it's unplugged.
) Don't remove a card from the anti-static container it shipped in until you're
ready to install it. When you remove a card from your computer, place it back
in its container.
) Don't let your clothes touch any electronic parts.
) When handling a card, hold it by its edges, and avoid touching its circuitry.
Before You Begin
Before you process further, make sure your computer system meets the peripheral
requirements and switch to the standard VGA display driver.
Prepare Your Computer for Installation
Prior to working on your computer, make sure the power of the computer and any
related equipment is turned off.
Select a Vacant Expansion AGP (PCI) Slot
Most computers have a combination of AGP, PCI and ISA expansion slots. AGP
slots are usually made from plastic of a contrasting brown color (beige color), and are
shorter than other slots in your computer. Your system manual should identify the
AGP or PCI slots, as appropriate for your model. Plugging your Graphic card into
an incorrect slot could damage the card, your computer, or both. Do not try to force a
card into a slot that does not accommodate it, as it is probably the wrong slot.

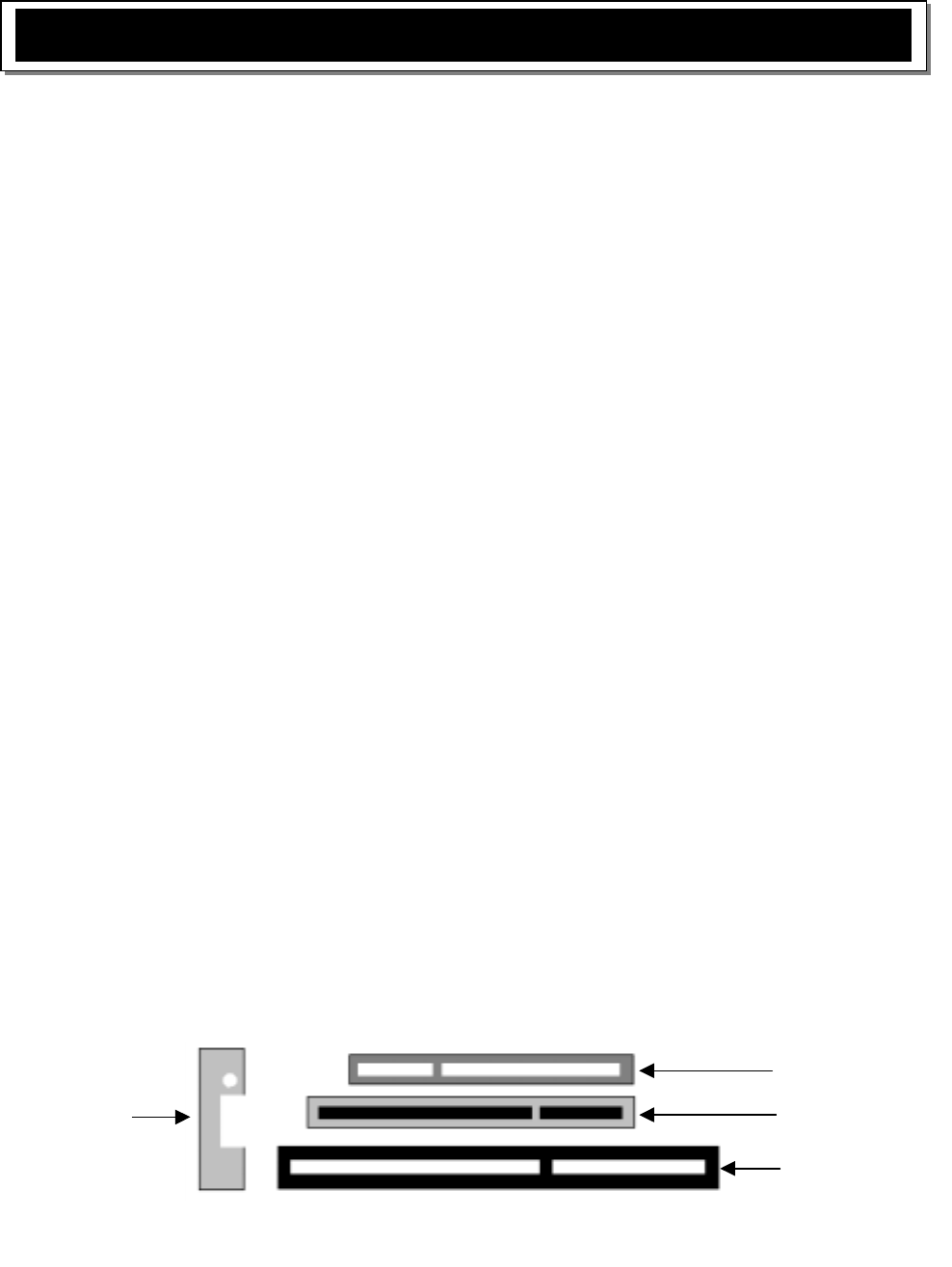

ISA slot
PCI slot
AGP vs. PCI vs. ISA expansion slots
AGP slot
Chapter 2 Hardware Installation
3

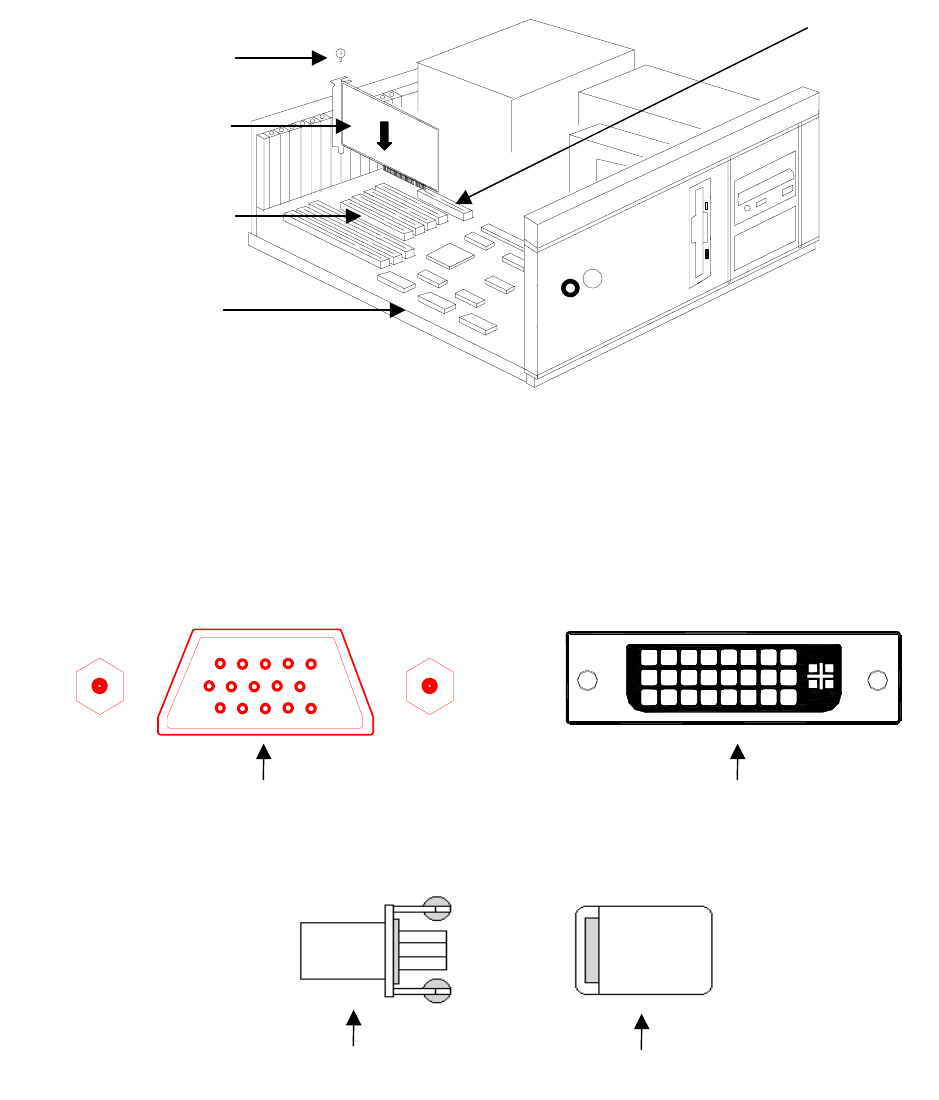

Insert your Graphic Card
Remove the cover for the slot you intend to use and save the screw for the mounting
bracket. Then, pick up the Graphic card and position it over the expansion slot
you’ve chosen. Push the card with firmly and evenly until it’s fully seated in the
slot. Replace the screw to secure the bracket of the Graphic card to the computer
chassis.
Connect the monitor/LCD
Connect the Monitor/DVI/TV (Optional)
Plug your monitor/DVI/TV cable into the monitor/DVI/TV connector on your
Graphic card. Make sure the other end of the monitor/DVI/TV cable is properly
connected to your monitor/DVI/TV.
PCI expansion
slot
Graphics card
Bracket screw
Motherboard
Monitor Connector (Blue)
AGP
expansion slot
DVI Host Receptacle Connector
TV-Out Composite TV-Out S-Video
4
) Before installing the Display driver, make sure your Windows 95/98/2000/NT
was installed in VGA mode and functions properly.
) For Windows 95 systems, please install DirectX before attempting to use the
MPEG Movie Player.
) To use an AGP graphics card with NT4.0, you may need to re-install NT with
Service Pack 3 (SP3) or later version before installing the AGP card.
) If you are running Windows NT4.0, please note that some drivers are not
compatible with earlier releases of Windows NT. Consult your dealer or local
support to ensure you have the most recent releases for Windows NT and the
drivers.
) The pictures in this chapter are only for Win98 reference.
Before You Begin
If your system is running Windows 95/98/2000/NT, the New Hardware Found
dialog box will appear after restart. Select Driver from disk provided by
hardware manufacturer, click OK, then follow all on-screen instructions. If the
New Hardware Found dialog box does not appear, follow the instructions below.
Setup VGA Mode
Click the right mouse button anywhere on the Windows 95/98/NT desktop and select
Properties from the pop-up menu that appears on screen. Select Settings │
││
│
Change Display Type (For OSR2 users, please select Settings│
││
│Advanced
Properties. For Windows 98 users, please select Settings│
││
│Advanced. For
Windows NT users, please select Setting│
││
│Display Type) and then click the
[Change] button for Adapter Type. When the Select Device dialog box appears on
the screen, please select [Standard display types] from the manufacturers list and
select Standard Display Adapter (VGA) from the list of models then click OK.
Chapter 3 Software Installation
5
Install Software Driver
Method 1 – Automatically install VGA Driver and Applications:
1. Turn on your computer and start Windows 95/98/2000/NT.
2. Insert the Driver CD into your CD-ROM drive.
3. Click the Start button on the task bar and then select Run button.
4. Type D:\cdsetup.exe [Enter] in the Run dialog box (where D:\is the location of
your CD-ROM drive).
5. The Expertool VGA Installation dialog box will appear on the screen, please
click “Continue” button and follow the instructions on screen to complete
installation.
6. Final, restart your computer for the changes to take effect.
Method 2 – Manually install VGA Driver without Applications:
1. Turn on your computer and start Windows 95/98/2000/NT.
2. Insert the Driver CD into your CD-ROM drive.

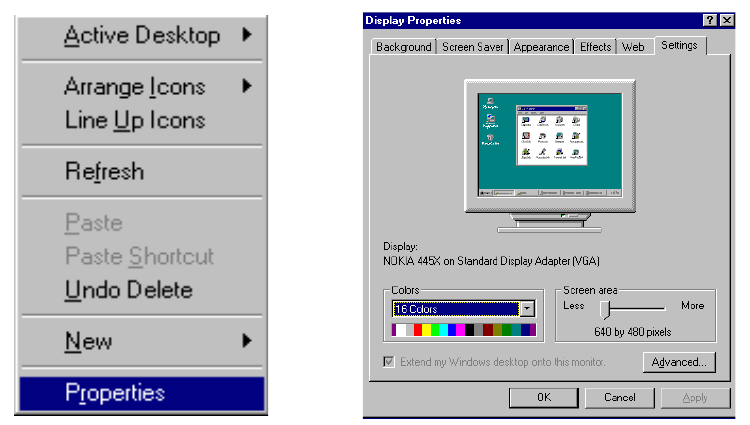

3. Click the right mouse button anywhere on the windows 95/98/2000/NT desktop.
4. Select Properties from the pop-up menu that appears on the screen. (Figure 3-1)
5. Select Settings│
││
│Advanced in the Display Properties dialog box. (Figure 3-2)
Figure 3-1 Figure 3-2
6
6. Click the Change button for Adapter item. (Figure 3-3)
7. Click Next button in the Update Device Driver Wizard dialog box. (Figure 3-4)
Figure 3-3 Figure 3-4
8. Select Display a list of all the drivers in a specific location, so you can select
the driver you want check box and click Next button. (Figure 3-5)
9. Select Show compatible hardware check box and click Have Disk button.
Type the path to the folder containing the driver files and click OK. Choose the
compatible VGA Models from your Driver. Then chick Next button to continue
the installation. (Figure 3-6)
Figure 3-5 Figure 3-6
10. Final, restart your computer to allow the changes to take effect. (Figure 3-7)
Figure 3-7
7
The pictures in this chapter are only for Win98 reference.
) If the Color Correction doesn’t appear, please adjust the color palette to High
color or True color.

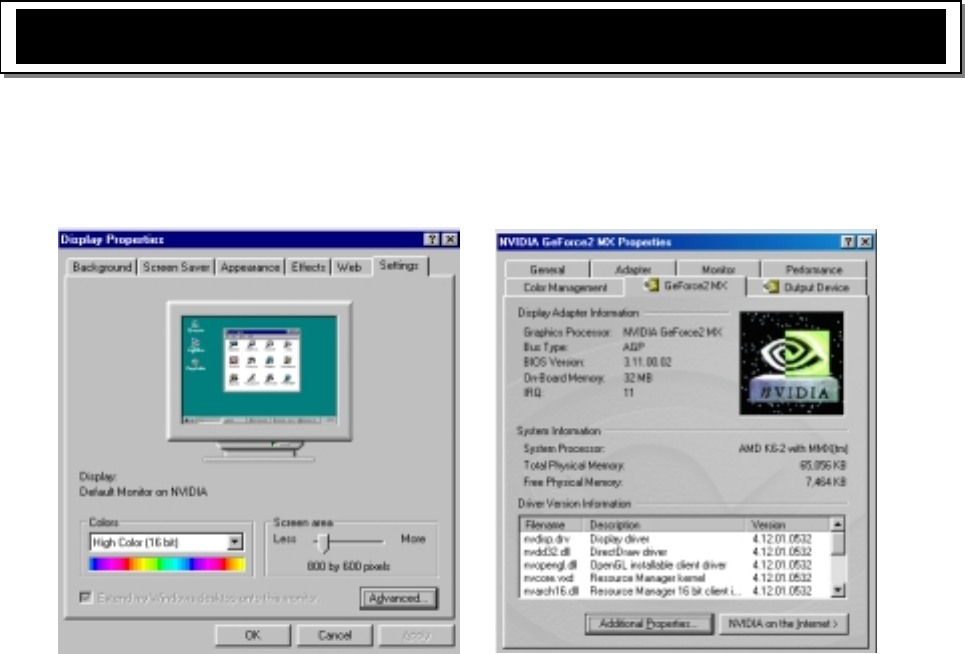

Figure 4-1 Figure 4-2
Click the right mouse button anywhere on the Windows desktop and select
Properties from the pop-up menu that appears on screen. In Display Properties
dialog box, for Win95, please select GeForce2 MX item. For Win98, please select
Settings│
││
│Advanced button then choose GeForce2 MX item as Figure 4-2. Then
click Additional Properties button, the Additional GeForce2 MX Properties
dialog box will appear. In the Additional GeForce2 MX Properties dialog box,
select Color Correction item as Figure 4-3.
Chapter 4 Display Properties for Windows
8

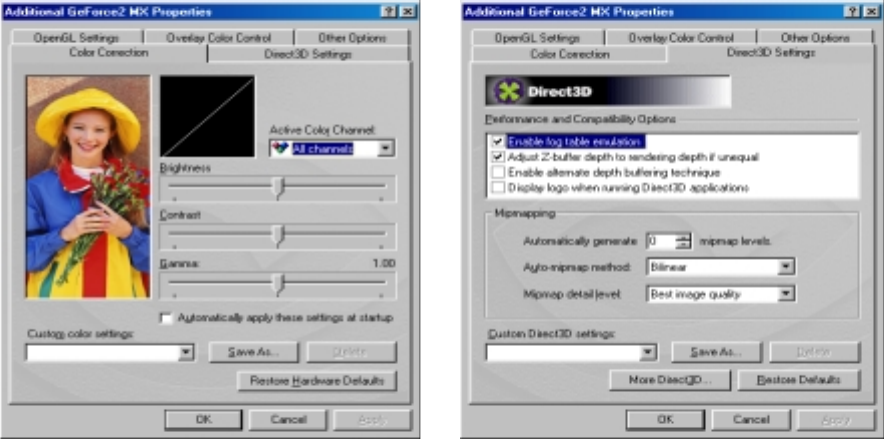

Figure 4-3 Figure 4-4
(As Figure 4-3)
Active Color Channel: Allows you to select the color channel controlled by the
sliders. You can adjust the red, green or blue channels individually or all three
channels at once.
Brightness/Contrast/Gamma: The slider controls allow you to adjust the brightness,
contrast or gamma values for the selected color channel.
Automatically apply these settings at startup: Selecting this option will
automatically restore the color adjustments you have made here when Windows is
restarted.
Custom Color Settings: A list of the custom color settings you have saved.
Selecting an item from the list will activate the setting.
Save As: Lets you save the current color settings as a custom setting. Saved
settings will then be added to the adjacent list.
Delete: Delete the custom color setting currently that selected in the list.
Restore Hardware Defaults: Restore all color values to the hardware factory
settings.
(As Figure 4-4)
Performance and Compatibility Options: This option is used to turn fog table
emulation on or off.
Automatically generate mipmap levels: The NVIDIA graphics processor
automatically generate mipmaps to increase the efficiency of texture transfers across
the bus and provide higher application performance.
Auto-mipmap method: Allows you to select the auto-mipmapping method used by
the graphics processor.
9
Mipmap detail level: Allows you to adjust the LOD (Level of Detail) bias for
mipmaps. A lower bias will provide better image quality, while a higher bias will
increase application performance.
Custom Direct3D settings: A list of the custom settings (or ″tweaks″) you have
saved. Selecting an item form the list will activate the setting. To apply the setting,
choose the ″OK″ or ″Apply″ button.
More Direct3D: Display a dialog that allows you to customize additional Direct3D
settings.
Restore Defaults: Restores all settings to their default values.
Figure 4-5 Figure 4-6
(As Figure 4-5)
Performance and Compatibility Options: Allowing fast linear-mip-linear filtering
provide in increased application performance at the expense of some image quality.
Default color depth for textures: This option determines whether textures of a
specific color depth should be used by default in OpenGL applications.
Buffer flipping mode: This option determines the buffer flipping mode for full-
screen OpenGL applications.
Vertical sync: This option lets you specify how vertical sync is handled in OpenGL.
Use up to MB of system memory for textures in PCI mode: This allows the
graphics processor to utilize up to the specified amount of system memory for texture
storage [in addition to the memory installed on the display adapter itself.]
This setting applies only to PCI display adapters [or AGP display adapters running in
PCI compatibility mode.]
10
(As Figure 4-6)
Video Overlay Controls: Use these sliders to adjust the quality of video or DVD
playback on your monitor. You can independently control the brightness, contrast,
hue and saturation to achieve optimal image quality when playing back videos or
DVD movies on your computer.
Figure 4-7 Figure 4-8

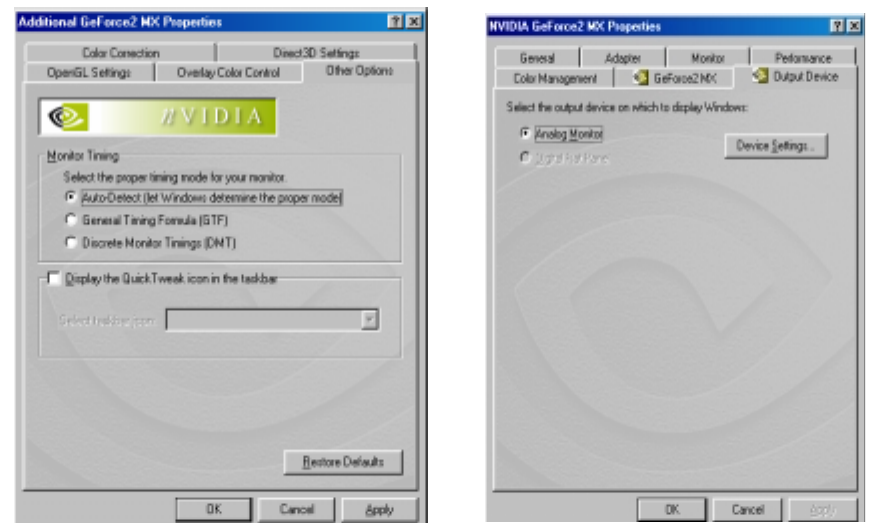

(As Figure 4-7)
Monitor Timing: Allows you to select your monitor timing mode.
Auto-Detect [let Windows determine the proper mode]: Allows Windows to
receive the proper timing information directly from the monitor itself. This is the
default setting. Note that some older monitors may not support this feature.
General Timing Formula (GTF): It’s a standard used by most newer hardware.
Discrete Monitor Timings (DMT): It’s an older standard still in use on some
hardware. Enable this option if your hardware requires DMT.
Display the Quick Tweak icon in the taskbar: Adds the NVIDIA Quick Tweak
icon to the Windows taskbar. The icon allows you to apply any of the custom
Direct3D, OpenGL or color settings ″on the fly″ from a convenient pop up menu.
The menu also contains items for restoring default settings and accessing the Display
Properties dialog.
Select taskbar icon: Allows you to choose the icon used to represent the Quick
Tweak utility in the Windows taskbar. Select the icon you want displayed from the
list. Then choose ″OK″ or ″Apply″ to update the icon in the taskbar.
11
(As Figure 4-8)
In NVIDIA GeForce2 MX Properties dialog box, select Output Device item.
These options in this dialog box allow you to select the output display devices
[ monitor, digital flat panel or TV, depending on which devices your display adapter
supports.]
Device Setting button: Opens a window where you can customice the settings for the
active display device.
As Figure 4-8, select Device Settings button, the Output Device Settings dialog box
will appear. In the Output Device Settings dialog box, you can use the arrow
buttons to adjust the position of the desktop on your monitor as Figure 4-9.
Figure 4-9
12
) For maximum compatibility and flexibility, the Expertool utility can be loaded
and unloaded dynamically. Notice: Many features which by the Expertool and
only available when Expertool was actived.
) These pictures in this chapter are only for Win98 reference.
Expertool is a display control and desktop enhancement utility for Windows
95/98/2000/NT, specially designed and optimized for use with your graphics
accelerator. You should think of Expertool as a kind of supplementary “device
driver” which works in conjunction with your accelerator’s display driver.

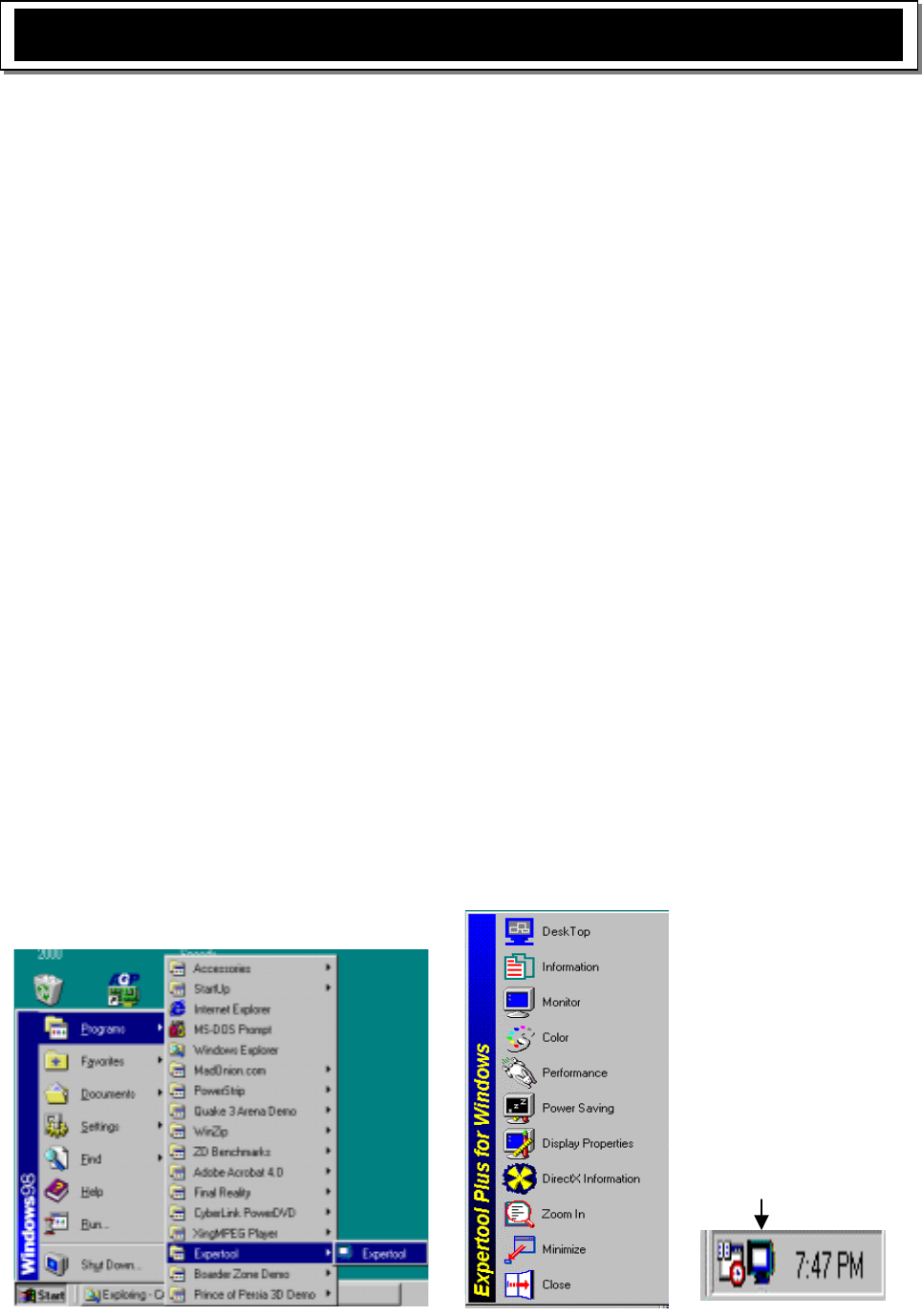

Installation
Expertool will automatically install when you use the Setup program under Windows
95/98/2000/NT (refer to Chapter 3). Once installed, it can be activated by selecting
Programs│
││
│Expertool│
││
│Expertool (Figure 5-1) or clicking on the “Expertool”
(Figure 5-3) icon in the System tray to show the Expertool Properties on your screen.
(Figure 5-2)
Uninstall
1. Click Close button to close Expertool. (Figure 5-2)
2. Then click Start button on the task bar and select Settings│
││
│Control Panel│
││
│
Add/Remove Programs.
3. Choice Expertool item for Install/Uninstall and click the Add/Remove button.
4. Click OK to uninstall Expertool.
Figure 5-1 Figure 5-2 Figure 5-3
Chapter 5 Expertool for Windows
Expertool Icon
13
Figure 5-4 Figure 5-5

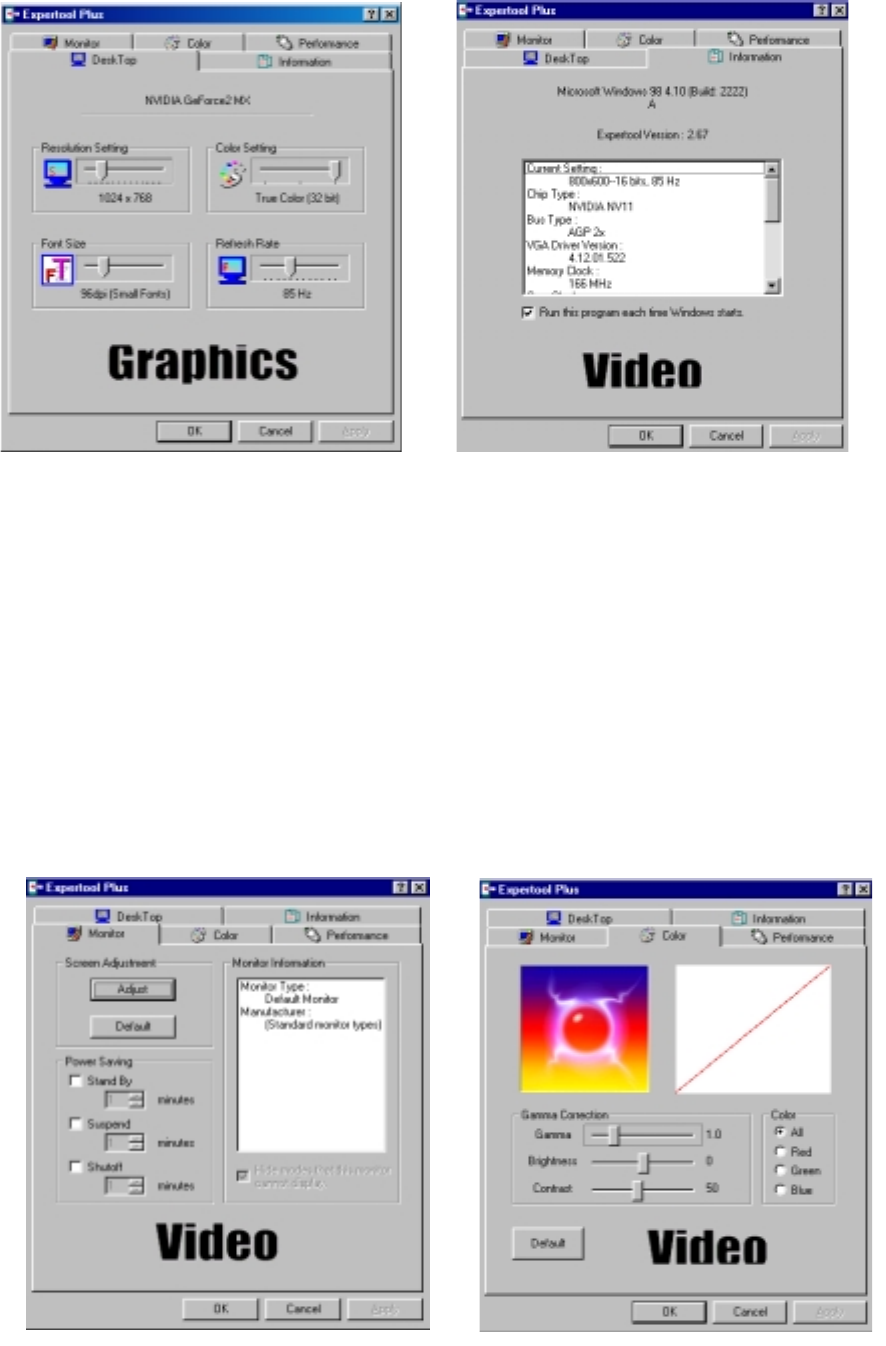

(As Figure 5-4)
DeskTop: Displays the current Resolution Setting, Color Setting, Font Size and
Refresh Rate for the monitor. Drag the slider to specify values for each setting and
click OK to put changes into effect.
(As Figure 5-5)
Information: Displays the current display settings and information of your computer.
Run this program each time Windows starts - check box: Select this option to run
Expertool immediately each time Windows starts.
Figure 5-6 Figure 5-7
14
(As Figure 5-6)
Screen Adjustment: Selects Adjust to adjust the screen position with the keyboard.
If you wish to cancel any changes you’ve made, select Default.
Monitor Information: Shows information about your monitor.
Hide modes that this monitor cannot display: Unchecking this box will allow you
to set your display to modes that this monitor cannot display correctly. This may
lead to an unusable display and/or damaged hardware.
Power Saving: Allows you to adjust the Power Saving settings for Standby, Suspend
or Shut-off mode.
Standby check box: This option instantly places your monitor in standby mode,
which delivers minimal power savings but provides optimal recovery time.
Suspend check box: This option instantly places your monitor in Suspend mode,
which delivers maximum savings but requires a somewhat longer recovery time than
Standby mode.
Shut-off check box: This option effectively turns your monitor off, and recovery time
is practically equivalent to turning the monitor on using the monitor's power switch.
(As Figure 5-7)
Color: Moves the slider to adjust the gamma value. The farther you slide this to the
right, the higher the gamma value, and the brighter your display will be. The more
you slide this to the left, the lower the gamma value, and the dimmer your display
will be.
Figure 5-8 Figure 5-9
15
(As Figure 5-8)
Memory/Core Clock Setting Slider Control: Allows you to adjust your video
memory/core clock for peek performance and maximum stability. The higher you
set the memory/core clock the greater the performance increase. But changing this
value will affect the stability of the VGA card. It is recommended that you use the
original setting.
(As Figure 5-9)
DirectX: DirectX properties vary depending on the version of windows you are
running, the version of DirectX installed, and the type of DirectX enabled drivers
installed. This dialog box will also display the system's DirectX capabilities, and
related information.
Figure 5-10

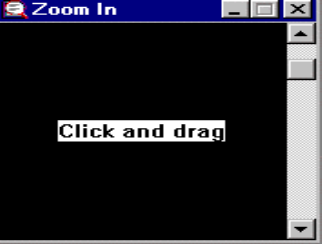

(As Figure 5-10)
Zoom In: Clicks on the client area and drags the mouse to zoom the desktop.
(As Figure 5-2)
Minimize: Close the menu and minimizes this application.
Close: Close this application and disables the features it supports.
16
Display Memory Configuration
Memory-Resolution/Color
The table below is for reference only.
256 color 16bit 32bit
640x480 240Hz 240Hz 240Hz
800x600 240Hz 240Hz 240Hz
1024x768 240Hz 240Hz 200Hz
1152x864 200Hz 200Hz 170Hz
1280x960 170Hz 170Hz 150Hz
1280x1024 170Hz 170Hz 150Hz
1600x900 150Hz 150Hz 120Hz
1600x1200 120Hz 120Hz 100Hz
1920x1080 100Hz 100Hz 85Hz
1920x1200 100Hz 100Hz 85Hz
1920x1440 85Hz 85Hz 75Hz
2048x1536 75Hz 75Hz 75Hz
Monitor Connector Pin Assignments
Pin no. Function Pin no. Function
1 Red Video 9 +5V
2 Green Video 10 Sync Return (ground)
3 Blue Video 11 NC
4 NC 12 DDC DATA
5 Ground 13 Horizontal Sync
6 Red Return (ground) 14 Vertical Sync
7 Green Return (ground) 15 DDC CLOCK
8 Blue Return (ground)
Chapter 6 Technical Information
17
DVI Connector Pin Assignments and Description
Pin no. Signal Name Description
1 TX2- TMDS negative differential output, channel 2
2 TX2+ TMDS positive differential output, channel 2
3 SHLD2/4 Shield for TMDS channel 2/4
4 TX4- TMDS negative differential output, channel 4
5 TX4+ TMDS positive differential output, channel 4
6 DDC_CLK DDC2B Clock
7 DDC_DAT DDC2B Data
8 Vertical Sync Signal for the analog interface
9 TX1- TMDS negative differential output, channel 1
10 TX1+ TMDS positive differential output, channel 1
11 SHLD1/3 Shield for TMDS channel 1/3
12 TX3- TMDS negative differential output, channel 3
13 TX3+ TMDS positive differential output, channel 3
14 +5V Power Logic +5V supply
15 Ground Ground reference for +5 volt power pin. Used as
return by Hsync and Vsync Signals
16 HPD Signal is driven by monitor to enable the system to
identify the presence of a monitor.
17 TX0- TMDS negative differential output, channel 0
18 TX0+ TMDS positive differential output, channel 0
19 SHLD0/5 Shield for TMDS channel 0/5
20 TX5- TMDS negative differential output, channel 5
21 TX5+ TMDS positive differential output, channel 5
22 SHLD Clock Shield for TMDS clock differential pair
23 TXC+ TMDS positive differential output, channel Clock
24 TXC- TMDS negative differential output, channel Clock
Flash ROM Upgrade
1. Copy the utility from your CD directory “\Nvidia\Dos\FLASH\GeForce” to
your hard disk.
2. Type nvflash.exe -f<filename> to update your ROM file (Rom file can be
downloaded from the web site).
18
VESA VGA Mode Table
Mode
(hex) Pixels Colors Windowed Linear
100h 640 by 400 256 V V
101h 640 by 480 256 V V
102h 800 by 600 16 V V
103h 800 by 600 256 V V
104h 1024 by 768 16 V V
105h 1024 by 768 256 V V
106h 1280 by 1024 16 V V
107h 1280 by 1024 256 V V
108h 80 by 60 16 V V
109h 132 by 25 16 V V
10a 132 by 43 16 V V
10b 132 by 50 16 V V
10c 132 by 60 16 V V
10e 320 by 200 256 V V
10f 320 by 200 64K V V
111 640 by 480 32K V V
112 640 by 480 64K V V
114 800 by 600 32K V V
115 800 by 600 64K V V
117 1024 by 768 32K V V
118 1024 by 768 64K V V
11a 1280 by 1024 32K V V
130 320 by 200 256 V V
131 320 by 400 256 V V
132 320 by 400 32K V V
133 320 by 400 64K V V
134 320 by 240 256 V V
135 320 by 240 32K V V
136 320 by 240 64K V V
13d 640 by 400 32K V V
13e 640 by 400 64K V V
145 1600 by 1200 256 V V
146 1600 by 1200 32K V V
19
2D Memory Configurations
Memory
Configuration
Width Height Color 16MB 32MB
640 480 8-bit V V
640 480 16-bit V V
640 480 32-bit V V
800 600 8-bit V V
800 600 16-bit V V
800 600 32-bit V V
1024 768 8-bit V V
1024 768 16-bit V V
1024 768 32-bit V V
1152 864 8-bit V V
1152 864 16-bit V V
1152 864 32-bit V V
1280 960 8-bit V V
1280 960 16-bit V V
1280 960 32-bit V V
1280 1024 8-bit V V
1280 1024 16-bit V V
1280 1024 32-bit V V
1600 900 8-bit V V
1600 900 16-bit V V
1600 900 32-bit V V
1600 1200 8-bit V V
1600 1200 16-bit V V
1600 1200 32-bit V V
1920 1080 8-bit V V
1920 1080 16-bit V V
1920 1080 32-bit V V
1920 1200 8-bit V V
1920 1200 16-bit V V
1920 1200 32-bit V V
1920 1440 8-bit V V
1920 1440 16-bit V V
1920 1440 32-bit V V
2048 1536 8-bit V V
2048 1536 16-bit V V
2048 1536 32-bit V V
20
Problem: After installation and restarting, Windows 95 informs me that display
settings are still incorrect. There may be conflict between previous and current
display drivers. This is caused by incomplete removal of previous display driver.
Try the following steps to remove it.
Solution:
(1) Use the right mouse button to click on the "My Computer" icon on your desktop.
(2) Select "Properties" and the "System Properties" box should appear.
(3) Click on the "Device Manager" tab.
(4) You will see a list of devices on your computer.
(5) Open "Display Adapters" in the list by double clicking it.
(6) You will find two (or more) conflicting adapters listed here.
(7) Remove all previous adapters by selecting them and selecting "Remove"
(8) Close Device Manager and restart Windows 95.
(9) Now your display driver should work correctly.
Problem: After installing the driver, Windows 95 doesn't prompt me to restart and
the driver still doesn't work after a manual reboot. You may have installed similar
drivers before. Try the following steps to install:
Solution:
(1) Use right mouse button to click on the "My Computer" icon on your desktop.
(2) Select "Properties" and the "System Properties" box appears.
(3) Click on the "Device Manager" tab.
(4) You will see a list of devices on your computer.
(5) If "Display adapters" appears in the list, click it.
If "Display adapters" doesn't appear, skip to step 9 and continue.
(6) The name of your card will be listed in the box. Double click it.
(7) The properties box of your card appears. Select "Driver" tab.
(8) Click "Change Driver.." and follow the installation steps.
(9) Click "Other devices" and you will see your card listed.
(10) Click on the card, and when the properties box appears.
Select the "Driver" tab.
(11) Click "Change Driver.." and follow the installation steps.
Chapter 7 Trouble Shooting
21
Problem: When the system is starting up, there is a series of prolonged beeps.
Solution:
The VGA card may not be firmly inserted into the expansion slot. Ensure that the
gold-striped bus connector of the graphics card is properly inserted into the expansion
slot. Ensure this by pressing the card gently and evenly into the slot. Alternatively,
remove the card and re-insert it.
Problem: Monitor display flickers after Windows 95 or Windows 98 starts.
Solution:
Your monitor may not support the resolution or refresh rate that you have set. You
must use display settings supported by the monitor. To change the display settings:
(1) Restart your system in Windows 95/Windows 98 Safe mode. To do so:
a. Restart your system and when the message "Starting Windows 95/98…"
appears, press F8. A list of options including Safe Mode and Command
Prompt Only Mode appears.
b. Select Safe Mode and press ENTER.
(2) Lower your monitor's resolution.
For the resolutions supported by your monitor, refer to its manual.
22
When you need advanced technique service, please Complete this form and FAX to
your dealer.
Your name: Phone :
Product S/N: PCB NO.:
HARDWARE CONFIGURATION
Mainboard Chipset: CPU Speed: MHz
Mainboard CPU: VGA Memory Type:
Mainboard Memory: MB VGA Memory MB
Mainboard Brand: VGA Memory Brand:
Cache Memory: KB FDD/HDC Card:
Monitor Type: Horizontal Freq. : KHz to KHz
Vertical Freq. : HZ to HZ
Operating System or Test Programs:
Application Software:
Other Cards installed in system:
Problem Description:
Printed in Taiwan
