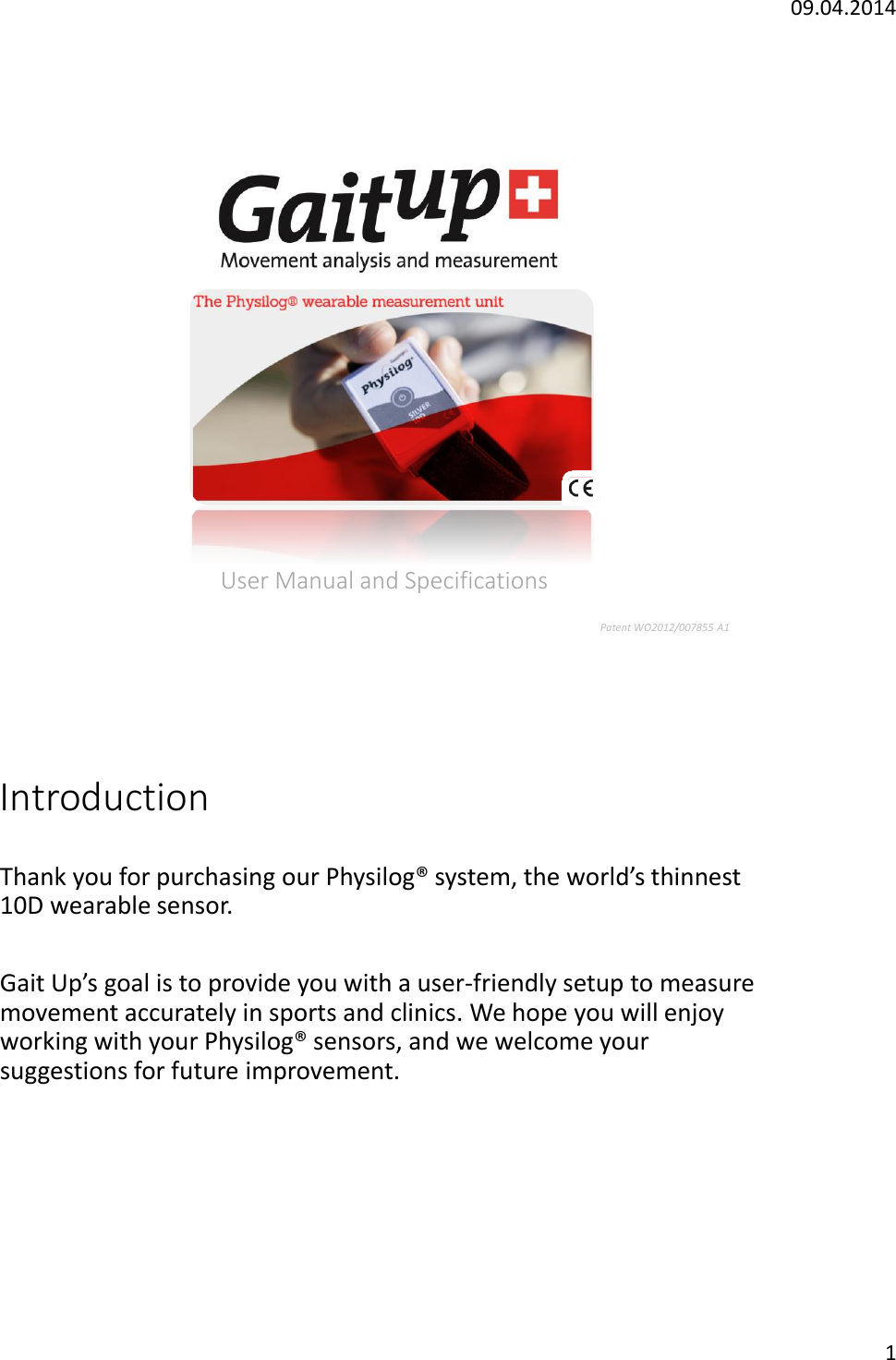

09.04.20141User Manual and SpecificationsPatent WO2012/007855 A1IntroductionThank you for purchasing our Physilog® system, the world’s thinnest10D wearable sensor. Gait Up’s goal is to provide you with a user-friendly setup to measure movement accurately in sports and clinics. We hope you will enjoyworking with your Physilog® sensors, and we welcome yoursuggestions for future improvement.

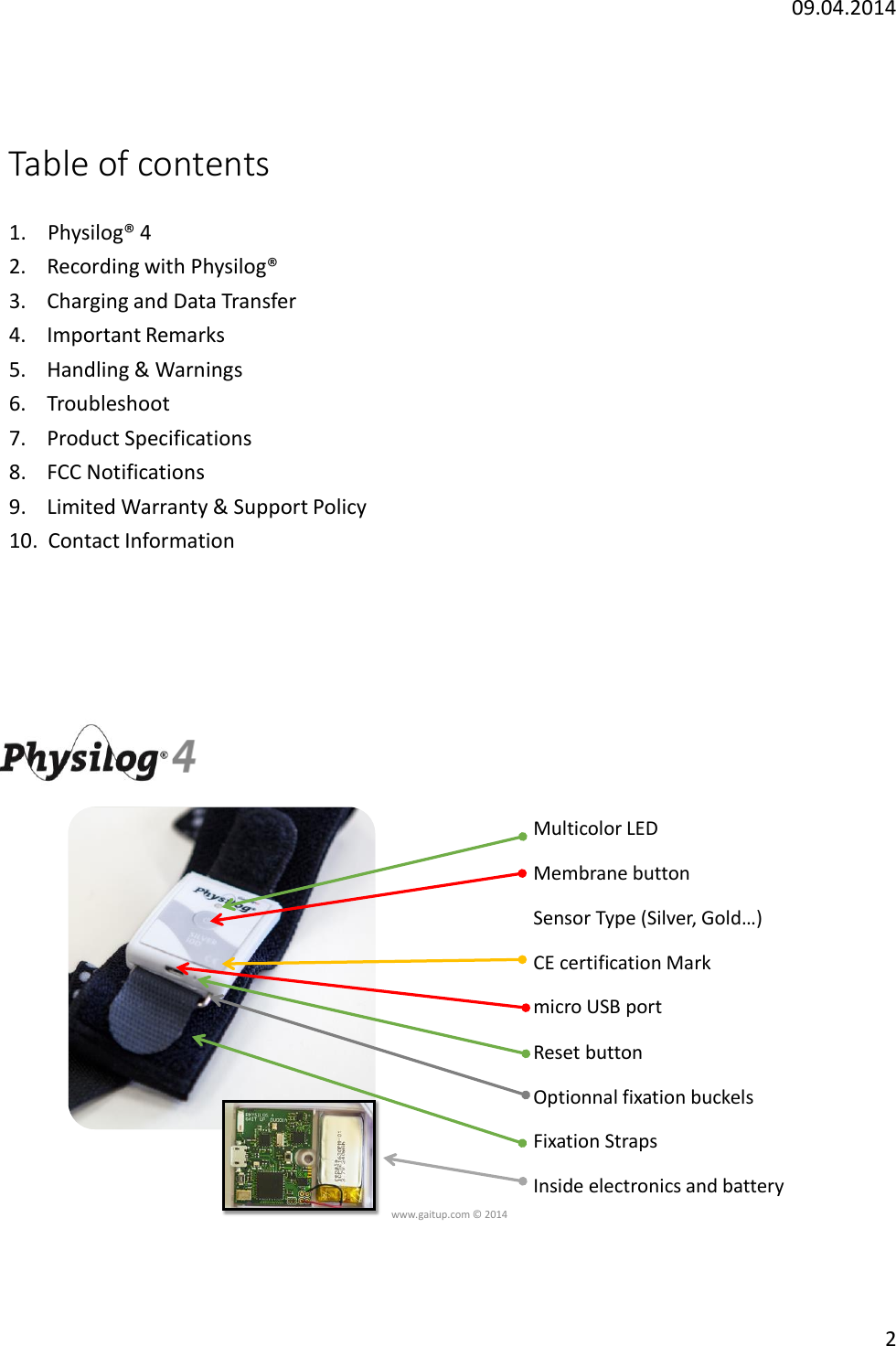

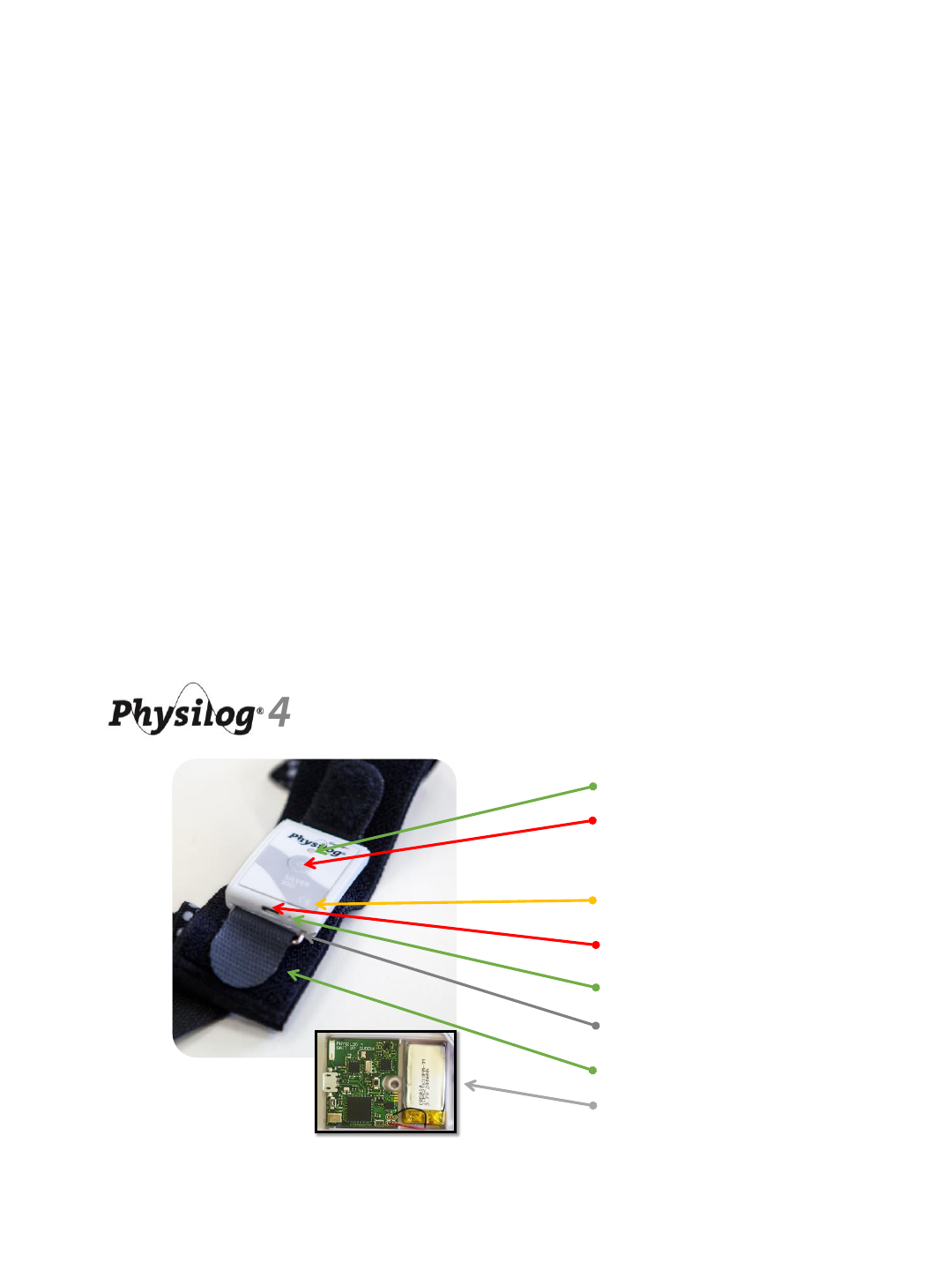

09.04.20142Table of contents1. Physilog® 42.  Recording with Physilog®3.   Charging and Data Transfer4.  Important Remarks5.    Handling & Warnings6.    Troubleshoot7.    Product Specifications8.    FCC Notifications9.    Limited Warranty & Support Policy10.  Contact Informationwww.gaitup.com © 2014Multicolor LEDMembrane buttonSensor Type (Silver, Gold…)CE certification Markmicro USB portReset buttonOptionnal fixation buckelsFixation StrapsInside electronics and battery

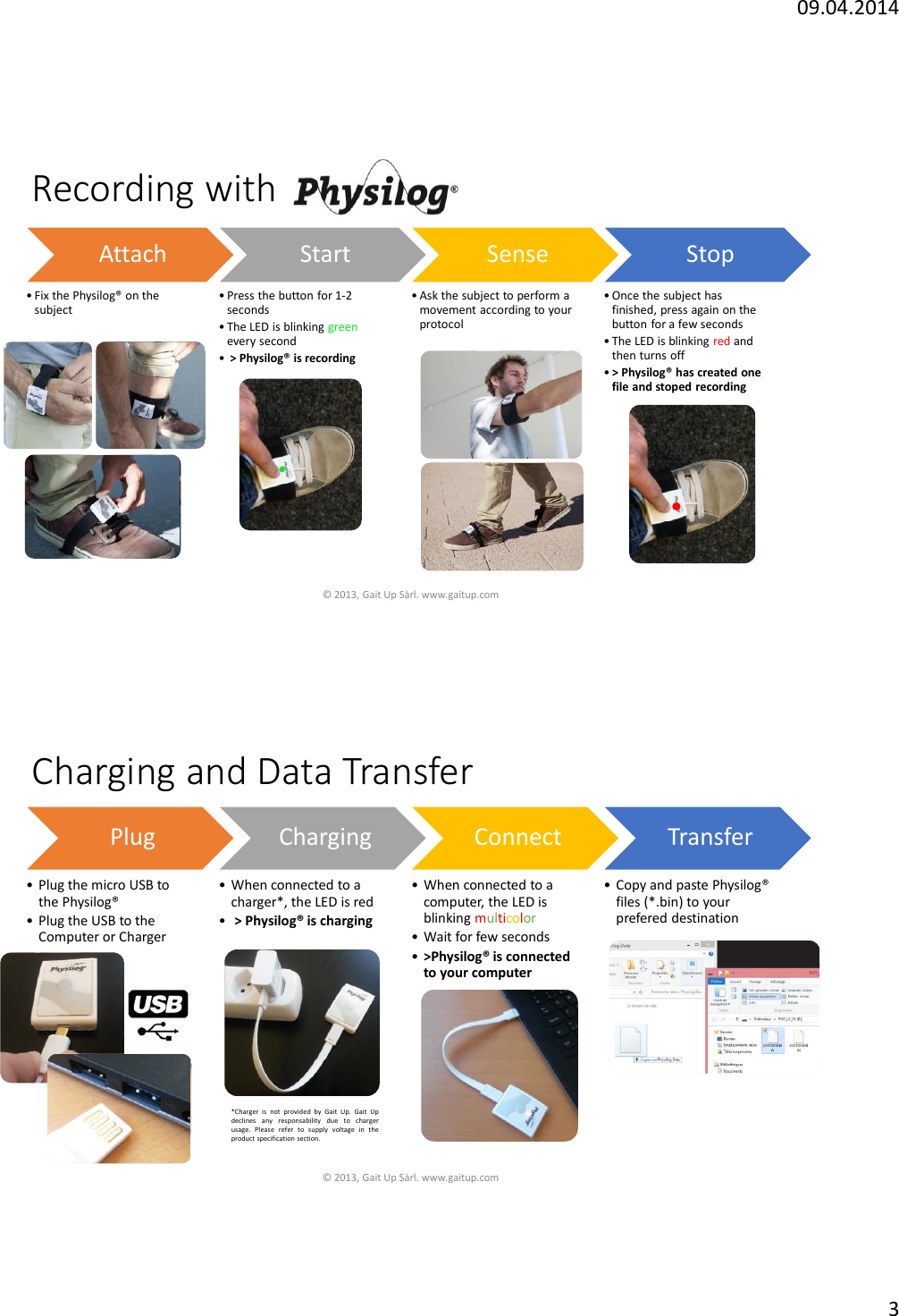

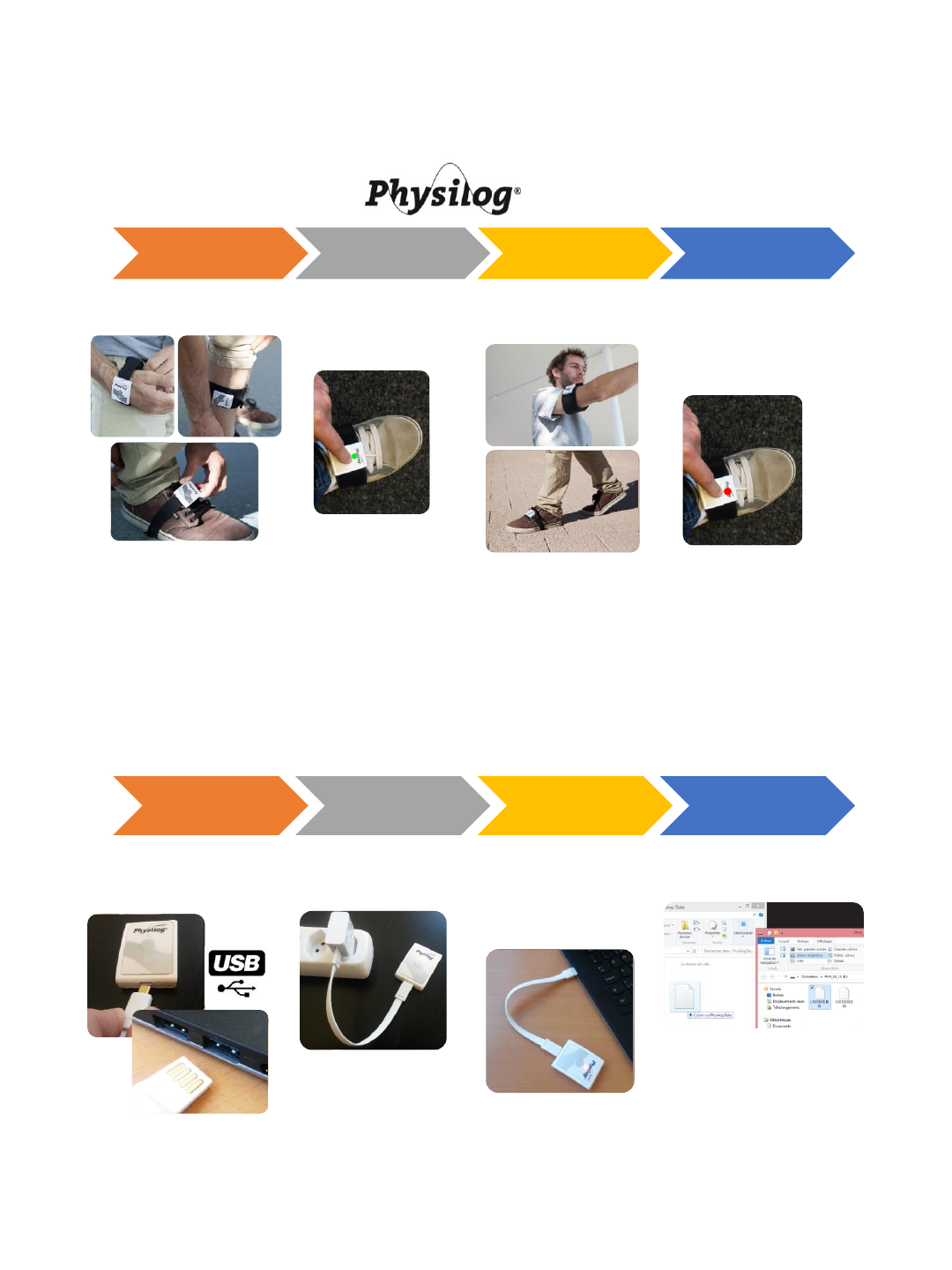

09.04.20143Recording with Physilog® © 2013, Gait Up Sàrl. www.gaitup.comAttach•Fix the Physilog® on the subjectStart•Press the button for 1-2 seconds•The LED is blinking greenevery second•> Physilog® is recordingSense•Ask the subject to perform a movement according to yourprotocolStop•Once the subject has finished, press again on the button for a few seconds•The LED is blinking red and then turns off•> Physilog® has created one file and stoped recordingorCharging and Data TransferPlug•Plug the micro USB to the Physilog®•Plug the USB to the Computer or ChargerCharging•When connected to a charger*, the LED is red•> Physilog® is chargingConnect•When connected to a computer, the LED isblinking multicolor•Wait for few seconds•>Physilog® is connectedto your computerTransfer•Copy and paste Physilog®files (*.bin) to yourprefered destination*Charger is not provided by Gait Up. Gait Updeclines any responsability due to chargerusage. Please refer to supply voltage in theproduct specification section.© 2013, Gait Up Sàrl. www.gaitup.com

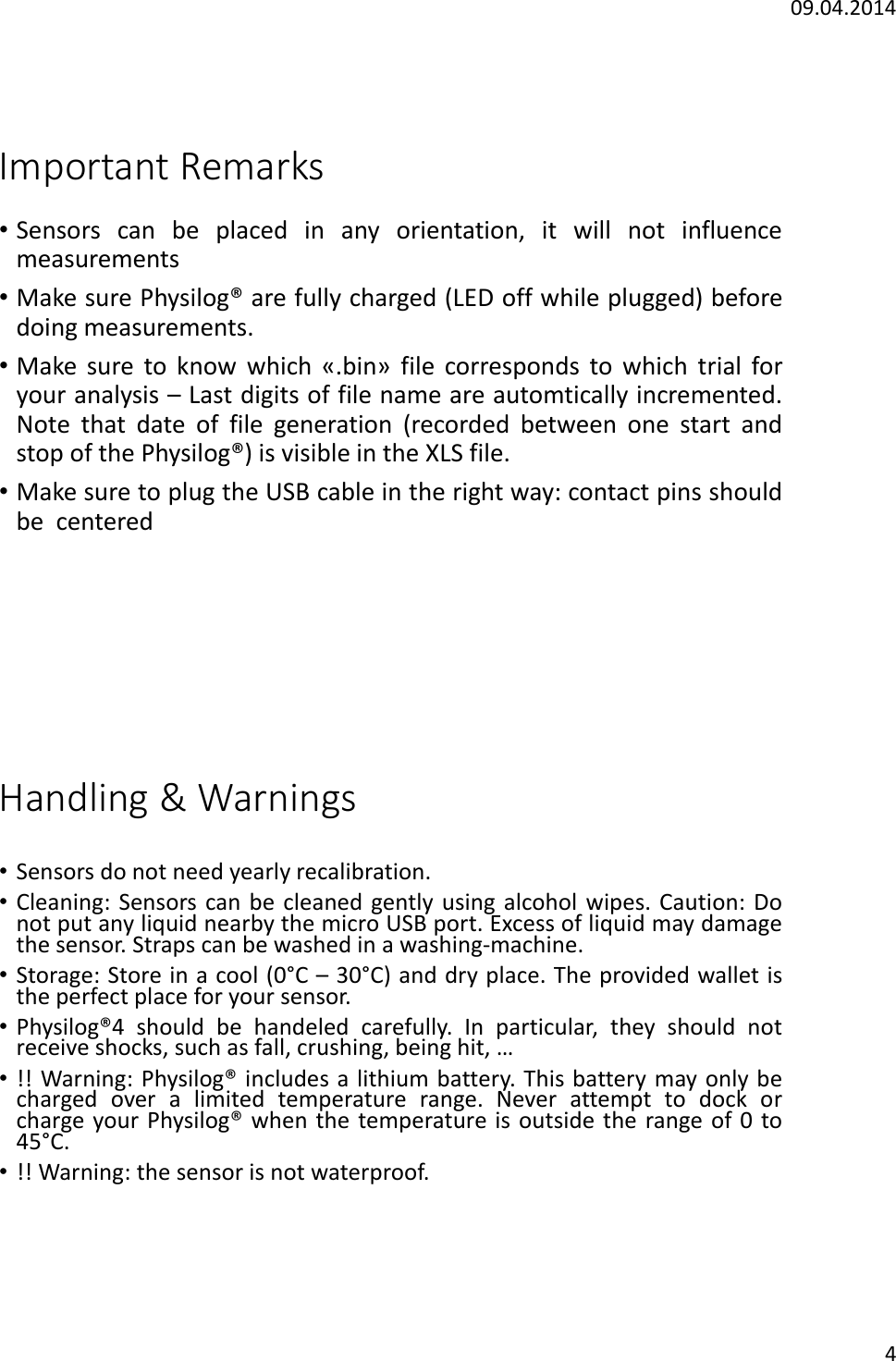

09.04.20144Important Remarks•Sensors can be placed in any orientation, it will not influencemeasurements•Make sure Physilog® are fully charged (LED off while plugged) beforedoing measurements.•Make sure to know which «.bin» file corresponds to which trial foryour analysis –Last digits of file name are automtically incremented.Note that date of file generation (recorded between one start andstop of the Physilog®) is visible in the XLS file.•Make sure to plug the USB cable in the right way: contact pins shouldbe centeredHandling & Warnings•Sensors do not need yearly recalibration.•Cleaning: Sensors can be cleaned gently using alcohol wipes. Caution: Donot put any liquid nearby the micro USB port. Excess of liquid may damagethe sensor. Straps can be washed in a washing-machine.•Storage: Store in a cool (0°C –30°C) and dry place. The provided wallet isthe perfect place for your sensor.•Physilog®4 should be handeled carefully. In particular, they should notreceive shocks, such as fall, crushing, being hit, …•!! Warning: Physilog® includes a lithium battery. This battery may only becharged over a limited temperature range. Never attempt to dock orcharge your Physilog® when the temperature is outside the range of 0to45°C.•!! Warning: the sensor is not waterproof.

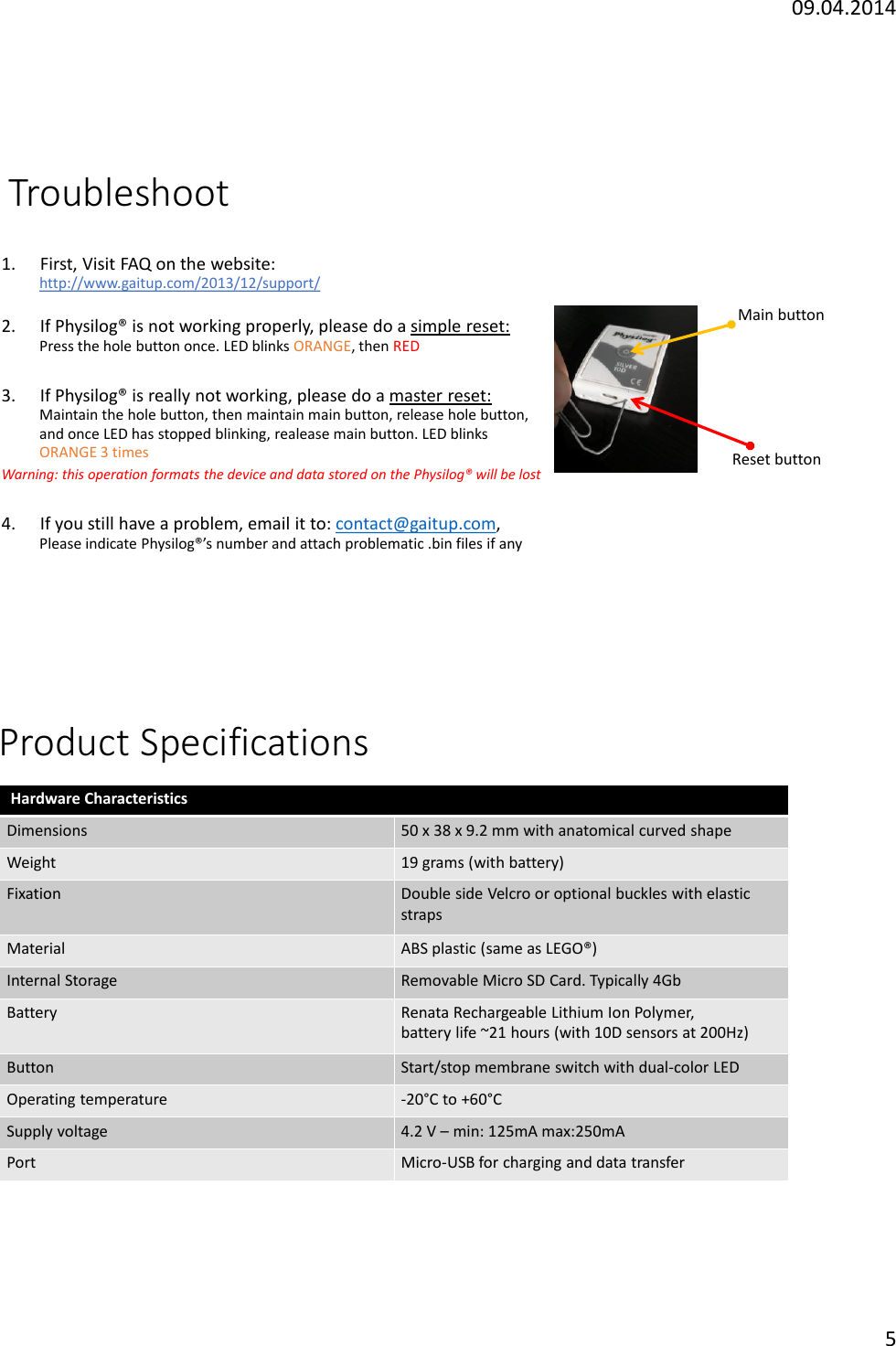

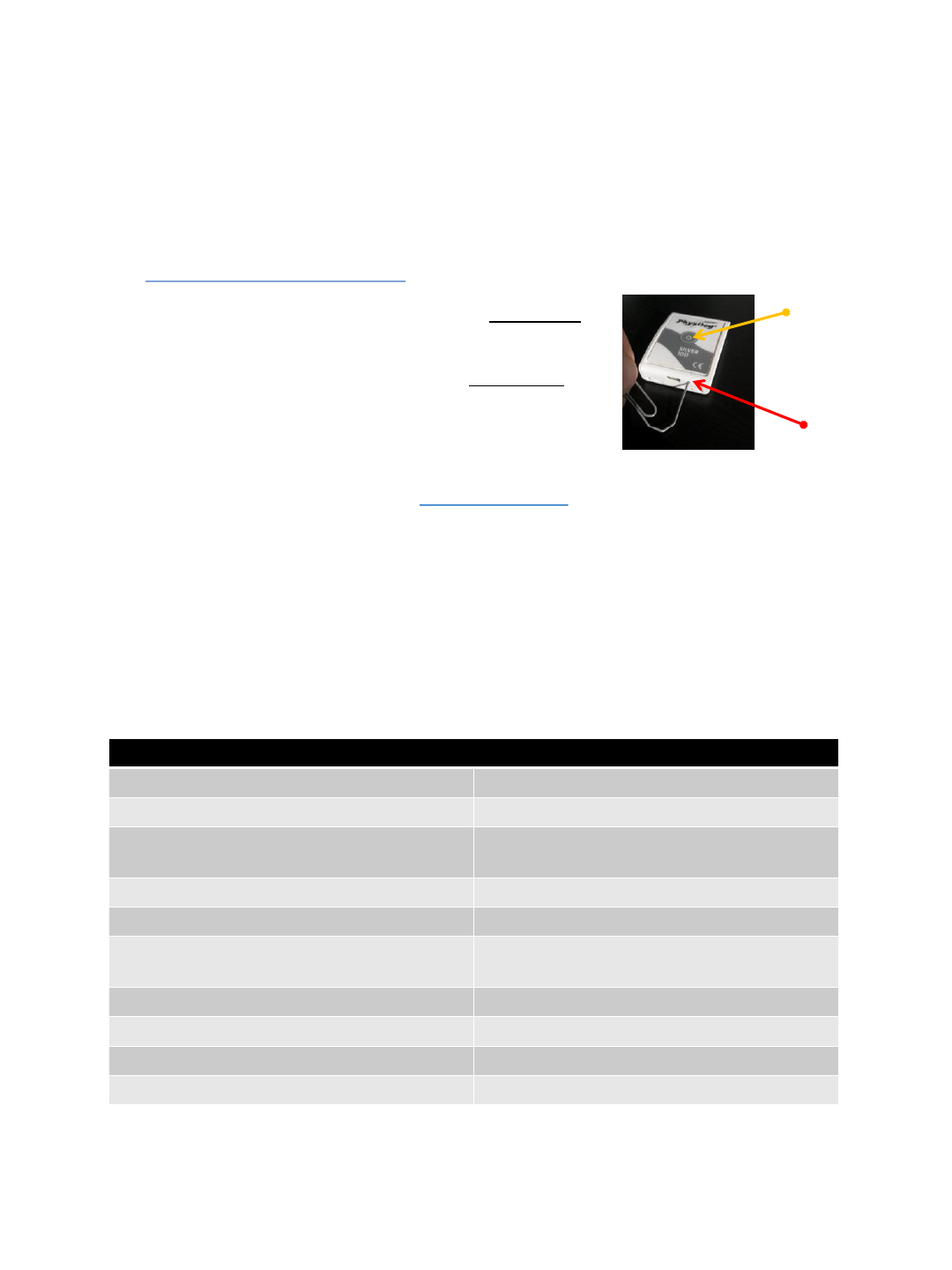

09.04.20145Troubleshoot1. First, Visit FAQ on the website:http://www.gaitup.com/2013/12/support/2. If Physilog® is not working properly, please do a simple reset:Press the hole button once. LED blinks ORANGE, then RED3. If Physilog® is really not working, please do a master reset:Maintain the hole button, then maintain main button, release hole button,   and once LED has stopped blinking, realease main button. LED blinksORANGE 3 timesWarning: this operation formats the device and data stored on the Physilog® will be lost4. If you still have a problem, email it to: contact@gaitup.com, Please indicate Physilog®’s number and attach problematic .bin files if anyReset buttonMain buttonProduct SpecificationsHardware CharacteristicsDimensions50 x 38 x 9.2 mm with anatomical curved shapeWeight19 grams (with battery)FixationDouble side Velcro or optional buckles with elasticstrapsMaterialABS plastic (same as LEGO®) InternalStorageRemovableMicro SD Card. Typically 4GbBatteryRenata Rechargeable Lithium Ion Polymer, batterylife ~21 hours (with 10D sensors at 200Hz)ButtonStart/stop membrane switch with dual-color LED Operating temperature-20°C to +60°CSupplyvoltage4.2V –min: 125mA max:250mAPortMicro-USB for charging and data transfer

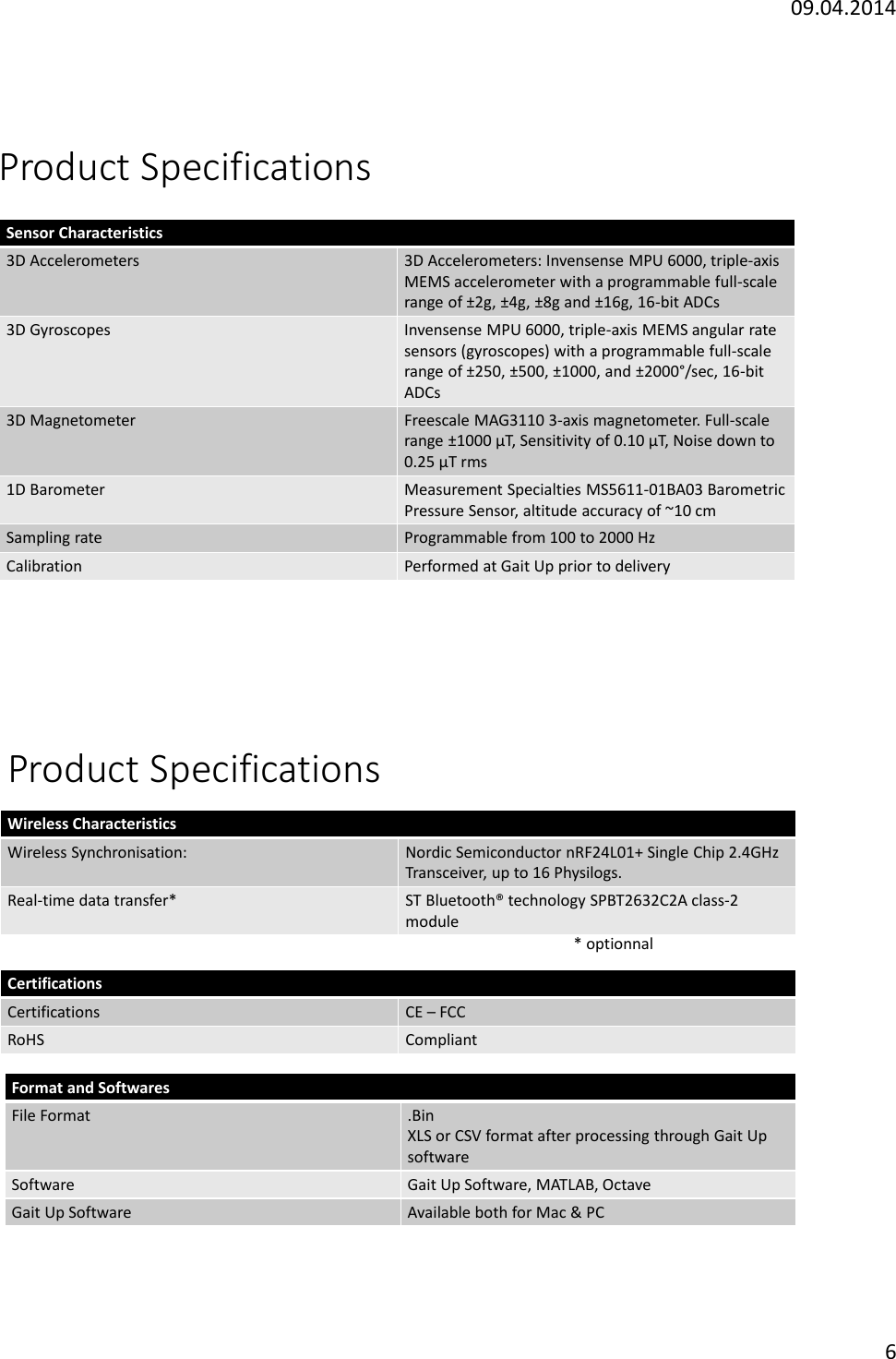

09.04.20146Product SpecificationsSensorCharacteristics3D Accelerometers3D Accelerometers: Invensense MPU 6000, triple-axis MEMS accelerometer with a programmable full-scalerange of ±2g, ±4g, ±8g and ±16g, 16-bit ADCs3D GyroscopesInvensenseMPU 6000, triple-axis MEMS angular rate sensors(gyroscopes) with a programmable full-scalerange of ±250, ±500, ±1000, and ±2000°/sec, 16-bit ADCs3D MagnetometerFreescaleMAG3110 3-axis magnetometer. Full-scalerange ±1000 µT, Sensitivity of 0.10 µT, Noise down to 0.25 µT rms1D BarometerMeasurementSpecialties MS5611-01BA03 BarometricPressure Sensor, altitude accuracy of ~10 cmSamplingrateProgrammable from 100 to 2000 HzCalibrationPerformedat Gait Up prior to deliveryProduct SpecificationsWireless CharacteristicsWireless Synchronisation:NordicSemiconductor nRF24L01+ Single Chip 2.4GHz Transceiver, up to 16 Physilogs. Real-time data transfer*ST Bluetooth® technology SPBT2632C2A class-2 module CertificationsCertificationsCE –FCCRoHSCompliantFormat and SoftwaresFileFormat.BinXLS or CSV format after processing through Gait Up softwareSoftwareGaitUp Software, MATLAB, OctaveGaitUp SoftwareAvailableboth for Mac & PC* optionnal

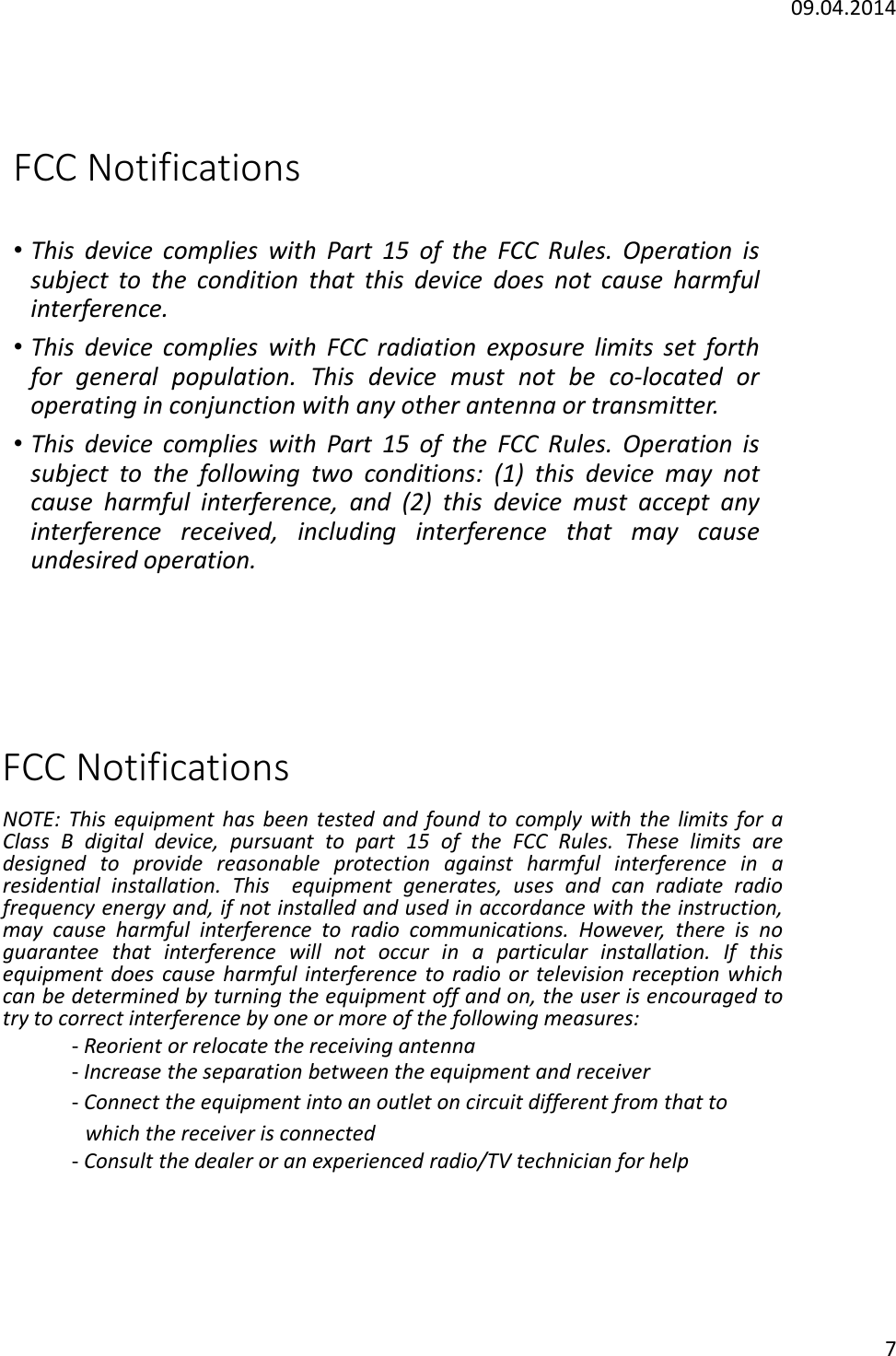

09.04.20147FCC Notifications•This device complies with Part 15 of the FCC Rules. Operation issubject to the condition that this device does not cause harmfulinterference.•This device complies with FCC radiation exposure limits set forthfor general population. This device must not be co-located oroperating in conjunction with any other antenna or transmitter.•This device complies with Part 15 of the FCC Rules. Operation issubject to the following two conditions: (1) this device may notcause harmful interference, and (2) this device must accept anyinterference received, including interference that may causeundesired operation.FCC NotificationsNOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instruction,may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If thisequipment does cause harmful interference to radio or television reception whichcan be determined by turning the equipment off and on, the user is encouraged totry to correct interference by one or more of the following measures:-Reorient or relocate the receiving antenna-Increase the separation between the equipment and receiver-Connect the equipment into an outlet on circuit different from that towhich the receiver is connected-Consult the dealer or an experienced radio/TV technician for help

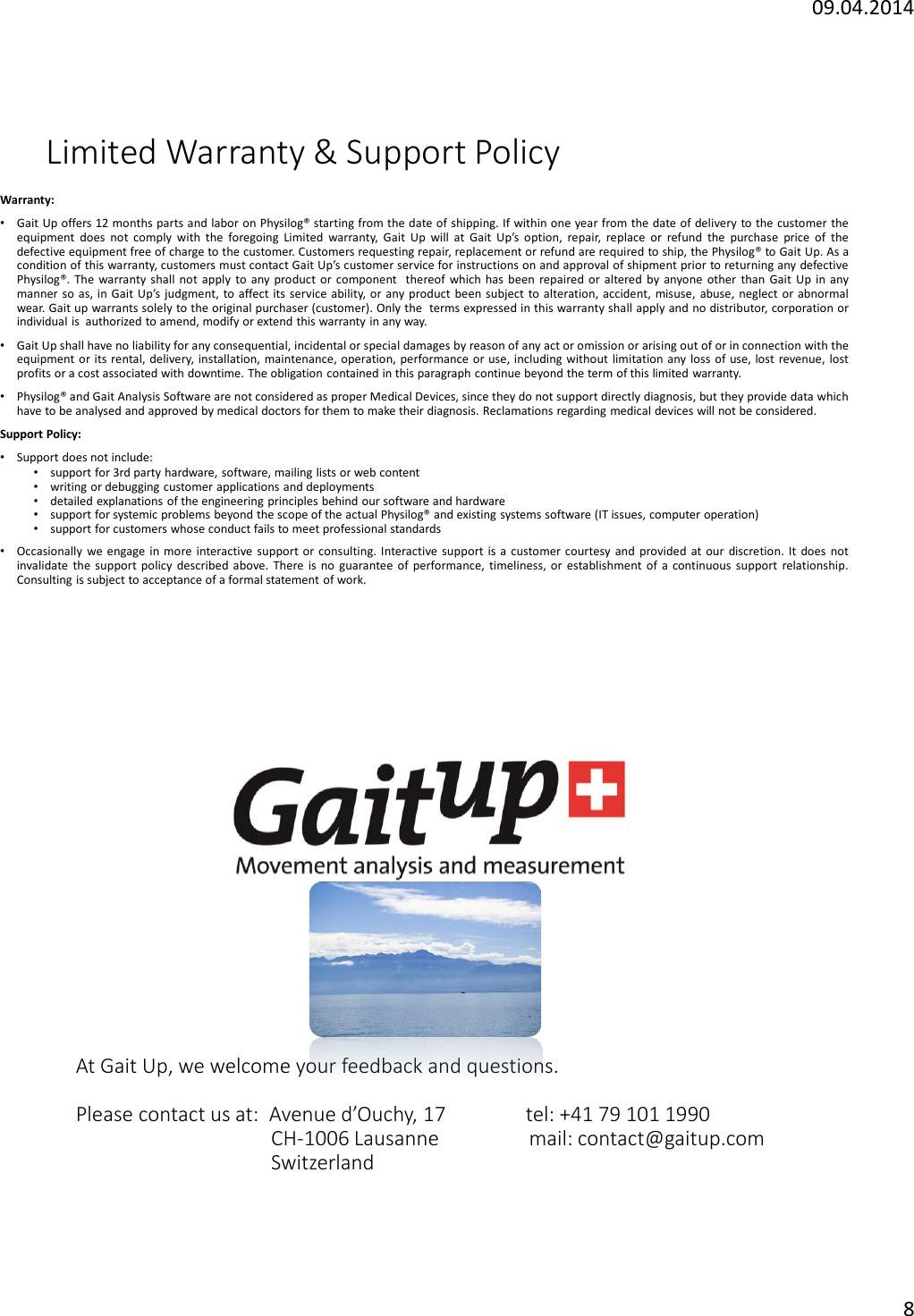

09.04.20148Limited Warranty & Support PolicyWarranty:•Gait Up offers 12 months parts and labor on Physilog® starting from the date of shipping. If within one year from the date of delivery to the customer theequipment does not comply with the foregoing Limited warranty, Gait Up will at Gait Up’s option, repair, replace or refund the purchase price of thedefective equipment free of charge to the customer. Customers requesting repair, replacement or refund are required to ship, the Physilog® to Gait Up.As acondition of this warranty, customers must contact Gait Up’s customer service for instructions on and approval of shipment prior to returning any defectivePhysilog®. The warranty shall not apply to any product or component thereof which has been repaired or altered by anyone other than Gait Up in anymanner so as, in Gait Up’s judgment, to affect its service ability, or any product been subject to alteration, accident, misuse, abuse, neglect or abnormalwear. Gait up warrants solely to the original purchaser (customer). Only the terms expressed in this warranty shall apply and no distributor, corporation orindividual is authorized to amend, modify or extend this warranty in any way.•Gait Up shall have no liability for any consequential, incidental or special damages by reason of any act or omission or arising out of or in connection with theequipment or its rental, delivery, installation, maintenance, operation, performance or use, including without limitation any loss of use, lost revenue, lostprofits or a cost associated with downtime. The obligation contained in this paragraph continue beyond the term of this limited warranty.•Physilog® and Gait Analysis Software are not considered as proper Medical Devices, since they do not support directly diagnosis, but they provide data whichhave to be analysed and approved by medical doctors for them to make their diagnosis. Reclamations regarding medical devices will not be considered.Support Policy:•Support does not include:•support for 3rd party hardware, software, mailing lists or web content•writing or debugging customer applications and deployments•detailed explanations of the engineering principles behind our software and hardware•support for systemic problems beyond the scope of the actual Physilog® and existing systems software (IT issues, computer operation)•support for customers whose conduct fails to meet professional standards•Occasionally we engage in more interactive support or consulting. Interactive support is a customer courtesy and provided at our discretion. It does notinvalidate the support policy described above. There is no guarantee of performance, timeliness, or establishment of a continuous support relationship.Consulting is subject to acceptance of a formal statement of work.At Gait Up, we welcome your feedback and questions.Please contact us at:  Avenue d’Ouchy, 17                tel: +41 79 101 1990CH-1006 Lausanne                  mail: contact@gaitup.comSwitzerland
