Galanz 10030004 Microwave Oven User Manual UHW10030004
Guangdong Galanz Enterprises Co., Ltd. Microwave Oven UHW10030004
Galanz >
Users Manual
Model: D100N30ASPKR-B5
CONVECTION MICROWAVE OVEN
Microwave Oven Owner's manual
Please read these instructions carefully before installing and operating the oven.
Record in the space below the SERIAL NO. found on the nameplate on your oven and retain
this information for future reference.
SERIAL NO.
Please save sales receipt for warranty.
1
1. Do not attempt to operate this oven with the door-open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damage to the:
a. Door (bent),
b. Hinges and latches (broken or loosened),
c. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified
service personnel.
CONTENT
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY ...............................................................................................................................1
IMPORTANT SAFETY INSTRUCTIONS...............................................................................2
INSTALLATION GUIDE.........................................................................................................3
GROUNDING INSTRUCTIONS............................................................................................3
UTENSILS GUIDE ................................................................................................................4
COOKING TECHNIQUES.....................................................................................................5
SPECIFICATIONS.................................................................................................................6
PART NAMES .......................................................................................................................6

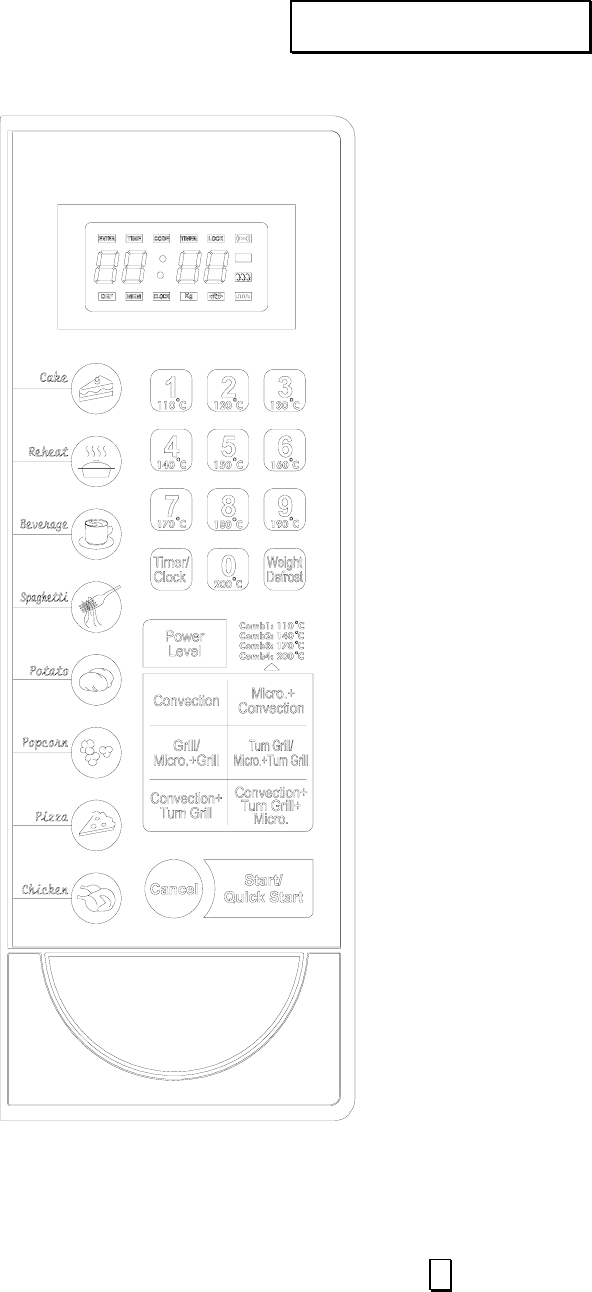

CONTROL PANEL ................................................................................................................7
HOW TO SET THE OVEN CONTROLS ...............................................................................8
Setting Digital Clock ......................................................................................................8
Microwave Cooking.......................................................................................................8
Grill & Micro.+Grill .........................................................................................................8
Turn grill & Micro.+Turn grill ..........................................................................................9
Convection ....................................................................................................................9
Convection + Turn Grill................................................................................................10
Micro. + Convection ....................................................................................................10
Convection+Turn Grill +Micro. ........................................................................10
Weight Defrost.............................................................................................................10
Multi-stage Cooking.....................................................................................................10
Timer ...........................................................................................................................11
Quick start ...................................................................................................................11
Child Lock....................................................................................................................11
Automatic Protection Mechanism................................................................................11
Cooling Feature...........................................................................................................11
Auto Cook....................................................................................................................12
CLEANING AND CARE.......................................................................................................13
P
PR
RE
EC
CA
AU
UT
TI
IO
ON
NS
S
T
TO
O
A
AV
VO
OI
ID
D
P
PO
OS
SS
SI
IB
BL
LE
E
E
EX
XP
PO
OS
SU
UR
RE
E
T
TO
O
E
EX
XC
CE
ES
SS
SI
IV
VE
E
M
MI
IC
CR
RO
OW
WA
AV
VE
E
E
EN
NE
ER
RG
GY
Y
SAVE THESE INSTRUCTIONS
2
When using electrical appliances, basic safety
precautions should be followed, including the
following:
WARNING - To reduce the risk of burns, electric
shock, fire, injury to persons or exposure to
excessive microwave energy:
5. Read all instructions before using the
appliance.
6. Read and follow the specific
"PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY" on page 1.
7. This appliance must be grounded. Connect
only to properly grounded outlet. See
"GROUNDING INSTRUCTIONS” on page 3.
8. Install or locate this appliance only in
accordance with the provided installation
instructions.
9. Some products such as whole eggs and
sealed containers -for example, closed
glass jars- are able to explode and should
not be heated in this oven.
10. Use this appliance only for its intended use
as described in this manual. Do not use
corrosive chemicals or vapors in this
appliance. This type of oven is specifically
designed to heat, cook, or dry food. It is not
designed for industrial or laboratory use.
11. As with any appliance, close supervision is
necessary when used by children.
12. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend
appliance when paper, plastic, or other
combustible materials are placed inside the
oven to facilitate cooking.
b. Remove wire twist-ties from paper or
plastic bags before placing bag in oven.
c. If materials inside the oven should ignite,
keep oven door closed, turn oven off, and
disconnect the power cord or shut off
power at the fuse or circuit breaker panel.
d. Do not use the cavity for storage purposes.
Do not leave paper products, cooking
utensils or food in the cavity when not in
use.
13. Liquids, such as water, coffee, or tea are
able to be overheated beyond the boiling
point without appearing to be boiling due to
surface tension of the liquid. Visible
bubbling or boiling when the container is
removed from the microwave oven is not
always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to person:
a. Do not overheat the liquid.
b. Stir the liquid both before and halfway
through heating it.
c. Do not use straight-sided containers with
narrow necks.
d. After heating, allow the container to stand
in the microwave oven for a short time
before removing the container.
e. Use extreme care when inserting a spoon
or other utensil into the container.
14. Do not heat oil or fat for deep-frying. It is
difficult to control the temperature of oil in
microwave oven.
15. Pierce foods with heavy skins such as
potatoes, whole squash, apples and
chestnuts before cooking.
16. The contents of feeding bottles and baby
jars should be stirred or shaken and the
temperature should be checked before
serving in order to avoid burns.
17. Cooking utensils may become hot because
of heat transferred from the heated food.
Potholders may be needed to handle the
utensil.
18. Do not cover or block any openings on the
appliance.
19. Do not store or use this appliance outdoors.
Do not use this product near water, for
example, near a kitchen sink, in a wet
basement, near a swimming pool, or similar
locations.
20. Do not operate this appliance if it has a
damaged cord or a plug, if it is not working
I
IM
MP
PO
OR
RT
TA
AN
NT
T
S
SA
AF
FE
ET
TY
Y
I
IN
NS
ST
TR
RU
UC
CT
TI
IO
ON
NS
S
SAVE THESE INSTRUCTIONS
3
properly or if it has been damaged or
dropped.
21. Do not immerse cord or plug in water. Keep
cord away from heated surface. Do not let
cord hang over edge of table or counter.
22. Use only thermometers, which are
specifically designed for use in microwave
ovens.
23. Do not operate any heating or cooking
appliance beneath this appliance.
24. Be certain the glass tray and roller rings are
in place when you operate the oven.
25. This appliance should be serviced only by
qualified service personnel, contact nearest
authorized service facility for examination,
repair, or adjustment.
26. When cleaning surfaces of door and oven
that comes together on closing the door, use
only mild, nonabrasive soaps, or detergents
applied with a sponge or soft cloth.
This appliance must be grounded. In the event
of an electrical short circuit, grounding reduces
risk of electric shock by providing an escape
wire for the electric current.
WARNING Improper use of the grounding plug
can result in a risk of electric shock.
ELECTRICAL REQUIREMENTS
The electrical requirements are a 120 volt 60
Hz, AC only, 15 amp. It is recommended that a
I
IN
NS
ST
TA
AL
LL
LA
AT
TI
IO
ON
N
G
GU
UI
ID
DE
E
G
GR
RO
OU
UN
ND
DI
IN
NG
G
I
IN
NS
ST
TR
RU
UC
CT
TI
IO
ON
NS
S
1. Make sure that all the packing materials
are removed from the inside of the door.
2. Check the oven for any damage, such
as misaligned or bent door, damaged
door seals and sealing surface, broken
or loose door hinges and latches and
dents inside the cavity or on the door. If
there is any damage, do not operate the
oven but contact qualified service
personnel.
3. This microwave oven must be placed on
a flat, stable surface to hold its weight
and the heaviest food likely to be
cooked in the oven.
4. Do not place the oven where heat,
moisture, or high humidity are
generated, or near combustible
materials.
5. For correct operation, the oven must
have sufficient airflow. Allow 20cm of
space above the oven, 10cm at back
and 5cm at both sides. Do not cover or
block any openings on the appliance.
Do not remove feet on which oven
stands.
6. The appliance shall be only used on a
countertop over 3 Feet above the floor.
7. Do not operate the oven without glass
tray, roller support, and shaft in their
proper positions.
8. Make sure that the power supply cord is
undamaged and does not run under the
oven or over any hot or sharp surface.
9. The socket must be readily accessible
so that it can be easily unplugged in an
emergency.
4
separate circuit serving only the oven be
provided. The oven is equipped with a 3-prong
grounding plug. It must be plugged into a wall
receptacle that is properly installed and
grounded.
Power Supply Cord
1. A short power supply cord is provided to
reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are
available and may be used if care is exercised
in their use.
3. If long cord or extension cord is used：
a) The marked electrical rating of the cord
set or extension cord should be at least as
great as the electrical rating of the appliance.
b) The extension cord must be a
grounding-type 3-wire cord, and The longer
cord should be arranged so that it will not
drape over the counter top or table top where it
can be pulled on by children or tripped over
unintentionally.
Notes:
If you have any questions about the grounding
or electrical instructions, consult a qualified
electrician or service person.
Neither Galanz nor the dealer can accept any
liability for damage to the oven or personal
injury resulting from failure to observe the
electrical connection procedures.
This section lists which utensils can be used in
the microwave, which ones have limited use for
short periods, and which ones should not be
used in the microwave.
9 RECOMMENDED
Microwave browning dish — Use to brown
the exterior of small items such as steaks,
chops, or pancakes. Follow the directions
provided with your browning dish.
Microwaveable plastic wrap — Use to retain
steam. Leave a small opening for some steam
to escape and avoid placing it directly on the
food.
Paper towels and napkins — Use for
short-term heating and covering; these absorb
excess moisture and prevent spattering. Do not
use recycled paper towels, which may contain
metal and could ignite.
Glass and glass-ceramic bowls and dishes
— Use for heating or cooking.
Paper plates and cups — Use for short-term
heating at low temperatures. Do not use
recycled paper, which may contain metal and
could ignite.
Wax paper — Use as a cover to prevent
spattering.
Thermometers — Use only those labeled
"Microwave Safe" and follow all directions.
Check the food in several places. Conventional
thermometers may be used on microwave food
once the food has been removed from the
oven.
Λ
LIMITED USE
Aluminum foil — Use narrow strips of foil to
prevent overcooking of exposed areas. Using
too much foil can damage your oven, so be
careful. You should keep distance of 1 inch
(2.54cm) between aluminum foil and cavity.
Ceramic, porcelain, and stoneware— Use
these if they are labeled "Microwave Safe". If
they are not labeled, test them to make sure
they can be used safely.
Plastic — Use only if labeled "Microwave
Safe". Other plastics can melt.
8
Not Recommended
Glass jars and bottles — Regular glass is too
thin to be used in a microwave. It can shatter
and cause damage and injury.
Paper bags — These are a fire hazard, except
for popcorn bags that are designed for
U
UT
TE
EN
NS
SI
IL
LS
S
G
GU
UI
ID
DE
E
5
microwave use.
Styrofoam plates and cups — These can
melt and leave an unhealthy residue on food.
Plastic storage and food containers —
Containers such as margarine tubs can melt in
the microwave.
Metal utensils — These can damage your oven.
Remove all metal before cooking.
Note:
Should you wish to check if a dish is safe for
microwaving, place the empty dish in the oven
and microwave on HIGH for 30 seconds. A dish
which becomes very hot should not be used.
Your microwave makes cooking easier than
conventional cooking, provided you keep these
considerations in mind:
STIRRING
Stir foods such as casseroles and vegetables
while cooking to distribute heat evenly. Food at
the outside of the dish absorbs more energy
and heats more quickly, so stir from the outside
to the center. The oven will turn off when you
open the door to stir your food.
ARRANGEMENT
Arrange unevenly shaped foods, such as
chicken pieces or chops, with the thicker,
meatier parts toward the outside of the
turntable where they receive more microwave
energy. To prevent overcooking, place delicate
areas, such as asparagus tips, toward the
center of the turntable.
SHIELDING
Shield food with narrow strips of aluminum foil
to prevent overcooking. Areas that need
shielding include poultry wing tips, the ends of
poultry legs, and corners of square baking
dishes. Use only small amounts of aluminum
foil. Larger amounts can damage your oven.
TURNING
Turn foods over midway through cooking to
expose all parts to microwave energy. This is
especially important with large foods such as
roasts.
STANDING
Foods cooked in the microwave build up
internal heat and continue to cook for a few
minutes after heating stops. Let foods stand to
complete cooking, especially foods such as
cakes and whole vegetables. Roasts need this
time to complete cooking in the center without
overcooking the outer areas. All liquids, such
as soup or hot chocolate, should be shaken or
stirred when cooking is complete. Let liquids
stand a moment before serving. When heating
baby food, stir well at removal and test the
temperature before serving.
ADDING MOISTURE
Microwave energy is attracted to water
molecules. Food that is uneven in moisture
content should be covered or allowed to stand
so that the heat disperses evenly. Add a small
amount of water to dry food to help it cook.
C
CO
OO
OK
KI
IN
NG
G
T
TE
EC
CH
HN
NI
IQ
QU
UE
ES
S
6
120V, 60Hz, 1450W (Microwave)
1450W (Convection)
Power Consumption:
1050W (Grill)
Output: 1000W
Operation Frequency: 2450MHz
Outside Dimensions(H×W×D): 12×21 9/16×15 15/16 in.
Oven Cavity Dimensions(H×W×D): 9
5/8×14 3/16×14 5/16 in.
Oven Capacity: 1.06 cu.ft
Cooking Uniformity: Turntable System
Net Weight: Approx. 36.16lb.
The above data may be confirmed or updated.

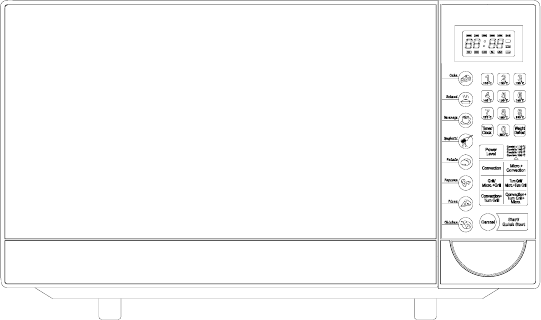

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Shaft
5. Control Panel
6. Wave Guide
7. Rotisserie Rack
8. Heater 1
9. Heater 2
10. Metal Plate
11. Glass Tray
12. Handle
13. Door Release Button
S
SP
PE
EC
CI
IF
FI
IC
CA
AT
TI
IO
ON
NS
S
P
PA
AR
RT
T
N
NA
AM
ME
ES
S
7
DISPLAY WINDOW
Used to indicate clock, cooking time, power, etc.
NUMBER PADS
Used to enter clock, cooking time, temperature, etc.
QUICK COOK BUTTONS
Instant settings to cook popular foods (Cake, Reheat,
Beverage, Spaghetti, Potato, Popcorn, Pizza, Chicken).
POWER LEVEL
Press to select microwave power level.
CONVECTION
Press to program convection cooking.
MICRO.+CONVECTION
Press to select one of four combination cooking
settings.
GRILL/MICRO.+ GRILL
Press to set a grill or combination cooking program.
TURN GRILL/MICRO.+TURN GRILL
Press to set turn grill or micro.+ turn grill cooking
program.
CONVECTION+TURN GRILL
Press to set a program combing convection and turn
grill features.
CONVECTION+TURN GRILL+MICRO.
Press to set a triple-feature cooking program.
WEIGHT DEFROST
Touch to defrost food by weight.
TIMER/CLOCK
Used to set the clock and the oven timer.
START/ QUICK START
Press to start cooking program or to start the oven
quickly at full power.
CANCEL
Touch to stop cooking program or clear all previous
settings before cooking starts.
(Please also see the following pages for more detail.)
C
CO
ON
NT
TR
RO
OL
L
P
PA
AN
NE
EL
L
8
SETTING DIGITAL CLOCK
Suppose you want to set the clock time.
1. In standby mode, press and hold
TIMER/CLOCK for 3 seconds.
2. Use the number pads to enter time.
3. Press TIMER/CLOCK to confirm.
Note: If you prefer not to set the clock time,
press CANCEL to enter into standby mode.
MICROWAVE COOKING
Microwave cooking allows you to customize
cooking power and time. The longest
cooking time is 99 minutes and 99 seconds.
Press POWER LEVEL pad to select cooking
power:
Display Power Description
P-HI 100% High
P-90 90%
P-80 80%
P-70 70% Medium High
P-60 60%
P-50 50% Medium
P-40 40%
P-30 30% Medium Low
P-20 20%
P-10 10% Low
P-00 0%
Suppose you want to cook for 5 minutes at
60% microwave power.
1. Press POWER LEVEL repeatedly to
select P-60.
2. Press number pads to enter cooking
time until the correct cooking time (5:00) is
displayed.
3. Press START/QUICK START pad.
Note:
1. You can check the power level during
cooking by pressing POWER LEVEL.
2. If you want to temporarily stop a cooking
session, press CANCEL once and then
restart the cooking again by pressing
START/QUICK START; if you want to
cancel the cooking program altogether,
press CANCEL twice.
3. After the cooking time has elapsed, the
system will beep 4 times and END will
be displayed, beeps will sound every 2
minutes until you open the oven door or
press any button to clear End.
4. Before starting another cooking session,
press CANCEL to clear the display and
reset the system. (Note 2~4 are also
available in the following cooking
features.)
GRILL & MICRO.+GRILL
Grill: Grill cooking is particularly useful for
thin slices of meat, steaks, chops, kebabs,
sausages and pieces of chicken. It is also
suitable for hot sandwiches and au gratin
dishes. The longest cooking time is 99
minutes and 99 seconds.
Suppose you want to program grill cooking
for 12 minutes.
1. Press GRILL/MICRO.+GRILL once.
2. Use the number pads to enter cooking
time.
3. Press START/QUICK START.
Note: Grill cooking power is set at full power
level by the system.
Micro.+Grill: This feature allows you to
combine grill and microwave cooking on two
different settings. The longest cooking time is
H
HO
OW
W
T
TO
O
S
SE
ET
T
T
TH
HE
E
O
OV
VE
EN
N
C
CO
ON
NT
TR
RO
OL
LS
S
9
99 minutes and 99 seconds.
COMBINATION 1
30% time for microwave cooking, 70% for
grill cooking. Use for fish or au gratin.
Suppose you want to set combination 1
cooking for 25 minutes.
1. Press GRILL/MICRO.+GRILL twice.
2. Use the number pads to enter 25:00.
3. Press START/QUICK START.
COMBINATION 2
55% time for microwave cooking, 45% for
grill cooking. Use for pudding, omelets,
baked potatoes and poultry.
Suppose you want to set combination 2
cooking for 12 minutes.
1. Press GRILL/MICRO.+GRILL thrice.
2. Use the number pads to enter 12:00.
3. Press START/QUICK START.
Note: During combination cooking, you can
see the programmed setting by pressing
GRILL/MICRO.+GRILL once. Please see the
following table for detail settings:
Press
GRILL/MICRO.+GRILL
Indicators
On Display
Once ENTER、TIME、 、:
Twice C-1、 、
Thrice C-2、 、
C-1 30% time for microwave cooking, 70% for
grill cooking
C-2 55% time for microwave cooking, 45% for
grill cooking
TURN GRILL & MICRO.+TURN
GRILL
Turn Grill: The feature allows you to set grill
cooking with the food keep turning during
cooking process. The longest cooking time is
99 minutes and 99 seconds.
Suppose you want to program cooking for 12
minutes with the Turn Grill feature.
1. Press TURN GRILL/MICRO.+TURN
GRILL once.
2. Use the number pads to enter cooking
time.
3. Touch START/QUICK START.
Micro.+Turn Grill: The feature allows you to
combine microwave cooking with the turn
grill feature so as to achieve best cooking
result. The longest cooking time is 99
minutes and 99 seconds. Please see the
following table for detail settings:
Press
TURN GRILL/
MICRO.+TURN GRILL
Indicators On Display
Once ENTER、TIME、 、
Twice C-1、 、 、
Thrice C-2、 、 、
C-1 30% time for microwave cooking, 70% for
grill cooking
C-2 55% time for microwave cooking, 45% for
grill cooking
Note: During combination cooking, you can
see the programmed setting by pressing
TURN GRILL/MICRO.+ TURN GRILL once.
CONVECTION
During convection cooking, hot air is
circulated throughout the oven cavity to
brown and make crisp foods quickly and
evenly. The longest cooking time is 9 hours
and 99 minutes. This oven can be
programmed for ten different cooking
temperatures (110℃~200℃) as shown on
the number pads.
Suppose you want to cook at 160℃ for 40
minutes.
1. Press CONVECTION once.
2. Press number pad 6.
3. Use number pads to enter cooking time.
4. Press START/QUICK START.
Note: You can check the convection
temperature by pressing CONVECTION
during cooking.
10
CONVECTION + TURN GRILL
This feature allows you to cook with
combined turn grill and convection power.
The longest cooking time is 9 hours and 99
minutes.
Suppose you want to cook for 10 minutes
using this feature:
1. Press CONVECTION +TURN GRILL.
2. Use the number pads to enter
convection temperature.
3. Use the number pads to enter cooking
time.
4. Press START/QUICK START.
Note: You can check the convection
temperature while cooking is in progress by
pressing CONVECTION +TURN GRILL.
MICRO. + CONVECTION
This oven has four pre-programmed settings
that make it easy to cook with both
convection heat and microwave. The longest
cooking time is 9 hours and 99 minutes.
Use the number pads to enter temperature:
Number pad Temperature (℃)
1 110
2 140
3 170
4 200
Suppose you want to bake food for 24
minutes on 170℃.
1. Press MICRO.+CONVECTION once.
2. Press number pad 3.
3. Use the number pads to enter cooking
time as desired.
4. Press START/QUICK START.
Note: You can check the convection
temperature while cooking is in progress by
pressing MICRO.+CONVECTION.
CONVECTION+TURN GRILL +MICRO.
This feature is different in that it allows you to
cook with convection and microwave power
with the food being turned around in the
chamber so as to realize the best cooking
result. The longest cooking time is 9 hours
and 99 seconds.
Use the number pads to enter temperature:
Number pad Temperature (℃)
1 110
2 140
3 170
4 200
Suppose you want to cook for 10 minutes on
140℃:
1. Press CONVECTION+ TURN GRILL+ MICRO.
2. Press number pad 2.
3. Use the number pads to enter cooking
time.
4. Press START/QUICK START.
Note: You can check the programmed
temperature while cooking is in progress by
pressing CONVECTION+TURN GRILL+MICRO.
WEIGHT DEFROST
The oven allows the defrosting of meat,
poultry, and seafood. The time and the
defrosting power are adjusted automatically
once the weight is programmed. The weight
varies between 0.1kg and 1.8kg.
Suppose you want to defrost frozen meat.
1. Press WEIGHT DEFROST repeatedly
to select food weight.
2. Press START/QUICK START.
Note: During defrosting process, the system
will pause and sound beeps to remind user
to turn food over, and then press
START/QUICK START to resume defrosting.
MULTI-STAGE COOKING
Your oven can be programmed for up to 3
automatic cooking sequences.
Suppose you want to set the following
cooking program.
Microwave cooking
↓
Convection cooking
11
1. Press POWER LEVEL to set cooking
power.
2. Use the number pads to enter cooking
time.
3. Press CONVECTION pad once.
4. Use the number pads to enter
convection temperature.
5. Use the number pads to enter
convection cooking time.
6. Press START/QUICK START.
Note:
Weight Defrost and Menu Cook can not be
set in the multistage cooking mode. “MEM”
will appear in the display if there are two or
three cooking programs have been input.
TIMER
To use the timer feature, as when you need
to be reminded of the cooking or some other
things,
1. Press TIMER/CLOCK once.
2. Use number pads to enter the time to
be counted down.
3. Press START/QUICK START.
Note: The longest time to be counted down
is 99 minutes and 99 seconds. When the
countdown ends, the system buzzer will
sound two long beeps. You can check the
timer by pressing TIMER/CLOCK, time
countdown can be seen on the display for 5
seconds before clock or cooking time returns
to exhibit; you can cancel the timer by
pressing CANCEL during the 5 seconds.
QUICK START
Use this feature to program the oven to
microwave food at 100% power conveniently.
The longest cooking time is 10 minutes.
Press START/QUICK START in quick
succession to set the cooking time. The oven
will auto-start immediately.
CHILD LOCK
Use to prevent unsupervised operation of the
oven by little children. The LOCK indicator
will show up on the display screen, and the
oven can not be operated while the Child
Lock is set.
1. To set the Child Lock: Press and hold
CANCEL for 3 seconds, a beep will
sound and LOCK indicator will turn on.
2. To cancel the Child Lock: Press and
hold CANCEL for 3 seconds until LOCK
indicator on the display goes off.
AUTOMATIC PROTECTION MECHANISM
Anytime in the operation of the oven, when
the oven cavity temperature reaches a
phenomenon of 300°C, the oven
automatically enters into self protection
mode. The display shows E01 with beeps
until the button CANCEL is pressed to make
the oven back to normal.
If the sensor is short circuited, the system
enters into protection mode with display of
E03, press CANCEL to back into normal.
COOLING FEATURE
The electronical controlling system of the
microwave oven has the feature of cooling.
As for any cooking mode which cooking time
above 2 minutes, after finishing cooking, the
oven fan will work about 3 minutes
automatically to cool the oven for prolonging
the life of the oven.
12
AUTO COOK
For food or the following cooking mode, it is not
necessary to program the duration and the
cooking power. It is sufficient to indicate the type
of food that you wish to cook as well as the
weight of this food. To do this, just follow steps
bellow:
1. In standby mode, press the individual icon
pads once or repeatedly to select the weight
of food.
2. Press START/QUICK START. Corresponding
cooking time will be shown on the display.
Auto Cook Menu
Weight Range(press the icon pad)
Food Icons Once Twice Thrice 4times Remarks
Cake 0.48kg Only one choice.
Reheat 7 choices (0.2kg ~ 0.8kg)
Beverage 1 2 3 200ml/cup
Spaghetti 0.1kg 0.2kg 0.3kg
Potato 1 2 3 230g/unit
Popcorn 0.1kg Only one choice.
Pizza 0.15kg 0.3kg 0.45kg
Chicken 0.8kg 1.0kg 1.2kg 1.4kg
1. For beverage and potato, parameters on
the display are not food weight but
number of servings.
2. For chicken, the system will pause and
sound beeps to remind user to turn over
the food for uniform cooking, after that,
press START/QUICK START to resume
cooking.
3. For Spaghetti add boiling water before
cooking.
Notes: The weight range quoted above is for reference only. Please always take the weight and
cooking timings actually shown on the screen of your oven as the correct settings.
Voltage fluctuation may cause food not done well, in such case, adjust the cooking time manually
13
1. Turn off the oven and remove the power
plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When
food splatters or spilled liquids adhere to
oven walls, wipe with a damp cloth. Mild
detergent may be used if the oven gets
very dirty. Avoid the use of spray and
other harsh cleaners as they may stain,
streak or dull the door surface.
3. The outside surfaces should be cleaned
with a damp cloth. To prevent damage to
the operating parts inside the oven, water
should not be allowed to seep into the
ventilation openings.
4. Wipe the both sides of the door and
window, the door seals and adjacent parts
frequently with a damp cloth to remove
any spills or spatters. Do not use abrasive
cleaner.
5. Do not allow the control panel to become
wet. Clean with a soft, damp cloth. When
cleaning the control panel, leave oven
door open to prevent oven from
accidentally turning on.
6. If steam accumulates inside or around the
outside of the oven door, wipe with a soft
cloth. This may occur when the
microwave oven is operated under high
humidity condition. And it is normal.
7. It is occasionally necessary to remove the
glass tray for cleaning. Wash the tray in
warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be
cleaned regularly to avoid excessive noise.
Simply wipe the bottom surface of the
oven with mild detergent. The roller ring
may be washed in mild sudsy water or
dishwasher. When removing the roller ring
from cavity floor for cleaning, be sure to
replace in the proper position.
9. Remove odors from your oven by
combining a cup of water with the juice
and skin of one lemon in a deep
microwaveable bowl, microwave for 5
minutes. Wipe thoroughly and dry with a
soft cloth.
10. When it becomes necessary to replace
the oven light, please consult a dealer to
have it replaced.
11. The oven should be cleaned regularly and
any food deposits removed. Failure to
maintain the oven in a clean condition
could lead to deterioration of the surface
that could adversely affect the life of the
appliance and possibly result in a
hazardous situation.
12. Please do not dispose this appliance into
the domestic rubbish bin; it should be
disposed to the particular disposal center
provided by the municipalities.
C
CL
LE
EA
AN
NI
IN
NG
G
A
AN
ND
D
C
CA
AR
RE
E
14
FCC Warning Statement
The Device complies with part 18 of the FCC rules, Operation is subject to the following conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation
This device complies with Part 18 of the FCC Rules. This device may cause interference to radio and
TV receivers. If interference is experienced, you can determine if this microwave oven is causing the
interference by turning it off and on. To eliminate interference, move the receiver farther from the
micro-wave oven or plug the receiver into a different AC outlet than the microwave oven.
