Model: D100N30ASPRIII-H3-FR01
Microwave Oven User's manual
Please read these instructions carefully before installing and operating the oven.
Record in the space below the SERIAL NO. found on the nameplate on your oven and retain
this information for future reference.
SERIAL NO.
Please save sales receipt for warranty.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
D100N30ASPRIII-H3-FR01
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 2 页
佛山市顺德区格兰仕
微波炉电器有限公司
1. Do not attempt to operate this oven with the door-open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damage to the:
a. Door (bent),
b. Hinges and latches (broken or loosened),
c. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified
service personnel.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 2
IMPORTANT SAFETY INSTRUCTIONS ..............................................................................3
INSTALLATION GUIDE.........................................................................................................5
GROUNDING INSTRUCTIONS............................................................................................5
UTENSILS GUIDE ................................................................................................................6
COOKING TECHNIQUES.....................................................................................................7
SPECIFICATIONS ................................................................................................................8
PART NAMES.......................................................................................................................9
CONTROL PANEL..............................................................................................................10
HOW TO SET THE OVEN CONTROLS ............................................................................. 11
Setting the clock..........................................................................................................11
Microwave cooking .....................................................................................................11
Grill cooking ................................................................................................................ 11
Multi-stage Cooking ....................................................................................................12
Convection ..................................................................................................................12
Microwave+Grill ..........................................................................................................12
Micro+Convection .......................................................................................................13
Weight defrost.............................................................................................................13
Menu Cook..................................................................................................................13
OTHER CONVENIENT FEATURE .............................................................................14
CLEANING AND CARE ......................................................................................................16
P
PR
RE
EC
CA
AU
UT
TI
IO
ON
NS
S
T
TO
O
A
AV
VO
OI
ID
D
P
PO
OS
SS
SI
IB
BL
LE
E
E
EX
XP
PO
OS
SU
UR
RE
E
T
TO
O
E
EX
XC
CE
ES
SS
SI
IV
VE
E
M
MI
IC
CR
RO
OW
WA
AV
VE
E
E
EN
NE
ER
RG
GY
Y
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
CED300H3B-SAGC0A-FR01
(D100N30ASPRIII-H3-FR01)
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 3 页
佛山市顺德区格兰仕
微波炉电器有限公司
When using electrical appliances, basic safety
precautions should be followed, including the
following:
WARNING - To reduce the risk of burns, electric
shock, fire, injury to persons or exposure to
excessive microwave energy:
1. Read all instructions before using the
appliance.
2. Read and follow the specific
"PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY" on page 1.
3. This appliance must be grounded. Connect
only to properly grounded outlet. See
"GROUNDING INSTRUCTIONS " on page
4.
4. Install or locate this appliance only in
accordance with the provided installation
instructions.
5. Some products such as whole eggs and
sealed containers -for example, closed
glass jars- are able to explode and should
not be heated in this oven.
6. Use this appliance only for its intended use
as described in this manual. Do not use
corrosive chemicals or vapors in this
appliance. This type of oven is specifically
designed to heat, cook, or dry food. It is not
designed for industrial or laboratory use.
7. As with any appliance, close supervision is
necessary when used by children.
8. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend
appliance when paper, plastic, or other
combustible materials are placed inside the
oven to facilitate cooking.
b. Remove wire twist-ties from paper or
plastic bags before placing bag in oven.
c. If materials inside the oven should ignite,
keep oven door closed, turn oven off, and
disconnect the power cord or shut off
power at the fuse or circuit breaker panel.
d. Do not use the cavity for storage purposes.
Do not leave paper products, cooking
utensils or food in the cavity when not in
use.
9. Liquids, such as water, coffee, or tea are
able to be overheated beyond the boiling
point without appearing to be boiling due to
surface tension of the liquid. Visible
bubbling or boiling when the container is
removed from the microwave oven is not
always present. THEIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to person:
a. Do not overheat the liquid.
b. Stir the liquid both before and halfway
through heating it.
c. Do not use straight-sided containers with
narrow necks.
d. After heating, allow the container to stand
in the microwave oven for a short time
before removing the container.
e. Use extreme care when inserting a spoon
or other utensil into the container.
10. Do not heat oil or fat for deep-frying. It is
difficult to control the temperature of oil in
microwave oven.
11. Pierce foods with heavy skins such as
potatoes, whole squash, apples and
chestnuts before cooking.
12. The contents of feeding bottles and baby
jars should be stirred or shaken and the
temperature should be checked before
serving in order to avoid burns.
13. Cooking utensils may become hot because
of heat transferred from the heated food.
I
IM
MP
PO
OR
RT
TA
AN
NT
T
S
SA
AF
FE
ET
TY
Y
I
IN
NS
ST
TR
RU
UC
CT
TI
IO
ON
NS
S
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
CED300H3B-SAGC0A-FR01
(D100N30ASPRIII-H3-FR01)
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 4 页
佛山市顺德区格兰仕
微波炉电器有限公司
Potholders may be needed to handle the
utensil.
14. Do not cover or block any openings on the
appliance.
15. Do not store or use this appliance outdoors.
Do not use this product near water, for
example, near a kitchen sink, in a wet
basement, near a swimming pool, or similar
locations.
16. Do not operate this appliance if it has a
damaged cord or a plug, if it is not working
properly or if it has been damaged or
dropped.
17. Do not immerse cord or plug in water. Keep
cord away from heated surface. Do not let
cord hang over edge of table or counter.
18. Use only thermometers, which are
specifically designed for use in microwave
ovens.
19. Do not operate any heating or cooking
appliance beneath this appliance.
20. Be certain the glass tray and roller rings are
in place when you operate the oven.
21. This appliance should be serviced only by
qualified service personnel, contact nearest
authorized service facility for examination,
repair, or adjustment.
22. When cleaning surfaces of door and oven
that comes together on closing the door,
use only mild, nonabrasive soaps, or
detergents applied with a sponge or soft
cloth.
SAVE THESE INSTRUCTIONS
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
D100N30ASPRIII-H3-FR01
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 5 页
佛山市顺德区格兰仕
微波炉电器有限公司
This appliance must be grounded. In the event
of an electrical short circuit, grounding reduces
risk of electric shock by providing an escape
wire for the electric current.
WARNING Improper use of the grounding plug
can result in a risk of electric shock.
ELECTRICAL REQUIREMENTS
The electrical requirements are a 120 volt 60 Hz,
AC only, 20 amp. It is recommended that a
separate circuit serving only the oven be
provided. The oven is equipped with a 3-prong
grounding plug. It must be plugged into a wall
receptacle that is properly installed and
grounded.
Power Supply Cord
1. A short power supply cord is provided to
reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are
I
IN
NS
ST
TA
AL
LL
LA
AT
TI
IO
ON
N
G
GU
UI
ID
DE
E
G
GR
RO
OU
UN
ND
DI
IN
NG
G
I
IN
NS
ST
TR
RU
UC
CT
TI
IO
ON
NS
S
1. Make sure that all the packing materials
are removed from the inside of the door.
2. Check the oven for any damage, such
as misaligned or bent door, damaged
door seals and sealing surface, broken
or loose door hinges and latches and
dents inside the cavity or on the door. If
there is any damage, do not operate the
oven but contact qualified service
personnel.
3. This microwave oven must be placed
on a flat, stable surface to hold its
weight and the heaviest food likely to be
cooked in the oven.
4. Do not place the oven where heat,
moisture, or high humidity are
generated, or near combustible
materials.
5. For correct operation, the oven must
have sufficient airflow. Allow 20cm of
space above the oven, 10cm at back
and 5cm at both sides. Do not cover or
block any openings on the appliance.
Do not remove feet on which oven
stands.
6. The appliance shall be only used on a
countertop over 3 feet above the floor.
7. Do not operate the oven without glass
tray, roller support, and shaft in their
proper positions.
8. Make sure that the power supply cord is
undamaged and does not run under the
oven or over any hot or sharp surface.
9. The socket must be readily accessible
so that it can be easily unplugged in an
emergency.
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
CED300H3B-SAGC0A-FR01
(D100N30ASPRIII-H3-FR01)
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 6 页
佛山市顺德区格兰仕
微波炉电器有限公司
available and may be used if care is exercised in
their use.
3. If long cord or extension cord is used：
a) The marked electrical rating of the cord set
or extension cord should be at least as great as
the electrical rating of the appliance.
b) The extension cord must be a
grounding-type 3-wire cord, and The longer cord
should be arranged so that it will not drape over
the counter top or table top where it can be
pulled on by children or tripped over
unintentionally.
Notes:
If you have any questions about the grounding
or electrical instructions, consult a qualified
electrician or service person.
Neither Galanz nor the dealer can accept any
liability for damage to the oven or personal injury
resulting from failure to observe the electrical
connection procedures.
Radio or TV Interference
Should there be any interference caused by
the microwave oven to your radio or TV, check
that the microwave oven is on a different
circuit, relocated the radio or TV as far away
from the oven as feasible or check position
and signal of receiving antenna.
This section lists which utensils can be used in
the microwave, which ones have limited use for
short periods, and which ones should not be
used in the microwave.
9 RECOMMENDED
Microwave browning dish — Use to brown the
exterior of small items such as steaks, chops, or
pancakes. Follow the directions provided with
your browning dish.
Microwaveable plastic wrap — Use to retain
steam. Leave a small opening for some steam to
escape and avoid placing it directly on the food.
Paper towels and napkins — Use for
short-term heating and covering; these absorb
excess moisture and prevent spattering. Do not
use recycled paper towels, which may contain
metal and could ignite.
Glass and glass-ceramic bowls and dishes —
Use for heating or cooking.
Paper plates and cups — Use for short-term
heating at low temperatures. Do not use
recycled paper, which may contain metal and
could ignite.
Wax paper — Use as a cover to prevent
spattering.
Thermometers — Use only those labeled
"Microwave Safe" and follow all directions.
Check the food in several places. Conventional
thermometers may be used on microwave food
once the food has been removed from the oven.
U
UT
TE
EN
NS
SI
IL
LS
S
G
GU
UI
ID
DE
E
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
CED300H3B-SAGC0A-FR01
(D100N30ASPRIII-H3-FR01)
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 7 页
佛山市顺德区格兰仕
微波炉电器有限公司
Λ
LIMITED USE
Aluminum foil — Use narrow strips of foil to
prevent overcooking of exposed areas. Using
too much foil can damage your oven, so be
careful. You should keep distance of 1 inch
(2.54cm) between aluminum foil and cavity.
Ceramic, porcelain, and stoneware— Use
these if they are labeled "Microwave Safe". If
they are not labeled, test them to make sure
they can be used safely.
Plastic — Use only if labeled "Microwave Safe".
Other plastics can melt.
8
Not Recommended
Glass jars and bottles — Regular glass is too
thin to be used in a microwave. It can shatter
and cause damage and injury.
Paper bags — These are a fire hazard, except
for popcorn bags that are designed for
microwave use.
Styrofoam plates and cups — These can melt
and leave an unhealthy residue on food.
Plastic storage and food containers —
Containers such as margarine tubs can melt in
the microwave.
Metal utensils — These can damage your oven.
Remove all metal before cooking.
Note:
Should you wish to check if a dish is safe for
microwaving, place the empty dish in the oven
and microwave on HIGH for 30 seconds. A dish
which becomes very hot should not be used.
Your microwave makes cooking easier than
conventional cooking, provided you keep these
considerations in mind:
STIRRING
Stir foods such as casseroles and vegetables
while cooking to distribute heat evenly. Food at
the outside of the dish absorbs more energy and
heats more quickly, so stir from the outside to
the center. The oven will turn off when you open
the door to stir your food.
ARRANGEMENT
Arrange unevenly shaped foods, such as
chicken pieces or chops, with the thicker,
meatier parts toward the outside of the turntable
where they receive more microwave energy. To
prevent overcooking, place delicate areas, such
as asparagus tips, toward the center of the
turntable.
SHIELDING
Shield food with narrow strips of aluminum foil to
prevent overcooking. Areas that need shielding
include poultry wing tips, the ends of poultry legs,
and corners of square baking dishes. Use only
small amounts of aluminum foil. Larger amounts
C
CO
OO
OK
KI
IN
NG
G
T
TE
EC
CH
HN
NI
IQ
QU
UE
ES
S
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
CED300H3B-SAGC0A-FR01
(D100N30ASPRIII-H3-FR01)
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 8 页
佛山市顺德区格兰仕
微波炉电器有限公司
can damage your oven.
TURNING
Turn foods over midway through cooking to
expose all parts to microwave energy. This is
especially important with large foods such as
roasts.
STANDING
Foods cooked in the microwave build up internal
heat and continue to cook for a few minutes after
heating stops. Let foods stand to complete
cooking, especially foods such as cakes and
whole vegetables. Roasts need this time to
complete cooking in the center without
overcooking the outer areas. All liquids, such as
soup or hot chocolate, should be shaken or
stirred when cooking is complete. Let liquids
stand a moment before serving. When heating
baby food, stir well at removal and test the
temperature before serving.
ADDING MOISTURE
Microwave energy is attracted to water
molecules. Food that is uneven in moisture
content should be covered or allowed to stand
so that the heat disperses evenly. Add a small
amount of water to dry food to help it cook
Power Consumption: 120V~60Hz, 1450W (Microwave)
1250W (Grill); 2050W (Convection)
Output: 1000W
Operation Frequency: 2450MHz
Outside Dimensions(H×W×D): 12.9×21.3×15.7 in.
Oven Cavity Dimensions(H×W×D): 9.4×13.9×14.1 in.
Oven Capacity: 1.06 cu.ft
Cooking Uniformity: Turntable System
Net Weight: Approx. 40.6 lb.
S
SP
PE
EC
CI
IF
FI
IC
CA
AT
TI
IO
ON
NS
S
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
CED300H3B-SAGC0A-FR01
(D100N30ASPRIII-H3-FR01)
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 9 页
佛山市顺德区格兰仕
微波炉电器有限公司

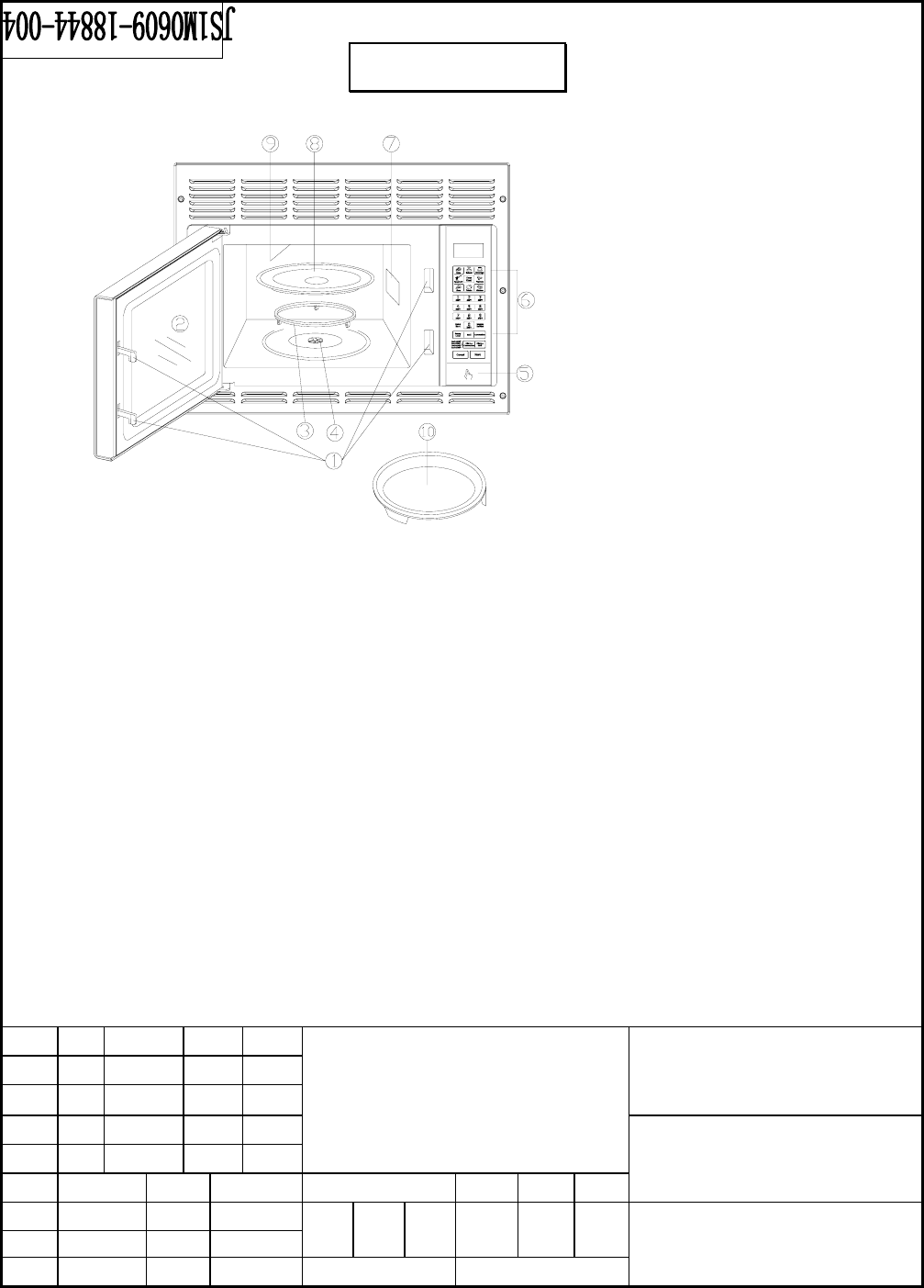

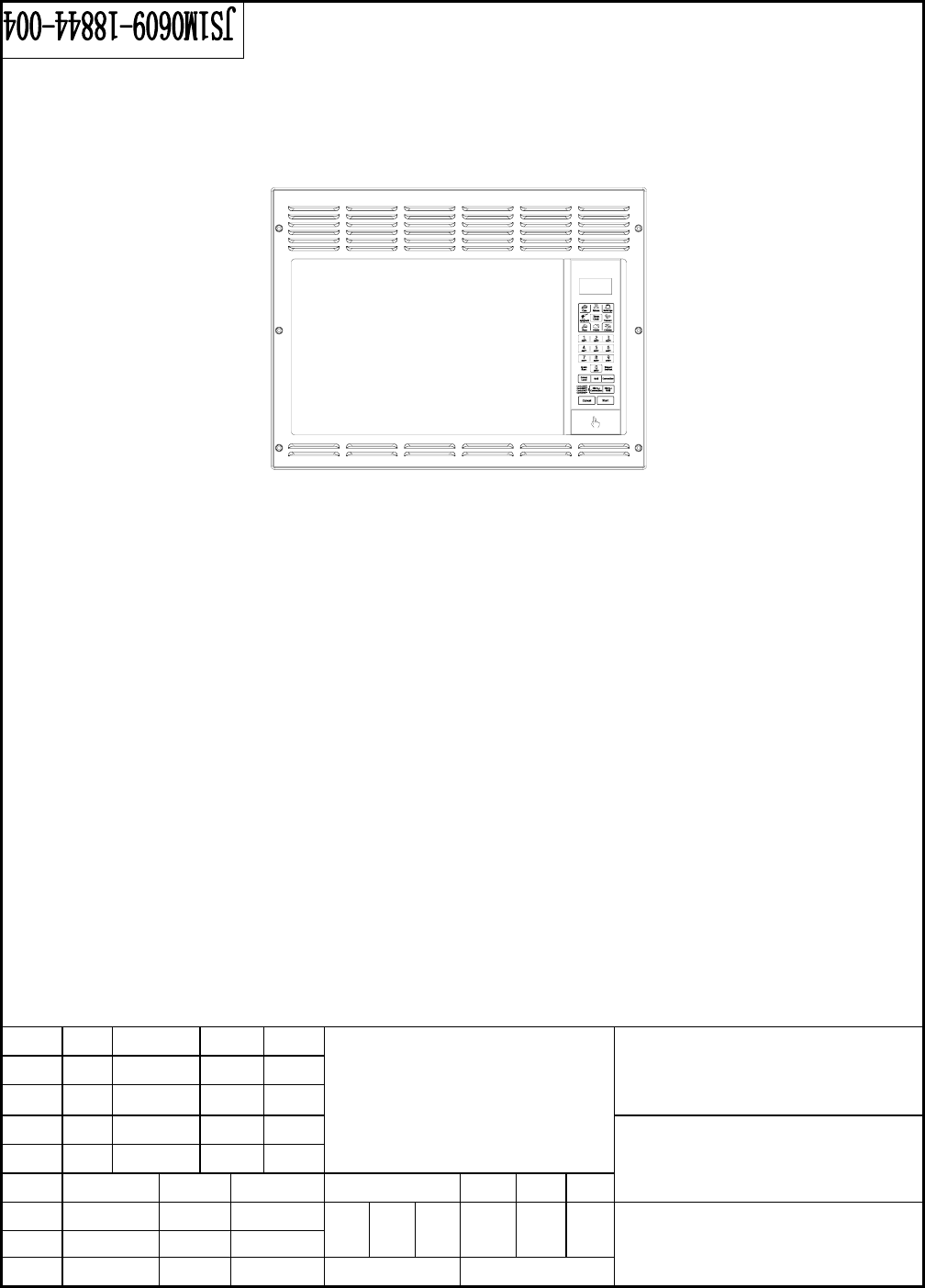

1. Door Safety Lock System
2. Oven Window
3. Roller ring
4. Shaft
5. Door Release Button
6. Control Panel
7. Microwave Vent
8. Glass tray
9. Grill Heater
10. Metal Rack
P
PA
AR
RT
T
N
NA
AM
ME
ES
S
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
CED300H3B-SAGC0A-FR01
(D100N30ASPRIII-H3-FR01)
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 10 页
佛山市顺德区格兰仕
微波炉电器有限公司

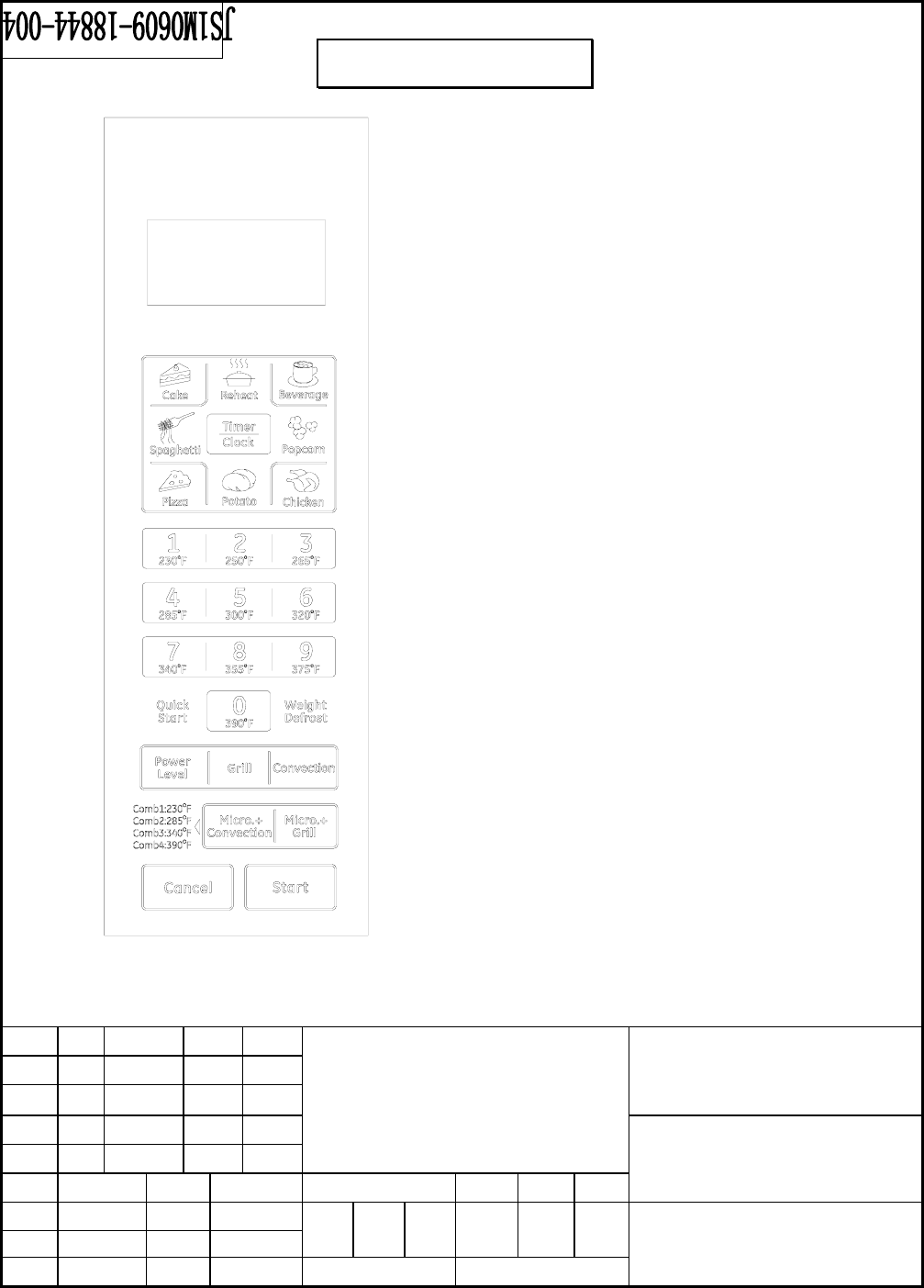

DISPLAY WINDOW
Use to indicate clock, cooking time, etc.
QUICK COOK BUTTONS:
CAKE, POTATO, POPCORN, BEVERAGE, PIZZA,
CHICKEN, REHEAT, SPAGHETTI
NUMBER PADS
Use to enter clock, cooking time, temperature, etc..
POWER LEVEL
Press to select microwave power level.
CONVECTION
Press to program convection cooking.
GRILL
Press to set a grill-cooking program.
MICRO + GRILL
Press to select one of two combination cooking settings.
MICRO + CONVECTION (Combi.)
Press to select one of four combination cooking settings.
TIMER/CLOCK
Use to set the clock and the oven timer.
WEIGHT DEFROST
Touch to defrost food by weight.
QUICK START
Touch to start the oven quickly at full power.
START
Press to start cooking program.
CANCEL
Touch to stop cooking program or clear all previous
settings before cooking starts.
(Please also see the following pages for more detail)
C
CO
ON
NT
TR
RO
OL
L
P
PA
AN
NE
EL
L
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
CED300H3B-SAGC0A-FR01
(D100N30ASPRIII-H3-FR01)
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 11 页
佛山市顺德区格兰仕
微波炉电器有限公司
Each time a button is touched, a beep will
sound to acknowledge the touch.
SETTING THE CLOCK
When the oven is first plugged in, you can set
the clock time. To set the clock time later,
1. Press and hold TIMER/CLOCK for 3 sec
to set 24 hour clock, or press
TIMER/CLOCK pad again to set 12 hour
clock.
2. Use the numeric pads to enter clock time
3. Press TIMER/CLOCK to confirm.
NOTE: This is a 12 and 24 hour clock.
MICROWAVE COOKING
The longest cooking time is 99 minutes and 99
seconds.
Microwave cooking allows you to customize
cooking power and time. First, select a power
level by pressing the POWER LEVEL pad (see
the table below). Then set the cooking time
using the numeric pads, before pressing the
START pad.
Press POWER LEVEL pad to select cooking
power
Press Power Description
once 100%(P-HI) High
twice 90%(P-90)
3 times 80%(P-80)
4 times 70%(P-70) Medium
High
5 times 60%(P-60)
6 times 50%(P-50) Medium
7 times 40%(P-40)
8 times 30%(P-30) Med. Low
9 times 20%(P-20)
10 times 10%(P-10) Low
11 times 0% (P-00)
Suppose you want to cook for 5 minute at 60%
power level.
1. Press POWER LEVEL button to set 60%
power.
2. Press number pads to enter cooking time
until the correct cooking time (5:00) is
displayed.
3. Press START pad.
NOTE:
1. If you want to temporarily stop a cooking
session, press the CANCEL pad once
and then you can start the cooking again
by pressing START; or press the CANCEL
twice to cancel the cooking program
altogether.
2. After cooking, the system will beep and
End is displayed. Before starting another
cooking session, press CANCEL pad to
clear the display and reset the system.
GRILL COOKING
The longest cooking time is 99 minutes and 99
seconds.
Grill cooking is particularly useful for thin slices
of meat, steaks, chops, kebabs, sausages and
pieces of chicken. It is also suitable for hot
sandwiches and au gratin dishes.
Suppose you want to program grill cooking for
12 minutes.
1. Press the CANCEL pad.
2. Press GRILL button.
3. Use the number pads to enter cooking
time.
4. Press START button.
H
HO
OW
W
T
TO
O
S
SE
ET
T
T
TH
HE
E
O
OV
VE
EN
N
C
CO
ON
NT
TR
RO
OL
LS
S
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
CED300H3B-SAGC0A-FR01
(D100N30ASPRIII-H3-FR01)
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 12 页
佛山市顺德区格兰仕
微波炉电器有限公司
MULTI-STAGE COOKING
Your oven can be programmed for up to 3
automatic cooking sequences.
Suppose you want to set the following cooking
program.
Microwave cooking
Convection cooking
1. Press POWER LEVEL button to set
power level.
2. Use the number pads to enter cooking
time.
3. Press CONVECTION pad once.
4. Use the number pads to enter convection
temperature.
5. Use the number pads to enter convection
cooking time.
6. Press START button.
NOTE: WEIGHT DEFROST and MENU COOK
cannot be set in a multi-stage cooking
program.
CONVECTION
The longest cooking time is 9 hours and 99
minutes.
During convection cooking, hot air is circulated
throughout the oven cavity to make crisp foods
quickly and evenly. This oven can be
programmed for ten different cooking
temperatures. You can press CONVECTION to
check cooking temperature during cooking.
To Cook with Convection
To cook with convection, press CONVECTION
pad once and then press the number pads to
enter the desired convection temperature.
Suppose you want to cook at 320℉ for 40
minutes.
1. Press CONVECTION pad
2. Press number pad 6.
3. Press number pads to enter cooking time.
4. Press START pad.
To Preheat and Cook with Convection
Your oven can be programmed to combine
preheating with convection cooking operations.
Suppose you want to preheat to 340℉ and
then cook 30 minutes.
1. Press CONVECTION.
2. Press number pad 7 to indicate
convection temperature 340℉.
3. Press START button. “PREH” will flicker
in the display until it reaches the
designated temperature.
4. Open the door and place container of
food at the center of the turntable.
5. Use the number pads to enter cooking
time.
6. Press START button
MICROWAVE+GRILL
The longest cooking time is 99 minutes and 99
seconds.
This feature allows you to combine grill and
microwave cooking on two different settings.
First, press this button once or twice to choose
a proper combination setting, then, enter the
desired cooking time. After you have pressed
the START button, the system begins to count
down.
COMBINATION 1
30% of time for microwave cooking, 70% for
grill cooking. Use for fish, potatoes or au gratin.
Suppose you want to set combination 1
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
CED300H3B-SAGC0A-FR01
(D100N30ASPRIII-H3-FR01)
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 13 页
佛山市顺德区格兰仕
微波炉电器有限公司
cooking for 25 minutes.
1. Press MICRO+GRILL button once.
2. Use the number pads to enter 25:00.
3. Press START button.
COMBINATION 2
55% of time for microwave cooking, 45% for
grill cooking. Use for pudding, omelets, baked
potatoes and poultry.
Suppose you want to set combination 2
cooking for 12 minutes.
1. Press MICRO+GRILL button twice.
2. Use the number pads to enter 12:00.
3. Press START button.
MICRO+CONVECTION
The longest cooking time is 9 hours and 99
minutes.
This oven has four pre-programmed settings
that make it easy to cook with both convection
heat and microwave automatically.
Number Temperature (℉)
COMB1 1 230
COMB2 2 285
COMB3 3 340
COMB4 4 390
Suppose you want to bake food for 24 minutes
on COMB3.
1. Press MICRO+CONVECTION button
once.
2. Use the number pads 1-4 to enter
convection temperature. In this case,
press number pad 3
3. Use the number pads to enter cooking
time as desired
4. Press START button to start.
NOTE:
You can check the convection temperature by
pressing the MICRO+CONVECTION button
during cooking.
WEIGHT DEFROST
The oven can defrost food based on the weight
you entered. You can set the weight from 100g
to 1800g.
Suppose you want to defrost 200g frozen
meat.
1. Press WEIGHT DEFROST button to
choose 200g.
2. Press START button.
NOTE
Defrost power divides into three stages, each
stage needs 1/3 time, after defrosting 2/3 time
the system will sound to remind you to turn
over the food and pause until you press the
button START to enter into the next defrosting
stage, and the system resume .
MENU COOK
For food or the following cooking mode, it is not necessary to program the time and the cooking power. It
is sufficient to indicate the type of food that you want to cook as well as the weight of this food.
1. Press the individual icon pads once or repeatedly to select the weight or the amount of food to be
cooked.
2. Press START.
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
CED300H3B-SAGC0A-FR01
(D100N30ASPRIII-H3-FR01)
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 14 页
佛山市顺德区格兰仕
微波炉电器有限公司
Auto Cook Code/Menu
PRESS FOOD ICONS Notes
1.cake (475g)
2.reheat (g)
3.beverage(200ml/cup)
4.spaghetti (g)
5.potato(each 230g)
6.popcorn (99g)
7.pizza (g)
8.chicken (g)
1. The user is required to set weight or the amount, then the system will
set the needed time accordingly.
2. For food 8 (chicken), beeps can be heard during cooking to remind user
to turn food over.
3. Voltage fluctuation may cause food not done well, in such case, adjust
the cooking time manually.
4. For cake and popcorn, there is only one option.
OTHER CONVENIENT FEATURE
TIMER
To use the timer feature, when you need to be reminded of the cooking or some other things,
1. Press TIMER/CLOCK button.
2. Use the number pads to enter the time to be counted down.
3. Press START button.
NOTE:
1. When the countdown ends, the system buzzer will beep. Time countdown can be seen in display for
5 seconds before clock or cooking time is returned to exhibit.
2. The longest time you can set is 99 minutes and 99 seconds.
3. You can press TIMER/CLOCK to check the time counted down, then press CANCEL pad to cancel
the TIMER.
CHILD PROOF LOCK
The child proof lock prevents unsupervised operation by little children.
To set the child proof lock: Press CANCEL button for 3 seconds, then a beep will sound and the indicator
light will turn on. In the lock state, all buttons are disabled.
To cancel the child proof lock: Press CANCEL button for 3 seconds, then a beep will sound and the
indicator light will turn off.
QUICK START
Use this feature to program the oven to microwave food at 100% power conveniently.
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
CED300H3B-SAGC0A-FR01
(D100N30ASPRIII-H3-FR01)
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 15 页
佛山市顺德区格兰仕
微波炉电器有限公司
Press QUICK START button in quick succession to set the cooking time. The oven will auto-start
immediately. The longest time you can set is 10 minutes.
TO STOP THE OVEN WHILE THE OVEN IS OPERATING
1. Press CANCEL button. You can restart the oven by pressing START pad. Touch CANCEL button to
erase all instructions.
2. Open the door. You can restart the oven by closing the door and pressing START pad.
NOTE: Oven stops operating when door is opened.
AUTOMATIC PROTECTION MECHANISM
Anytime in the operation of the oven, when the oven cavity temperature reaches a phenomenon of
300°C, the oven automatically enters into self protection mode. The display shows E 01, with one
beeping every 1.5 sec until the said phenomenon disappears, and CANCE is pressed to make the oven
back to normal.
If the sensor is short circuited, the system enters protection mode with display of E03 which, when
cleared, press CANCE to back into normal.
COOLING FEATURE
The controlling system of the microwave oven has the feature of cooling. As for any cooking mode which
cooking time above 2 minutes, after finishing cooking, the oven fan will work about 3 minutes
automatically to cool the oven for prolonging the life of the oven.
JS1M0609-18844-004
标记 处数 更改单号 签 字 日期
说明书
CED300H3B-SAGC0A-FR01
(D100N30ASPRIII-H3-FR01)
设 计 韩瑞平 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-11-10 共 16 页 第 16 页
佛山市顺德区格兰仕
微波炉电器有限公司
1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe
them with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of
spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating
parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, as well as the door seals and adjacent parts frequently
with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the
control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may
occur when the microwave oven is operated under high humidity condition.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy
water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the
bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water
or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the
proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in
a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven
in a clean condition could lead to deterioration of the surface that could adversely affect the life of
the appliance and possibly result in a hazardous situation.
12. Please do not dispose this appliance into the domestic rubbish bin, it should be disposed to the
particular disposal center provided by the municipalities.
13. When the microwave oven with grill function is first used, it may produce slight smoke and smell.
This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil,
and the new oven will produce fumes and odor generated by burning the lubricating oil. This
phenomenon will disappear after a period of using.
C
CL
LE
EA
AN
NI
IN
NG
G
A
AN
ND
D
C
CA
AR
RE
E
