Users manual

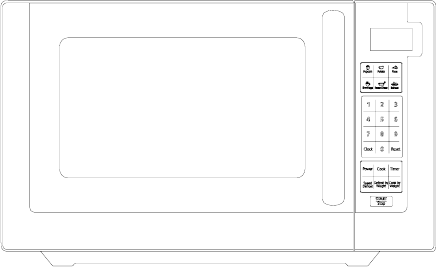

Model: P11034AL-G6
Microwave Oven User's manual
Please read these instructions carefully before installing and operating the oven.
Record in the space below the SERIAL NO. found on the nameplate on your oven and retain
this information for future reference.
SERIAL NO.
Please save sales receipt for warranty.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
1
1. Do not attempt to operate this oven with the door-open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damage to the:
a. Door (bent),
b. Hinges and latches (broken or loosened),
c. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified
service personnel.
CONTENT
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ...................1
IMPORTANT SAFETY INSTRUCTIONS..........................................................................................2
INSTALLATION GUIDE.........................................................................................................4
GROUNDING INSTRUCTIONS............................................................................................4
UTENSILS GUIDE ................................................................................................................5
COOKING TECHNIQUES.....................................................................................................6
SPECIFICATIONS.................................................................................................................7
PART NAMES .......................................................................................................................7
CONTROL PANEL ................................................................................................................8
OPERATION INSTRUCTIONS .............................................................................................9
Setting the clock............................................................................................................9
Setting the over timer ....................................................................................................9
Setting a cooking program ............................................................................................9
Speed defrost ................................................................................................................9
Cook by weight............................................................................................................10
Defrost by weight.........................................................................................................10
Setting child lock .........................................................................................................11
QUICK COOK SETTINGS ..................................................................................................11
POPCORN ..................................................................................................................11
BAKED POTATO.........................................................................................................11
PIZZA ..........................................................................................................................11
BEVERAGE.................................................................................................................11
FROZEN DINNER.......................................................................................................12
REHEAT......................................................................................................................12
CLEANING AND CARE.......................................................................................................13
P
PR
RE
EC
CA
AU
UT
TI
IO
ON
NS
S
T
TO
O
A
AV
VO
OI
ID
D
P
PO
OS
SS
SI
IB
BL
LE
E
E
EX
XP
PO
OS
SU
UR
RE
E
T
TO
O
E
EX
XC
CE
ES
SS
SI
IV
VE
E
M
MI
IC
CR
RO
OW
WA
AV
VE
E
E
EN
NE
ER
RG
GY
Y
SAVE THESE INSTRUCTIONS
2
When using electrical appliances, basic safety
precautions should be followed, including the
following:
WARNING - To reduce the risk of burns, electric
shock, fire, injury to persons or exposure to
excessive microwave energy:
5. Read all instructions before using the
appliance.
6. Read and follow the specific
"PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY" on page 1.
7. This appliance must be grounded. Connect
only to properly grounded outlet. See
"GROUNDING INSTRUCTIONS" on page
4.
8. Install or locate this appliance only in
accordance with the provided installation
instructions.
9. Some products such as whole eggs and
sealed containers -for example, closed
glass jars- are able to explode and should
not be heated in this oven.
10. Use this appliance only for its intended use
as described in this manual. Do not use
corrosive chemicals or vapors in this
appliance. This type of oven is specifically
designed to heat, cook, or dry food. It is not
designed for industrial or laboratory use.
11. As with any appliance, close supervision is
necessary when used by children.
12. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend
appliance when paper, plastic, or other
combustible materials are placed inside the
oven to facilitate cooking.
b. Remove wire twist-ties from paper or
plastic bags before placing bag in oven.
c. If materials inside the oven should ignite,
keep oven door closed, turn oven off, and
disconnect the power cord or shut off
power at the fuse or circuit breaker panel.
d. Do not use the cavity for storage purposes.
Do not leave paper products, cooking
utensils or food in the cavity when not in
use.
13. Liquids, such as water, coffee, or tea are
able to be overheated beyond the boiling
point without appearing to be boiling due to
surface tension of the liquid. Visible
bubbling or boiling when the container is
removed from the microwave oven is not
always present. THEIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to person:
a. Do not overheat the liquid.
b. Stir the liquid both before and halfway
through heating it.
c. Do not use straight-sided containers with
narrow necks.
d. After heating, allow the container to stand
in the microwave oven for a short time
before removing the container.
e. Use extreme care when inserting a spoon
or other utensil into the container.
14. Do not heat oil or fat for deep-frying. It is
difficult to control the temperature of oil in
microwave oven.
15. Pierce foods with heavy skins such as
potatoes, whole squash, apples and
chestnuts before cooking.
16. The contents of feeding bottles and baby
jars should be stirred or shaken and the
temperature should be checked before
serving in order to avoid burns.
17. Cooking utensils may become hot because
of heat transferred from the heated food.
Potholders may be needed to handle the
utensil.
18. Do not cover or block any openings on the
appliance.
19. Do not store or use this appliance outdoors.
Do not use this product near water, for
example, near a kitchen sink, in a wet
basement, near a swimming pool, or similar
locations.
20. Do not operate this appliance if it has a
damaged cord or a plug, if it is not working
properly or if it has been damaged or
dropped.
21. Do not immerse cord or plug in water. Keep
I
IM
MP
PO
OR
RT
TA
AN
NT
T
S
S
A
AF
FE
ET
T
Y
Y
I
IN
NS
ST
TR
RU
UC
CT
TI
IO
ON
NS
S
SAVE THESE INSTRUCTIONS
3
cord away from heated surface. Do not let
cord hang over edge of table or counter.
22. Use only thermometers, which are
specifically designed for use in microwave
ovens.
23. Do not operate any heating or cooking
appliance beneath this appliance.
24. Be certain the glass tray and roller rings are
in place when you operate the oven.
25. This appliance should be serviced only by
qualified service personnel, contact nearest
authorized service facility for examination,
repair, or adjustment.
26. When cleaning surfaces of door and oven
that comes together on closing the door,
use only mild, nonabrasive soaps, or
detergents applied with a sponge or soft
cloth.
4
This appliance must be grounded. In the event
of an electrical short circuit, grounding reduces
risk of electric shock by providing an escape
wire for the electric current.
WARNING Improper use of the grounding plug
can result in a risk of electric shock.
Consult a qualified electrician or
serviceman if the grounding instructions
are not completely understood, or if doubt
exists as to whether the appliance is
properly grounded, and either:
1) If it is necessary to use an extension
cord, use only a 3-wire extension cord that
has a 3-blade grounding plug and a 3-slot
receptacle that will accept the plug on the
appliance. The marked rating of the
extension cord shall be equal to or greater
than the electrical rating of the appliance,
or 2) Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician or serviceman install
an outlet near the appliance.
ELECTRICAL REQUIREMENTS
The electrical requirements are a 120 volt 60
Hz, AC only, 20 amp. It is recommended that a
separate circuit serving only the oven be
provided. The oven is equipped with a 3-prong
grounding plug. It must be plugged into a wall
receptacle that is properly installed and
grounded.
I
IN
NS
ST
TA
AL
LL
LA
AT
TI
IO
ON
N
G
GU
UI
ID
DE
E
G
GR
RO
OU
UN
ND
DI
IN
NG
G
I
IN
NS
ST
TR
RU
UC
CT
TI
IO
ON
NS
S
1. Make sure that all the packing materials
are removed from the inside of the door.
2. Check the oven for any damage, such
as misaligned or bent door, damaged
door seals and sealing surface, broken
or loose door hinges and latches and
dents inside the cavity or on the door. If
there is any damage, do not operate the
oven but contact qualified service
personnel.
3. This microwave oven must be placed
on a flat, stable surface to hold its
weight and the heaviest food likely to be
cooked in the oven.
4. Do not place the oven where heat,
moisture, or high humidity are
generated, or near combustible
materials.
5. For correct operation, the oven must
have sufficient airflow. Allow 20cm of
space above the oven, 10cm at back
and 5cm at both sides. Do not cover or
block any openings on the appliance.
Do not remove feet on which oven
stands.
6. Do not operate the oven without glass
tray, roller support, and shaft in their
proper positions.
7. Make sure that the power supply cord is
undamaged and does not run under the
oven or over any hot or sharp surface.
8. The socket must be readily accessible
so that it can be easily unplugged in an
emergency.
5
Power Supply Cord
1. A short power supply cord is provided to
reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are
available and may be used if care is exercised
in their use.
3. If long cord or extension cord is used：
a) The marked electrical rating of the cord
set or extension cord should be at least as
great as the electrical rating of the appliance.
b) The extension cord must be a
grounding-type 3-wire cord, and The longer
cord should be arranged so that it will not
drape over the counter top or table top where it
can be pulled on by children or tripped over
unintentionally.
Notes:
If you have any questions about the grounding
or electrical instructions, consult a qualified
electrician or service person.
Neither Galanz nor the dealer can accept any
liability for damage to the oven or personal
injury resulting from failure to observe the
electrical connection procedures.
Radio or TV Interference
Should there be any interference caused by
the microwave oven to your radio or TV,
check that the microwave oven is on a
different circuit, relocated the radio or TV as
far away from the oven as feasible or check
position and signal of receiving antenna.
This section lists which utensils can be used in
the microwave, which ones have limited use for
short periods, and which ones should not be
used in the microwave.
9 RECOMMENDED
Microwave browning dish — Use to brown
the exterior of small items such as steaks,
chops, or pancakes. Follow the directions
provided with your browning dish.
Microwaveable plastic wrap — Use to retain
steam. Leave a small opening for some steam
to escape and avoid placing it directly on the
food.
Paper towels and napkins — Use for
short-term heating and covering; these absorb
excess moisture and prevent spattering. Do not
use recycled paper towels, which may contain
metal and could ignite.
Glass and glass-ceramic bowls and dishes
— Use for heating or cooking.
Paper plates and cups — Use for short-term
heating at low temperatures. Do not use
recycled paper, which may contain metal and
could ignite.
Wax paper — Use as a cover to prevent
spattering.
Thermometers — Use only those labeled
"Microwave Safe" and follow all directions.
Check the food in several places. Conventional
thermometers may be used on microwave food
once the food has been removed from the
oven.
Λ
LIMITED USE
Aluminum foil — Use narrow strips of foil to
prevent overcooking of exposed areas. Using
too much foil can damage your oven, so be
careful. You should keep distance of 1 inch
(2.54cm) between aluminum foil and cavity.
Ceramic, porcelain, and stoneware— Use
these if they are labeled "Microwave Safe". If
they are not labeled, test them to make sure
they can be used safely.
U
UT
TE
EN
NS
SI
IL
LS
S
G
GU
UI
ID
DE
E
6
Plastic — Use only if labeled "Microwave
Safe". Other plastics can melt.
8
Not Recommended
Glass jars and bottles — Regular glass is too
thin to be used in a microwave. It can shatter
and cause damage and injury.
Paper bags — These are a fire hazard, except
for popcorn bags that are designed for
microwave use.
Styrofoam plates and cups — These can
melt and leave an unhealthy residue on food.
Plastic storage and food containers —
Containers such as margarine tubs can melt in
the microwave.
Metal utensils — These can damage your oven.
Remove all metal before cooking.
Note:
Should you wish to check if a dish is safe for
microwaving, place the empty dish in the oven
and microwave on HIGH for 30 seconds. A dish
which becomes very hot should not be used.
Your microwave makes cooking easier than
conventional cooking, provided you keep these
considerations in mind:
STIRRING
Stir foods such as casseroles and vegetables
while cooking to distribute heat evenly. Food at
the outside of the dish absorbs more energy
and heats more quickly, so stir from the outside
to the center. The oven will turn off when you
open the door to stir your food.
ARRANGEMENT
Arrange unevenly shaped foods, such as
chicken pieces or chops, with the thicker,
meatier parts toward the outside of the
turntable where they receive more microwave
energy. To prevent overcooking, place delicate
areas, such as asparagus tips, toward the
center of the turntable.
SHIELDING
Shield food with narrow strips of aluminum foil
to prevent overcooking. Areas that need
shielding include poultry wing tips, the ends of
poultry legs, and corners of square baking
dishes. Use only small amounts of aluminum
foil. Larger amounts can damage your oven.
TURNING
Turn foods over midway through cooking to
expose all parts to microwave energy. This is
especially important with large foods such as
roasts.
STANDING
Foods cooked in the microwave build up
internal heat and continue to cook for a few
minutes after heating stops. Let foods stand to
complete cooking, especially foods such as
cakes and whole vegetables. Roasts need this
time to complete cooking in the center without
overcooking the outer areas. All liquids, such
as soup or hot chocolate, should be shaken or
stirred when cooking is complete. Let liquids
stand a moment before serving. When heating
baby food, stir well at removal and test the
temperature before serving.
ADDING MOISTURE
Microwave energy is attracted to water
molecules. Food that is uneven in moisture
content should be covered or allowed to stand
so that the heat disperses evenly. Add a small
amount of water to dry food to help it cook.
C
CO
OO
OK
KI
IN
NG
G
T
TE
EC
CH
HN
NI
IQ
QU
UE
ES
S
7
Power Consumption: 120V~60Hz, 1600W (MICROWAVE)
Output: 1100W
Operation Frequency: 2450MHz
Outside Dimensions(H×W×D): 11 13/16×21 1/4×17 3/4 in.
Oven Cavity Dimensions(H×W×D): 9 7/16×14 13/16×15 7/8 in.
Oven Capacity: 1.2 cu.ft
Cooking Uniformity: Turntable System
Net Weight: Approx. 38.1lb.
1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Shaft
5. Control Panel
6. Wave Guide
(Please do not remove the mica
plate covering the wave guide)
7. Glass Tray
S
SP
PE
EC
CI
IF
FI
IC
CA
AT
TI
IO
ON
NS
S
P
PA
AR
RT
T
N
NA
AM
ME
ES
S
8
Q MENU ACTION SCREEN
Cooking time, power, indicators and present time
are displayed.
Q QUICK COOK BUTTONS
Instant settings to cook popular foods
Q POWER LEVEL
Use to set power levels other than high.
Q COOK
Use for multi-stage cooking. It enables cooking at
multiple power and time settings automatically.
Q TIMER
Timer functions independently, even while a cooking
program is in process.
Q CLOCK
Use to set current time.
Q RESET
Use to clear all previous settings.
Q SPEED DEFROST
Quick defrost function that alternates defrost and
stand times to quickly and effectively defrost foods.
Q DEFROST BY WEIGHT
Programmed defrosting based on the weight of the
foods to be defrosted.
Q COOK BY WEIGHT
Programmed cooking based on weight of foods
cooked.
Q START/STOP
Touch to start or stop cooking.
Q NUMBER PADS(0-9)
Touch to set time or amount.
C
CO
ON
NT
TR
RO
OL
L
P
PA
AN
NE
EL
L
9
SIGNALS DURING OVEN SETTINGS
ONE SIGNAL: Oven accepts the entry.
TWO SIGNALS: Oven does not accept the entry, check and try again.
SETTING THE CLOCK
1. Touch CLOCK pad.
2. Use the number pads to enter the correct
time.
3. Touch CLOCK pad again.
NOTE:
When the oven is first plugged in or when power
resumes after a power interruption, the display will
show ENTER CLOCK TIME. If you prefer to not
have the clock displayed, touch RESET.
·You can check the clock time while cooking is in
progress by touching the CLOCK pad.
SETTING THE OVER TIMER
1. Touch TIMER.
2. Enter the amount of time by touching the
number pads.
3. Touch START/STOP.
NOTE:
·Time countdown can be seen in display for 5
seconds before clock or cooking time is returned
to display.
·Touch TIMER and then touch RESET to cancel
TIMER during timing process.
SETTING A COOKING PROGRAM
A. One-stage Cooking
1. Use the number pads to set a cooking time.
You can set a cooking time from one second
to 99 minutes and 99 seconds.
2. If you want to set a power level other than
100% power, touch POWER LEVEL, and
then use the number pads to enter the power
level.
3. Touch START/STOP to start cooking.
Use single digits to set a cooking power level:
Number pad Cooking power
1,0 100%
9 90%
8 80%
7 70%
6 60%
5 50%
4 40%
3 30%
2 20%
1 10%
0 0%
B. Two-stage Cooking
Some recipes require different stages of
cooking at different temperatures.
1. SET STAGE 1:
Follow steps 1 and 2 in “One-stage Cooking”. DO
NOT TOUCH START
2. SET STAGE 2:
Touch COOK then enter proper cooking time and
(lower) power level. (Most 2-stage recipes use
lower power for second stage.)
3. Touch START/STOP.
NOTE:
·After cooking, the system will sound beeps
with END in display. And the beeps will continue
to sound every two minutes automatically until
the door is opened or any pad is touched.
SPEED DEFROST
1. Touch SPEED DEFROST.
2. Enter desired defrosting time by touching
O
OP
PE
ER
RA
AT
TI
IO
ON
N
I
IN
NS
ST
TR
RU
UC
CT
TI
IO
ON
NS
S
10
correct number pads.
Digital timer sets minutes and seconds from left to
right so a single digit can be set (5 for 5 seconds )
or up to 4 digits (2405 for 24 minutes 5 seconds).
3. Touch START/STOP.
NOTE:
·After total time elapsed, the system will sound
beeps with END in display. And the beeps will
continue to sound every two minutes
automatically until the door is opened or any
pad is touched.
·After setting SPEED DEFROST, oven can be
programmed to automatically switch to one or
two-stage cooking.
·For speed defrost and one stage cooking, follow
steps above. Before touching START/STOP, touch
COOK, enter time and power level. Then touch
START/STOP.
·For speed defrost and two stage cooking, follow
steps above. Before touching START/STOP, enter
two-stage cooking programs.
COOK BY WEIGHT
1. Touch COOK BY WEIGHT.
2. Enter the one digit code by touching the
correct number pad（1～3）
3. Enter weight.
4. Touch START/STOP.
Cook By Weight Code Description
CODE TYPE MAX WEIGHT
1 Beef 5 lb. 16 oz.
2 Mutton 5 lb. 16 oz.
3 Pork 5 lb. 4 oz.
Note:
·Meat must be defrosted and at refrigerated
temperature.
·Weight must be in pounds and ounces.
·Ounce weights less than 10 must be preceded
by a 0. If label gives weight in pounds only,
change the fraction of a pound to ounces using
the following chart.
Converting Fractions of a Pound to Ounces
Fractions of a pound Ounces
Less than .03 0
.03 to .09 1
.10 to .15 2
.16 to .21 3
.22 to .27 4
.28 to .34 5
.35 to .40 6
.41 to .46 7
.47 to .53 8
.54 to .59 9
.60 to .65 10
.66 to .71 11
.72 to .78 12
.79 to .84 13
.85 to .90 14
.91 to .97 15
above .97 go to next
even
·During cooking, the system will pause
automatically and sound to remind user to turn
meat over. Then touch START/STOP to resume
cooking.
·After total time elapsed, the system will sound
beeps with END in display. And the beeps will
continue to sound every two minutes
automatically until the door is opened or any
pad is touched.
·Leave the meat a few minutes before carving.
DEFROST BY WEIGHT
1. Touch DEFROST BY WEIGHT pad.
2. Enter weight.
3. Touch START/STOP pad.
NOTE:
·Weight must be in pounds and ounces. Ounce
weights less than 10 must be preceded by a 0. If
label gives weight in pounds only, change the
fraction of a pound to ounces using the chart
given above.
·Turn food over when oven signals twice. Touch
START/STOP pad to resume defrosting.
·After total time elapsed, the system will sound
11
beeps with END in display. And the beeps will
continue to sound every two minutes
automatically until the door is opened or any
pad is touched.
SETTING CHILD LOCK
The safety lock prevents unsupervised operation
by children.
To set, press and hold RESET for 3 seconds.
LOCK is indicated on the display.
To cancel, press and hold RESET for 3 seconds.
LOCK indication disappears.
The QUICK COOK settings allow you to cook or
reheat food automatically without entering power
level or time.
For smaller portions, simply touch the applicable
pad and start. For larger portions, push the pad
twice.
FROZEN DINNER, BAKED POTATO and
BEVERAGE allow you to cook multiple amounts
of the same food. Simply touch pad once, and
ENTER AMT appears In the display. Enter the
amount of servings and start.
POPCORN
1. Touch POPCORN.
2. CODE and cooking time appears in the
display. POPCORN automatically sets the
cooking time for a 3.5 oz. bag of microwave
popcorn.
3. Touch START/STOP.
NOTE:
·To change the preset POPCORN time: Touch
POPCORN twice. ENTER TIME appears in
display. Touch number pads to enter minutes and
seconds. Touch START/STOP. This new cooking
time will remain whenever you use the POPCORN
setting.
BAKED POTATO
For 4 to 6 oz. potatoes:
1. Touch POTATO once.
2. Enter number of potatoes by touching
number pads from 1 to 4.
3. Touch START/STOP.
For the large 8 to 10 oz. potatoes:
1. Touch POTATO twice.
2. Enter number of potatoes by touching
number pads from 1 to 4.
3. Touch START/STOP.
PIZZA
Reheating a slice of pizza:
1. Touch PIZZA once. CODE and cooking time
appears.
2. Touch START/STOP.
Heating a whole pizza:
1. Touch PIZZA twice. CODE and cooking time
appears.
2. Touch START/STOP.
BEVERAGE
For 5 to 7 oz. cups:
1. Touch BEVERAGE once.
2. Enter number of cups by touching number
pads from 1 to 4.
3. Touch START/STOP.
Q
QU
UI
IC
CK
K
C
CO
OO
OK
K
S
SE
ET
TT
TI
IN
NG
GS
S
12
For the larger 9 to 11 oz. cups:
1. Touch BEVERAGE twice.
2. Enter number of mugs by touching number
pads from 1 to 4.
3. Touch START/STOP.
FROZEN DINNER
For one or two small (7-9 oz.) frozen dinners:
1. Touch FROZEN DINNER once.
2. For 1 entree, touch the number pad “1”. For 2
entrees, touch the number pad “2”.
3. Touch START/STOP pad.
Microwaving one large (10-12oz.) frozen
dinner :
1. Touch FROZEN DINNER twice.
2. For 1 entree, touch the number pad “1”. For 2
entrees, touch the number pad “2”.
3. Touch START/STOP.
REHEAT
To reheat a plate of leftover :
1. Touch REHEAT pad. CODE and cooking time
appears.
2. Touch START/STOP.
13
1. Turn off the oven and remove the power
plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When
food splatters or spilled liquids adhere to
oven walls, wipe with a damp cloth. Mild
detergent may be used if the oven gets
very dirty. Avoid the use of spray and other
harsh cleaners as they may stain, streak
or dull the door surface.
3. The outside surfaces should be cleaned
with a damp cloth. To prevent damage to
the operating parts inside the oven, water
should not be allowed to seep into the
ventilation openings.
4. Wipe the window on both sides with a
damp cloth to remove any spills or
spatters.
5. Do not allow the control panel to become
wet. Clean with a soft, damp cloth. When
cleaning the control panel, leave oven
door open to prevent oven from
accidentally turning on.
6. If steam accumulates inside or around the
outside of the oven door, wipe with a soft
cloth. This may occur when the microwave
oven is operated under high humidity
conditions. In such case, it is normal.
7. It is occasionally necessary to remove the
glass tray for cleaning. Wash the tray in
warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be
cleaned regularly to avoid excessive noise.
Simply wipe the bottom surface of the
oven with mild detergent. The roller ring
may be washed in mild sudsy water or
dishwasher. When removing the roller ring
from cavity floor for cleaning, be sure to
replace in the proper position.
9. Remove odors from your oven by
combining a cup of water with the juice
and skin of one lemon in a deep
microwaveable bowl, microwave for 5
minutes. Wipe thoroughly and dry with a
soft cloth.
10. When it becomes necessary to replace the
oven light, please consult a dealer to have
it replaced.
11. The oven should be cleaned regularly and
any food deposits removed. Failure to
maintain the oven in a clean condition
could lead to deterioration of the surface
that could adversely affect the life of the
appliance and possibly result in a
hazardous situation.
12. Please do not dispose this appliance into
the domestic rubbish bin, it should be
disposed to the particular disposal center
provided by the municipalities.
C
CL
LE
EA
AN
NI
IN
NG
G
A
AN
ND
D
C
CA
AR
RE
E
