Model: D110N38APII-YZ
Microwave Oven User's manual
Please read these instructions carefully before installing and operating the oven.
Record in the space below the SERIAL NO. found on the nameplate on your oven and retain
this information for future reference.
Please save sales receipt for warranty.
SERIAL NO.
Please save sales receipt for warranty.
his equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 2 页
1. Do not attempt to operate this oven with the door-open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damage to the:
a. Door (bent),
b. Hinges and latches (broken or loosened),
c. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified
service personnel.
CONTENT
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 2
IMPORTANT SAFETY INSTRUCTIONS .............................................................................. 3
INSTALLATION GUIDE ......................................................................................................... 5
GROUNDING INSTRUCTIONS ............................................................................................ 5
UTENSILS GUIDE ................................................................................................................ 6
COOKING TECHNIQUES..................................................................................................... 7
SPECIFICATIONS ................................................................................................................ 8
PART NAMES ....................................................................................................................... 9

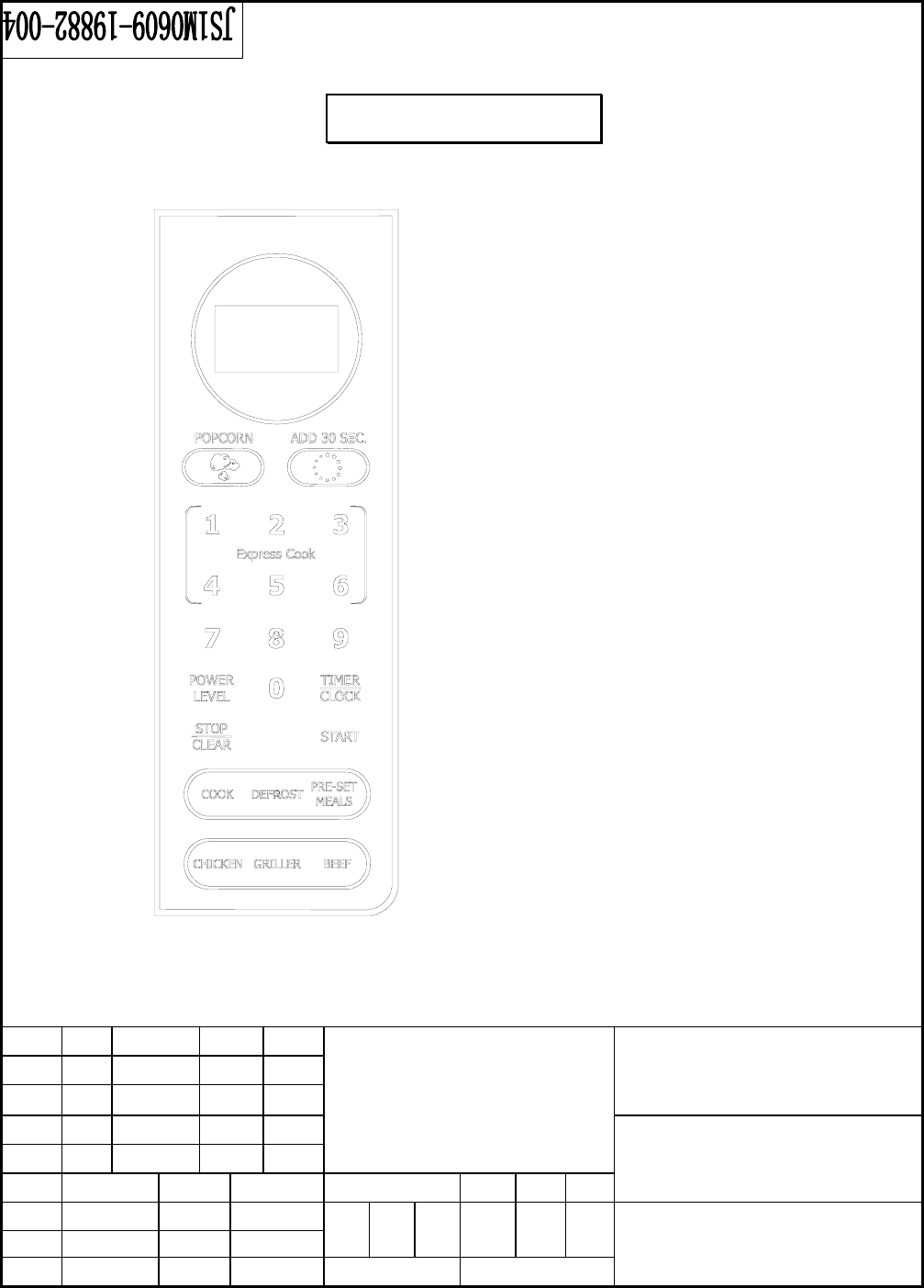

CONTROL PANEL .............................................................................................................. 10
HOW TO SET THE OVEN CONTROLS ............................................................................. 11
Setting the clock .......................................................................................................... 11
Setting the timer .......................................................................................................... 11
Microwave cooking ..................................................................................................... 11
Expree cook ................................................................................................................ 12
Add 30 sec. ................................................................................................................. 12
Griller cooking ............................................................................................................. 12
Weight defrost ............................................................................................................. 13
Auto cook .................................................................................................................... 13
Multi-stage cooking ..................................................................................................... 14
Pre-Set Meals ............................................................................................................. 14
Child lock .................................................................................................................... 15
CLEANING AND CARE ...................................................................................................... 16
P
PR
RE
EC
CA
AU
UT
TI
IO
ON
NS
S
T
TO
O
A
AV
VO
OI
ID
D
P
PO
OS
SS
SI
IB
BL
LE
E
E
EX
XP
PO
OS
SU
UR
RE
E
T
TO
O
E
EX
XC
CE
ES
SS
SI
IV
VE
E
M
MI
IC
CR
RO
OW
WA
AV
VE
E
E
EN
NE
ER
RG
GY
Y
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 3 页
When using electrical appliances, basic safety
precautions should be followed, including the
following:
WARNING - To reduce the risk of burns, electric
shock, fire, injury to persons or exposure to
excessive microwave energy:
1. Read all instructions before using the
appliance.
2. Read and follow the specific
"PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY" on page 1.
3. This appliance must be grounded. Connect
only to properly grounded outlet. See
"grounding instructions " on page 3.
4. Install or locate this appliance only in
accordance with the provided installation
instructions.
5. Some products such as whole eggs and
sealed containers -for example, closed
glass jars- are able to explode and should
not be heated in this oven.
6. Use this appliance only for its intended use
as described in this manual. Do not use
corrosive chemicals or vapors in this
appliance. This type of oven is specifically
designed to heat, cook, or dry food. It is not
designed for industrial or laboratory use.
7. As with any appliance, close supervision is
necessary when used by children.
8. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend
appliance when paper, plastic, or other
combustible materials are placed inside the
oven to facilitate cooking.
b. Remove wire twist-ties from paper or
plastic bags before placing bag in oven.
c. If materials inside the oven should ignite,
keep oven door closed, turn oven off, and
disconnect the power cord or shut off
power at the fuse or circuit breaker panel.
d. Do not use the cavity for storage purposes.
Do not leave paper products, cooking
utensils or food in the cavity when not in
use.
9. Liquids, such as water, coffee, or tea are
able to be overheated beyond the boiling
point without appearing to be boiling due to
surface tension of the liquid. Visible
bubbling or boiling when the container is
removed from the microwave oven is not
always present. THEIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to person:
a. Do not overheat the liquid.
b. Stir the liquid both before and halfway
through heating it.
c. Do not use straight-sided containers with
narrow necks.
d. After heating, allow the container to stand
in the microwave oven for a short time
before removing the container.
e. Use extreme care when inserting a spoon
or other utensil into the container.
10. Do not heat oil or fat for deep-frying. It is
difficult to control the temperature of oil in
microwave oven.
11. Pierce foods with heavy skins such as
potatoes, whole squash, apples and
chestnuts before cooking.
12. The contents of feeding bottles and baby
jars should be stirred or shaken and the
temperature should be checked before
serving in order to avoid burns.
13. Cooking utensils may become hot because
of heat transferred from the heated food.
Potholders may be needed to handle the
I
IM
MP
PO
OR
RT
TA
AN
NT
T
S
SA
AF
FE
ET
TY
Y
I
IN
NS
ST
TR
RU
UC
CT
TI
IO
ON
NS
S
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 4 页
utensil.
14. Do not cover or block any openings on the
appliance.
15. Do not store or use this appliance outdoors.
Do not use this product near water, for
example, near a kitchen sink, in a wet
basement, near a swimming pool, or similar
locations.
16. Do not operate this appliance if it has a
damaged cord or a plug, if it is not working
properly or if it has been damaged or
dropped.
17. Do not immerse cord or plug in water. Keep
cord away from heated surface. Do not let
cord hang over edge of table or counter.
18. Use only thermometers, which are
specifically designed for use in microwave
ovens.
19. Do not operate any heating or cooking
appliance beneath this appliance.
20. Be certain the glass tray and roller rings are
in place when you operate the oven.
21. This appliance should be serviced only by
qualified service personnel, contact nearest
authorized service facility for examination,
repair, or adjustment.
22. When cleaning surfaces of door and oven
that comes together on closing the door,
use only mild, nonabrasive soaps, or
detergents applied with a sponge or soft
cloth.
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 5 页
This appliance must be grounded. In the event
of an electrical short circuit, grounding reduces
risk of electric shock by providing an escape
wire for the electric current.
WARNING Improper use of the grounding plug
can result in a risk of electric shock.
Consult a qualified electrician or serviceman if
the grounding instructions are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded, and either:
1) If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a
3-blade grounding plug and a 3-slot receptacle
that will accept the plug on the appliance. The
marked rating of the extension cord shall be
equal to or greater than the electrical rating of
the appliance, or 2) Do not use an extension
cord. If the power supply cord is too short, have
a qualified electrician or serviceman install an
outlet near the appliance.
I
IN
NS
ST
TA
AL
LL
LA
AT
TI
IO
ON
N
G
GU
UI
ID
DE
E
G
GR
RO
OU
UN
ND
DI
IN
NG
G
I
IN
NS
ST
TR
RU
UC
CT
TI
IO
ON
NS
S
1. Make sure that all the packing materials
are removed from the inside of the door.
2. Check the oven for any damage, such
as misaligned or bent door, damaged
door seals and sealing surface, broken
or loose door hinges and latches and
dents inside the cavity or on the door. If
there is any damage, do not operate the
oven but contact qualified service
personnel.
3. This microwave oven must be placed
on a flat, stable surface to hold its
weight and the heaviest food likely to be
cooked in the oven.
4. Do not place the oven where heat,
moisture, or high humidity are
generated, or near combustible
materials.
5. For correct operation, the oven must
have sufficient airflow. Allow 20cm of
space above the oven, 10cm at back
and 5cm at both sides. Do not cover or
block any openings on the appliance.
Do not remove feet on which oven
stands.
6. The appliance shall be only used on a
countertop over 3 feet above the floor.
7. Do not operate the oven without glass
tray, roller support, and shaft in their
proper positions.
8. Make sure that the power supply cord is
undamaged and does not run under the
oven or over any hot or sharp surface.
9. The socket must be readily accessible
so that it can be easily unplugged in an
emer
g
enc
y
.
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 6 页
ELECTRICAL REQUIREMENTS
The electrical requirements are a 120 volt 60 Hz,
AC only, 20 amp. It is recommended that a
separate circuit serving only the oven be
provided. The oven is equipped with a 3-prong
grounding plug. It must be plugged into a wall
receptacle that is properly installed and
grounded.
Power Supply Cord
1. A short power supply cord is provided to
reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are
available and may be used if care is exercised in
their use.
3. If long cord or extension cord is used：
a) The marked electrical rating of the cord set
or extension cord should be at least as great as
the electrical rating of the appliance.
b) The extension cord must be a
grounding-type 3-wire cord, and The longer cord
should be arranged so that it will not drape over
the counter top or table top where it can be
pulled on by children or tripped over
unintentionally.
Notes:
If you have any questions about the grounding
or electrical instructions, consult a qualified
electrician or service person.
Neither Galanz nor the dealer can accept any
liability for damage to the oven or personal injury
resulting from failure to observe the electrical
connection procedures.
Radio or TV Interference
Should there be any interference caused by
the microwave oven to your radio or TV, check
that the microwave oven is on a different
circuit, relocated the radio or TV as far away
from the oven as feasible or check position
and signal of receiving antenna.
This section lists which utensils can be used in
the microwave, which ones have limited use for
short periods, and which ones should not be
used in the microwave.
9 RECOMMENDED
Microwave browning dish — Use to brown the
exterior of small items such as steaks, chops, or
pancakes. Follow the directions provided with
your browning dish.
Microwaveable plastic wrap — Use to retain
steam. Leave a small opening for some steam to
escape and avoid placing it directly on the food.
Paper towels and napkins — Use for
short-term heating and covering; these absorb
excess moisture and prevent spattering. Do not
use recycled paper towels, which may contain
metal and could ignite.
Glass and glass-ceramic bowls and dishes —
Use for heating or cooking.
Paper plates and cups — Use for short-term
heating at low temperatures. Do not use
recycled paper, which may contain metal and
U
UT
TE
EN
NS
SI
IL
LS
S
G
GU
UI
ID
DE
E
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 7 页
could ignite.
Wax paper — Use as a cover to prevent
spattering.
Thermometers — Use only those labeled
"Microwave Safe" and follow all directions.
Check the food in several places. Conventional
thermometers may be used on microwave food
once the food has been removed from the oven.
Λ
LIMITED USE
Aluminum foil — Use narrow strips of foil to
prevent overcooking of exposed areas. Using
too much foil can damage your oven, so be
careful. You should keep distance of 1 inch
(2.54cm) between aluminum foil and cavity.
Ceramic, porcelain, and stoneware— Use
these if they are labeled "Microwave Safe". If
they are not labeled, test them to make sure
they can be used safely.
Plastic — Use only if labeled "Microwave Safe".
Other plastics can melt.
8
Not Recommended
Glass jars and bottles — Regular glass is too
thin to be used in a microwave. It can shatter
and cause damage and injury.
Paper bags — These are a fire hazard, except
for popcorn bags that are designed for
microwave use.
Styrofoam plates and cups — These can melt
and leave an unhealthy residue on food.
Plastic storage and food containers —
Containers such as margarine tubs can melt in
the microwave.
Metal utensils — These can damage your oven.
Remove all metal before cooking.
Note:
Should you wish to check if a dish is safe for
microwaving, place the empty dish in the oven
and microwave on HIGH for 30 seconds. A dish
which becomes very hot should not be used.
Your microwave makes cooking easier than
conventional cooking, provided you keep these
considerations in mind:
STIRRING
Stir foods such as casseroles and vegetables
while cooking to distribute heat evenly. Food at
the outside of the dish absorbs more energy and
heats more quickly, so stir from the outside to
the center. The oven will turn off when you open
the door to stir your food.
ARRANGEMENT
Arrange unevenly shaped foods, such as
chicken pieces or chops, with the thicker,
meatier parts toward the outside of the turntable
where they receive more microwave energy. To
prevent overcooking, place delicate areas, such
as asparagus tips, toward the center of the
turntable.
SHIELDING
Shield food with narrow strips of aluminum foil to
prevent overcooking. Areas that need shielding
include poultry wing tips, the ends of poultry legs,
and corners of square baking dishes. Use only
small amounts of aluminum foil. Larger amounts
C
CO
OO
OK
KI
IN
NG
G
T
TE
EC
CH
HN
NI
IQ
QU
UE
ES
S
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 8 页
can damage your oven.
TURNING
Turn foods over midway through cooking to
expose all parts to microwave energy. This is
especially important with large foods such as
roasts.
STANDING
Foods cooked in the microwave build up internal
heat and continue to cook for a few minutes after
heating stops. Let foods stand to complete
cooking, especially foods such as cakes and
whole vegetables. Roasts need this time to
complete cooking in the center without
overcooking the outer areas. All liquids, such as
soup or hot chocolate, should be shaken or
stirred when cooking is complete. Let liquids
stand a moment before serving. When heating
baby food, stir well at removal and test the
temperature before serving.
ADDING MOISTURE
Microwave energy is attracted to water
molecules. Food that is uneven in moisture
content should be covered or allowed to stand
so that the heat disperses evenly. Add a small
amount of water to dry food to help it cook.
Power Consumption: 120V~60Hz, 1600W (Microwave)
1050(Grill)
Output: 1100W
Operation Frequency: 2450MHz
Outside Dimensions(H×W×D): 11.8×21.3×22 in.
Oven Cavity Dimensions(H×W×D): 9.4×14.8×15.9in.
Oven Capacity: 1.34cu.ft
Cooking Uniformity: Turntable System
Net Weight: Approx. 39.7lb.
S
SP
PE
EC
CI
IF
FI
IC
CA
AT
TI
IO
ON
NS
S
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 9 页
1. Door Safety Lock
System
2. Oven Window
3. Roller Ring
4. Shaft
5. Button
6. Control Panel
7. Microwave Vent
8. Glass Tray
9. Grill Heater
10. Metal Rack
P
PA
AR
RT
T
N
NA
AM
ME
ES
S
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 10 页
Q MENU ACTION SCREEN
Cooking time, power, action indicators, and
clock time are displayed.
Q ADD 30 SEC.
Overtime, time increasing input codes
every buttons for 30 seconds
Q NUMBER PADS
Touch to set clock, cooking time or enter
food weight.
Q EXPREE COOK
Directly in standby mode, press the number
"1~6" key once, the corresponding system
direct start cooking time respectively 1, 2, 3,
4, 5, 6
Q POWER LEVEL
Touch once or repeatedly to set microwave
cooking power.
Q TIMER/CLOCK
Touch to set timer or the digital clock.
Q STOP/CLEAR
Touch to clear entry before setting a
cooking program
Touch once to temporarily stop cooking or
twice to cancel cooking.
Touch and hold to set child lock.
Q START
Touch to start a program
Q COOK
Touch to set microwave function.
Q DEFROST
Defrost function.
Q PRE-SET MEALS
Preset function must be set first cooking
program, and then set the preset time, the
clock arrived at set time, cooking program
automatically.
Q GRILLER
Touch to set griller function.
Q AUTO MENU BUTTONS
POPCORN, CHICKEN, BEEF
C
CO
ON
NT
TR
RO
OL
L
P
PA
AN
NE
EL
L
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 11 页
z During cooking program, press STOP/CLEAR pad to pause the program, then press START to
resume. Press STOP /CANCEL pad twice to cancel the program.
z End will display with beeps to remind the program is over, and it will sound every two minutes until
you press STOP/CLEAR pad or open the door.
SETTING THE CLOCK
The clock works in 12 or 24 hour cycle. For example: to set the time of 8:30.
1. Hold down the TIMER/CLOCK button.
2. Touch TIMER/CLOCK button once or twice to set 12 or 24 hour cycle.
3. Touch number pads to set the clock time.
4. Touch TIMER/CLOCK button to confirm.
Note: You can check the clock time during cooking by touching the TIMER/CLOCK button.
SETTING THE TIMER
The countdown longest time is 99 minutes and 99 seconds.
1. Touch TIMER/CLOCK button once.
2. Use the number pads to enter time.
3. Press TIMER/CLOCK pad to start timer.
NOTE:
1. When the countdown ends, the buzzer will beep to remind you.
2. If you want to cancel the timer, Touch TIMER/CLOCK button once, press Hold down the
TIMER/CLOCK button for 3 seconds.
MICROWAVE COOKING
To cook with microwave, time and power level should be set. The longest cooking time to be set by
touching the number pads is 99 min. 99 sec.
Suppose you want to cook for 5 minutes at 60% of microwave power.
H
HO
OW
W
T
TO
O
S
SE
ET
T
T
TH
HE
E
O
OV
VE
EN
N
C
CO
ON
NT
TR
RO
OL
LS
S
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 12 页
1. Touch COOK button.
2. Touch number pads to set cooking time.
3. Touch POWER LEVEL button.
4. Touch number pads to set the power level.
5. Touch START button.
Note: During the cooking process by "POWER LEVEL" button to display the current cooking fire for 10
seconds, at this point you can press the number "0 ~ 9" key again to adjust the microwave power level.
ouch number pads Power Level Display
1,0 100% PL10
9 90% PL-9
8 80% PL-8
7 70% PL-7
6 60% PL-6
5 50% PL-5
4 40% PL-4
3 30% PL-3
2 20% PL-2
1 10% PL-1
EXPREE COOK
Directly in standby mode, press the number "1~6" key once, the corresponding system direct start
cooking time respectively 1 min, 2 min, 3 min, 4 min, 5 min and 6 min.
ADD 30 SEC.
In standby mode, press the "Add 30 SEC" key input cooking time (time increasing input codes every
buttons for 30 seconds, the longest overtime to "99:59"), the system automatically start the cooking
program began to countdown, 100% use microwave firepower.
(to be automatic menu in the cooking process, according to the weight to thaw exception), press "Add 30
SEC" key can be overtime
GRILLER COOKING
The longest cooking time is 99 min, 99 sec.
Suppose you want to grill for 12 minutes.
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 13 页
1. Touch GRILLER button once.
2. Touch number pads to set cooking time.
3. Touch START button.
WEIGHT DEFROST
The oven allows the defrosting of meat, poultry, and seafood. The time and the defrosting power are
adjusted automatically once the weight of food is programmed. Weight: 1 Oz ~ 4 LB.
Suppose you want to defrost 1 LB 12 OZ meat.
1. Place food to be defrosted into the oven.
2. Touch DEFROST once.
3. Touch number pad “1” to enter weight 1 LB.
4. Press START button once.
5. Touch number pad “1” and “2” to enter weight 12 OZ.
6. Press START button.
Note: During defrosting program, the system will sound beeps and pause to remind you to turn over the
food, after that, press START to resume defrosting.
AUTO COOK
POPCORN ( 3.5OZ )
1. Press POPCORN pad once.
2. Press START pad to start.
CHICKEN
1. Press CHICKEN pad to select weight.
Press CHICKEN pad Weight
Once 28 OZ
Twice 36 OZ
Thrice 42 OZ
4 times 50 OZ
2. Press START pad to start.
Note: During cooking program, the system will sound beeps and pause to remind you to turn over the
food, after that, press START to resume defrosting.
BEEF
1. Press BEEF pad to select weight.
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 14 页
Press BEEF pad Weight
Once 7 OZ
Twice 11 OZ
Thrice 14 OZ
4 times 18 OZ
5 times 21 OZ
2. Press START pad to start.
Note: During cooking program, the system will sound beeps and pause to remind you to turn over the
food, after that, press START to resume defrosting.
MULTI-STAGE COOKING
The microwave oven can set 2 period of microwave cooking program
Suppose you want set the following cooking program:
Paragraph 1: Microwave and power level cooking (2 minutes at 100%);
Paragraph 2: Microwave and power level cooking (5 minutes at 60%);
1. Press STOP/CLEAR pad to reset the oven.
Paragraph 1:
2. Touch COOK button.
3. Touch number pads to set cooking time 2:00.
4. Touch POWER LEVEL button.
5. Touch number pads 1 and 0 to set the power level 100%.
Paragraph 2:
6. Touch COOK button.
7. Touch number pads to set cooking time 5:00.
8. Touch POWER LEVEL button.
9. Touch number pads 6 to set the power level 60%.
10. Press START pad to start.
Note: Quick Start , Weight Defrost and Auto Cook cann’t be set in the multistage cooking program.
PRE-SET MEALS
Preset function allows the oven to start in a later time. Suppose now it is 11:10 and you want the oven to
start cooking at 11:30.
1. Set a cooking program
2. Touch PRE-SET pad.
3. Use the number pads to enter the time 11:30 when it should start.
4. Touch START pad.
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 15 页
Note: Make sure that the food is placed into the oven in advance before any cooking starts.
CHILD LOCK
Use to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will
show on display screen, and the oven cannot be operated while the CHILD LOCK is set.
To set the CHILD LOCK: Press and hold the STOP/CANCEL button for 3 seconds, a beep sounds and
LOCK indicator lights.
To cancel the CHILD LOCK: Press and hold the STOP/CANCEL button for 3 seconds until lock indicator
on display turns off.
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 16 页
1. Turn off the oven and remove the power
plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When
food splatters or spilled liquids adhere to
oven walls, wipe with a damp cloth. Mild
detergent may be used if the oven gets
very dirty. Avoid the use of spray and other
harsh cleaners as they may stain, streak or
dull the door surface.
3. The outside surfaces should be cleaned
with a damp cloth. To prevent damage to
the operating parts inside the oven, water
should not be allowed to seep into the
ventilation openings.
4. Wipe the door and window on both sides,
the door seals and adjacent parts
frequently with a damp cloth to remove any
spills or spatters. Do not use abrasive
cleaner.
5. Do not allow the control panel to become
wet. Clean with a soft, damp cloth. When
cleaning the control panel, leave oven door
open to prevent oven from accidentally
turning on.
6. If steam accumulates inside or around the
outside of the oven door, wipe with a soft
cloth. This may occur when the microwave
oven is operated under high humidity
condition. And it is normal.
7. It is occasionally necessary to remove the
glass tray for cleaning. Wash the tray in
warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be
cleaned regularly to avoid excessive noise.
Simply wipe the bottom surface of the oven
with mild detergent. The roller ring may be
washed in mild sudsy water or dishwasher.
When removing the roller ring from cavity
floor for cleaning, be sure to replace in the
proper position.
9. Remove odors from your oven by
combining a cup of water with the juice and
skin of one lemon in a deep microwaveable
bowl, microwave for 5 minutes. Wipe
thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the
oven light, please consult a dealer to have
it replaced.
11. The oven should be cleaned regularly and
any food deposits removed. Failure to
maintain the oven in a clean condition could
lead to deterioration of the surface that
could adversely affect the life of the
appliance and possibly result in a
hazardous situation.
12. Please do not dispose this appliance into
the domestic rubbish bin, it should be
disposed to the particular disposal center
provided by the municipalities.
13. When the microwave oven with grill
function is first used, it may produce slight
smoke and smell. This is a normal
C
CL
LE
EA
AN
NI
IN
NG
G
A
AN
ND
D
C
CA
AR
RE
E
说明书
D110N38APII-YZ
JS1M0609-19882-004
标记 处数 更改单号 签 字 日期
设 计 王少云 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 王宇国 S A 1:1
广东格兰仕微波炉电器制造有限公司
审 核 王少云
工 艺 日 期 2013-04-25 共 17 页 第 17 页
phenomenon because the oven is made of
a steel plate coated with lubricating oil, and
the new oven will produce fumes and odor
generated by burning the lubricating oil.
This phenomenon will disappear after a
period of using.
