Model: P90F23AP-X3
Microwave Oven User's manual
Please read these instructions carefully before installing and operating the oven.
Record in the space below the SERIAL NO. found on the nameplate on your oven and retain
this information for future reference.
SERIAL NO.
Please save sales receipt for warranty.
his equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 2 页
佛山市顺德区格兰仕
微波炉电器有限公司
1. Do not attempt to operate this oven with the door-open since open-door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damage to the:
1. Door (bent),
2. Hinges and latches (broken or loosened),
3. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified
service personnel.
CONTENT
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 2
IMPORTANT SAFETY INSTRUCTIONS ..............................................................................4
INSTALLATION GUIDE.........................................................................................................6
GROUNDING INSTRUCTIONS............................................................................................6
UTENSILS GUIDE ................................................................................................................7
COOKING TECHNIQUES.....................................................................................................9
SPECIFICATIONS ..............................................................................................................10
PART NAMES.....................................................................................................................11
CONTROL PANEL..............................................................................................................12
OPERATION INSTRUCTIONS ...........................................................................................13
Setting the clock..........................................................................................................13
Setting the timer..........................................................................................................13
P
PR
RE
EC
CA
AU
UT
TI
IO
ON
NS
S
T
TO
O
A
AV
VO
OI
ID
D
P
PO
OS
SS
SI
IB
BL
LE
E
E
EX
XP
PO
OS
SU
UR
RE
E
T
TO
O
E
EX
XC
CE
ES
SS
SI
IV
VE
E
M
MI
IC
CR
RO
OW
WA
AV
VE
E
E
EN
NE
ER
RG
GY
Y
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 3 页
佛山市顺德区格兰仕
微波炉电器有限公司
Setting a cooking program ..........................................................................................13
Speed defrost..............................................................................................................14
Cook by weight ...........................................................................................................15
Defrost by weight ........................................................................................................16
Setting child lock .........................................................................................................17
QUICK COOK SETTINGS ..................................................................................................17
POPCORN..................................................................................................................17
BAKED POTATO.........................................................................................................18
PIZZA..........................................................................................................................18
BEVERAGE ................................................................................................................18
FROZEN DINNER ......................................................................................................18
REHEAT......................................................................................................................19
CLEANING AND CARE ......................................................................................................20
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 4 页
佛山市顺德区格兰仕
微波炉电器有限公司
When using electrical appliances, basic safety precautions should be followed, including the following:
WARNING - To reduce the risk of burns, electric shock, fire, and injury to persons or exposure to
excessive microwave energy:
1. Read all instructions before using the appliance.
2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY" on page 1.
3. This appliance must be grounded. Connect only to properly grounded outlet. See "grounding
instructions” on page 3.
4. Install or locate this appliance only in accordance with the provided installation instructions.
5. Some products such as whole eggs and sealed containers -for example, closed glass jars- are
able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry
food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used by children.
8. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible
materials are placed inside the oven to facilitate cooking.
b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c. If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the
power cord or shut off power at the fuse or circuit breaker panel.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food
in the cavity when not in use.
9. Liquids, such as water, coffee, or tea can be overheated beyond the boiling point without
appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the
container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY
HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED
INTO THE LIQUID. To reduce the risk of injury to person:
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
I
IM
MP
PO
OR
RT
TA
AN
NT
T
S
SA
AF
FE
ET
TY
Y
I
IN
NS
ST
TR
RU
UC
CT
TI
IO
ON
NS
S
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 5 页
佛山市顺德区格兰仕
微波炉电器有限公司
4) After heating, allow the container to stand in the microwave oven for a short time before removing
the container.
5) Use extreme care when inserting a spoon or other utensil into the container.
10. Do not heat oil or fat for deep-frying. It is difficult to control the temperature of oil in microwave
oven.
11. Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts before
cooking.
12. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature
should be checked before serving in order to avoid burns.
13. Cooking utensils may become hot because of heat transferred from the heated food. Potholders
may be needed to handle the utensil.
14. Do not cover or block any openings on the appliance.
15. Do not store or use this appliance outdoors. Do not use this product near water, for example, near
a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
16. Do not operate this appliance if it has a damaged cord or a plug, if it is not working properly or if it
has been damaged or dropped.
17. Do not immerse cord or plug in water. Keep cord away from heated surface. Do not let cord hang
over edge of table or counter.
18. Use only thermometers, which are specifically designed for use in microwave ovens.
19. Do not operate any heating or cooking appliance beneath this appliance.
20. Be certain the glass tray and roller rings are in place when you operate the oven
21. This appliance should be serviced only by qualified service personnel, contact nearest authorized
service facility for examination, repair, or adjustment.
22. When cleaning surfaces of door and oven that comes together on closing the door, use only mild,
nonabrasive soaps, or detergents applied with a sponge or soft cloth.
SAVE THESE INSTRUCTIONS
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 6 页
佛山市顺德区格兰仕
微波炉电器有限公司
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces risk of
electric shock by providing an escape wire for the electric current.
WARNING Improper use of the grounding plug can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood,
or if doubt exists as to whether the appliance is properly grounded, and either:
1) If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade
grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of
the extension cord shall be equal to or greater than the electrical rating of the appliance, or 2) Do not
use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman
I
IN
NS
ST
TA
AL
LL
LA
AT
TI
IO
ON
N
G
GU
UI
ID
DE
E
G
GR
RO
OU
UN
ND
DI
IN
NG
G
I
IN
NS
ST
TR
RU
UC
CT
TI
IO
ON
NS
S
1. Make sure that all the packing materials
are removed from the inside of the door.
2. Check the oven for any damage, such
as misaligned or bent door, damaged
door seals and sealing surface, broken
or loose door hinges and latches and
dents inside the cavity or on the door. If
there is any damage, do not operate the
oven but contact qualified service
personnel.
3. This microwave oven must be placed
on a flat, stable surface to hold its
weight and the heaviest food likely to be
cooked in the oven.
4. Do not place the oven where heat,
moisture, or high humidity are
generated, or near combustible
materials.
5. For correct operation, the oven must
have sufficient airflow. Allow 20cm of
space above the oven, 10cm at back
and 5cm at both sides. Do not cover or
block any openings on the appliance.
Do not remove feet on which oven
stands.
6. Make sure that the power supply cord is
undamaged and does not run under the
oven or over any hot or sharp surface.
7. The socket must be readily accessible
so that it can be easily unplugged in an
emergency.
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 7 页
佛山市顺德区格兰仕
微波炉电器有限公司
install an outlet near the appliance.
Electrical Requirements
The electrical requirements are a 120 volt 60 Hz, AC only, 20 amp. It is recommended that a separate
circuit serving only the oven be provided. The oven is equipped with a 3-prong grounding plug. It must
be plugged into a wall receptacle that is properly installed and grounded.
Power Supply Cord
1. A short power supply cord is provided to reduce the risks resulting from becoming entangled in or
tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.
3. If long cord or extension cord is used：
a) The marked electrical rating of the cord set or extension cord should be at least as great as the
electrical rating of the appliance.
b) The extension cord must be a grounding-type 3-wire cord, and The longer cord should be
arranged so that it will not drape over the counter top or table top where it can be pulled on by
children or tripped over unintentionally.
Notes:
If you have any questions about the grounding or electrical instructions, consult a qualified electrician or
service person.
Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal
injury resulting from failure to observe the electrical connection procedures.
Radio or TV Interference
Should there be any interference caused by the microwave oven to your radio or TV, check that
the microwave oven is on a different circuit, relocated the radio or TV as far away from the oven as
feasible or check position and signal of receiving antenna.
This section lists which utensils can be used in the microwave, which ones have limited use for short
periods, and which ones should not be used in the microwave.
9 RECOMMENDED
U
UT
TE
EN
NS
SI
IL
LS
S
G
GU
UI
ID
DE
E
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 8 页
佛山市顺德区格兰仕
微波炉电器有限公司
Microwave browning dish — Use to brown the exterior of small items such as steaks, chops, or
pancakes. Follow the directions provided with your browning dish.
Microwaveable plastic wrap — Use to retain steam. Leave a small opening for some steam to escape
and avoid placing it directly on the food.
Paper towels and napkins — Use for short-term heating and covering; these absorb excess moisture
and prevent spattering. Do not use recycled paper towels, which may contain metal and could ignite.
Glass and glass-ceramic bowls and dishes — Use for heating or cooking.
Paper plates and cups — Use for short-term heating at low temperatures. Do not use recycled paper,
which may contain metal and could ignite.
Wax paper — Use as a cover to prevent spattering.
Thermometers — Use only those labeled "Microwave Safe" and follow all directions. Check the food in
several places. Conventional thermometers may be used on microwave food once the food has been
removed from the oven.
Λ
LIMITED USE
Aluminum foil — Use narrow strips of foil to prevent overcooking of exposed areas. Using too much
foil can damage your oven, so be careful. You should keep distance of 1 inch (2.54cm) between
aluminum foil and cavity.
Ceramic, porcelain, and stoneware— Use these if they are labeled "Microwave Safe". If they are not
labeled, test them to make sure they can be used safely.
Plastic — Use only if labeled "Microwave Safe". Other plastics can melt.
8
Not Recommended
Glass jars and bottles — Regular glass is too thin to be used in a microwave. It can shatter and cause
damage and injury.
Paper bags — These are a fire hazard, except for popcorn bags that are designed for microwave use.
Styrofoam plates and cups — These can melt and leave an unhealthy residue on food.
Plastic storage and food containers — Containers such as margarine tubs can melt in the
microwave.
Metal utensils — These can damage your oven. Remove all metal before cooking.
Note:
Should you wish to check if a dish is safe for microwaving, place the empty dish in the oven and
microwave on HIGH for 30 seconds. A dish which becomes very hot should not be used.
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 9 页
佛山市顺德区格兰仕
微波炉电器有限公司
Your microwave makes cooking easier than conventional cooking, provided you keep these
considerations in mind:
STIRRING
Stir foods such as casseroles and vegetables while cooking to distribute heat evenly. Food at the
outside of the dish absorbs more energy and heats more quickly, so stir from the outside to the center.
The oven will turn off when you open the door to stir your food.
ARRANGEMENT
Arrange unevenly shaped foods, such as chicken pieces or chops, with the thicker, meatier parts toward
the outside of the turntable where they receive more microwave energy. To prevent overcooking, place
delicate areas, such as asparagus tips, toward the center of the turntable.
SHIELDING
Shield food with narrow strips of aluminum foil to prevent overcooking. Areas that need shielding include
poultry wing tips, the ends of poultry legs, and corners of square baking dishes. Use only small amounts
of aluminum foil. Larger amounts can damage your oven.
TURNING
Turn foods over midway through cooking to expose all parts to microwave energy. This is especially
important with large foods such as roasts.
STANDING
Foods cooked in the microwave build up internal heat and continue to cook for a few minutes after
heating stops. Let foods stand to complete cooking, especially foods such as cakes and whole
vegetables. Roasts need this time to complete cooking in the center without overcooking the outer
areas. All liquids, such as soup or hot chocolate, should be shaken or stirred when cooking is complete.
Let liquids stand a moment before serving. When heating baby food, stir well at removal and test the
temperature before serving.
ADDING MOISTURE
Microwave energy is attracted to water molecules. Food that is uneven in moisture content should be
covered or allowed to stand so that the heat disperses evenly. Add a small amount of water to dry food
to help it cook.
C
CO
OO
OK
KI
IN
NG
G
T
TE
EC
CH
HN
NI
IQ
QU
UE
ES
S
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 10 页
佛山市顺德区格兰仕
微波炉电器有限公司
Power Consumption: 120V~60Hz, 1350W (Microwave)
Output: 900W
Operation Frequency: 2450MHz
Outside Dimensions(H×W×D): 11
5/16×19 5/16×14 in.
Oven Cavity Dimensions(H×W×D): 7
3/4×13 3/8×13 5/16 in.
Oven Capacity: 0.81 cu.ft
Cooking Uniformity: Turntable System
Net Weight: Approx. 30.0lb.
S
SP
PE
EC
CI
IF
FI
IC
CA
AT
TI
IO
ON
NS
S
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 11 页
佛山市顺德区格兰仕
微波炉电器有限公司

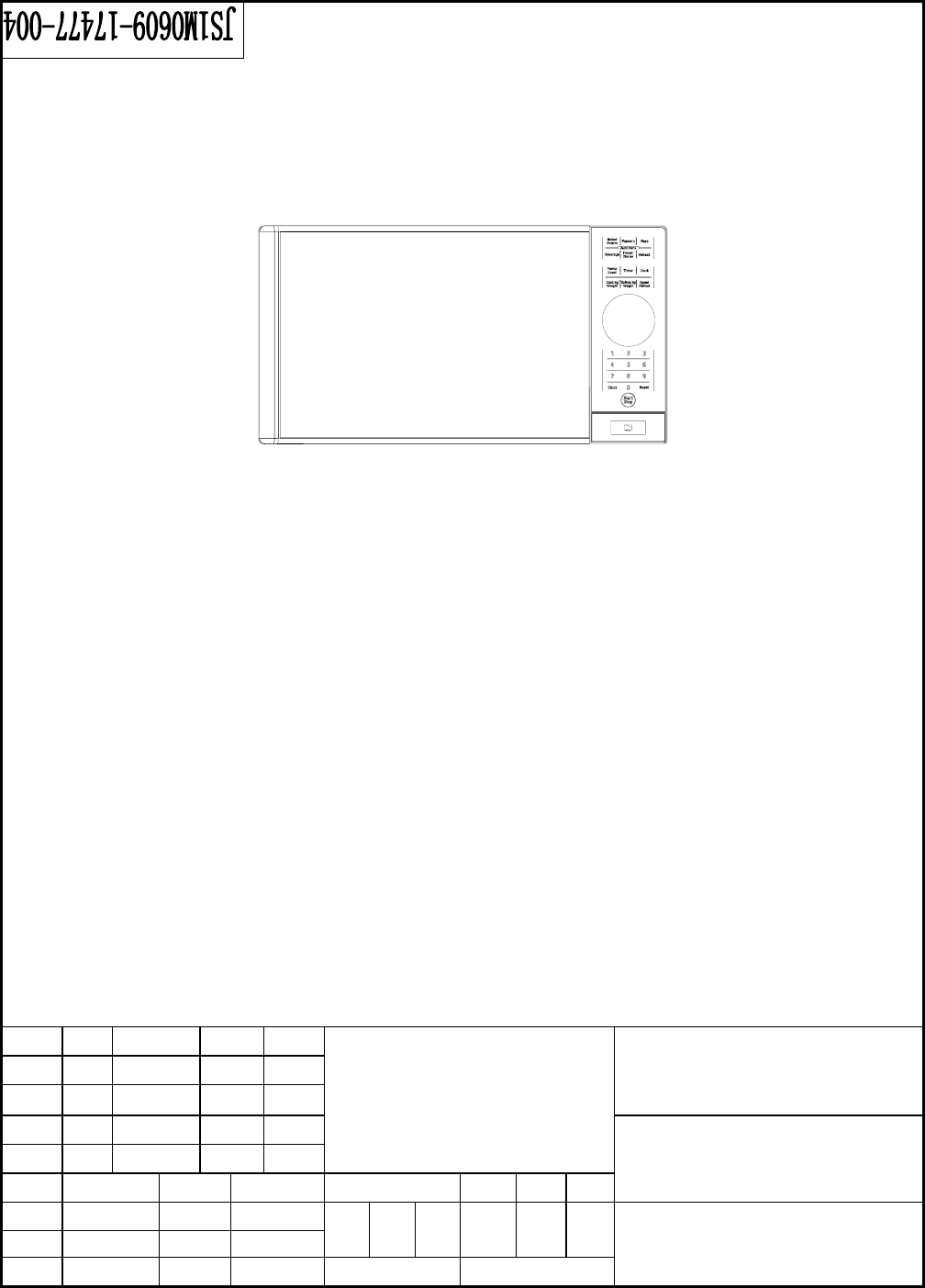

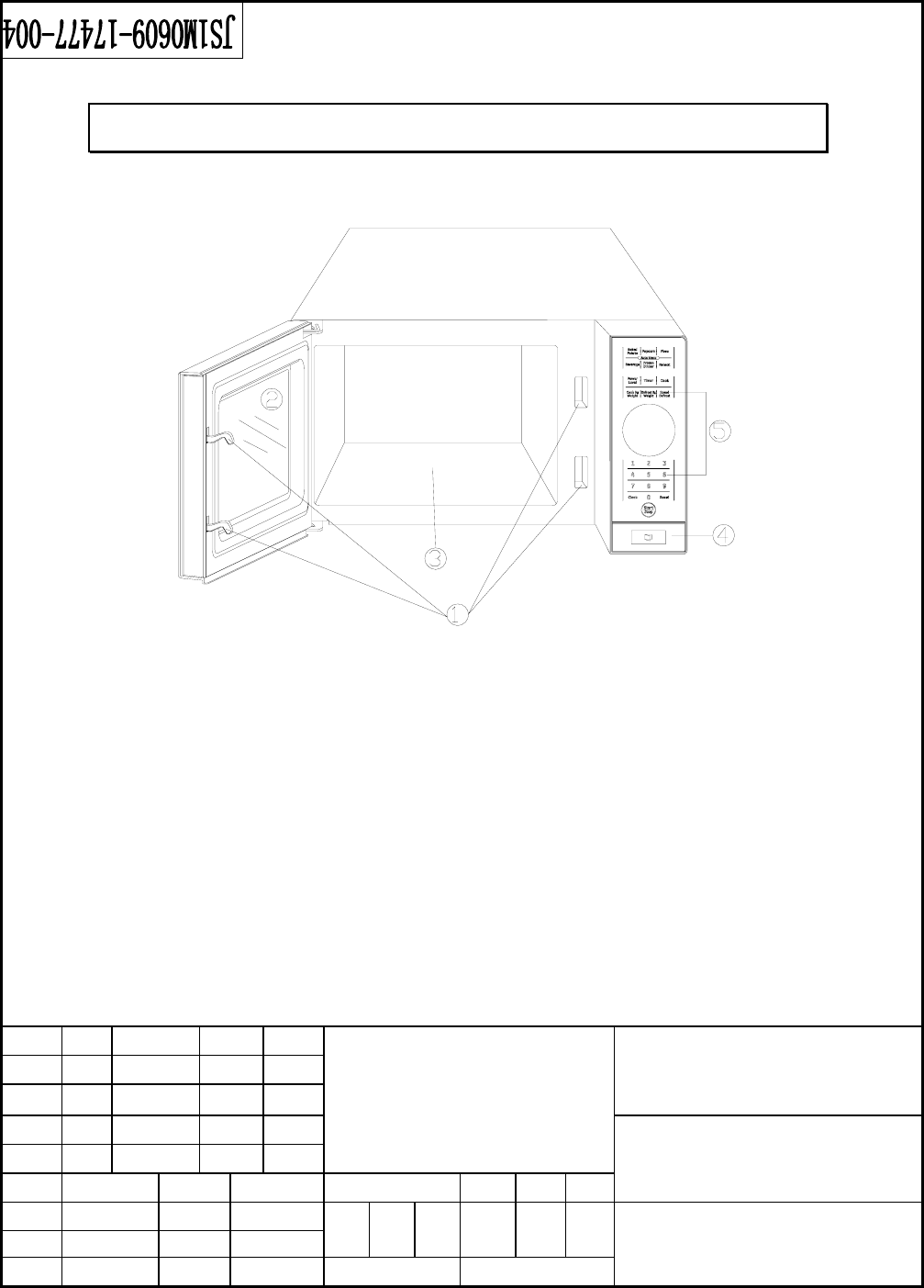

1. Door Safety Lock System
2. Oven Window
3. Base Plate
4. Door Release Button
5. Control Panel
P
PA
AR
RT
T
N
NA
AM
ME
ES
S
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 12 页
佛山市顺德区格兰仕
微波炉电器有限公司

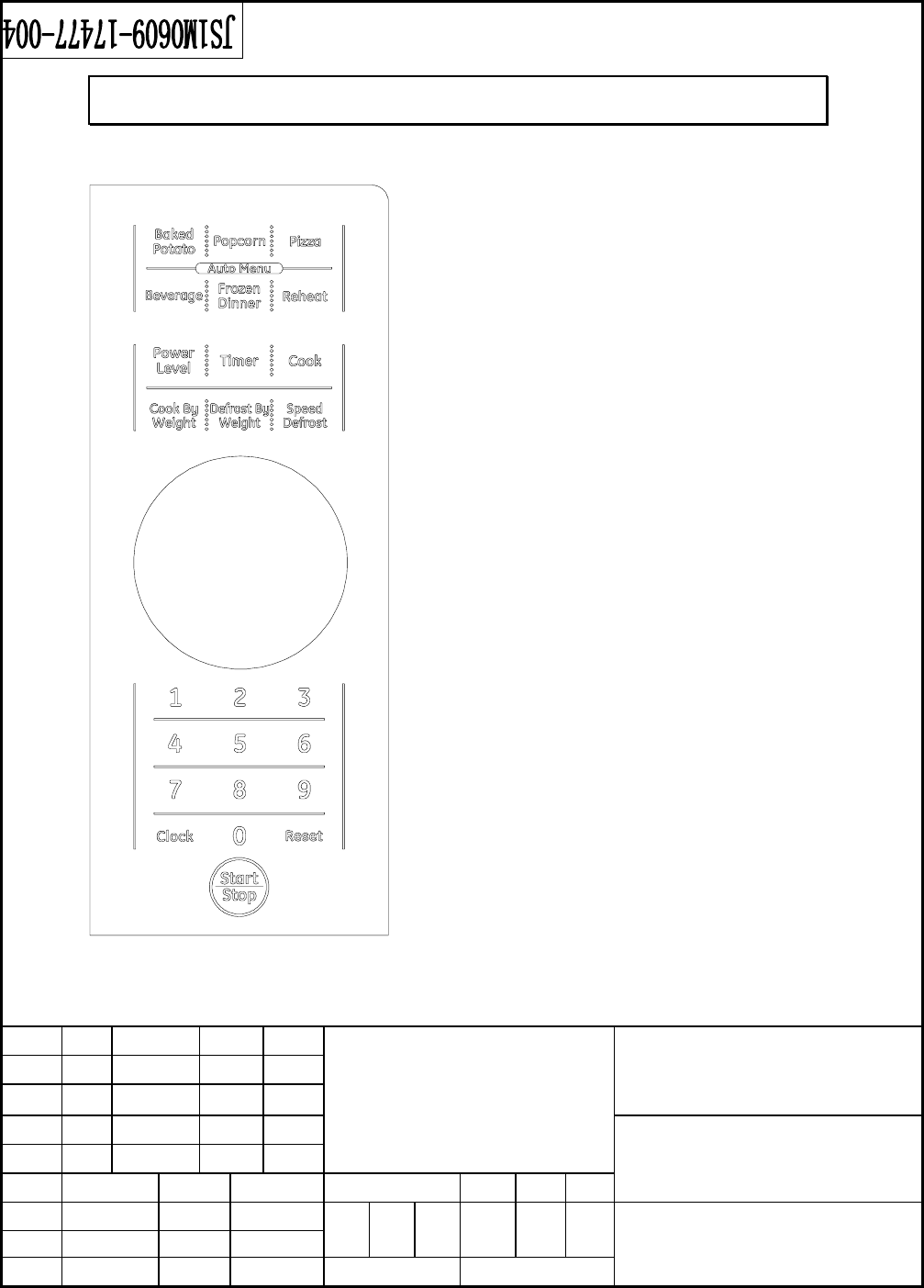

Q MENU ACTION SCREEN
Cooking time, power, indicators and present
time are displayed.
Q QUICK COOK BUTTONS
Instant settings to cook popular foods
Q POWER LEVEL
Use to set microwave power levels.
Q TIMER
Timer functions independently, even while a
cooking program is in process.
Q COOK
Use for multi-stage cooking. It enables cooking
at multiple power and time settings
automatically.
Q COOK BY WEIGHT
Programmed cooking based on weight of foods.
Q DEFROST BY WEIGHT
Programmed defrosting based on the weight of
the foods to be defrosted.
Q SPEED DEFROST
Speed defrost function that alternates defrost
and stand times to quickly and effectively defrost
foods.
Q NUMBER PADS(0-9)
Touch to set time or amount.
Q CLOCK
Touch to set the clock time.
Q RESET
Touch to clear all previous settings.
Q START/STOP
Touch to start or stop cooking.
C
CO
ON
NT
TR
RO
OL
L
P
PA
AN
NE
EL
L
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 13 页
佛山市顺德区格兰仕
微波炉电器有限公司
SIGNALS DURING OVEN SETTINGS
ONE SIGNAL: Oven accepts the entry.
TWO SIGNALS: Oven does not accept the entry, please check and try again.
SETTING THE CLOCK
1. Touch CLOCK pad.
2. Use the number pads to enter the correct time.
3. Touch CLOCK pad again.
NOTE:
·This is a 12 hour clock. When the oven is first plugged in or when power resumes after a power
interruption, the display will show ENTER CLOCK TIME If you prefer not to have the clock displayed,
touch RESET.
SETTING THE TIMER
1. Touch TIMER.
2. Enter the amount of time by touching the number pads.
3. Touch START/STOP.
NOTE:
·The maximum time you can enter is 99 minutes and 99 seconds.
·Time countdown can be seen in display for 5 seconds before clock or cooking time is returned to
display.
·Touch TIMER and then touch RESET to cancel TIMER during timing process.
SETTING A COOKING PROGRAM
A. One-stage Cooking
1. Use the number pads to set a cooking time. The longest cooking time is 99 minutes and 99
seconds.
2. If you want to set a power level other than 100% power, touch POWER LEVEL, and then use the
number pads to enter the power level.
O
OP
PE
ER
RA
AT
TI
IO
ON
N
I
IN
NS
ST
TR
RU
UC
CT
TI
IO
ON
NS
S
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 14 页
佛山市顺德区格兰仕
微波炉电器有限公司
3. Touch START/STOP to start cooking.
Use single digit to set a cooking power level:
Number pad Cooking power
1, 0 100%
9 90%
8 80%
7 70%
6 60%
5 50%
4 40%
3 30%
2 20%
1 10%
0 0%
B. Two-stage Cooking
Some recipes require different stages of cooking at different temperatures.
1. SET STAGE 1:
Follow steps 1 and 2 in “One-stage Cooking”. DO NOT TOUCH START/STOP
2. SET STAGE 2:
Touch COOK then enter proper cooking time and (lower) power level. (Most 2-stage recipes use lower
power for second stage.)
3. Touch START/STOP.
NOTE:
·After total time elapsed, the system will sound beeps with END in display. And the beeps will
continue to sound every two minutes automatically until the door is opened or any pad is touched.
SPEED DEFROST
1. Touch SPEED DEFROST.
2. Enter desired defrosting time by touching correct number pads.
3. Touch START/STOP.
NOTE:
·After total time elapsed, the system will sound beeps with END in display. And the beeps will
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 15 页
佛山市顺德区格兰仕
微波炉电器有限公司
continue to sound every two minutes automatically until the door is opened or any pad is touched.
·After setting SPEED DEFROST, oven can be programmed to automatically switch to one or two-stage
cooking.
·For speed defrost and one stage cooking, follow steps above. Before touching START/STOP, touch
COOK, enter time and power level. Then touch START/STOP.
·For speed defrost and two stage cooking, follow steps above. Before touching START/STOP, enter
two-stage cooking programs.
·The longest cooking time is 99 minutes and 99 seconds. During cooking, the oven will pause and beep
to remind you to turn food over.
COOK BY WEIGHT
1. Touch COOK BY WEIGHT.
2. Enter the one digit code by touching the correct number pad (1~3).
3. Enter weight.
4. Touch START/STOP.
Cook By Weight Code Description
CODE TYPE MAX WEIGHT
1 Beef 5 lb. 16 oz.
2 Mutton 5 lb. 16 oz.
3 Pork 5 lb. 4 oz.
Note:
·Weight must be in pounds and ounces.
·Ounce weights less than 10 must be preceded by a 0. If label gives weight in pounds only, change the
fraction of a pound to ounces using the following chart.
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 16 页
佛山市顺德区格兰仕
微波炉电器有限公司
Converting Fractions of a Pound to Ounces
Fractions of a pound Ounces
Less than .03 0
.03 to .09 1
.10 to .15 2
.16 to .21 3
.22 to .27 4
.28 to .34 5
.35 to .40 6
.41 to .46 7
.47 to .53 8
.54 to 59 9
.60 to .65 10
.66 to .71 11
.72 to .78 12
.79 to .84 13
.85 to .90 14
.91 to .97 15
above .97 go to next
even
·During cooking, the system will pause automatically and sound to remind user to turn meat over. After
that, touch START/STOP to resume cooking.
·After total time elapsed, the system will sound beeps with END in display. And the beeps will
continue to sound every two minutes automatically until the door is opened or any pad is touched.
DEFROST BY WEIGHT
1. Touch DEFROST BY WEIGHT pad.
2. Enter weight.
3. Touch START/STOP pad.
NOTE:
·Weight must be in pounds and ounces. Ounce weights less than 10 must be preceded by a 0. If label
gives weight in pounds only, change the fraction of a pound to ounces by using the chart given above.
The maximum weight is 5lb.16oz.
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 17 页
佛山市顺德区格兰仕
微波炉电器有限公司
·During defrosting the system will sound to remind user to turn food over.
·After total time elapsed, the system will sound beeps with END in display. And the beeps will
continue to sound every two minutes automatically until the door is opened or any pad is touched.
SETTING CHILD LOCK
The safety lock prevents unsupervised operation by children.
To set, press and hold RESET for 3 seconds. Lock indicator will appear on the display, and the oven
can not be operated.
To cancel, press and hold RESET for 3 seconds. Lock indicator will disappear.
The QUICK COOK settings allow you to cook or reheat food automatically without entering power level
or time.
For smaller portions, simply touch the applicable pad and start. For larger portions, push the pad
twice.
FROZEN DINNER, BAKED POTATO and BEVERAGE allow you to cook multiple amounts of the same
food.
POPCORN
1. Touch POPCORN.
POPCORN automatically sets the cooking time for a 3.5 oz. bag of microwave popcorn.
2. Touch START/STOP.
NOTE:
·To change the preset POPCORN time:
1. Touch POPCORN twice.
2. Use number pads to enter minutes and seconds.
3. Touch START/STOP.
The longest cooking time is 99 minutes and 99 seconds. The new cooking time will remain whenever
you use the POPCORN setting until you reset it.
Q
QU
UI
IC
CK
K
C
CO
OO
OK
K
S
SE
ET
TT
TI
IN
NG
GS
S
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 18 页
佛山市顺德区格兰仕
微波炉电器有限公司
BAKED POTATO
For potatoes (4 to 6 oz. per entries):
1. Touch BAKED POTATO once.
2. Enter number of potatoes by touching number pads from 1 to 4.
3. Touch START/STOP.
For the large potatoes (8 to 10 oz. per entries):
1. Touch BAKED POTATO twice.
2. Enter number of potatoes by touching number pads from 1 to 4.
3. Touch START/STOP.
PIZZA
Reheating a slice of pizza:
1. Touch PIZZA once.
2. Touch START/STOP.
Heating a whole pizza:
1. Touch PIZZA twice.
2. Touch START/STOP.
BEVERAGE
For coffee cups (5 to 7 oz. per share):
1. Touch BEVERAGE once.
2. Enter number of cups by touching number pads from 1 to 4.
3. Touch START/STOP.
For the larger coffee cups (9 to 11 oz. per share)
1. Touch BEVERAGE twice.
2. Enter number of cups by touching number pads from 1 to 4.
3. Touch START/STOP.
FROZEN DINNER
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 19 页
佛山市顺德区格兰仕
微波炉电器有限公司
For small (7 to 9 oz. per share) frozen dinners:
1. Touch FROZEN DINNER once.
2. For 1 entree or 2 entrees, touch the number pad “1” or “2”
3. Touch START/STOP pad.
Microwaving larger (10 to 12 oz. per share) frozen dinners:
1. Touch FROZEN DINNER twice.
2. For 1 entree or 2 entrees, touch the number pad “1” or “2”:
3. Touch START/STOP.
REHEAT
For a plate of cooled food:
1. Touch REHEAT pad.
2. Touch START/STOP.
Note: This setting lets you reheat a dinner plate of chilled leftovers with good results.
JS1M0609-17477-004
标记 处数 更改单号 签 字 日期
说明书
SED239X3B-PBFC0A
(P90F23AP-X3)
设 计 吴晓君 标准化 谭银珠 图 样 标 记 数量 重量 比例
校 对 审 定 李志刚
审 核 王少云 S A 1:1
工 艺 日 期 2011-4-8 共 20 页 第 20 页
佛山市顺德区格兰仕
微波炉电器有限公司
1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls,
wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of
spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating
parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the window on both sides with a damp cloth to remove any spills or spatters.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the
control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This
may occur when the microwave oven is operated under high humidity conditions. In such case, it
is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy
water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe
the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy
water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to
replace in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in
a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the
oven in a clean condition could lead to deterioration of the surface that could adversely affect the
life of the appliance and possibly result in a hazardous situation.
12. Please do not dispose this appliance into the domestic rubbish bin, it should be disposed to the
particular disposal center provided by the municipalities.
C
CL
LE
EA
AN
NI
IN
NG
G
A
AN
ND
D
C
CA
AR
RE
E
