Galanz CH1322D Induction Cooker User Manual
Guangdong Galanz Enterprises Co., Ltd. Induction Cooker Users Manual
Galanz >
User Manual
CH1322D
Thank you for purchasing this product, please read the
manual carefully before using and keep it for future reference.
User's manual
11. Related parameter
12 1
CONTENT
Preface
Production Features
Suitable pots and container
Components
Usage
Clean and Maintenance
Notes
Caution
Malfunction and Resolution
Related Parameter
All the data are checked to the letter . If any misunderstanding occurs due
to printing failure or misunderstanding of the content, our company hold
the right of final explanation.
Also:
If technical improvement occurs, it will be included in the new version of user
manual and will not inform you; for the product appearance and colour changes,
please refer to the actual product.
Special announcement:
Model Voltage/hertz
120V~ 60Hz 1300W 300-1300W
Dimension(mm)
299.4X354.3X70
CH1322D
Rated power Rated range Important safeguard
Short cord instruction
211
When using electrical appliances, basic safety precautions should
always be followed including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock do not immerse cord, plugs, or(state
specific part or parts in question) in water or other liquid.
4. Close supervision is necessary when any appliance is use by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before
putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions or has been damaged in any manner. Return
appliance to the nearest authorized service facility for examination, repair
or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil
or other hot liquids.
12. To disconnect, turn any control to “off”, then remove plug from wall outlet.
13. Do not use appliance for other than intended use.
14. Save these instructions.
10. Malfunction and resolution
Cooker can not work but
the screen works well
Button fell off or unsoldered
Button broken
PCB broken
Function key out of order
Circuitry fell off or broken
Can’t work after turned on
Plug in or not?
Fuze or switch broken or not?
Power off or not?
Stop heating when in use
Surrounding temperature too high or not
Air inlet、exhaust jammed or not
Engine blocked or not?
When keeping warm it indicates temperature
reaches the adjusted and will reheat later.
Sometimes protecting device works ,please
readjust.
?
?
Temperature can’t
be controlled
The bottom of the pot is not smooth,or
the middle part of the bottom is concave.
Phemomena Causes check
Malfunction code：E0~E8
E1、E6：minutes later,the temperature
recovers and cooker resumes.
E2、E3：restart when voltage is normal
E0、E4、E5、E7、E8：send to repair.
1. Important safeguard
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with Part 18 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
3
10

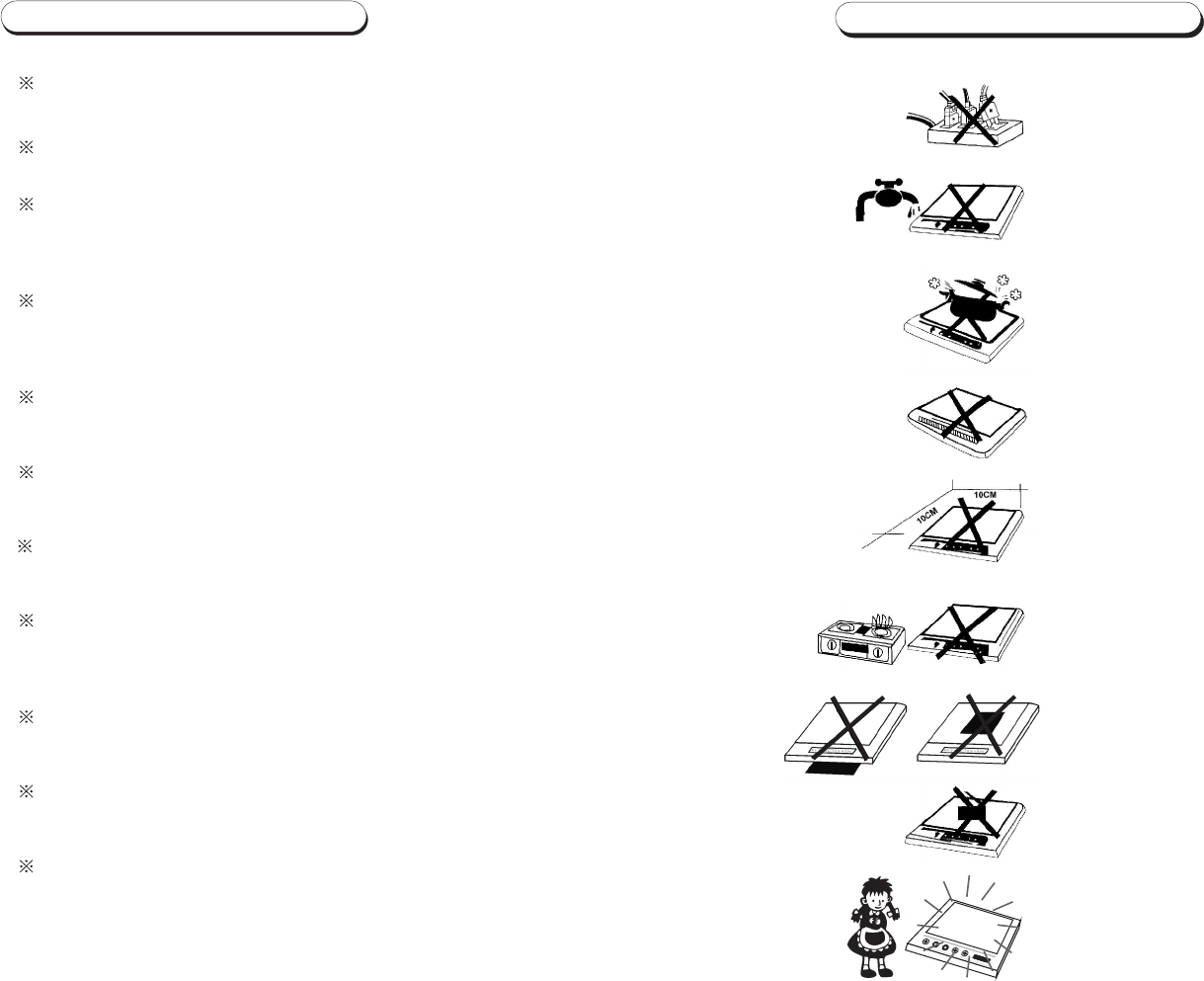

2. Caution
Use specified socket only(Current>15A).
Do not use water to wash the cooker directly,and
use damp cloth to clean it.
To avoid danger ,please do not heat
the empty pan on the plate.
To avoid electric shock,the air inlet and outlet should be
without any foreign objects such as iron wire.
Put the cooker evenly and at least 10cm far away from the wall
Do not place the cooker in high temperature and keep it away
from hot sources.
When heating canned food ,please open it first to avoid danger
of explosive.
Keep away from the reach of children after or during cooking.
Do not put any iron plate on the surface or bottom of the
cooker to avoid danger of overheat.
烫!
Hot!
9. Note
With the sluggish conduction of heat, empty pots and containers will be
destroyed or deformed even if this cooker has protecting function to deal
with this situation. So please do not heat empty hots and containers.
If any abnormal phenomenon, please unplug and contact our designated
service centre. Do not detach the cooker to avoid danger.
Please use pots and containers with smooth bottom,if not, the temperature
will not be high enough and lead to out of order. Do not use those made of
aluminium, copper or nonmetal.
This cooker does not heat small objects put on the heating surface. But you
had better not put metal forks, knives, spoons or watches on it , which will be
damaged after the cooker starts to work.
Try not to collide the ceramic plate. If broken, please cut off the power
immediately and send it to service centre for help.
To get the best efficiency, please use the provided pots. If use others, it may
cause out of order or poor efficiency.
It is normal that there will be difference for each cooker for the sluggish
temperature checking and different boiling point in different areas.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
If need repair, please follow the Guarantee Manual.
Use the cooker in correct temperature and humidity.
Do not touch the surface after using for it is still hot.
49
a) A short power-supply cord(or detachable power-supply cord) should be used
to reduce the risk resulting from becoming entangled in or tripping over a
longer cord.
b) Longer detachable power-supply cords or extension cords are available and
may be used if care is exercised in their use.
c) If a longer detachable power-supply cord or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at
least as great as the electrical rating of the appliance; and
2) The cord should be arranged so that it will not drape over the countertop
or tabletop where it can be pulled on by children or tripped over
unintentionally.
If the appliance is of the grounded type, the extension cord should be a ground-
ing-type 3-wire cord.
8.Clean and maintain
Malfunction Code：E0～E8
Note：If no pots or pots unsuitable, the buzzer will sound to warn.
When any malfunction occurs during working, the inner checking system
will check ,the buzzer sounds and corresponding code will be shown on the
screen as follow :
Code Malfunction Malfunction
Code
E0
E2
E4
E6
E8
E1
E3
E5
E7
Circuit failure
Higher voltage
Sensor open circuit
Heating surface overheated
IGBT sensor short circuit
IGBT overheated
Lower voltage
Sensor short circuit
IGBT sensor open circuit
※ Before cleaning, please unplug to avoid electric shock!
※ Just remove the pot and wipe the surface. If the ceramic surface became
yellow use oxalic acid or teeth paste to clean it.
※ Do not place anything inflammable , acid or alkalic near the cooker to avoid
corrosion and short longevity .
※ Do not immerse the cooker in water and not use gasolene or benzene etc
detergent to clean. You should use soft damp cloth to wipe it.
※ Please do not rub the surface by the bottom of pots to avoid damage of the
plate.
※ Thoroughly clean the cooker before storing, cover it with plastic bag and
keep it in dry place.
3. Short cord instruction
85
Preface
4. Features
pot
plate
vortex
coil
Line of magnetic force
Heating illustration
2. Safe and environmental-friendly: it will only heat the pots put on the black
refractory crystalized glass plate which is insulated and leakproof and there
is no worry about ruin by spilt water. It is much safer. When the temperature is
too high or the voltage changes the cooker will enter protecting mode. If no
order of choice in 2 hours, it will stop automatically. There is no danger such as
leak,explosive,burn caused by gas stove and it has less accidents comparatively.
When cooking, there is no fame and smoke ,which make cook easy and healthy.
Various heating temperature--it can maintain an adjusted all the
time.
temperature
3. Microcomputer control:
Flexible time setting it will stop working according to adjusted time.--
Protecting function--to ensure the induction cooker work well, the inner system
can check the cooker itself and adopt corresponding
protecting function.
Easy to clean: advanced black refractory crystalized glass plate is easy to be
cleaned. The spilt water can not be heated, and you can wipe it off with cloth
after removing the pot.
This induction cooker is combined with advanced
manufacturer s advantages,and it is of novel style, high quality and safety ,
and environmental-friendliness, which will bring you convenience and great
feeling when using it.
theories and other
’
1. Efficient and energy-saving:make use of electromagnetic induction to heat
quickly and efficiently by combining with line of magnetic force.
7. Usage
1. Switch on
2. Operation
1. Touch“HOT POT”key，and the indicator turns on. The cooker
will work with corresponding power, and you can touch or
to adjust the power according to your need.
Plug in, the buzzer will sound, entering waiting mode. Touch
【ON/OFF】key, then touch【HOT POT】key, hot pot function is on
and it will work with corresponding power, you can touch or to
adjust the power , you can touch 【TIMER】to adjust the time, and
also you can touch 【ON/OFF】key to be in waiting mode.
2. When in waiting mode or working mode , touch“Child-lock”key ,
the buzzer will sound, it will lock or unlock the cooker. When in
locking mode, press any other key or press“Child-lock”key for
a short time, the key will failure. You need to long press the child
lock to unlock.
Time set：
You can set the ending time through this function. When in working mode,
touch【TIMER】，the acquiesced time will be shown on the screen indicating
you can adjust the time by touching . Each touching or or indicate
one minute increase or decrease. Touch or for long time indicate 10
minutes increase or decrease.
★The maximum time you can adjust is 180 minutes.
★ When time has been set, it will flashes for seconds to confirm,
and you can also do it by touching 【TIMER】 while it is flashing.
When it is in working mode, the time will count down on the screen.
★ It will stop working when the set time arrives.
★ You can cancel the set time by touching【 】while in setting
mode.
TIMER
7
6
Not actual product, just for reference

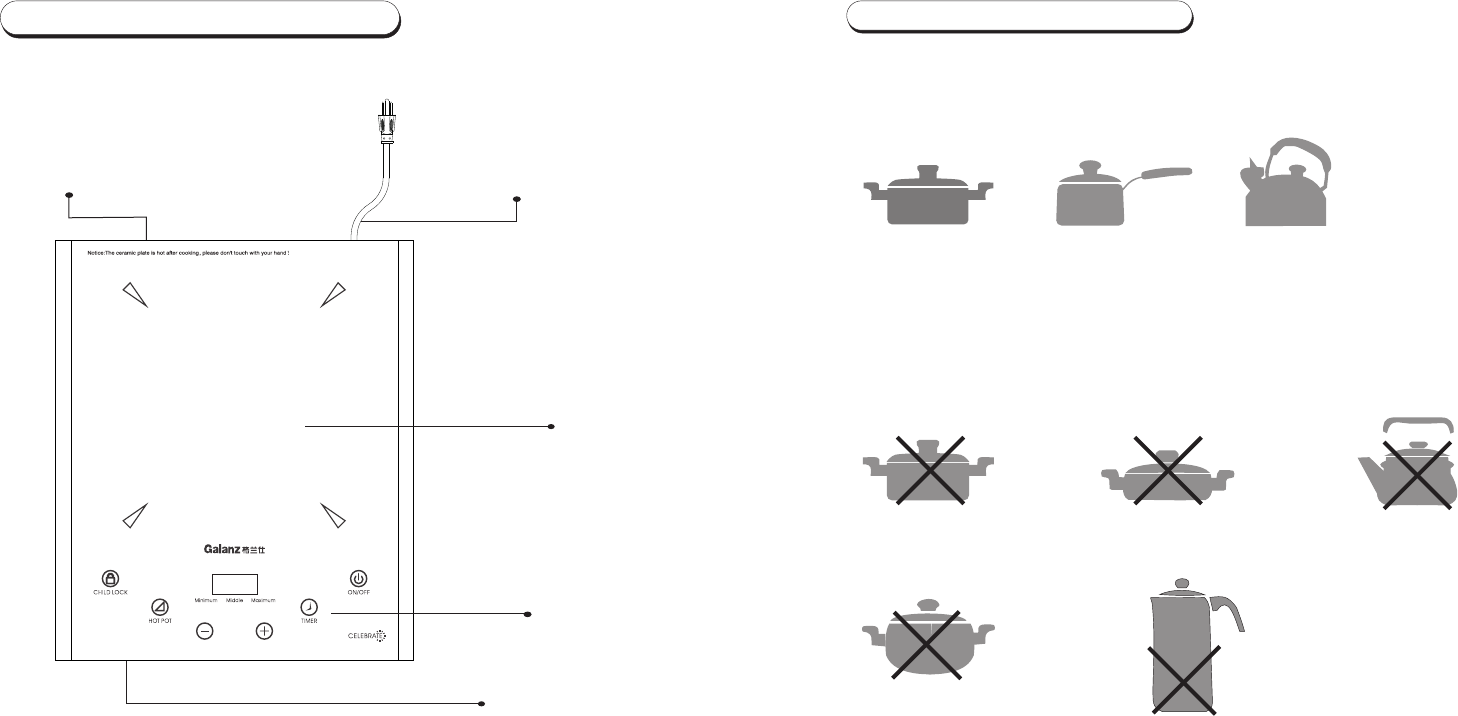

5. component
Power cord
Heating plate
Control panel
Exhaust
Air inlet
6. Suitable and unsuitable pots and containers
2. Unsuitable ones
Containers made of aluminum, copper or aluminum alloy should not be used
on the cooker as well as those whose diameter is less than 12cm,or diameter
is more than 26cm.
1. Suitable pots and containers
Pots made of enamel, stainless steel，cast iron should be of between 12cm
and 26cm in diameter.
Stainless pot Coloured pot Ferrite enamel kettle
Any pottery Refractory glass pot
Container with arc
shape bottom
Aluminum pot
Bottom diameter less than 12cm
or bottom diameter more than 26cm .
