Gardex Electronics GX-7059 MID User Manual

Gardex Electronics Co.,Ltd. MID

Users manual

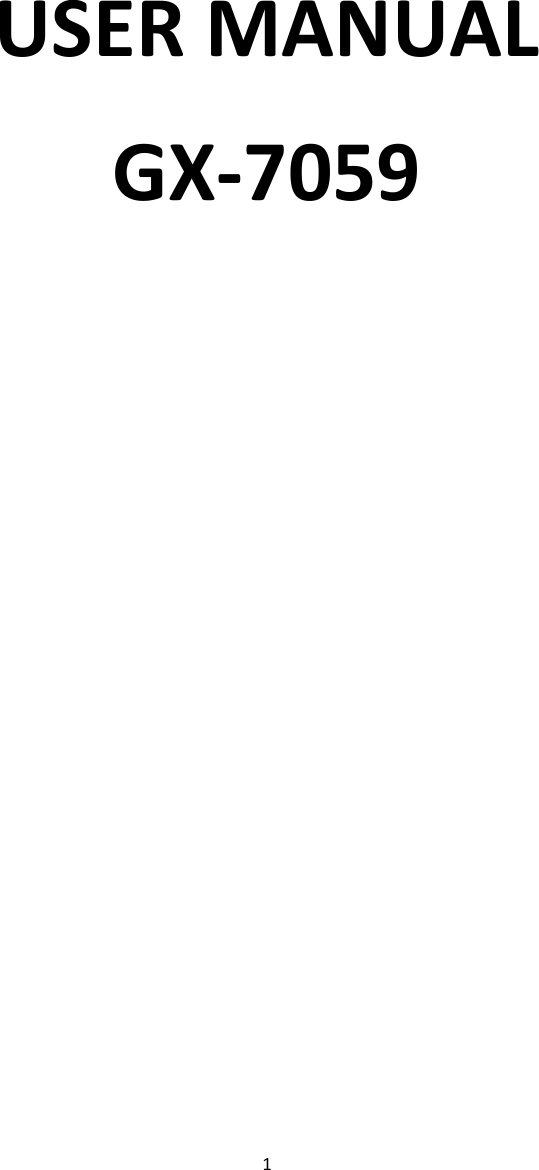

1USERMANUALGX‐7059

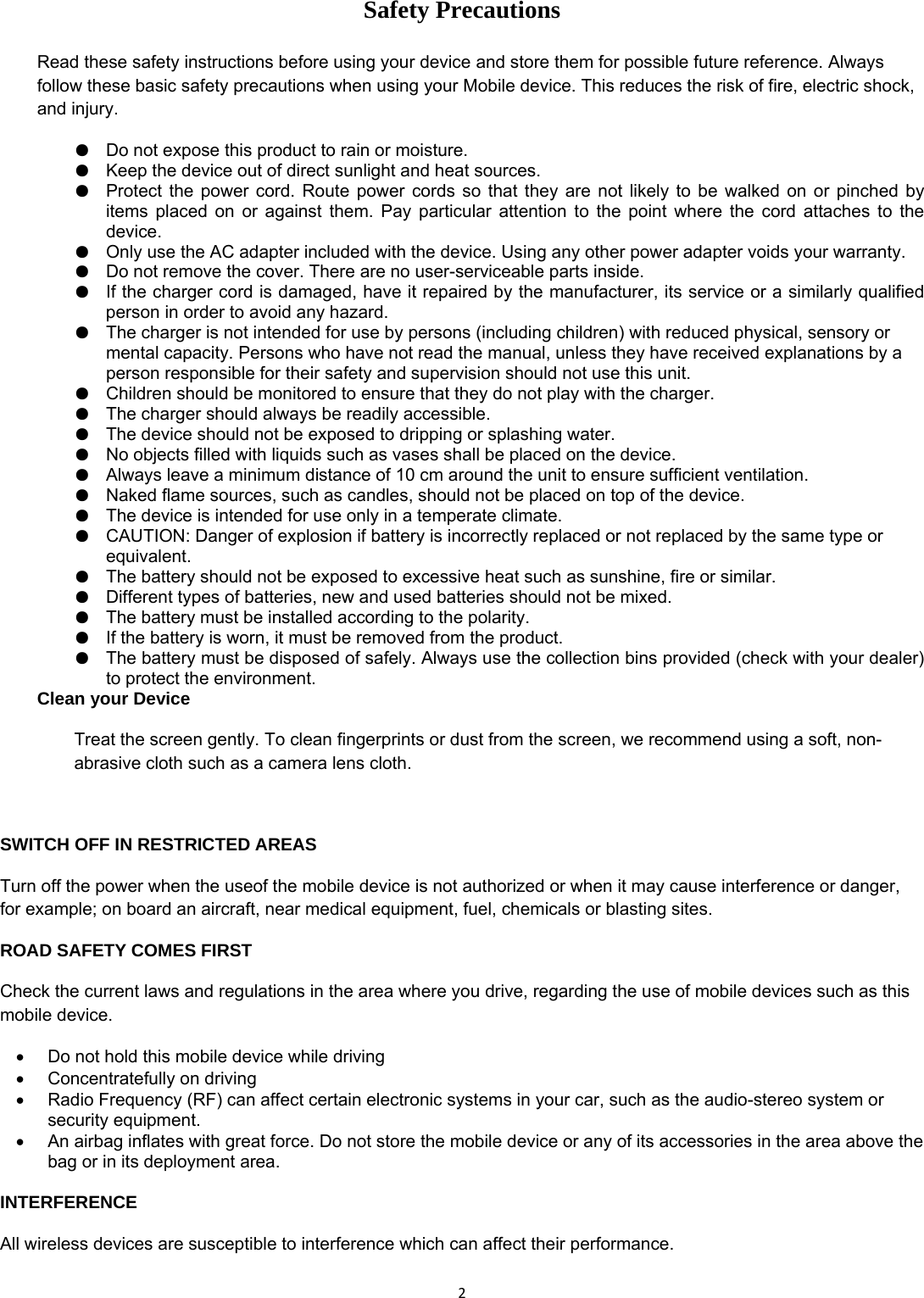

2Safety Precautions Read these safety instructions before using your device and store them for possible future reference. Always follow these basic safety precautions when using your Mobile device. This reduces the risk of fire, electric shock, and injury. ● Do not expose this product to rain or moisture. ● Keep the device out of direct sunlight and heat sources. ● Protect the power cord. Route power cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay particular attention to the point where the cord attaches to the device. ● Only use the AC adapter included with the device. Using any other power adapter voids your warranty. ● Do not remove the cover. There are no user-serviceable parts inside. ● If the charger cord is damaged, have it repaired by the manufacturer, its service or a similarly qualified person in order to avoid any hazard. ● The charger is not intended for use by persons (including children) with reduced physical, sensory or mental capacity. Persons who have not read the manual, unless they have received explanations by a person responsible for their safety and supervision should not use this unit. ● Children should be monitored to ensure that they do not play with the charger. ● The charger should always be readily accessible. ● The device should not be exposed to dripping or splashing water. ● No objects filled with liquids such as vases shall be placed on the device. ● Always leave a minimum distance of 10 cm around the unit to ensure sufficient ventilation. ● Naked flame sources, such as candles, should not be placed on top of the device. ● The device is intended for use only in a temperate climate. ● CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the same type or equivalent. ● The battery should not be exposed to excessive heat such as sunshine, fire or similar. ● Different types of batteries, new and used batteries should not be mixed. ● The battery must be installed according to the polarity. ● If the battery is worn, it must be removed from the product. ● The battery must be disposed of safely. Always use the collection bins provided (check with your dealer) to protect the environment. Clean your Device Treat the screen gently. To clean fingerprints or dust from the screen, we recommend using a soft, non-abrasive cloth such as a camera lens cloth. SWITCH OFF IN RESTRICTED AREAS Turn off the power when the useof the mobile device is not authorized or when it may cause interference or danger, for example; on board an aircraft, near medical equipment, fuel, chemicals or blasting sites. ROAD SAFETY COMES FIRST Check the current laws and regulations in the area where you drive, regarding the use of mobile devices such as this mobile device. • Do not hold this mobile device while driving • Concentratefully on driving • Radio Frequency (RF) can affect certain electronic systems in your car, such as the audio-stereo system or security equipment. • An airbag inflates with great force. Do not store the mobile device or any of its accessories in the area above the bag or in its deployment area. INTERFERENCE All wireless devices are susceptible to interference which can affect their performance.

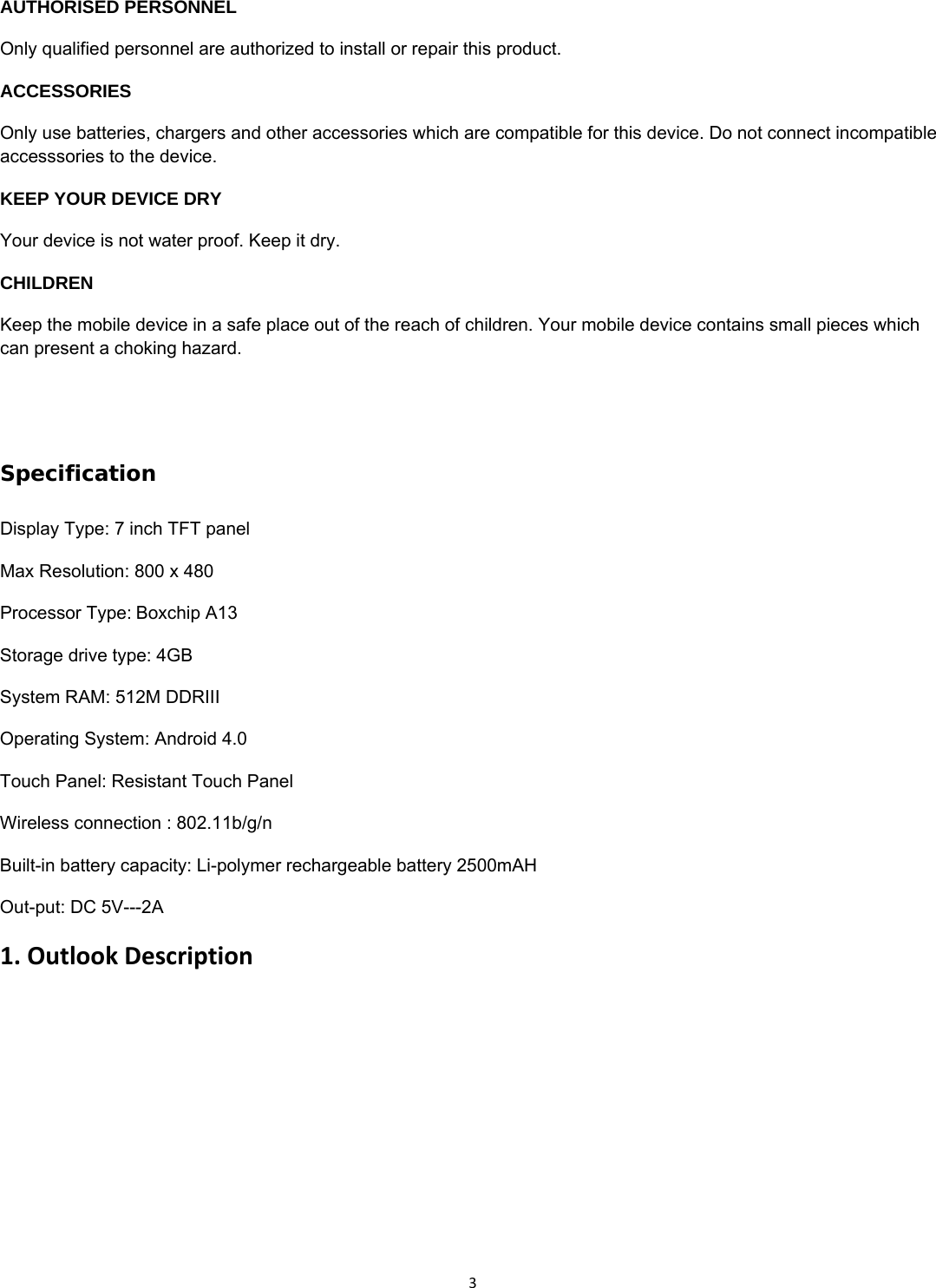

3 AUTHORISED PERSONNEL Only qualified personnel are authorized to install or repair this product. ACCESSORIES Only use batteries, chargers and other accessories which are compatible for this device. Do not connect incompatible accesssories to the device. KEEP YOUR DEVICE DRY Your device is not water proof. Keep it dry. CHILDREN Keep the mobile device in a safe place out of the reach of children. Your mobile device contains small pieces which can present a choking hazard. Specification Display Type: 7 inch TFT panel Max Resolution: 800 x 480 Processor Type:Boxchip A13 Storage drive type: 4GB System RAM: 512M DDRIII Operating System: Android 4.0 Touch Panel: Resistant Touch Panel Wireless connection : 802.11b/g/n Built-in battery capacity: Li-polymer rechargeable battery 2500mAH Out-put: DC 5V---2A 1.OutlookDescription

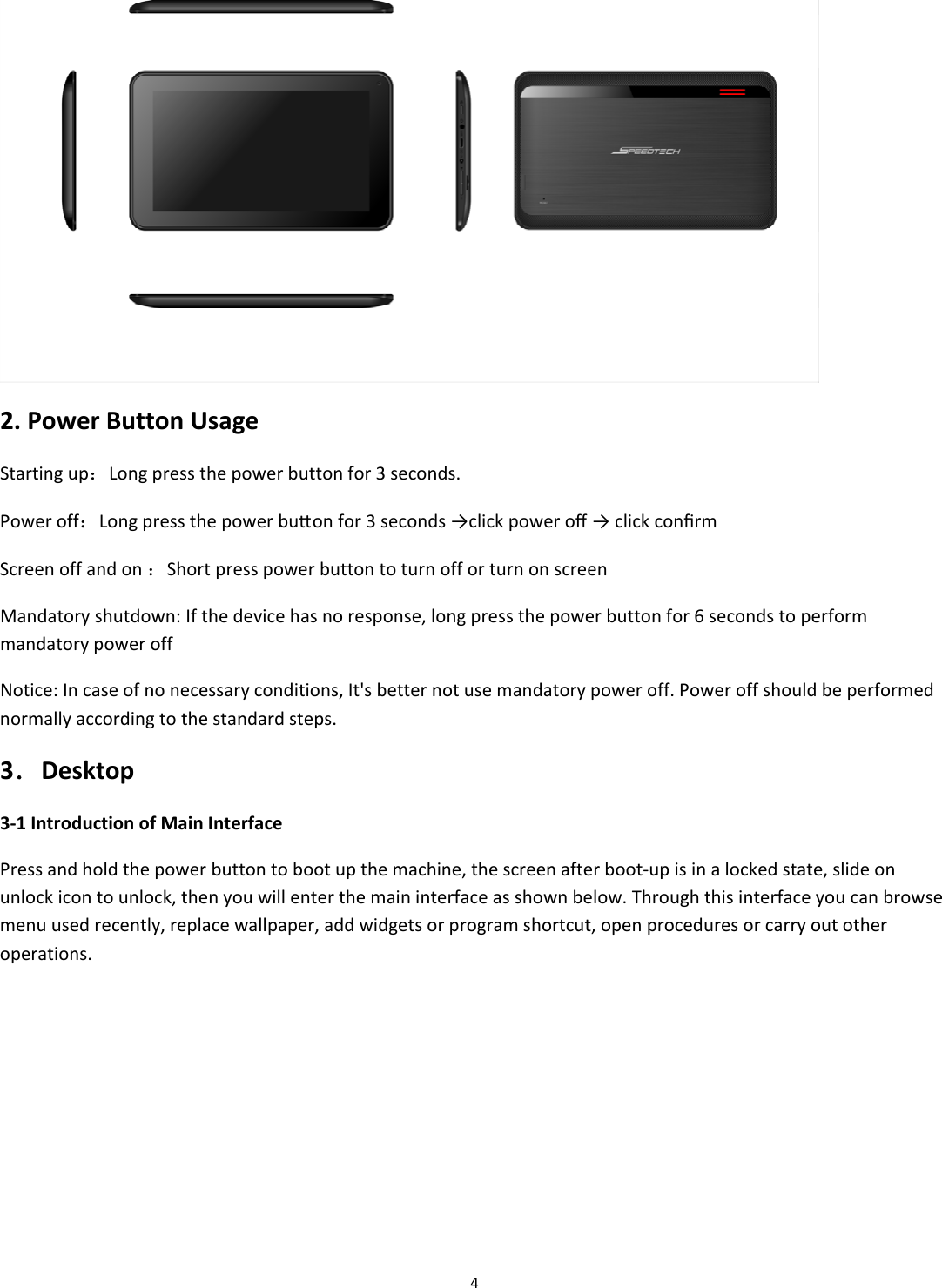

42.PowerButtonUsageStartingup：Longpressthepowerbuttonfor3seconds.Poweroff：Longpressthepowerbuonfor3seconds→clickpoweroff→clickconfirmScreenoffandon：ShortpresspowerbuttontoturnofforturnonscreenMandatoryshutdown:Ifthedevicehasnoresponse,longpressthepowerbuttonfor6secondstoperformmandatorypoweroffNotice:Incaseofnonecessaryconditions,It'sbetternotusemandatorypoweroff.Poweroffshouldbeperformednormallyaccordingtothestandardsteps.3．Desktop3‐1IntroductionofMainInterfacePressandholdthepowerbuttontobootupthemachine,thescreenafterboot‐upisinalockedstate,slideonunlockicontounlock,thenyouwillenterthemaininterfaceasshownbelow.Throughthisinterfaceyoucanbrowsemenuusedrecently,replacewallpaper,addwidgetsorprogramshortcut,openproceduresorcarryoutotheroperations.

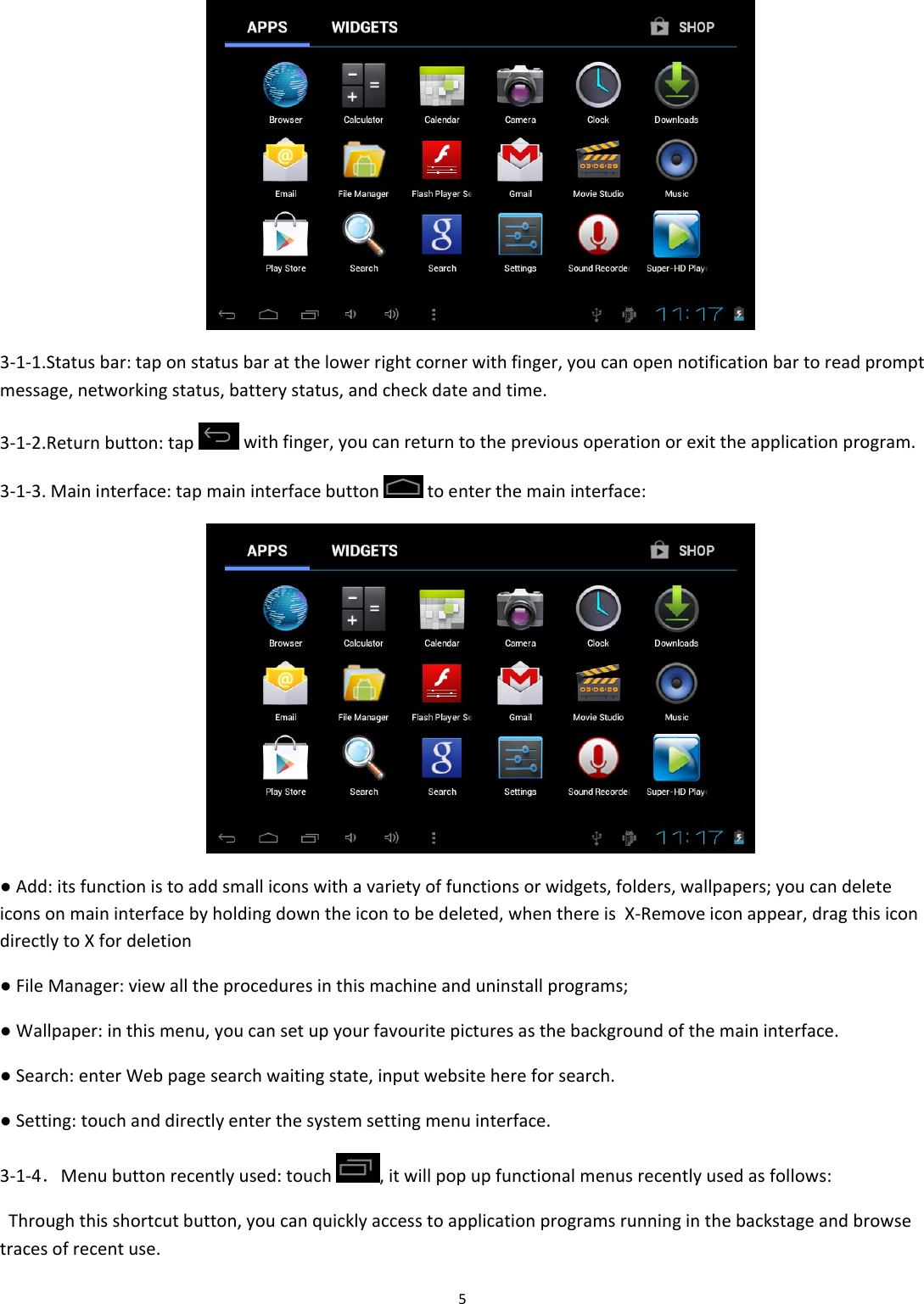

5 3‐1‐1.Statusbar:taponstatusbaratthelowerrightcornerwithfinger,youcanopennotificationbartoreadpromptmessage,networkingstatus,batterystatus,andcheckdateandtime.3‐1‐2.Returnbutton:tapwithfinger,youcanreturntothepreviousoperationorexittheapplicationprogram.3‐1‐3.Maininterface:tapmaininterfacebuttontoenterthemaininterface: ●Add:itsfunctionistoaddsmalliconswithavarietyoffunctionsorwidgets,folders,wallpapers;youcandeleteiconsonmaininterfacebyholdingdowntheicontobedeleted,whenthereisX‐Removeiconappear,dragthisicondirectlytoXfordeletion●FileManager:viewalltheproceduresinthismachineanduninstallprograms;●Wallpaper:inthismenu,youcansetupyourfavouritepicturesasthebackgroundofthemaininterface.●Search:enterWebpagesearchwaitingstate,inputwebsitehereforsearch.●Setting:touchanddirectlyenterthesystemsettingmenuinterface.3‐1‐4．Menubuttonrecentlyused:touch,itwillpopupfunctionalmenusrecentlyusedasfollows:Throughthisshortcutbutton,youcanquicklyaccesstoapplicationprogramsrunninginthebackstageandbrowsetracesofrecentuse.

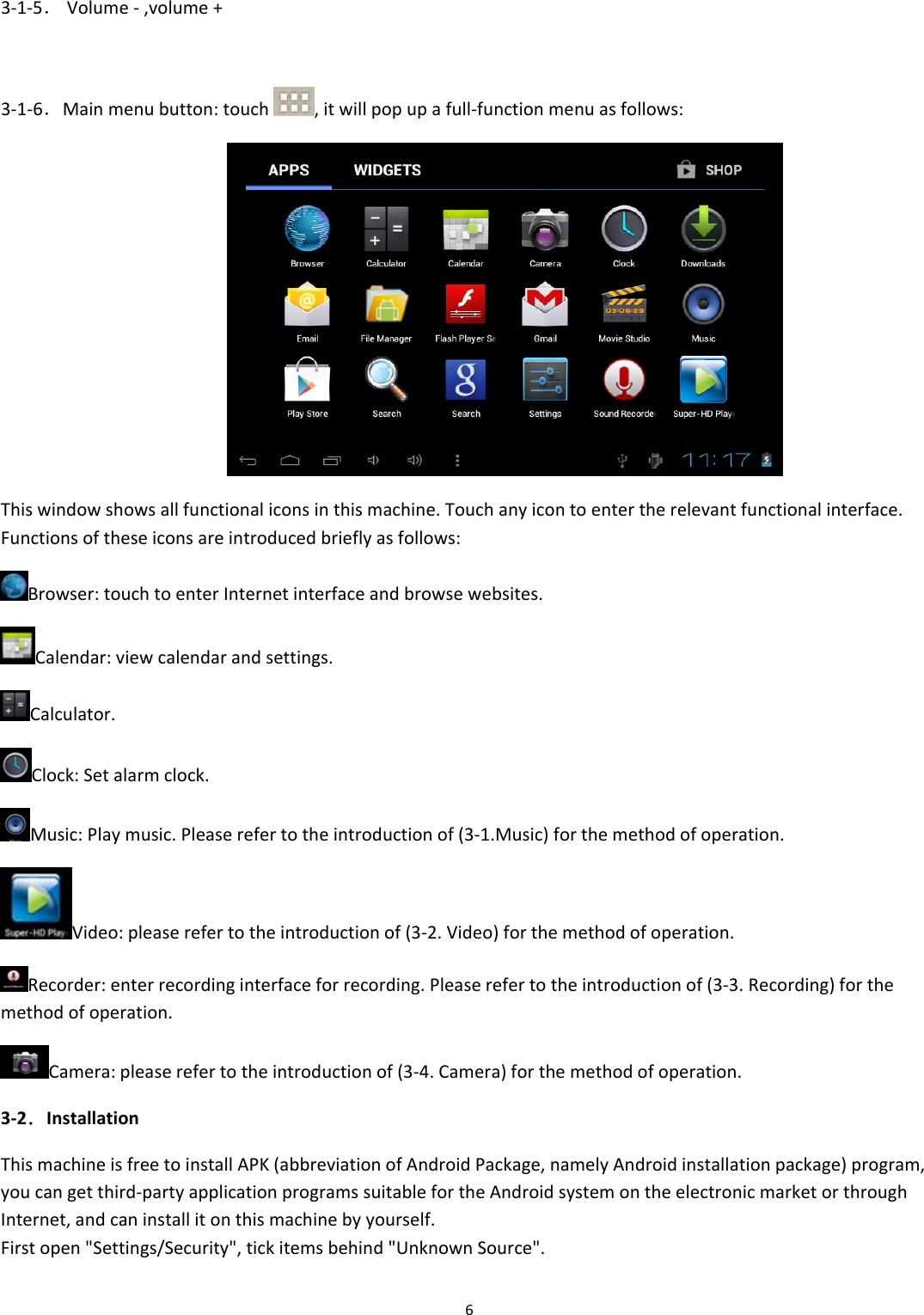

63‐1‐5．Volume‐,volume+3‐1‐6．Mainmenubutton:touch,itwillpopupafull‐functionmenuasfollows:Thiswindowshowsallfunctionaliconsinthismachine.Touchanyicontoentertherelevantfunctionalinterface.Functionsoftheseiconsareintroducedbrieflyasfollows:Browser:touchtoenterInternetinterfaceandbrowsewebsites.Calendar:viewcalendarandsettings.Calculator.Clock:Setalarmclock.Music:Playmusic.Pleaserefertotheintroductionof(3‐1.Music)forthemethodofoperation.Video:pleaserefertotheintroductionof(3‐2.Video)forthemethodofoperation.Recorder:enterrecordinginterfaceforrecording.Pleaserefertotheintroductionof(3‐3.Recording)forthemethodofoperation.Camera:pleaserefertotheintroductionof(3‐4.Camera)forthemethodofoperation.3‐2．InstallationThismachineisfreetoinstallAPK(abbreviationofAndroidPackage,namelyAndroidinstallationpackage)program,youcangetthird‐partyapplicationprogramssuitablefortheAndroidsystemontheelectronicmarketorthroughInternet,andcaninstallitonthismachinebyyourself.Firstopen"Settings/Security",tickitemsbehind"UnknownSource".

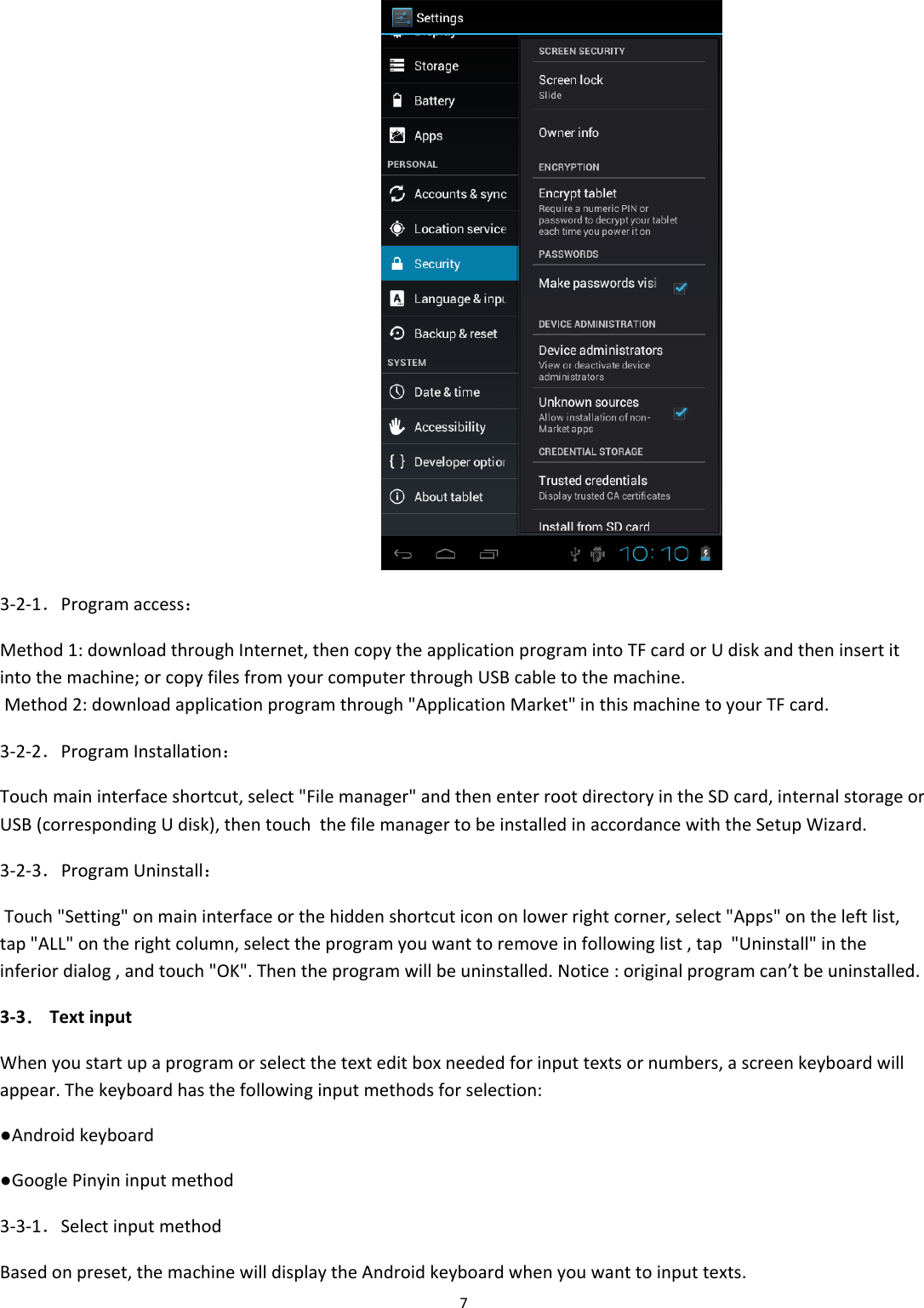

73‐2‐1．Programaccess：Method1:downloadthroughInternet,thencopytheapplicationprogramintoTFcardorUdiskandtheninsertitintothemachine;orcopyfilesfromyourcomputerthroughUSBcabletothemachine.Method2:downloadapplicationprogramthrough"ApplicationMarket"inthismachinetoyourTFcard.3‐2‐2．ProgramInstallation：Touchmaininterfaceshortcut,select"Filemanager"andthenenterrootdirectoryintheSDcard,internalstorageorUSB(correspondingUdisk),thentouchthefilemanagertobeinstalledinaccordancewiththeSetupWizard.3‐2‐3．ProgramUninstall：Touch"Setting"onmaininterfaceorthehiddenshortcuticononlowerrightcorner,select"Apps"ontheleftlist,tap"ALL"ontherightcolumn,selecttheprogramyouwanttoremoveinfollowinglist,tap"Uninstall"intheinferiordialog,andtouch"OK".Thentheprogramwillbeuninstalled.Notice:originalprogramcan’tbeuninstalled.3‐3．TextinputWhenyoustartupaprogramorselectthetexteditboxneededforinputtextsornumbers,ascreenkeyboardwillappear.Thekeyboardhasthefollowinginputmethodsforselection:●Androidkeyboard●GooglePinyininputmethod3‐3‐1．SelectinputmethodBasedonpreset,themachinewilldisplaytheAndroidkeyboardwhenyouwanttoinputtexts.

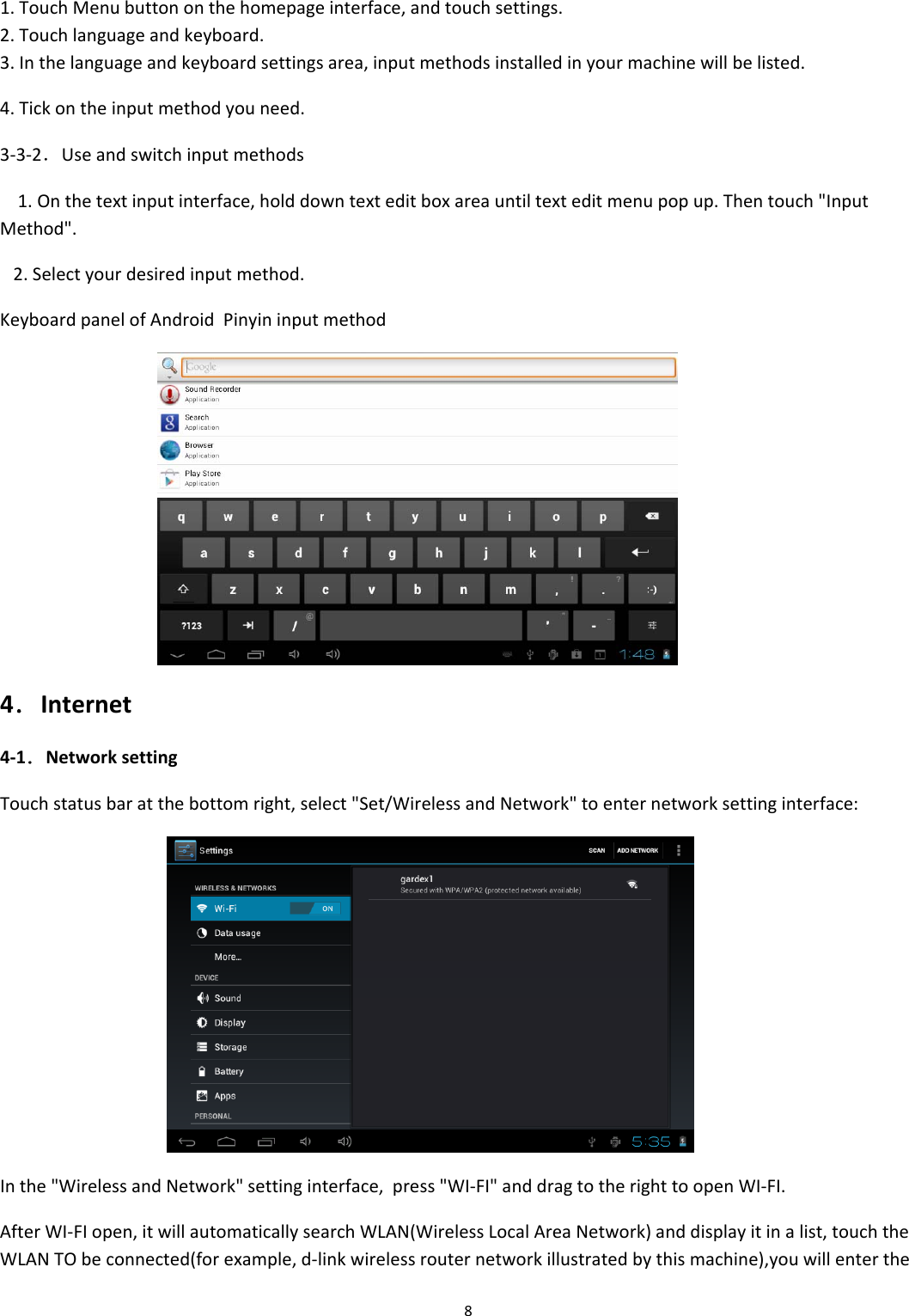

81.TouchMenubuttononthehomepageinterface,andtouchsettings.2.Touchlanguageandkeyboard.3.Inthelanguageandkeyboardsettingsarea,inputmethodsinstalledinyourmachinewillbelisted.4.Tickontheinputmethodyouneed.3‐3‐2．Useandswitchinputmethods1.Onthetextinputinterface,holddowntexteditboxareauntiltexteditmenupopup.Thentouch"InputMethod".2.Selectyourdesiredinputmethod.KeyboardpanelofAndroidPinyininputmethod4．Internet4‐1．NetworksettingTouchstatusbaratthebottomright,select"Set/WirelessandNetwork"toenternetworksettinginterface:Inthe"WirelessandNetwork"settinginterface,press"WI‐FI"anddragtotherighttoopenWI‐FI.AfterWI‐FIopen,itwillautomaticallysearchWLAN(WirelessLocalAreaNetwork)anddisplayitinalist,touchtheWLANTObeconnected(forexample,d‐linkwirelessrouternetworkillustratedbythismachine),youwillenterthe

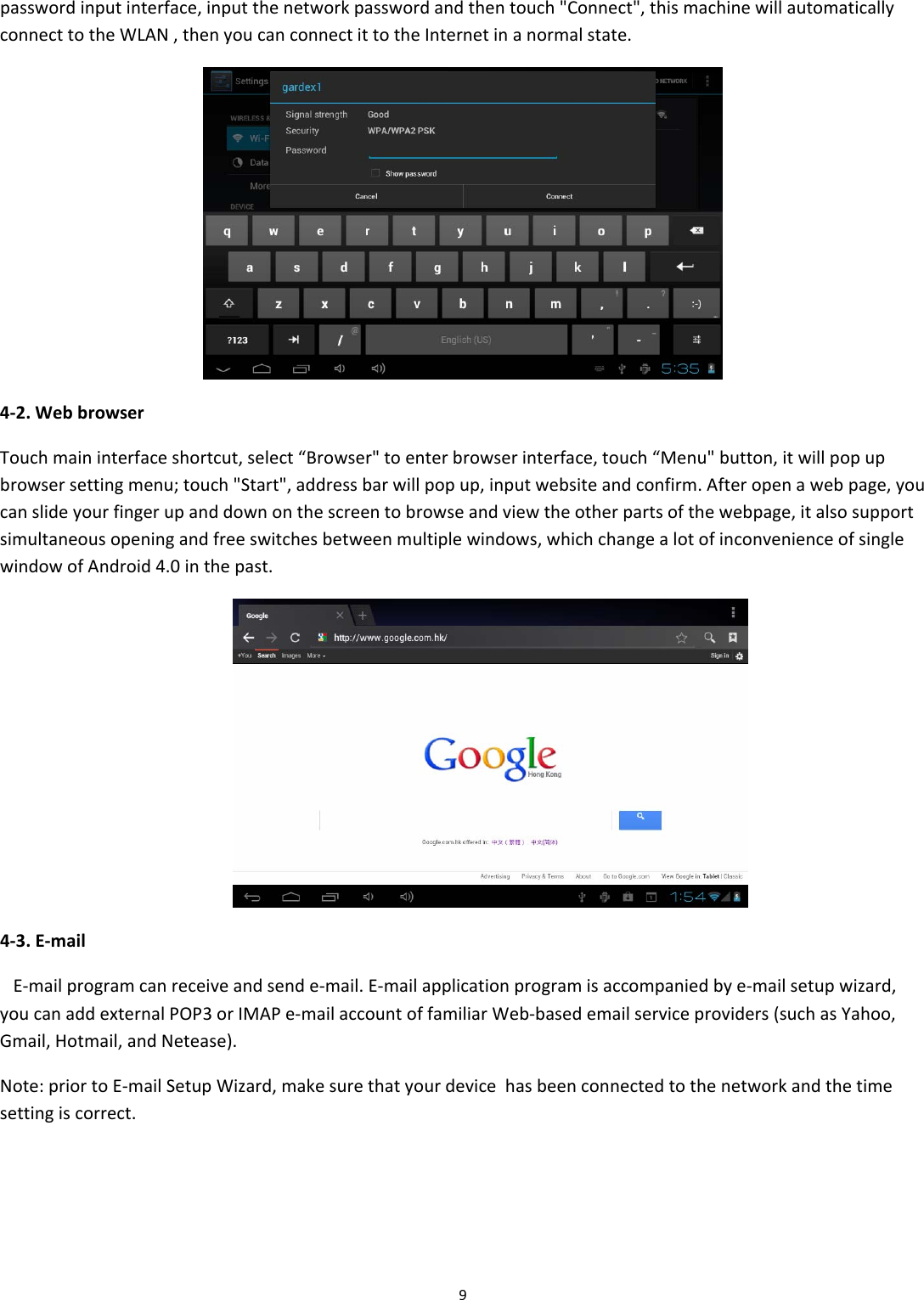

9passwordinputinterface,inputthenetworkpasswordandthentouch"Connect",thismachinewillautomaticallyconnecttotheWLAN,thenyoucanconnectittotheInternetinanormalstate.4‐2.WebbrowserTouchmaininterfaceshortcut,select“Browser"toenterbrowserinterface,touch“Menu"button,itwillpopupbrowsersettingmenu;touch"Start",addressbarwillpopup,inputwebsiteandconfirm.Afteropenawebpage,youcanslideyourfingerupanddownonthescreentobrowseandviewtheotherpartsofthewebpage,italsosupportsimultaneousopeningandfreeswitchesbetweenmultiplewindows,whichchangealotofinconvenienceofsinglewindowofAndroid4.0inthepast.4‐3.E‐mailE‐mailprogramcanreceiveandsende‐mail.E‐mailapplicationprogramisaccompaniedbye‐mailsetupwizard,youcanaddexternalPOP3orIMAPe‐mailaccountoffamiliarWeb‐basedemailserviceproviders(suchasYahoo,Gmail,Hotmail,andNetease).Note:priortoE‐mailSetupWizard,makesurethatyourdevicehasbeenconnectedtothenetworkandthetimesettingiscorrect.

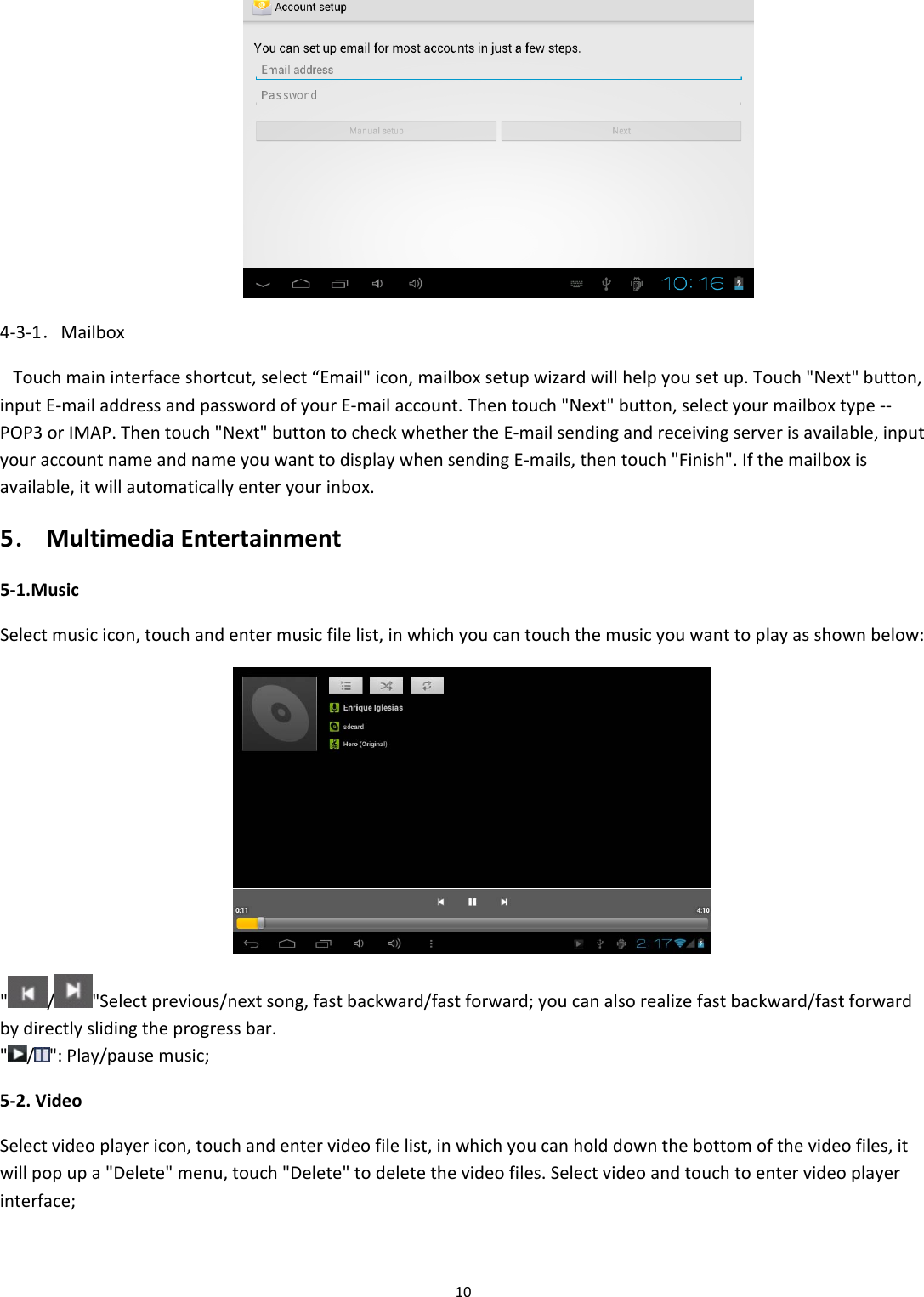

104‐3‐1．MailboxTouchmaininterfaceshortcut,select“Email"icon,mailboxsetupwizardwillhelpyousetup.Touch"Next"button,inputE‐mailaddressandpasswordofyourE‐mailaccount.Thentouch"Next"button,selectyourmailboxtype‐‐POP3orIMAP.Thentouch"Next"buttontocheckwhethertheE‐mailsendingandreceivingserverisavailable,inputyouraccountnameandnameyouwanttodisplaywhensendingE‐mails,thentouch"Finish".Ifthemailboxisavailable,itwillautomaticallyenteryourinbox.5．MultimediaEntertainment5‐1.MusicSelectmusicicon,touchandentermusicfilelist,inwhichyoucantouchthemusicyouwanttoplayasshownbelow:"/"Selectprevious/nextsong,fastbackward/fastforward;youcanalsorealizefastbackward/fastforwardbydirectlyslidingtheprogressbar."/":Play/pausemusic;5‐2.VideoSelectvideoplayericon,touchandentervideofilelist,inwhichyoucanholddownthebottomofthevideofiles,itwillpopupa"Delete"menu,touch"Delete"todeletethevideofiles.Selectvideoandtouchtoentervideoplayerinterface;

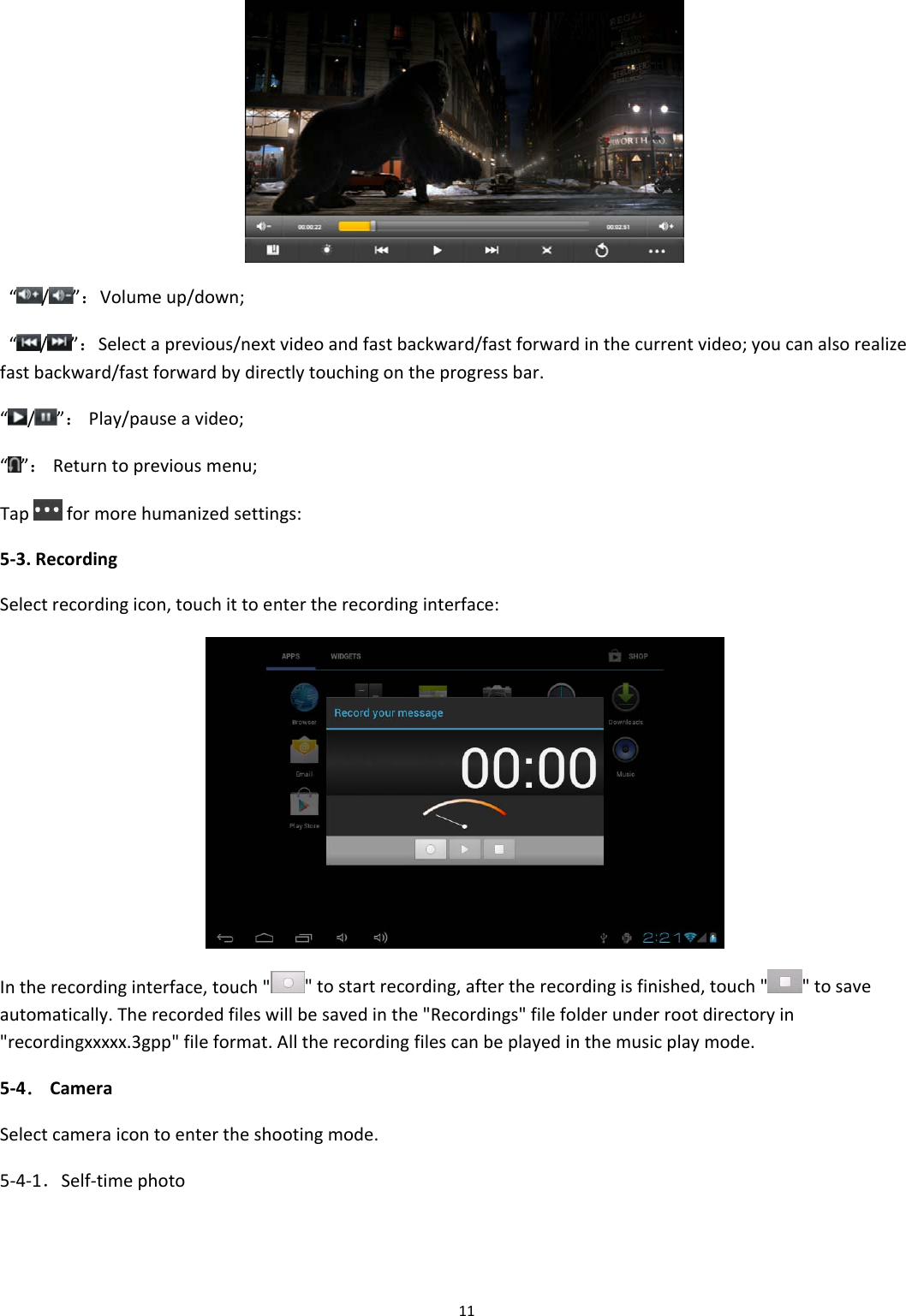

11“/ ”：Volumeup/down;“/ ”：Selectaprevious/nextvideoandfastbackward/fastforwardinthecurrentvideo;youcanalsorealizefastbackward/fastforwardbydirectlytouchingontheprogressbar.“/ ”：Play/pauseavideo;“”：Returntopreviousmenu;Tapformorehumanizedsettings:5‐3.RecordingSelectrecordingicon,touchittoentertherecordinginterface:Intherecordinginterface,touch""tostartrecording,aftertherecordingisfinished,touch" "tosaveautomatically.Therecordedfileswillbesavedinthe"Recordings"filefolderunderrootdirectoryin"recordingxxxxx.3gpp"fileformat.Alltherecordingfilescanbeplayedinthemusicplaymode.5‐4．CameraSelectcameraicontoentertheshootingmode.5‐4‐1．Self‐timephoto

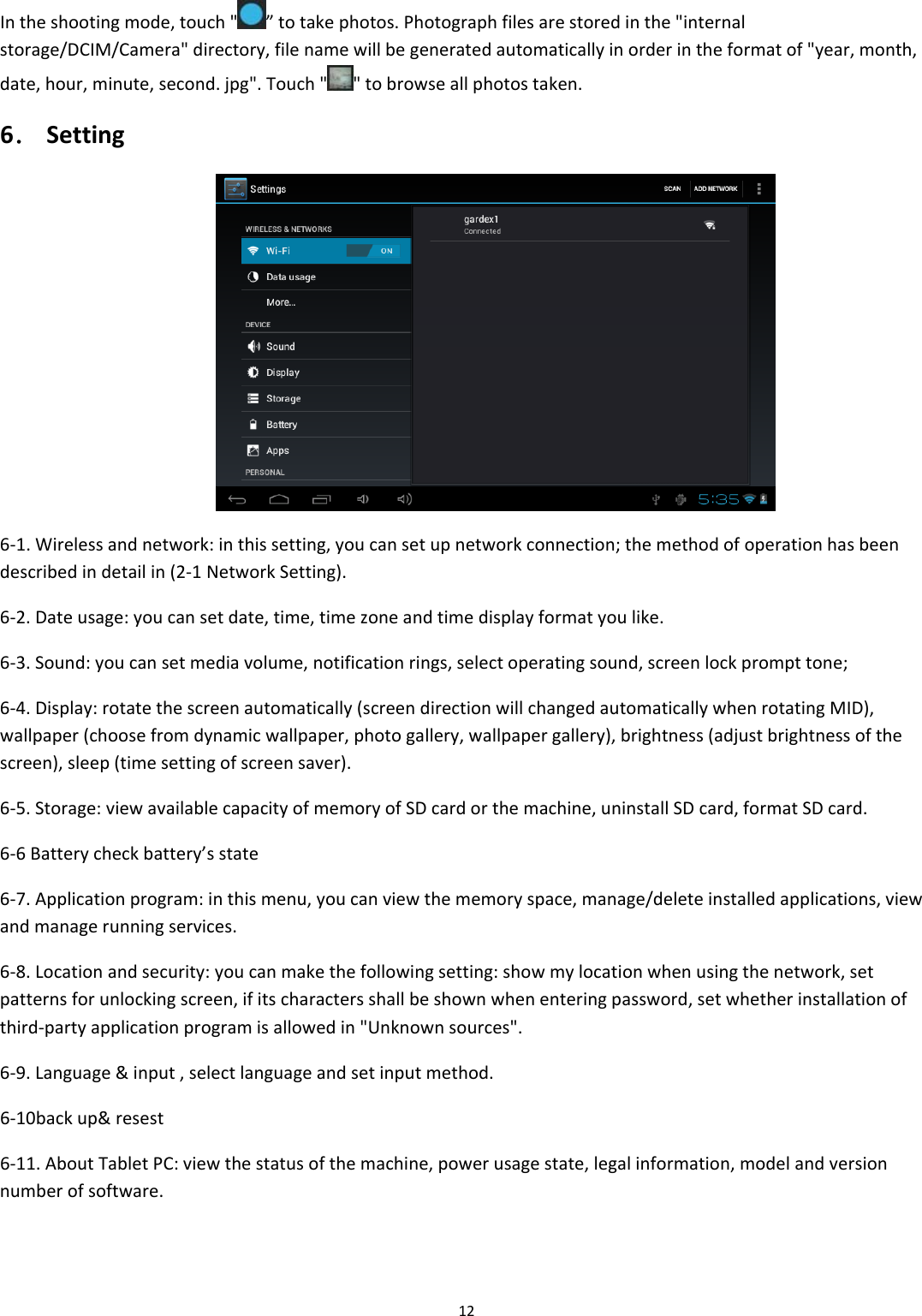

12Intheshootingmode,touch" ”totakephotos.Photographfilesarestoredinthe"internalstorage/DCIM/Camera"directory,filenamewillbegeneratedautomaticallyinorderintheformatof"year,month,date,hour,minute,second.jpg".Touch""tobrowseallphotostaken.6．Setting6‐1.Wirelessandnetwork:inthissetting,youcansetupnetworkconnection;themethodofoperationhasbeendescribedindetailin(2‐1NetworkSetting).6‐2.Dateusage:youcansetdate,time,timezoneandtimedisplayformatyoulike.6‐3.Sound:youcansetmediavolume,notificationrings,selectoperatingsound,screenlockprompttone;6‐4.Display:rotatethescreenautomatically(screendirectionwillchangedautomaticallywhenrotatingMID),wallpaper(choosefromdynamicwallpaper,photogallery,wallpapergallery),brightness(adjustbrightnessofthescreen),sleep(timesettingofscreensaver).6‐5.Storage:viewavailablecapacityofmemoryofSDcardorthemachine,uninstallSDcard,formatSDcard.6‐6Batterycheckbattery’sstate6‐7.Applicationprogram:inthismenu,youcanviewthememoryspace,manage/deleteinstalledapplications,viewandmanagerunningservices.6‐8.Locationandsecurity:youcanmakethefollowingsetting:showmylocationwhenusingthenetwork,setpatternsforunlockingscreen,ifitscharactersshallbeshownwhenenteringpassword,setwhetherinstallationofthird‐partyapplicationprogramisallowedin"Unknownsources".6‐9.Language&input,selectlanguageandsetinputmethod.6‐10backup&resest6‐11.AboutTabletPC:viewthestatusofthemachine,powerusagestate,legalinformation,modelandversionnumberofsoftware.

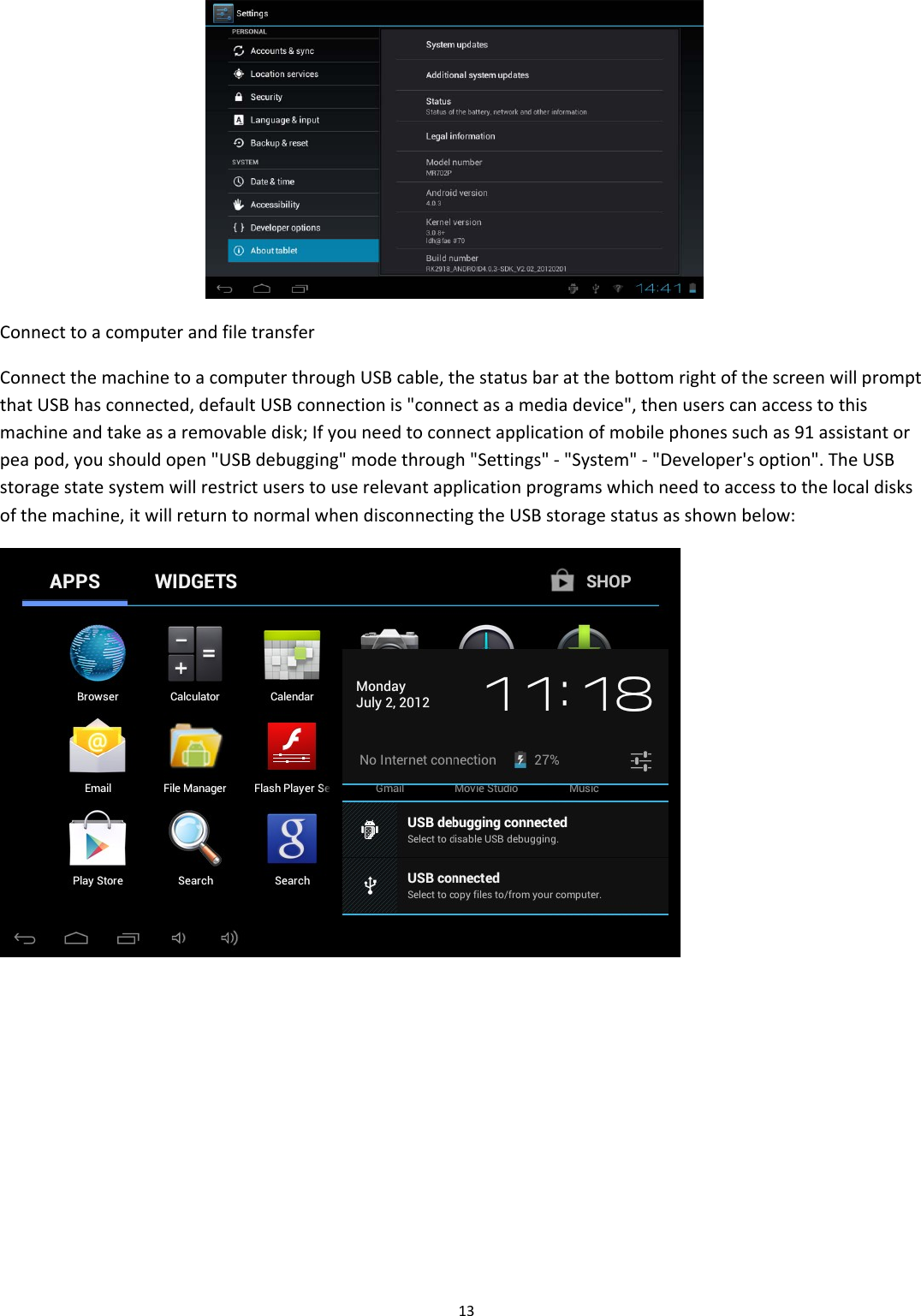

13ConnecttoacomputerandfiletransferConnectthemachinetoacomputerthroughUSBcable,thestatusbaratthebottomrightofthescreenwillpromptthatUSBhasconnected,defaultUSBconnectionis"connectasamediadevice",thenuserscanaccesstothismachineandtakeasaremovabledisk;Ifyouneedtoconnectapplicationofmobilephonessuchas91assistantorpeapod,youshouldopen"USBdebugging"modethrough"Settings"‐"System"‐"Developer'soption".TheUSBstoragestatesystemwillrestrictuserstouserelevantapplicationprogramswhichneedtoaccesstothelocaldisksofthemachine,itwillreturntonormalwhendisconnectingtheUSBstoragestatusasshownbelow: 
14FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.　 Increase the separation between the equipment and receiver.　 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.　 Consult the dealer or an e　xperienced radio/TV technician for help. 
