Garmin Canada BKM-A Speed/Cadence Monitor User Manual Manual BKM1

DynaStream Innovations Inc. Speed/Cadence Monitor Manual BKM1

Manual BKM1

Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc.
6/6/2006
1
M
OUNTING THE
BKM1
B
IKE
S
PEED
M
ONITOR ON TO A
B
ICYCLE
F
RAME

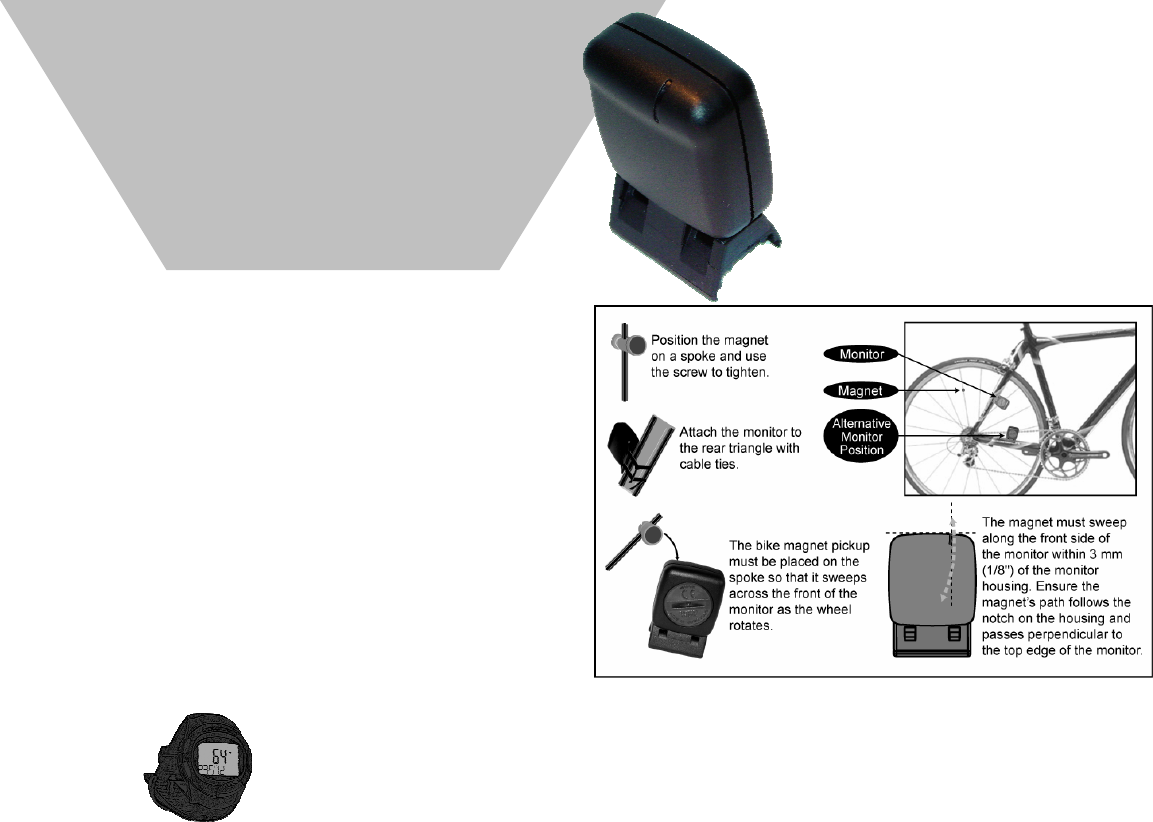

The BKM1 Bike Speed Monitor mounts easily
onto the rear triangle of a bike frame. Position
the magnet on a spoke at the same level as the
monitor.
• Attach both pieces securely. Any sliding
motion will affect accuracy.
• The bike magnet should sweep within 3 mm
of the front of the monitor housing on a path
perpendicular to the top edge of the monitor.
Any misalignment will affect accuracy.
P
AIRING THE
BKM1
B
IKE
S
PEED
M
ONITOR
WITH A
S
PORTS
M
ONITORING
W
ATCH
The BKM1 Bike Speed Monitor must “pair” with an ANT-enabled sports monitoring watch in order to
display performance data to the user. To pair your monitor:
• Bring the BKM1 Bike Speed Monitor within 10-30 inches (25-75 cm) of the sports monitoring watch.
• Ensure that you are standing at least 72 inches (183 cm) away from any other ANT-enabled bike
speed monitor. You can be in proximity to other ANT-enabled devices.
• After the BKM1 Bike Speed Monitor pairs with the sports monitoring watch, the bike icon appears on
the watch’s LCD display.
S
PECIFICATIONS
Size (max dimensions): 31 x 29 x 14 mm
Weight: 14 g
Power: Single user-replaceable CR-2032 battery
Battery life: 5 years assuming use of 1 hr/day at 20°C
Storage temp: -20°C to +70°C
Operating temp: -10°C to +50°C
User-interface: Auto on/off
RF frequency/protocol: 2.4 GHz / Dynastream ANT transmit protocol
Communication range: > 3 m (receiver dependent)
Regulatory compliance: FCC, IC, and CE ready
BKM1 Wireless
Bike Speed
Monitor
Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc.
6/6/2006
2
FCC Compliance
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could
void the product warranty and the user’s authority to operate this equipment under Part 15
regulations.

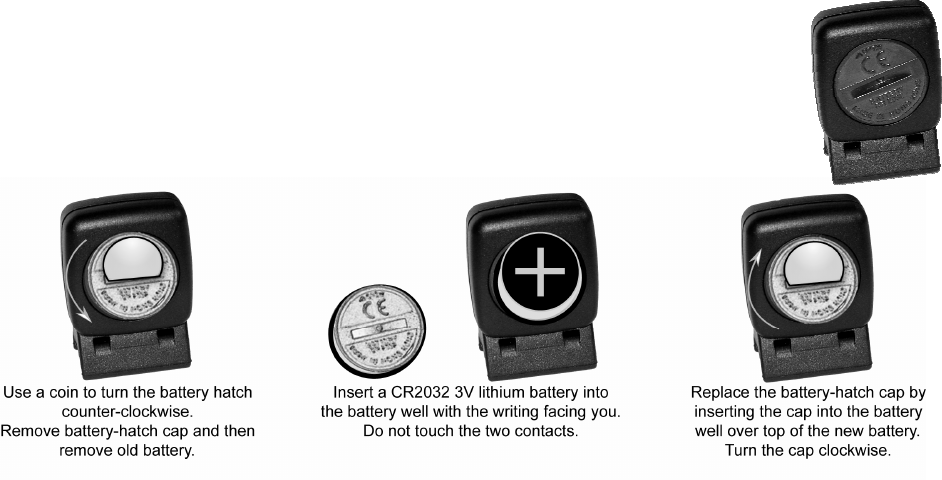

REPLACING THE BATTERY ON YOUR
BKM1 BIKE SPEED OR CADENCE MONITOR
Your BKM1 Wireless Bike Speed Monitor uses one CR2032 3V lithium battery, which is
estimated to last five years. The battery hatch is located on the back of the speed monitoring
unit.
Preliminary document not for redistribution. Product features and specifications may vary. Copyright ©2005 Dynastream Innovations Inc.
6/6/2006
3
Warranty Information
VENDOR Warranty: LIMITED WARRANTY This VENDOR product is warranted to be free from defects in materials or
workmanship for one year from the date of purchase. Within this period, VENDOR will at its sole option, repair or replace any
components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided
that the customer shall be responsible for any transportation cost. This warranty does not cover failures due to abuse, misuse, accident
or unauthorized alteration or repairs. THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED OR STATUTORY, INCLUDING ANY LIABILITY ARISING
UNDER ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR
OTHERWISE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE.
IN NO EVENT SHALL VENDOR BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM
DEFECTS IN THE PRODUCT.
Warranty does not cover the receiver or the transmitter battery, damage due to misuse, abuse, accidents or non-compliance with the
precautions; improper maintenance, c
ommercial use, cracked or broken cases.
Some jurisdictions do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you.
VENDOR retains the exclusive right to repair or replace the unit or software or offer a full refund of the purchase price at its sole
discretion. SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY. To
obtain warranty service, contact your local VENDOR authorized dealer. Or call VENDOR Customer Service at one of the numbers
shown below, for shipping instructions and an RMA tracking number. The unit should be securely packed with the tracking number
clearly written on the outside of the package. The unit should then be sent, freight charges prepaid, to any VENDOR warranty center.
A copy of the original invoice is required as the proof of purchase for warranty repairs. Products sold through online auctions are not
eligible for rebates or other special offers from VENDOR. Online auction confirmations are not accepte
d for warranty verification. To
obtain warranty service, an original or copy of the invoice from the original retailer is required. VENDOR will not replace missing
components from any package purchased through an online auction.
VENDOR CONTACT INFO HERE
