Garmin 01204 LOW POWER COMMUNICATIONS TRANSMITTER User Manual USERS MANUAL
Garmin International Inc LOW POWER COMMUNICATIONS TRANSMITTER USERS MANUAL
Garmin >
USERS MANUAL
RF Remote
owner’s manual
For Use with GPSMAP 4000/5000 Series Chartplotters
190-00856-00_0A.indd 1 6/22/2007 1:05:28 PM
© 2007 Garmin Ltd. or its subsidiaries
All rights reserved. Except as expressly provided herein, no part of this manual
may be reproduced, copied, transmitted, disseminated, downloaded or stored in
any storage medium, for any purpose without the express prior written consent
of Garmin. Garmin hereby grants permission to download a single copy of this
manual onto a hard drive or other electronic storage medium to be viewed and
to print one copy of this manual or of any revision hereto, provided that such
electronic or printed copy of this manual must contain the complete text of
this copyright notice and provided further that any unauthorized commercial
distribution of this manual or any revision hereto is strictly prohibited.
Information in this document is subject to change without notice. Garmin reserves
the right to change or improve its products and to make changes in the content
without obligation to notify any person or organization of such changes or
improvements. Visit the Garmin Web site (www.garmin.com) for current updates
and supplemental information concerning the use and operation of this and other
Garmin products.
Garmin
®
is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA
and other countries. GPSMAP
®
is a trademark of Garmin Ltd. or its subsidiaries.
This trademark may not be used without the express permission of Garmin.
Refer to your chartplotter owner’s manual or product information sheet to view
the warranty, warnings, cautions, and the software license agreement.
Visit the Garmin Web site (www.garmin.com) for current updates and
supplemental information concerning the use and operation of this and other
Garmin products.
June 2007 Part Number 190-00856-00 Rev. A Printed in Taiwan
190-00856-00_0A.indd 2 6/22/2007 1:05:28 PM
RF Remote Owner’s Manual 1
IntroductIon
IntroductIon
The 4000/5000 Series RF Remote is for use with the following
Garmin chartplotters:
GPSMAP 4008 GPSMAP 5008
GPSMAP 4012 GPSMAP 5012
GPSMAP 4208 GPSMAP 5208
GPSMAP 4212 GPSMAP 5212
The remote is used to control the 4000/5000 screens. It can be used
up to 10 meters (32 feet) from the chartplotter and does not need to
be pointed directly at your chartplotter.
The remote operates on 2 AAA batteries (not included). To replace
the batteries, use a small Phillips screwdriver to open the access
cover on the rear panel. Use alkaline batteries for best results.
•
•
•
•
190-00856-00_0A.indd 1 6/22/2007 1:05:28 PM
2 RF Remote Owner’s Manual
BasIc operatIon
BasIc operatIon

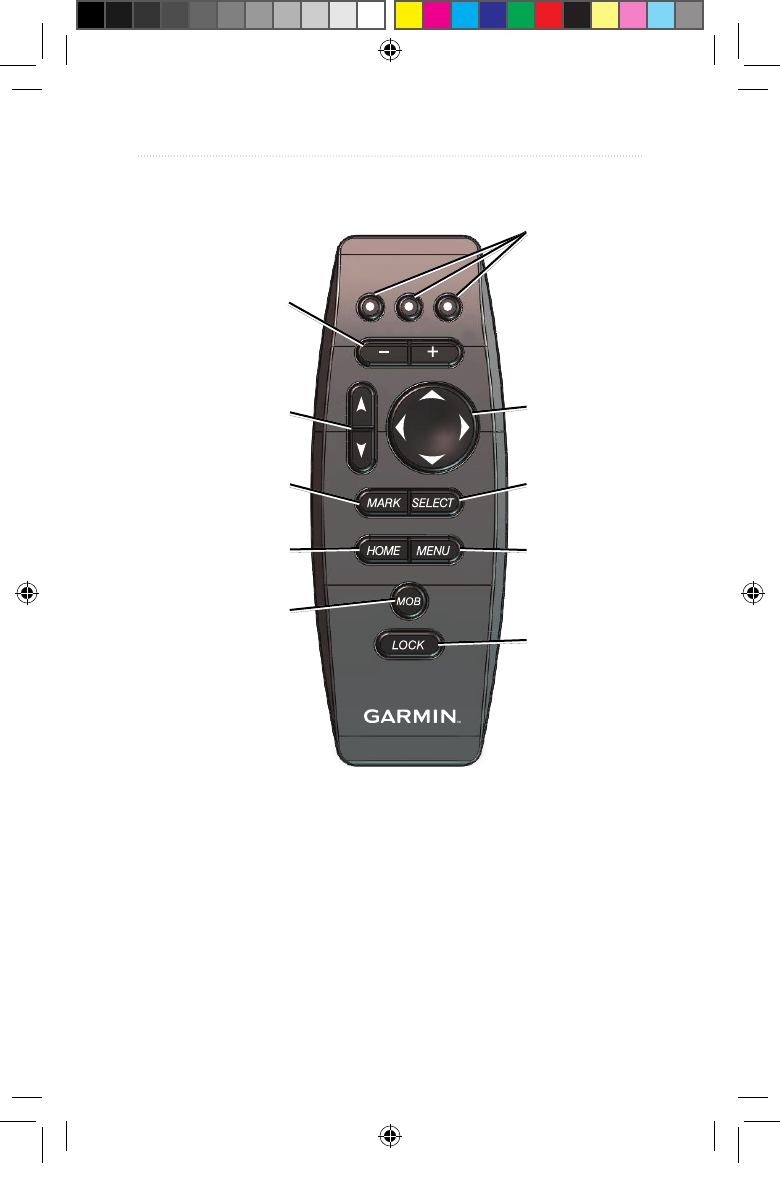

Pairing
buttons
Range (+/-)
Rocker
Up/Down
MARK
HOME
MOB
(Man OverBoard)
Select
MENU
LOCK
190-00856-00_0A.indd 2 6/22/2007 1:05:28 PM
RF Remote Owner’s Manual 3
BasIc operatIon
Description of Buttons
Pairing buttons—press and hold to pair a remote with a
chartplotter. Press and release to select a paired chartplotter.
Rocker—press up, down, left, and right to move the map pointer
and enter data.
SELECT—press to conrm messages and select items.
MENU—press to view additional options on most screens.
LOCK—press to lock all remote functions. Press again to unlock.
The remote beeps when it is locked and a button is pressed.
MOB (Man Overboard)—press to mark your current location as a
Man Overboard point.
HOME—press at any time to return to the Home screen.
MARK—press to mark your current location as a Waypoint.
Up/Down—press to highlight menu items.
Range (+/-)— press up (+) and down (-) to increase and decrease
the map zoom scale.
Getting Started
Use one of the three pairing buttons to pair your remote with a
specic chartplotter. If you have more than one chartplotter, this
allows you to separately control up to three chartplotters.
To allow wireless connections on your chartplotter:
1. From the Home screen, select Congure >
Communications > Wireless Devices.
2. Set Allow New Connections to Yes.
190-00856-00_0A.indd 3 6/22/2007 1:05:28 PM
4 RF Remote Owner’s Manual
BasIc operatIon
To pair the remote with a chartplotter:
1. Press and hold one of the Pairing Buttons until “New
Wireless Remote Found” appears on the chartplotter.

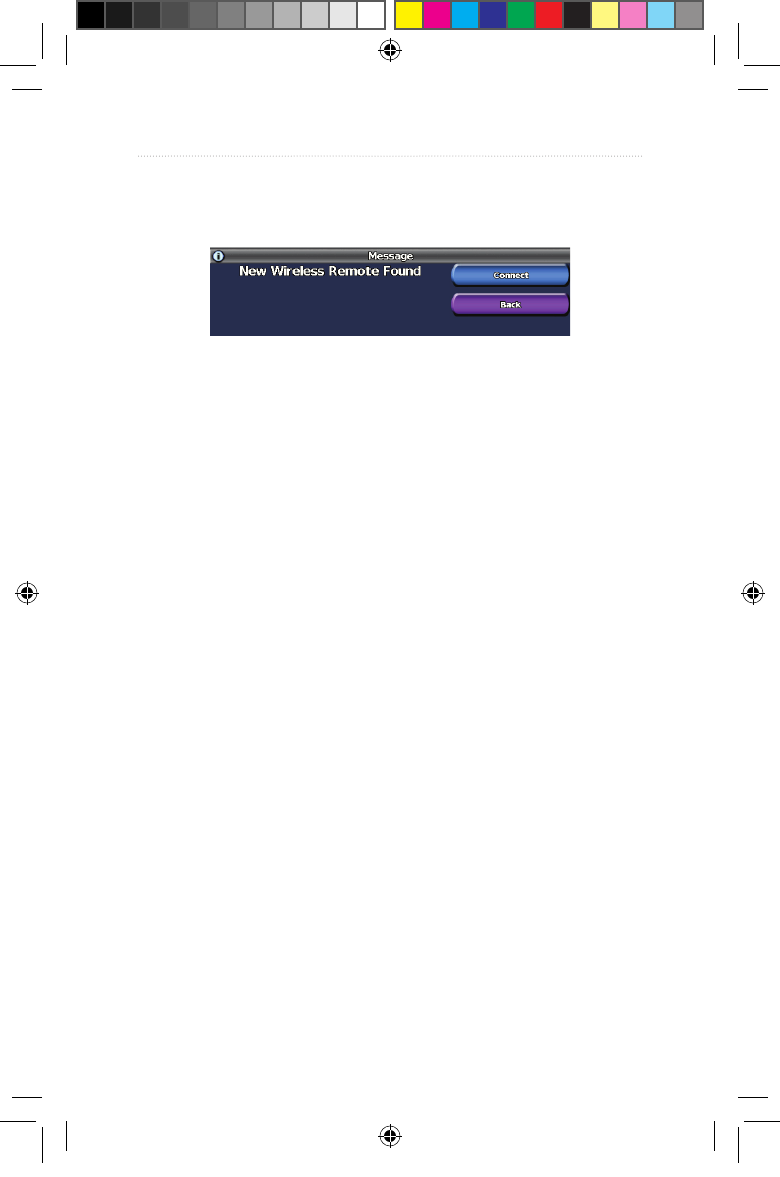

Remote Found Message
2. Select Connect on your chartplotter.
To select a chartplotter, press and release the Pairing Button that
is paired with the chartplotter you want to control.
Specications
Size: 135 mm H x 50 mm W x 25.7 mm D (5.3" x 2" x 1")
Weight: 77 g (2.7 oz), without battery
101 g (3.6 oz), with batteries
Case: waterproof to IEC 529-IPX-7
Frequency: 2.46 GHz
Max Range: 10 m (32 ft); this value may vary slightly,
depending on the installation of the chartplotter
Battery Life: 100 days when used 15 minutes per day
3 years shelf life
Operating Temperature Range: -15°C to 70°C (5°F to 158°F)
Storage Temperature Range: -40°C to 85°C
(-40°F to 185°F)
•
•
•
•
•
•
•
•
190-00856-00_0A.indd 4 6/22/2007 1:05:29 PM
RF Remote Owner’s Manual 5
specIfIcatIons
FCC Compliance
This product has been tested and found to comply with Part 15 of the FCC
interference limits for Class B digital devices FOR HOME OR OFFICE
USE. These limits are designed to provide more reasonable protection against
harmful interference in a residential installation, and are more stringent than
“outdoor” requirements.
Operation of this device is subject to the following conditions: (1) this
device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
This equipment generates, uses, and can radiate radio frequency energy and
may cause harmful interference to radio communications if not installed and
used in accordance with the instructions. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet that is on a different circuit from the
GPS unit.
Consult the dealer or an experienced radio/TV technician for help.
This product does not contain any user-serviceable parts. Repairs should
only be made by an authorized Garmin service center. Unauthorized repairs
or modications could result in permanent damage to the equipment, and
void your warranty and your authority to operate this device under Part 15
regulations.
•
•
•
•
190-00856-00_0A.indd 5 6/22/2007 1:05:29 PM
For the latest free software updates (excluding map data)
throughout the life of your Garmin products, visit the
Garmin Web site at www.garmin.com.
© 2007 Garmin Ltd. or its subsidiaries
Garmin International, Inc.
1200 East 151st Street, Olathe, Kansas 66062, USA
Garmin (Europe) Ltd.
Liberty House, Hounsdown Business Park, Southampton, Hampshire,
SO40 9RB UK
Garmin Corporation
No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan
www.garmin.com
Part Number 190-00856-00 Rev. A
190-00856-00_0A.indd 6 6/22/2007 1:05:29 PM
