Installation
Instructions
Getting Started
WARNING
See the Important Safety and Product Information
guide in the product box for product warnings and
other important information.
Mounting Considerations
•You must mount the camera in a location where it
is not submerged.
• You should mount the camera within 76 m
(250 ft.) of a chartplotter. The range depends on
your installation location and obstacles between
the camera and the chartplotter. If the camera is
out of range of the chartplotter due to obstacles or
distance, you must reposition the camera.
• You should test the camera in your desired
location before you permanently mount the
camera.
• You should mount the camera so that the cable
can be connected easily.
• You should mount the camera in a location where
it cannot be damaged by docks, pilings, or other
pieces of equipment.
• You should mount the camera so it does not
present a hazard in doorways or walkways.
• You should mount the camera in a location where
you can remove the camera.
Mounting the Camera
1Using a 3.2 mm (1/8 in.) drill bit, drill a pilot hole.
NOTE: If you are mounting the camera onto
fiberglass, it is recommended to use a
countersink bit to drill a clearance counterbore
through the top gelcoat layer only, but no deeper.
This will help to avoid cracking the gelcoat layer
when the screws are tightened.
2Using the included screw, fasten the camera
mount to the mounting surface.

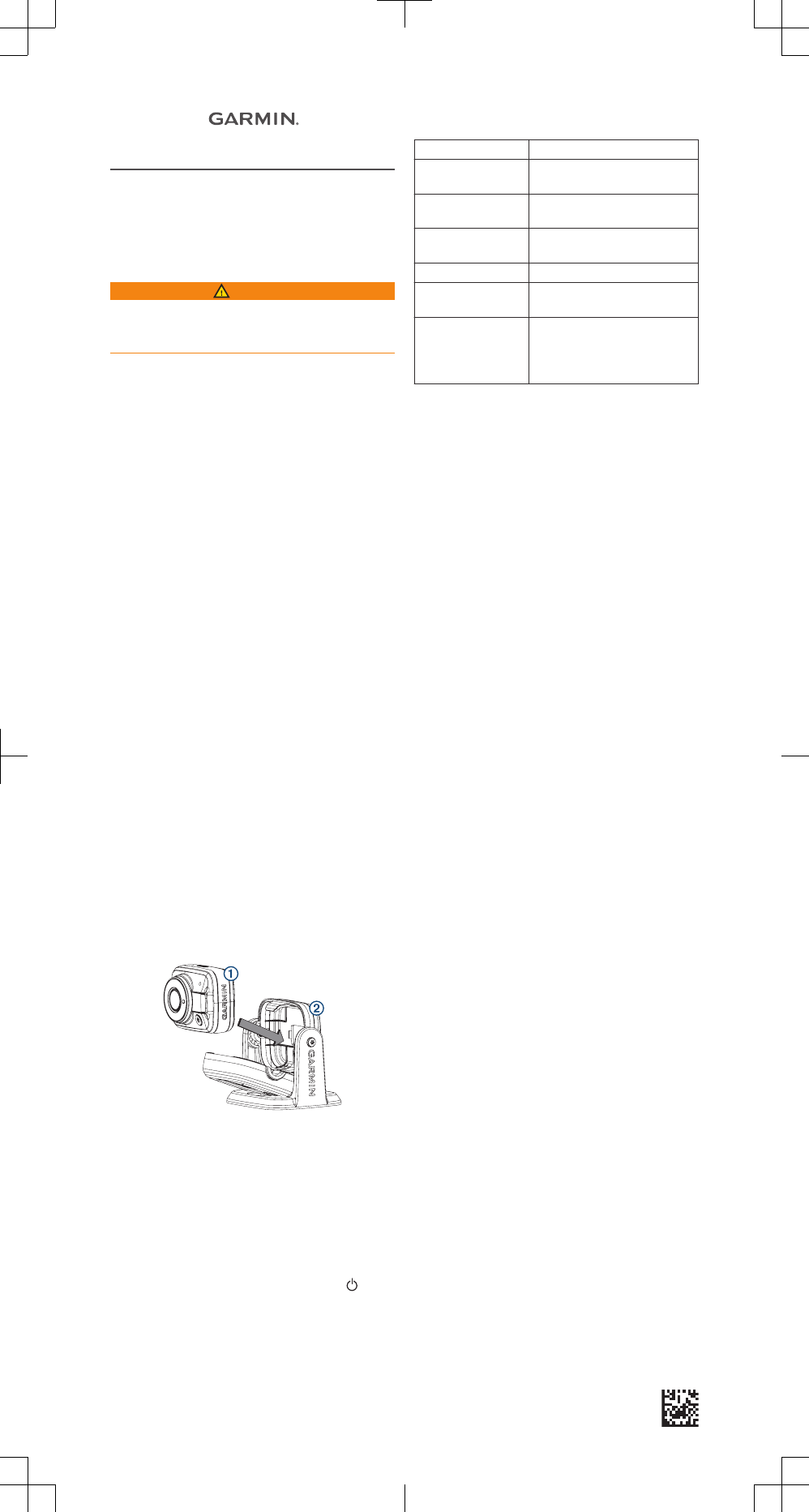

3Insert the camera À into the housing Á.
4Close the front of the housing.
5Tighten the tamper-proof side screws using the
included tool.
6Connect the power cable.
Pairing the Camera with a Garmin®
Chartplotter
1With the camera within an unobstructed 76 m
(250 ft.) of the chartplotter, quickly press three
times.
2On the chartplotter, select Settings >
Communications > Wireless Devices > Garmin
Camera > Start.
3Follow the on-screen instructions.
Specifications
Water rating* IEC 60529 IPX6/IPX7
Operating temperature
range
From -20 to 60°C (from -4 to
140°F)
Charging temperature
range
From 0 to 45°C (from 32 to
113°F)
Storage temperature
range
From to °C (from to °F)
Input voltage From 3.9 V to 6.2 V, 2 A
Compass-safe
distance
10 cm (4 in.)
Wireless frequencies
and protocols
2.4 GHz Wi‑Fi® @ 17 dBm
nominal
2.4 GHz ANT®
2.4 GHz Bluetooth® Smart
*The device withstands incidental exposure to water
of up to 1 m for up to 30 min. For more information,
go to www.garmin.com/waterrating.
