User Manual

vívofit® jr. 2
Owner’s Manual
September 2016 190-02084-00_0A
All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the
right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such
changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product.
Garmin®, the Garmin logo, and vívofit® are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Garmin Connectis a
trademark of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.
The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Other trademarks and trade
names are those of their respective owners.
M/N: A03380
Table of Contents
Introduction ..................................................................... 1
Using the Device ........................................................................ 1
Pairing with Your Smartphone .................................................... 1
vívofit jr. 2 App ........................................................................... 1
Garmin Connect ......................................................................... 1
Icons .......................................................................................... 1
Activity Goal .......................................................................... 1
Chore Progress ..................................................................... 1
Coins Earned ......................................................................... 1
Menu Options ............................................................................. 1
Using the Task Timer ............................................................ 2
Using the Stopwatch ............................................................. 2
Move Bar .................................................................................... 2
Sleep Tracking ........................................................................... 2
History .............................................................................. 2
Sending Data Manually to Your Smartphone ............................. 2
Customizing Your Device .............................................. 2
vívofit jr. 2 App Settings ............................................................. 2
Device Information .......................................................... 2
Specifications ............................................................................. 2
Software Update ........................................................................ 2
Viewing Device Information ........................................................ 2
Device Care ............................................................................... 3
Cleaning the Device .............................................................. 3
User Replaceable Batteries ........................................................ 3
Replacing the Battery ............................................................ 3
Band Replacement ..................................................................... 3
Replacing the Band ............................................................... 3
Troubleshooting .............................................................. 4
My step count does not seem accurate ...................................... 4
My device does not display the correct time............................... 4
Is my smartphone compatible with my device? .......................... 4
Pairing Multiple Mobile Devices ................................................. 4
How do I pair an additional device with the vívofit jr. 2 app? ...... 4
Resetting the Device .................................................................. 4
My device won't turn on .............................................................. 4
Appendix .......................................................................... 4
Getting More Information............................................................ 4
Software License Agreement ..................................................... 4
Index ................................................................................. 5
Table of Contents i
Introduction
See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
Always consult your physician before you begin or modify any
exercise program.

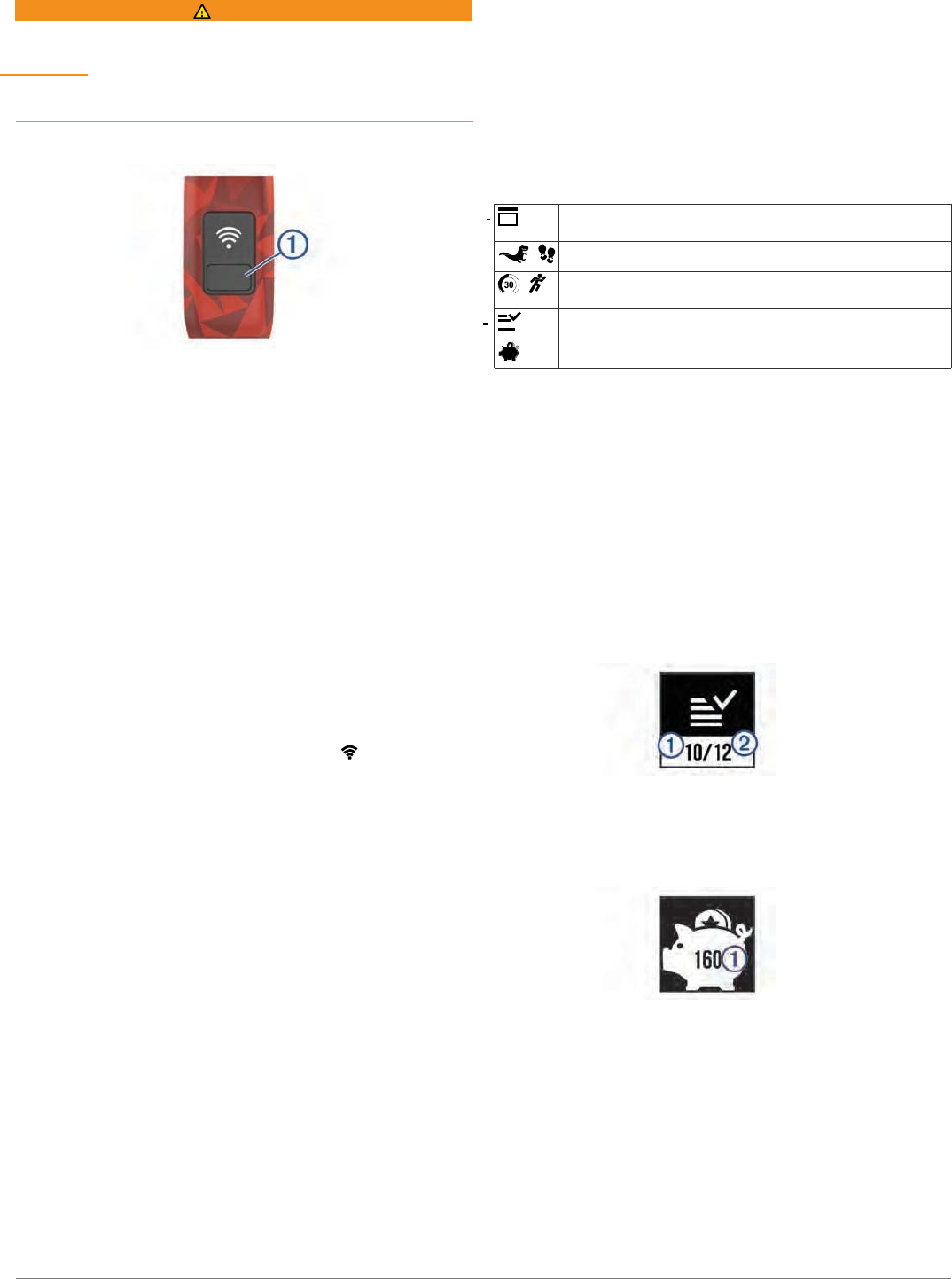

Using the Device
options.
Hold the key for 1 second to view the menu.
Hold the key for 1 second to select menu options.
Hold the key for less than 1 second to turn on the backlight.
The backlight turns off automatically.
Pairing with Your Smartphone
Before you can pair your vívofit jr. 2 device with a smartphone,
at least one parent must have a Garmin Connectaccount
(Garmin Connect, page 1).
Your device must be paired directly through the vívofit jr. 2
app, instead of from the Bluetooth® settings on your
smartphone.
1 From the app store on your smartphone, install and open
the vívofit jr. 2 app.
2 Log on using your Garmin Connect username and password.
3 Follow the instructions in the app to set up your family and
add each child.
4 On the vívofit jr. 2 device, press the key until appears.
The device enters pairing mode.
5 Follow the instructions in the app to complete the setup
process.
NOTE: You can pair up to three mobile devices, such as a
tablet or another parent's smartphone (Pairing Multiple
Mobile Devices, page 4).
vívofit jr. 2 App
The free vívofit jr. 2 app lets you track your children's daily
activity and chore progress.
Activity tracking: Allows you to track your children's daily steps
and active minutes.
Chore progress: Allows you to create and manage chores,
award coins for chore completion, and redeem coins for
custom rewards.
Adventure trail: Allows you to track your children's progress
each day they reach the 60 minute activity goal, revealing
new animals and fun facts.
Family challenges: Allows you to track steps for the whole
family when you pair a compatible Garmin® activity tracker
with each parent's account.
Settings: Allows you to customize your device and user
settings, including alert tones, icons, profile pictures, and
more.
Garmin Connect
At least one parent must have a Garmin Connect account to use
the vívofit jr. 2 app. To sign up for a free account, go to
www.garminconnect.com/start. Your Garmin Connect account
gives you the tools to track, analyze, share, and encourage each
other. Record the events of your active lifestyle and participate
in family challenges by connecting a compatible activity tracker
with your Garmin Connect account.
Icons
Icons represent the device features. You can press the key to
scroll through the features.
Activity Goal
To improve children's health, organizations such as the U.S.
Centers for Disease Control and Prevention recommend at least
60 minutes of physical activity each day. This can include
moderate intensity activity, such as brisk walking, or vigorous
intensity activity, such as running.
The device encourages children to be active by displaying their
progress toward the 60 minute daily goal.
Chore Progress
You can use the vívofit jr. 2 app to create and assign chores, as
well as update your children's chore progress. When your vívofit
jr. 2 device is connected to a smartphone, the device displays
the
updated number of chores completed
À
and assigned
Á
for the
day.
Coins Earned
You can use the vívofit jr. 2 app to award coins for chore
completion. When your vívofit jr. 2 device is connected to a
smartphone, the device displays the updated number of coins
earned
À
.
Coins can be redeemed for rewards in the vívofit jr. 2 app. You
can use the app to create custom rewards and set the number
of coins needed to redeem a reward. When you redeem coins in
the app and connect your device to a smartphone, the device
displays the updated coin total.
Menu Options
You can hold the key to view the menu, and press the key to
scroll through the options.
Introduction 1
The current date. The device updates the time and date
when you send data to your smartphone.
The total number of steps taken for the day.
The total number of active minutes for the day and progress
toward the 60 minute activity goal.
The number of chores completed and assigned for the day.
The total number of coins earned.
WARNING
Pairs your device and sends data to your Bluetooth enabled
smartphone.
Displays task timer options.
Starts the stopwatch.
Displays device information.
Returns to the previous screen.
Using the Task Timer
You can use your device to start a countdown timer.
1 Hold the key to view the menu.
2 Hold .
3 Press the key to scroll through the task timer options.
4 Hold the key to select and start a timer.
The device beeps, the timer begins counting down, and the
device sends a notification to the nearest paired smartphone.
When 3 seconds remain, the device beeps until the time
expires.
TIP: You can hold the key to stop the timer.
Task Timer Options
Your device comes preloaded with task timers that can be used
for common activities. For example, you can use the two minute
timer for brushing your teeth or any other task that takes two
minutes. Each task is timed for a preset number of minutes.
Icon Duration Example Activity
2 min. Brushing teeth
5 min. Sharing toys
10 min. Finish eating
15 min. Reading
20 min. Lesson or practice
30 min. Screen time
Using the Stopwatch
1 Hold the key to view the menu.
2 Hold .
3 Press to start the timer.
4 Press to stop the timer.
5 If necessary, press to reset the timer.
6 Hold the key to exit the timer.
Move Bar
Sitting for prolonged periods of time can trigger undesirable
metabolic state changes. The move bar reminds you to keep
moving. After one hour of inactivity, the move bar
À
appears.
Additional segments
Á
appear after every 15 minutes of
inactivity.
You can reset the move bar by walking a short distance.
Sleep Tracking
While you are sleeping, the device monitors your movement.
You can set your normal sleep hours in the vívofit jr. 2 app
settings. You can view your sleep statistics in the vívofit jr. 2
app.
History
Your device keeps track of your daily activity and sleep
statistics. This history can be sent to the vívofit jr. 2 app.
Your device stores your activity data for up to 4 weeks. When
the data storage is full, the device deletes the oldest files to
make room for new data.
Sending Data Manually to Your Smartphone
Your device periodically sends data automatically to the nearest
paired Bluetooth device. You can also manually send data at
any time. This allows you to view activities, chores, and coins in
the vívofit jr. 2 app.
1 Bring the device near your smartphone.
2 Open the vívofit jr. 2 app.
3 On the vívofit jr. 2 device, hold the key to view the menu.
4 Hold .
appears, and the red move bar is in motion while the
device is sending data.
5 On your smartphone, swipe down to refresh the app.
Customizing Your Device
vívofit jr. 2 App Settings
You can customize your device, user, and app settings in the
vívofit jr. 2 app.
From the vívofit jr. 2 app, select .
Children and device settings: Allows you to add children, pair
additional devices, and customize device settings. For
example, you can turn on or off alert tones, change the steps
icon, and customize the child's display name.
Family settings: Allows you to customize your family settings.
For example, you can edit your family name, invite additional
parents or guardians, and set administrative privileges.
App settings: Allows you to customize app settings. For
example, you can reset your passcode and set notification
preferences.
Device Information
Specifications
Battery type User-replaceable CR1632 battery
Battery life Up to 1 yr.
Operating temperature range From -10º to 60ºC (from 14º to 140ºF)
Radio frequency/protocol Bluetooth Smart wireless technology
Water rating 5 ATM*
*The device withstands pressure equivalent to a depth of 50 m.
For more information, go to www.garmin.com/waterrating.
Software Update
When a software update is available, your device automatically
downloads the update when you send data to your smartphone
(Sending Data Manually to Your Smartphone, page 2).
A progress bar appears during the update process. When the
update is complete, your device restarts.
Viewing Device Information
You can view the unit ID and software version.
1 Hold the key to view the menu.
2 Hold .
2 History
Device Care
Avoid extreme shock and harsh treatment, because it can
degrade the life of the product.
Avoid pressing the keys under water.
Do not use a sharp object to clean the device.
Avoid chemical cleaners, solvents, and insect repellents that can
damage plastic components and finishes.
Thoroughly rinse the device with fresh water after exposure to
chlorine, salt water, sunscreen, cosmetics, alcohol, or other
harsh chemicals. Prolonged exposure to these substances can
damage the case.
Do not place in high temperature environments, such as a
clothes dryer.
Do not store the device where prolonged exposure to extreme
temperatures can occur, because it can cause permanent
damage.
Cleaning the Device
1 Wipe the device using a cloth dampened with a mild
detergent solution.
2 Wipe it dry.
After cleaning, allow the device to dry completely.
TIP: For more information, go to www.garmin.com/fitandcare.
User Replaceable Batteries
Do not use a sharp object to remove batteries.
Keep the battery away from children.
Never put batteries in mouth. If swallowed, contact your
physician or local poison control center.
Replaceable coin cell batteries may contain perchlorate
material. Special handling may apply. See www.dtsc.ca.gov
/hazardouswaste/perchlorate.
Contact your local waste disposal department to properly
recycle the batteries.

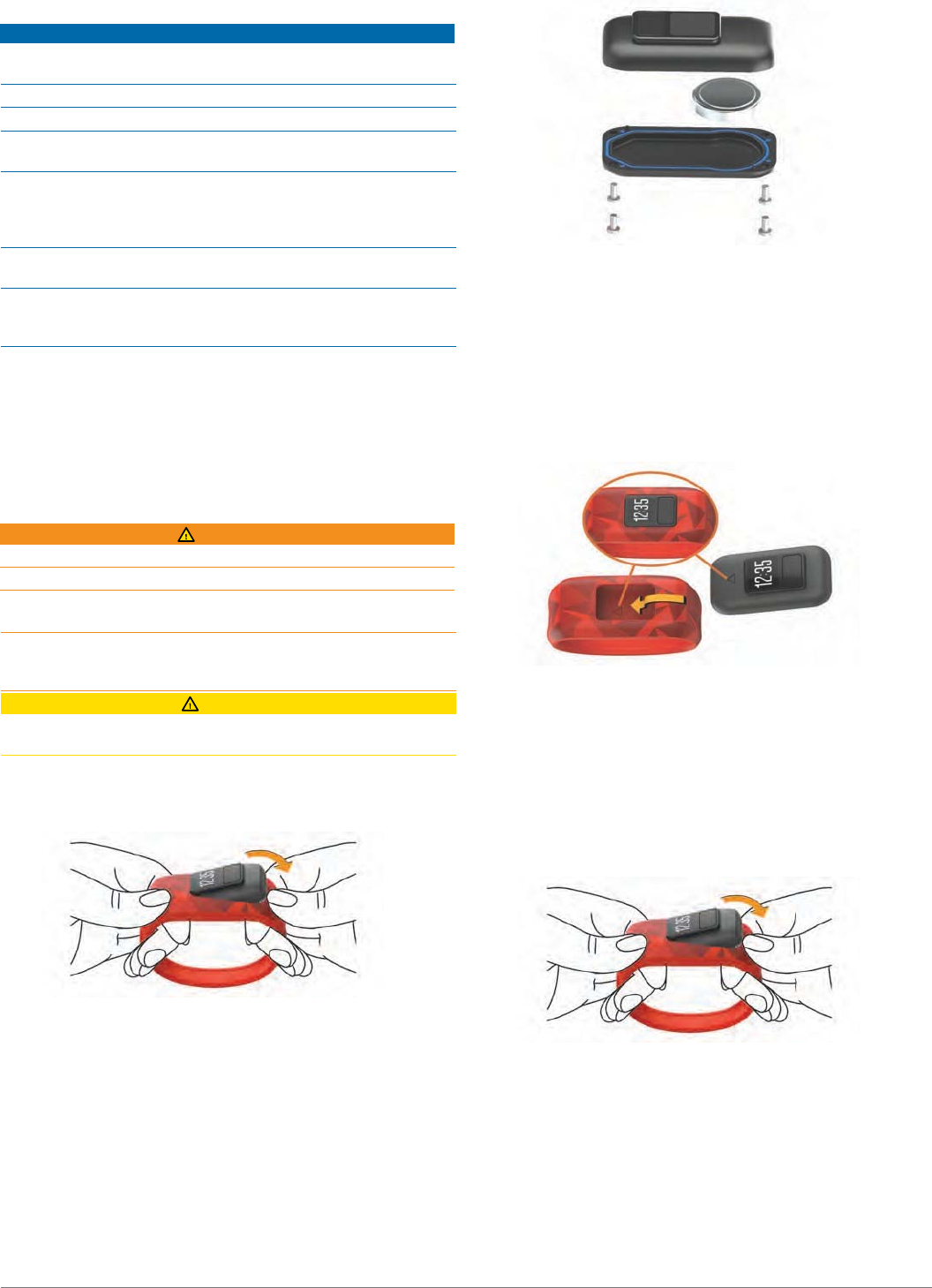

Replacing the Battery
The device uses one CR1632 battery.
1 Remove the device from the band.
2 Use a small Phillips screwdriver to remove the four screws on
the back of the device.
3 Remove the rear case and battery.
4 Insert the new battery with the negative side facing the inside
of the front cover.
5 Verify the gasket is not damaged and that it is fully seated
in the rear case.
6 Replace the rear case and the four screws.
7 Tighten the four screws equally and firmly.
8 Insert the device into the flexible silicone band by stretching
the band material around the device.
The arrow on the device must be aligned with the arrow
inside the band.
Band Replacement
The band is designed to fit most children ages 4 to 9. If the band
is too small, you can contact Garmin customer support for
information about optional accessories and replacement parts.
The removable device is compatible with vívofit 3 bands.

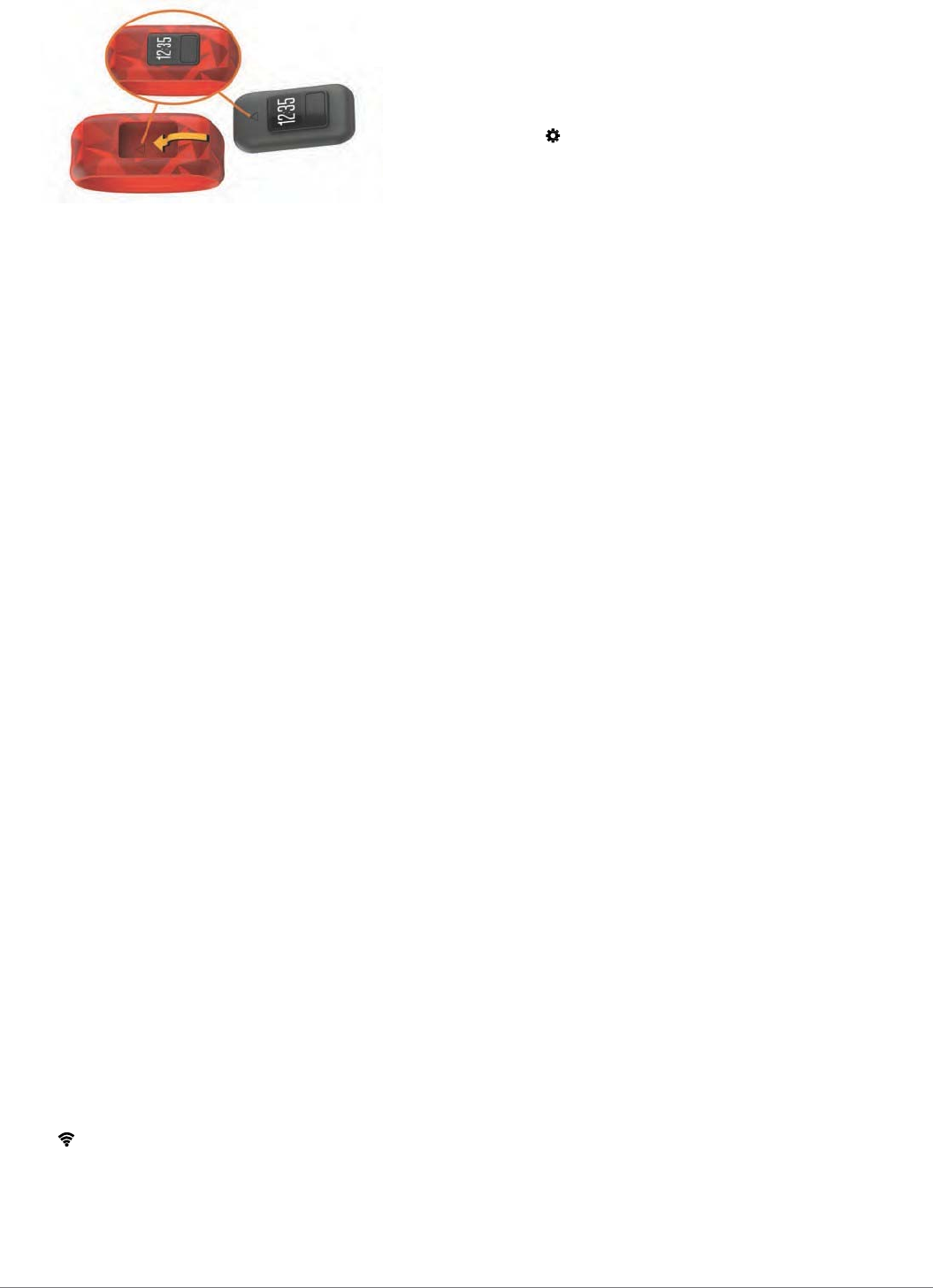

Replacing the Band
Go to buy.garmin.com, or contact your Garmin dealer for
information about optional accessories.
1 Remove the device from the band.
2 Insert the device into the flexible silicone band by stretching
the band material around the device.
The arrow on the device must be aligned with the arrow
inside the band.
Device Information 3
CAUTION
WARNING
NOTICE
Troubleshooting
My step count does not seem accurate
If your step count does not seem accurate, you can try these
tips.
Wear the device on your non-dominant wrist.
Carry the device in your pocket when actively using your
hands or arms only.
NOTE: The device may interpret some repetitive motions,
such as clapping your hands or brushing your teeth, as steps.
My device does not display the correct time
The device updates the time and date when you send data to
your smartphone. You should manually send data to your
smartphone to receive the correct time when you change time
zones, and to update for daylight saving time.
1 Confirm that your smartphone or mobile device displays
the correct local time.
2 Send data to your smartphone (Sending Data Manually to
Your Smartphone, page 2).
The time and date are updated automatically.
Is my smartphone compatible with my
device?
The vívofit jr. 2 device is compatible with smartphones using
Bluetooth Smart wireless technology.
Go to www.garmin.com/ble for compatibility information.
Pairing Multiple Mobile Devices
After you complete the initial setup (Pairing with Your
Smartphone, page 1), you can pair your vívofit jr. 2 device with
up to two additional mobile devices, such as a tablet or another
parent's smartphone.
1 From the app store on your smartphone or tablet, install and
open the vívofit jr. 2 app.
2 Log on using your Garmin Connect username and password.
3 Follow the instructions in the app to join an existing family.
4 Bring your mobile device within 3 m (10 ft.) of your vívofit jr.
2 device.
NOTE: Stay 10 m (33 ft.) away from other mobile devices
while pairing.
5 If necessary, turn off Bluetooth wireless technology on
previously paired mobile devices.
6 On the vívofit jr. 2 device, hold the key to view the menu.
7 Hold to enter pairing mode.
8 Follow the instructions in the app to complete the pairing
process.
9 If necessary, repeat steps 1 through 8 for each
additional mobile device.
How do I pair an additional device with the
vívofit jr. 2 app?
If you have already paired a device with the vívofit jr. 2 app, you
can add a new device from the app menu. You can pair up to
eight devices.
1 Open the vívofit jr. 2 app.
2
Select
.
3 Follow the on-screen instructions.
Resetting the Device
If the device stops responding, you may need to reset it. This
does not erase any of your data.
NOTE: Resetting the device also resets the move bar.
1 Hold the device key for 10 seconds until the screen turns off.
2 Release the device key.
The device resets, and the screen turns on.
My device won't turn on
If your device no longer turns on, you may need to replace the
batteries.
Go to (Replacing the Battery, page 3).
Appendix
Getting More Information
• Go to www.garmin.com/intosports.
• Go to www.garmin.com/learningcenter.
• Go to http://buy.garmin.com, or contact your Garmin dealer
for information about optional accessories and replacement
parts.
Software License Agreement
BY USING THE DEVICE, YOU AGREE TO BE BOUND BY THE
TERMS AND CONDITIONS OF THE FOLLOWING SOFTWARE
LICENSE AGREEMENT. PLEASE READ THIS AGREEMENT
CAREFULLY.
Garmin Ltd. and its subsidiaries (“Garmin”) grant you a limited
license to use the software embedded in this device (the
“Software”) in binary executable form in the normal operation of
the product. Title, ownership rights, and intellectual property
rights in and to the Software remain in Garmin and/or its third-
party providers.
You acknowledge that the Software is the property of Garmin
and/or its third-party providers and is protected under the United
States of America copyright laws and international copyright
treaties. You further acknowledge that the structure,
organization, and code of the Software, for which source code is
not provided, are valuable trade secrets of Garmin and/or its
third-party providers and that the Software in source code form
remains a valuable trade secret of Garmin and/or its third-party
providers. You agree not to decompile, disassemble, modify,
reverse assemble, reverse engineer, or reduce to human
readable form the Software or any part thereof or create any
derivative works based on the Software. You agree not to export
or re-export the Software to any country in violation of the export
control laws of the United States of America or the export control
laws of any other applicable country.
4 Troubleshooting
Index
A
accessories 4
activity tracking 1, 2
apps 1
B
bands 3
battery, replacing 3
Bluetooth technology 4
C
cleaning the device 3
customizing the device 2
D
data 1
transferring 1
G
Garmin Connect 1, 2
goals 1
H
history 2
I
icons 1, 2
K
keys 1
M
menu 1
P
pairing, smartphone 4
R
replacement parts 3
replacing the battery 3
resetting the device 4
S
settings 2
sleep mode 2
smartphone 1, 2, 4
pairing 4
software
updating 2 version
2
software license agreement 4 specifications
2
stopwatch 2
T
time of day 4 timer
2 troubleshooting 4
U
unit ID 2
updates, software 2
Index 5
www.garmin.com/support
1800 235 822 +43 (0) 820 220230
+ 32 2 672 52 54 0800 770 4960
1-866-429-9296
+385 1 5508 272
+385 1 5508 271
+420 221 985466
+420 221 985465 + 45 4810 5050
+ 358 9 6937 9758 + 331 55 69 33 99
+ 39 02 36 699699 (+52) 001-855-792-7671
0800 427 652 0800 0233937
+47 815 69 555 00800 4412 454
+44 2380 662 915
+35 1214 447 460 +386 4 27 92 500
0861 GARMIN (427 646)
+27 (0)11 251 9800 +34 93 275 44 97
+ 46 7744 52020 +886 2 2642-9199 ext 2
0808 238 0000
+44 870 850 1242
+49 (0) 89 858364880
zum Ortstarif - Mobilfunk
kann abweichen
913-397-8200
1-800-800-1020
© 2016 Garmin Ltd. or its subsidiaries
Part Information
GPN:
190-02084-00
Description: vivofit JR Owner's Manual (EN-US)
Part Type: Manuals / Printed Literature
Lifecycle Phase: Production
Rev:
A
IR#083889
Item Attribution
Document Review Required:
Item Notes:
Preferred Rating:
ESD Sensitive:
Moisture Sensitive:
Limited Shelf Life:
Magnetic Sensitive:
Item Attribution 1 of 1 Item: 190-02084-00 Rev:A IR#083889 Creation Date: 09-Sep-2016 05:05 PM CST

Navigation menu
